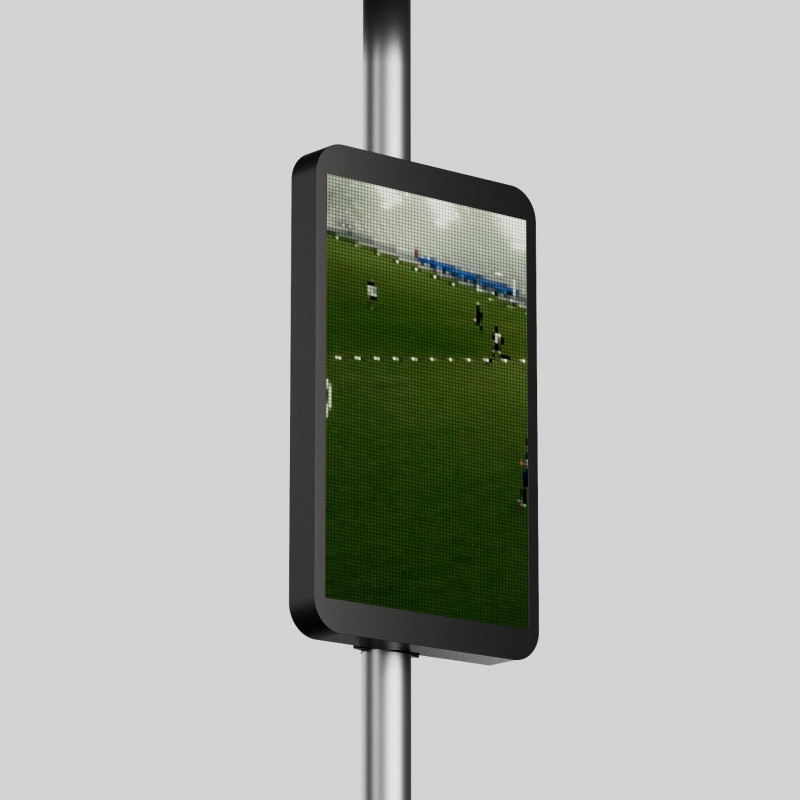

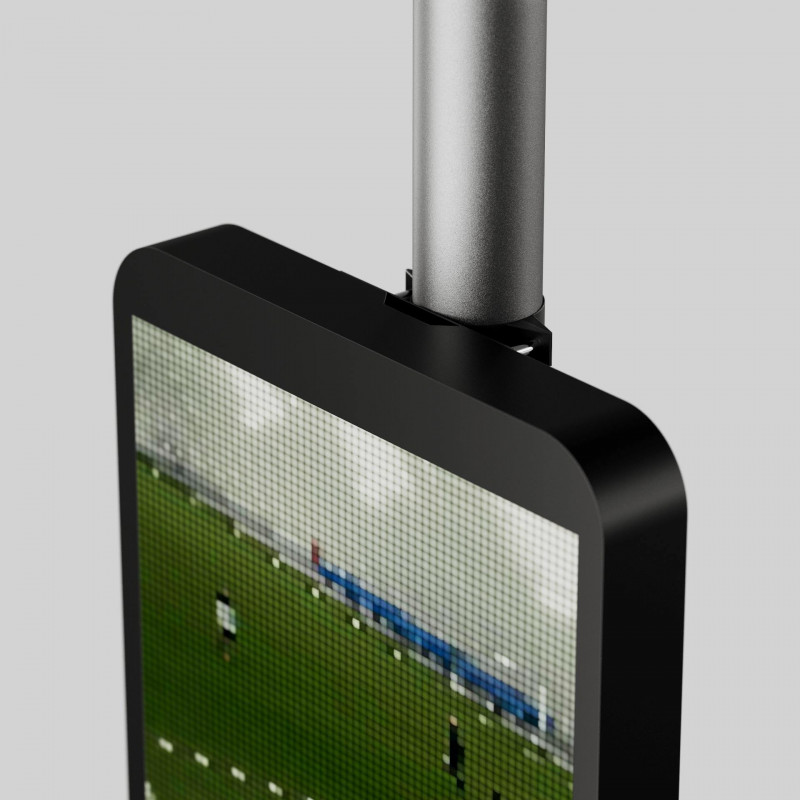

special display for light poles

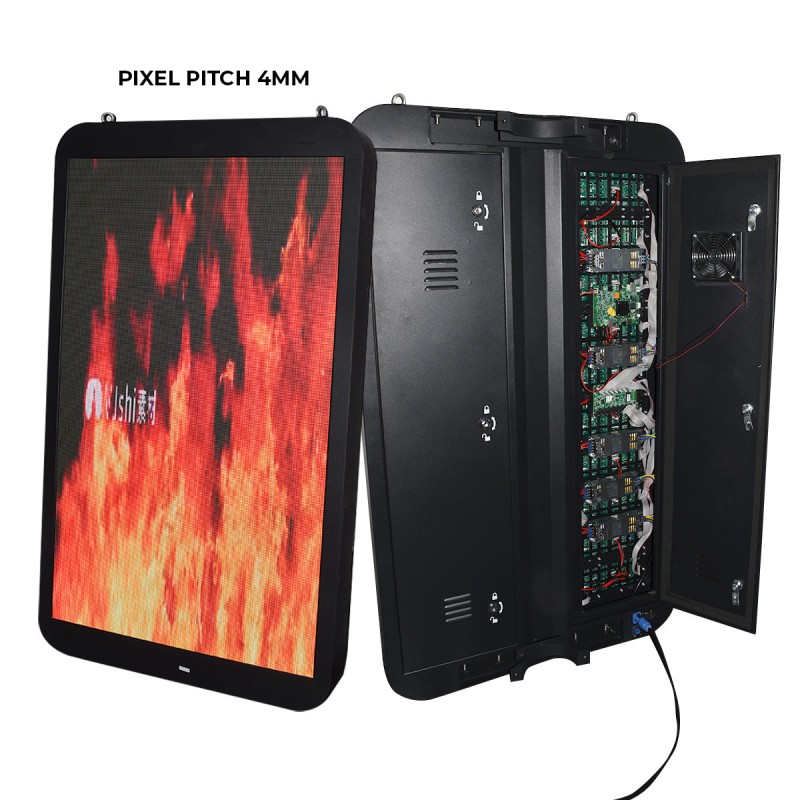

front and rear

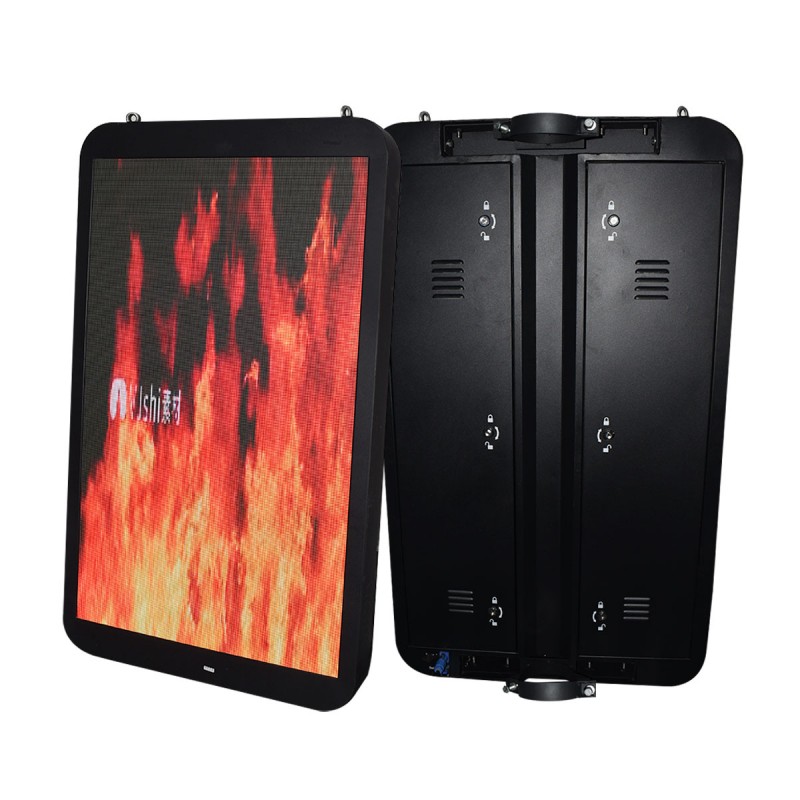

front and rear of the display

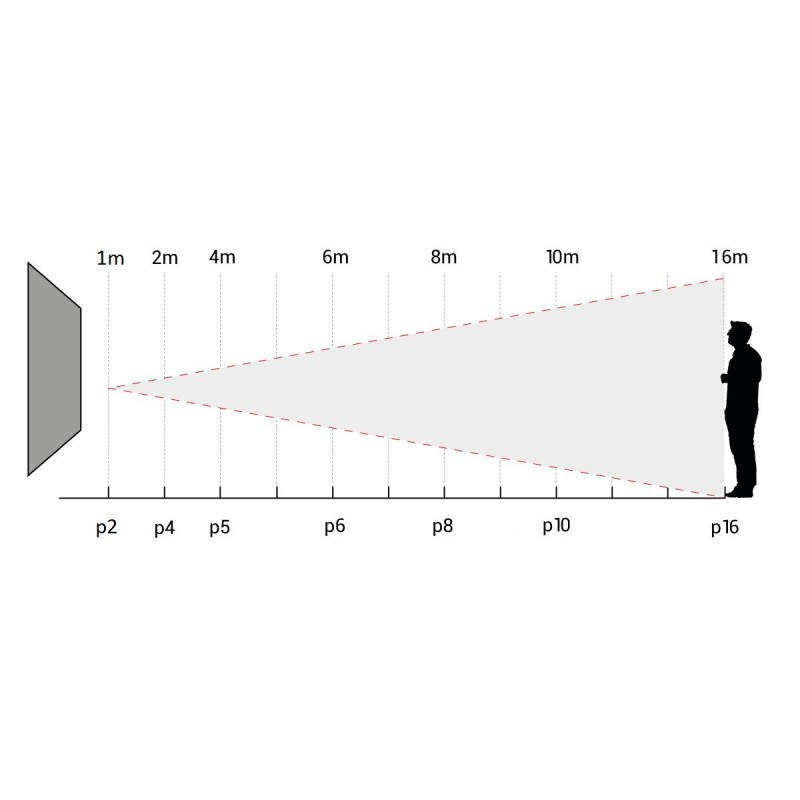

Distance

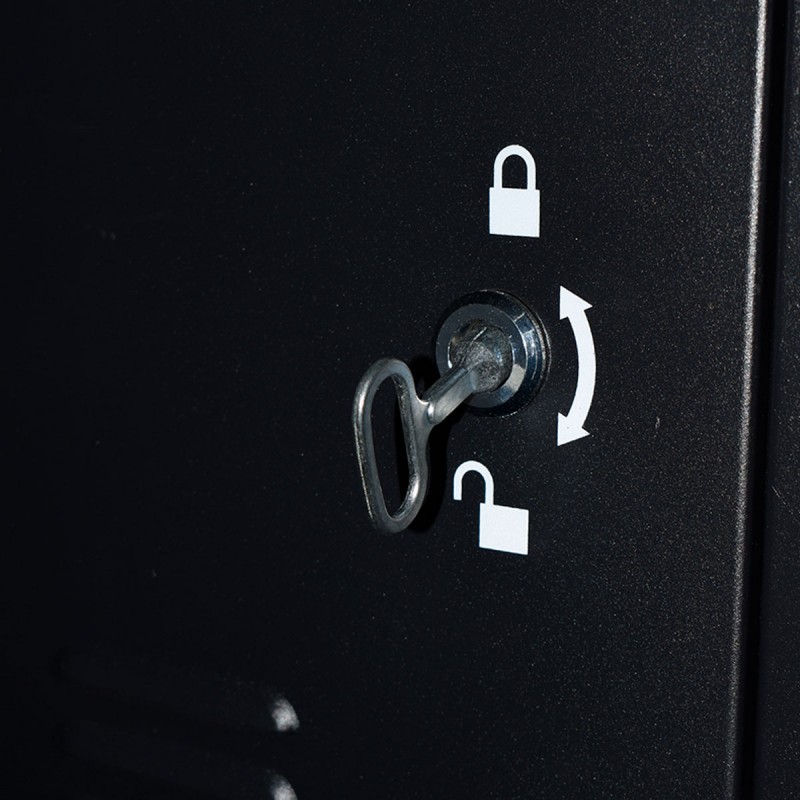

lock display

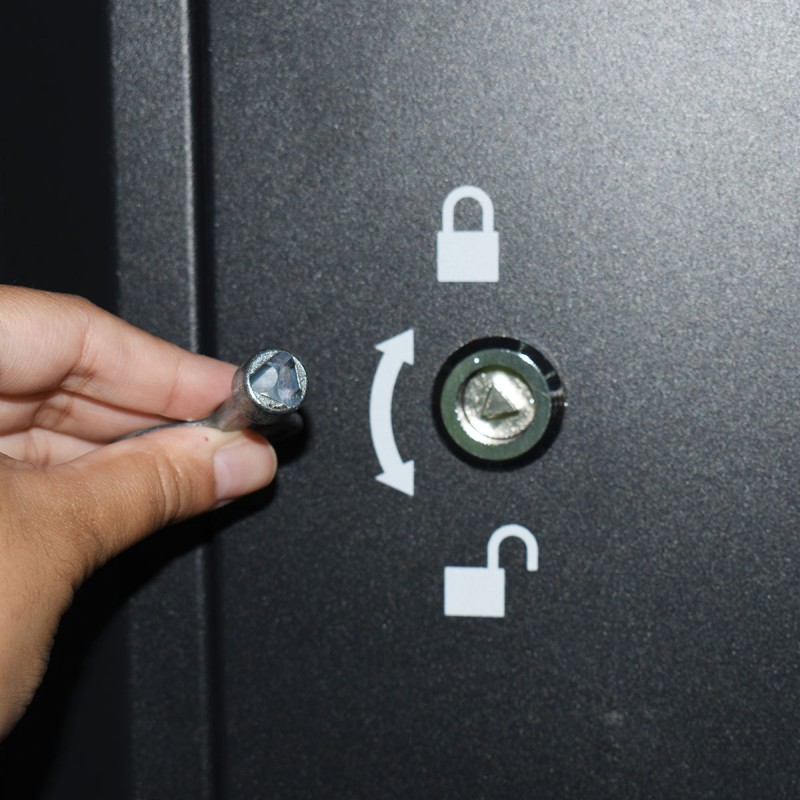

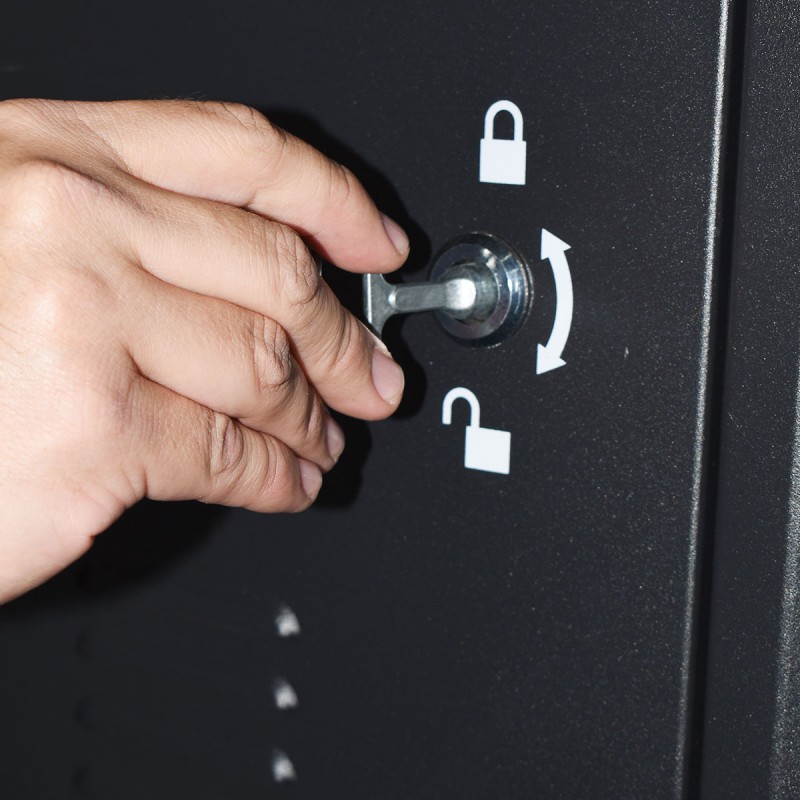

key for display lock
lock display 1

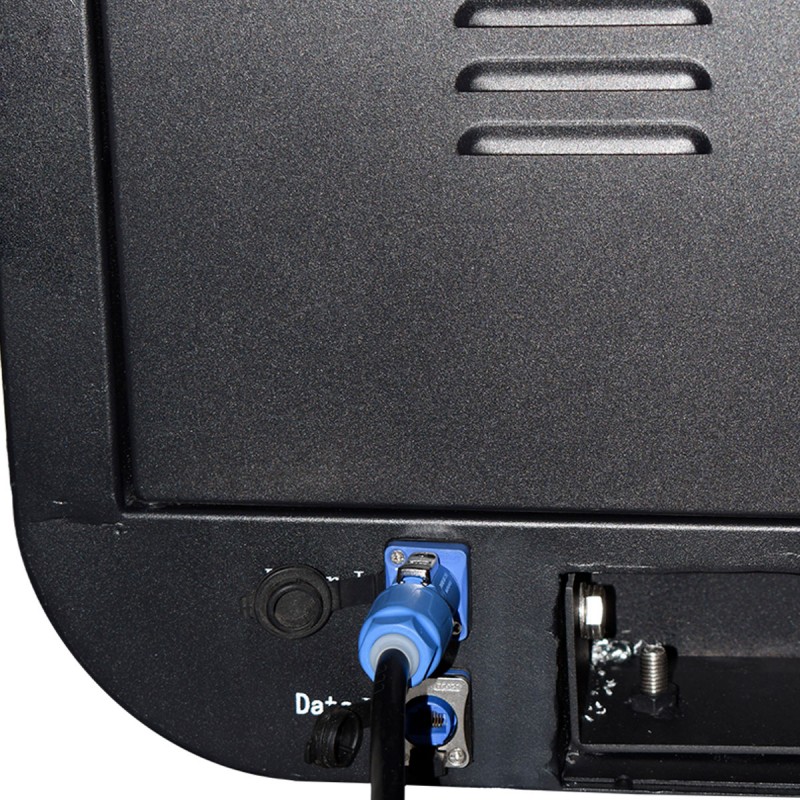

display power cable

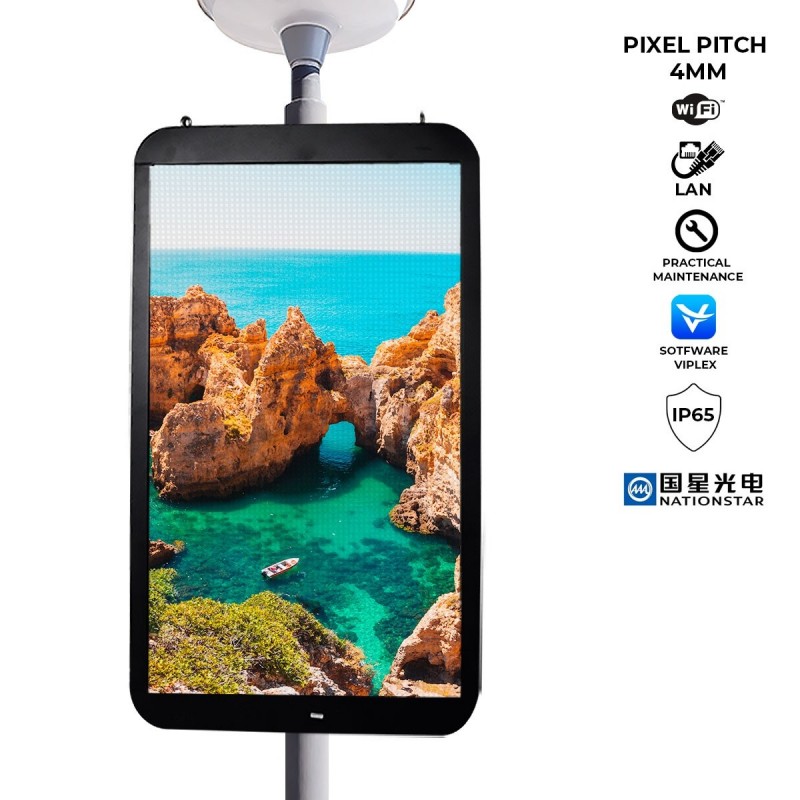

pixel pitch 4mm
advertising displays
special advertising displays for light poles

LED advertising display for lighting poles - Outdoor use - P4mm - 148 x 86,5cm

SKU:DP4T1
Has superado el límite de unidades
In stock 10 units
Data sheet

Outdoor LED advertising display specially designed to be installed on poles or lampposts.

It has an original design and incorporates the most innovative technology in the market that allows to reproduce images in high definition, guaranteeing a great visibility and visual impact, even at long distances.

High brightness and resolution, image sharpness, high resistance, durability and minimum consumption are some of its main features.

Thanks to its IP65 degree of protection, this display is totally resistant to rain, dust and unfavorable weather conditions.

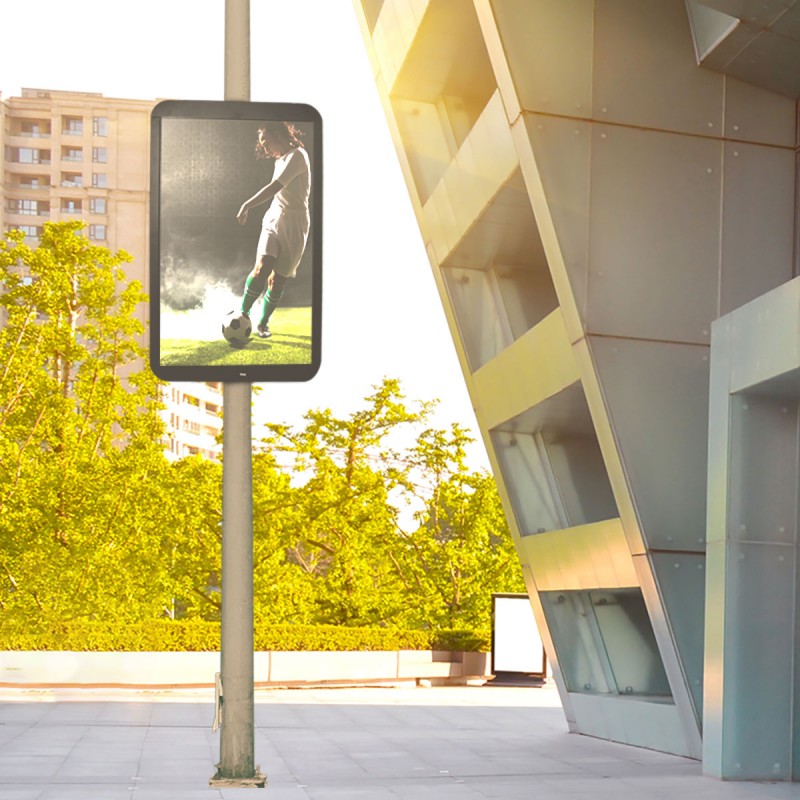

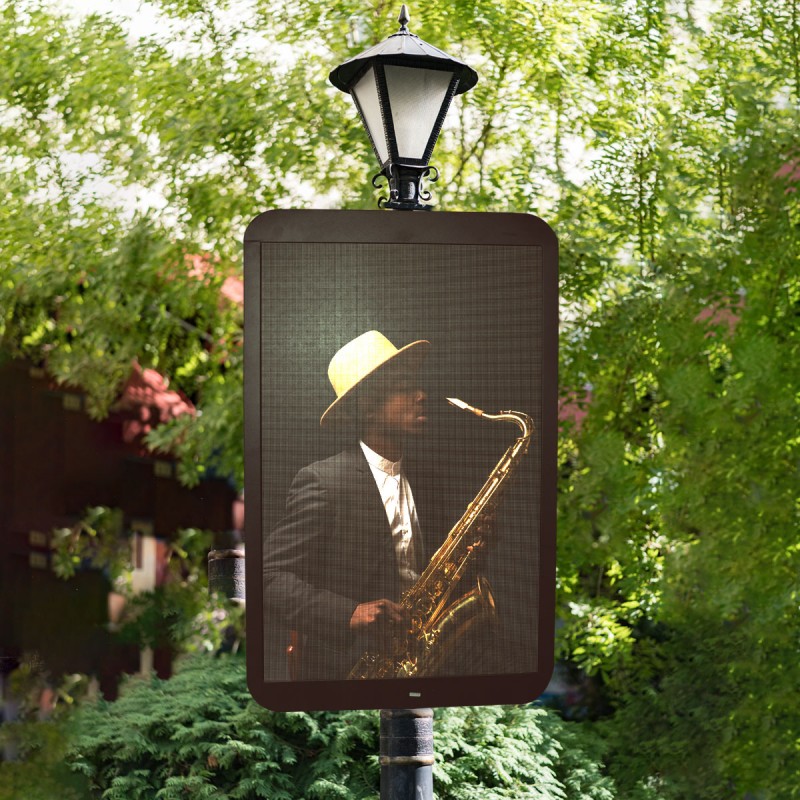

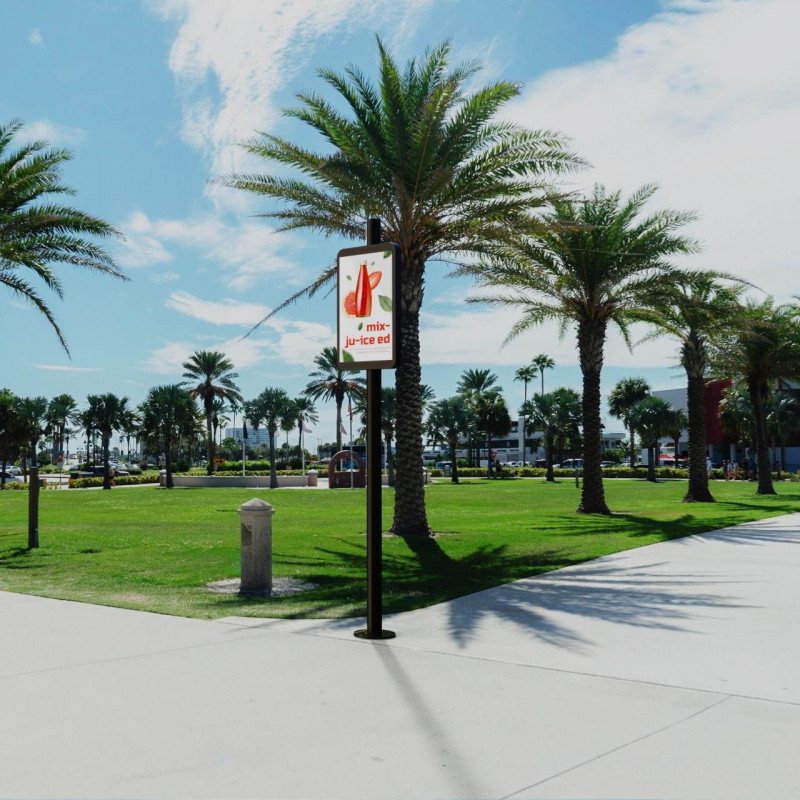

When installed at the top of the pole, it can be oriented to gain maximum visibility. Places of installation: public roads, exhibition centers, shopping malls, bus or train stations, airports, gymnasiums or markets.

Product subject to special shipping conditions: +100€ +VAT- No additional discounts or coupons allowed.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED advertising display for light poles - Outdoor Use

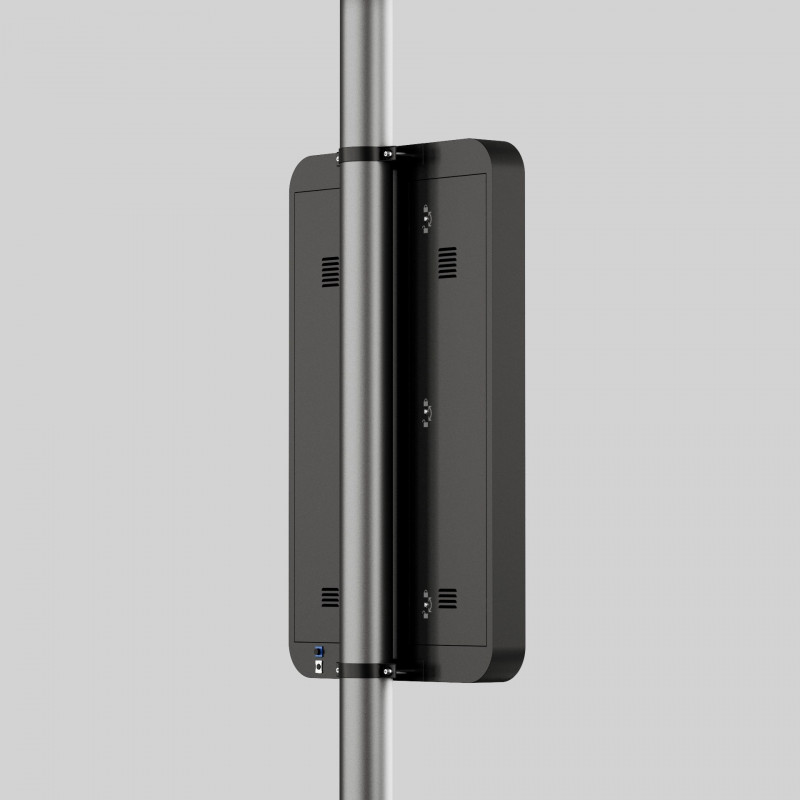

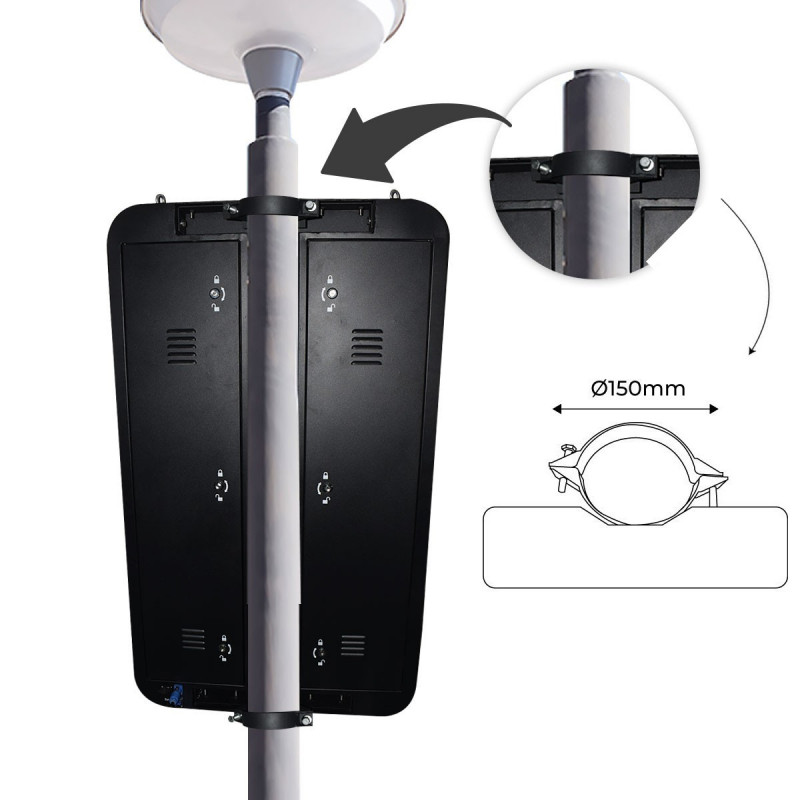

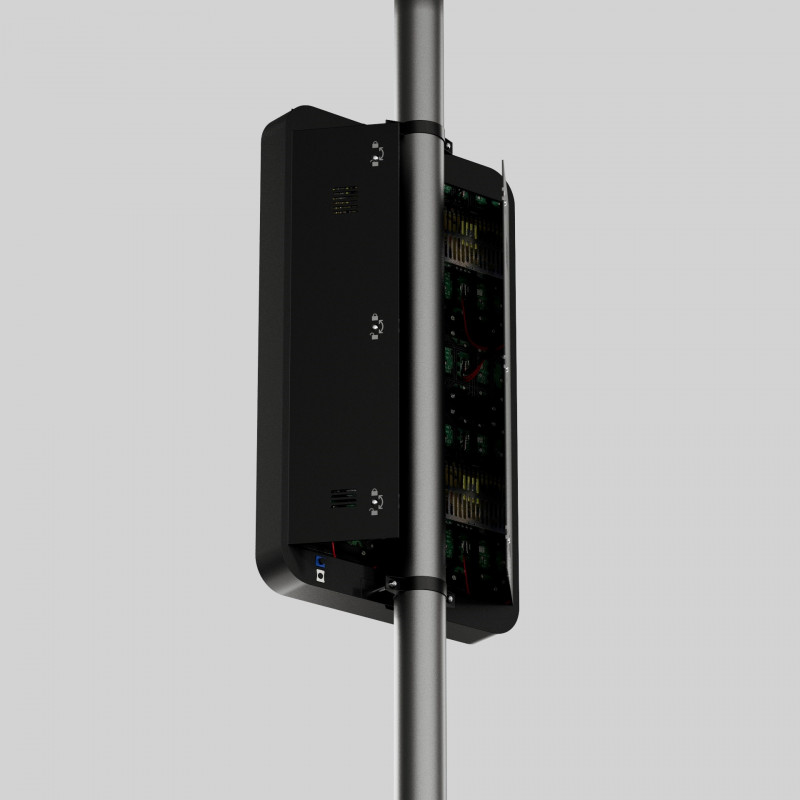

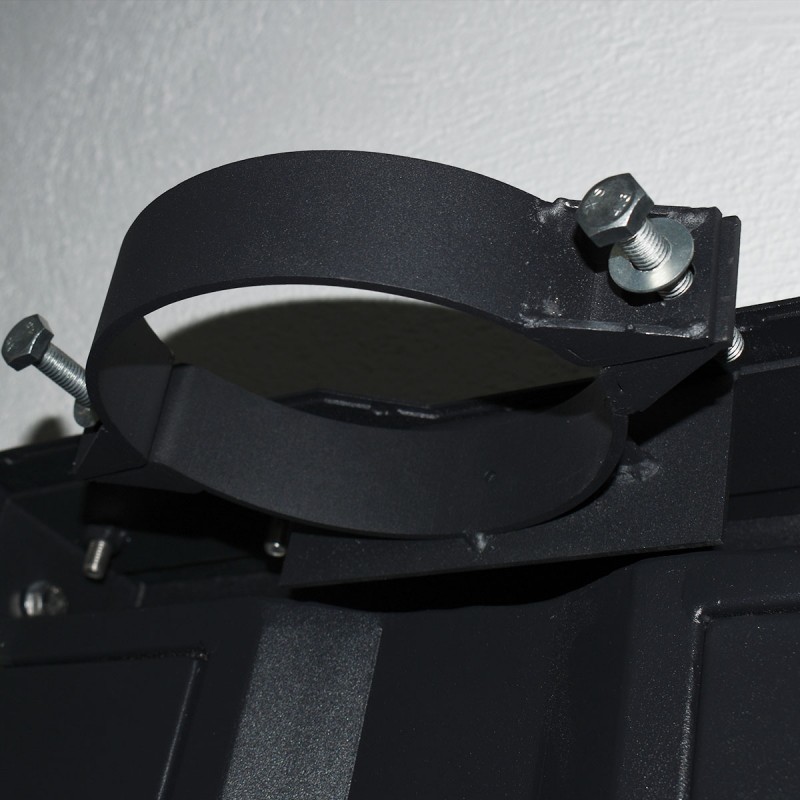

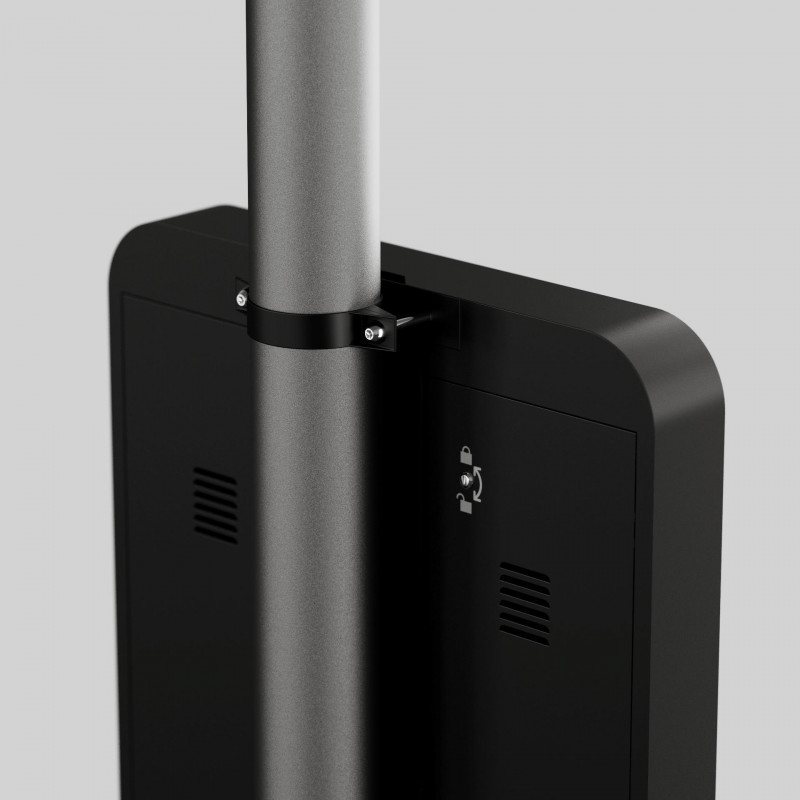

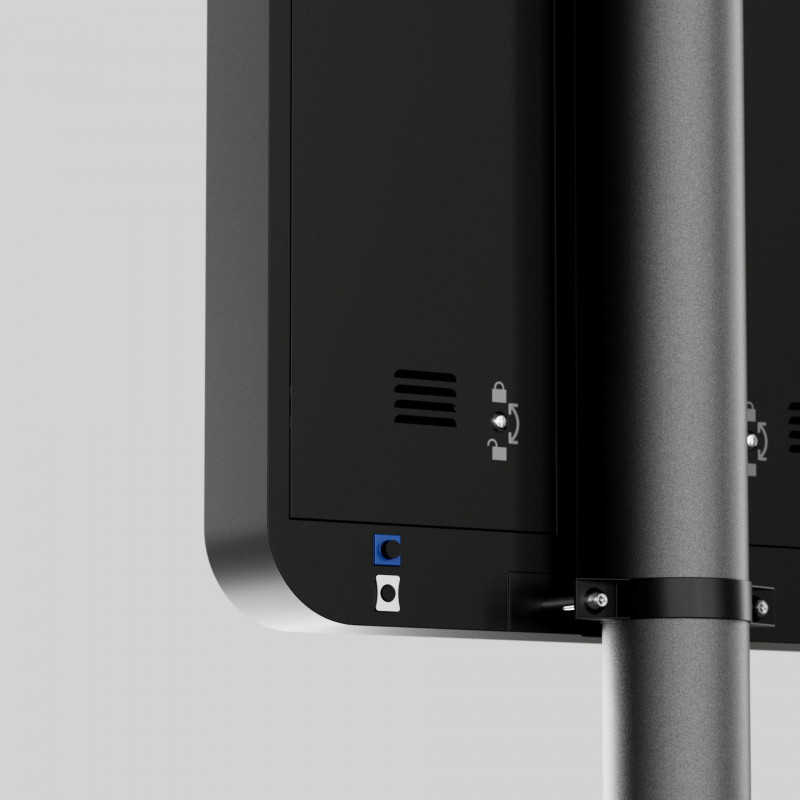

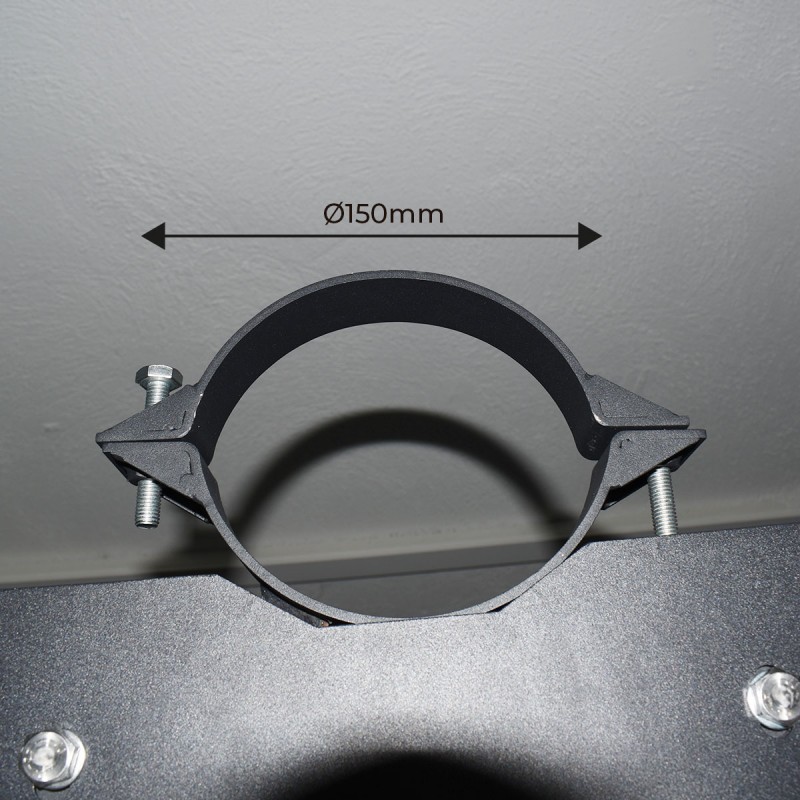

This innovative display has an anchoring system with adjustable clamps for installation on poles and lampposts of all types.

It is built with high quality materials that guarantee a long service life. Its waterproof metal housing, with an IP65 degree of protection, allows it to withstand adverse weather conditions and temperatures ranging from -20° to 60° C.

High-quality display and innovative design

With an attractive and innovative design in the shape of a smartphone, this advertising display will undoubtedly catch all eyes, achieving a great visual impact.

It has a high resolution screen of 192x320 dots, which guarantees an excellent image quality with a perfect balance of color and brightness.

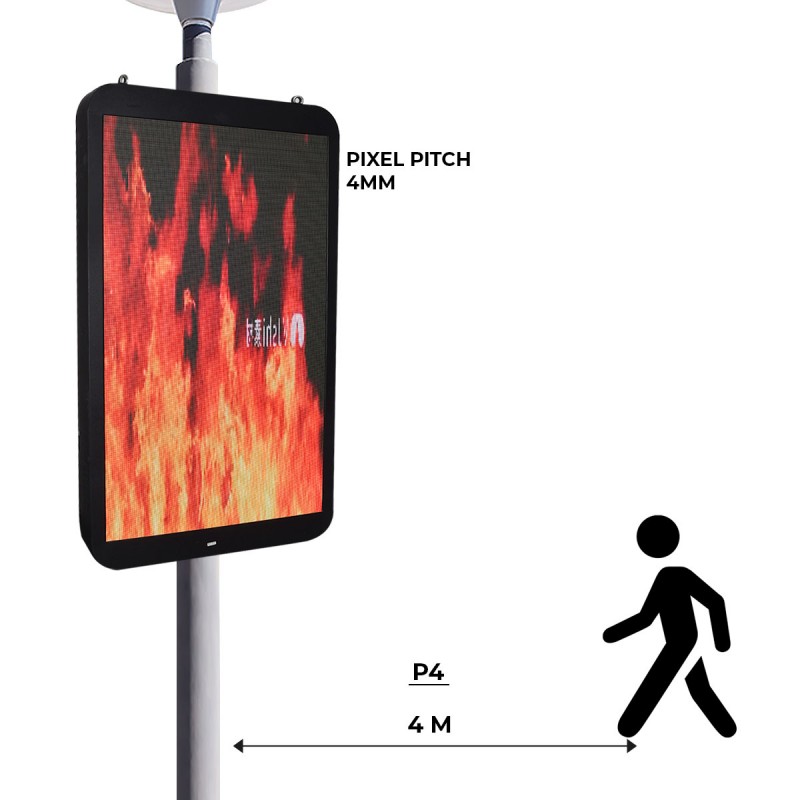

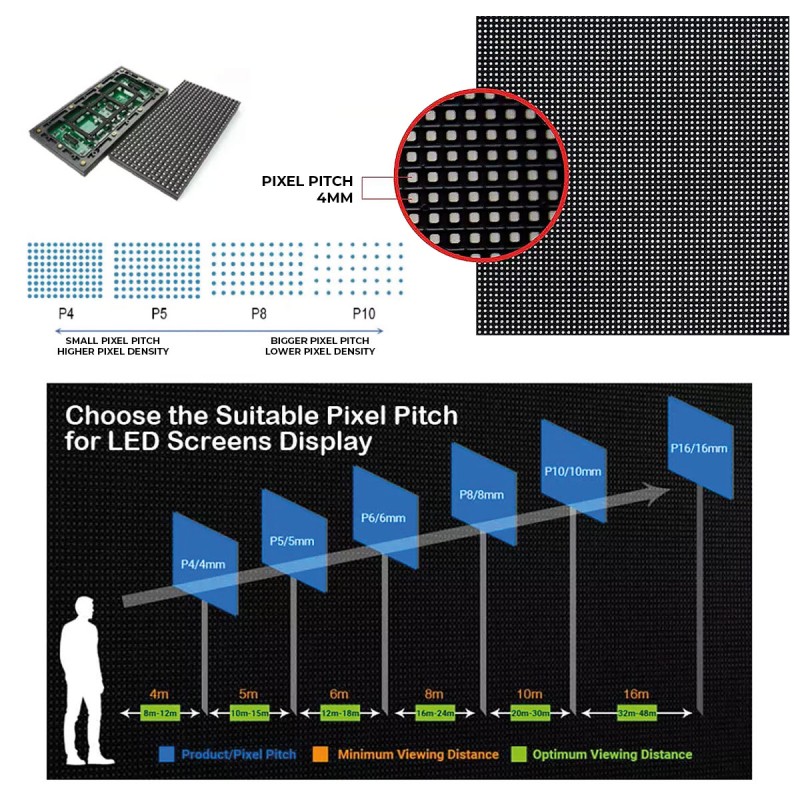

Requires an optimal viewing distance of at least 4 meters due to the pixel pitch P4mm.

Control modes

This display is equipped with the most advanced technology that allows to broadcast all types of content in a simple and efficient way. It can be remotely controlled from a computer, cell phone or any monitor with internet connection.

It supports multiple control modes: Wifi, LAN. It is configured from the ViPlex Express software, which you can download in the download section. From this software we can configure the screen and upload the desired content. When connecting the power cable to the current, the digital display will emit the Wifi signal, whose connection will allow us to configure the display and upload the content easily.

Applications

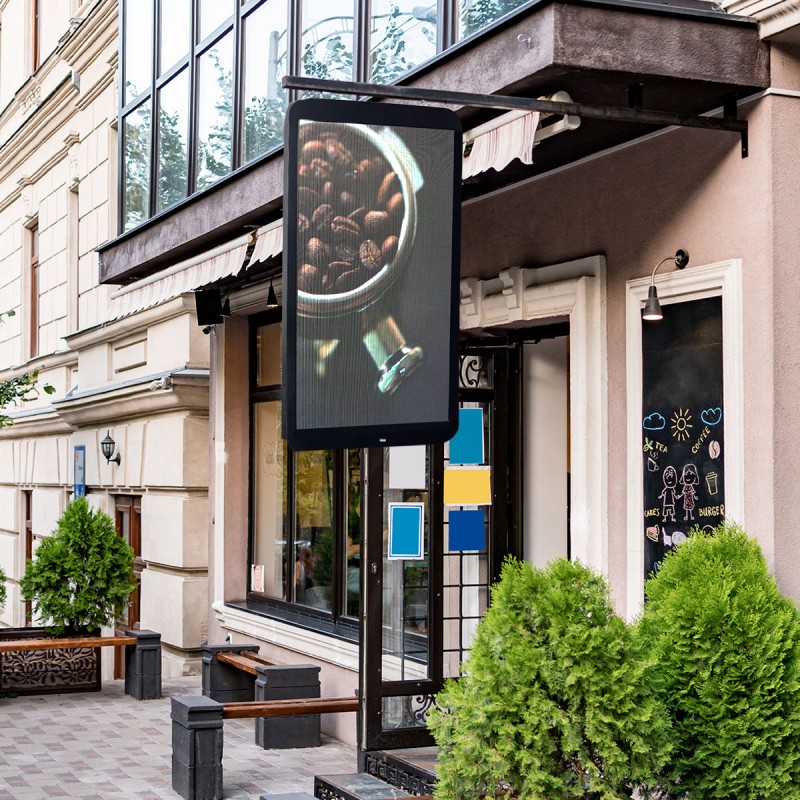

This display is ideal for installation on public roads or in general in crowded places such as avenues, bus stations, airports, shopping malls or supermarkets. Its main use is for advertising purposes but it can also be used for informational purposes.

The installation on a pole or lamppost allows the display to be positioned at a height and oriented to achieve maximum visibility for users.

Advantages of display advertising

Advertising displays are revolutionizing the way brands are promoted to audiences of all kinds. These products are reporting extraordinary results, obtaining a high impact on consumers and significantly increasing turnover in stores and brands that implement them.

The image of your business will be reinforced thanks to the visual impact that this display will generate in the minds of passers-by, making a huge difference with your competition.

All the details of use, aesthetics and performance of the LED advertising display have been considered with the utmost attention and care for the most demanding customers. It is delivered ready to operate with configuration instructions, use and software tutorials.

Technical characteristics of the product:

  • Pixel 4mm
  • LED type: SMD1921
  • Pixel density: 62,500 dots/m2
  • LED module size: 256x128mm
  • LED module resolution: 64x32 dots
  • Display size: 768 x 1280 mm
  • Display resolution: 192 x 320 dots
  • Housing material: Aluminum/iron
  • Brightness: 5500 cd/m²
  • Maximum power: 786W
  • Input voltage: 220V AC ±15%.
  • Operating Temperature: -20ºC~+60ºC
  • Viewing Angle: Horizontal 120° Viewing Angle: Horizontal 120° Viewing Angle: Horizontal 120° Viewing Angle: Horizontal 120
  • Maximum viewing distance: 300m
  • Lifetime: 100,000 hours

Note: The images shown are for reference only. The final product may show slight variations in structure or design due to production updates or manufacturing adjustments.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
236
Maximum power (W)
786
Lifetime (h)
100000
IP
IP65
Dimensions (mm) Lxlxh
865 x 120 x 1480
Frequency (Hz)
50 - 60
LED Type
SMD1921
Connectivity
LAN
Wifi
Weight (g)
35Kg/㎡
Use Outdoor
Yes
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
3 years
Brightness
brightness 5000cd/㎡
Picture Format
BMP
GIF
JPEG
JPG
PNG
Colours
280 trillion
Video
AVI
FLV
MKV
MOV
MP4
MPEG4
WMV
Display Type
LED
Pitch
P4
