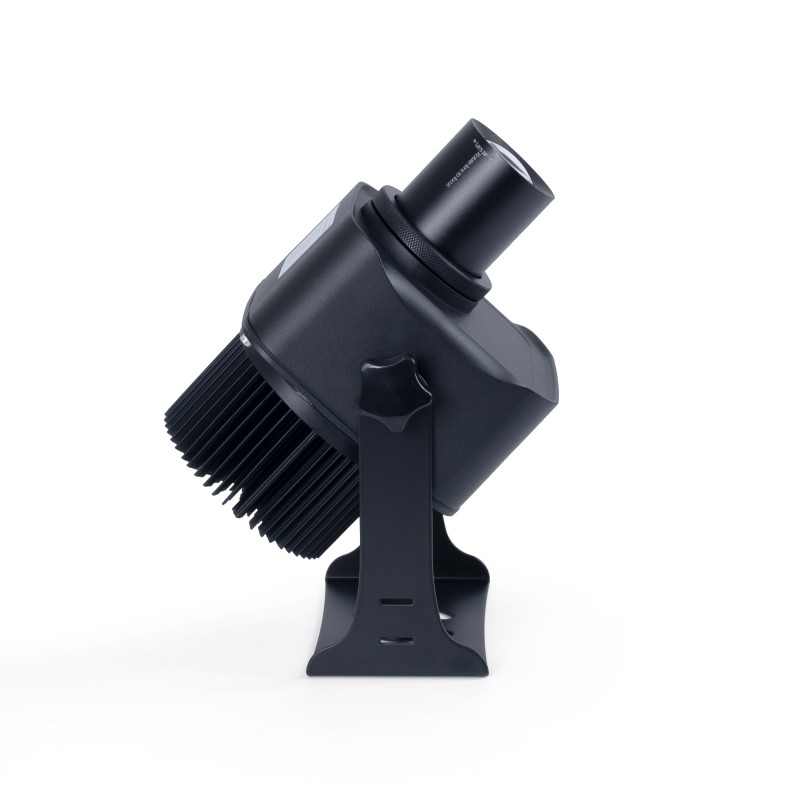

GOBO 40W rotating outdoor LED spotlight - IP65

SKU:BLP40E-R
Has superado el límite de unidades
In stock 116 units
Data sheet

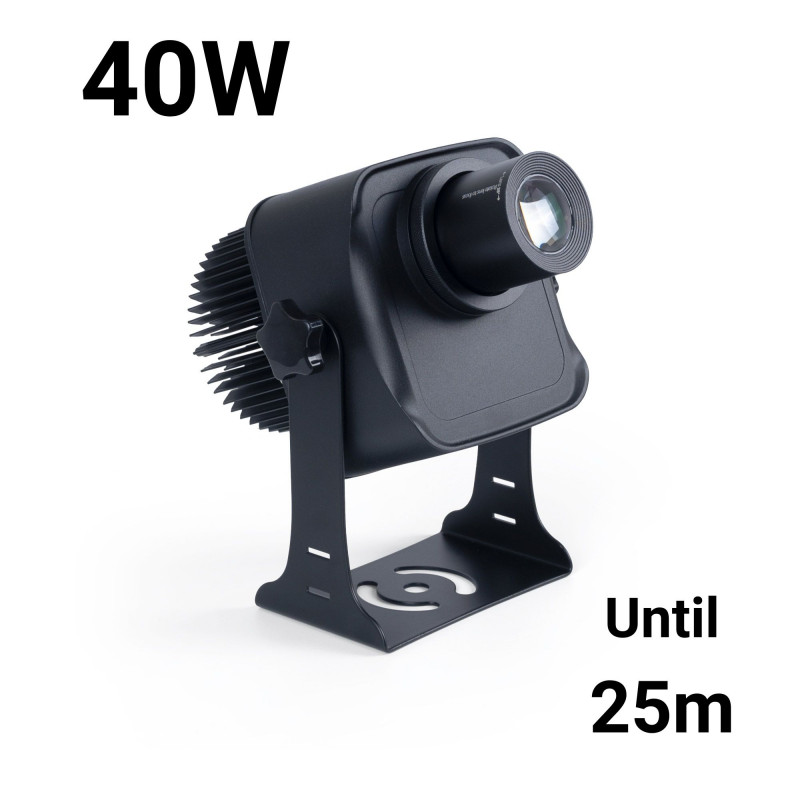

40WGOBO LED projector for outdoor projection of logos, images and badges. Logo projectors are also known as LED GOBO, GOBO projector or GOBO LED.

Projects rotating or fixed images in high definition. Outdoor use (IP65).

20° optics with manually adjustable focus. Reaches a range of 10-25 meters in darkness and 5-9 meters in daylight.

Excellent image visibility, with a luminous intensity of 4000 lumens.

Barcelona LED offers the service of laser engraving of logos on the mirrored glass. The purchase of the spotlight includes the engraving of a first logo in up to 4 colors free of charge (estimated delivery time: 10-15 days).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Outdoor Logo Projector - 40W: High Impact Visual Advertising

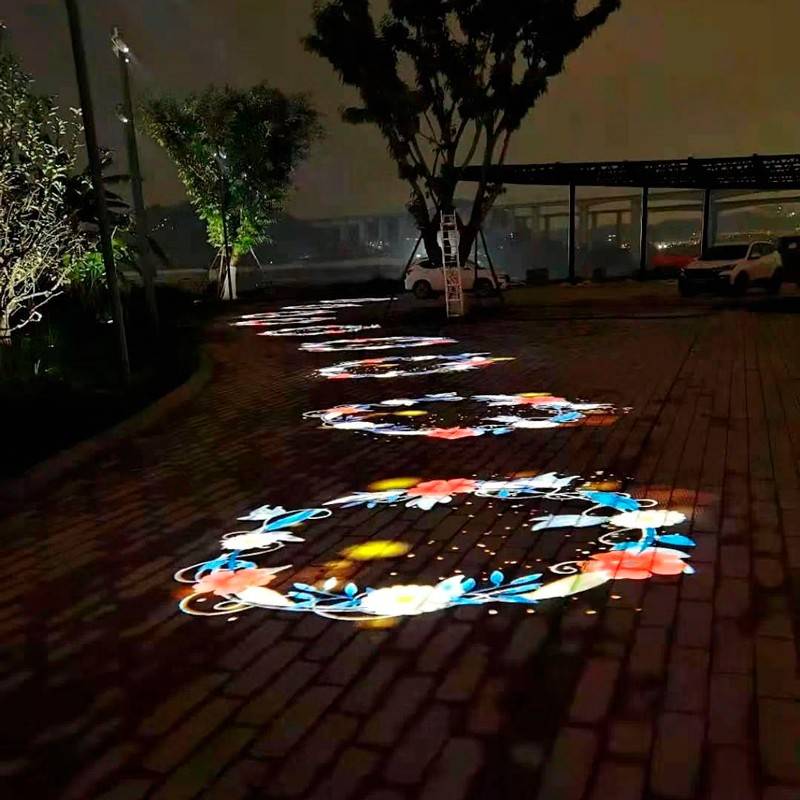

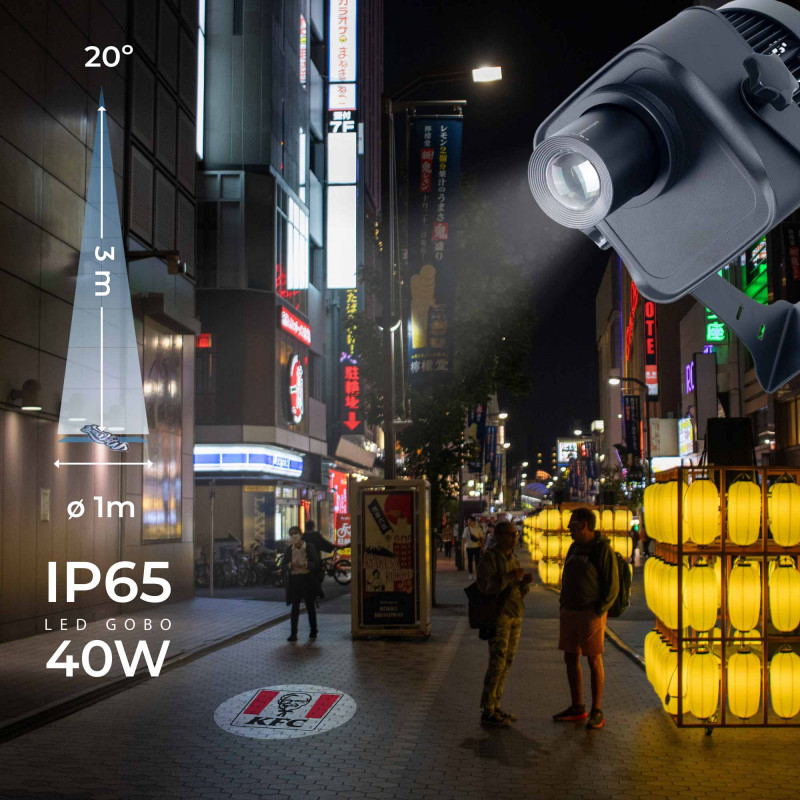

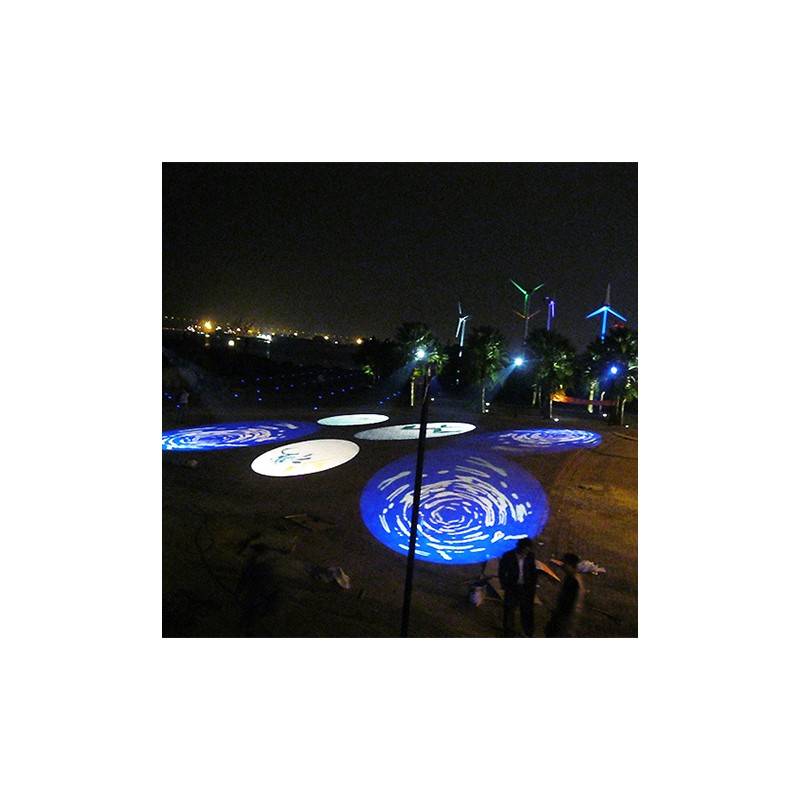

The outdoor logo projector projects images and logos with clarity and high definition with a visibility of 10 to 25 meters in the dark and 5 to 9 meters in broad daylight.

  • Fixed or rotating: Thanks to a push-button switch, you can select whether you want the image to be projected in a fixed or rotating manner, adding dynamism to your visual presentations.

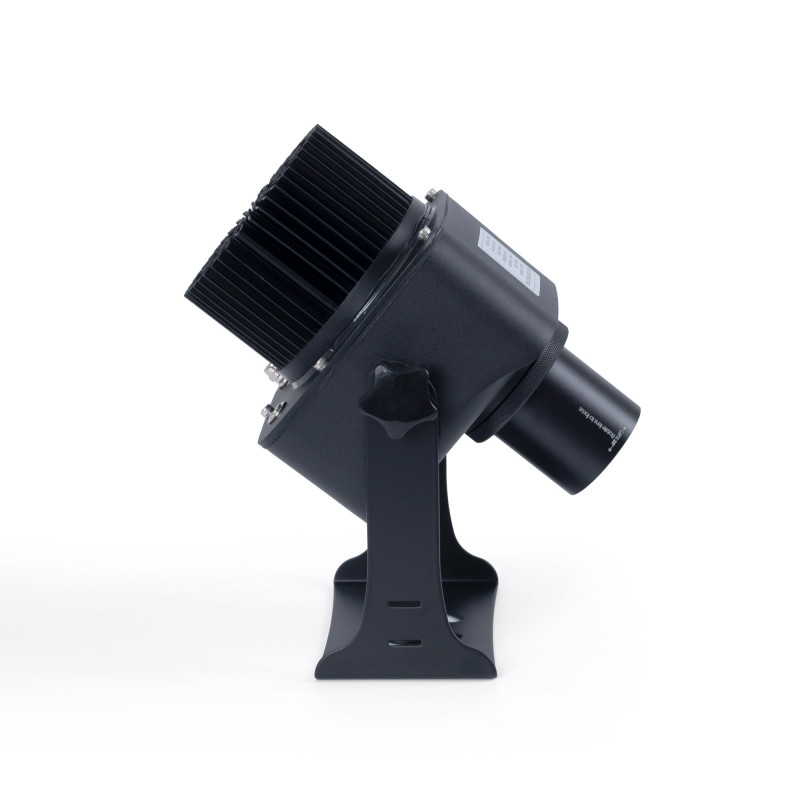

  • 180° rotation angle: The 180-degree rotation capability allows the projection to be oriented in the desired direction, adapting to different space configurations and specific needs.

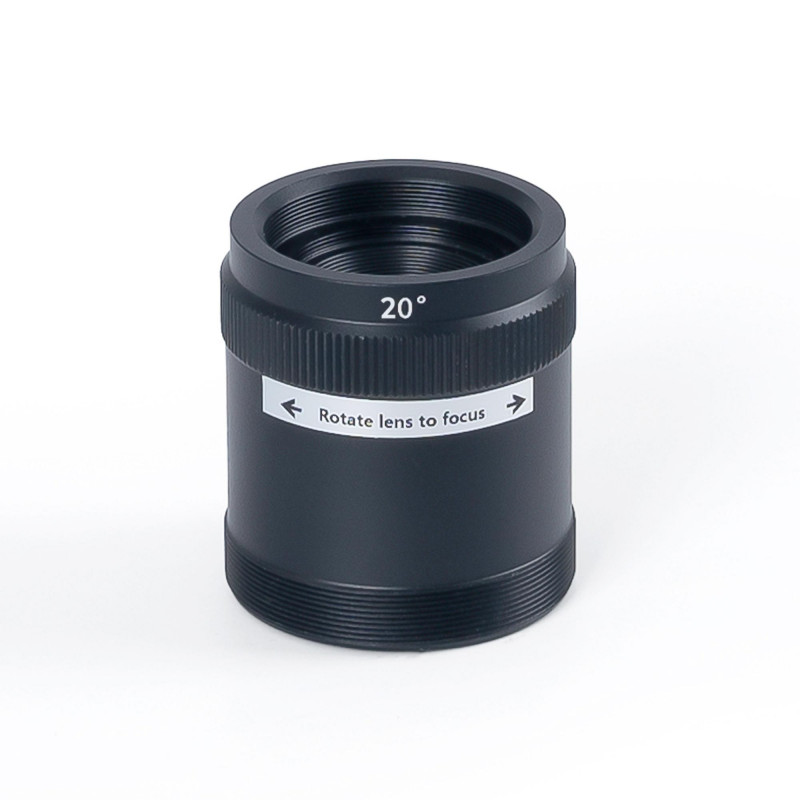

  • High definition and adjustable focus: It has a 20° optic. The optics head can be rotated to adjust the definition and focus of the image, ensuring that your logo or message is seen with maximum clarity.

  • Image customization: You can create custom images engraved on a mirror surface specifically made for the LED spotlight optics, making your projections unique and perfectly tailored to your needs.

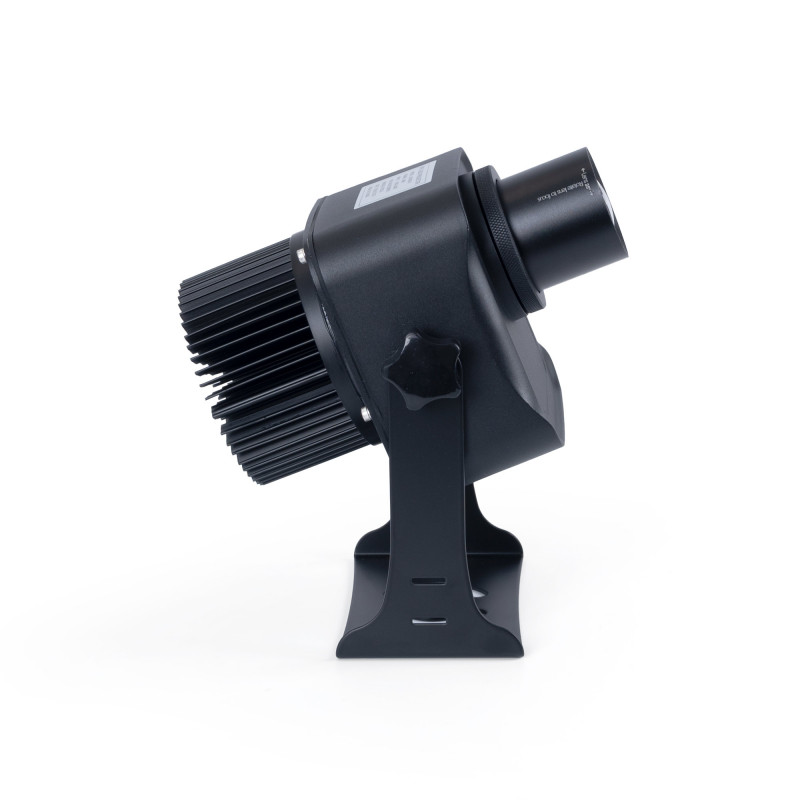

  • IP65 protection rating: Designed for outdoor use, this projector features a metal housing with anti-corrosion treatment, ensuring a long service life even in harsh weather conditions.

  • Efficient heat dissipation: Its structure allows for proper heat dissipation, maintaining an optimal temperature during operation and extending the lifespan of the LED chips and all its components.

Customized logo laser engraving service

At Barcelona LED we provide a laserlogo engraving service on the mirror glass. The purchase of the GOBO LED projector includes the engraving of a first logo in up to 4 colors (Estimated delivery time: 10-15 days).

For a correct laser engraving, please send a vector file (.eps, .ai, .svg) in Adobe Illustrator, Corel Draw, Sketch Up, etc. without gradients, in plain colors.

PNG / .JPG / .PDF image files are also accepted, as long as they have a high resolution (minimum 300 dpi) and comply with the design template. Always with white background, without gradients, textures or shading. The color will be adapted to those closest to the color tones of the crystals available.

Once the purchase is confirmed, it is requested to send an email with the file to engrave, to the address "comercial@barcelonaled.com", indicating as reference your order confirmation number. Our sales department will immediately answer any questions you may have.

GOBO LED Applications

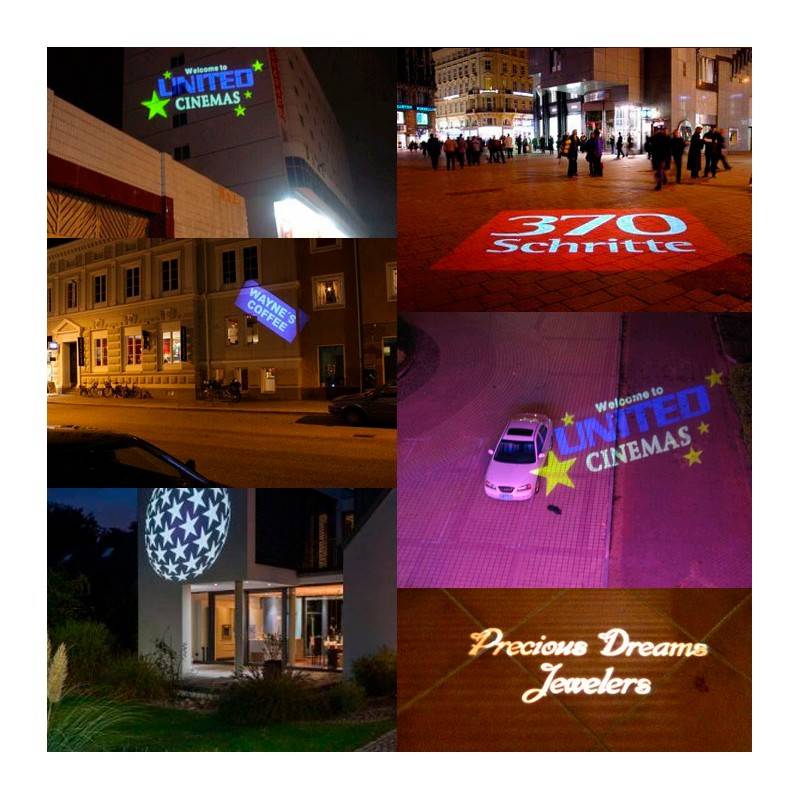

The 40W LED logo projector is a perfect advertising product to highlight brands, promotions, products and badges visually at:

Events and openings: Highlight brands and products with eye-catching projections.

Restaurants and hotels: Add value to your business by visually highlighting at any time and type of event.

S hopping m alls: Highlight your business above the competition with customized projections.

Congresses, fairs, exhibitions: Attract customers to your booth.

Nominal Voltage (V)
230V-AC
Power (W)
40
Lumens (Lm)
4400
Kelvin (K)
6000
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
260 x 180 x 150
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
CRI
80-85
LED Type
COB
Dimmable
No
Driver
Internal
Orientable
Yes
Material
Metal
Diffuser material
Glass
Use Outdoor
Yes
Temperature range
-18°C ~ +55°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: From the outer wall of the entrance of a local, I want to project about 3/4 meters the logo of the premises on the ground outside access. Diameter u maximum 2 meters.
Which product do I need?
Can I install the 30W LED GLOBO? or other indoor LED GLOBO more economical?
R: Answer: For outdoor use only outdoor projectors can be used. You can see the approximate projection measures in the web, with a projection of 4 meters you will obtain maximum diameters of 140cm.
P: Question: Good afternoon,

I would like to know what are the specifications to prepare the Gobo file? Measurements... To prepare it and be able to place the order.
On the other hand, we see that there are no projectors in stock (I would need 2 pcs.) When are we expected to have them available again?
Thank you!
R: Answer: You can see indicated the files you can use on the web, preferably vector files like .ai, .eps, svg, pdf, png or other files like jpg of good quality. There should be stock by the end of the month.
P: Question: Hi, can these projectors be operated remotely? remote control for power on? Thanks
R: Answer: No, the projectors go directly to the mains. You would have to put some relay system with external control, otherwise you can turn on and off from the projector line.
P: Question: Hello,

We have to project from a distance of 5 meters to make a gobo of approx 1.5 meters. Do you have a zoom option ?

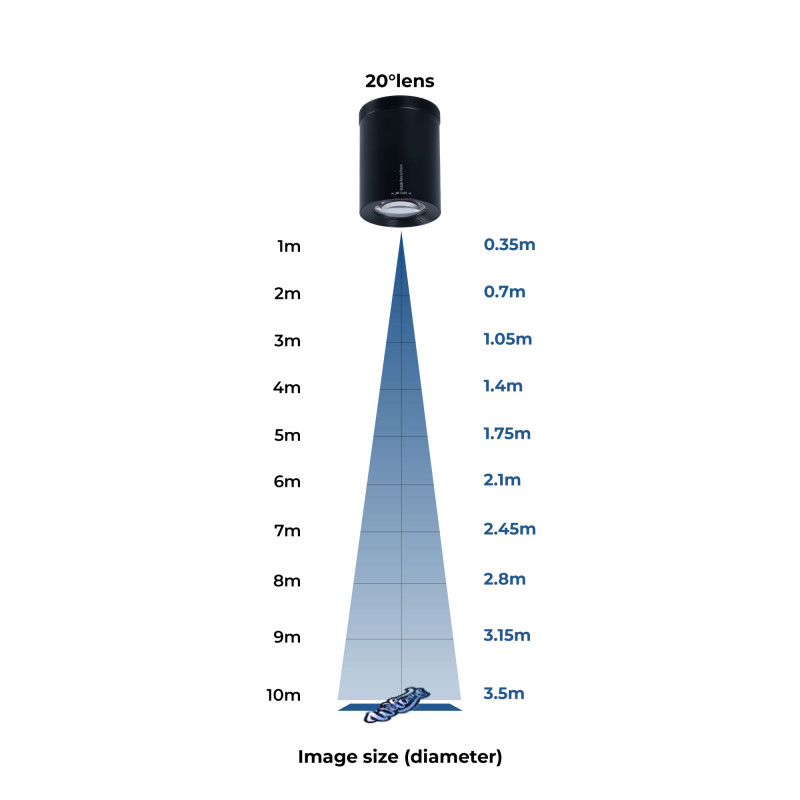

R: Answer: No, the size of the protection depends on the distance between the projector and the projected area. At about 5 meters it will give between 1.5 and 1.75 meters in diameter.
P: Question: I would need a projector for a surface of 1,6 x 2,00 m.aproximadasmente and the projector at a distance of 20 to 23 cm.
R: Answer: There is nothing for these measurements, the projectors at a distance of one meter give a diameter of about 35cm.
P: Question: How many logos can be loaded. If so, is it possible to adjust the lighting time for each logo?

thanks
R: Answer: Gobos projectors can only be installed with one logo or image, it does not have multiple loading. To replace the logo, the previous one must be changed. It is fastened with a metal clip ring inside, between the base and the optics. The logos do not have a timer.
