Fixed LED GOBO projector - 10W - Indoor - 20° Optics - IP20

SKU:BLP10I-F
Has superado el límite de unidades
In stock 115 units
Data sheet

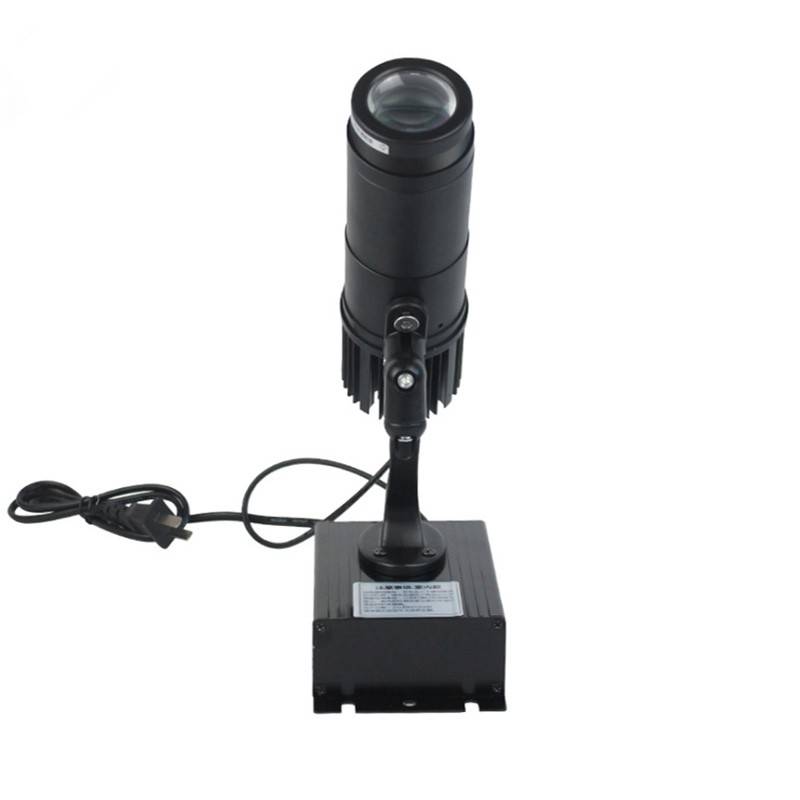

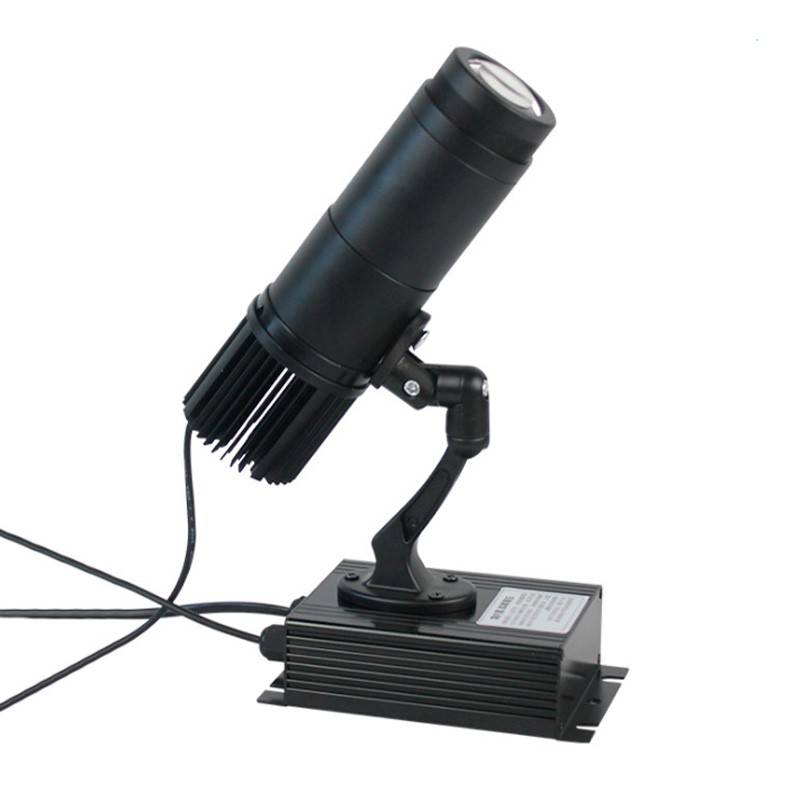

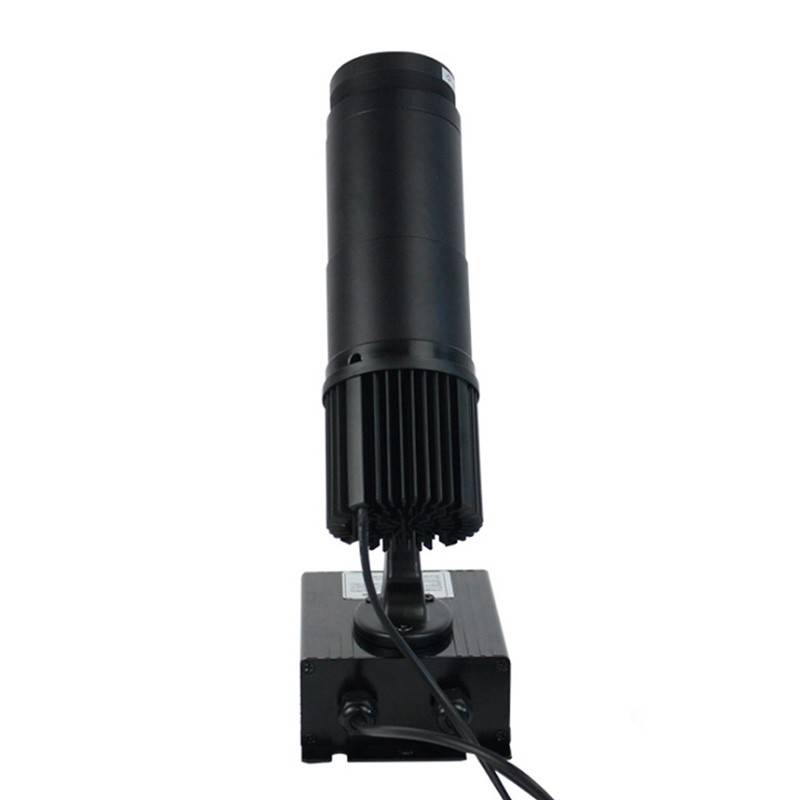

10W fixed GOBO LED projector for indoor projection of logos, images and badges. Logo projectors are also known as LED GOBO or GOBO projector.

Projects still images in high definition. Indoor use (IP20).

20° optics with manually adjustable focus.

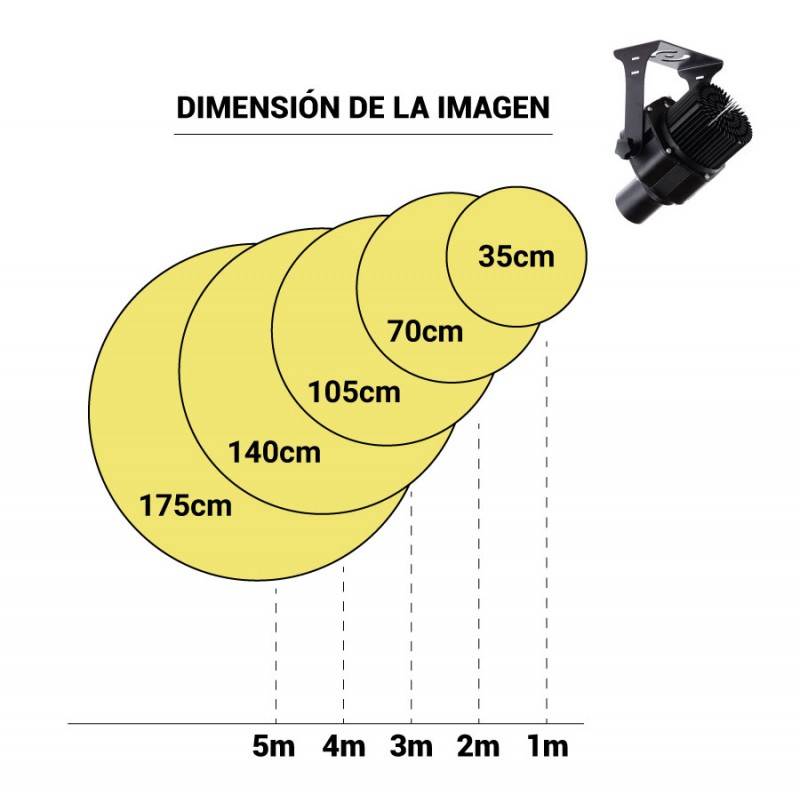

Reaches a range of 2-3 meters in darkness and 1-2 meters in daylight, with a luminous intensity of 1000 lumens.

Barcelona LED offers the service of laser engraving of logos on the mirrored glass. The purchase of the spotlight includes the engraving of a first logo up to 4 colors free of charge (estimated delivery time: 10-15 days).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

FIXED Indoor Logo Projector - 10W: High Impact Visual Advertising

The indoor logo projector projects images and logos with a visibility of 2 to 3 meters in the dark and 1 to 2 meters in broad daylight.

  • Fixed projection: Allows projection of still images in high definition.

  • 180° rotation angle: The 180-degree rotation capability allows the projection to be oriented in the desired direction, adapting to different space configurations and specific needs.

  • High definition and adjustable focus: It has a 20° optic. The optics head can be rotated to adjust the definition and focus of the image, ensuring that your logo or message is seen with maximum clarity.

  • Image customization: You can create custom images engraved on a mirror surface specifically made for the LED spotlight optics, making your projections unique and perfectly tailored to your needs.

  • IP20 protection rating: Designed for indoor use only.

  • Efficient heat dissipation: Its structure allows for proper heat dissipation, maintaining an optimal temperature during operation and extending the life of the LED chips and all its components.

Customized logo laser engraving service

At Barcelona LED we provide a laserlogo engraving service on the mirror glass. The purchase of the GOBO LED projector includes the engraving of a first logo in up to 4 colors (Estimated delivery time: 10-15 days).

For a correct laser engraving, please send a vector file (.eps, .ai, .svg) in Adobe Illustrator, Corel Draw, Sketch Up, etc. without gradients, in plain colors.

PNG / .JPG / .PDF image files are also accepted, as long as they have a high resolution (minimum 300 dpi) and comply with the design template. Always with white background, without gradients, textures or shading. The color will be adapted to those closest to the color tones of the crystals available.

Once the purchase is confirmed, please send an email with the file to be engraved, to the address "gobo@barcelonaled.com", indicating as reference your order confirmation number. Our technical department will immediately answer any questions you may have.

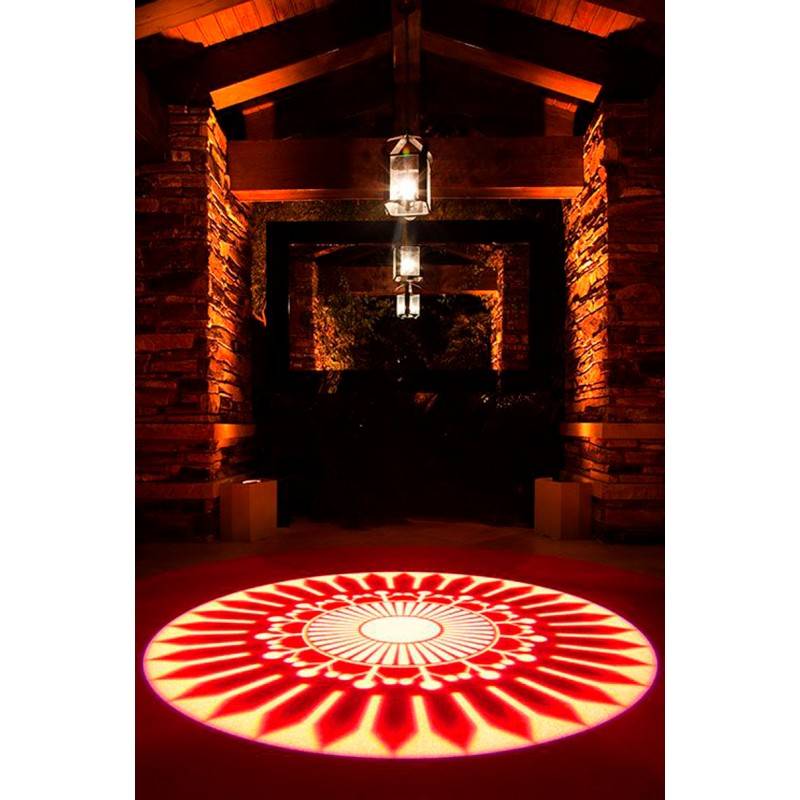

GOBO LED Applications

The 10W LED logo projector is a perfect advertising product to highlight brands, promotions, products and badges visually at:

Events and openings: It brings color and highlights products or brands.

Restaurants and hotels: Add value to your business by visually highlighting at any time and type of event.

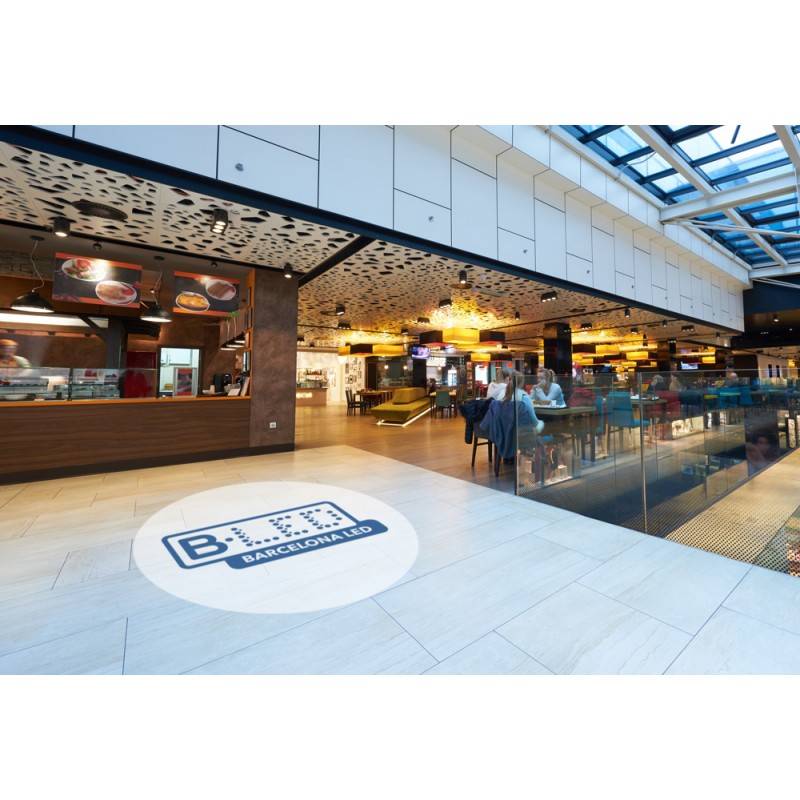

S hopping malls: Make your business stand out from the competition with a special addition.

Congresses, fairs, exhibitions: Attract customers to your booth.

Nominal Voltage (V)
220 - 240 V/AC
Lumens (Lm)
1000
Kelvin (K)
6000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
275x120x80
Frequency (Hz)
50 - 60
Hue
Cool white
CRI
80-85
UGR
No
LED Type
COB
Dimmable
No
Driver
Internal
Material
Metal
Diffuser material
Glass
Use Outdoor
Yes
Temperature range
-18°C ~ +55°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Can it be projected from inside a shop window?
I.e. through a glass window?
R: Answer: Yes you can, but the glass may detract from the sharpness.
P: Question: Do you customize the lens as well?
R: Answer: We sell the projector and make the laser engraving for the Gogo on our stained glass (engraving is included with the projector). Vectorial image to be sent to commercial
P: Question: How to enter the logo to realize the vision
R: Answer: The front part of the optics is unscrewed and the engraved glass is placed with a metal ring and clip (already included and assembled).
P: Question: I have a question, is there a possibility that only light comes out to illuminate a logo that is already drawn on the wall? and can I change the size of the light? does it come with bulb?

thanks
R: Answer: The logo projector without any screen-printed logo glass projects a circumference of white LED light. The size of the light diameter can only be varied by increasing or decreasing the distance between the projector and the place to be projected (not adjustable from the projector).
P: Question: Good morning, is there a 12Vlt version of this item with the ref: BLP15I-F?
R: Answer: They are all 230V.
