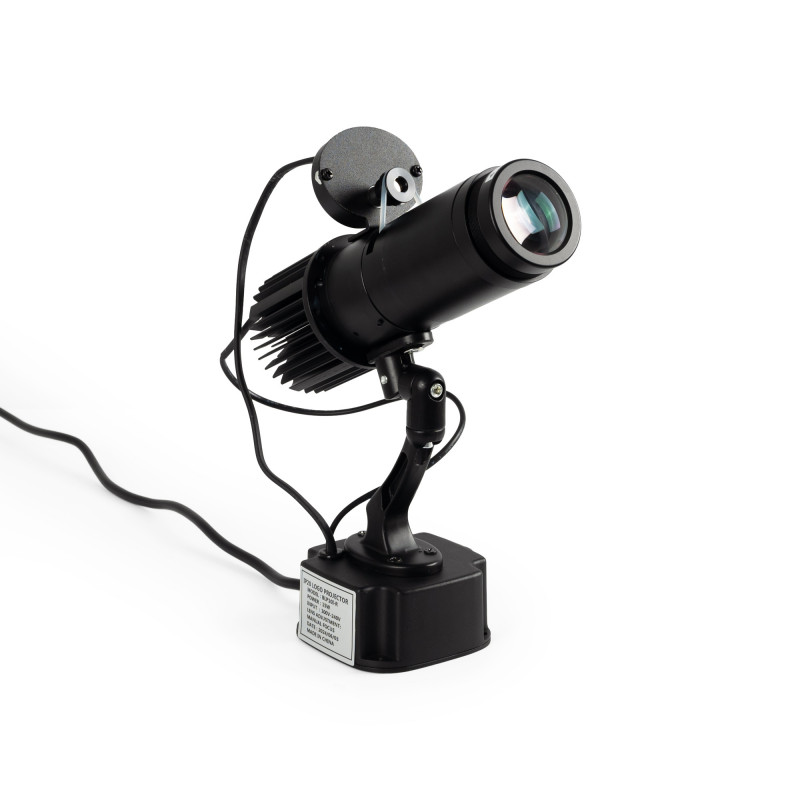

Rotating LED GOBO Projector - 15W - Indoor - 20° Optics - IP20

SKU:BLP10I-R
Has superado el límite de unidades
In stock 52 units
Data sheet

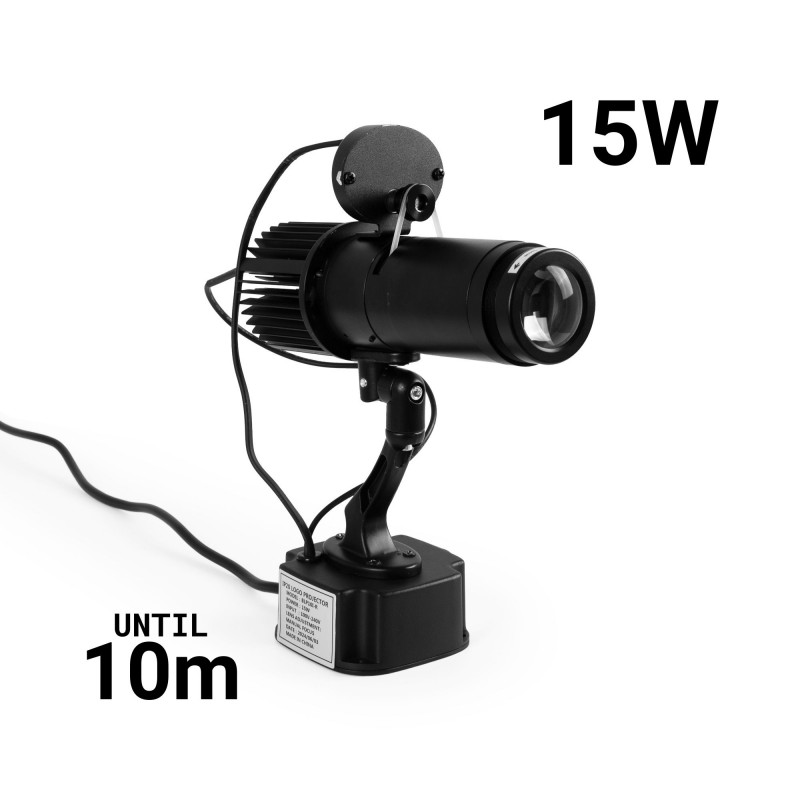

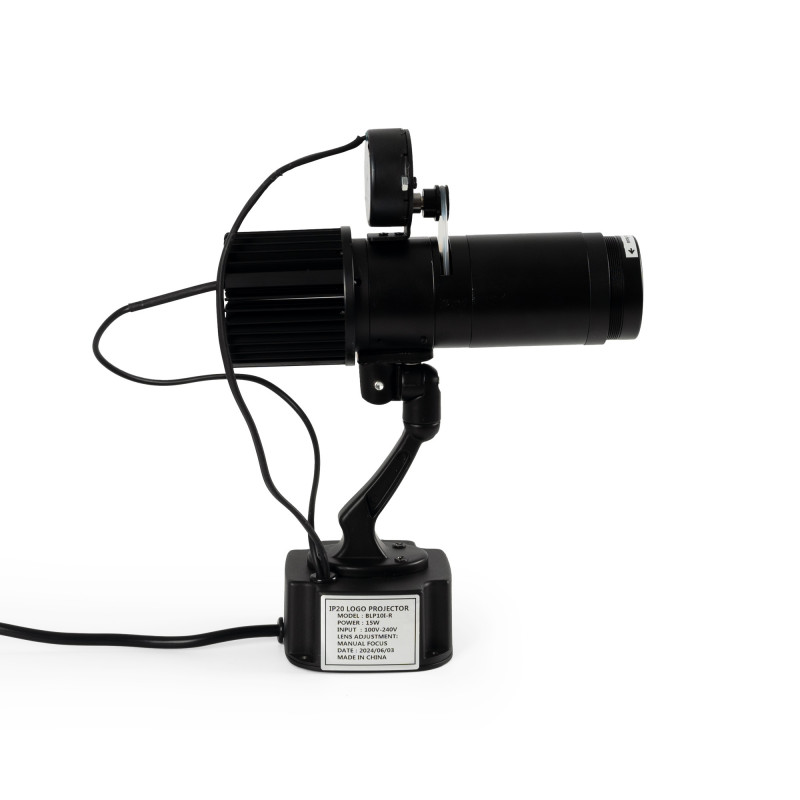

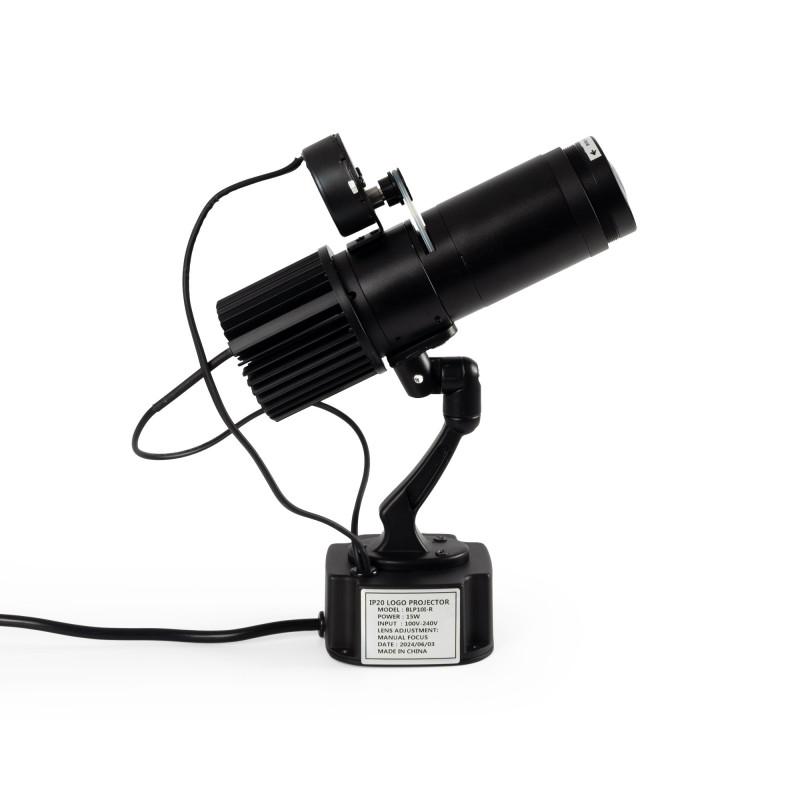

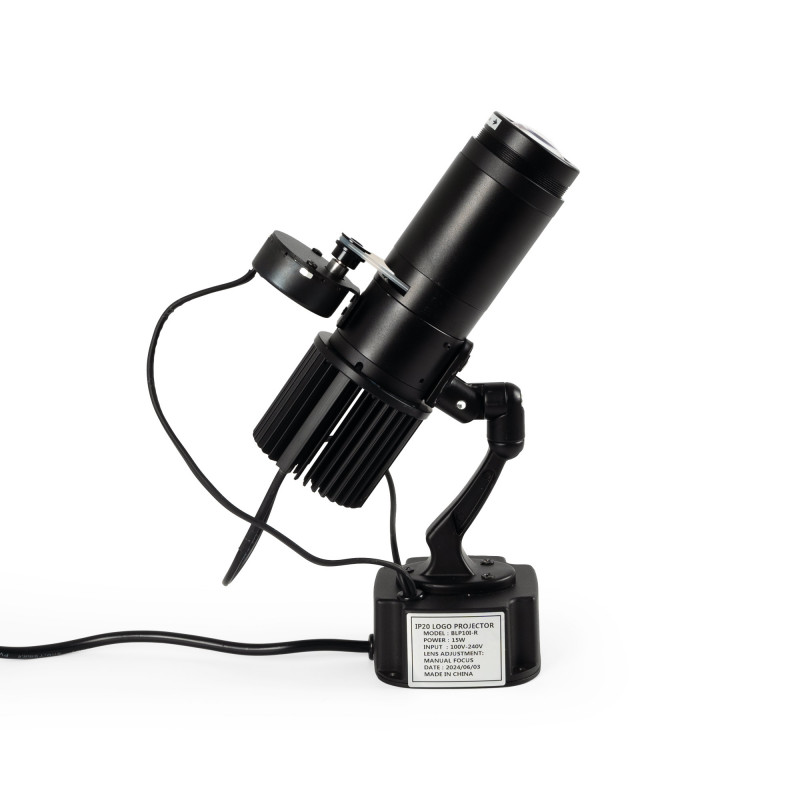

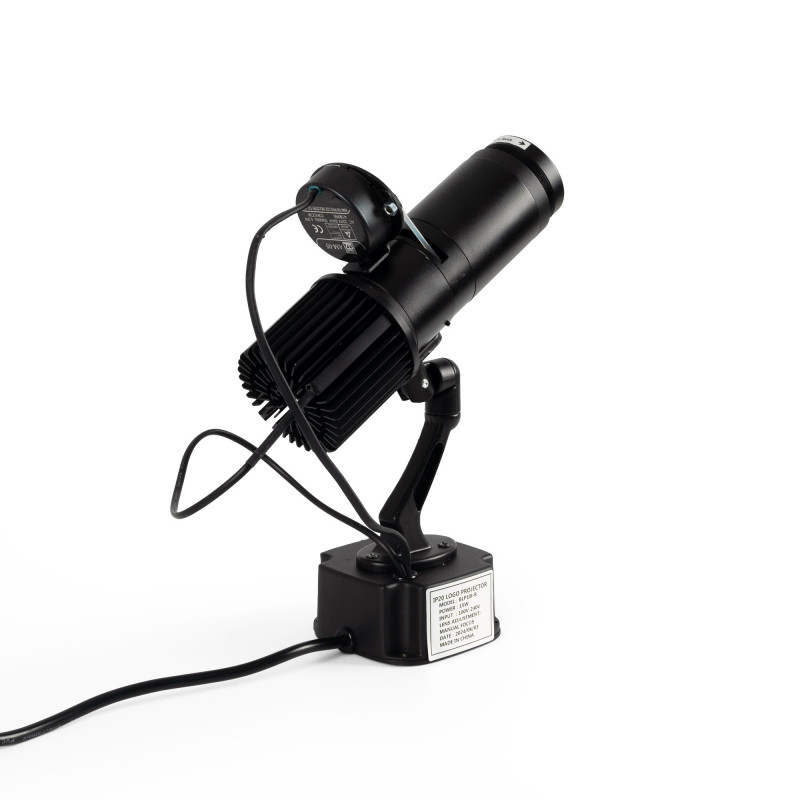

15W rotating GOBO projector for indoor projection of logos, images and badges. Logo projectors are also known as LED GOBO or GOBO LED.

Projects still and rotating images in high definition. Indoor use (IP20).

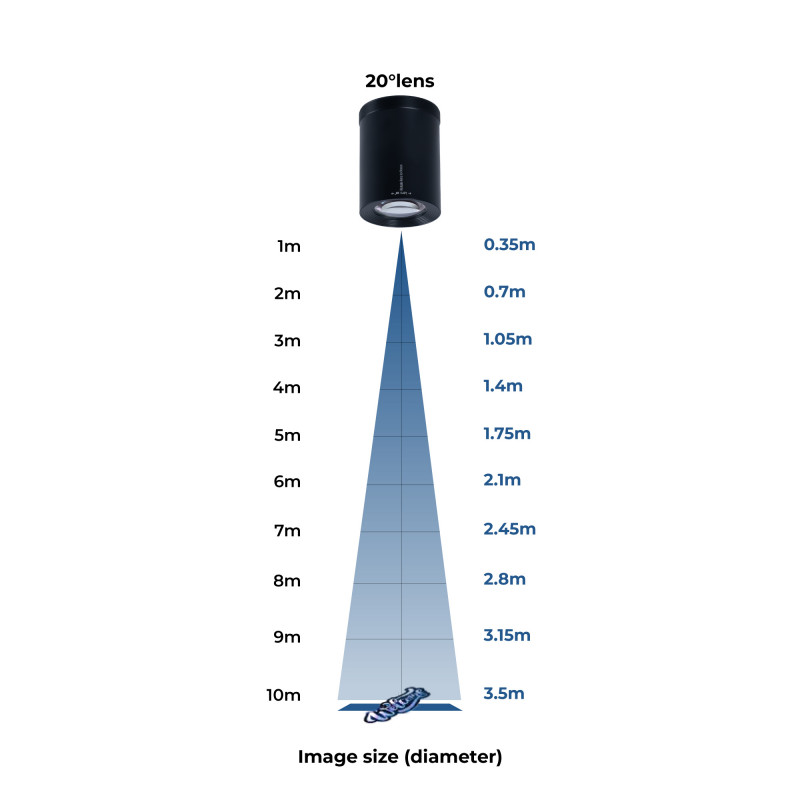

20° optics with manually adjustable focus.

Incorporates a remote control (A23-12V battery not included) for on/off, fixed or rotating projection.

It reaches a range of 3-4 meters in darkness and 2-3 meters in daylight, with a luminous intensity of 1300 lumens.

Barcelona LED offers the service of laser engraving of logos on the mirrored glass. The purchase of the spotlight includes the engraving of a first logo up to 4 colors free of charge (estimated delivery time: 10-15 days).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Rotating Indoor Logo Projector - 15W: High Impact Visual Advertising

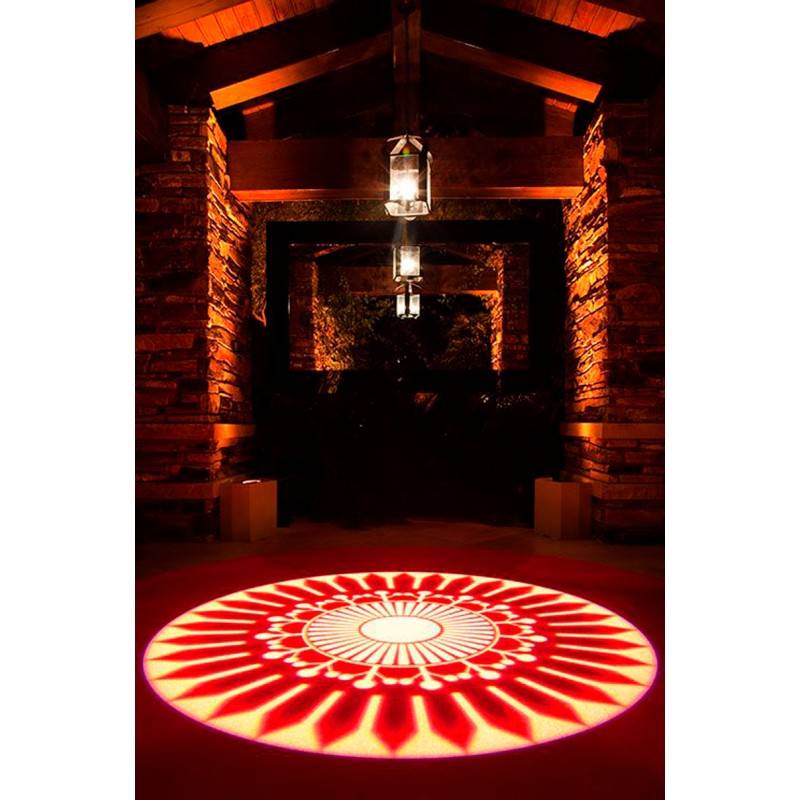

The indoor logo projector projects images and logos with a visibility of 3 to 4 meters in the dark and 2 to 3 meters in broad daylight.

  • Fixed or rotating: From the remote control you can select whether you want the image to be projected fixed or rotating, adding dynamism to your visual presentations.

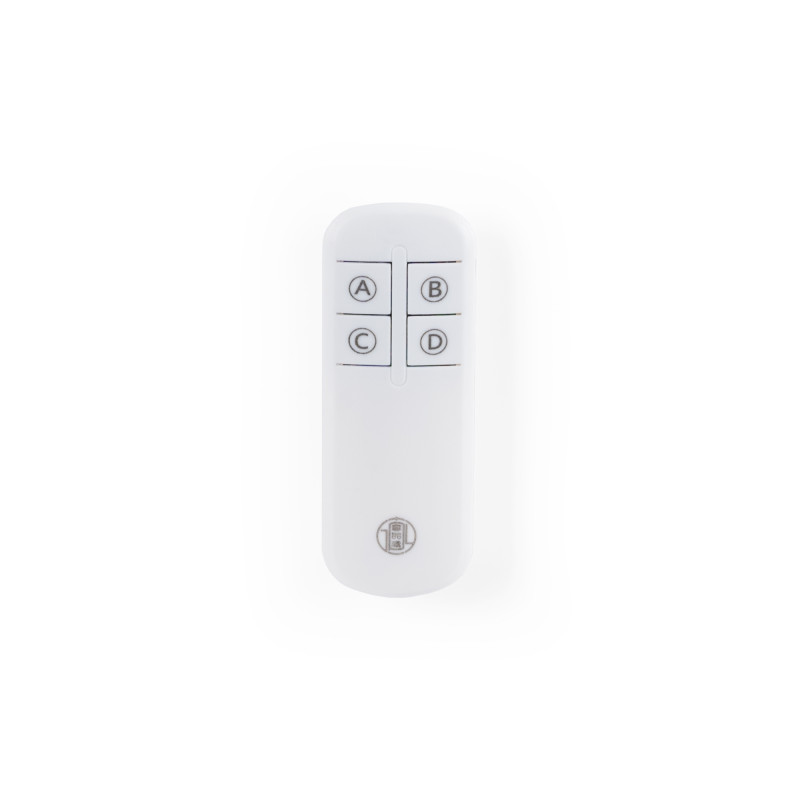

  • Remote control: Includes a handy remote control for on/off, fixed or rotating projection.

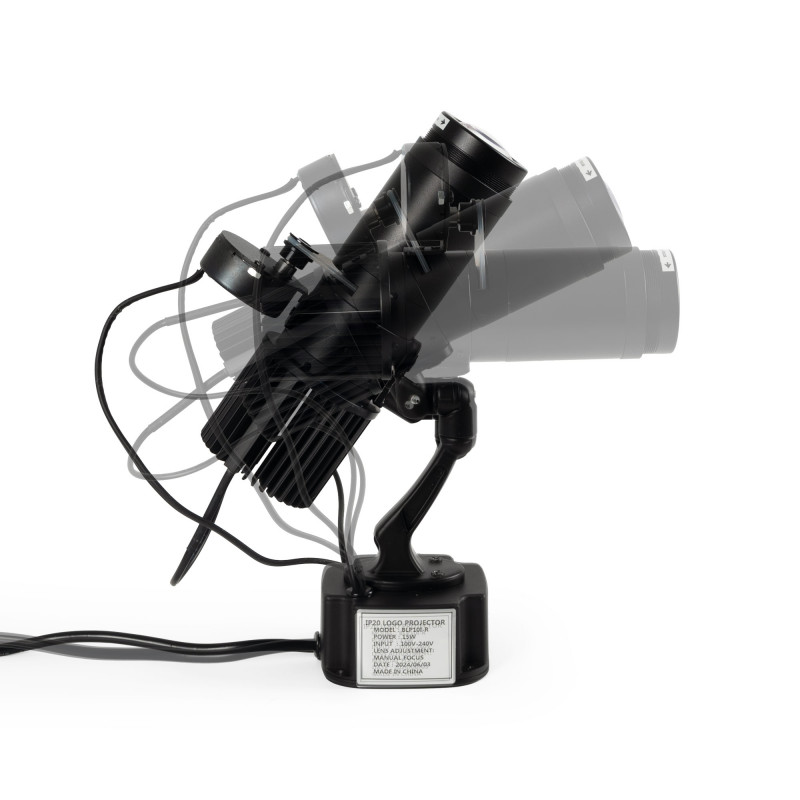

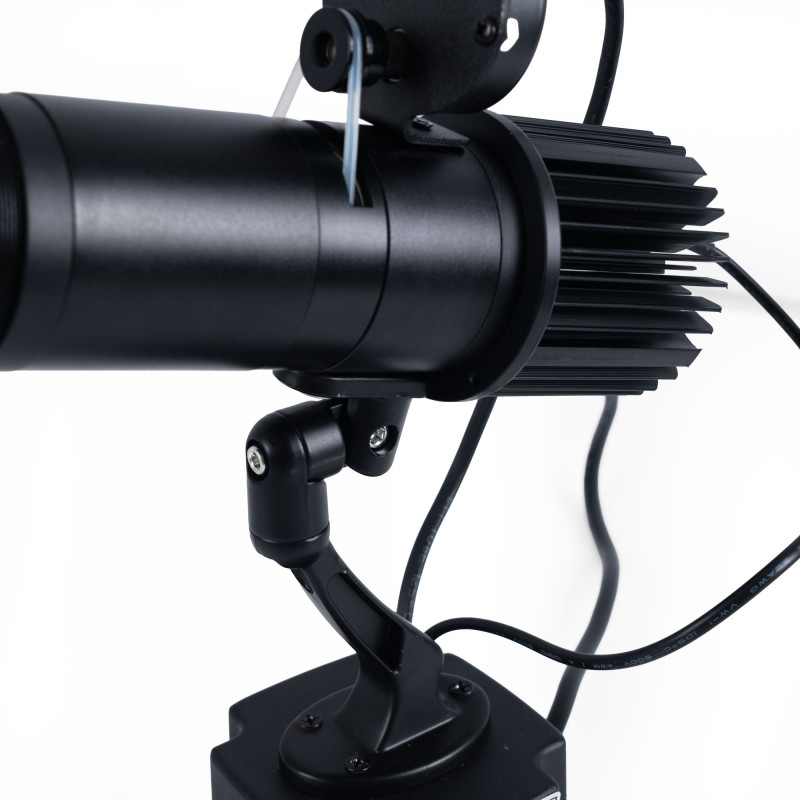

  • 180° rotation angle: 180-degree rotation capability allows the projection to be oriented in the desired direction, adapting to different space configurations and specific needs.

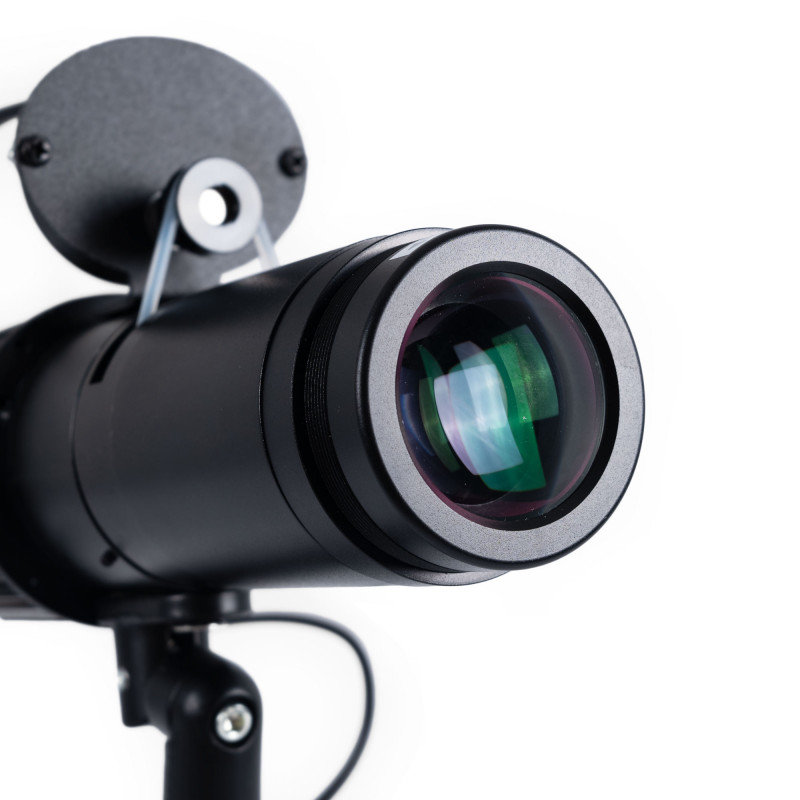

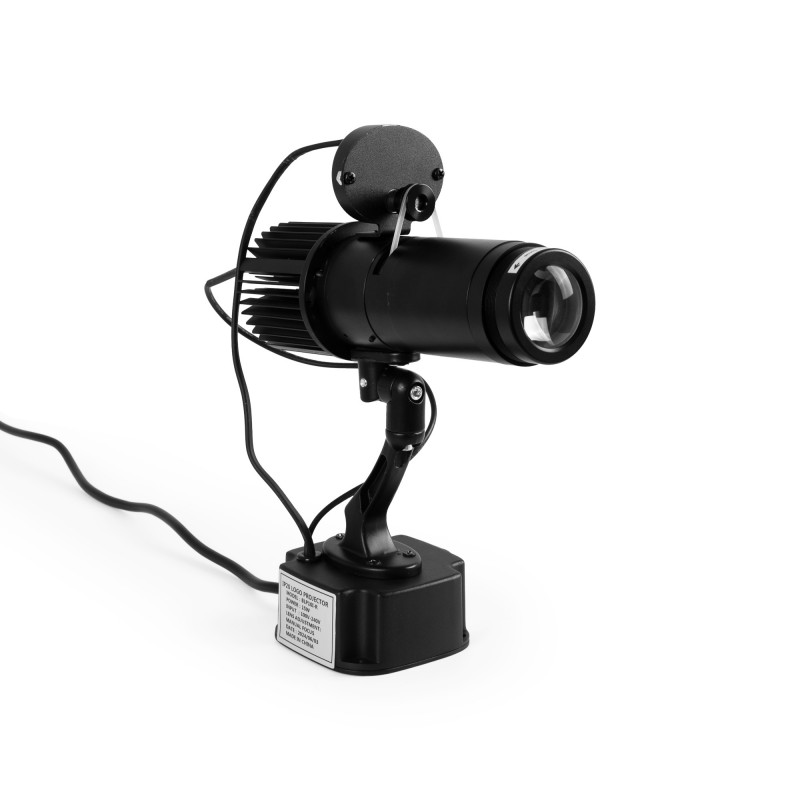

  • High definition and adjustable focus: It has a 20° optic. The optics head can be rotated to adjust the definition and focus of the image, ensuring that your logo or message is seen with maximum clarity.

  • Image customization: You can create custom images engraved on a mirror surface specifically made for the LED spotlight optics, making your projections unique and perfectly tailored to your needs.

  • IP20 protection rating: Designed for indoor use only.

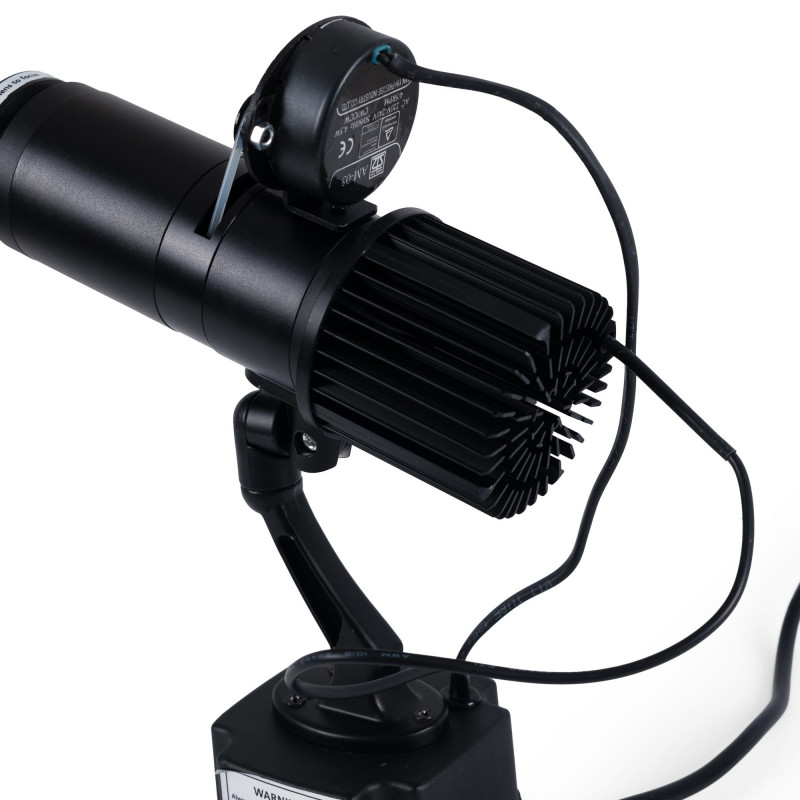

  • Efficient heat dissipation: Its structure allows for proper heat dissipation, maintaining an optimal temperature during operation and extending the life of the LED chips and all its components.

Customized logo laser engraving service

At Barcelona LED we provide a laserlogo engraving service on the mirror glass. The purchase of the GOBO LED projector includes the engraving of a first logo in up to 4 colors (Estimated delivery time: 10-15 days).

For a correct laser engraving, please send a vector file (.eps, .ai, .svg) in Adobe Illustrator, Corel Draw, Sketch Up, etc. without gradients, in plain colors.

PNG / .JPG / .PDF image files are also accepted, as long as they have a high resolution (minimum 300 dpi) and comply with the design template. Always with white background, without gradients, textures or shading. The color will be adapted to those closest to the color tones of the crystals available.

Once the purchase is confirmed, please send an email with the file to be engraved, to the address "gobo@barcelonaled.com", indicating as reference your order confirmation number. Our technical department will immediately answer any questions you may have.

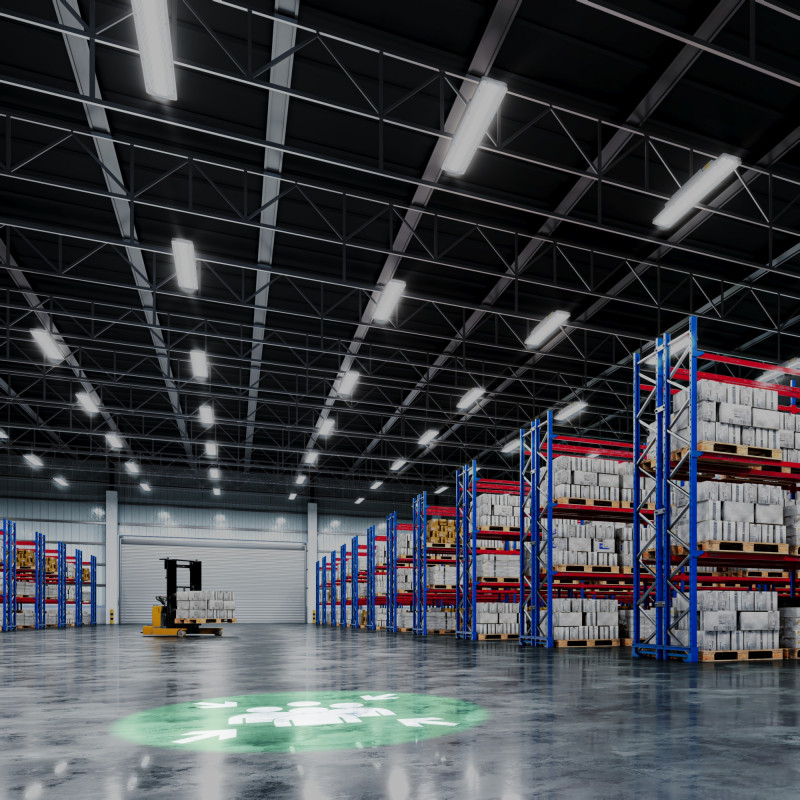

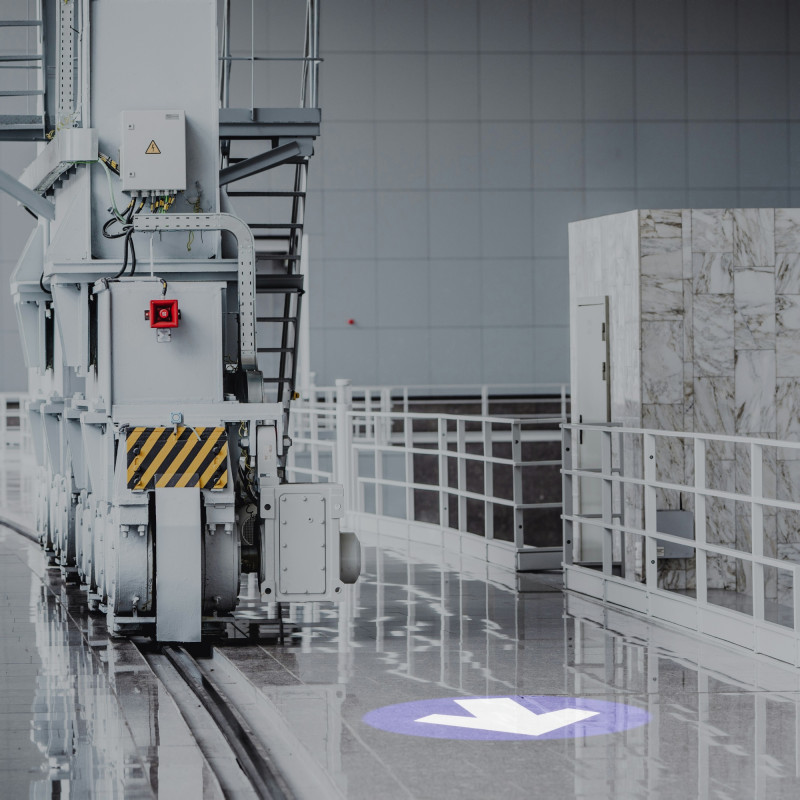

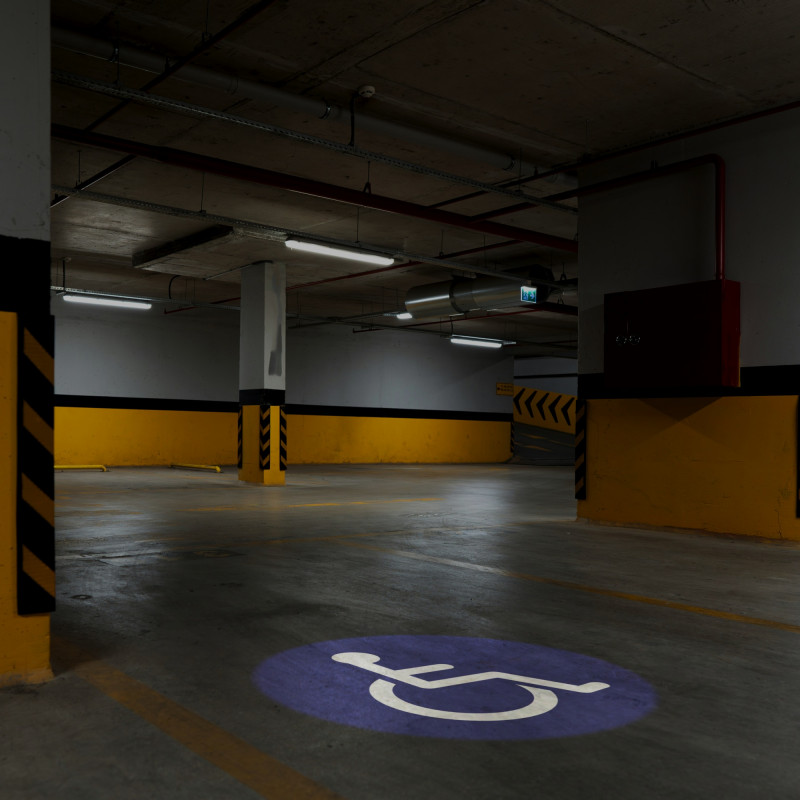

GOBO LED applications

The 15W LED logo projector is a perfect advertising product to highlight brands, promotions, products and badges visually at:

Events and openings: It brings color and highlights products or brands.

Restaurants and hotels: Add value to your business by visually highlighting at any time and type of event.

S hopping malls: Make your business stand out from the competition with a special addition.

Congresses, fairs, exhibitions: Attract customers to your booth.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
15
Lumens (Lm)
1300
Kelvin (K)
6000
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
Sensor
No
CRI
80-85
UGR
No
LED Type
COB
Dimmable
No
Driver
Internal
Orientable
Yes
Material
Metal
Diffuser material
Glass
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello
I already have a unit with logo engraved.
Now I would like another one without logo. Is it possible to purchase with 'filters' with graphic drawings that can be changed?
Thanks
R: Answer: You can contact our sales department to order extra engravings
P: Question: Hello I lost the instructions on how to operate the remote control, can you send me others? Thanks
R: Answer: For the yilend control, only A/B is required for normal use:

A- Turn on/off led
B- Rotation Control: For , right, left, left
C- Rotation ON
D- Turn off led
P: Question: Good morning. I want to buy the GOBO projector and I have a question about the recording service.
I have the logo with yellow background and the letters in the logo are in the first line in black and in the second line in red. Is it possible to do this type of recording, or should we change the colors in the logo?

Thank you.

R: Answer: If the background is yellow it is not possible to put a red line on top it would change to orange with black or white letters there is no problem.
P: Question: Hello
I would need 2 units, when do you think they will be available?
Best regards
R: Answer: BLP15I-R should be available in two weeks from 03/13/2022.
P: Question: Hello, two things:
1. They ship to the Canary Islands.
2. When you indicate interior is it because it has to be protected? I was thinking of putting it under an awning, is that ok?
Greetings
R: Answer: If we ship to the Canary Islands, you can check at the end of the web (shipping and delivery conditions)This model is IP20 for indoor use, for outdoor use you need one of IP65 grade for example the BLP15E.
P: Question: How long will it take to get it with the logo already engraved?
Thank you
R: Answer: If the logo file is correct in 24/72h
P: Question: Hello, how do you proceed to obtain the logo? do you have to indicate something in the order or send an e-mail with the logo and the order number?
R: Answer: The process is indicated on the website:
When you have confirmed the purchase send an email with the file to save to the address comercial@barcelonaled.com. Indicate as reference the order confirmation number. Immediately the sales department will answer any questions you may have.
P: Question: Do you have motion sensor Gobos?
R: Answer: No, the Gobos are fixed or rotating. If you want to activate the gobo when motion is detected you will have to include an external sensor in the installation.
