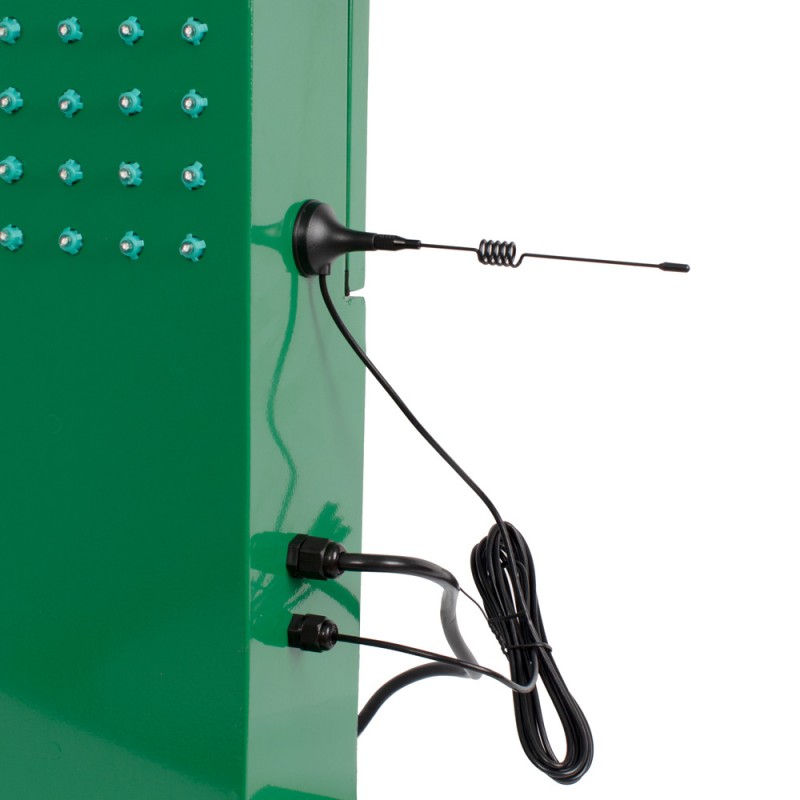

antenna-cz5050-ve

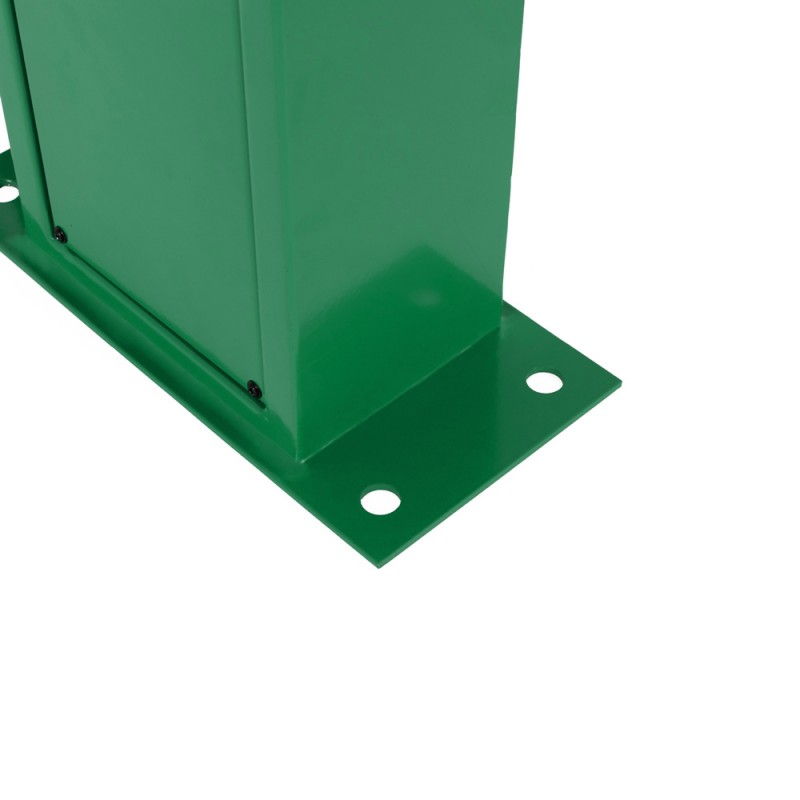

Base to anchor to wall.
cable-conector-cz5050-ve
measurements-cz5050-ve

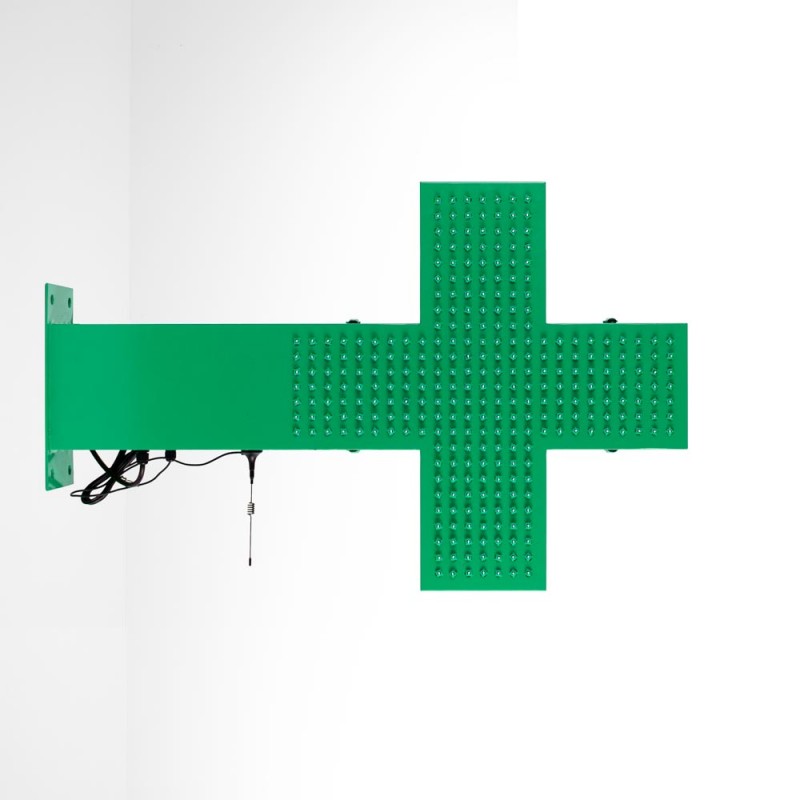

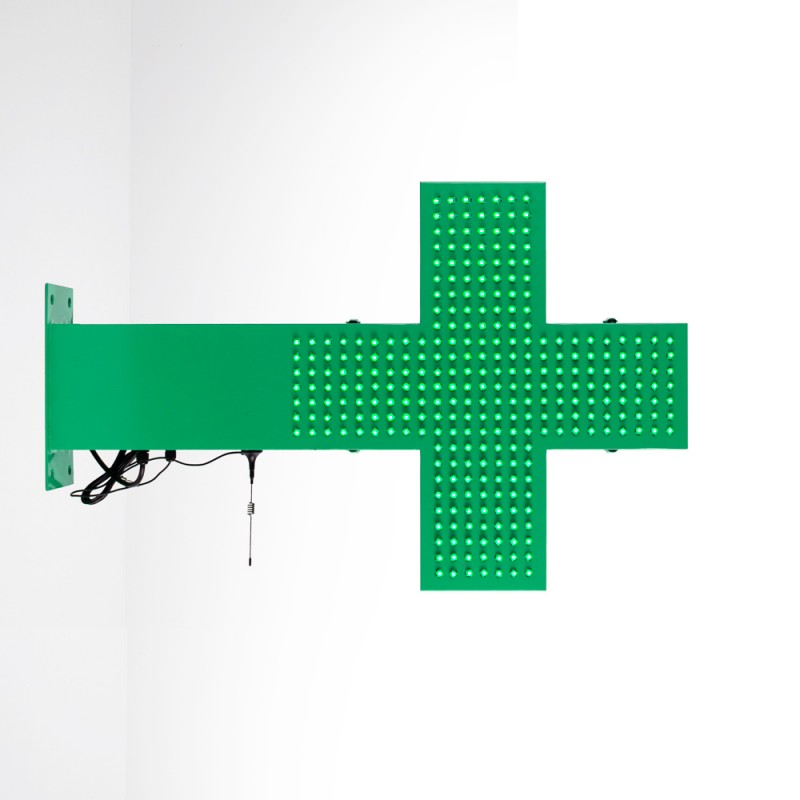

Green monocolor pharmacy LED cross - 50x50cm - Double sided - Outdoor

SKU:CZ5050-VE
Has superado el límite de unidades
In stock 4 units
Data sheet

Green single color pharmacy LED cross made of resistant and durable materials, suitable for outdoor use.

Incorporates double-sided for maximum visibility.

Allows you to change the light pattern, adjust the intensity of brightness and speed of transition of light patterns through a remote control.

Simple to set up, it's perfect for highlighting and promoting your pharmacy.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED cross-shaped sign for pharmacies and parapharmacies.

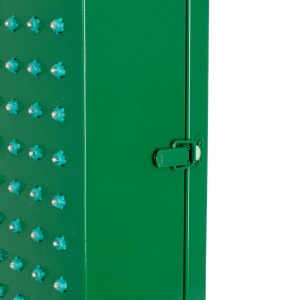

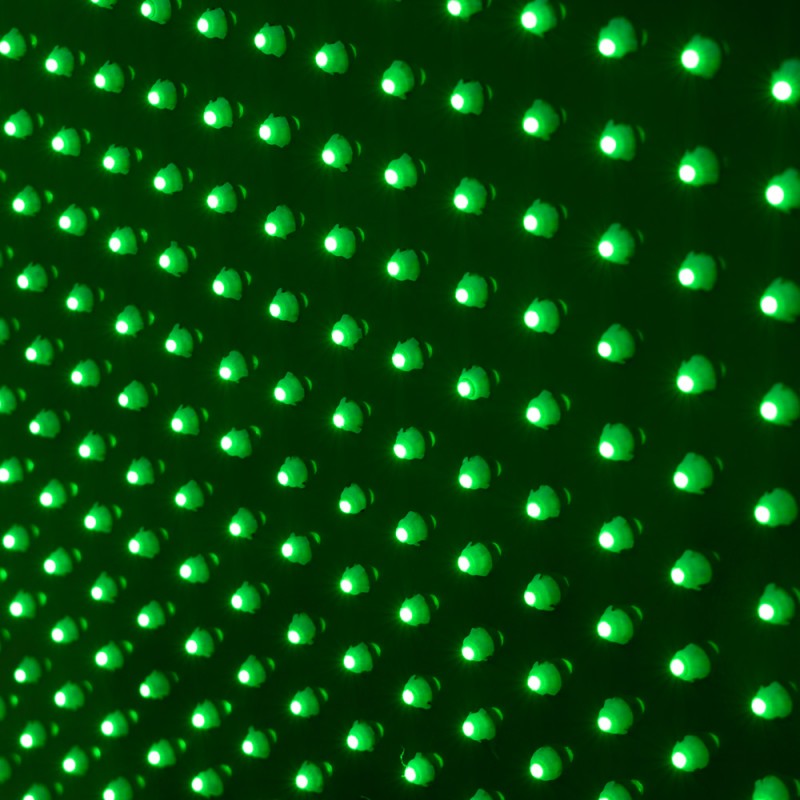

It consists of a robust green metal housing, and double-sided incorporating green LED chips of high efficiency, brightness and intensity, which allow the visualization of the cross from more than 200 meters away.

Its galvanized painted metal housing prevents corrosion and is suitable for outdoor use.

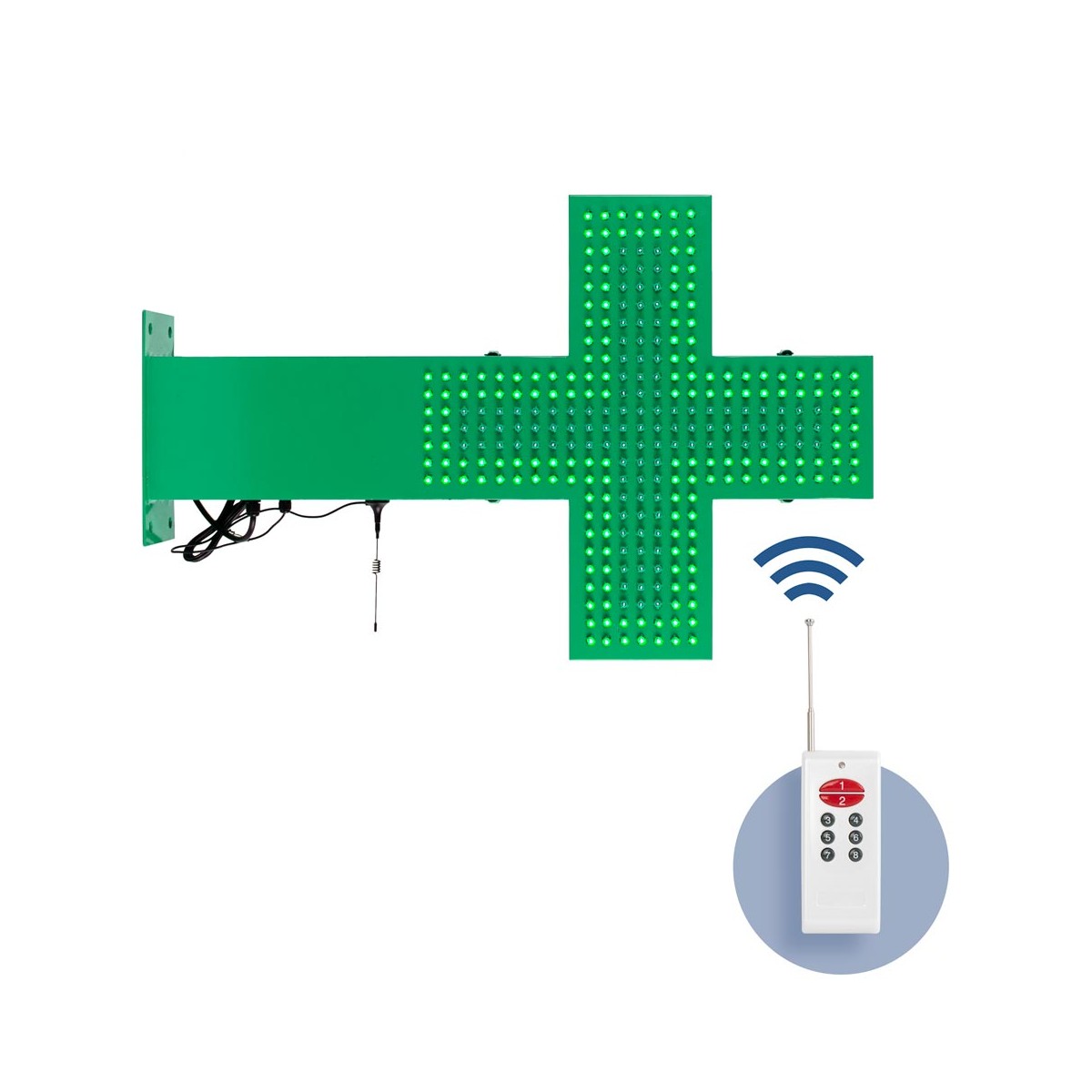

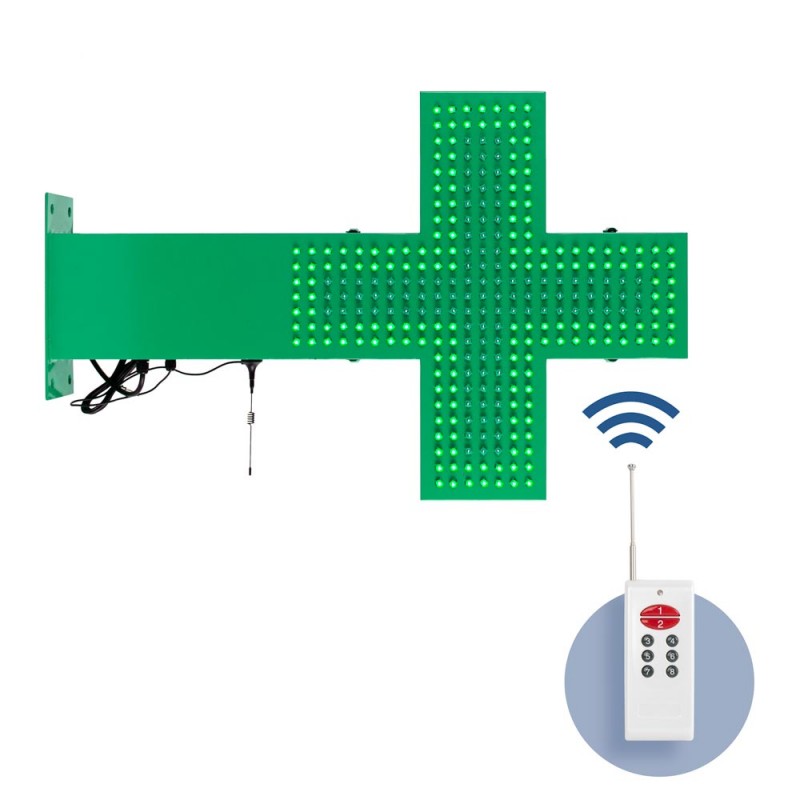

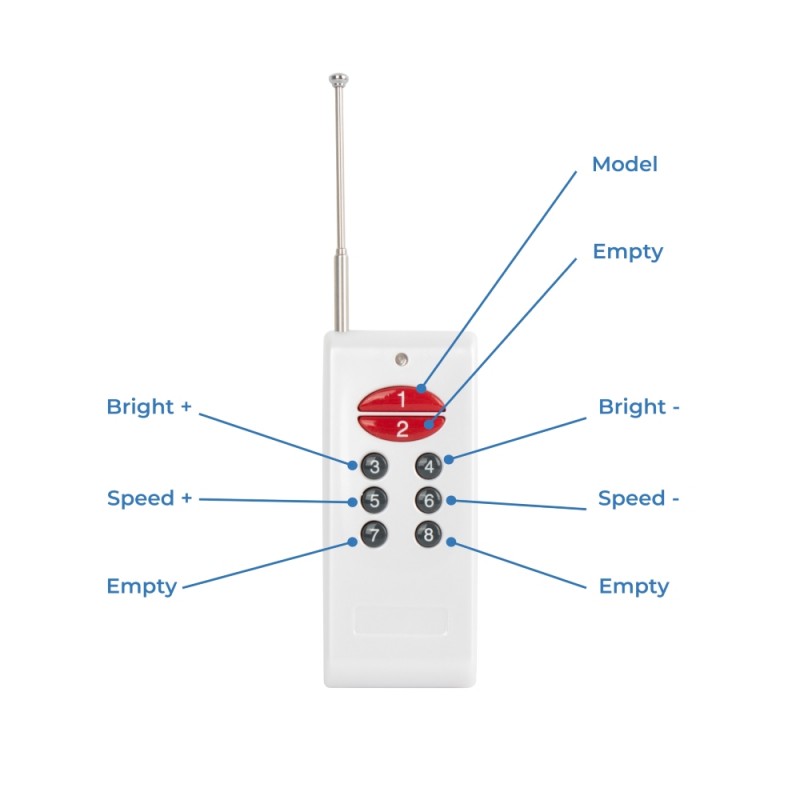

One of the outstanding features of this LED pharmacy cross is its ability to change the light pattern by means of a remote control, allowing a choice of 3 preset patterns. It's also possible to control the speed of transitions between light patterns, offering the possibility to create dynamic and captivating visual effects.

In addition, the brightness intensity can be adjusted to suit different lighting conditions and surrounding environments.

Setting up and using this LED pharmacy cross is a simple process. No software is required and all control is done through the remote control supplied with the product.

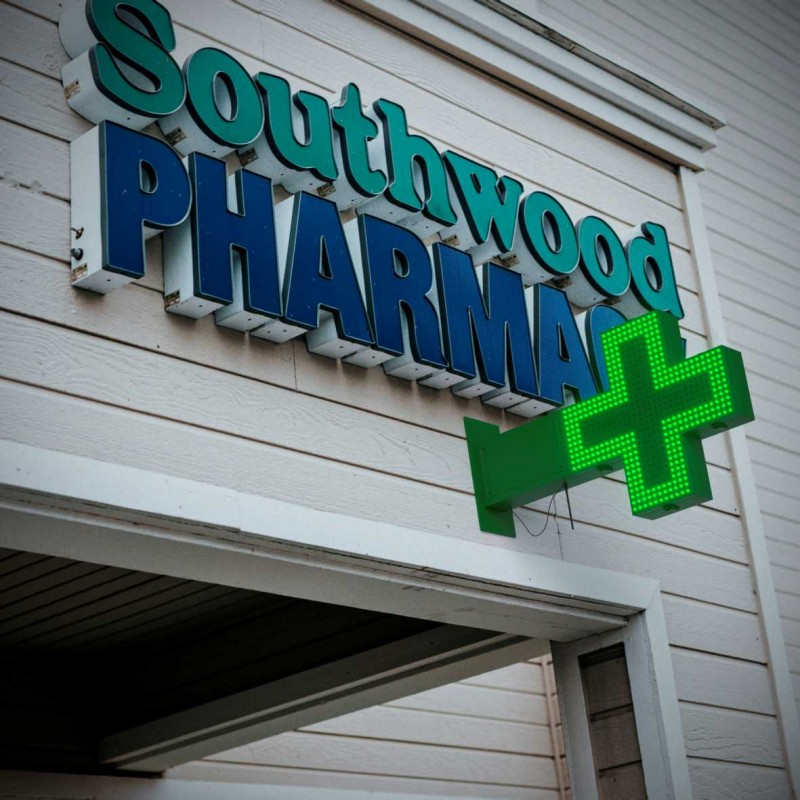

For installation, it includes a soldered plate on its base with holes to screw against the facade. For installation on facades, we recommend using stainless steel anchors and reinforcing the mounting with metal plugs and chemical paste (consult a specialist).

This LED pharmacy cross is an ideal solution to promote and highlight your pharmacy.

Product features:

  • Material: Galvanized painted metal
  • Rated voltage: 220-240V AC
  • LED color: single color green
  • Housing color: green
  • Internal driver

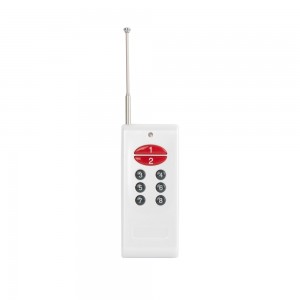

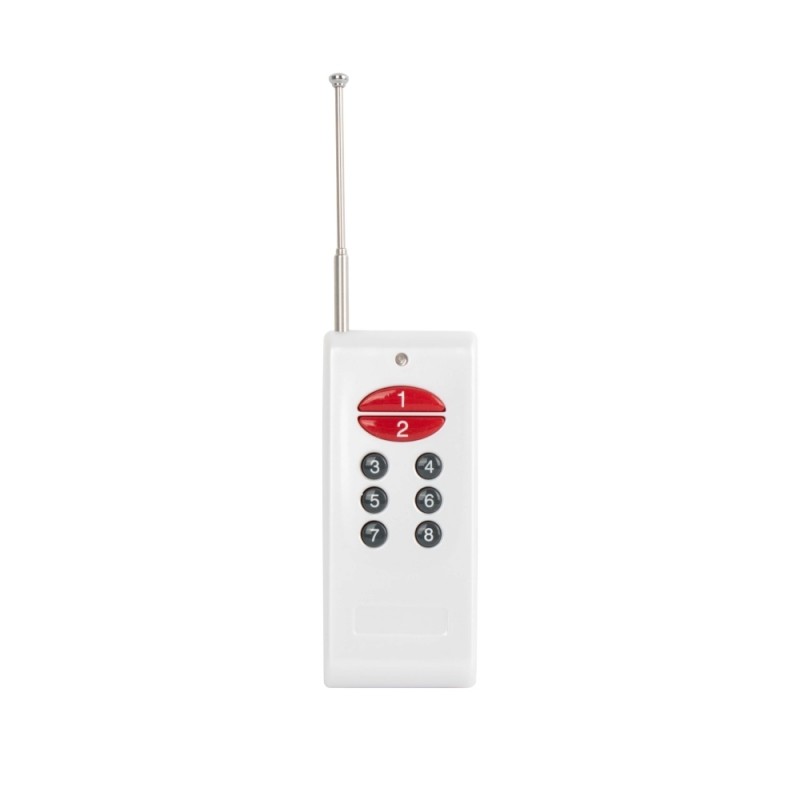

  • Remote control included

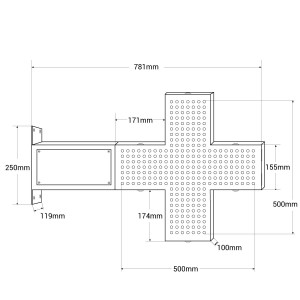

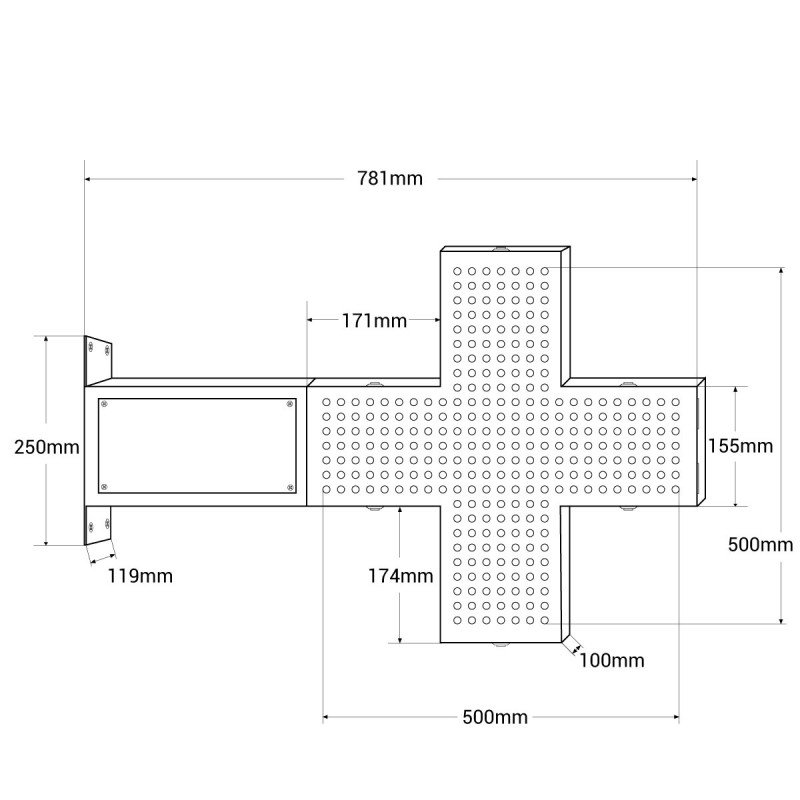

  • Dimensions: 781x500x100mm
  • Cross dimensions: 500x500mm
  • Installation by anchoring on facades
  • Suitable for outdoor use

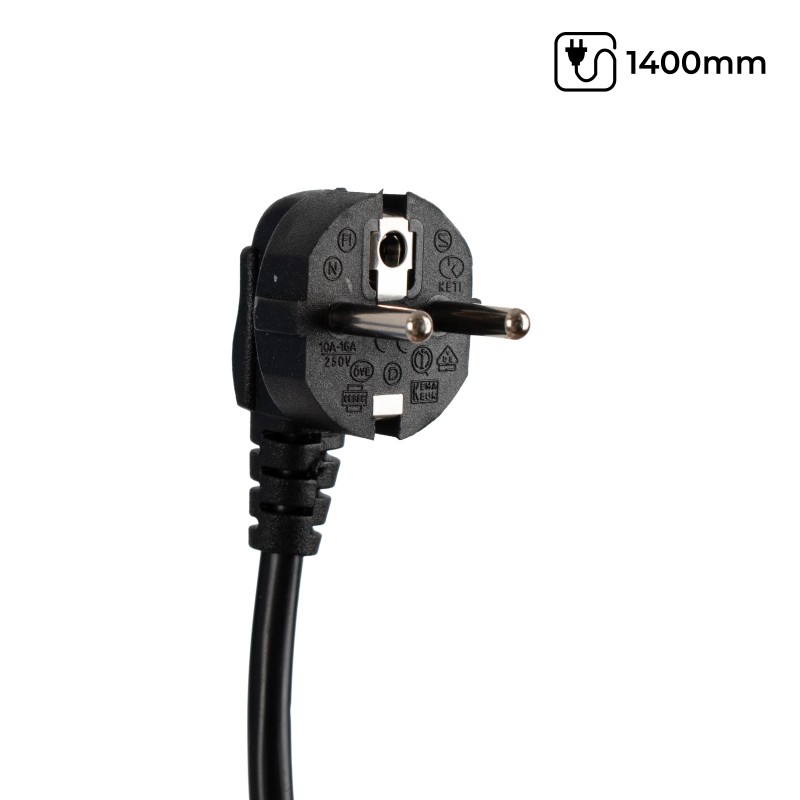

  • Cable length: 1400mm

  • LED characteristics (301 LED total):

  • Dimensions: 80 x 9 x 10 mm
  • Power: 0.12W
  • Input voltage (V): 12V DC
  • Diameter: 9mm
  • Material: transparent resin
  • Service life: 30000H
  • IP67
  • Waterproof: YES
  • Viewing angle: 120º
  • Luminous efficacy: 100lm/w
  • Luminous flux: 20-22lm



Nominal Voltage (V)
220 - 240 V/AC
Lifetime (h)
30000
IP
IP67
Dimensions (mm) Lxlxh
781x500x100
Driver
Internal
Colour control
Monocolor
Use Outdoor
Yes
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
