Emergency light conversion kit for LED luminaires - Max. 45W

SKU:B1054
Has superado el límite de unidades
In stock 174 units
Data sheet

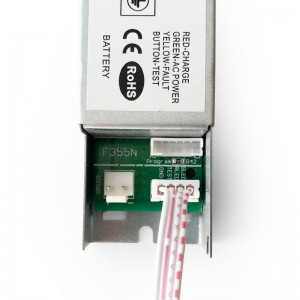

The conversion kit transforms any LED luminaire into an emergency light in case of power failure.

Adaptable to various 110-240V LED luminaires, such as panels and downlights.

With an autonomy of 3 hours, it supports up to 45W and is easy to install.

It includes a tricolor indicator for monitoring the operating status. An effective and aesthetic solution for emergency situations.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Innovative transformation of LED luminaires to emergency light.

LED Luminaire to Emergency Light conversion kit, a versatile solution that transforms any conventional LED luminaire into an effective emergency light source in power outage situations.

It allows you to adapt all LED lights in your home or commercial establishment, giving them the crucial functionality of evacuation or backup lighting during unexpected power outages.

It incorporates a 14.8V lithium battery that gives it an autonomy of 3 hours, with a maximum power of 45W.

It guarantees 100% power output, i.e. if the powered luminaire is 18W, after using the conversion kit it will be 18W. It will maintain the same brightness as before and the same quality transformed into emergency lighting.

Where to install the conversion kit?

It should be considered that emergency lights are placed at least 2 meters above ground level. Their applications are varied, among them we can highlight:

  • ✔ Home
  • ✔ Offices
  • ✔ Emergency exits.
  • ✔ Parking lots and storage rooms.
  • ✔ Emergency stairways.
  • ✔ Shops and department stores.
  • ✔ Warehouses.

Automatic periodic self-test system:

  1. Monthly self-test mode: the system enters emergency mode, monthly, for 2 minutes to check the mains supply circuit, luminaire and battery.
  2. Annual self-test mode: The system enters 60-minute emergency mode, annually, for battery testing and maintenance.
  3. Emergency mode: The system discharges and the luminaire automatically turns on. If no luminaire is connected to the conversion kit, the emergency mode will automatically shut down to avoid electric shock.

Button to test the emergency luminaire

  • Pressing the button for:
  • 1~3s: LED indicator flashes green at the frequency of 1HZ. The system enters manual testing mode and discharges for 5 seconds.
  • 3~5s: LED indicator flashes green at the frequency of 2HZ. The system enters monthly self-test mode and discharges for 2 minutes.
  • 5~7s: LED indicator flashes green at the frequency of 3HZ. The system enters annual self-test mode and discharges for 1 hour.
  • more than 7s: The system stops discharging to recharge again.

Tricolor indicator instructions

  • Red: Red indicator indicates charging.
  • Green: Green indicator indicates fully charged. If the indicator flashes it would be the check and self-test process explained above.
  • Yellow: The yellow indicator indicates a short circuit or too short an emergency time. The indicator flashes yellow at the frequency of 1 HZ to indicate a battery error. The indicator flashes yellow at the frequency of 3 HZ indicates an emergency luminaire error.

Product features:

  • Material: stainless steel
  • Rated voltage: 110-240 V AC
  • Maximum power: 45W
  • Battery: Li-ion, 14.8V, 4.5Ah
  • Charging current: 20mA (nominal)
  • Indoor use: IP20
  • Tricolor indicator
  • Unit dimensions: 220 x 30 x 30 mm
  • Battery dimensions: 265 x 55 mm

Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
45
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
220x30x30
Frequency (Hz)
50 - 60
Battery Type
Lithium 14.8V
Capacity (mAh)
4500
Material
Stainless steel
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: The luminaires in the staircase are controlled by a motion sensor. Can I convert it to emergency lights with this kit? And another one? Thank you.
R: Answer: Depending on the luminaire and the installation, if it can convert to emergency (the sensor should activate the LS line).
