LED emergency light - 3W - 250lm - Autonomy 3h
SKU:B1050
€13.89
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

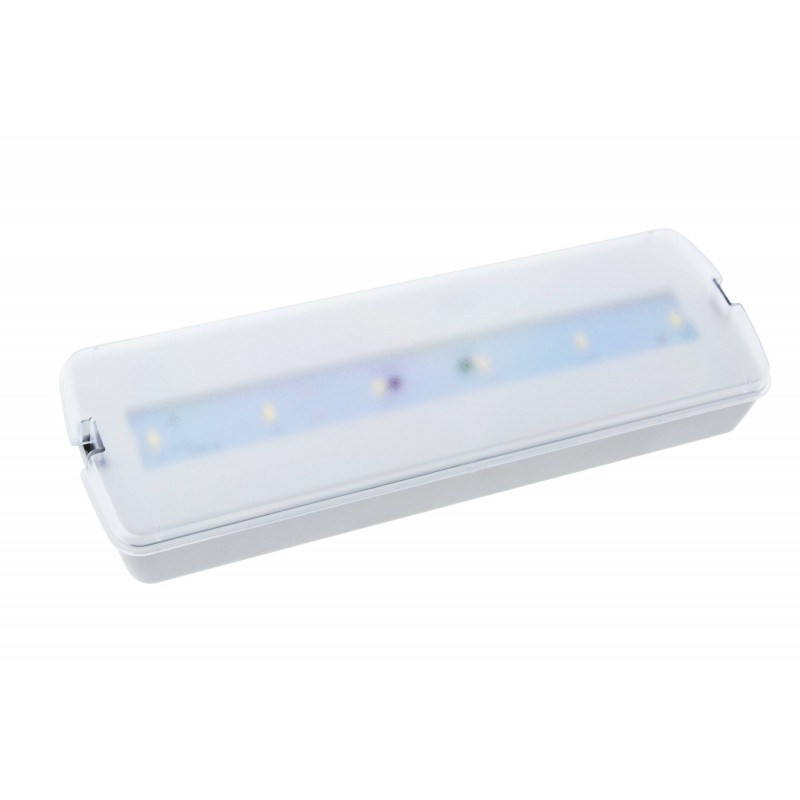

3W LED emergency light. Reliable lighting during power outages
This LED emergency light provides backup lighting during power outages, providing visibility in emergency situations.
It's made of ABS (acrylonitrile butadiene butadiene styrene), a shock resistant material.

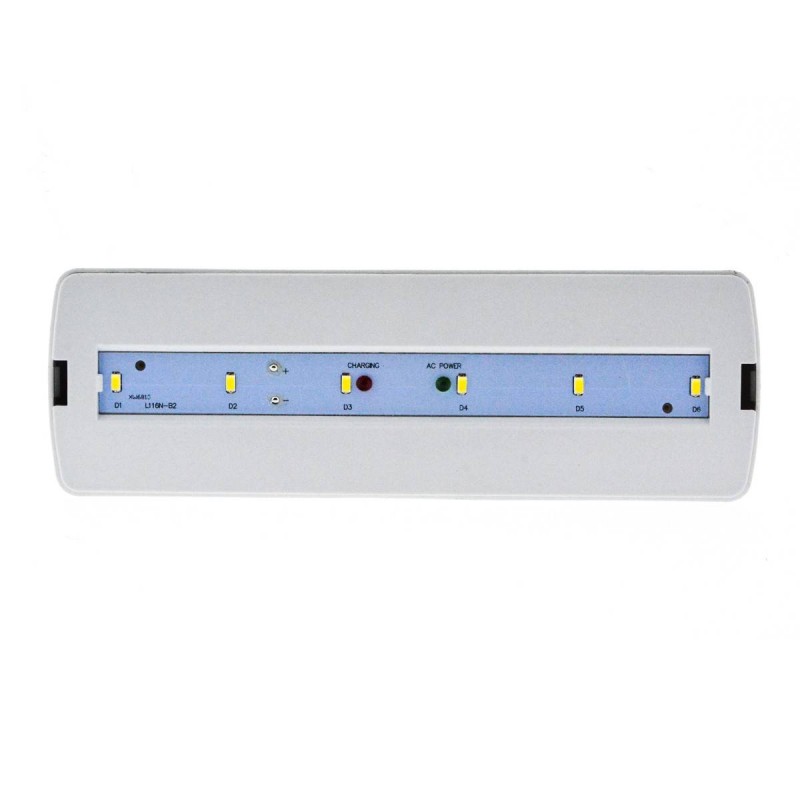

It incorporates SMD5730 LED chips that ensure clear and intense lighting, even through the self-adhesive sign, with a luminous flux of 250lm and a cool white tone (6500K).
The light is not permanent, but turns on automatically in case of power failure, and has 3-hour autonomy.
An LED indicator lets you know whether the device is in operation (green color) or if the battery is charging (red color), making it easy to monitor its status.
Installation
This emergency light can be installed in two ways:

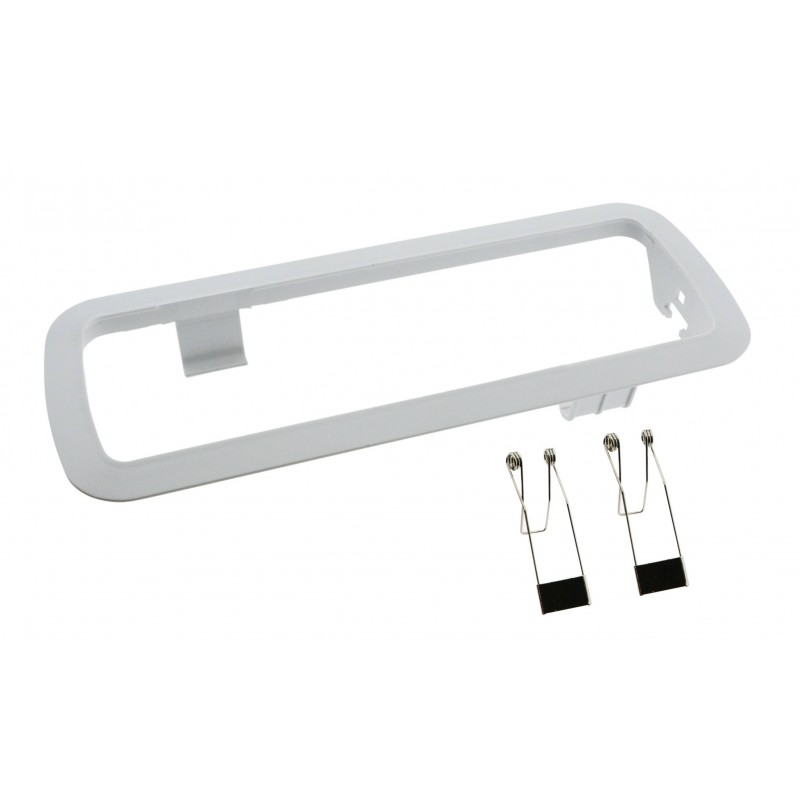

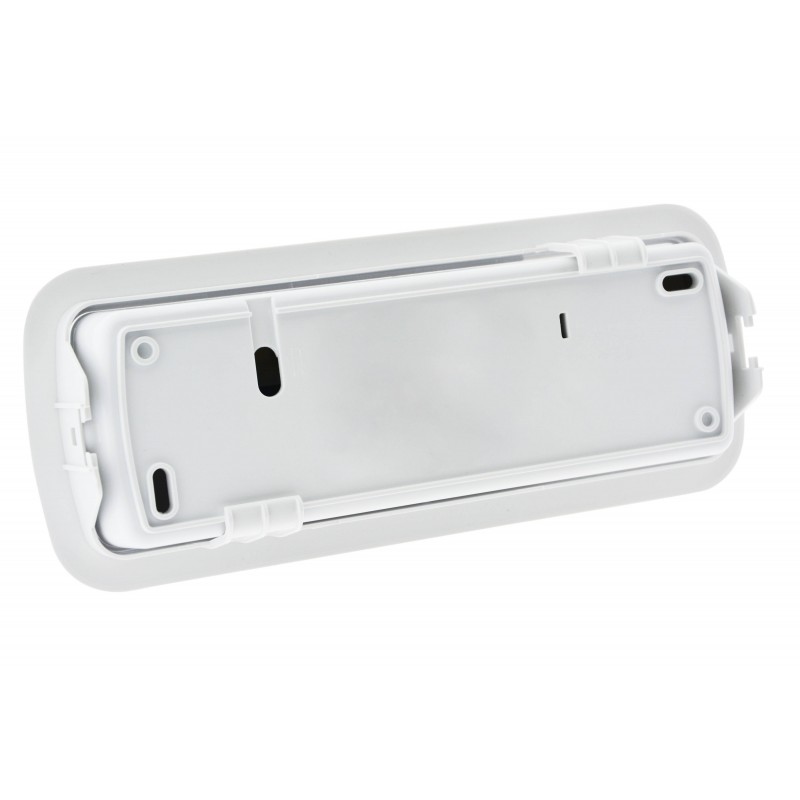

Recessed: replacing an old luminaire or making a new hole. Once the cutout and wiring connection is done, the luminaire is easily inserted and fixed by means of its two lateral flaps.
Surface: it requires the wiring connection on the wall or ceiling. The frame that carries the luminaire for recessed installation must be removed prior to surface installation.
It includes all the necessary elements for mounting.
Precautions during installation:
1) Disconnect power during installation.
2) This product should not be installed in outdoor, humid, corrosive gas, etc. places.
3) This product should be used on a separate power circuit. It should not share circuit with lighting or other electrical equipment (with switch), to ensure that the battery can be recharged normally.
4) To ensure that the product is working normally, it should be checked periodically.
5) The device should be charged for approximately 20 hours before the first use.
6) If the device is stored or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.

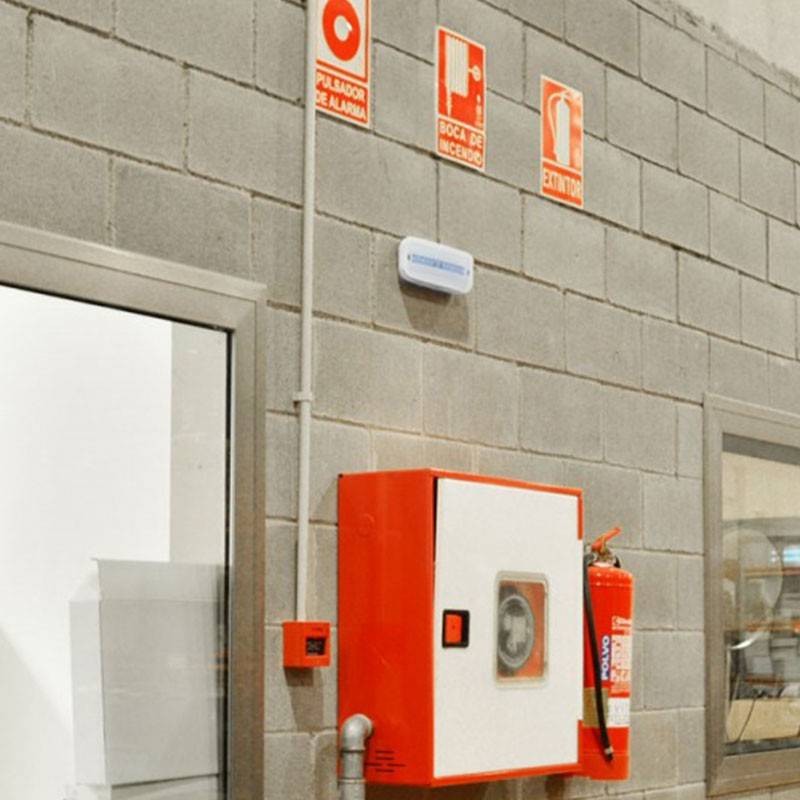

Applications
- Stores, businesses and offices.
- Schools and universities.
- Health facilities.
- Entertainment centers.
- Industrial facilities.
- Public places.
- Sports facilities.
|
Product features:
|
2018-07-13
Nominal Voltage (V)
220 - 240 V/AC
Kelvin (K)
6500
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Surface: 238x80x37
Surface area: 238 x 80 x 37
Surface area: 238 x 80 x 37
Frequency (Hz)
50 - 60
LED Type
SMD 5730
Cutting dimensions (mm)
250 x 90
Weight (g)
0.25kg
Material
Plastic
Use Outdoor
No
Energy efficiency class
G
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Hello, should the green and red LEDs always be on? Thanks |
|---|
| R: Answer: | If this model B1050 is always on, the green light is that it is connected and receives mains voltage 230VAC and the red led is that it is charging, if it flashes it is an emergency failure. |
|---|
| P: Question: | I have installed them and with the switch and staircase light on, the light is off and charging, but when I turn off the switch and turn off the staircase light, the emergency light comes on. shouldn't it be like that? don't they only come on when there is a power failure? |
|---|
| R: Answer: | Emergency must always be connected to Linear (L) and Neutral (N) to operate and charge (if disconnected the emergency will turn on). LS to connect next to line and leave the light permanently on or put a switch in between to be able to turn on and off. |
|---|
| P: Question: | Very good morning I wanted to know if you ship to melilla and what maximum discount you have to professionals and what is the minimum order, greetings and thank you |
|---|
| R: Answer: | Yes, you can see the conditions at the end of the web under Shipping and delivery conditions. You can register in the section for professionals or contact with commercial |
|---|
| P: Question: |
It says that the battery leaves the factory without charging, it charges itself by connecting it to the mains or you have to do ...? thank you in advance, greetings waiting for your response. |
|---|

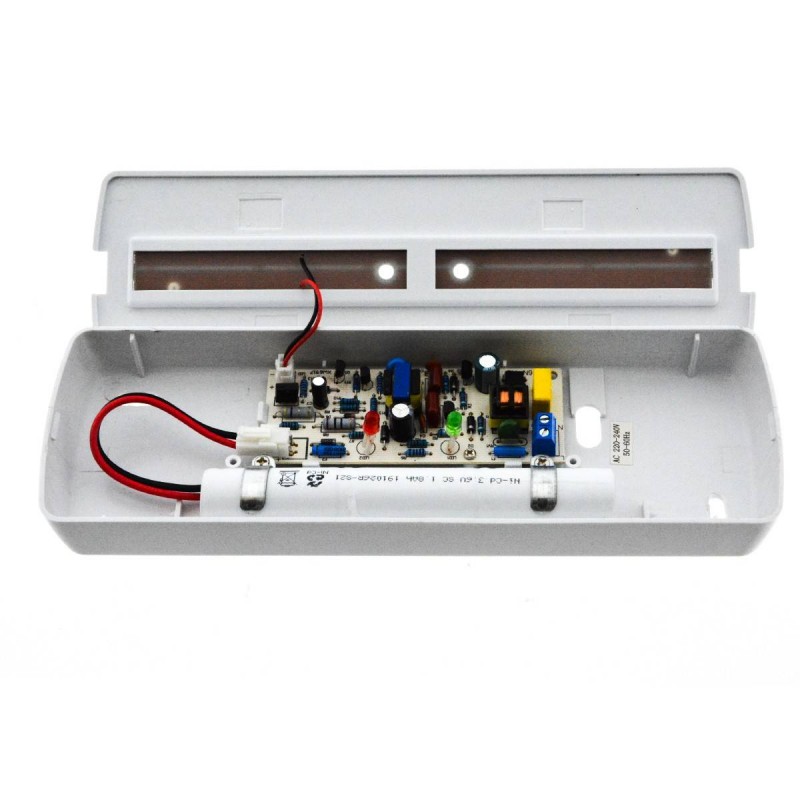

| R: Answer: | The internal battery can come with the cable disconnected. Just connect the battery cable to the connector on the board and connect the luminaire to the mains for normal operation. |
|---|
| P: Question: | the emergencies I have set up in the block are permanent, can I change them to non-permanent? |
|---|
| R: Answer: | In principle, yes, but you will have to check the regulations of your building, perhaps it is being used as a normal passing light. |
|---|
| P: Question: | Are they permanent or non-permanent? |
|---|
| R: Answer: | This model is not permanent. There are others that are. |
|---|
| P: Question: |
I have to change the emergency lights in a school, the old ones are 60lm. Can they be replaced by 250lm ones? |
|---|
| R: Answer: | There should be no problems as long as it complies with the minimum lighting regulations according to the location and use. It should be reflected in the site survey. |
|---|
| P: Question: |
They are suitable for a cocktail bar. |
|---|
| R: Answer: | We do not know the regulations for specific premises. The project technician must choose the lights according to location, flow of people, etc. We have no incidences of problems in installations with this model of emergencies. |
|---|
| P: Question: |
Does this product have the option of permanent/non-permanent operation? I'd also like to know if it comes with signs. |
|---|
| R: Answer: | The permanent light reference is B1050-PERM https://www.barcelonaled.com/pt/luzes-de-emergencia-e-sinalizacao/luz-de-emergencia-permanente-3w-e-250lm-3-horas-de-autonomia.html You can buy the pictogram and the flag separately to stick on the signs Flag: https://www.barcelonaled.com/pt/luzes-de-emergencia-e-sinalizacao/bandeira-metacrilato-para-luminaria-evacuacao-exit.html Pictogram: https://www.barcelonaled.com/pt/luzes-de-emergencia-e-sinalizacao/pictogramas-de-evacuacao-para-as-luzes-de-emergencia.html |
|---|
| P: Question: | How long does it take for the product to arrive? |
|---|
| R: Answer: | You can see the shipping and delivery conditions at the end of the web. In Peninsula 24/72h |
|---|
