KIT self-adhesive pictogram "Toilet" + Permanent emergency light

Reliable and effective lighting

This emergency light stays on at all times, ensuring safe and constant illumination in low daylight situations or in the event of a power failure.

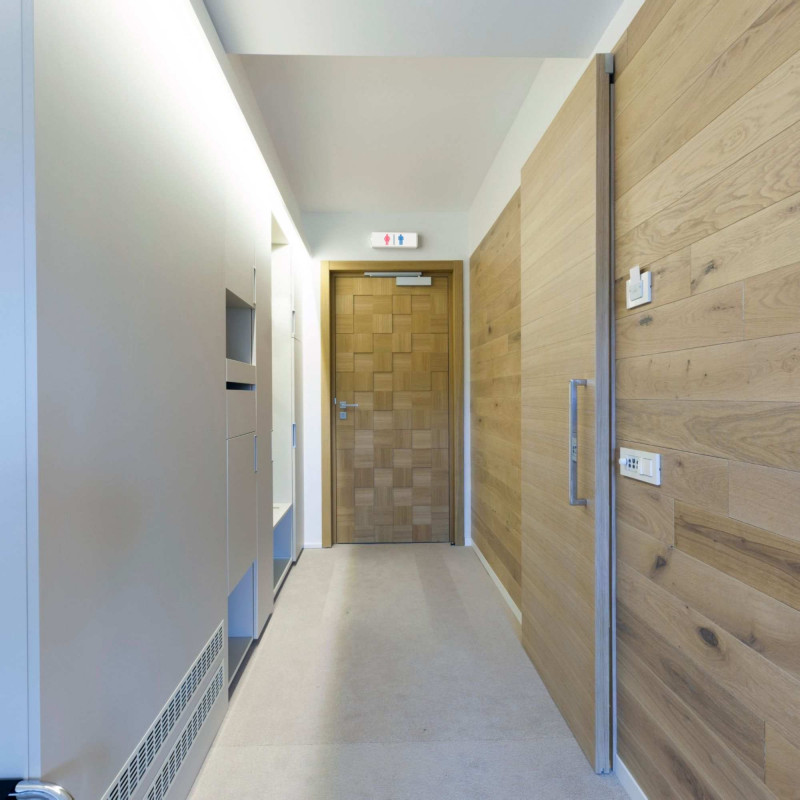

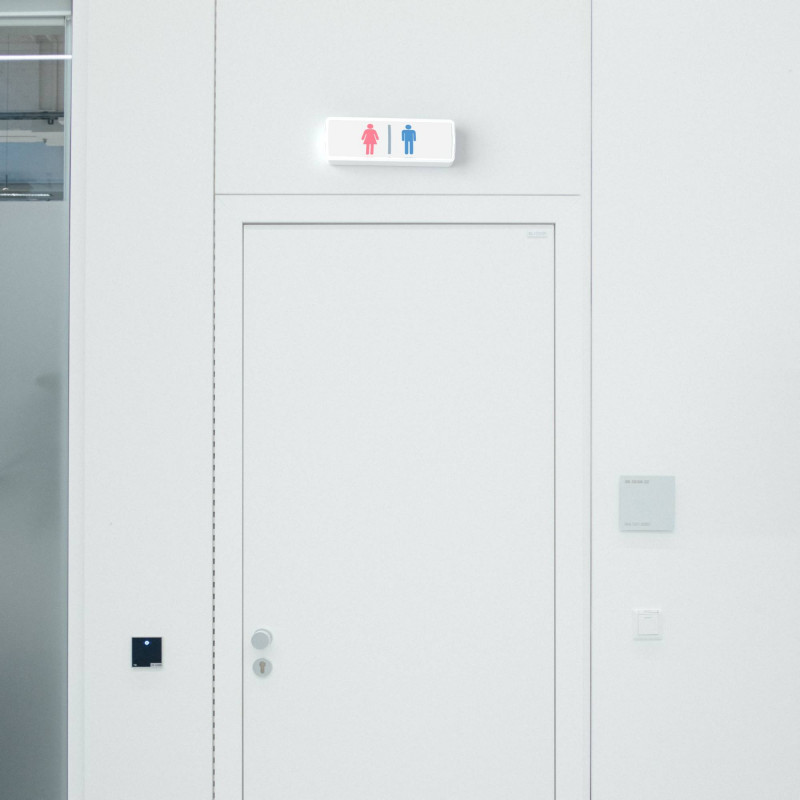

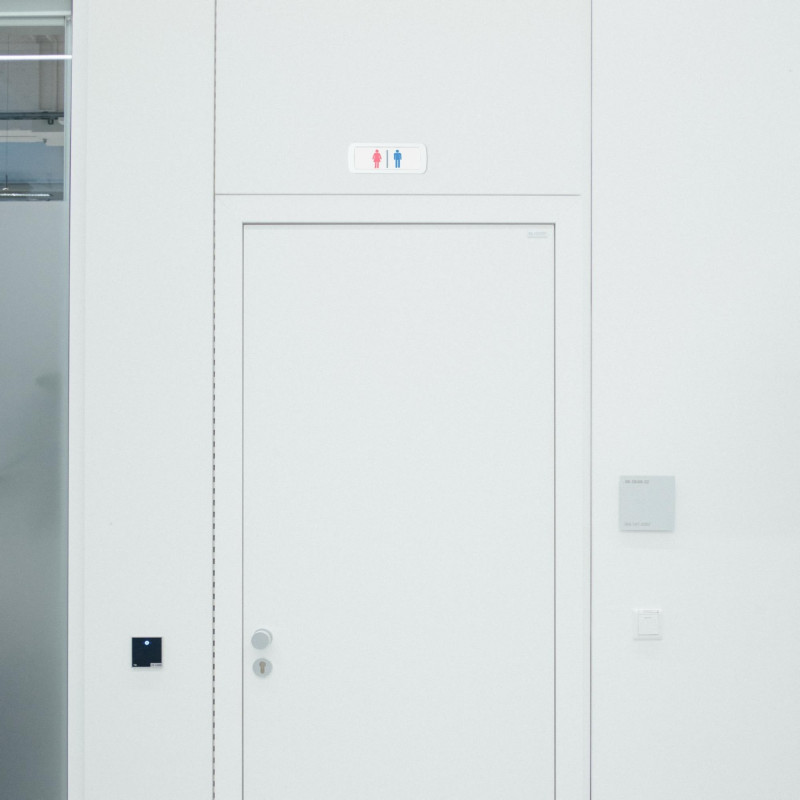

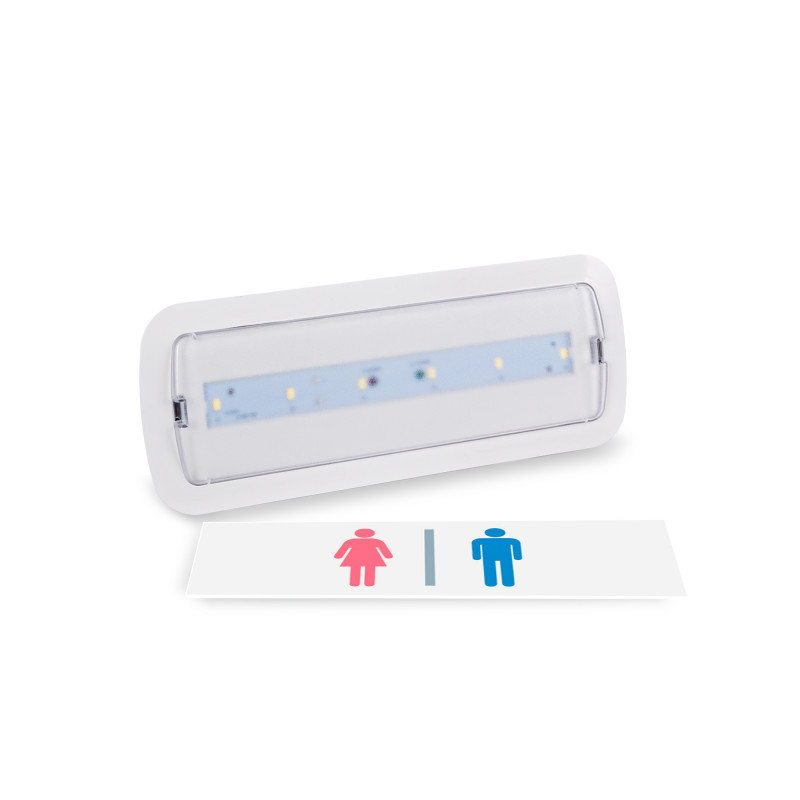

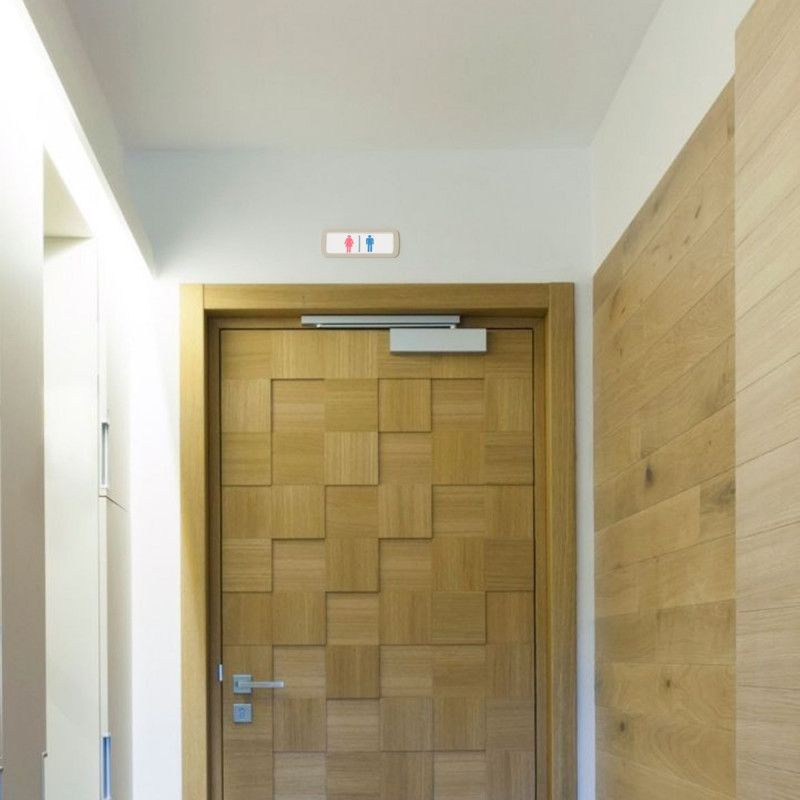

It incorporates a self-adhesive sign that is easily attached to the luminaire and provides clear signage for the location of toilets.

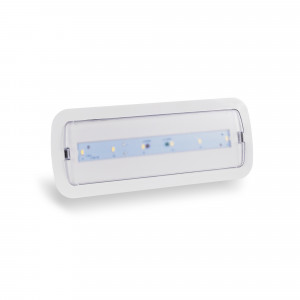

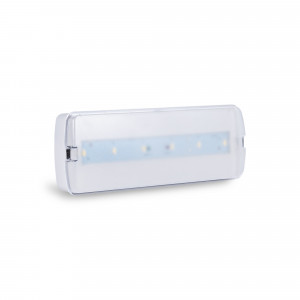

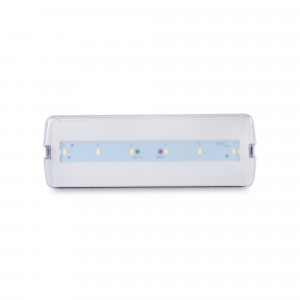

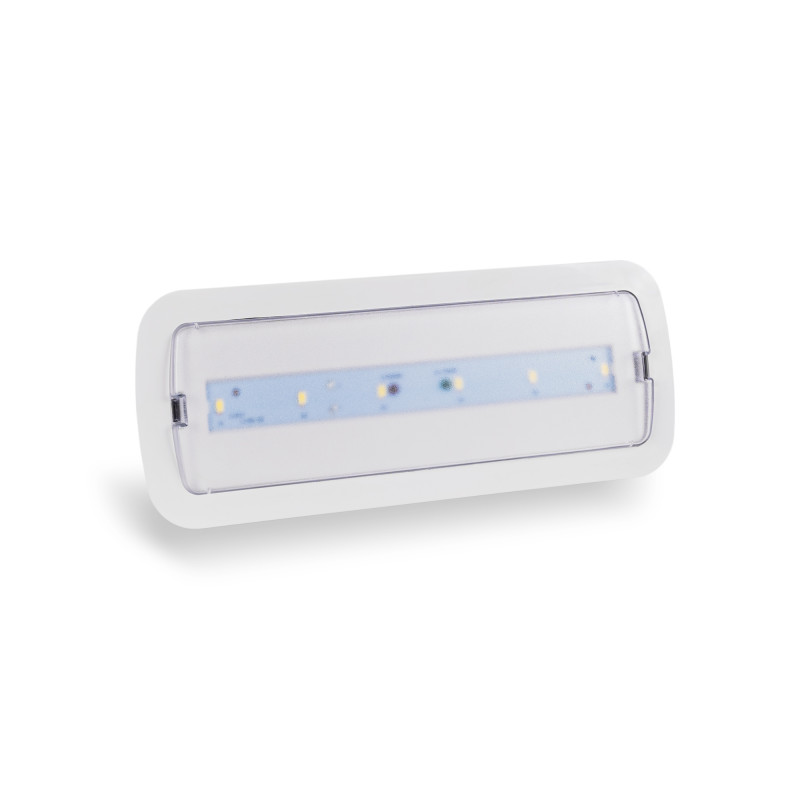

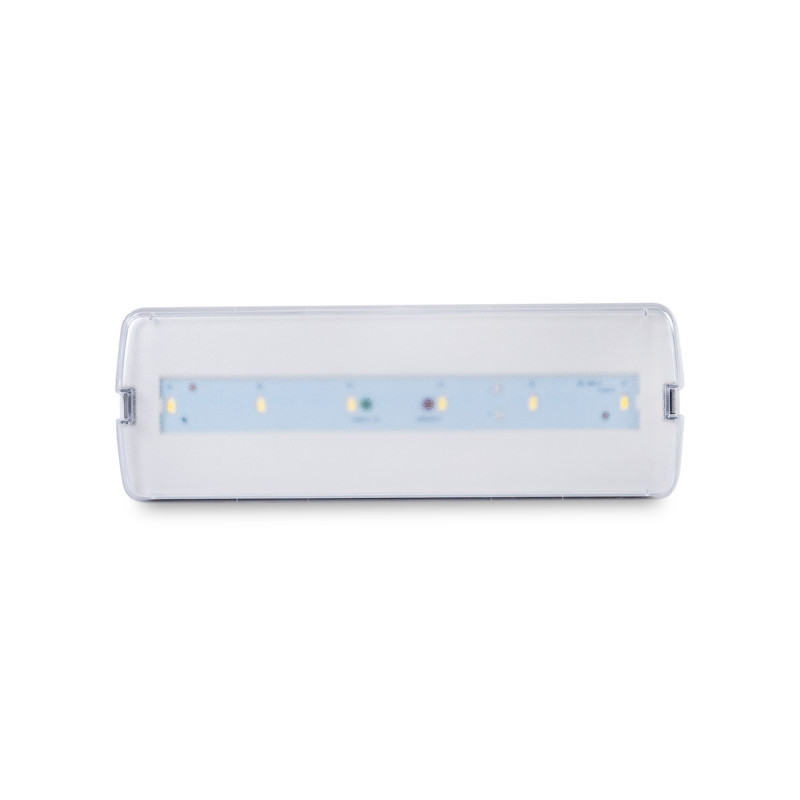

The luminaire is made of ABS (acrylonitrile butadiene styrene), a shock resistant material. It incorporates SMD5730 LED chips that ensure clear and intense illumination, even through the self-adhesive sign, with a luminous flux of 250lm and a cool white light (6500K).

In case of power failure, the light has 3h of autonomy.

Installation

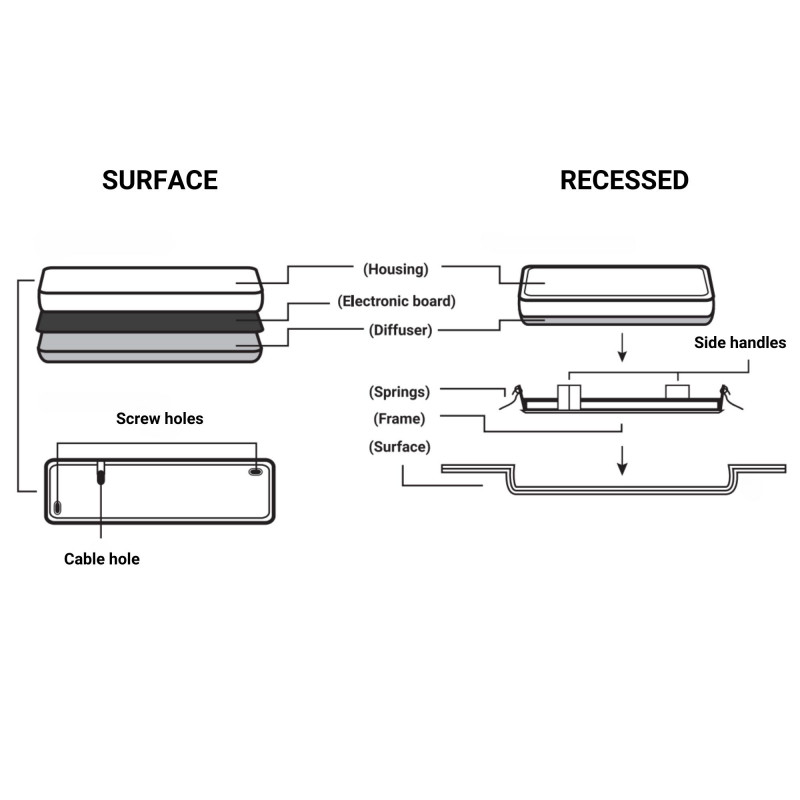

This emergency light can be installed in two ways:

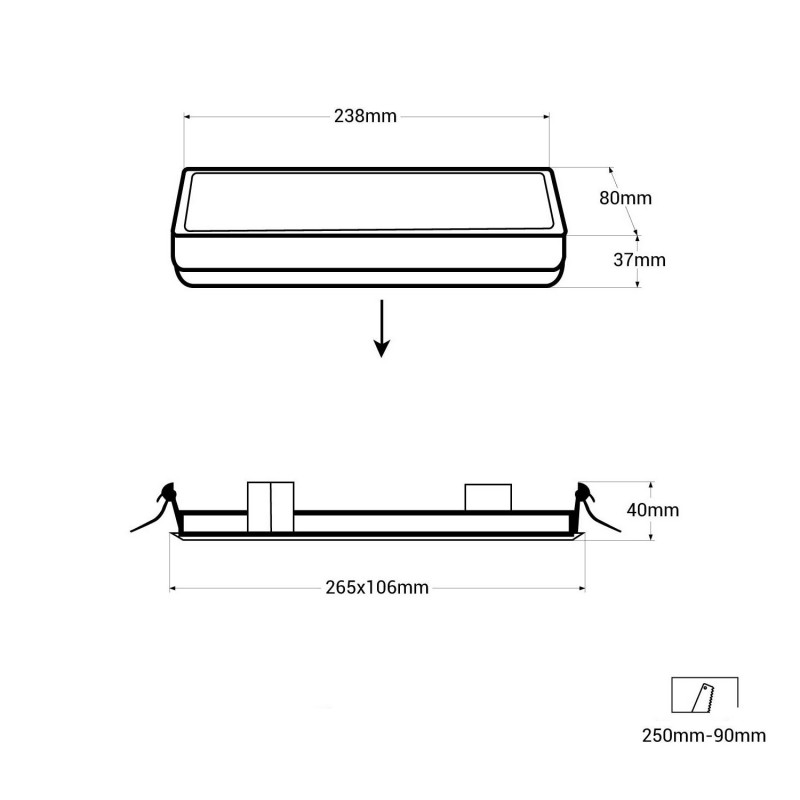

Recessed: replacing an old luminaire or making a new hole. Once the cutout and wiring connection is done, the luminaire is easily inserted and fixed by means of its two lateral flaps.

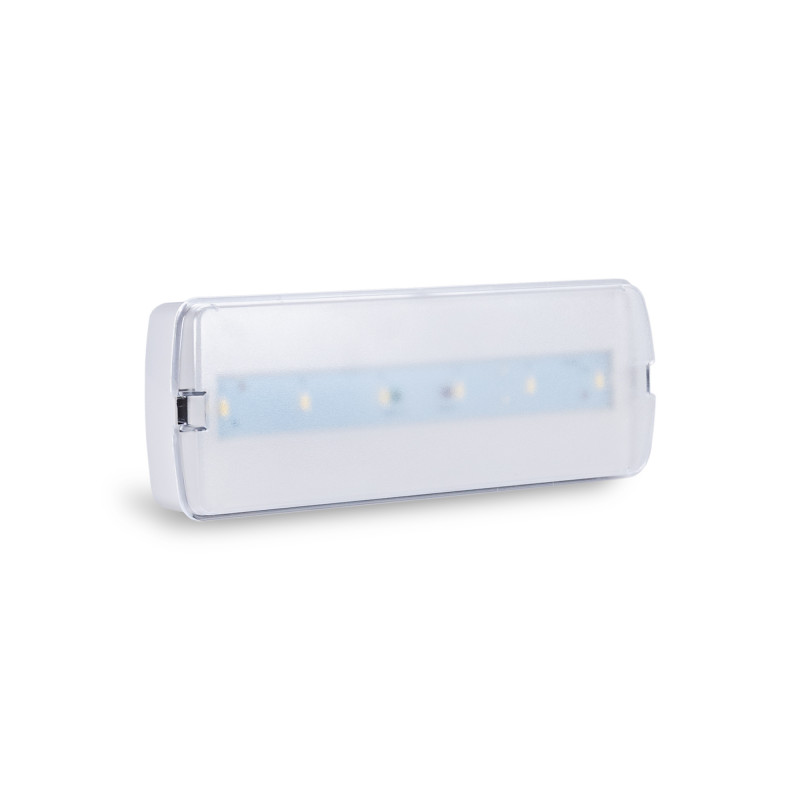

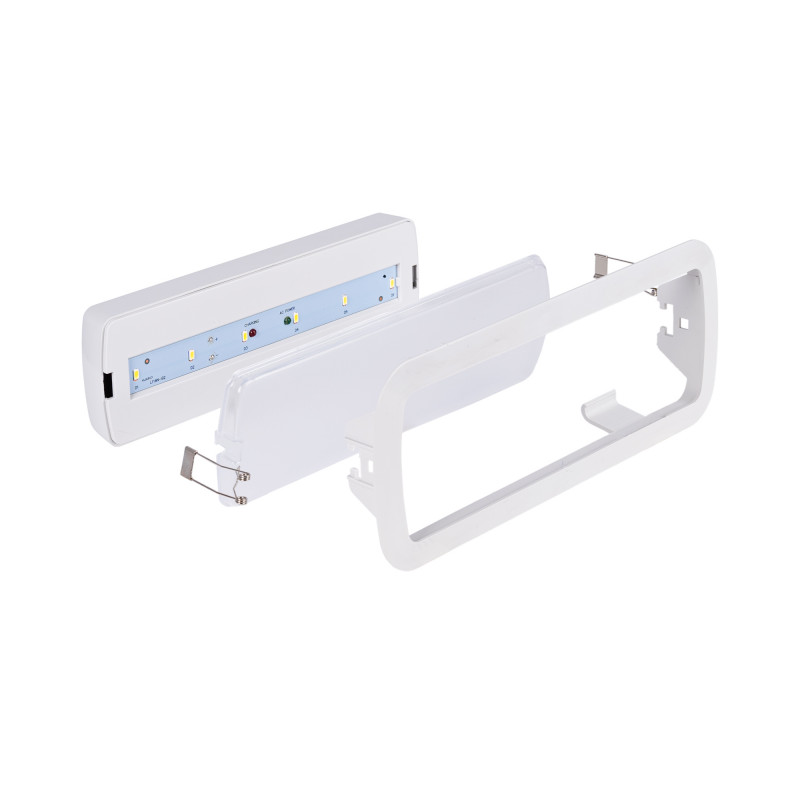

Surface: it requires the wiring connection on the wall or ceiling. The frame that carries the luminaire for recessed installation must be removed prior to surface installation.

It includes all the necessary elements for mounting.

Precautions during installation:

1) Disconnect power during installation.

2) This product should not be installed in outdoor, humid, corrosive gas, etc. places.

3) This product should be used on a separate power circuit. It should not share circuit with lighting or other electrical equipment (with switch), to ensure that the battery can be recharged normally.

4) To ensure that the product is working normally, it should be checked periodically.

5) The device should be charged for approximately 20 hours before the first use.

6) If the device is stored or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.

Applications

• Stores, businesses and offices.
• Schools and universities.
• Health facilities.
• Entertainment centers.
• Industrial facilities.
• Public places.
• Sports facilities.
