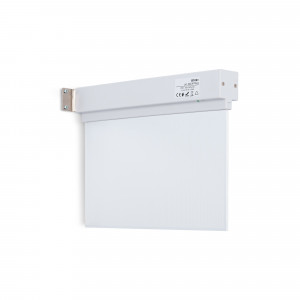

Permanent emergency light with "Toilet" pictogram

Reliable and effective lighting

This emergency light is always on, ensuring safe and constant illumination in low daylight situations or in the event of a power failure.

It incorporates two acetate signs that are easily attached to the luminaire and provide clear signage for the location of bathrooms.

The luminaire has SMD2835 LED chips that ensure clear and intense illumination in a cool white light (6500K).

In case of power failure, the device has 3h of autonomy.

Installation

This emergency light is intended for surface installation, both on ceilings and walls. It requires a simple and quick electrical wiring connection, and can be secured to the installation surface using screws.

It includes all the necessary elements for assembly.

Precautions during installation:

1) Disconnect power during installation.

2) This product should not be installed in outdoor, humid, corrosive gas, etc. places.

3) This product should be used on a separate power circuit. It should not share circuit with lighting or other electrical equipment (with switch), to ensure that the battery can be recharged normally.

4) To ensure that the product is working normally, it should be checked periodically.

5) The device should be charged for approximately 20 hours before the first use.

6) If the device is stored or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.

Mounting the acetate sign:

1) Unscrew the transparent panel attached to the luminaire base.

2) Next, adhere the sign to the panel using double sided tape or other adhesive, making sure that the holes in the sign match the holes in the panel.

3) Finally, remount the panel to the luminaire and tighten it with the screws.

Two identical signs are provided, to place one on each side of the clear panel, ensuring maximum visibility.

Applications

• Stores, businesses and offices.
• Schools and universities.
• Health facilities.
• Entertainment centers.
• Industrial facilities.
• Public places.
• Sports facilities.
