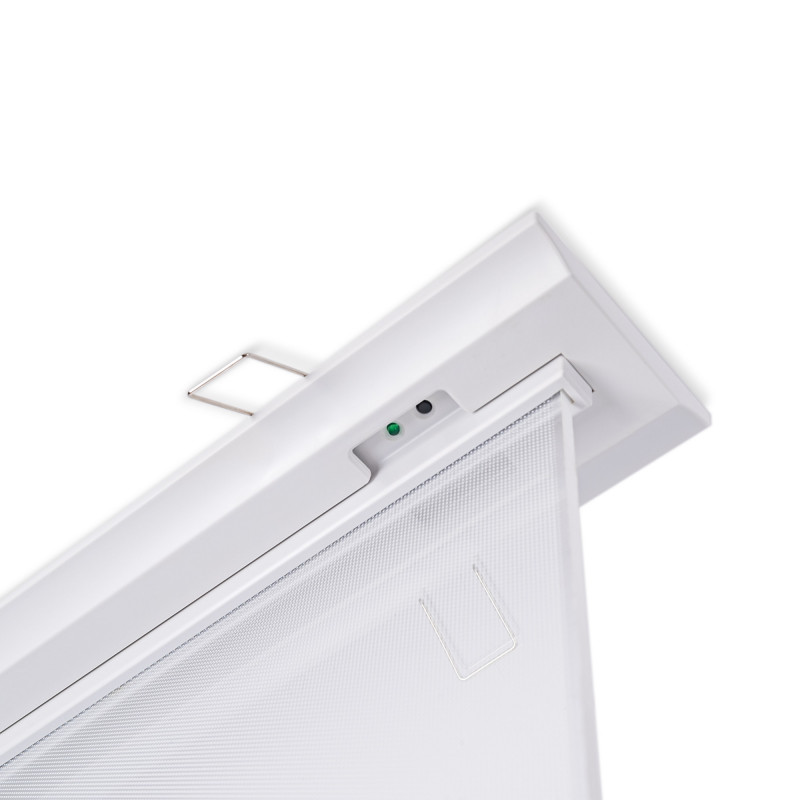

Recessed permanent emergency light with "EMERGENCY EXIT" sign

Reliable and effective lighting

This emergency light is always on, ensuring safe and constant illumination in low daylight situations or in the event of a power failure.

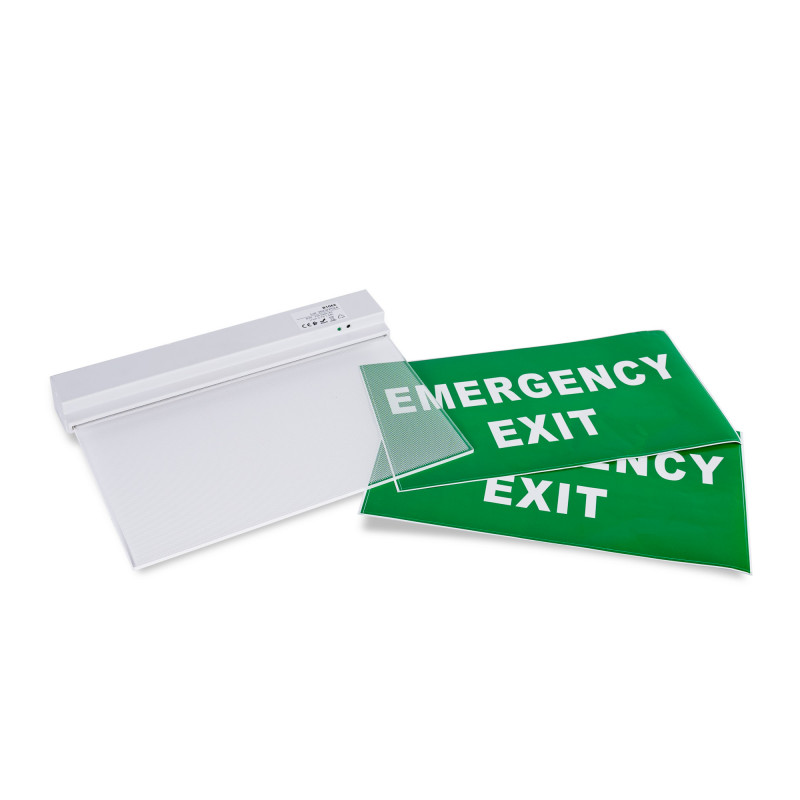

It incorporates two acetate signs that are easily attached to the luminaire and provide clear signage for the location of the emergency exit.

The luminaire has SMD2835 LED chips that ensure clear and intense illumination in a cool white light (6500K).

In case of power failure, the device has 3h of autonomy.

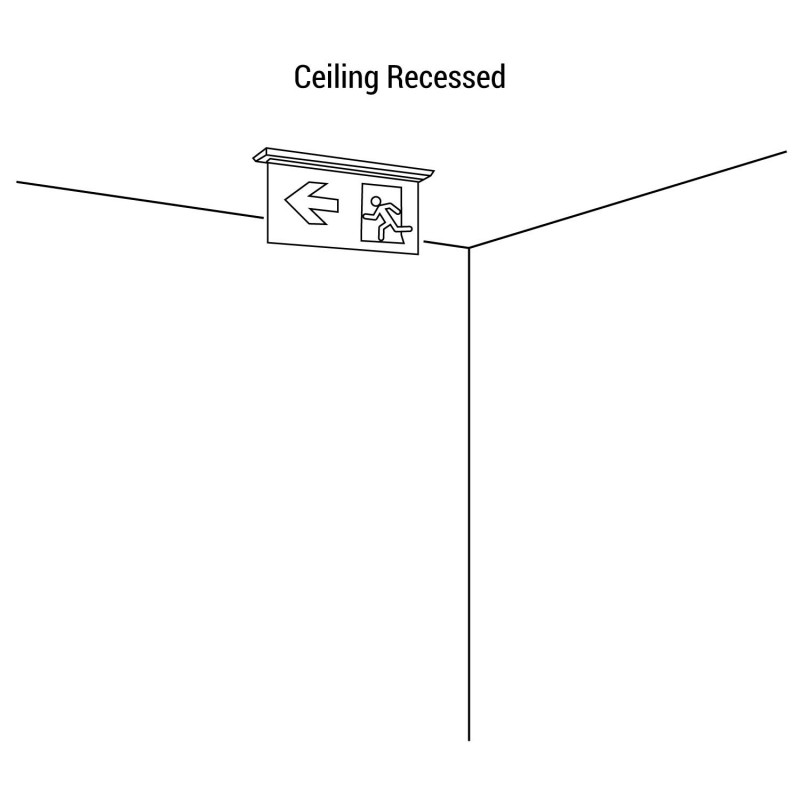

Installation

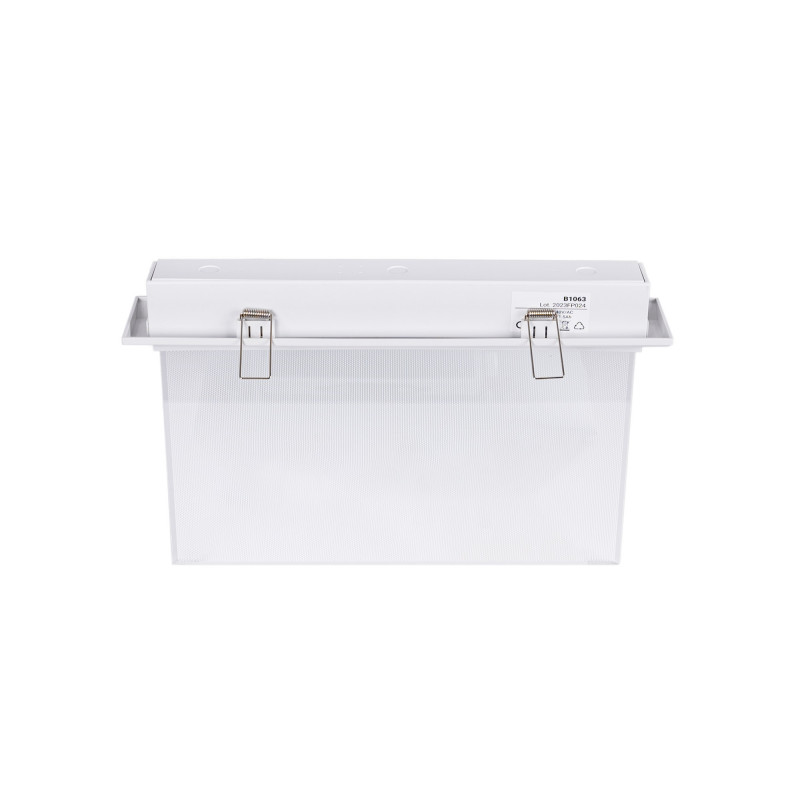

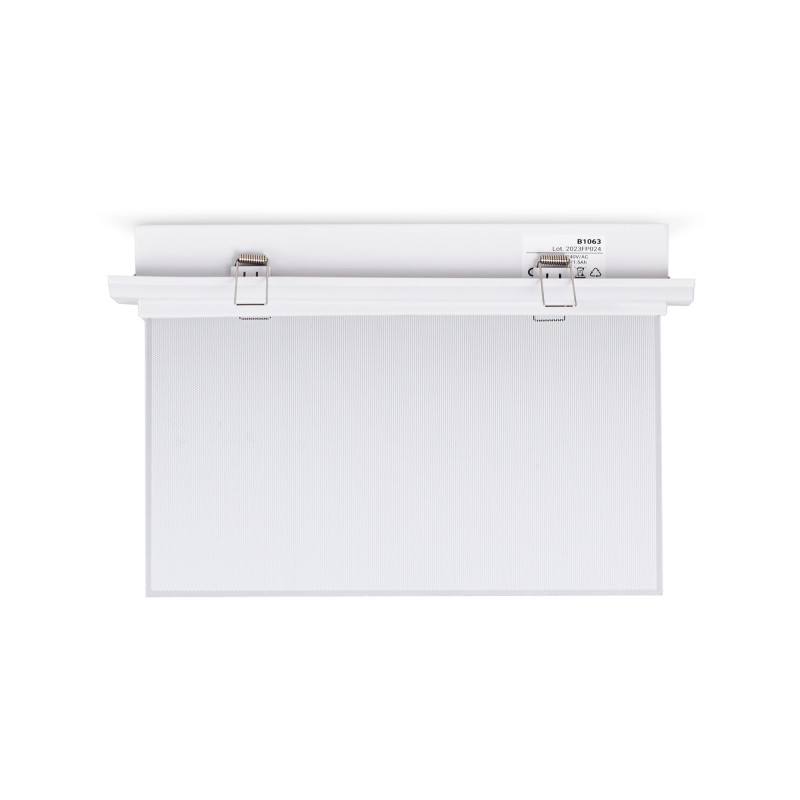

This emergency light is intended for recessed installation. After making the cut in the ceiling and connecting the wiring, the device is easily inserted and secured using its two side flaps.

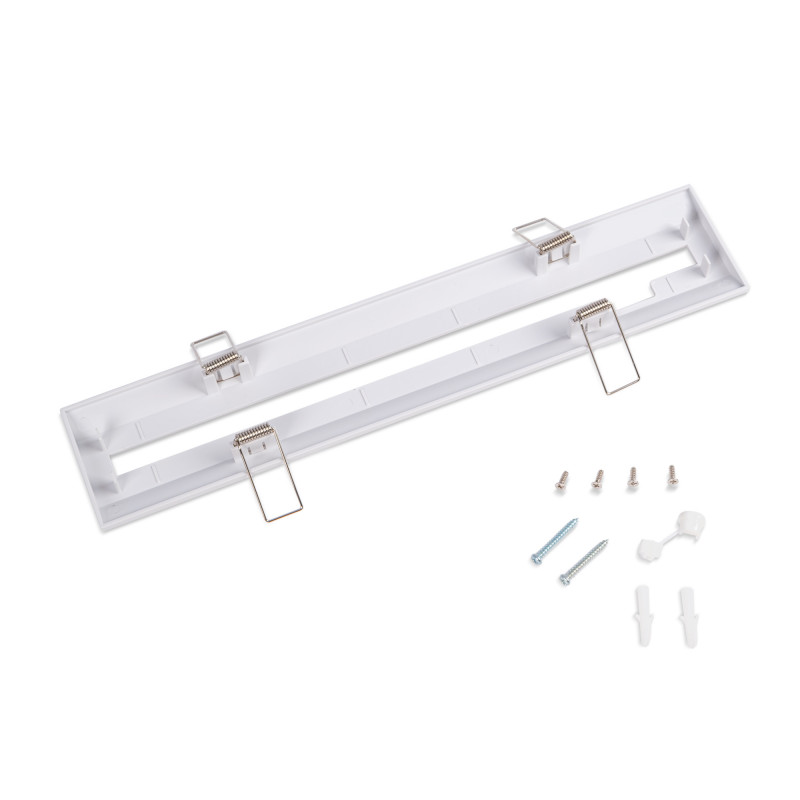

It includes all the necessary elements for assembly.

Precautions during installation:

1) Disconnect power during installation.

2) This product should not be installed in outdoor, humid, corrosive gas, etc. places.

3) This product should be used on a separate power circuit. It should not share circuit with lighting or other electrical equipment (with switch), to ensure that the battery can be recharged normally.

4) To ensure that the product is working normally, it should be checked periodically.

5) The device should be charged for approximately 24 hours before the first use.

6) If the device is stored or not used for a long time, it should be charged and discharged once every three months to protect the battery performance.

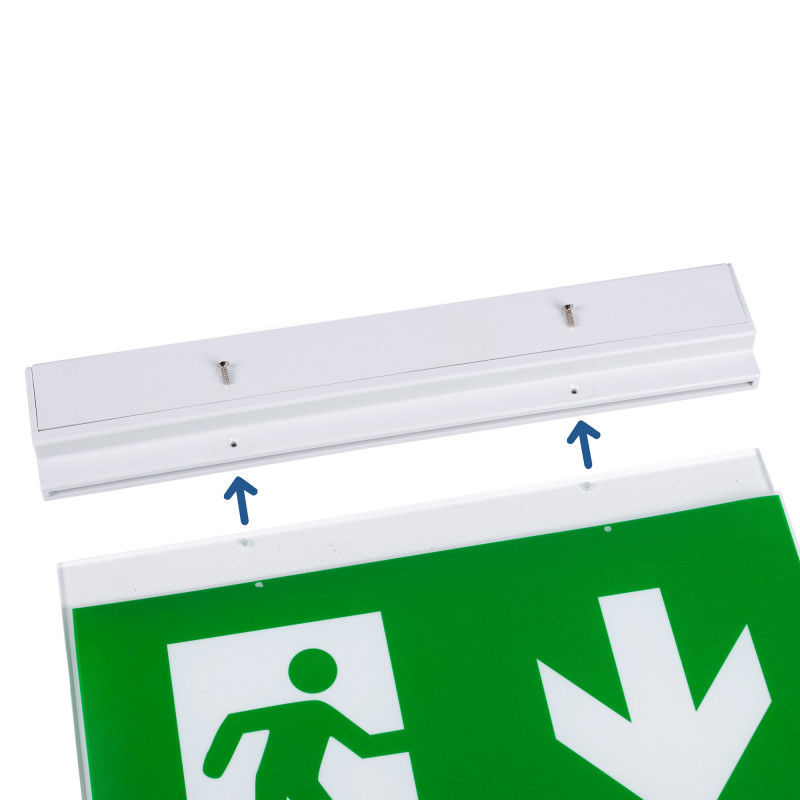

Mounting the acetate sign:

1) Unscrew the transparent panel attached to the luminaire base.

2) Next, adhere the sign to the panel using double sided tape or other adhesive, making sure that the holes in the sign match the holes in the panel.

3) Finally, remount the panel to the luminaire and tighten it with the screws.

Two identical signs are provided, to place one on each side of the clear panel, ensuring maximum visibility.

Applications

• Stores, businesses and offices.
• Schools and universities.
• Health facilities.
• Entertainment centers.
• Industrial facilities.
• Public places.
• Sports facilities.
