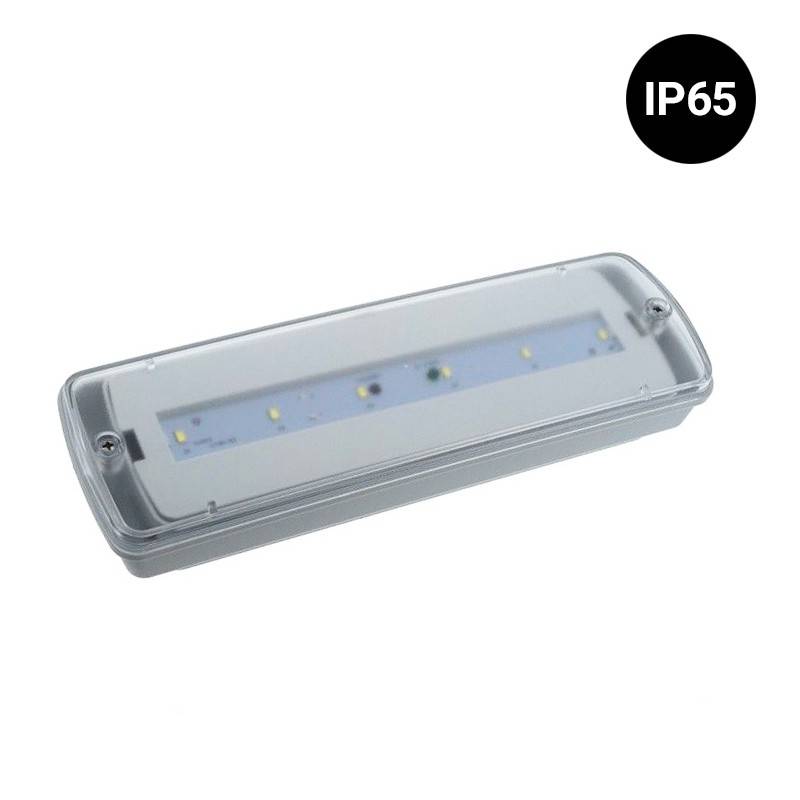

Waterproof LED emergency light IP65 3W 3 hrs of autonomy

Waterproof emergency luminaires with 3 hours of autonomy.

This emergency light and the watertight box included, is made of ABS (acrylonitrile butadiene styrene), includes the elements for mounting, fixing and watertightness of the set. The housing is white and contains a glazed diffuser that prevents the interior of the emergency luminaire from being seen.

You can install several of these emergency luminaires. Always keep in mind that there are guidelines to follow, as the regulations are strict regarding the number of luminaires to be installed and their location, depending on the location may vary.

Features of LED Emergency Light 3W 250LM

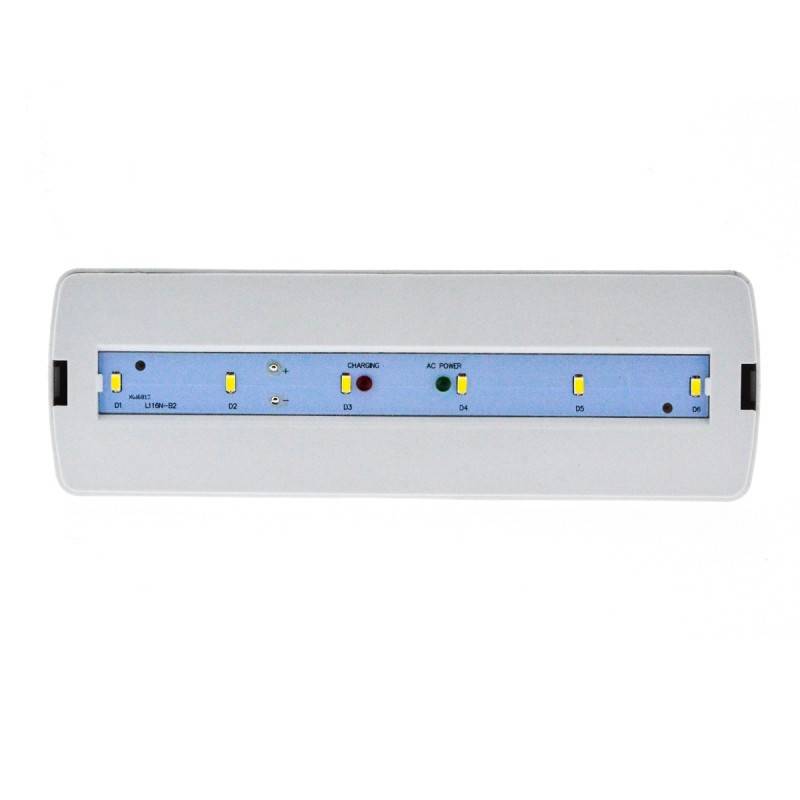

The LED emergency light integrates 6 high quality SMD5730 chips that offer a homogeneous and clear illumination, automatically activating in a power failure and with an autonomy of up to 3 hours. In addition, it contains 2 LED indicators of the operating mode it is in.

• ✔ Green indicator: if it is in the green pilot the luminaire will be on.
• ✔ Red indicator: if it is on the red pilot the battery will be charging.

3W power. Ni-Cd battery 3.6V/1.8Ah. 220-240V. With a total luminous intensity of 250 lumens and a cool shade of 6500ºK.

Installation of the watertight box for emergency light

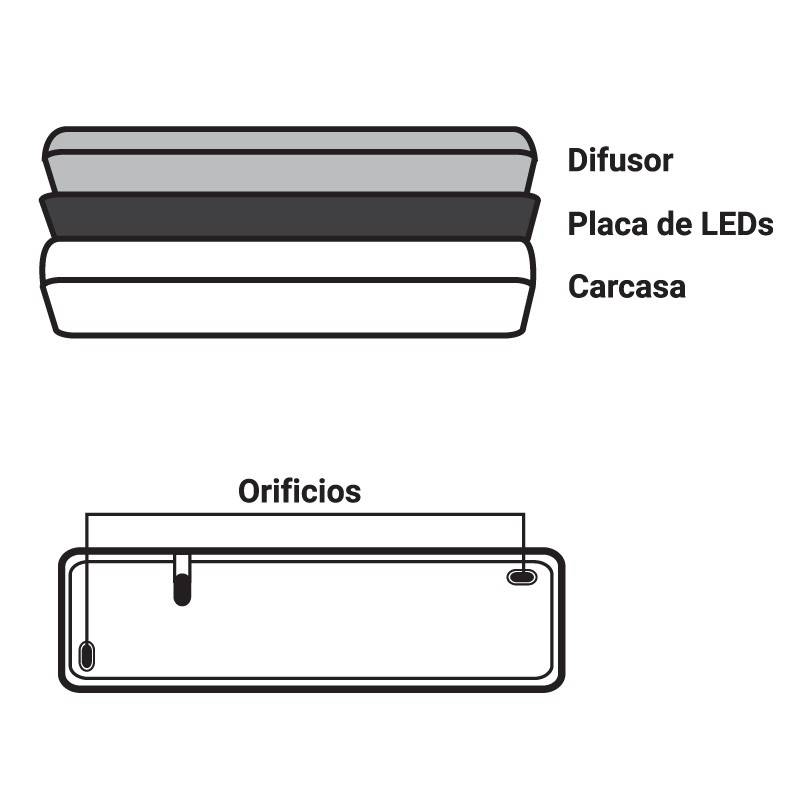

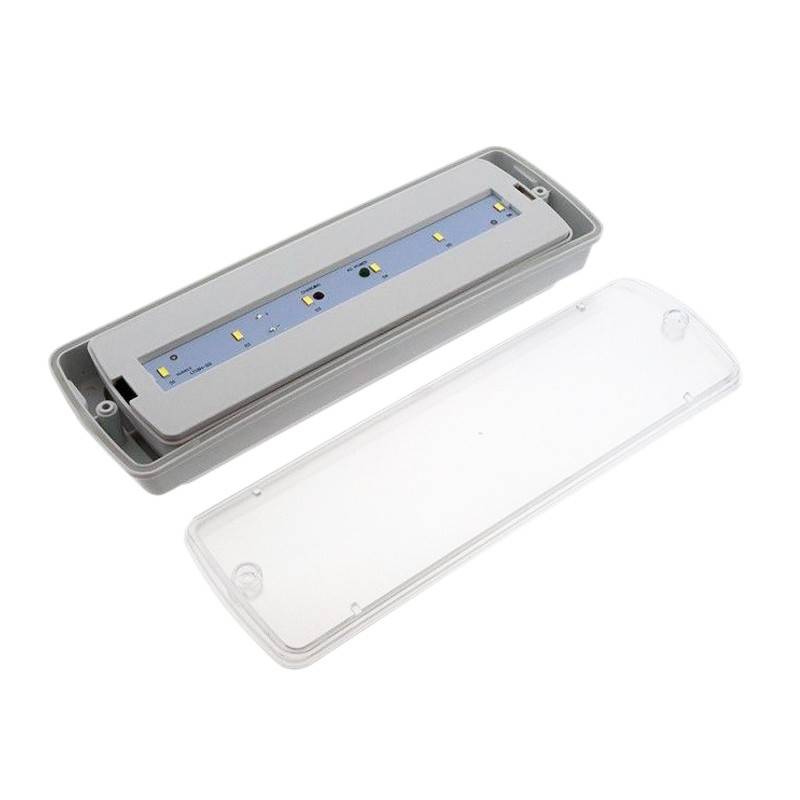

1. For the ideal mounting of the emergency light inside the watertight housing, we have to remove the surface fixture and the glazed diffuser from the luminaire, exposing the LED plate.

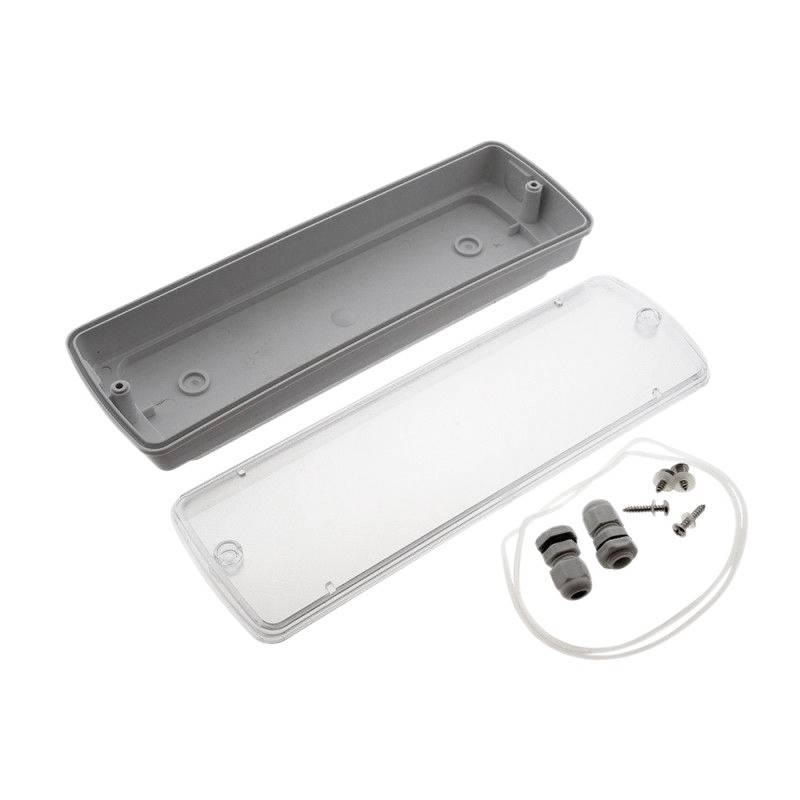

2. In the watertight housing, we drill the side through the marks provided to pass the wiring, and we will place the tri-proof gaskets included in the package. We will wire the emergency light.
3. We fit the emergency light inside the watertight housing and place the rubber gasket around the perimeter, making sure that it is properly integrated into the assembly.
4. Finally, we place the diffuser and screw it on the sides.

Uses of the watertight emergency light housing

Use the housing in humid environments, exposed to splashes, rain or condensation. Very useful for outdoor warehouses, subway parking lots, subway tunnels, etc.

• ✔ Outdoor warehouses.
• ✔ Parking lots and storage rooms.
• ✔ Underground parking lots.
• ✔ Subway tunnels.
• ✔ Shops and department stores.

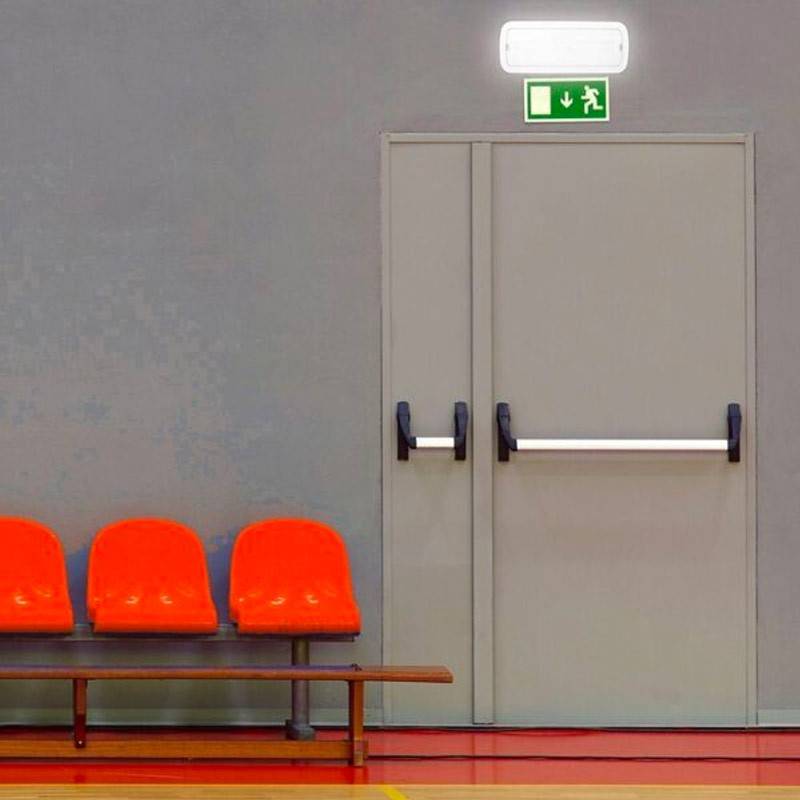

• ✔ Emergency exits.
• ✔ Offices
• ✔ Emergency stairways
