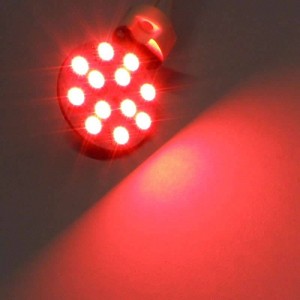

G4 Bi-Pin 2.3W flat LED bulb G4 Bi-Pin 2.3W
SKU:B470RO
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
LED Bi-Pin flat bulb G4 2.3W (12 SMD2835) 8-30VDC/10-18VAC, angle 120º.
BI PIN G4 bulbs are the perfect solution to replace halogen bulbs up to 25 watts power. It has a diameter of 30mm.
The BI PIN bulb has 12 SMD 2835 chips of the latest generation and high light output, achieving up to 150 lumens with a consumption of only 2.5 watts approximately.
With an illumination angle of 180 degrees, it is ideal for general lighting, as it directs the light towards the side where the chips are located.
It can operate at 12V direct current or alternating current, and at 24V direct current.
It is compatible with the use of dimmers.
Advantages:
- No UV and IR radiation, 0% mercury or hazardous materials, environment friendly.
- Low power consumption, ideal for all energy saving applications.
- Generates virtually no heat.
Applications:
- Ideal product for caravans, boats and camping.
- As signaling lights.
- Replaces G4 Halogen Bipines up to 25 Watt.
2017-11-30
Nominal Voltage (V)
10-30V
Power (W)
2,5
Lumens (Lm)
260
Kelvin (K)
2900
2900
2900
Beam angle (º)
120
Socket
G4
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
30x7,5
Hue
Cool white
Warm white
Warm white
Efficiency (Lm/w)
104
CRI
80-85
LED Type
SMD2835
Dimmable
Yes
Driver
Internal
Material
Aluminum
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Hello, I would like to know if you have this model that alternates between white and red, every time you hit the power switch. Thank you. |
|---|
| R: Answer: | We do not have these characteristics, these G4 models have only one color. |
|---|
| P: Question: |
Hi, I would like to know if they go well and fit in the holes of the extractor hood where the G4 alogens used to be. Thank you |
|---|
| R: Answer: | If they are the same size and shape, yes. It may be more convenient to use one with silicone protection for possible vapors in the hood. |
|---|
| P: Question: |
Good afternoon. I wanted to know if these LED bulbs work well with a Dimmer to dim the intensity. Thank you. |
|---|
| R: Answer: | It depends on the regulator as indicated on the web: It is compatible with the use of PWM dimmers in both 12V and 24V. |
|---|
| P: Question: |
Good morning. My name is Raul and I am a student who is doing a packaging project and I wanted to ask you a question. I am trying to integrate a bulb (LED bulb G4 Bi-Pin 2,3W flat) to my pack. My question is: if I put this bulb that I mentioned with a 12V battery, will everything work correctly and will it last? And in case I want to put two of these leds, should I splice the leds and from there to the battery? I also wanted to mention that I have a piece that cuts and closes the circuit, when the pack opens that piece unlocks and allows the current to pass through; when the pack closes it cuts the current and the light turns off. Thank you very much Att. Raul |
|---|
| R: Answer: | If the Bi-Pin LED works with a 12vdc battery, the duration will depend on the capacity of the battery, the LED consumes 2.3W. If two LEDs are connected in parallel with the battery it also works, but the power is doubled, thus decreasing the battery life times. |
|---|
