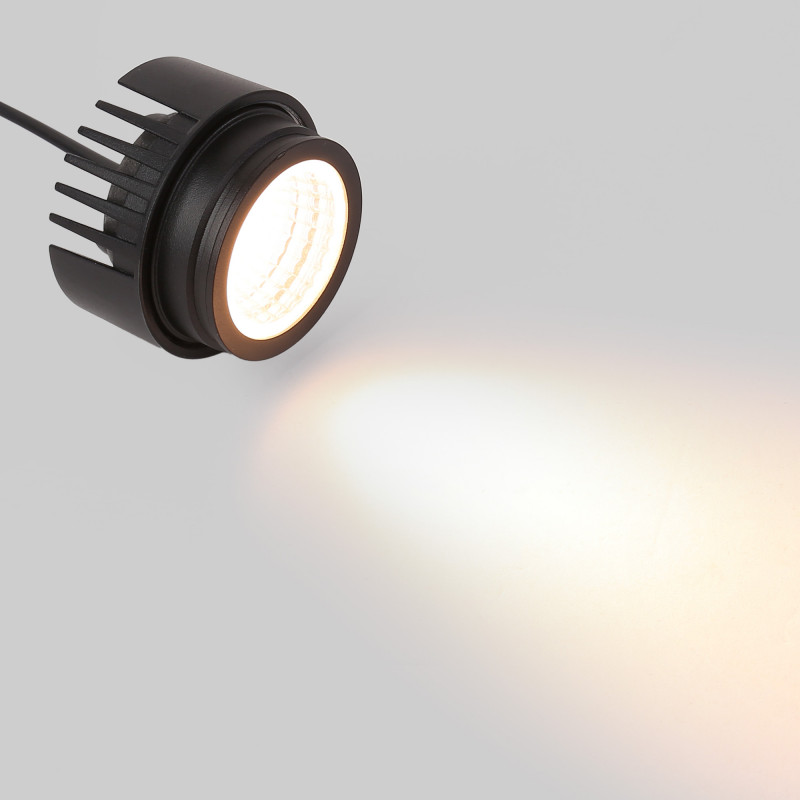

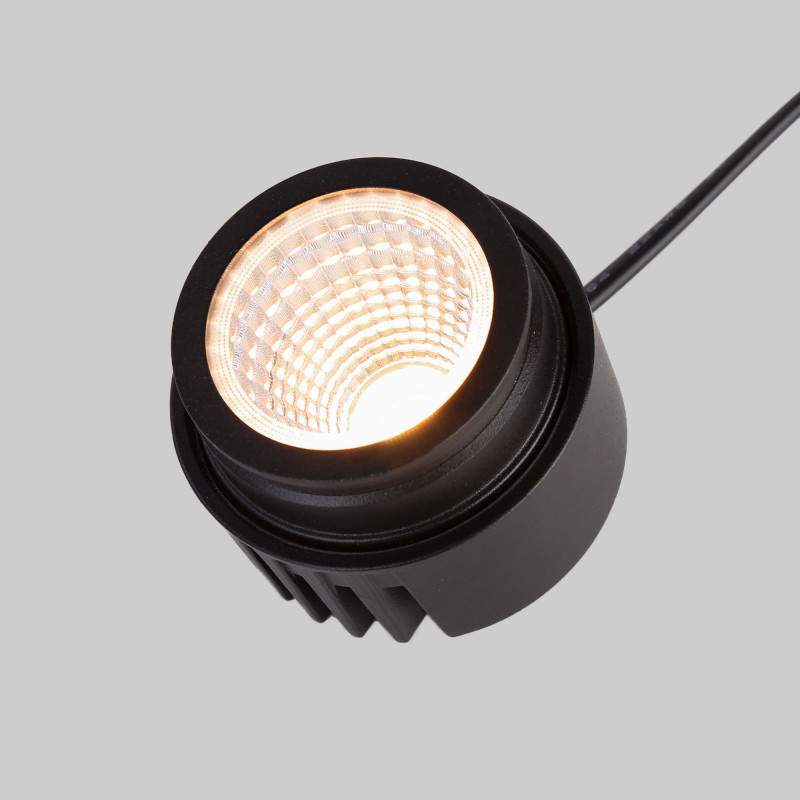

LED Module 7W 45º for Aro CRI90

7W LED module for MR16/GU10 downlight ring - 45º - CRI 90

SKU:B710-270
Colour temperature
Has superado el límite de unidades
In stock 75 units
Data sheet

LED module with excellent performance and quality. Ideal to replace GU10 or MR16 bulbs, with an energy saving of more than 85%.

It incorporates Cree LED chip of 7W power and an external driver that ensure a long life of the luminaire, allowing an intensive use of the same.

Available in warm white (3000K) and neutral white (4000K).


Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

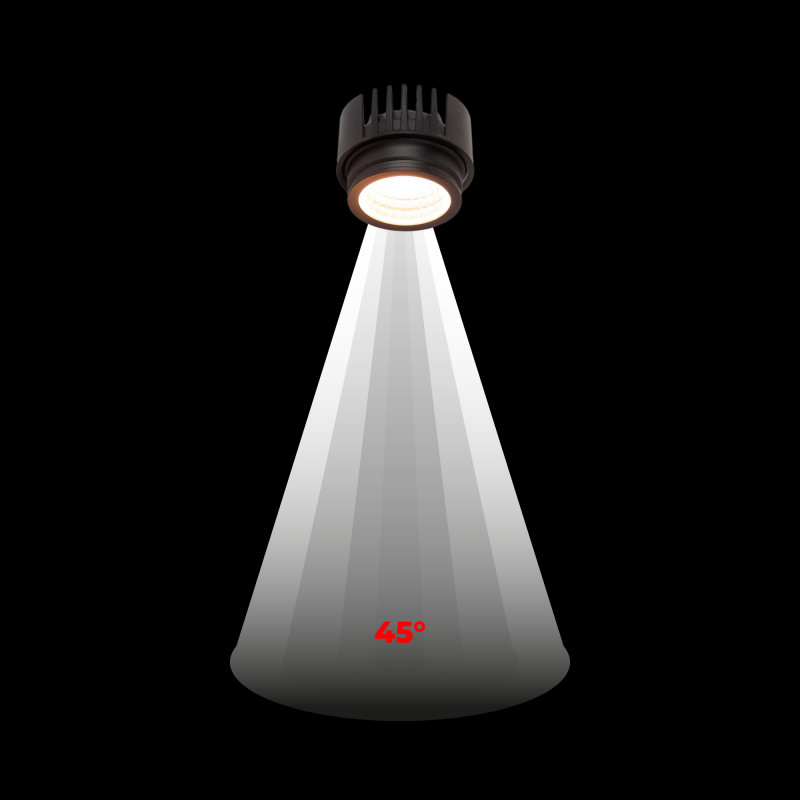

The LED module offers a luminous efficiency of 84lm/W, with a power of 7W and emits a focused light at an angle of 45°.

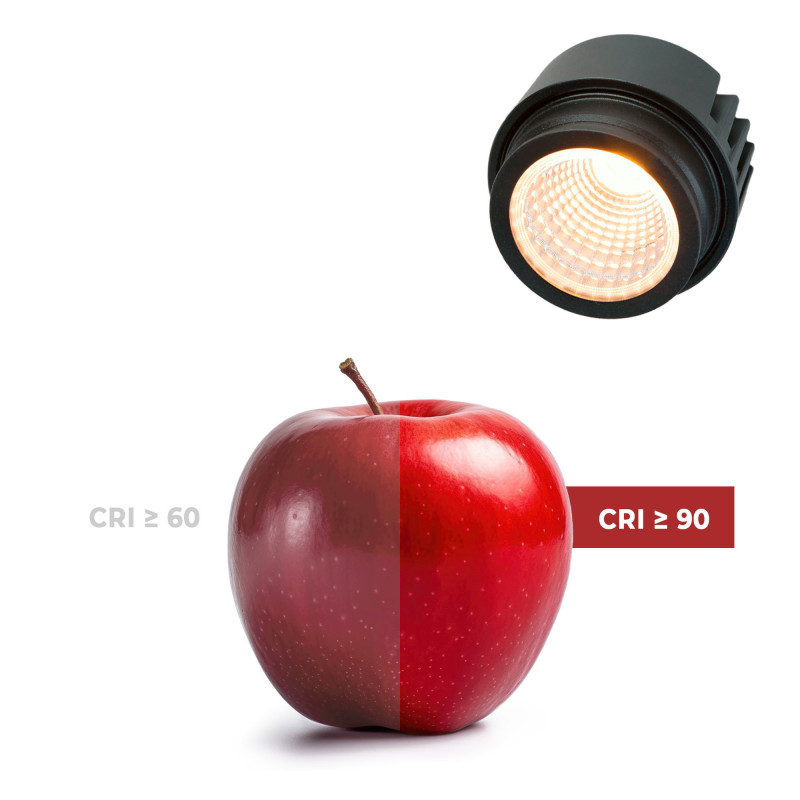

Thanks to its high color rendering index, CRI>90, it reproduces colors with great fidelity, similar to natural light.

By incorporating an external driver, the LED can operate at higher power without the risk of temperature damage, considerably extending the life of the luminaire. In addition, it offers the advantage of being easily replaced by a dimmable driver.

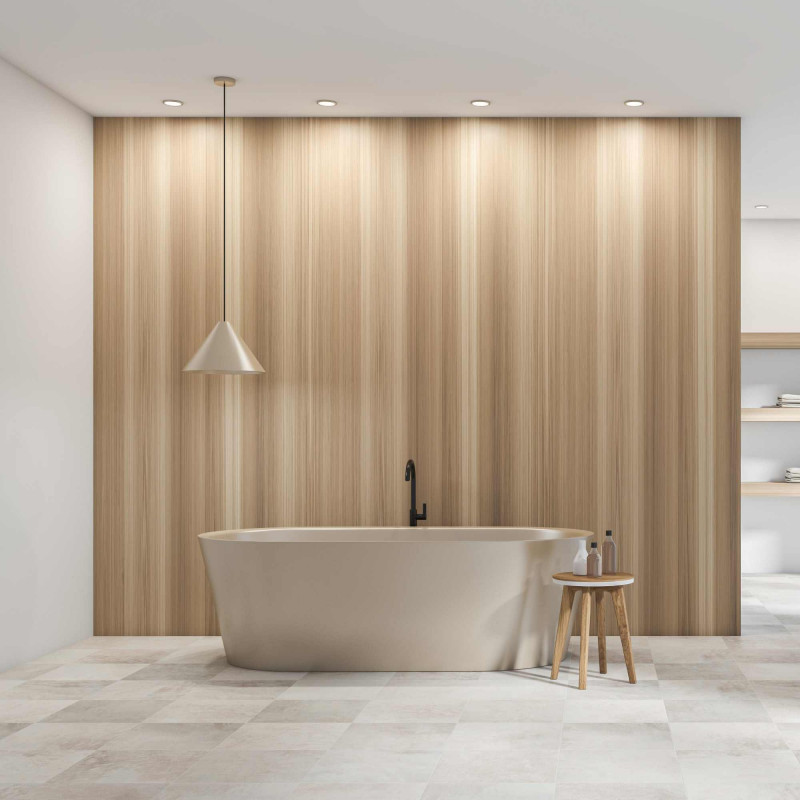

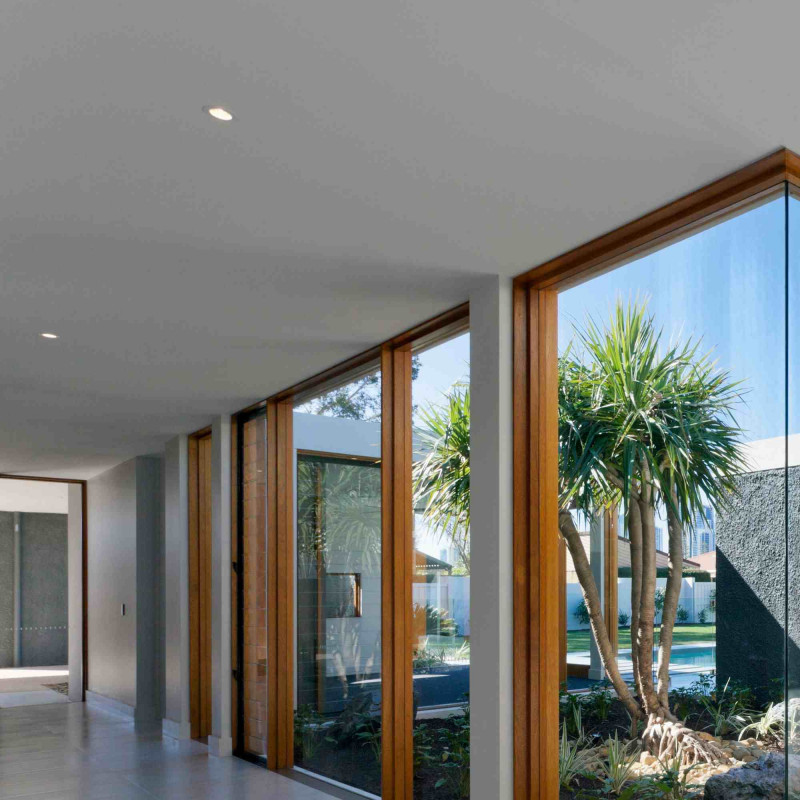

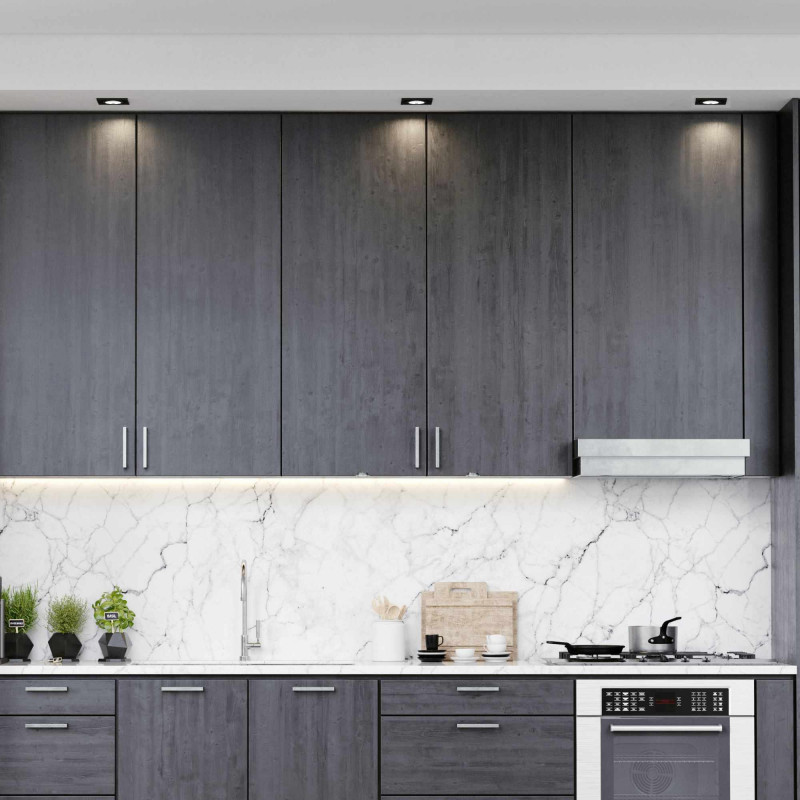

This module is ideal for prolonged use and is highly recommended for lighting projects such as in stores, store windows and showcases, as well as for domestic use.

It is compatible with the following downlight ring references: B550 / B987-R- / B911-B / B912-B.

It has significant advantages over conventional halogen lamps, since it consumes only 10% to 15% of the energy of a halogen lamp, allowing energy savings of more than 85%. Its useful life of 25,000 hours makes it 25 times more durable than a halogen lamp. It is also an environmentally friendly option, as it does not contain heavy metals and does not emit UV or IR radiation.

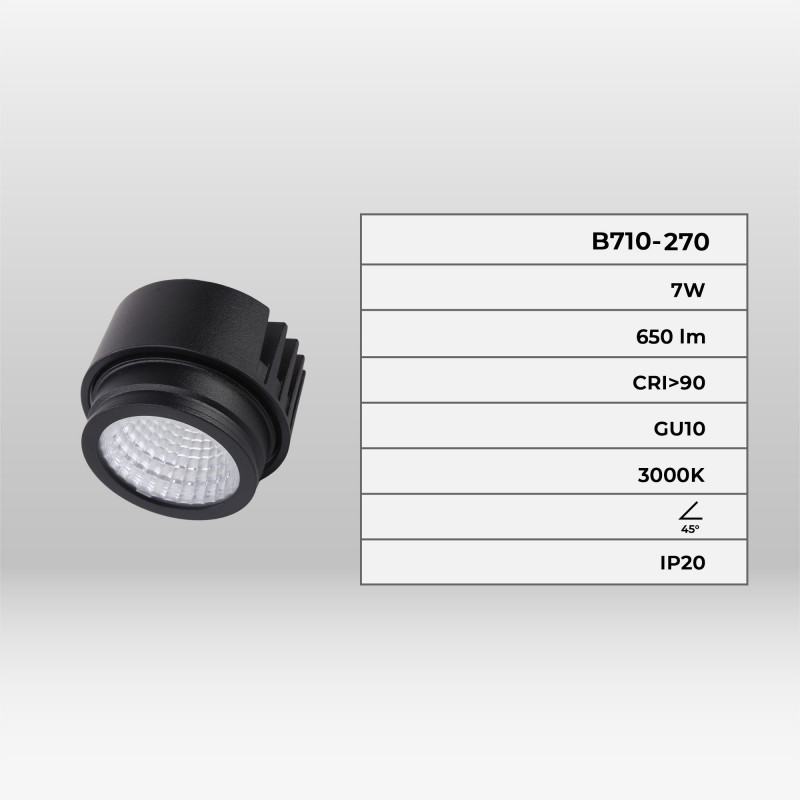

Main product features:

  • Input voltage: 220-240V AC
  • Power: 7W
  • Lumens: 650 lm
  • Available in shades: warm white (3000K) and neutral white (4000K)
  • Indoor use: IP20
  • CRI>90
  • Angle of light beam opening: 45°.
  • Lifetime: 25,000 hours (approx.)
  • Dimensions: Ø 50mm x 41mm


Please note that certain technical characteristics such as lumens or CRI may vary according to the shade of the product. For further details, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Lumens (Lm)
650
Kelvin (K)
3000
4000
Beam angle (º)
45º
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Ø 50 x 41
Hue
Neutral white
Warm white
CRI
90-95
LED Type
Chip CREE
Dimmable
No
Driver
External
Use Outdoor
No
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
