CCT LED Ceiling light - 18W - Adjustable diameter - Recessed and surface mounted - IP20
CCT 18W Circular LED Ceiling CCT 18W - Ø23cm - 1710lm -IP20

CCT LED Ceiling light - 18W - Adjustable diameter - Recessed and surface mounted - IP20

SKU:B1294-CCT
Has superado el límite de unidades
In stock 304 units
Data sheet

Multifunction round LED ceiling light, dual-purpose, recessed and surface mounted, available in white.

With compact dimensions, it has a power of 18W, a luminous intensity of 1500 lumens and an optimum color rendering (CRI>80).

It incorporates a CCT selector, so it's possible to modify the color temperature between warm white (3000K), neutral white (4000K) and cool white (6500K). It also features the "Switch" option, which allows you to choose the color temperature using the wall switch.

Exclusive indoor use (IP20).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

18W Round LED Ceiling Light - Advanced Technology with Slim Design

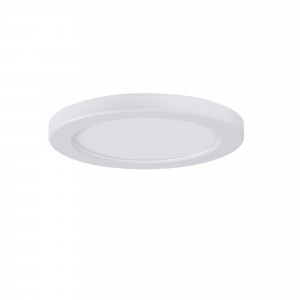

The LED ceiling light stands out for its elegant appearance and compact dimensions, only 19mm deep. It has a polycarbonate diffuser that allows a homogeneous illumination, without shadows or dark areas.

Highly versatile, it can be used as main lighting or as decorative lighting.

It incorporates a high quality internal driver designed against electromagnetic interference EMC.

High luminous efficiency - CCT system: adjustable hue

With a power consumption of only 18W, it offers up to 1683 lumens (neutral white), thanks to a high energy efficiency of 108lm/W.

It incorporates SMD2835 LED chips and has a high color rendering index (CRI>80), which allows to visualize colors with a high fidelity, similar to natural light.

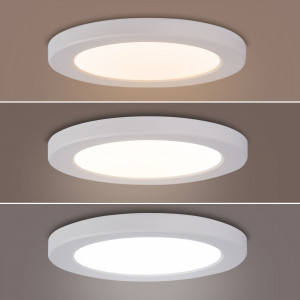

Its CCT system offers the possibility of regulating the color temperature in three tones, according to the needs of each space: warm white (3000K), neutral white (4000K) or cool white (6500K).

It also features the "Switch" option, which allows you to choose the color temperature using the wall switch.

Quick Installation - Adjustable - Recessed/Surface Mounted

Its installation is very quick and easy, allowing it to be mounted according to the needs:

  • Surface: by means of the metal ceiling plate, with screws included.
  • Recessed: incorporating two adjustable hooks to the metal bracket. This type of installation allows adjusting the fixture to a variable cutout diameter in the plasterboard between 65-205mm.

Product features:

  • Voltage: 220-240V AC
  • Power: 18W
  • Lumens: 1580lm (warm) / 1839lm (neutral) / 1683lm (cool)
  • Indoor use: IP20
  • CRI>80
  • Beam angle: 120°
  • CCT system: warm white (3000K), neutral white (4000K) or cool white (6500K)
  • Easy installation

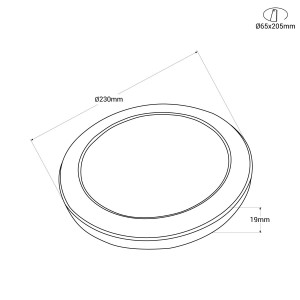

  • Dimensions: Ø 230 x 19 mm
  • Cutout dimensions: Ø 65-205 mm

Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the test reports attached in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
18
Kelvin (K)
3000
4000
6500
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
⌀230 x 19
Frequency (Hz)
50 - 60
Hue
CCT
Sensor
No
CRI
80-85
Dimmable
No
Orientable
No
Cutting dimensions (mm)
⌀205x65
Material
Polycarbonate
Diffuser material
Polycarbonate
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
