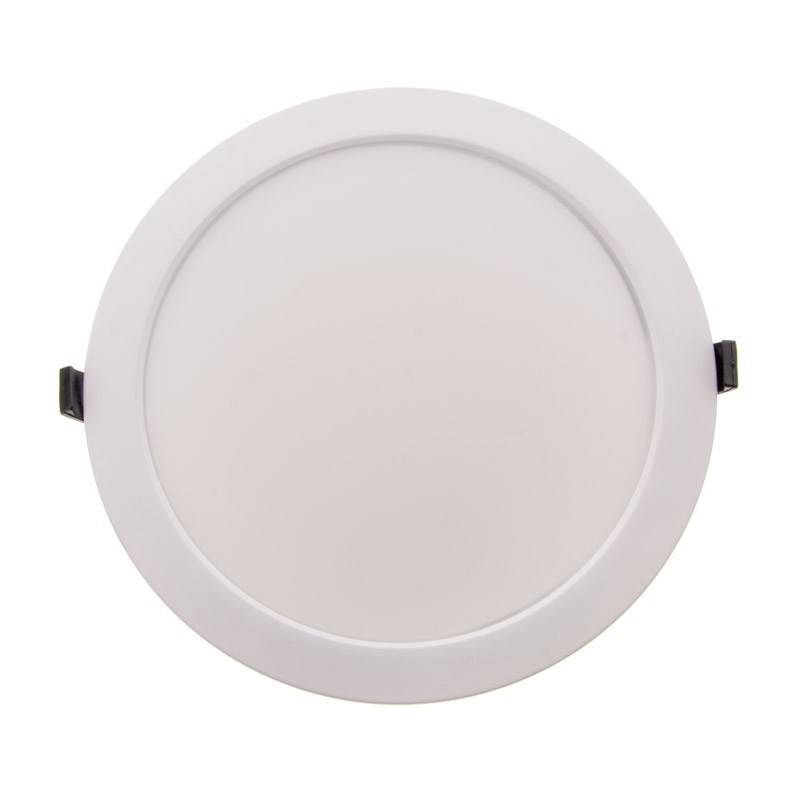

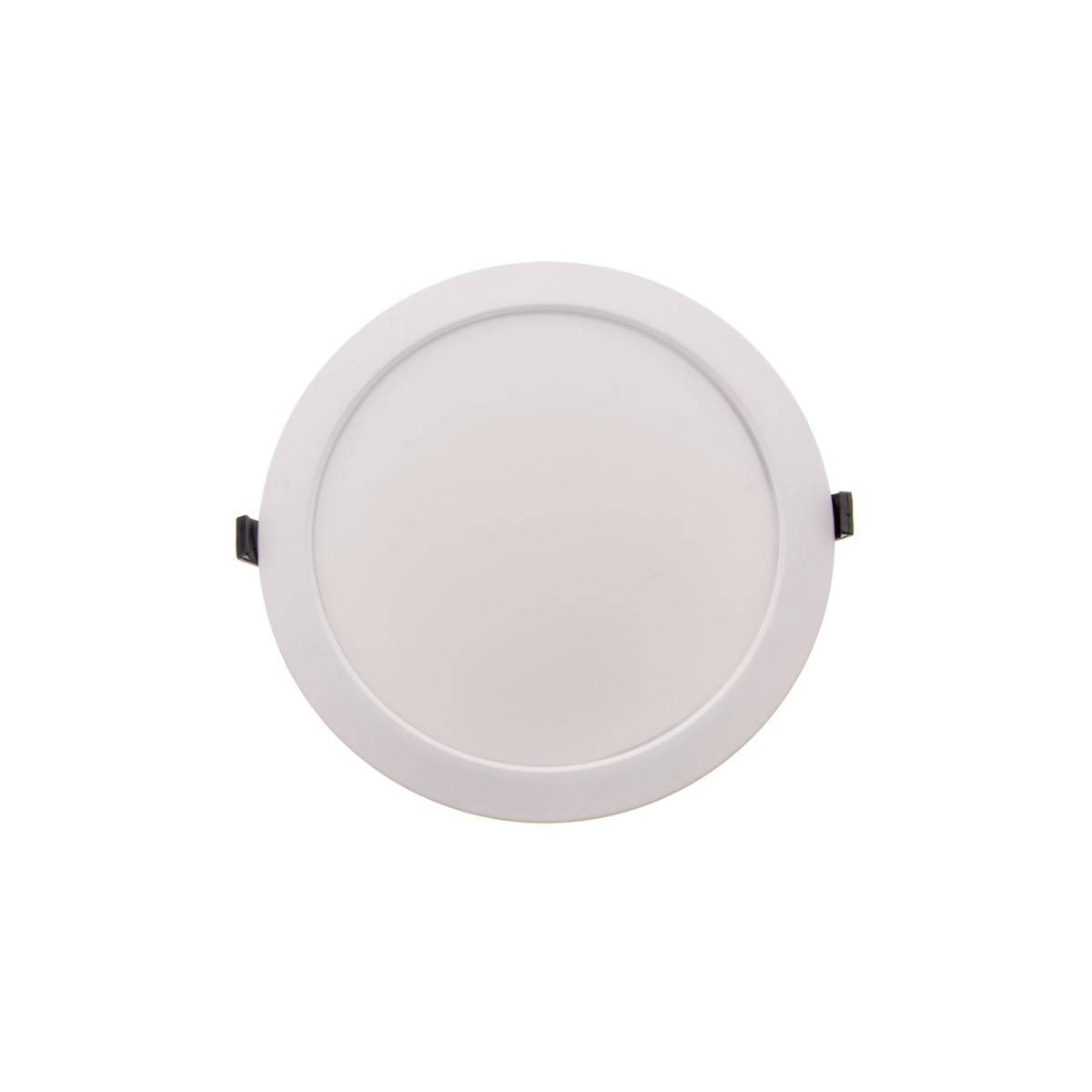

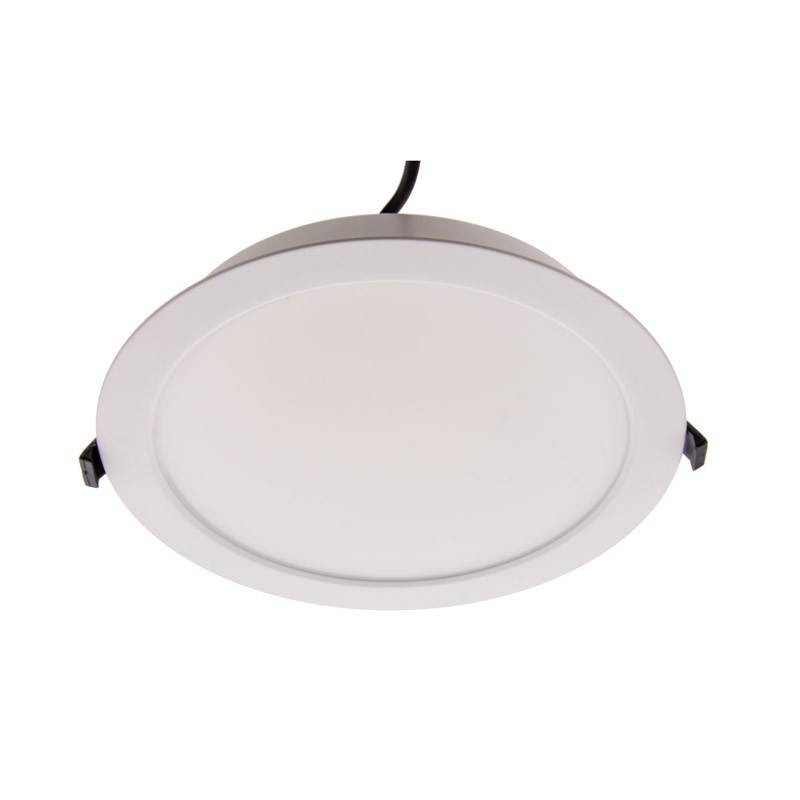

Downlight LED CCT - 40W - IP44 - Cut Ø 205-220mm
SKU:B8590-CCT
€34.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The CCT LED downlight stands out for its high efficiency and quality components, ensuring long product life.

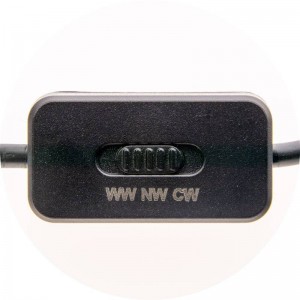

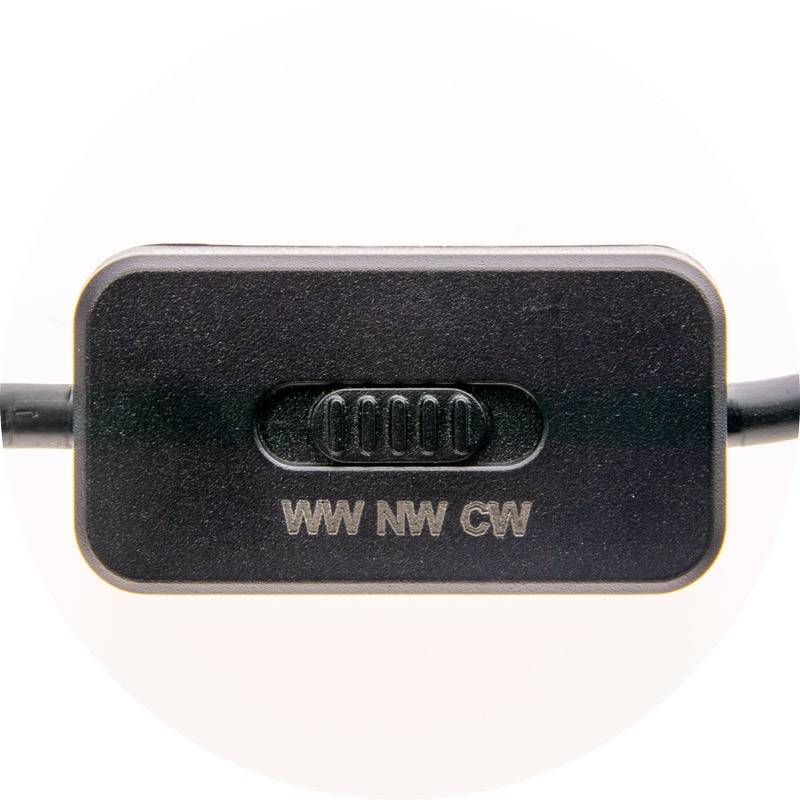

It incorporates Epistar SMD2835 LED chips and Lifud driver, providing powerful and stable illumination. In addition, due to its CCT system, it is possible to select the desired color temperature by means of a switch incorporated in its base.

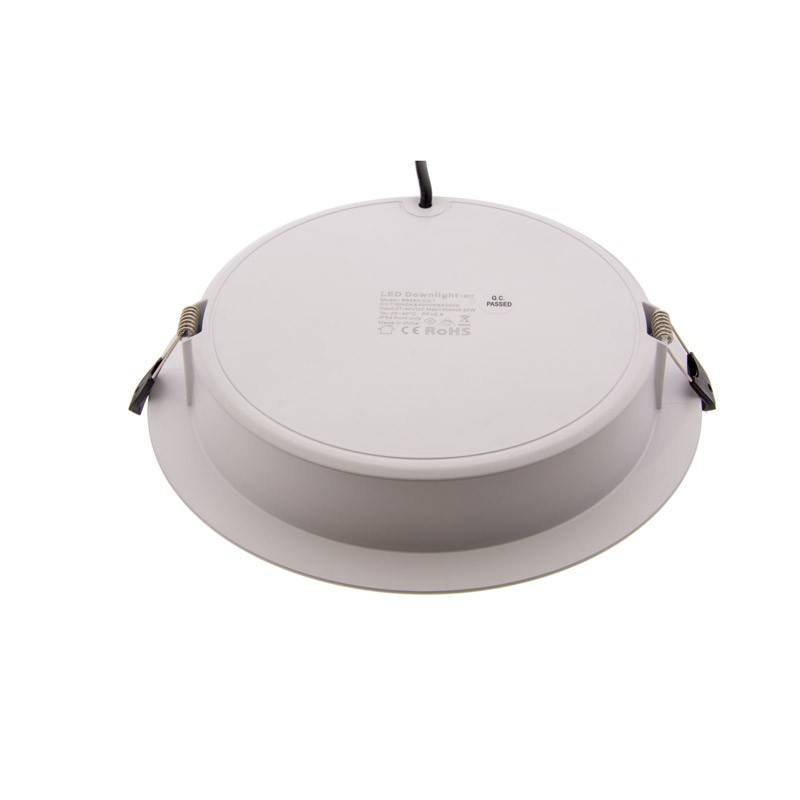

Its aluminum housing allows adequate heat dissipation and its opal polycarbonate diffuser provides a homogeneous light, without dark areas or shadows.
With a wide light dispersion angle of 100°, this downlight is ideal as a general lighting source and has a high color rendering index (CRI>80), which allows a faithful visualization of colors, similar to natural light.
Its IP44 rating gives it protection against external factors such as dust and moisture, although it is not suitable for outdoor use.
|
Main product features:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
40
Lumens (Lm)
5000
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
100
Lifetime (h)
25000
IP
IP44

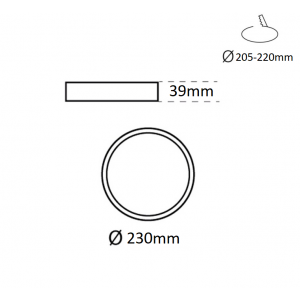

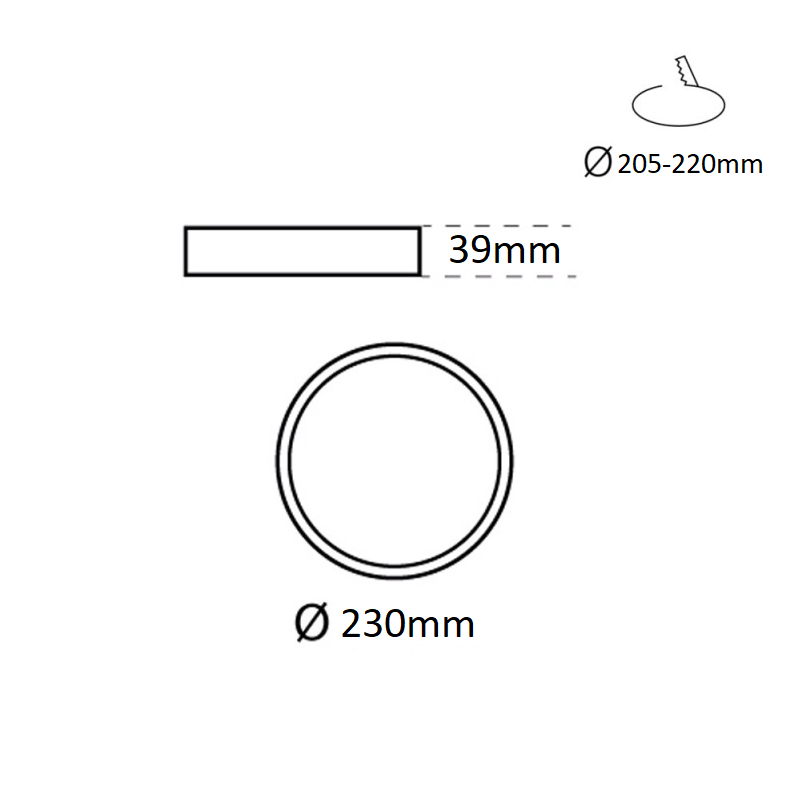

Dimensions (mm) Lxlxh
Ø230x39
Frequency (Hz)
50 - 60
Hue
CCT
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes, by replacing the driver
Power factor (cosφ)
0,9

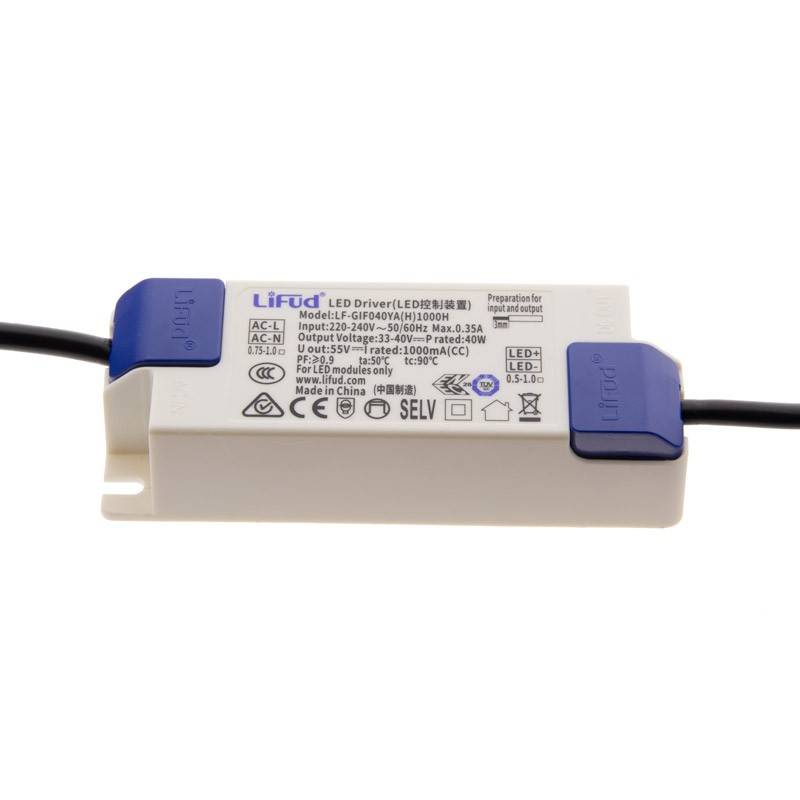

Driver
LIFUD
Orientable
No
Cutting dimensions (mm)
Ø205-220
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | How many m2 does this spotlight illuminate? I have a bathroom of about 9m2 and I wanted to know if it will be enough. Thanks |
|---|
| R: Answer: | Un downlight es suficiente |
|---|
| P: Question: | How much would it cost to change the driver to make it dimmable? |
|---|
| R: Answer: | The TRIAC dimmable driver for this 40W downlight model would be (currently) ref. B4255. |
|---|
| P: Question: | Good morning, do you have this same model in silver or aluminum color? Thank you |
|---|
| R: Answer: | Currently only available in this color |
|---|
| P: Question: |
Hello, how long is the warranty on this product? I look forward to your reply. |
|---|
| R: Answer: | The legal warranty on products is 2 years, unless a longer warranty is specified. |
|---|
| P: Question: | Can this LED be dimmed? |
|---|
| R: Answer: | This downlight is not dimmable, to make it dimmable by TRIAC it would be necessary to change the driver for a dimmable one as ref. B4255 |
|---|
| P: Question: | Is this lamp dimmable? |
|---|
| R: Answer: | The 40W CCT downlight can be dimmed by replacing the driver.
Barcelona LED: Marc| 23/12/2019 |
|---|
