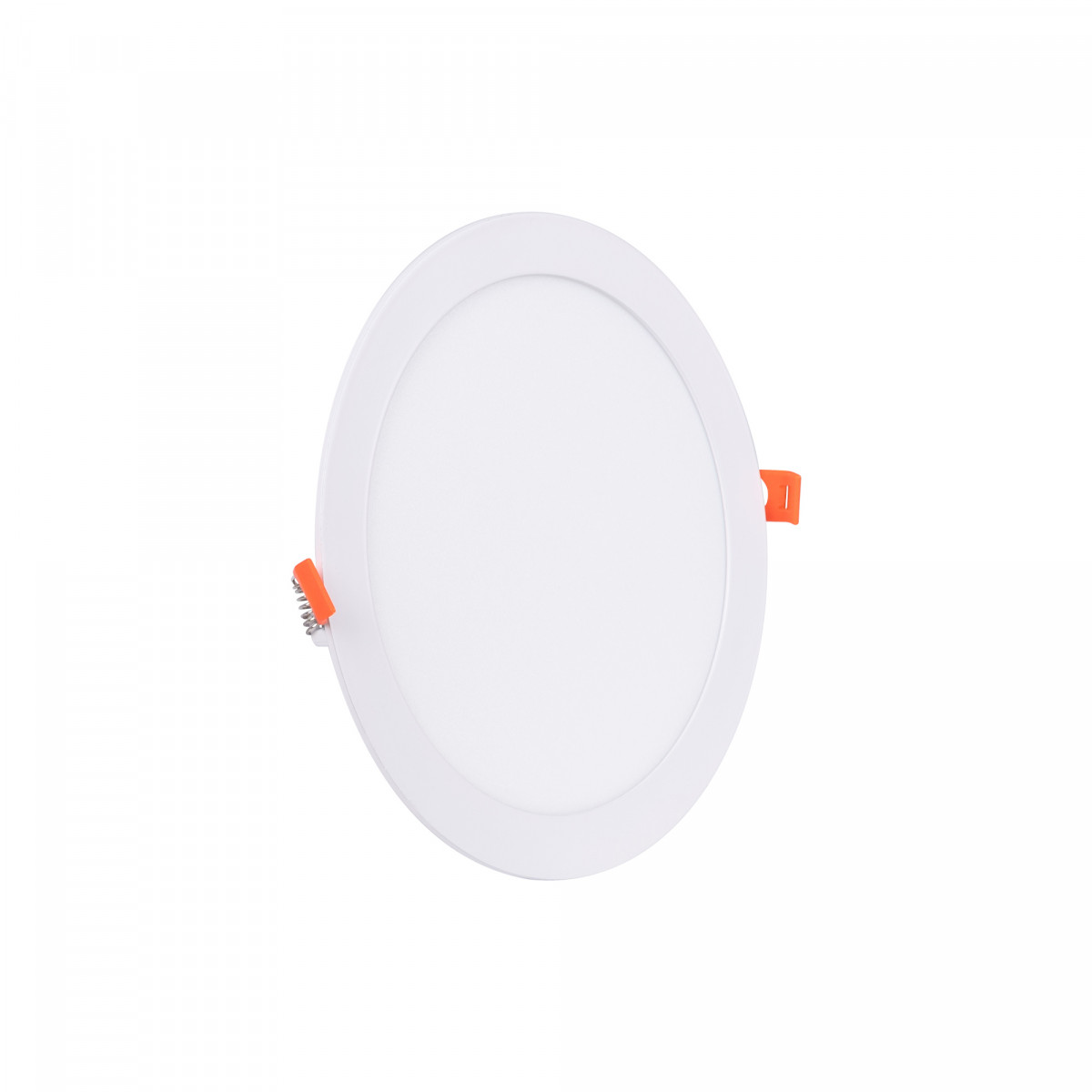

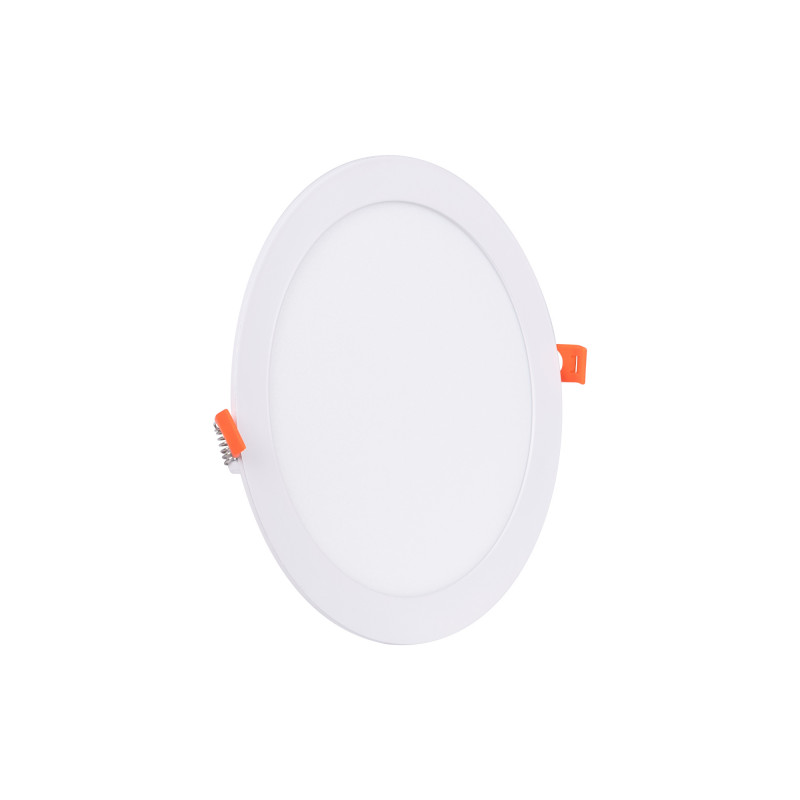

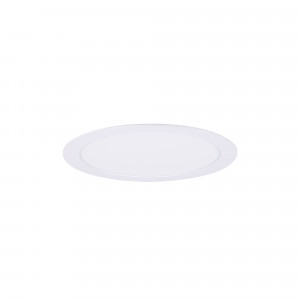

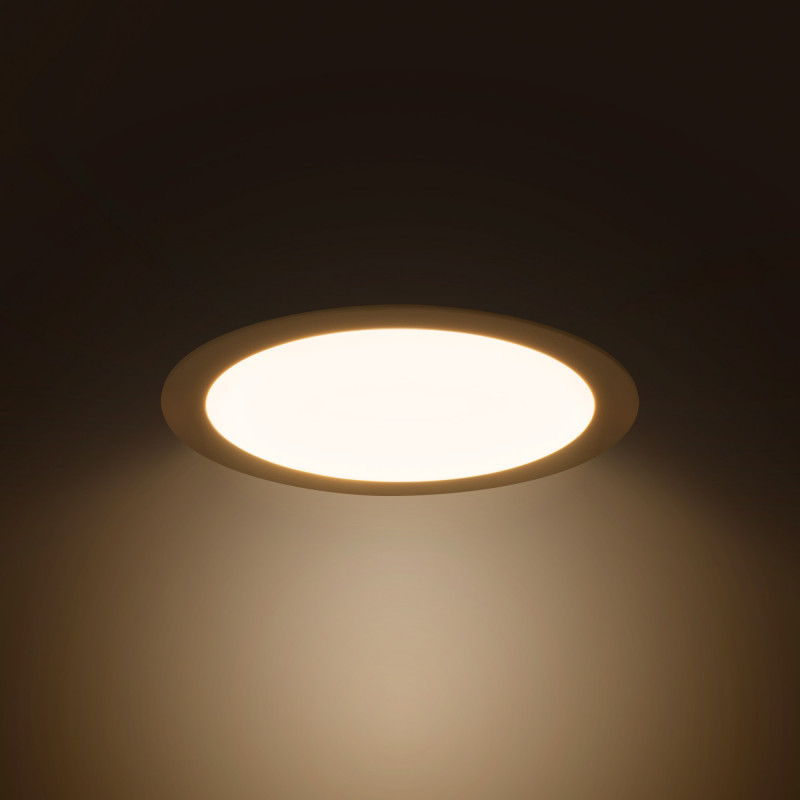

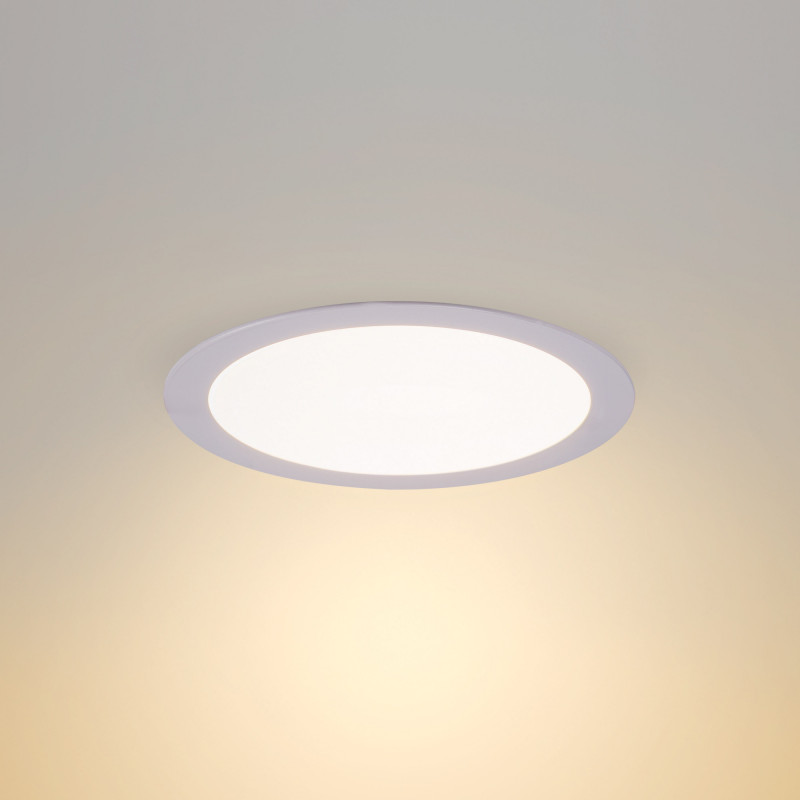

Downlight LED circular slim 20W - Corte Ø 225mm - 5 años de garantía

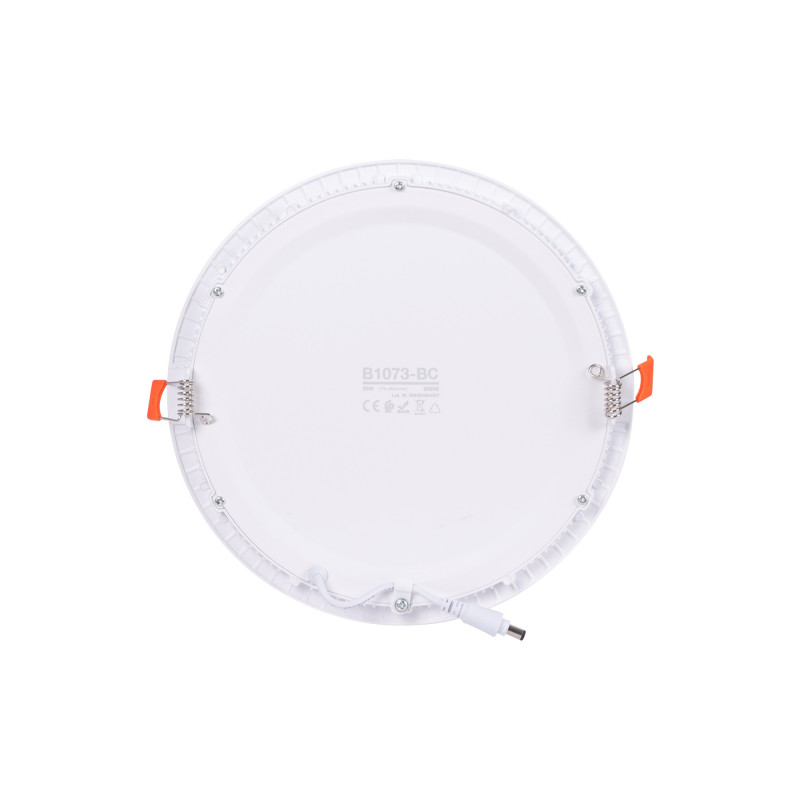

SKU:B1073-BC
€7.94
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
20
Lumens (Lm)
1490
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20

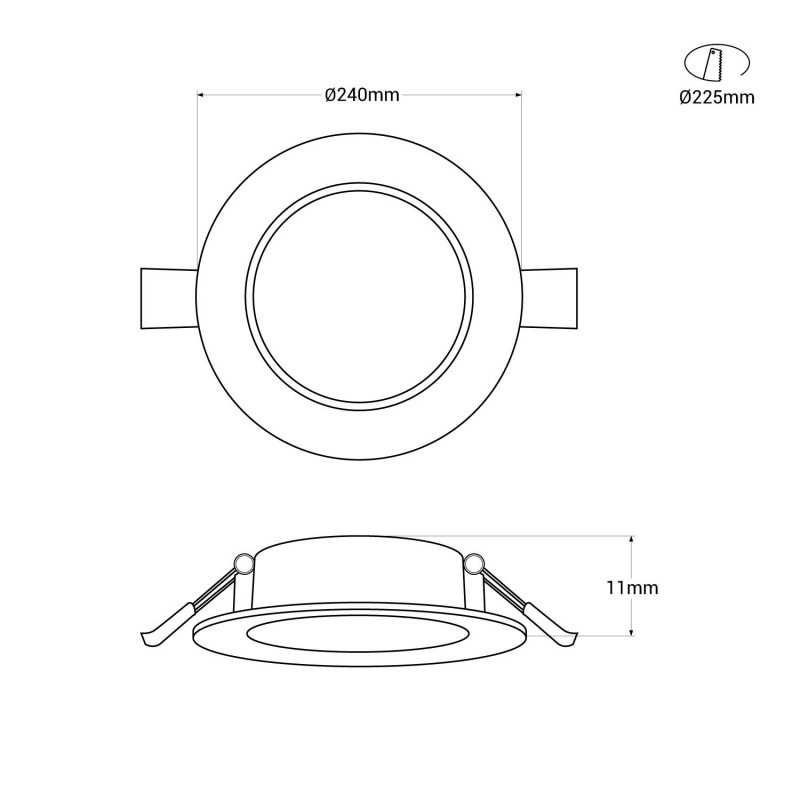

Dimensions (mm) Lxlxh
Ø240x11
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.5
Orientable
No
Cutting dimensions (mm)
Ø225
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Questions
| P: Question: |
Hello. We have some spotlights AC:AC85-265V Power: 20W Color: 6500K Flux: 1600Lm This one of yours, can it work? Thank you |
|---|
| R: Answer: | Hi. this model is even better, consumes 20w and has 2100lm, antiflicker and EMC filter. Barcelona LED: Santiago| 20/01/2023 |
|---|
| P: Question: |
Part number:B1073-BF Do you have this reference with the ring in SILVER? |
|---|
| R: Answer: | This model is only available in white |
|---|
| P: Question: | I would be interested in purchasing the downlight in warm white but you indicate that you have no units in stock right now, do you have any forecast on this? |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |

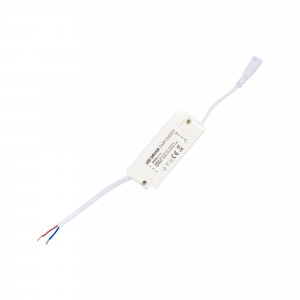

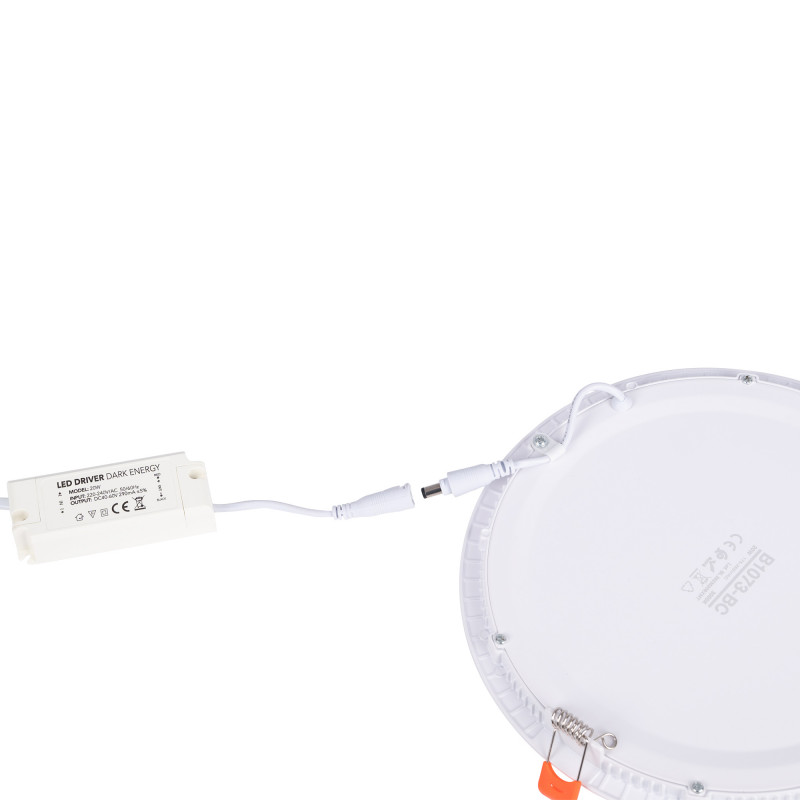

20W circular recessed LED downlight Reference: B1073-BF Drive included? |
|---|
| R: Answer: | Yes, the drive is included. |
|---|
| P: Question: | Do you have the same product or the same dimensions, but with motion sensor? |
|---|
| R: Answer: | We do not have this model with sensor. Perhaps it can serve you the ref. B1294-S-CCT |
|---|
| P: Question: |
Do you have this size in chrome, silver, nickel or aluminum? Best regards |
|---|
| R: Answer: | No, the models are those available on the web |
|---|
| P: Question: | Could I put it on a cut diameter of 230 mm already made? |
|---|
| R: Answer: | The maximum diameter of the downlight is 240mm, with 230mm cut, there is a margin of 5mm on each side, but it must be well centered and not have a larger diameter because there is very little margin. |
|---|
| P: Question: | Do you have it. In black? |
|---|
| R: Answer: | No, this downlight model is only available in white. Another model ref. B1293-S-CCT is adjustable with sensor, and with black trim ring. |
|---|
| P: Question: | For a 10m2 bathroom, would two be enough? The mirror has no light. |
|---|
| R: Answer: | It depends on the height of the room, with two units of 20W recessed LED downlight for about 10m2 and 2.5mts high would have something less than about 200lx, you may need some light in the mirror. If there is no light in the mirror, maybe three units of downlights would be better. Note: Before cutting the ceiling for the installation, we advise to test the lighting, in pre-assembly as the general light may depend on other factors such as the color of the walls, the material, etc... |
|---|
| P: Question: | Hola,es de encendido rapido |
|---|
| R: Answer: | Hello, These LED downlights are quick start, high luminous efficiency and very low power consumption. |
|---|
