SKU:B1269-12W-CCT
Has superado el límite de unidades
In stock 17 units
Data sheet

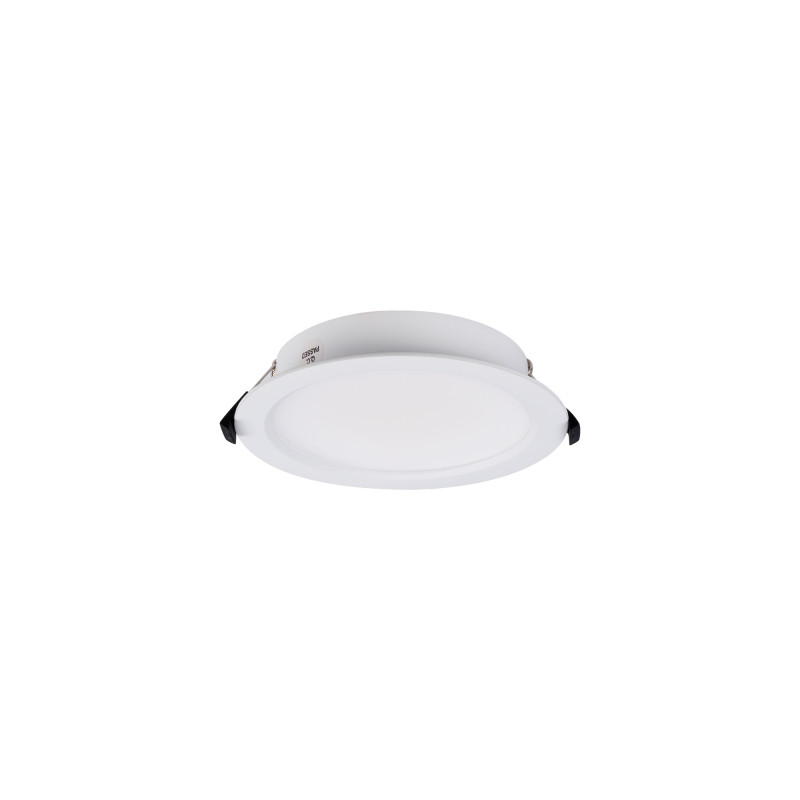

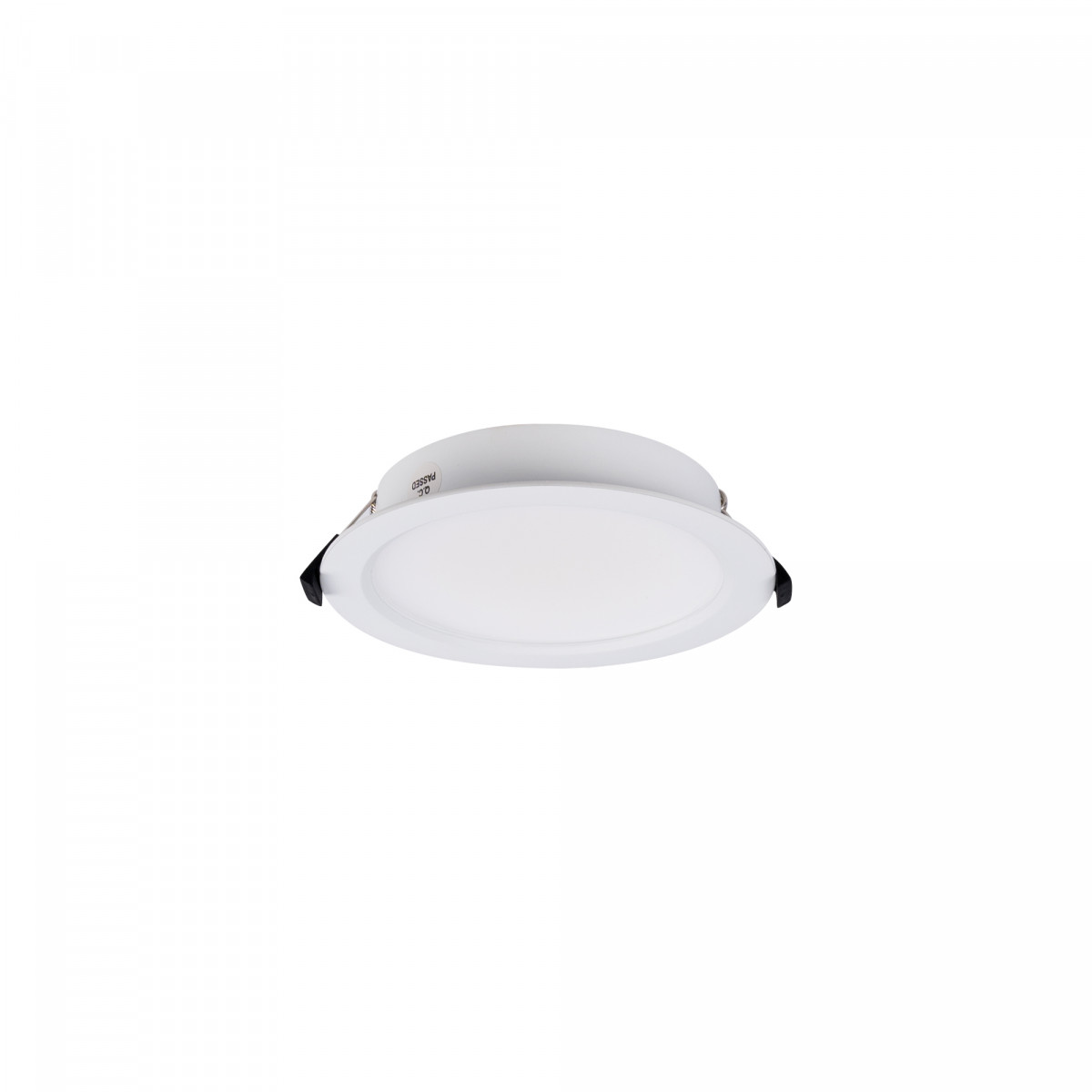

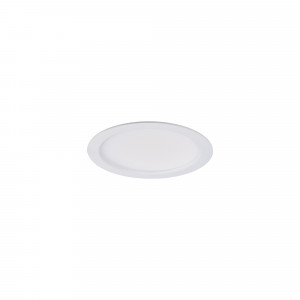

High efficiency LED PRO downlight with state-of-the-art technology.

With 12W of power, it offers a luminous efficacy of up to 148lm/W. It incorporates Lifud driver that guarantees a quality lighting,"No flicker".

Its low glare index (UGR19) ensures maximum visual comfort.

Due to its IP54 protection rating, it's suitable for outdoor use.

It has CCT system that allows to choose between 3 light shades: warm, neutral or cool white.

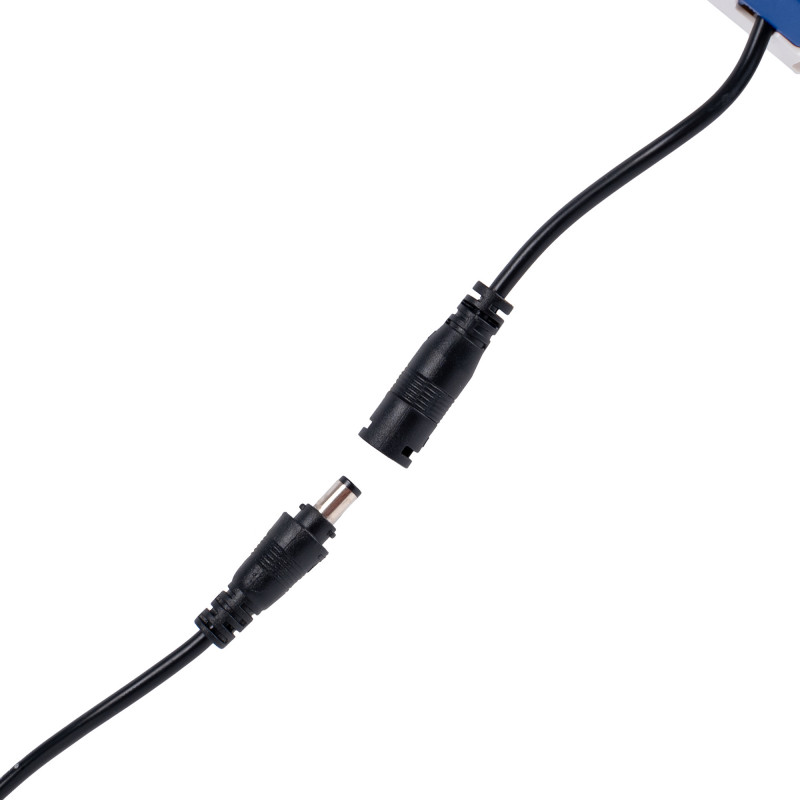

**Mounting and connection accessories included**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

State-of-the-art design and technology

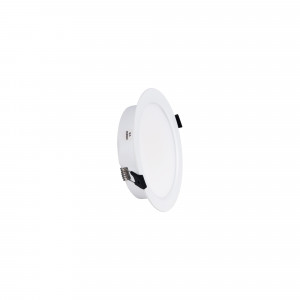

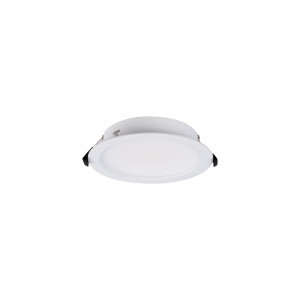

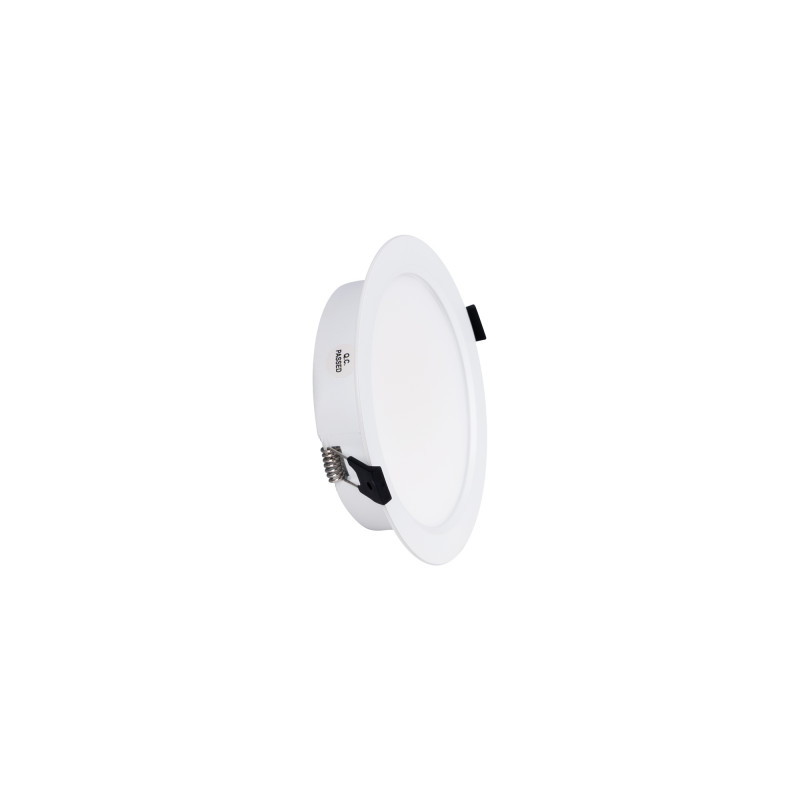

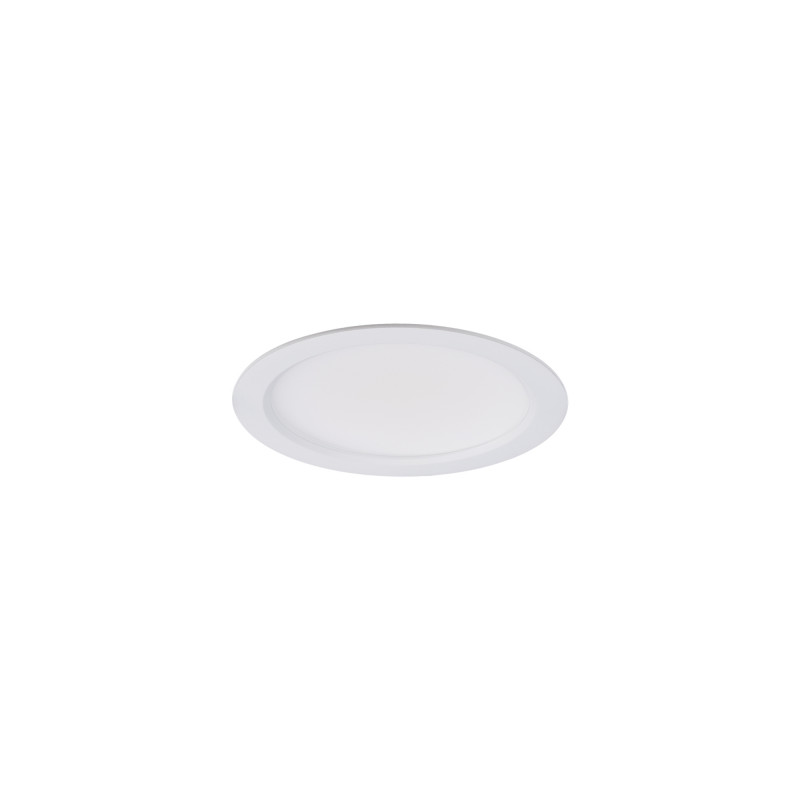

The PRO downlight stands out for its modern design and the high quality of its components. It's manufactured with an aluminum housing in white finish and a central polycarbonate diffuser.

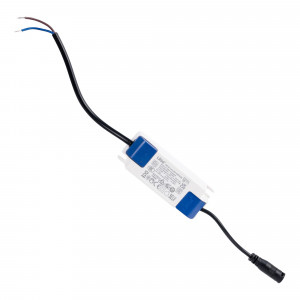

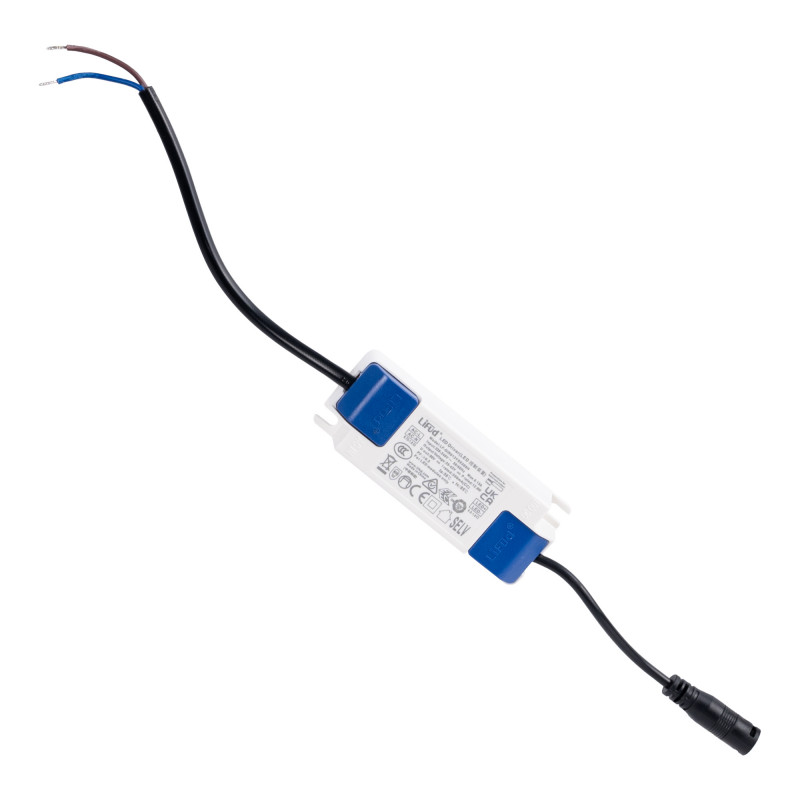

It incorporates SMD 2835 LED chips and a LIFUD driver, which guarantees homogeneous, flicker-free illumination.

It has 12W of power and an unmatched luminous efficacy of up to 148lm/W, which allows significant energy savings compared to other downlights.

Highest quality lighting: Low UGR and high CRI

It stands out for its low glare index (UGR19), guaranteeing maximum visual comfort; a condition that is especially important in work or study environments, where low UGR levels have demonstrated greater power of concentration, work performance and general well-being in people.

In addition, it has a high color rendering index (CRI>80), which ensures a faithful visualization of colors, similar to natural light.

Customized lighting - CCT system

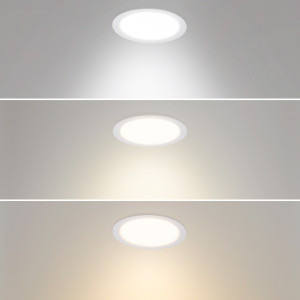

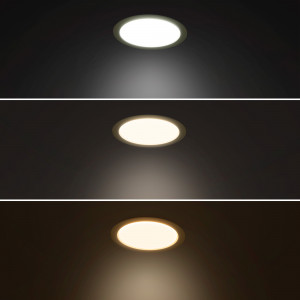

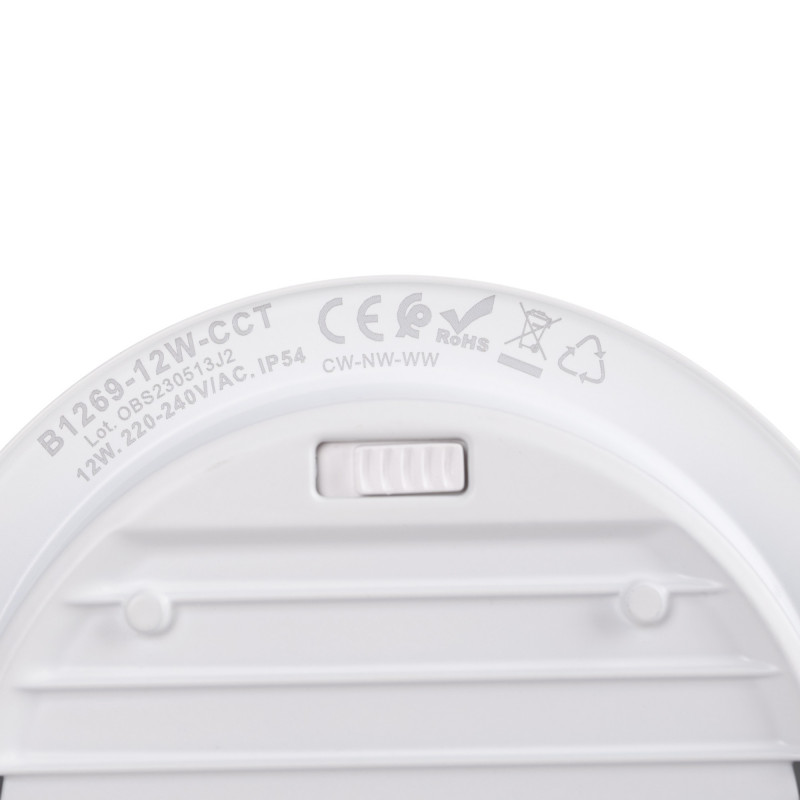

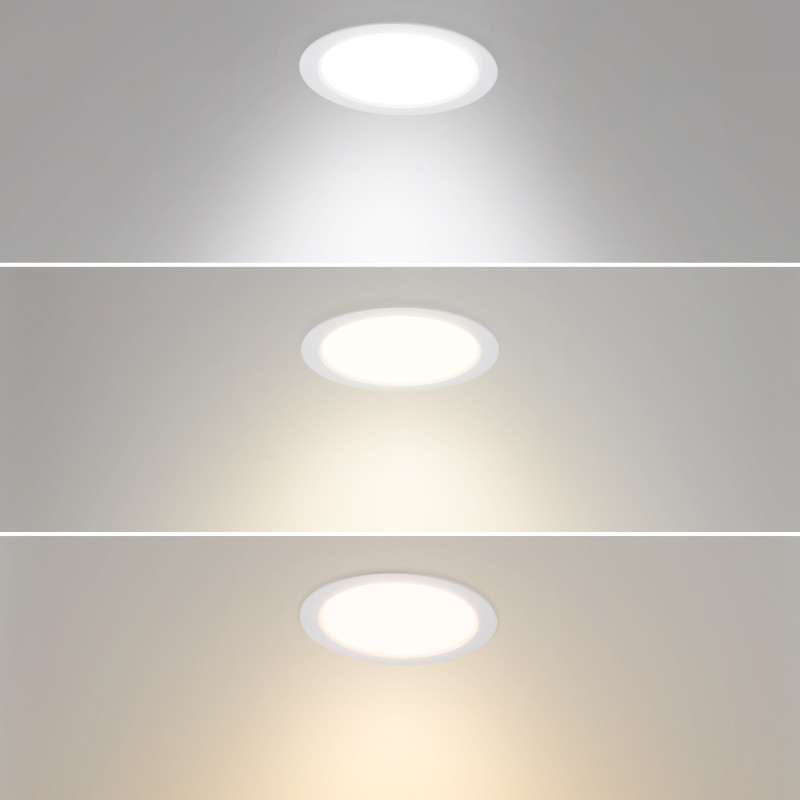

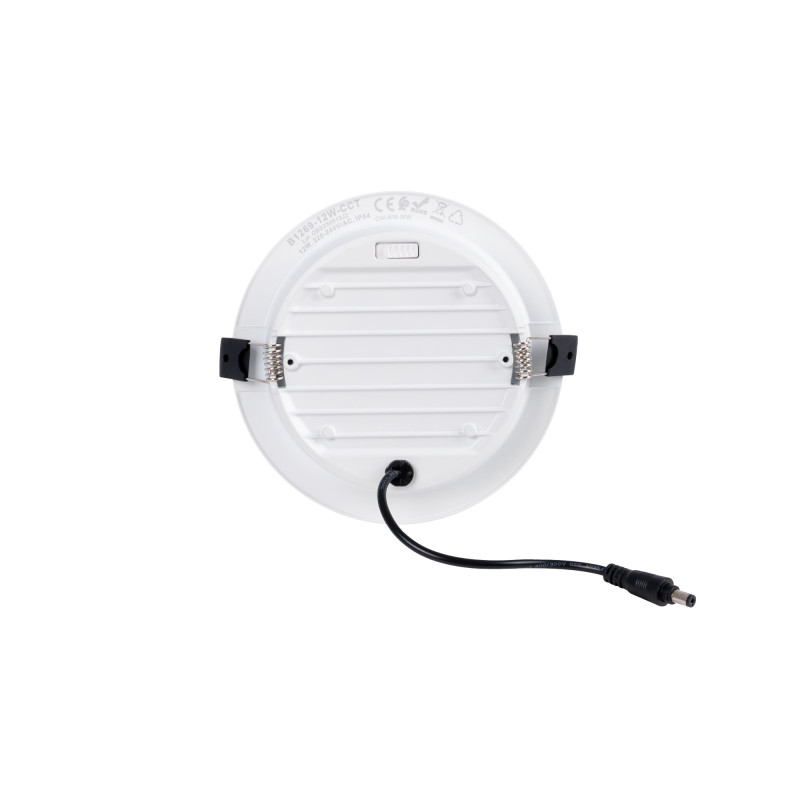

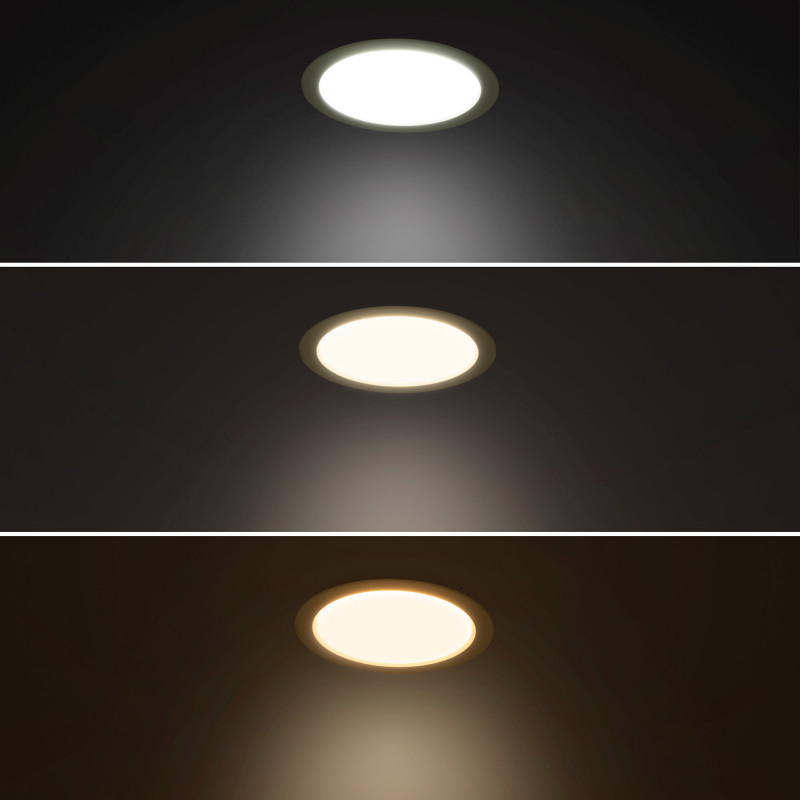

Incorporates CCT color temperature system. With a simple selector located on the back, it's possible to customize the color temperature in three different shades: warm white (3000K), neutral white (4000K) and cool white (6000K), giving you the option to adapt the lighting to your needs and preferences.

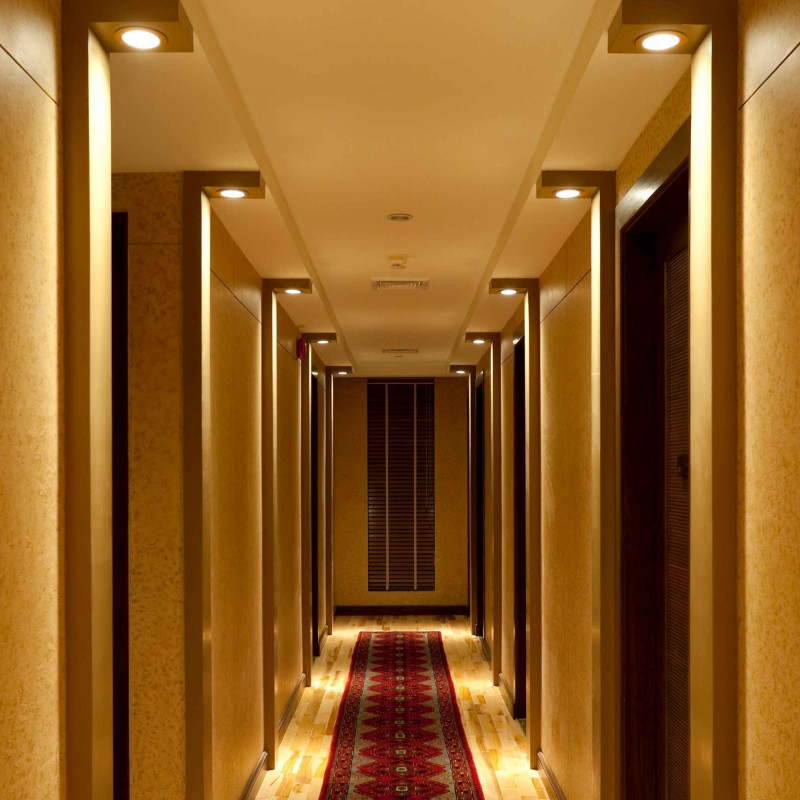

Applications

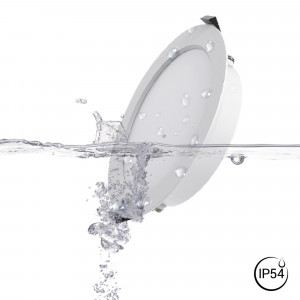

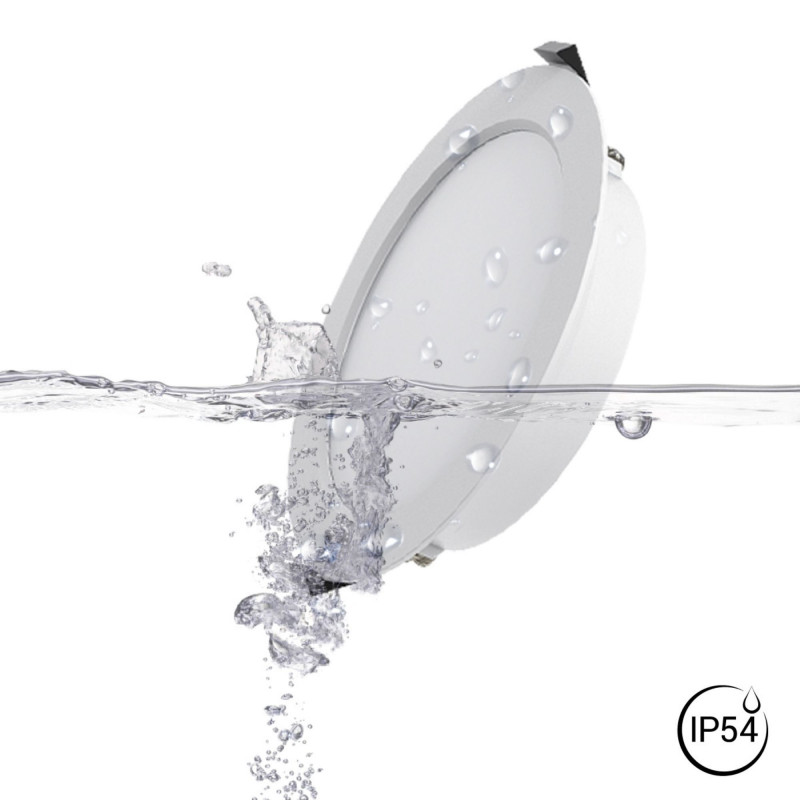

Due to its IP54 rating, this downlight is suitable for use in wet environments and outdoors.

It's a versatile premium quality product, suitable for a variety of environments:

  • Office spaces and work areas, thanks to its low glare rating.

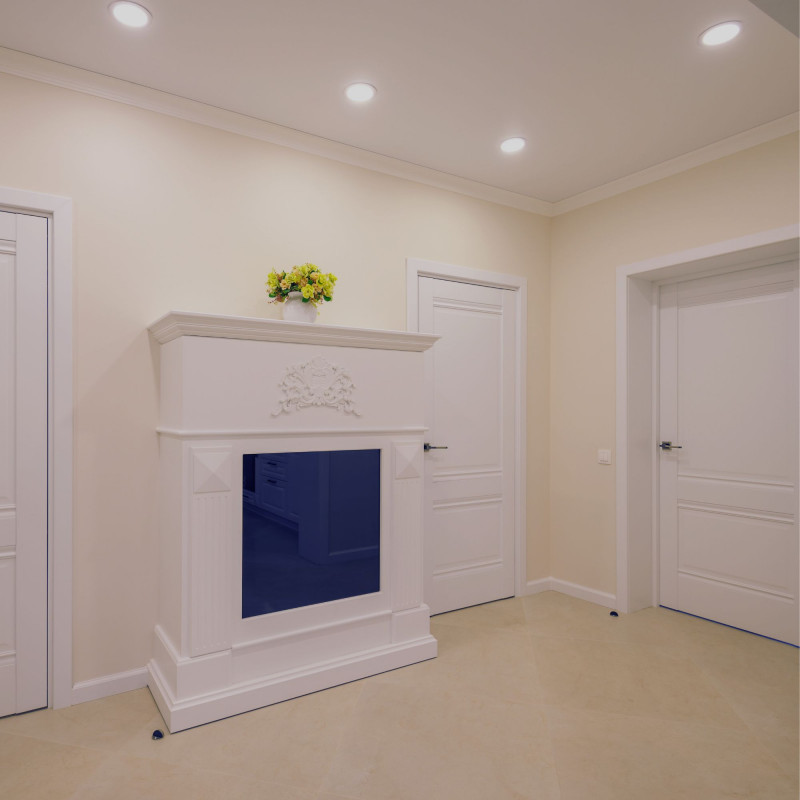

  • Indoor lighting in homes and residences.
  • Commercial and retail spaces.
  • Outdoor lighting (without direct exposure to rainfall).

Product features:

  • Manufactured with high quality components.
  • Power: 12W
  • Lumens: 1509lm (warm white), 1756lm (neutral white), 1781lm (cool white)
  • Efficacy: 148 lm/W
  • High color rendering index (CRI>80)
  • CCT shade: warm white (3000K), neutral white (4000K) and cool white (6000K).

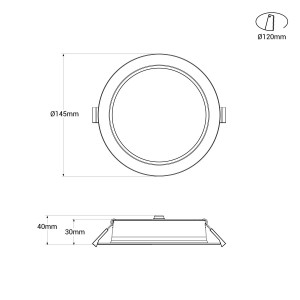

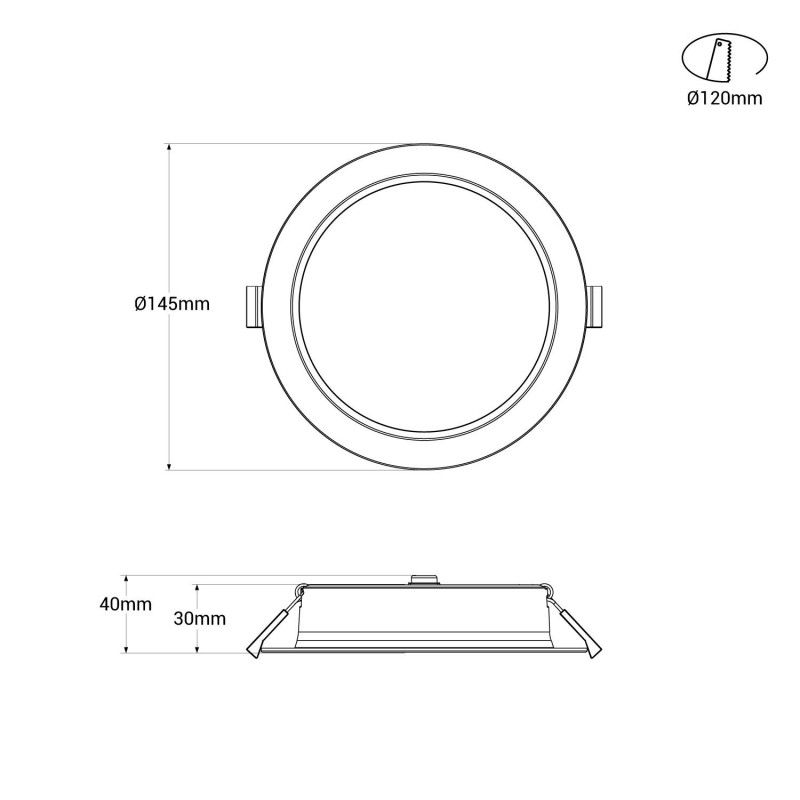

  • Dimensions: Ø 145 x 40 mm
  • Cutout diameter: Ø 120mm
  • Mounting accessories included

Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
12
Kelvin (K)
3000
4000
6000
Beam angle (º)
100
IP
IP54
Hue
CCT
CRI
80-85
UGR
UGR19
LED Type
SMD 2835
Power factor (cosφ)
0.5
Driver
LIFUD
Orientable
No
Use Outdoor
Yes
Energy efficiency class
D
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Is it adjustable?
R: Answer: Hello, this downlight is not dimmable with the driver included, however you can change the driver for this one to make dimmable: https://www.barcelonaled.com/componentes-y-accesorios-led/drivers/driver-regulable-dali-10-10v-push-9-42v-dc-multicorriente-150-350ma.html?mot_tcid=fe6db62c-2611-4785-9fd3-df8433eab02e . Thank you very much!

Barcelona LED: Sergi| 12/10/2024
