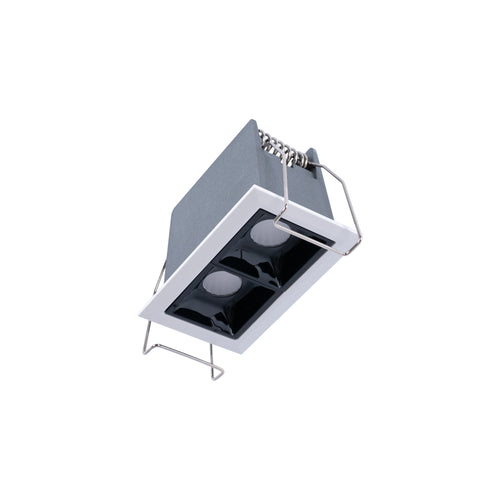

Recessed linear LED downlight 4W - UGR18 - CRI90 - OSRAM Chip

SKU:B1218-4W-B-BN
Colour temperature
Colour
Has superado el límite de unidades
In stock 210 units
Data sheet

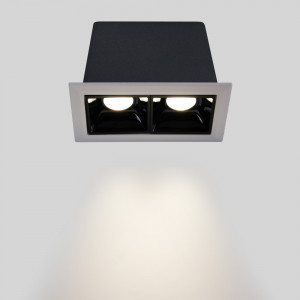

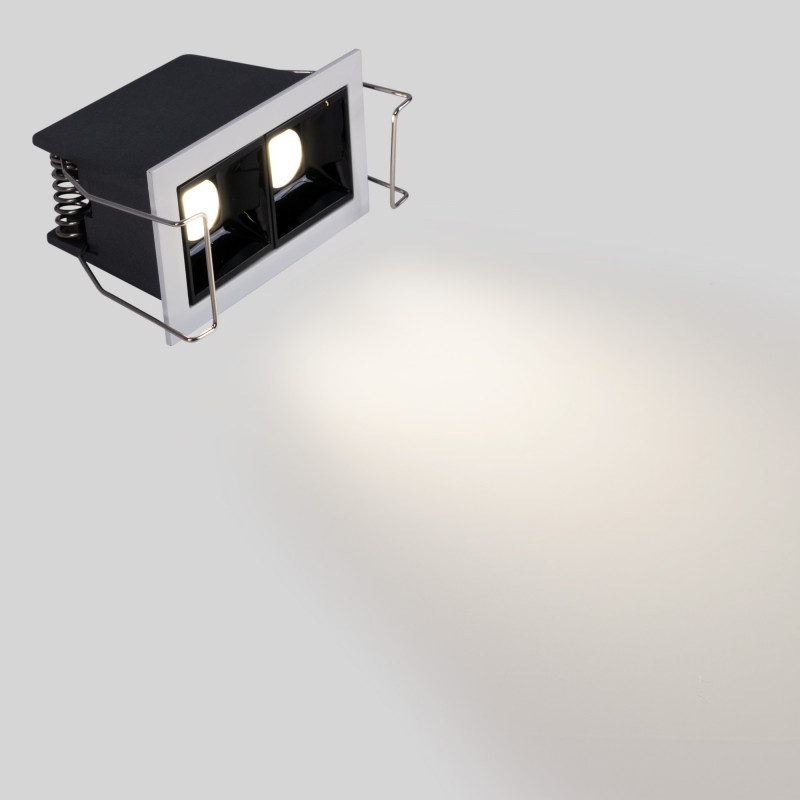

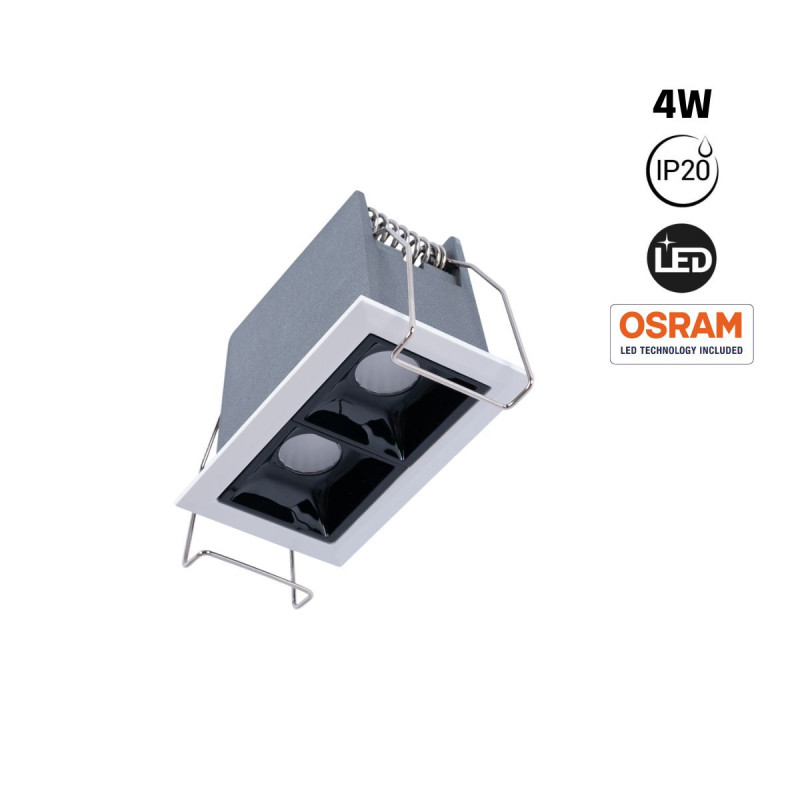

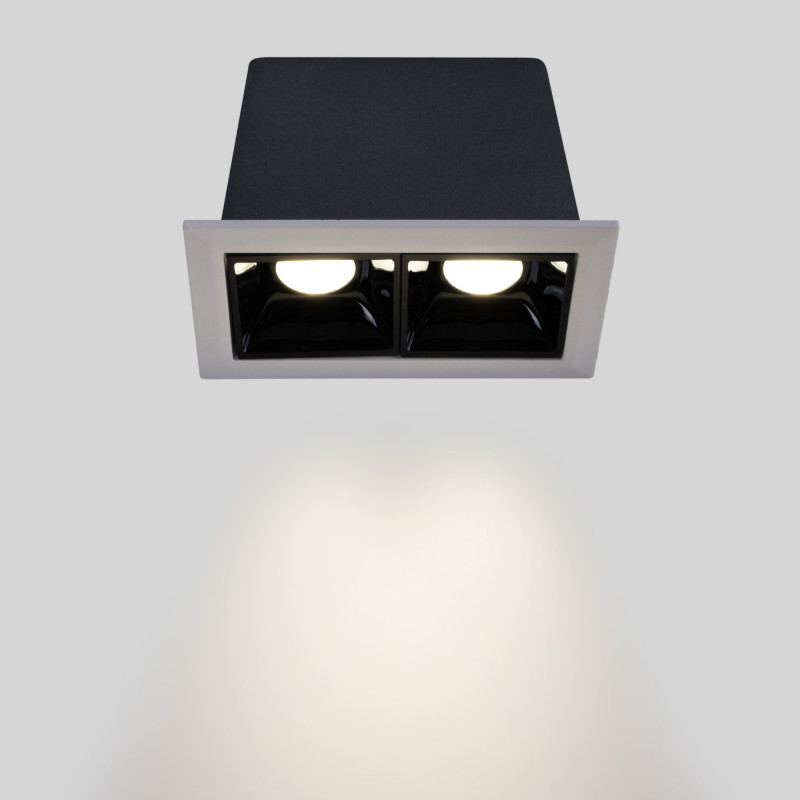

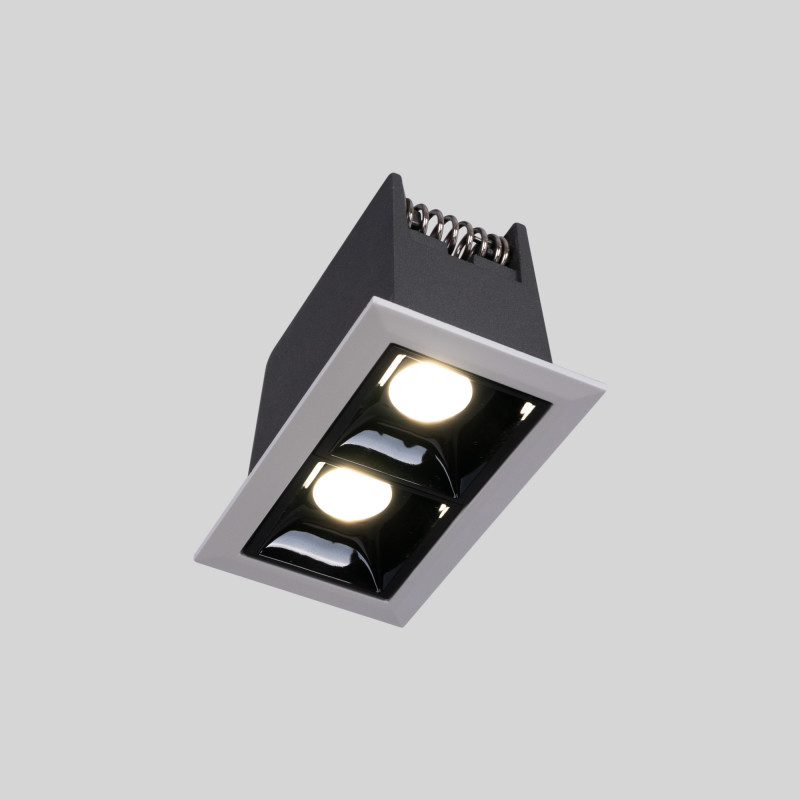

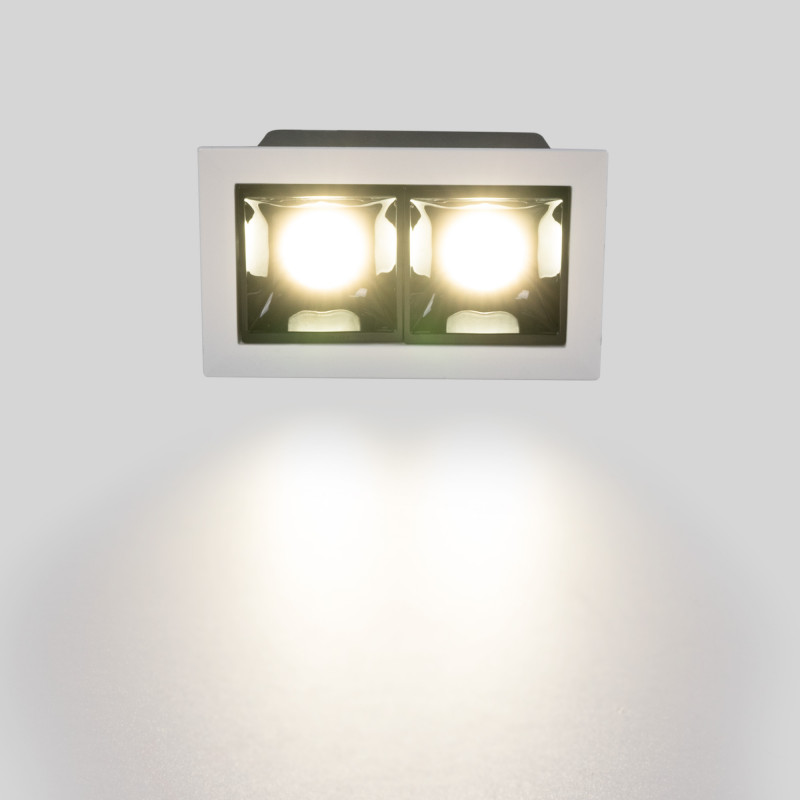

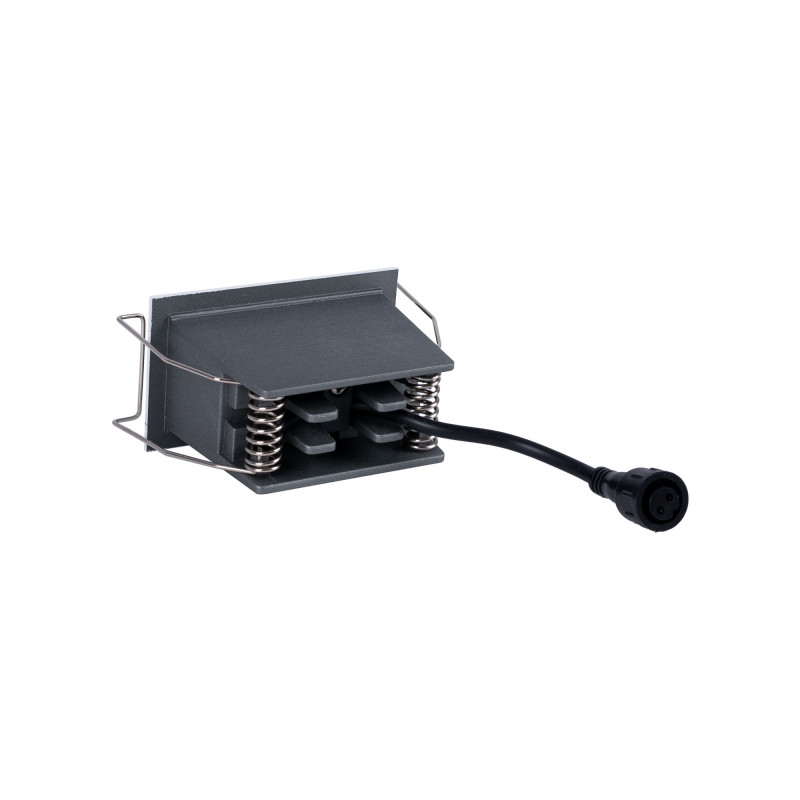

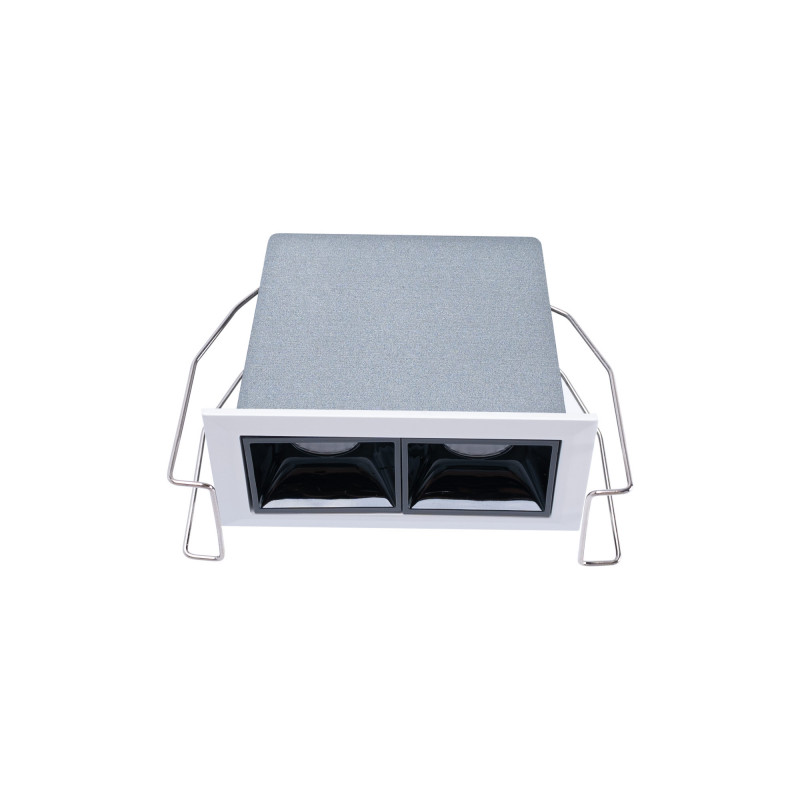

Recessed linear LED downlight composed of two 2W spotlights each (4W in total).

It incorporates Osram LED chips and KeGu driver.

It stands out for its low glare index (UGR<18) and high color rendering index (CRI>90).

Available in 2 colours: white and black, and in 2 colour temperatures: warm white (2700K) and neutral white (4000K).

**Cutout dimensions: 68 x 37mm**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This linear LED downlight is an innovative solution for projects that require high quality and efficient accent lighting.

It features a low glare index (UGR<18), allowing it to provide high visual comfort to users. Additionally, with a CRI>90, it becomes an ideal option for projects requiring high color rendering indices.

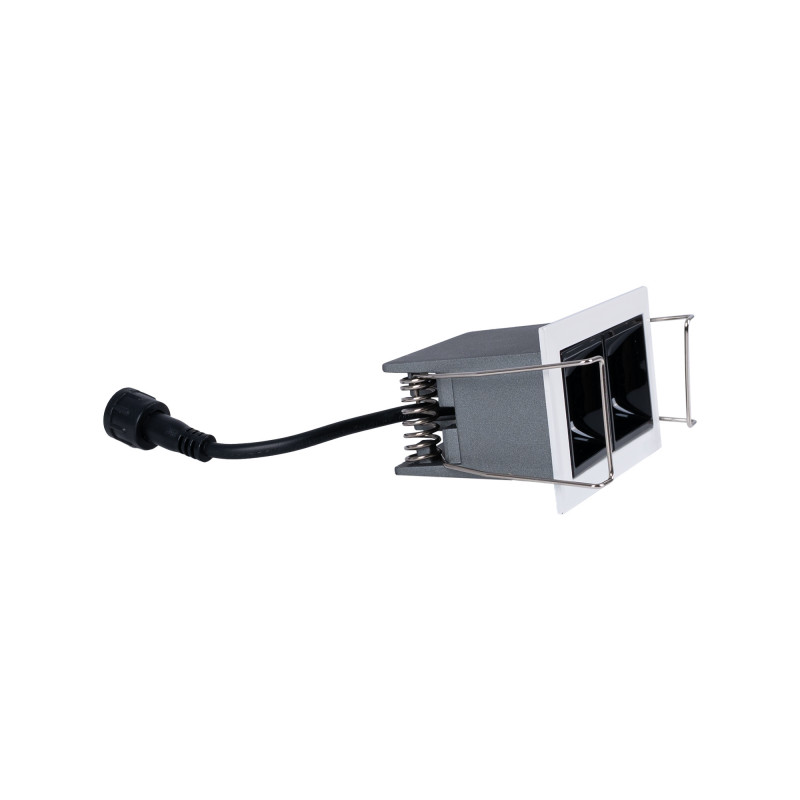

It's installed recessed into the ceiling through a simple process.

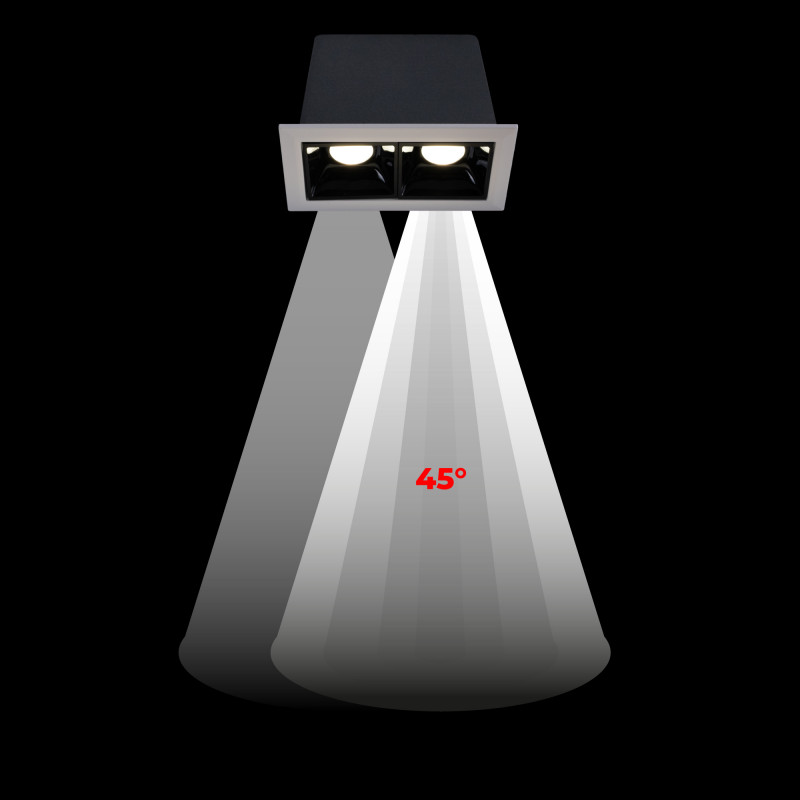

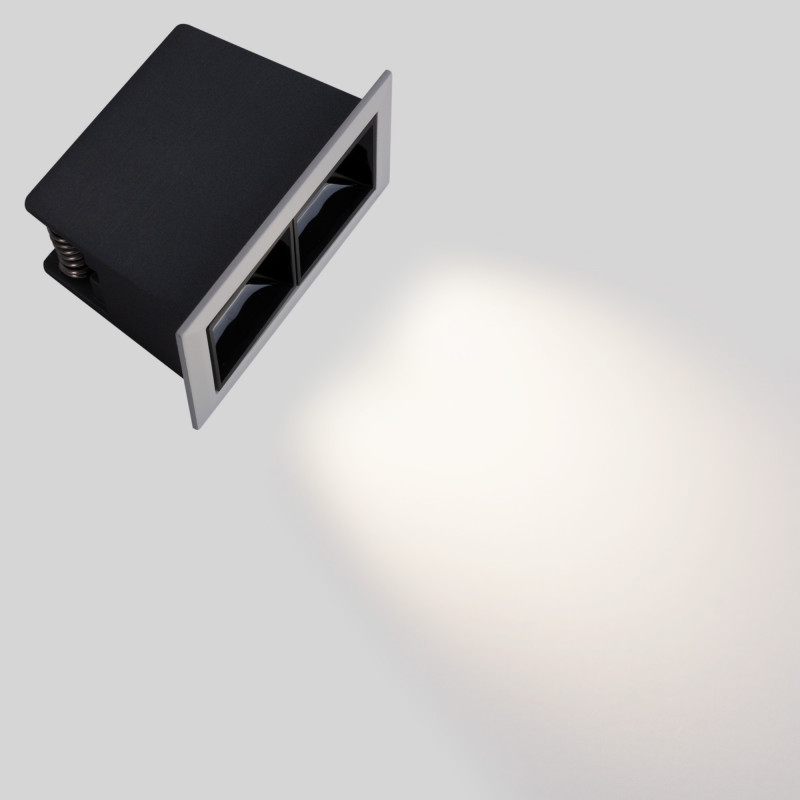

With its 45° beam angle, this light fixture is especially well-suited for accent lighting.

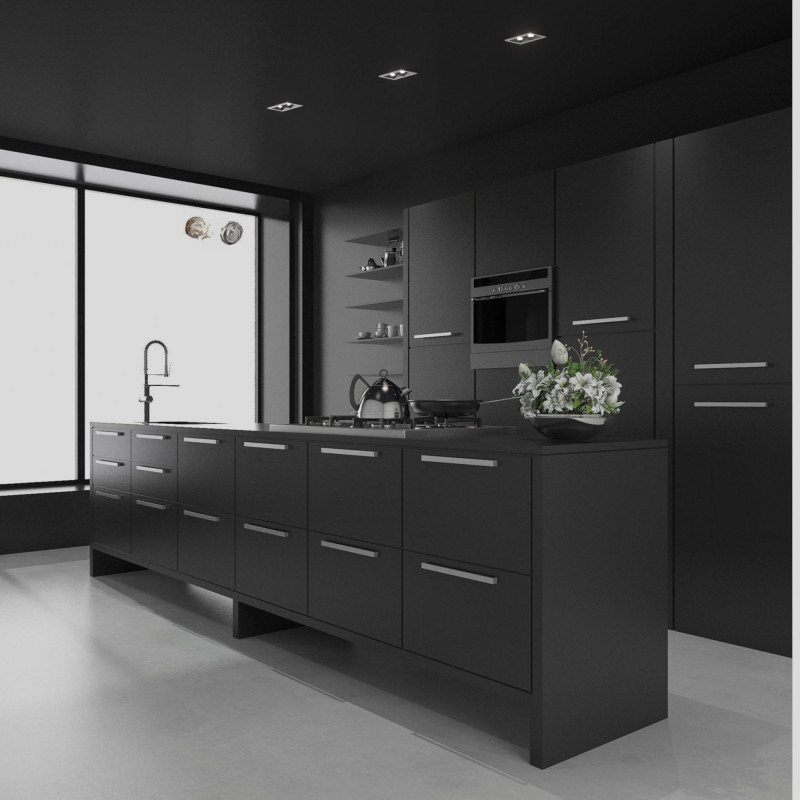

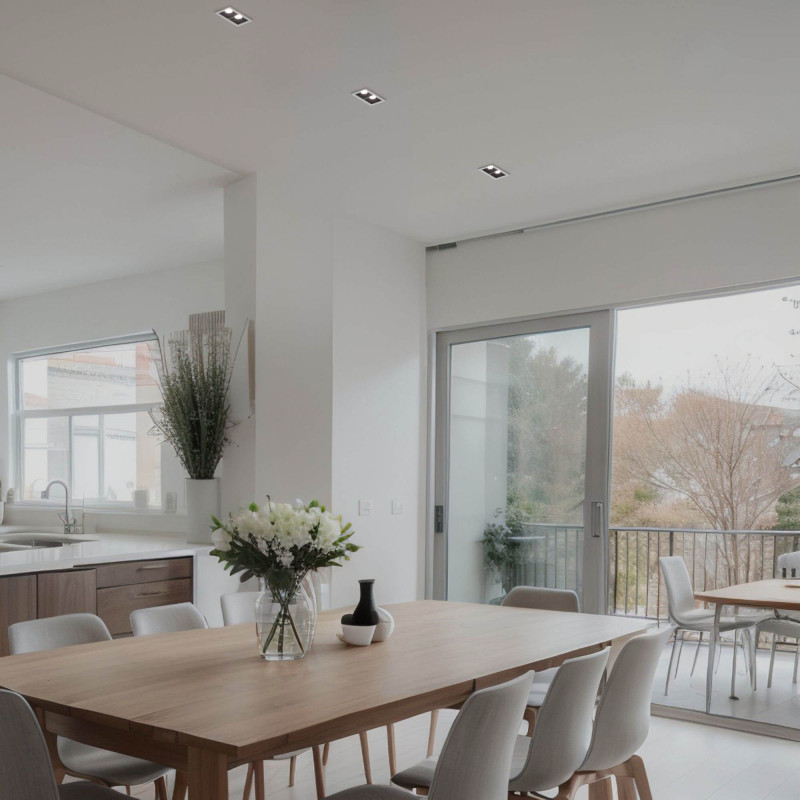

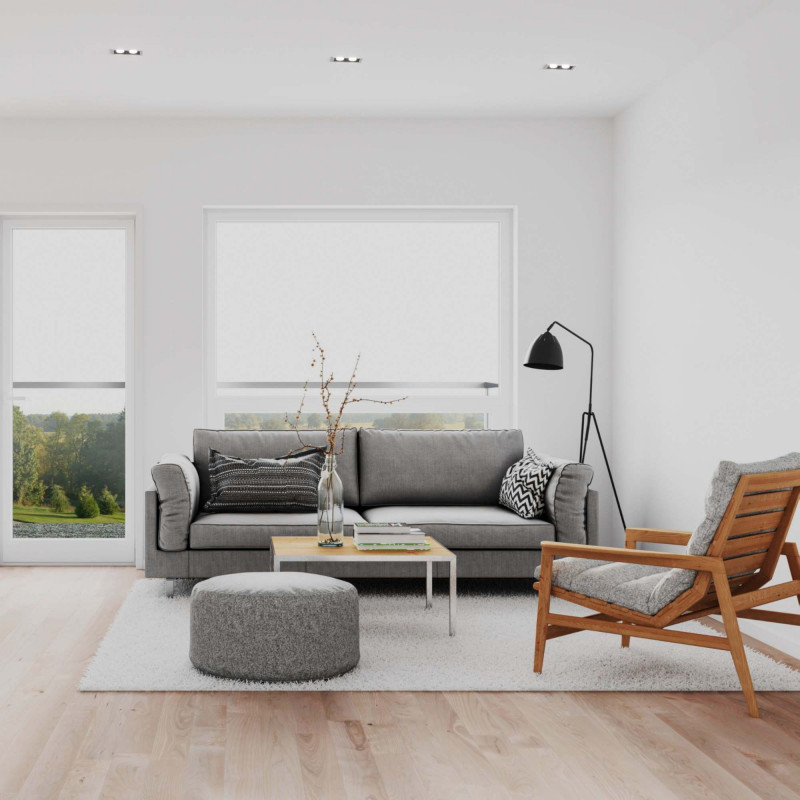

Its modern design adapts to various spaces and decorative styles, and can be used in both domestic and commercial environments: exhibition halls, clothing stores, furniture stores, dressing rooms, etc.

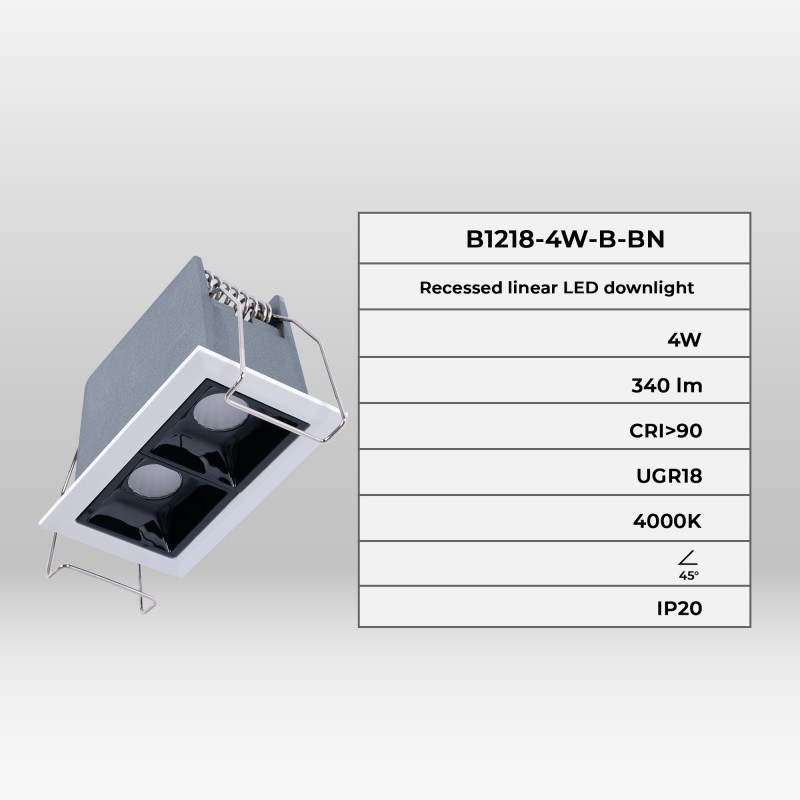

Product features:

  • Rated voltage: 220-240V AC
  • Power: 4W
  • Osram LED chip

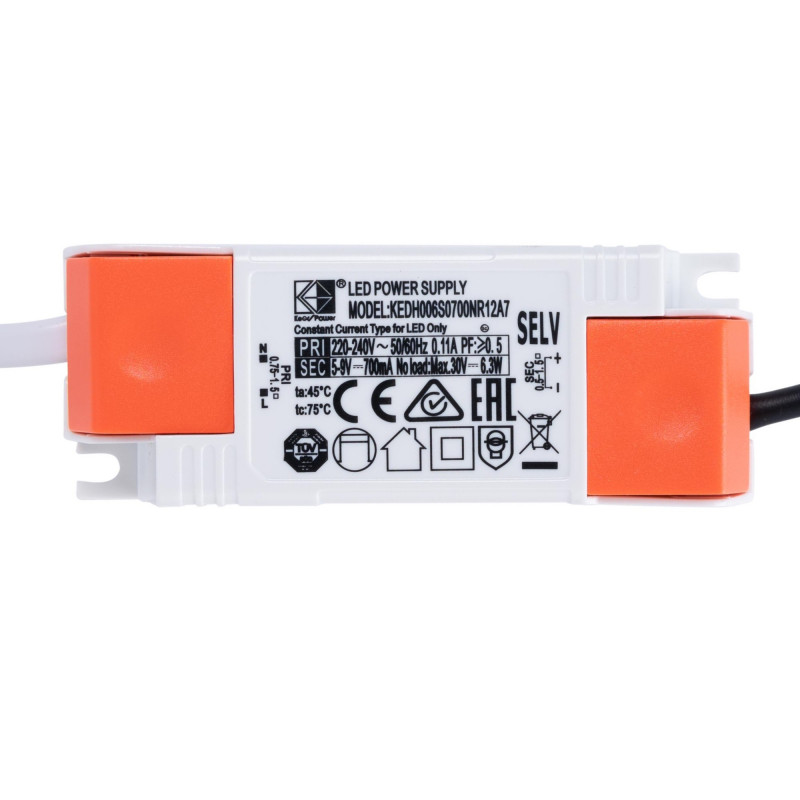

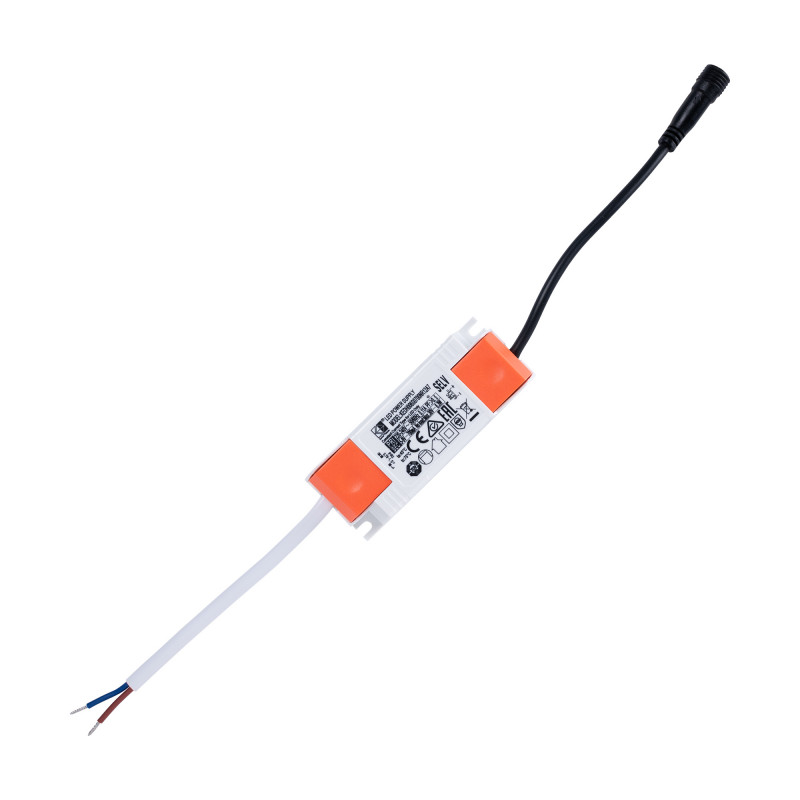

  • KeGu driver
  • Lumens: 270 lm (warm white) and 340 lm (neutral white)
  • CRI>90
  • UGR<18
  • Beam angle: 45º
  • Recessed installation
  • Shade: warm white (2700K) and neutral white (4000K)
  • Colour: black and white
  • IP20: indoor use
  • Dimensions: 75 X 45 X 49 mm
  • Cutout dimensions: 68 x 37 mm

Power (W)
4
Lumens (Lm)
270 lm (warm white) and 340 lm (neutral white)
Kelvin (K)
2700
4000
Beam angle (º)
45º
Dimensions (mm) Lxlxh
75 x 45 x 49
Hue
Neutral white
Warm white
CRI
90-95
UGR
UGR18
LED Type
Chip OSRAM
Power factor (cosφ)
0.9
Driver
External
KeGu
Orientable
No
Cutting dimensions (mm)
68 x 37
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
5 years
Barcelona LED

Questions

P: Question: Is the aluminum profile in white-black color?
R: Answer: Linear focus is 'black and white'.
P: Question: This model and the one with five 2W LEDs, is it dimmable? Even at 230V ?
R: Answer: This model is not adjustable
P: Question: I needed it with "trimless" frame to match, this 2 point LED and 1 point LED.
2W, can you get them ?
R: Answer: We do not have this specific model without frame, maybe you are interested in another model for plaster as ref. B251.
