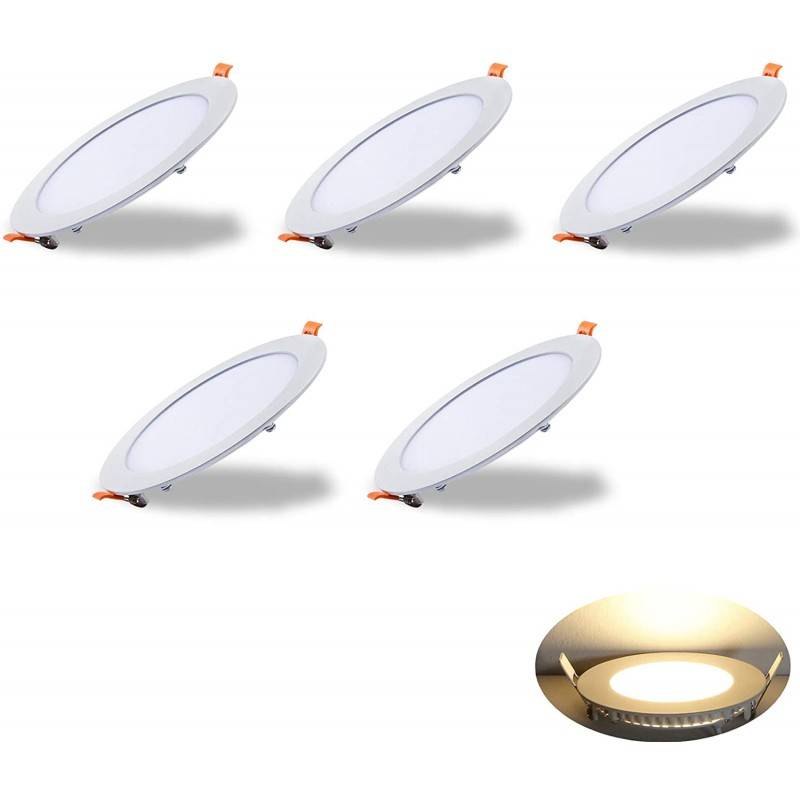

Recessed circular LED downlight - 18W - Cutout Ø205mm - 5 years warranty
SKU:B1072-BN
€5.84
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
18W Circular Recessed LED Downlight - Premium Quality
This 18W LED downlight, with an outer diameter of Ø225mm and Ø205mm cutout, is the perfect solution to illuminate rooms up to 8m².
- Luminous flux: 1800 lumens with an efficiency of 99lm/W.

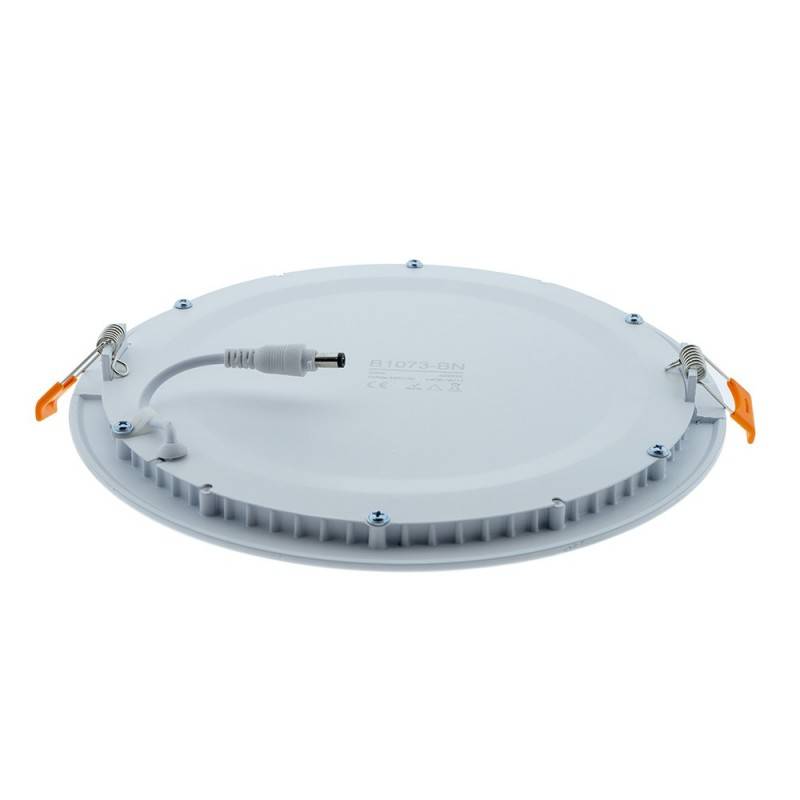

- Easy installation: Strong side springs for secure fixing.

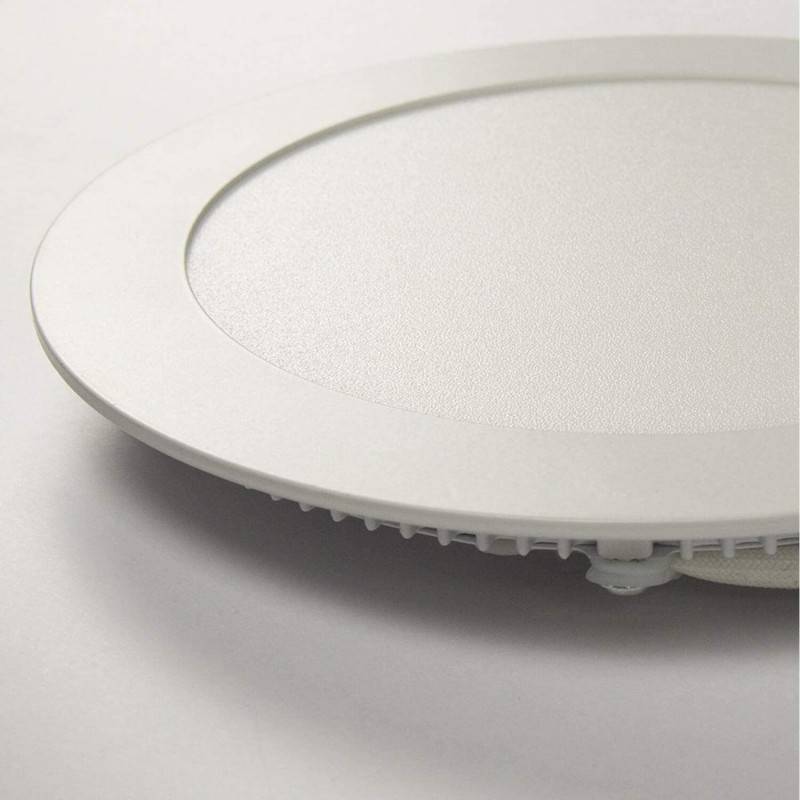

- High quality: Aluminum housing for better heat dissipation and white trim.

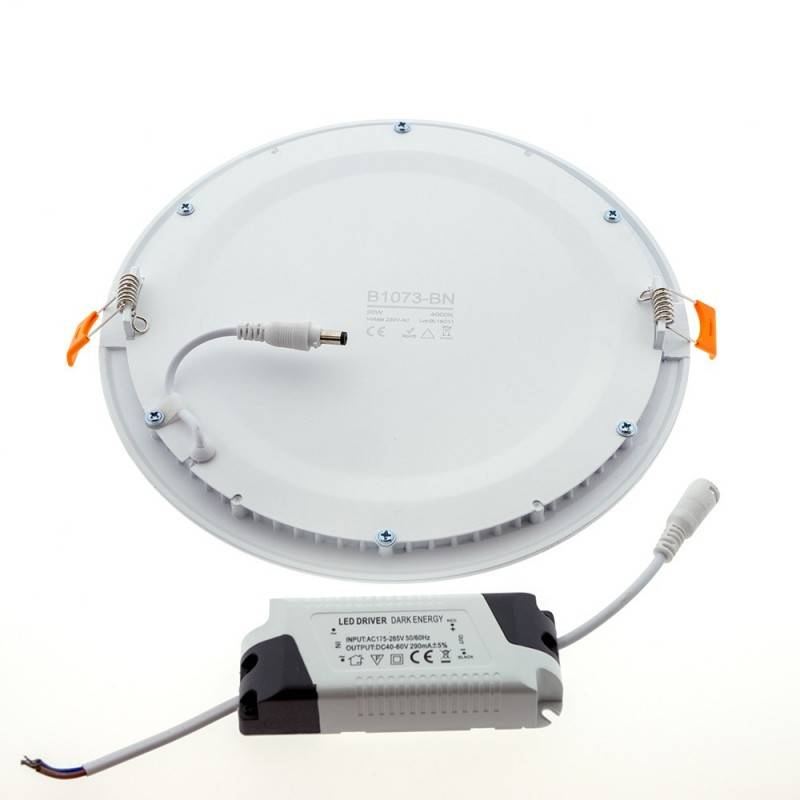

- Dark Energy external driver: Flicker-free and with EMC filter to avoid interference with WiFi, radio, etc.
- Available shades: warm white (3000K), neutral white (4000K) and cool white (6000K).
- Durability: 5 years warranty, suitable for domestic and semi-professional use.
Lumens (Lm)
1700
1780
1780
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
160
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Ø225x18
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
99
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.5
Orientable
No
Cutting dimensions (mm)
Ø205
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
5 years
Questions
| P: Question: |
Good morning concerning the downlight reference in neutral color can you tell me when will be in stock B1072-BN Thank you |
|---|
| R: Answer: | Hello good day... For availability please contact comercial@barcelonaled.com |
|---|
| P: Question: |
I bought not long ago some downlight led 18W of 1440 lm, neutral white, with silver frame and I need to change some more in the same area, but it seems that now there are only with white frame. Are not left in stock some with silver frame? I also want to buy several G9 cylindrical LED bulbs 6W, neutral white, which were not available at the time, are they now? |
|---|
| R: Answer: | That silver model is quite old, we do not have the silver model. We have several models of G9 bulbs |
|---|
| P: Question: | I bought 2 and a half years ago an 18w neutral led downlight and I don't know if it is the same model as this one but it doesn't work when on, it makes a very dim and flickering light, do you know if the driver has burned out or something? thanks. |
|---|
| R: Answer: | It could be either a failure of the led or the driver. If you have another one that works, you can test the driver to rule out the fault and see if there is a compatible driver. |
|---|
| P: Question: | Do the dowlights have an earth socket ? |
|---|
| R: Answer: | No electronics where there are dangerous voltages (220v) go inside a plastic box (driver) outside the downlight without access to metallic material in the downlight, the driver is CLASS 2, without the need for ground wire. |
|---|
| P: Question: |
To make them dimmable, which driver do you recommend, and a suitable dimmer switch? Thanks |
|---|
| R: Answer: | In order to dim the 18W downlight, the driver must be replaced by a dimmable one, for a TRIAC dimming system, you can use the model ref. B4252. There are several models of TRIAC dimmer ref. B704 or models by radio frequency and push button as D1009AC-HP. |
|---|
| P: Question: |
Hello! I would like to know if they are suitable for bathrooms. Thank you! |
|---|
| R: Answer: | They are IP20 grade for areas where there is no water contact as it has no protection. It can be placed in Zone 3 away from water and nearby areas. |
|---|
| P: Question: | A few months after buying it and almost without use, the external dark energy drivers have burned, I have them on the ceiling of the sink, could you tell me the reason? |
|---|
| R: Answer: | The recessed circular LED downlight 18W is only IP20 and is not for bathrooms, you can access the downlight for bathrooms with IP44 by searching in the search engine the reference B1150CCT. |
|---|
