Recessed circular LED downlight 24W cut-off Ø275mm

SKU:B1243-B-24W-BN
Colour temperature
Has superado el límite de unidades
In stock 2220 units
Data sheet

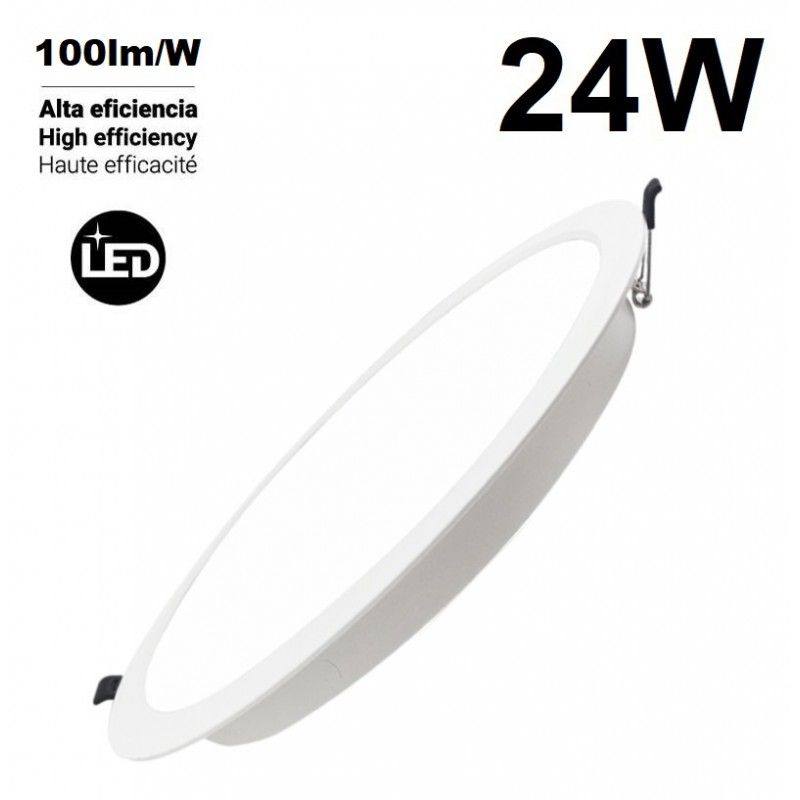

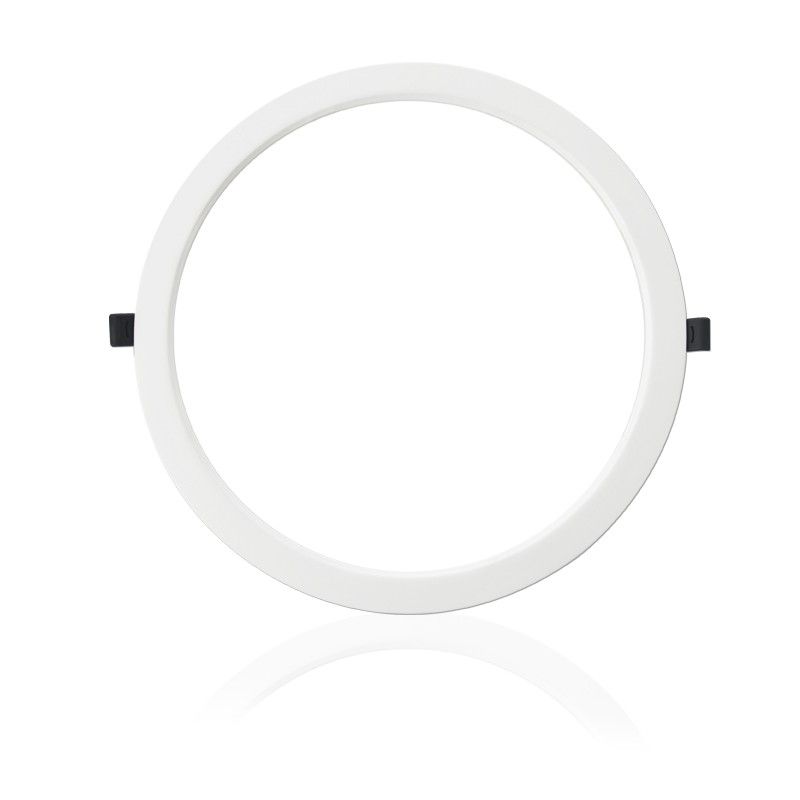

RecessedLED downlight with a power of 24W. Circular shape with outer diameter of Ø295mm, with a depth of 30mm and a cutting diameter of Ø275mm. Manufactured with polycarbonate housing of circular structure with white lacquered trim frame. Opal polycarbonate diffuser emitting a homogeneous light.

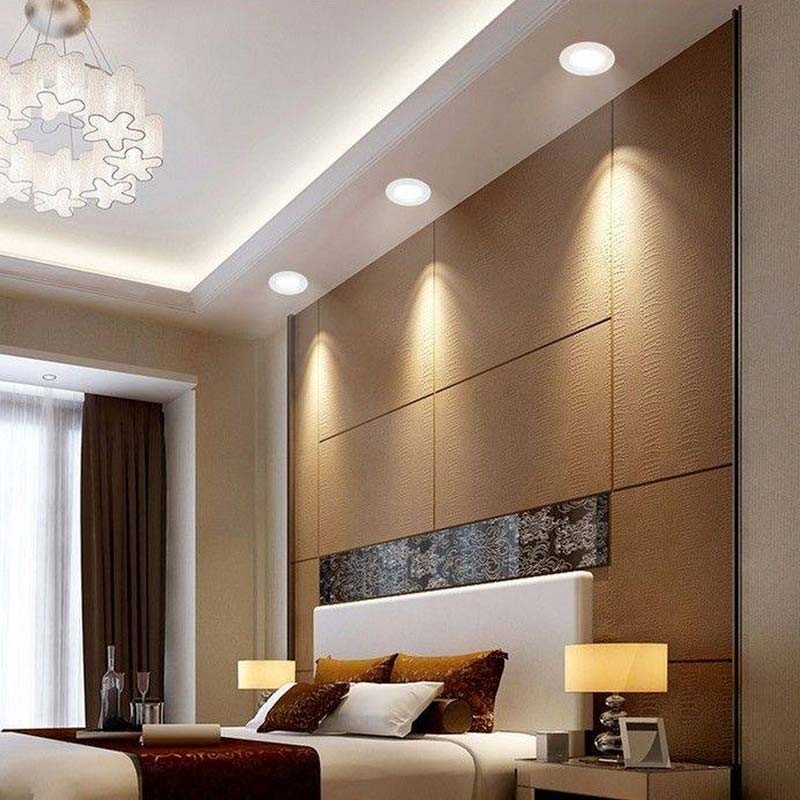

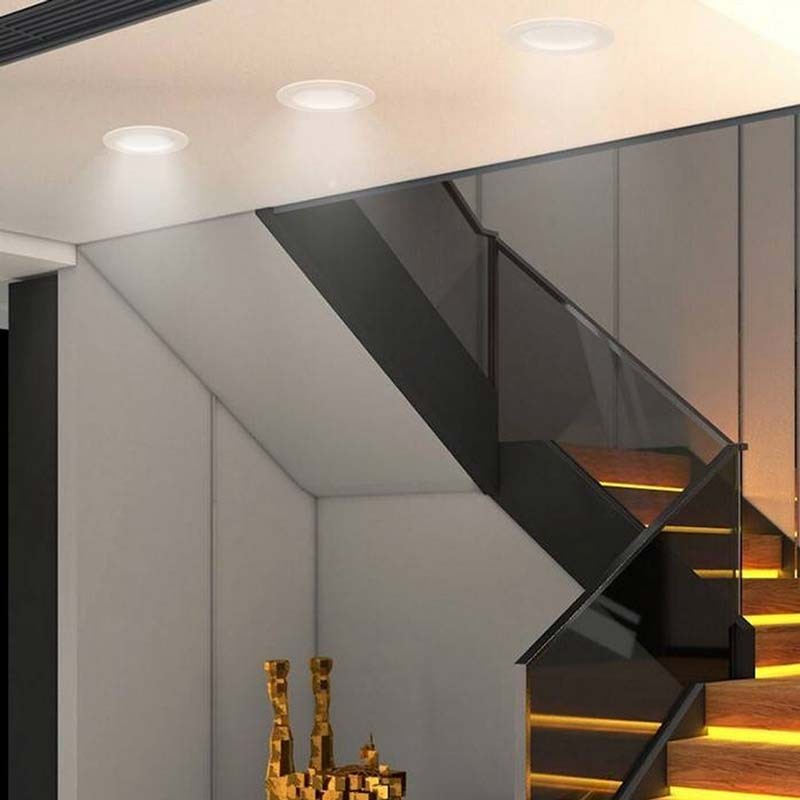

This type of downlight is ideal for domestic and professional use. No flicker and no electromagnetic noise. Excellent combination of efficiency and quality design.

  • 24W
  • 230V
  • 120º
  • IP20
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Recessed LED Downlight 24W

LED downlight with a power of 24W and a high luminous efficiency. Recessed LED downlight , exclusively for indoor use with IP20 degree of protection.

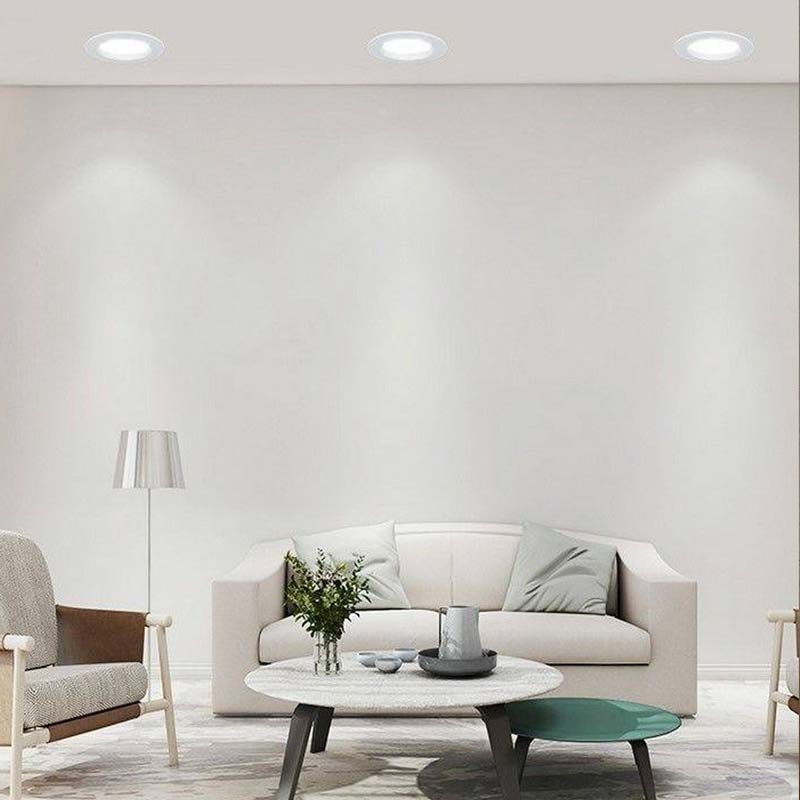

Perfect downlight for domestic and professional use. Designed with high quality elements to provide a downlight of high durability and efficiency, at the best price.

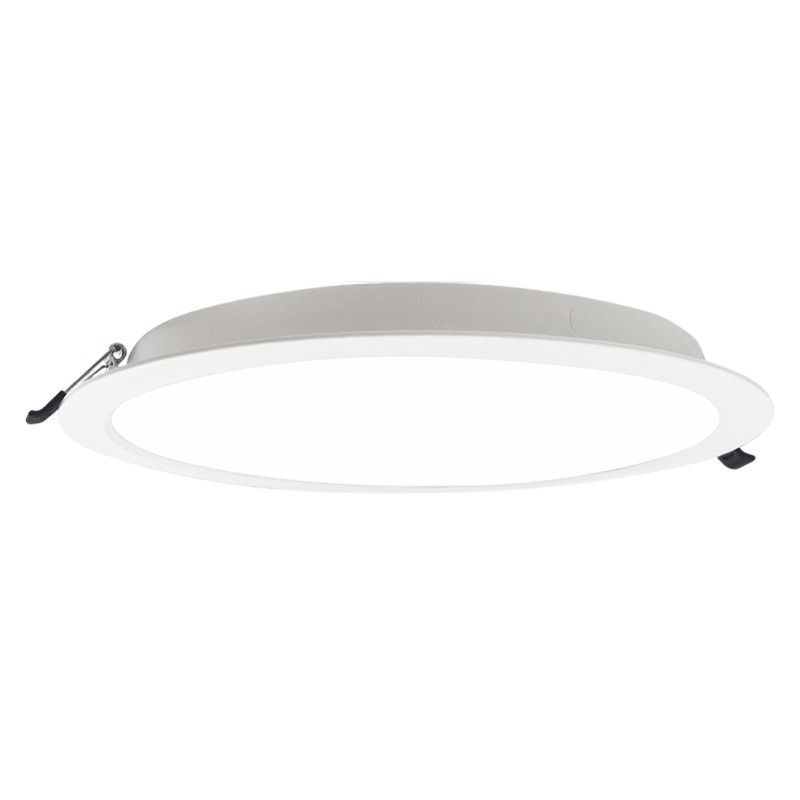

Manufactured with polycarbonate housing of circular structure with white lacquered trim frame. Opal polycarbonate diffuser emitting a homogeneous light. In addition, it includes staples to embed the downlight.

This downlight offers great heat dissipation, increasing its durability and is the perfect lighting solution with excellent performance at the best price. Downlight dimensions of Ø295x30mm. Cutting dimensions of Ø275mm.

Thanks to the opal polycarbonate diffuser and the inner reflector, the light emitted by the downlight is intense and homogeneous. No shadows or dark areas in an opening angle of the light beam of 120 degrees.


downlight LED

24W recessed downlight

The 24W LED downlight consists of high quality and high efficiency SMD2835 LED chips. You can select from different color temperatures: warm white, 3000ºK, neutral white, 4000ºK or cool white, 6000ºK.

Optimal color rendering (CRI>80). Beam opening angle 120 degrees. For indoor use, with IP20 protection degree. The luminaire is not dimmable.

The main feature of these downlights is their high efficiency with great energy savings. Also, it allows us to minimize maintenance and replacement costs.


Recessed downlight installation

The installation of the downlight is very simple for both professional and private users, thanks to the built-in springs and pins.

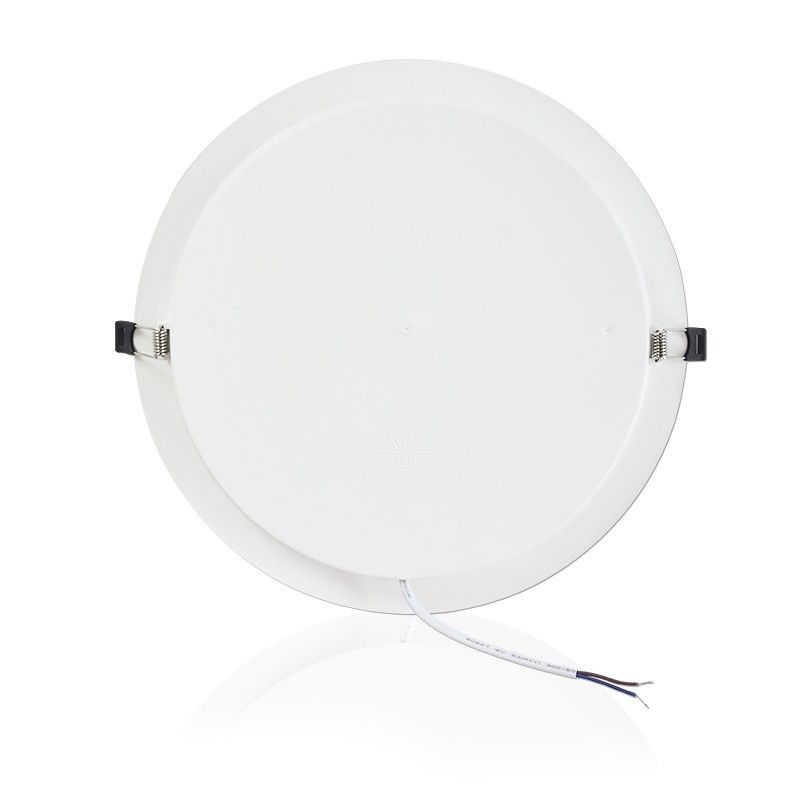

The downlight includes springs and pins with protective rubbers on the sides, to anchor and press against the false ceiling. For mounting, you must enter the springs into the hole, and when released, the downlight will be placed flush with the ceiling by the pressure exerted.

instalación downlights

Nominal Voltage (V)
230
Lumens (Lm)
2000
Kelvin (K)
3000
4000
6000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
295x295X30
Hue
Cool white
Neutral white
Warm white
Efficiency (Lm/w)
80
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Orientable
No
Cutting dimensions (mm)
Ø275-285
Material
Polycarbonate
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Discount
Professional lighting
Professional lighting up to 80% off
Barcelona LED

Questions

P: Question: Is it also available with a larger diameter of about 7 cm?

Thank you
R: Answer: Hello Giulia
The size of the downlight is Ø 275 mm hole, 295 mm outside and 30 mm height.
Regards
