Recessed circular LED downlight - 4W - Cutout Ø77mm
SKU:B1240-B-4W-BC
€2.60
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Efficient and noise-free lighting

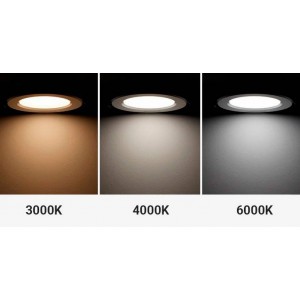

The 4W LED board is a compact and efficient solution, ideal for indoor lighting. Equipped with high efficiency SMD2835 LED chips, it provides excellent color rendering (CRI>80) and uniform light distribution with an opening angle of 120°. With three color temperature options: 3000K, 4000K and 6000K, this downlight adapts to different environments.

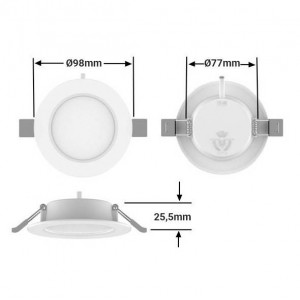

- Compact size: 98mm outer diameter, Ø77mm cut-off.
- High efficiency: 100 lm/W, optimizes energy consumption.
- Easy installation: Spring and protective rubber pads for safe and flush ceiling mounting.
- Durability: Polycarbonate housing and IP20 protection rating, ideal for indoor use.
DOB technology for greater efficiency
Thanks to Direct On Board (DOB) technology, this luminaire does not require an external driver, eliminating electromagnetic noise and ensuring a better lumen/watt ratio.
Nominal Voltage (V)
230
Kelvin (K)
3000
4000
6000
4000
6000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
98x98x25.5
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Orientable
No
Cutting dimensions (mm)
Ø77-82
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: |
Hello, is this Led dimmable? Can you offer a LED panel, min. 3000lm UGR <22, with min. IP4x or 5x, use workshop? Greetings Selle |
|---|
| R: Answer: | Hello You could place this reference number: B999-R-B Together with a dimmable GU10 bulb such as Ref. no.: O609037 either Ref. no.: B548-BN Barcelona LED: Santiago| 27/01/2023 |
|---|
| P: Question: |
can it be replaced by the 50 W dichroic ? thank you !!! |
|---|
| R: Answer: | Replace if. dog may be that the cutout is not the same size, the downlight has a 77mm diameter cutout. |
|---|
| P: Question: | hola buenas queria saber si esta bien la potencia para un piso o es poca? |
|---|
| R: Answer: | It depends on the measurements of the floor and the use. The downlight is more or less equivalent to a halogen porthole (dichroic bulbs). |
|---|
| P: Question: | How far apart do you recommend between two of these downlights? |
|---|
| R: Answer: | It depends on the use, the room and the necessary light, it is like a porthole (dichroics), maybe every 1.5m or 2 meters. |
|---|
| P: Question: | Does it include the driver in the body of the luminaire? |
|---|
| R: Answer: | Yes, the driver is integrated in the downlight. |
|---|
| P: Question: | Does the spotlight come complete and ready to install ? or does it need a transformer ? which the image doesn't identify ? |
|---|
| R: Answer: | Comes complete for installation to connect to 230V. |
|---|
