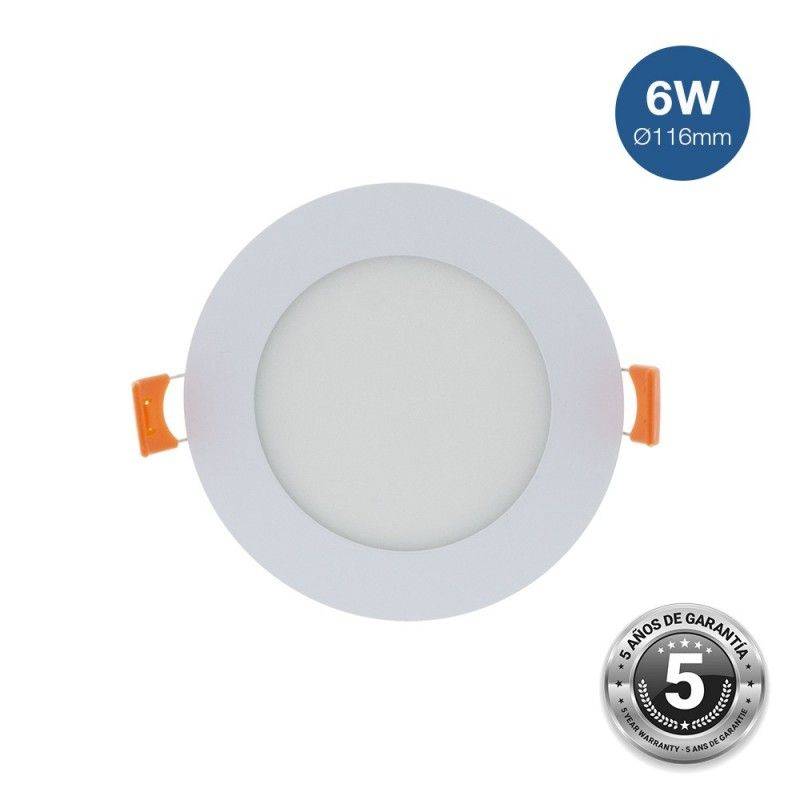

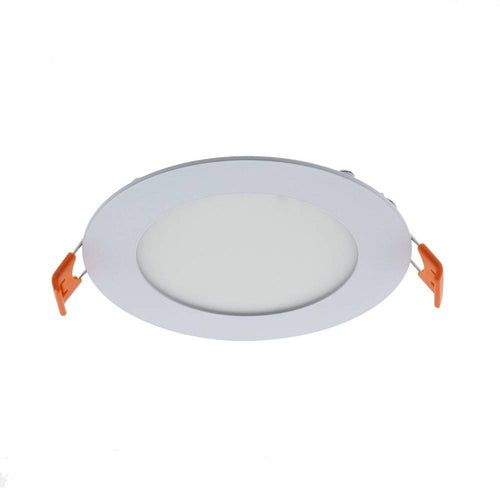

Recessed circular LED downlight - 6W - Cutout Ø110mm - 5 year warranty
SKU:B1070-BF
€3.32
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
6W Circular Recessed LED Downlight - Premium Quality
This 6W LED downlight, with an outer diameter of Ø116mm and Ø110mm cutout, is the perfect solution to illuminate rooms up to 8m².
- Luminous flux: 450 lumens with an efficiency of 75lm/W.

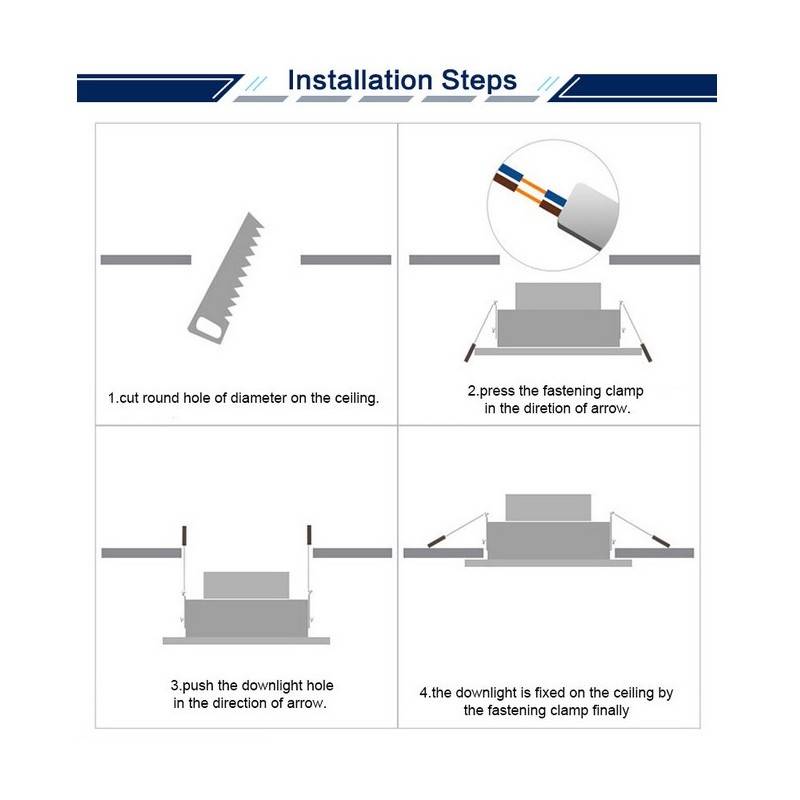

- Easy installation: Strong side springs for secure fixing.
- High quality: Aluminum housing for better heat dissipation and white trim.
- Dark Energy external driver: Flicker-free and with EMC filter to avoid interference with WiFi, radio, etc.
- Available shades: warm white (3000K), neutral white (4000K) and cool white (6000K).
- Durability: 5 years warranty, suitable for domestic and semi-professional use.
Nominal Voltage (V)
230V-AC
Lumens (Lm)
450
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Ø116x15
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
75
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.5
Orientable
No
Cutting dimensions (mm)
Ø110
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
5 years
Questions
| P: Question: |
Hello, I have very little height to embed, how high is it? |
|---|
| R: Answer: | Minimum height required is 23mm |
|---|
| P: Question: |
Good evening, I would like to know if you have this model in other sizes. The cutting diameter I have is 70mm. |
|---|
| R: Answer: | You may be interested in adjustable downlights. |
|---|
| P: Question: |
Is it enough power to illuminate a corridor of 3'75m long and 80 wide using two units? or better others of more power? or less? Thank you. |
|---|
| R: Answer: | It depends on the height, but for a walk-through use it is sufficient. |
|---|
| P: Question: | Hi, some time ago I bought these 6w downlight, and I would like to know if there are with the same size but with more lumens or more watts. Thanks |
|---|
| R: Answer: | You may be interested in the cut of the ref. 66018500 or the adjustable diameter model ref. B1278-BN. |
|---|
| P: Question: | What is the temperature of the three color levels? |
|---|
| R: Answer: | Around 3000ºk, 4000ºk and 6000ºk |
|---|
| P: Question: | Can the intensity of the spotlight be regulated? |
|---|
| R: Answer: | The downlight is not dimmable, the electronics (driver) must be replaced by a dimmable driver like the one in ref. B4250. |
|---|
| P: Question: | It works well if connected directly to 12 volts, the B1070-BC. |
|---|
| R: Answer: | No, it does not work at 12v. The downlights go with their specific drivers at constant current. |
|---|
| P: Question: |

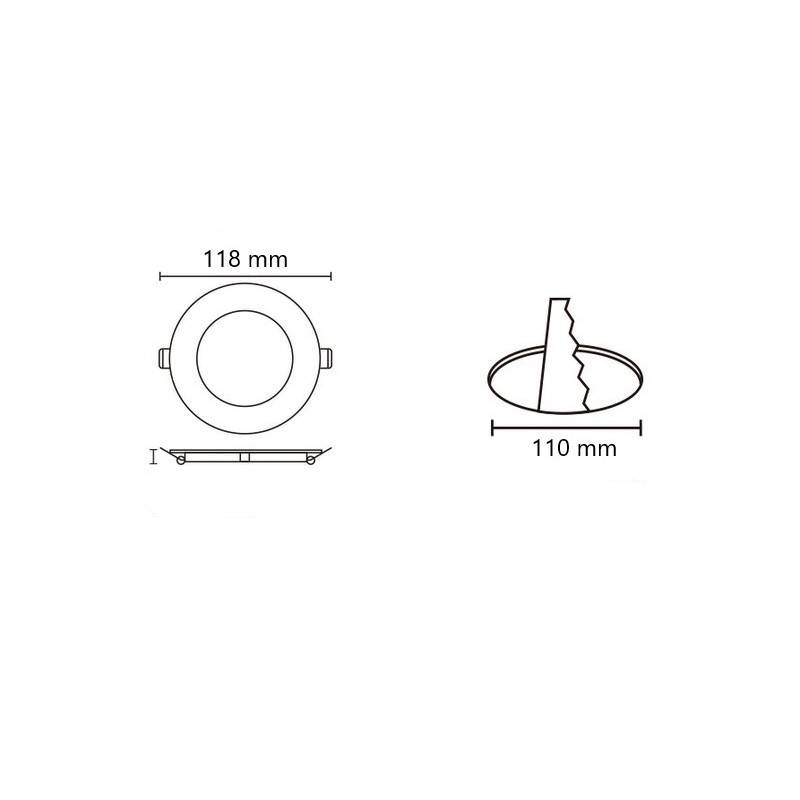

I see that the diametto of cut is 11 cm and the outer ring 11.6 ... does not correspond to the width of the photo? Or are the measurements wrong? Thank you very much |
|---|
| R: Answer: | The total diameter of the downlight is 116mm (the photo indicates the diameter), the cutout diameter is 110mm. |
|---|
| P: Question: |
Is it connected directly to 220 v or does it need a driver (transformer)? If it needs a driver, could you please inform the item to be included in the purchase? |
|---|

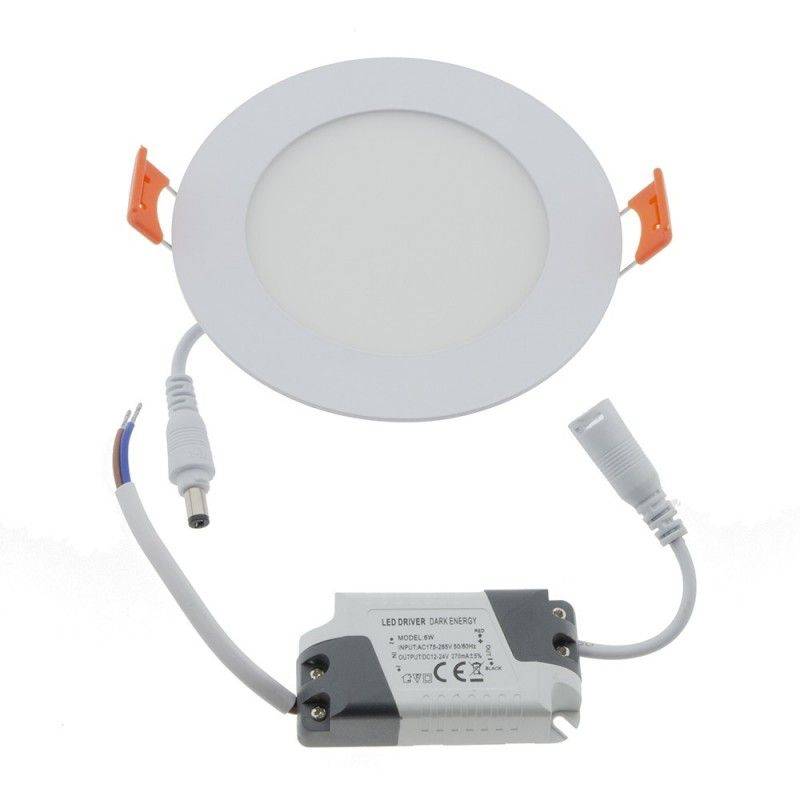

| R: Answer: | The downlight comes with the external driver included in the box, which is connected to the 220vac mains. |
|---|
| P: Question: | I would like to know if you have it in silver color, thank you. |
|---|
| R: Answer: | No, this downlight model is only available in white. |
|---|
