Recessed circular LED downlight - Adjustable cutout diameter: Ø 50 to 205 mm - 20W
SKU:B1278-BN
€12.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The LED downlight features an ultra-slim design (25mm) and is therefore ideal for installation in ceilings with limited space, where it is not possible to use bulkier luminaires.

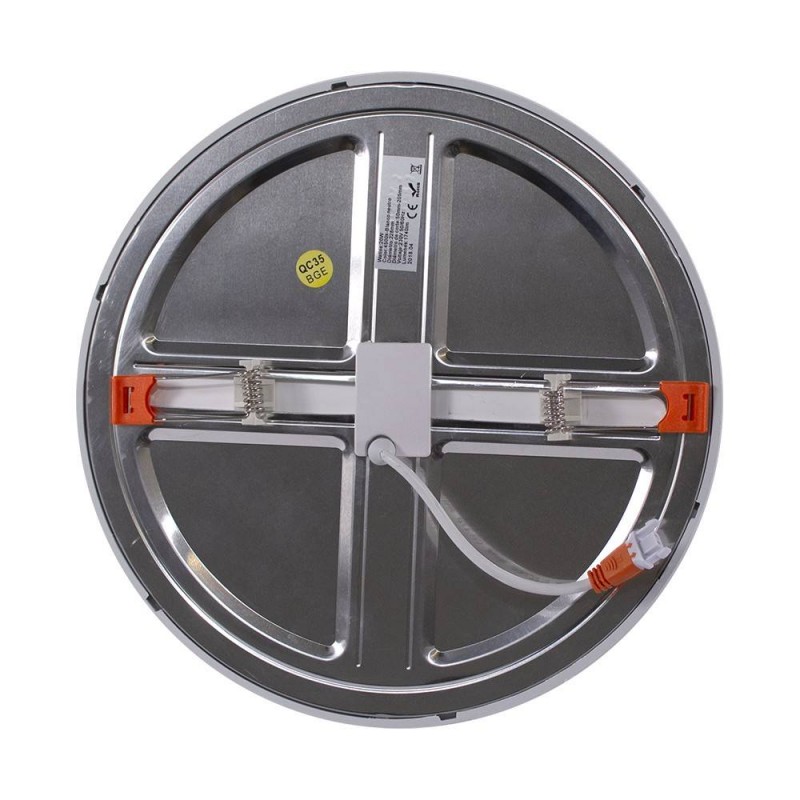

In addition, thanks to a simple sliding system of the fixing springs, it can be adapted to different hole diameters, within a range of 50 to 205 mm.
Due to its wide light dispersion angle of 160°, this downlight can be used as a general lighting source in any interior space, for example in corridors, entrance areas, living rooms, bedrooms or kitchens.

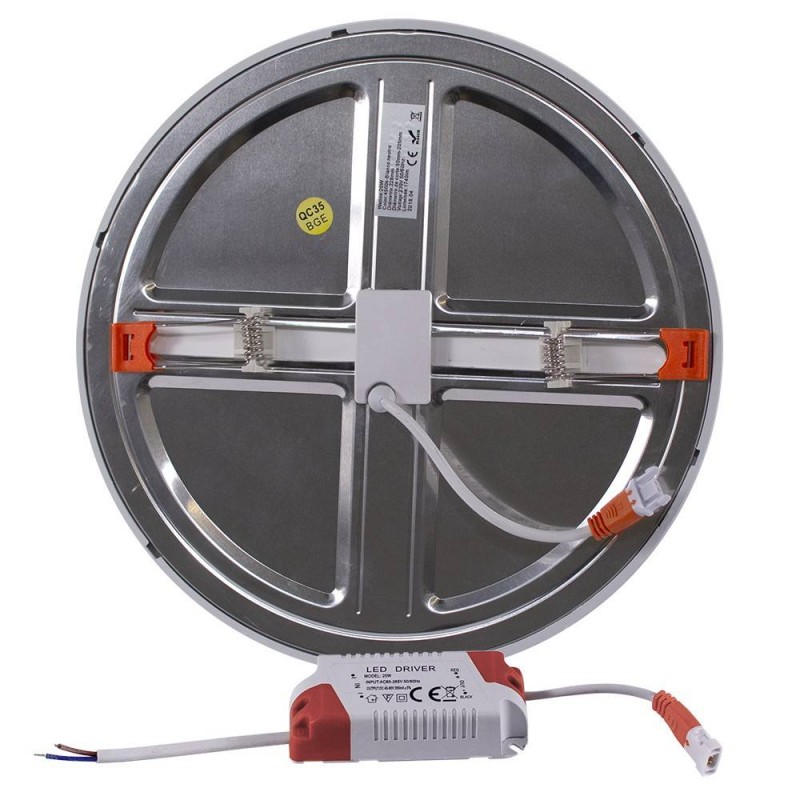

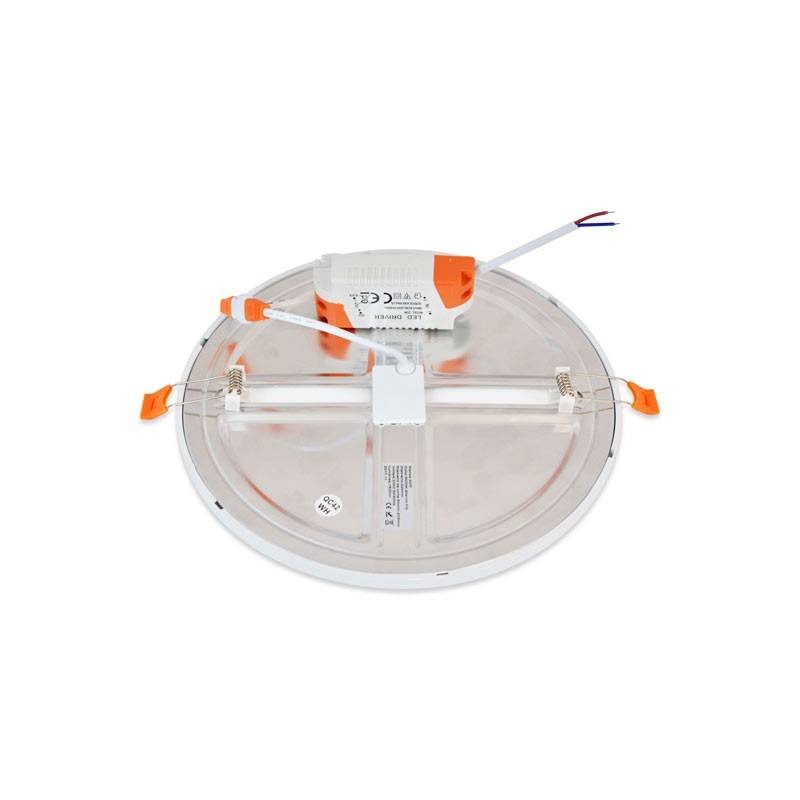

It features an integrated driver, a white colored housing and a white opal polycarbonate diffuser.
|
Main product features:
|
Nominal Voltage (V)
110 - 240 V/AC
Power (W)
20
Lumens (Lm)
1500
Kelvin (K)
4000
6000
6000
Beam angle (º)
160
IP
IP20

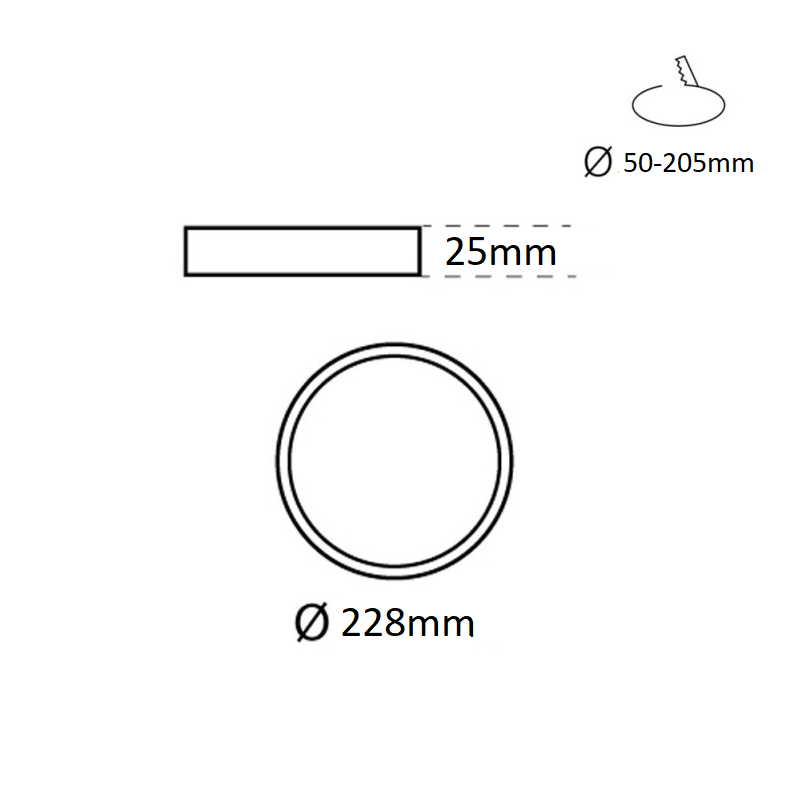

Dimensions (mm) Lxlxh
Ø228x25
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Sensor
No
LED Type
SMD 2835
Dimmable
No
Orientable
No
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Questions
| P: Question: | What material is it made of? |
|---|
| R: Answer: | These models are made of plastic materials, optical diffusers and aluminum. |
|---|
| P: Question: |
Placa downlight LED circular empotrable de diámetro ajustable 20W Referência: B1278-BF Please advise if this is dimmable and if it is available size 300mm outter diameter? This will be for Portugal Thanks |
|---|
| R: Answer: | The panel is not dimmable, but you can exchange the driver for a dimmable one: https://www.barcelonaled.com/pt/controlador-e-regulador-led/regulador-triac-230v/driver-triac-dimavel-de-corrente-constante-43-70v-250ma-20w.html Adjustable from 50mm to 205mm. Recessed round panel, we don't have a larger size. Maximum 205mm cut-off Link to available downlights: https://www.barcelonaled.com/pt/downlights-led/ Barcelona LED: Javier| 20/04/2021 |
|---|
| P: Question: | Is this downlight waterproof? I am looking for one for inside the shower. thanks. |
|---|
| R: Answer: | We do not have waterproof downlights for the shower. You may be interested in the waterproof ring for GU10 bulbs ref. B937-BL. |
|---|
| P: Question: | Do you have it in other sizes? |
|---|
| R: Answer: | Only this size is available with adjustable diameter. |
|---|
| P: Question: | Good afternoon, do you have any 24 V LEDs? |
|---|
| R: Answer: | The circular downlights are connected to the 220-240vac mains. There are other products such as 12-36Vdc led bulbs or 12 and 24vdc led strips. |
|---|
| P: Question: | Do you have it in silver? |
|---|
| R: Answer: | No, we currently only have this color model available. |
|---|
| P: Question: | What is the warranty? |
|---|
| R: Answer: | As indicated in the technical data section. According to legal guarantee: 2 years. |
|---|
| P: Question: | Good. All the downlights produce interferences to the 11M amateur radios (26000-28000 mhz). Is there any solution for those that are installed so that they do not make interferences? Is there any model that does not? Thank you. |
|---|
| R: Answer: | You may be able to solve it by changing the driver for the B1272-DONE model is for intensive uses and could better reduce interference induced to the network where they share the same installation. For interference to amateur radio systems it could be more complicated to minimize the interference, since they can receive the interference by electromagnetic waves induced by the air, where it influences even the location of the illuminations with respect to the transmitter. |
|---|
| P: Question: | They are to place in a store and are on from 10.00 A 13.30 and then from 17.00 to 20.30 Monday to Saturday Sunday closed. I put similar ones and they melted most of them in less than two years.The drivers work,they have melted the bulbs without flickering.That recimendais me without having to make hole since it is very complicated.I do not need the 25 watts since I have 33 and they are many for the store. |
|---|
| R: Answer: | For good lighting of stores or establishments with prolonged use, it is best to use the B1264 professional downlight. |
|---|
| P: Question: |
Good afternoon, When you say that the distance 1.5 m for an angle of 160, is the distance between two downlights? Which is better 120 or 160 degrees. What EMC is necessary? Thanks |
|---|
| R: Answer: | The distance of the downlights may vary depending on the space. Send your inquiry to comercial@barcelonaled.com for more personalized lighting advice . |
|---|
