Recessed linear LED downlight 10W - OSRAM Chip - UGR18

Recessed linear LED downlight - 10W - OSRAM Chip - UGR18

SKU:B1218-12W-N-BN
Colour temperature
Colour
Has superado el límite de unidades
In stock 73 units
Data sheet

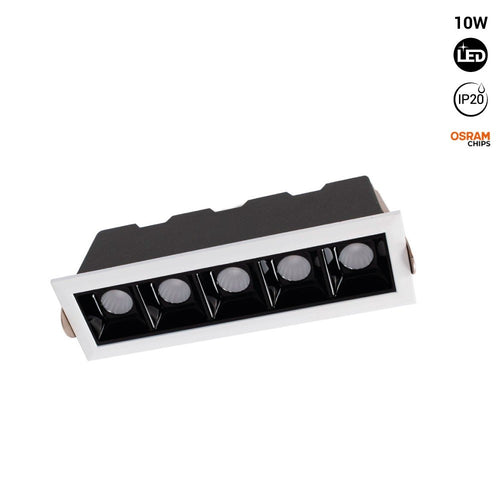

Recessed linear LED downlight consisting of 5 spotlight, with a total power of 10W.

Each spotlight incorporates Osram LED chips and emits a focused light at a 45º angle.

It stands out for its low glare index (UGR<18) and high color rendering index (CRI>90).

Available in 2 colours: white and black, and in 2 colour temperatures: warm white (2700K) and neutral white (4000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This linear LED downlight is an innovative solution for projects that require high quality and efficient accent lighting.

Its modern design adapts to various spaces and decorative styles, and can be used in both domestic and commercial environments: exhibition halls, clothing stores, furniture stores, dressing rooms, etc.

It features a low glare index (UGR<18), allowing it to provide high visual comfort to users. Additionally, with a CRI>90, it becomes an ideal option for projects requiring high color rendering indices.

It's installed recessed into the ceiling through a simple process.

Product features:

  • Rated voltage: 220-240V AC
  • Power: 10W
  • OSRAM 3030 SMD LED chip
  • UGR18
  • Beam angle: 45º
  • Shade: warm white (2700K) and neutral white (4000K)
  • Colours: black and white
  • Lumens: 700lm
  • CRI >90
  • Lifespan: >25000H
  • Dimensions: 147x45mm
  • Cutout dimensions: 140x37mm

Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.

Power (W)
10
Kelvin (K)
2700
IP
IP20
Dimensions (mm) Lxlxh
147 x 45
Frequency (Hz)
50 - 60
Hue
Warm white
UGR
UGR18
LED Type
Chip OSRAM
Driver
External
KeGu
Orientable
No
Material
Aluminium
Use Outdoor
No
Certificates
CE
ROHS
Warranty
5 years
Barcelona LED

Questions

P: Question: Hello, I would like to know if the spotlight is adjustable.
R: Answer: This model is not adjustable.
P: Question: I need a lighting like this but with neutral light. Don't you have something like this neutral?
R: Answer: This model is currently in Warm White
P: Question: Is it dimmable? if not, could the led-driver be changed to make it dimmable?
Thank you.
R: Answer: This model is not adjustable and we do not have a compatible driver for regulation.
P: Question: How many pieces would I need for a kitchen of 9 square meters and 2.50 meters high?
Thank you
R: Answer: 4 to 6 modules may be sufficient
P: Question: When it will be possible in black I would need it within a month thank you.
R: Answer: For availability, please contact comercial@barcelonaled.com.
P: Question: Do you have a tipper?
R: Answer: This line spotlight model is not available tilting
P: Question: Is the color temperature 3000º as indicated or 2700º?
R: Answer: This model is above 2700ºK
P: Question: What is the height of the spotlight housing?
R: Answer: The height is about 46mm
P: Question: What is the minimum height required to install this spotlight?
R: Answer: It depends on the amount of light needed for the room, but they are recommended for standard heights of 2.5 m (8 ft).
P: Question: Good afternoon,
I wanted to know if this luminaire model is available in 4000ºK, as I want to integrate it in a kitchen project and I need white light.
Thank you. Thank you.
R: Answer: At this moment the linear led downlight is only available in warm white.
