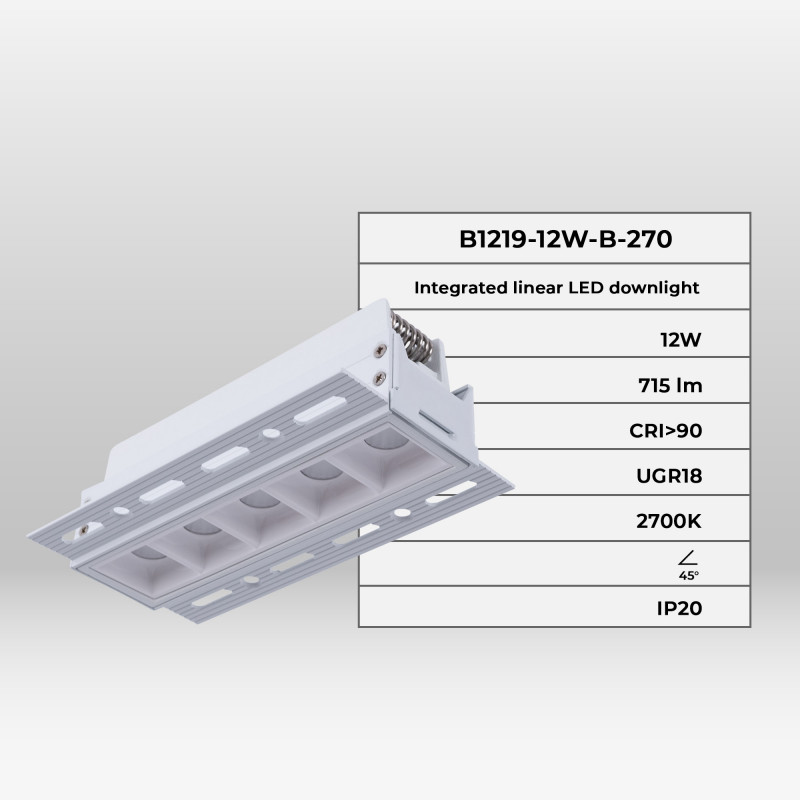

technical data sheet, main characteristics

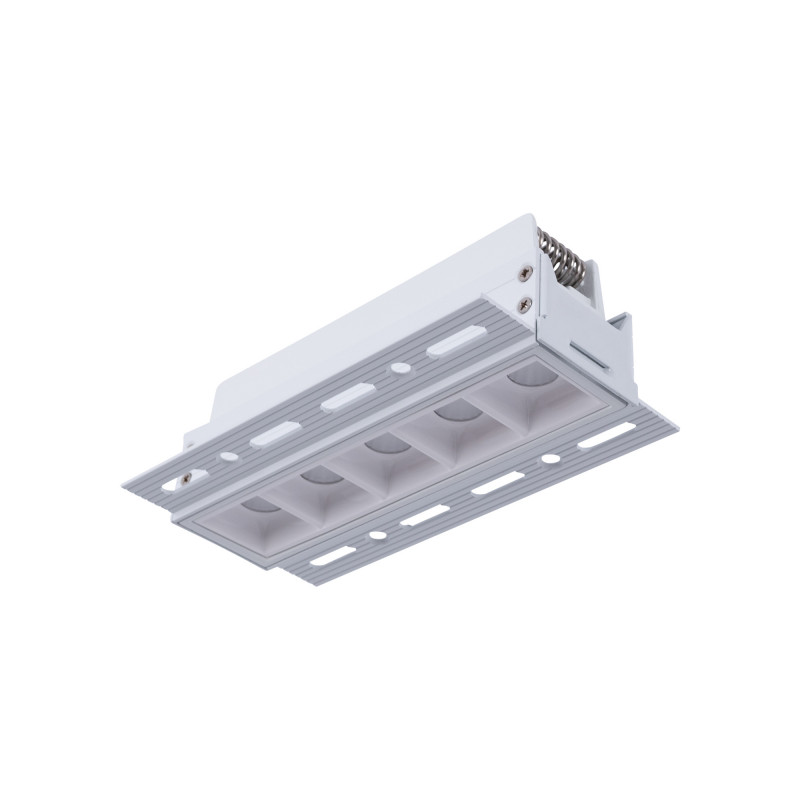

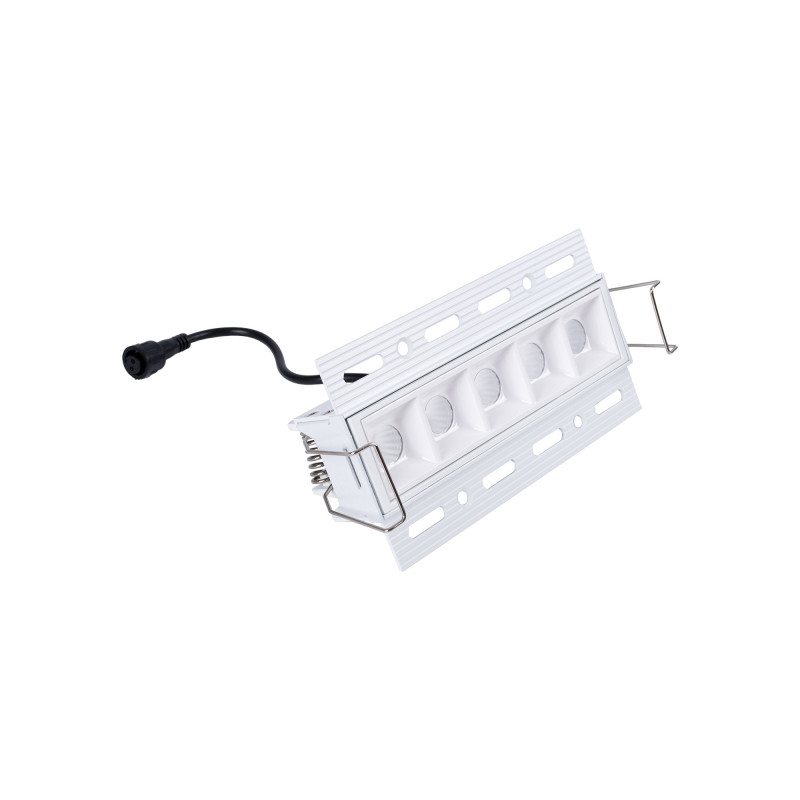

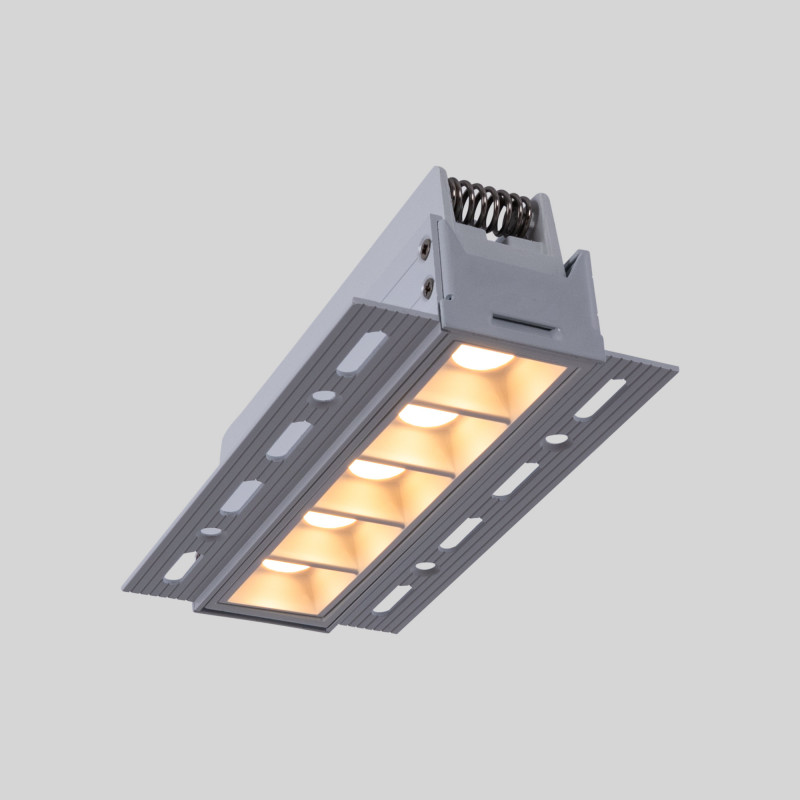

Recessed/trimless linear LED spotlight for plasterboard - 12W - UGR18 - CRI90 - White

SKU:B1219-12W-B-270
Colour temperature
Colour
Has superado el límite de unidades
Out of stock
Data sheet

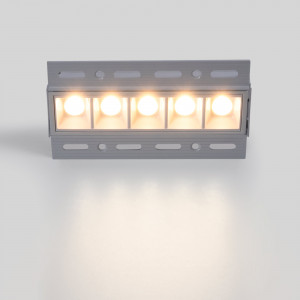

Recessed LED spotlight integrated into plasterboard, with a power of 12W.

It provides an aesthetic finish, without visible edges or flaps.

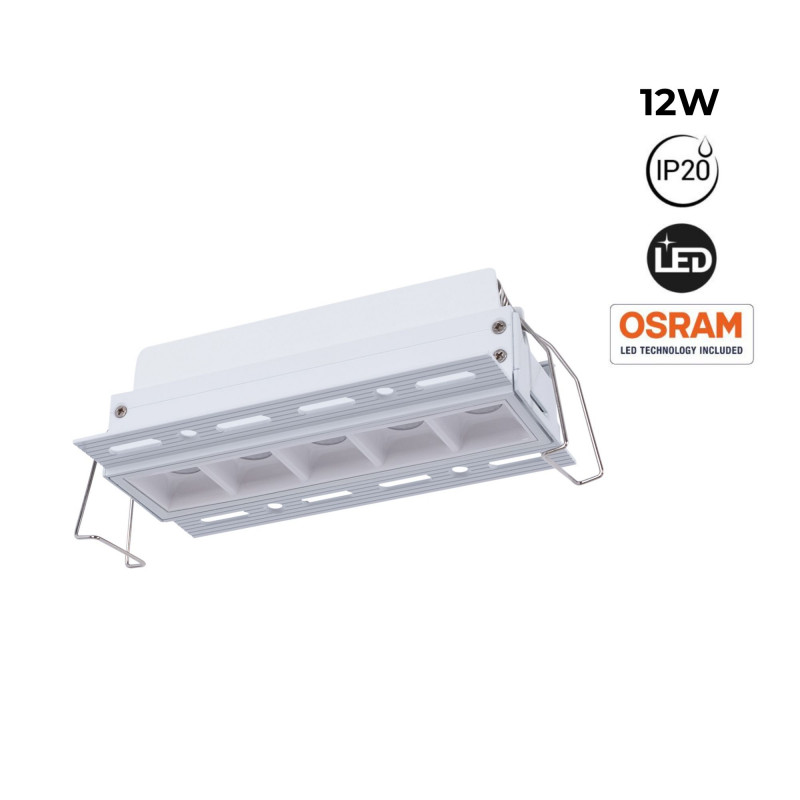

It incorporates Osram LED chips and KeGu driver.

It stands out for its low glare index (UGR<18) and high color rendering index (CRI>90).

Available in white colour, and warm white (2700K) and neutral white (4000K) shades.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

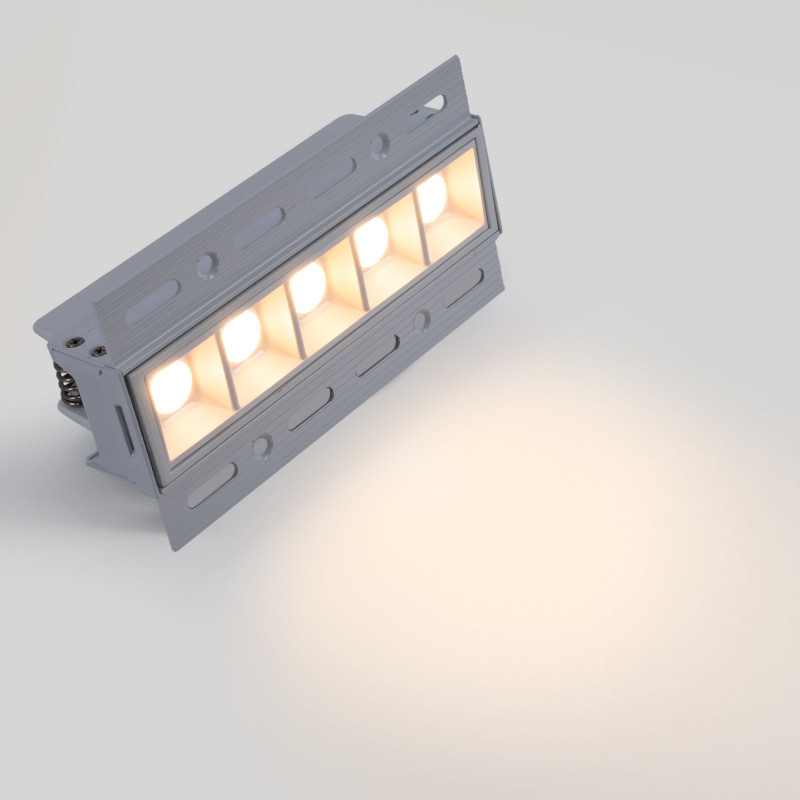

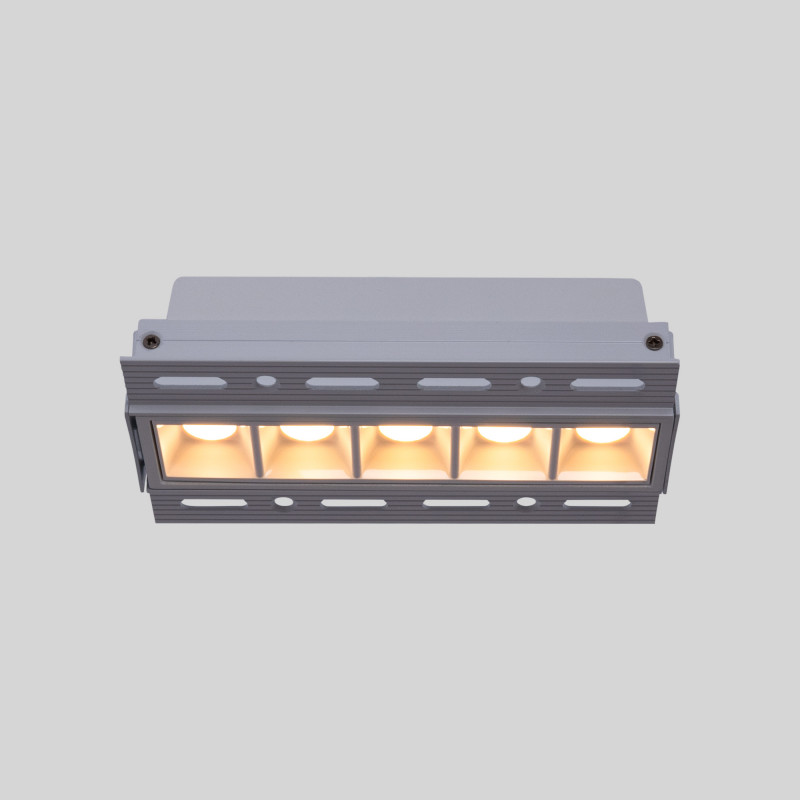

This linear LED spotlight is designed to achieve continuity with the installation surface, without edges or visible spaces. This results in lighting that is completely integrated into the environment, with uniform and clean finishes.

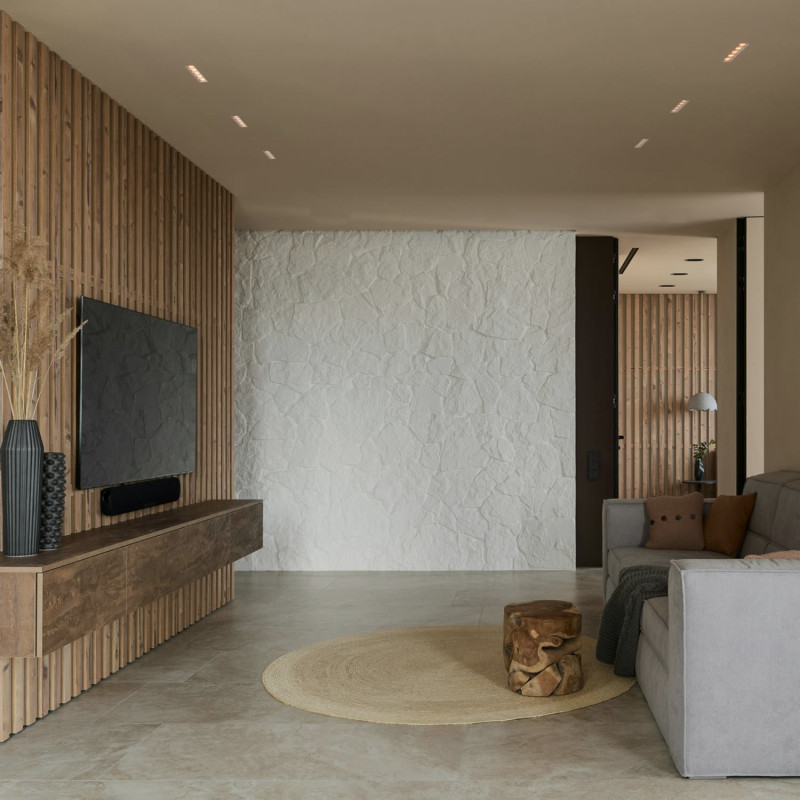

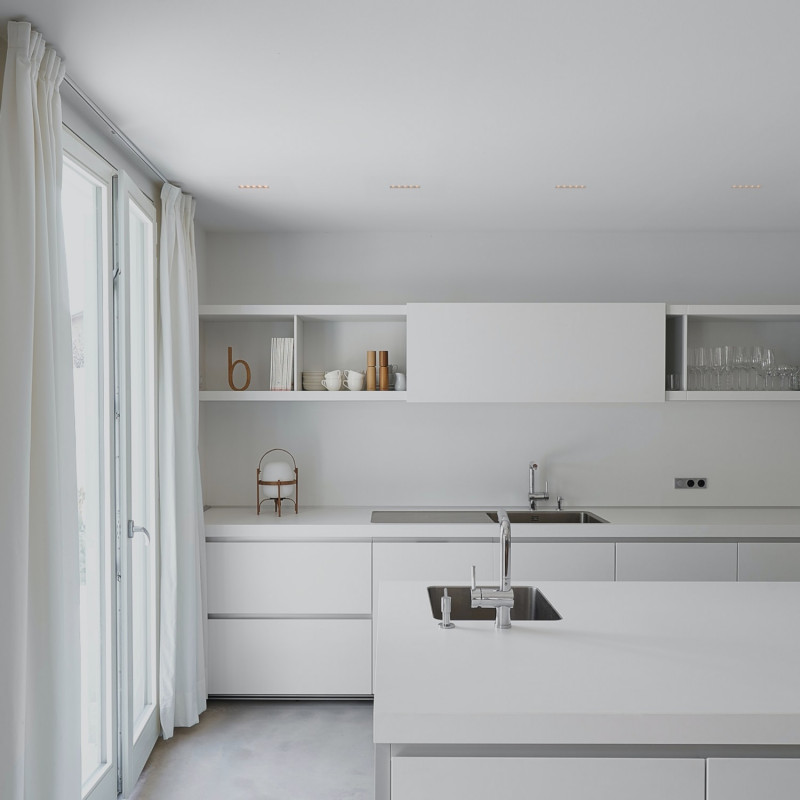

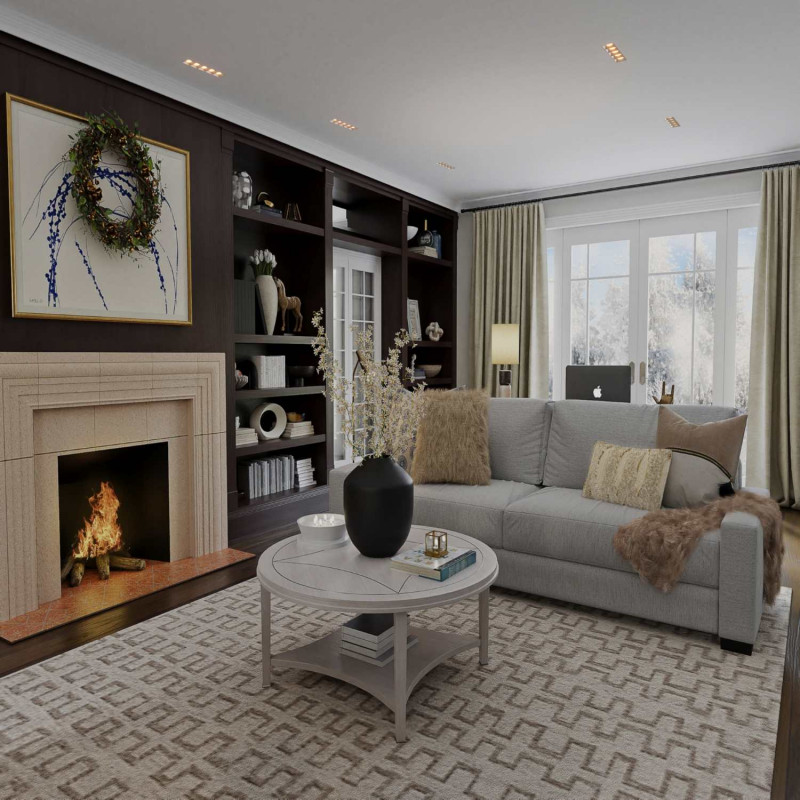

Its modern design adapts to various spaces and decorative styles, and can be used in both domestic and commercial environments: exhibition halls, clothing stores, furniture stores, dressing rooms, etc.

It features a low glare index (UGR<18), allowing it to provide high visual comfort to users. Additionally, with a CRI>90, it becomes an ideal option for projects requiring high colour rendering indices.

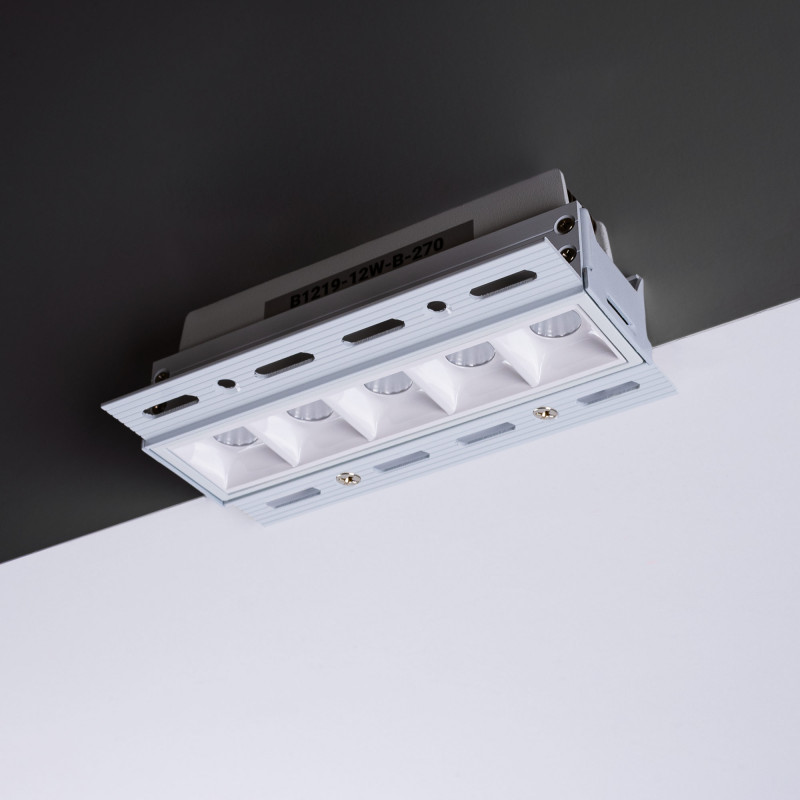

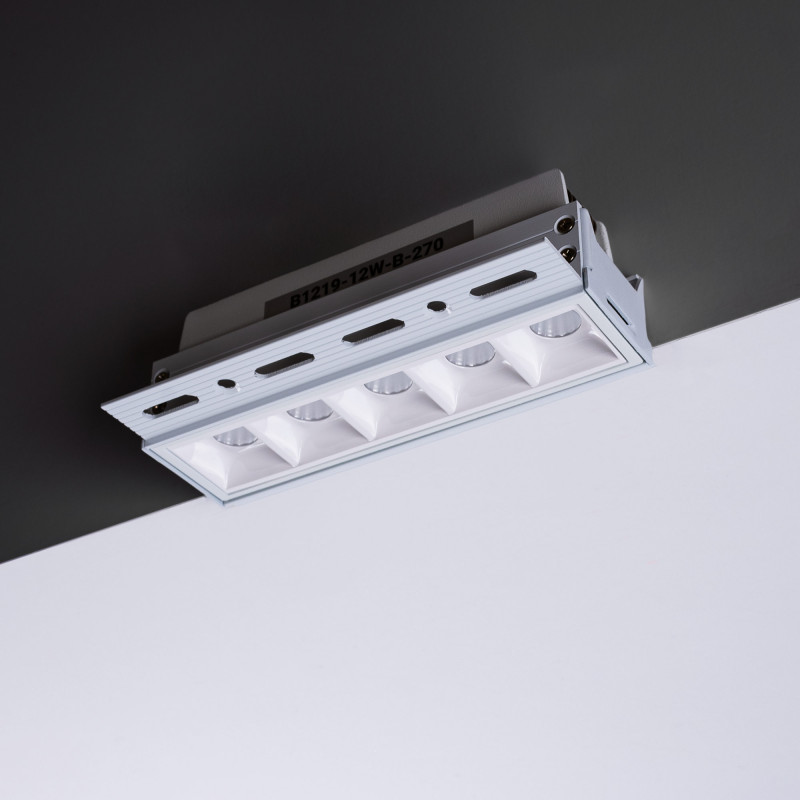

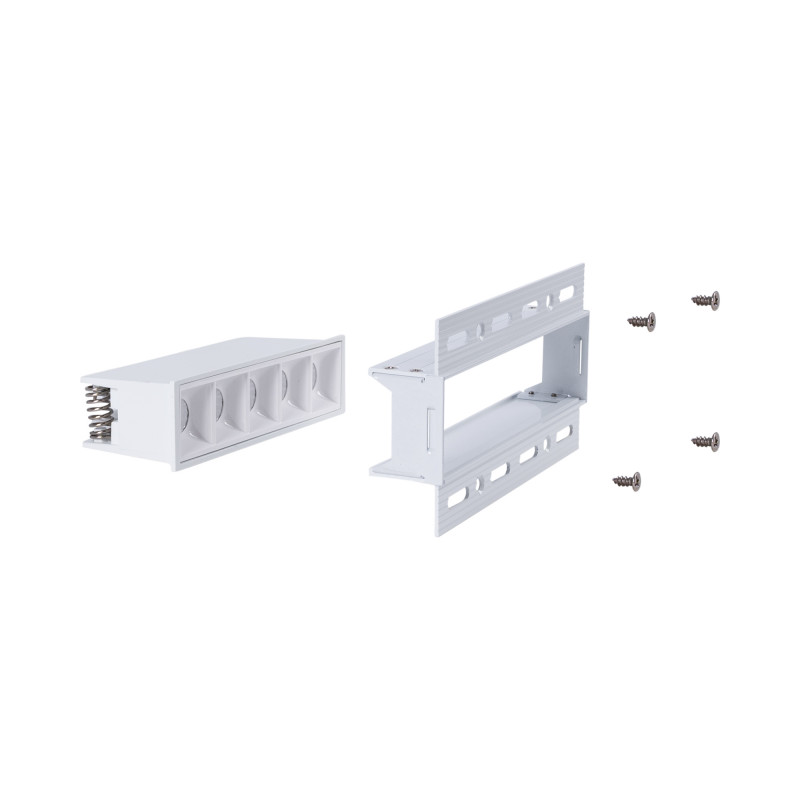

It's installed recessed into the plasterboard through a simple process.

Product features:

  • Rated voltage: 220-240V AC
  • Power: 12W
  • Osram LED chip

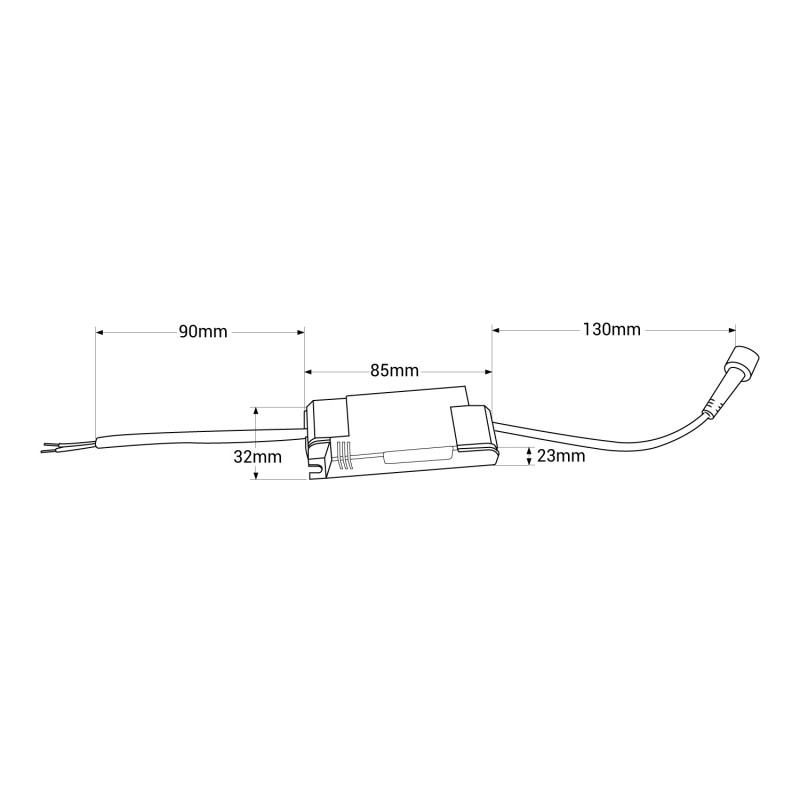

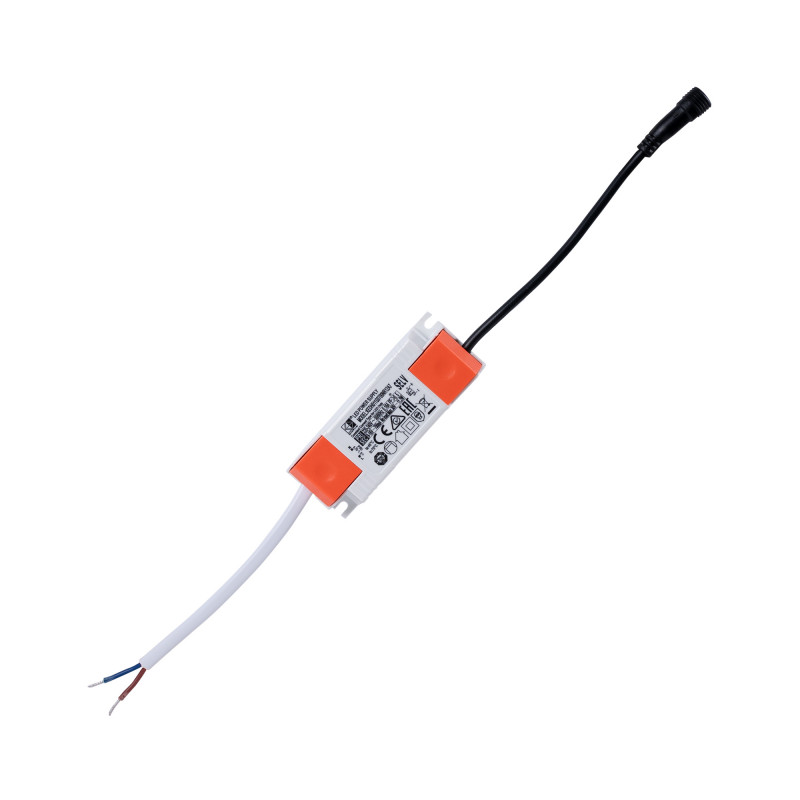

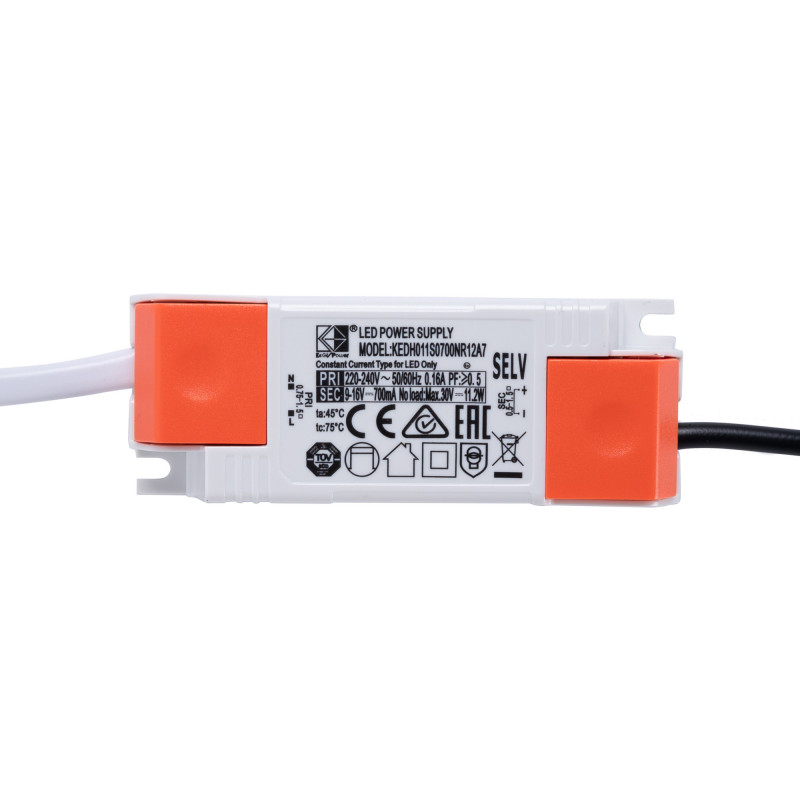

  • KeGu driver
  • Lumens: Warm white: 715lm - Neutral white: 921lm
  • CRI>90
  • UGR<18

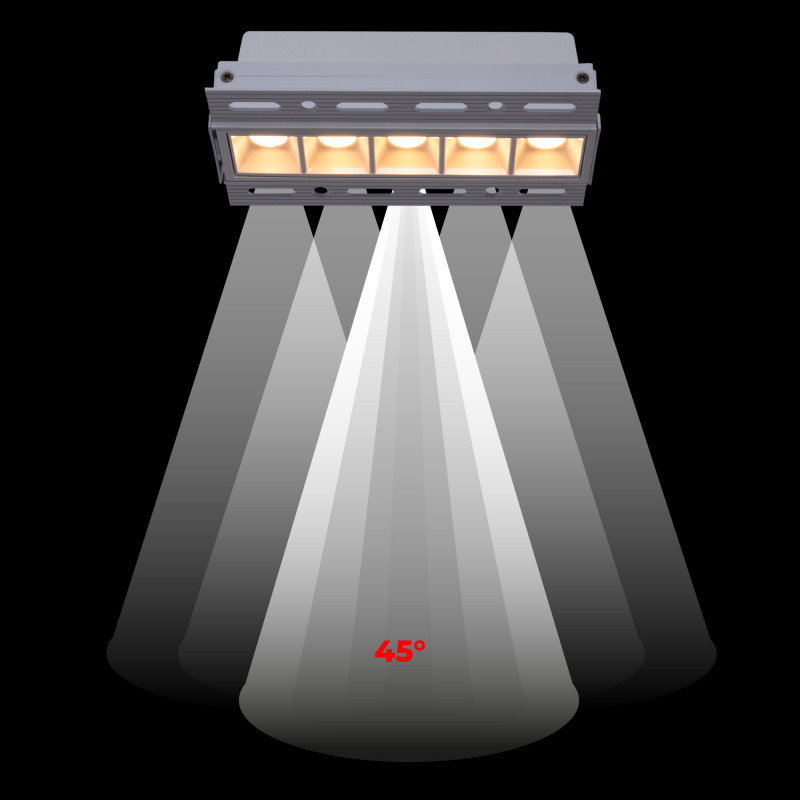

  • Beam angle: 45º
  • Recessed installation
  • Shade: warm white (2700K) and neutral white (4000K)
  • Colour: white
  • IP20: indoor use
  • Dimensions: 145 X 91 X 49 mm
  • Cutout dimensions: 145 X 41 mm



Nominal Voltage (V)
220 - 240 V/AC
Power (W)
12
Lumens (Lm)
warm white: 715lm - neutral white: 921lm
Kelvin (K)
2700
4000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
145 X 91 X 49
Hue
Cool white
Extra warm white
Sensor
No
Dimmable
No
Driver
External
KeGu
Orientable
No
Cutting dimensions (mm)
145 X 41
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
5 years
