Square plaster downlight - Trimless - 1 x GU10

SKU:B254
Has superado el límite de unidades
In stock 1949 units
Data sheet

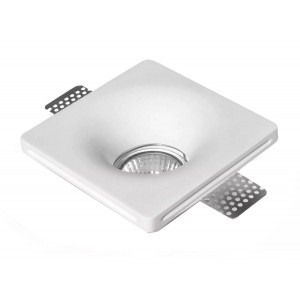

Square recessed LED downlight made of plaster, with GU10 socket.

It can be painted and washed for a perfect integration.

Trimless, elegant and minimalistlighting.

**GU10 bulb - NOT included**.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Recessed Plaster Downlight - Perfect Integration

This square trimless downlight is the perfect choice for sophisticated and discreet lighting. Suitable for use in ceilings and walls, it is perfect for restaurants, hotels, stores and homes.

  • Customizable material: Made of white plaster, it can be painted and washed to suit any decorative style.

  • Edge-free installation: It can be installed on ceilings or walls, achieving a perfect integration, with no visible edges.

  • Compatibility: Equipped with GU10 socket for LED bulb (not included).

  • Dimensions: 120 x 120 x 45mm.

  • Diameter of cut: 123 x 123mm.

  • Indoor use: Due to its IP20 degree of protection, it is for indoor use only.

Installation steps

  1. Drill the ceiling or wall
  2. Insert the downlight in the cavity.
  3. Place and fix the brackets with screws.
  4. Putty and fill the joints.
  5. Sand and paint.
  6. Make the electrical connections and place the bulb.



Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
35W
Socket
GU10
IP
IP20
Dimensions (mm) Lxlxh
Ø120x120x45
Frequency (Hz)
50 - 60
Material
Plaster
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Hello, what is the angle of the light cone? thank you.
R: Answer: Good morning, this downlight has a low UGR, which means that the light does not dazzle. The opening angle always depends on the bulb used.
I recommend that you always use this type of bulb.

Barcelona LED: Alex| 01/08/2024

P: Question: is it valid for plasterboard ?
R: Answer: If it can be mounted in plasterboard
P: Question: I would like to know if this ring is adjustable.



R: Answer: This model is not adjustable
P: Question: Does the GU10 IP20 square recessed downlight plaster ring, Reference: B254, come with a lamp socket?
Thank you
R: Answer: yes, the frame comes with a GU10 lamp socket
P: Question: Hello very good, when will you have it in stock?
R: Answer: For availability, please contact comercial@barcelonaled.com.
