SKU:B1217-18W-B-BN
Colour temperature
Colour
Has superado el límite de unidades
In stock 88 units
Data sheet

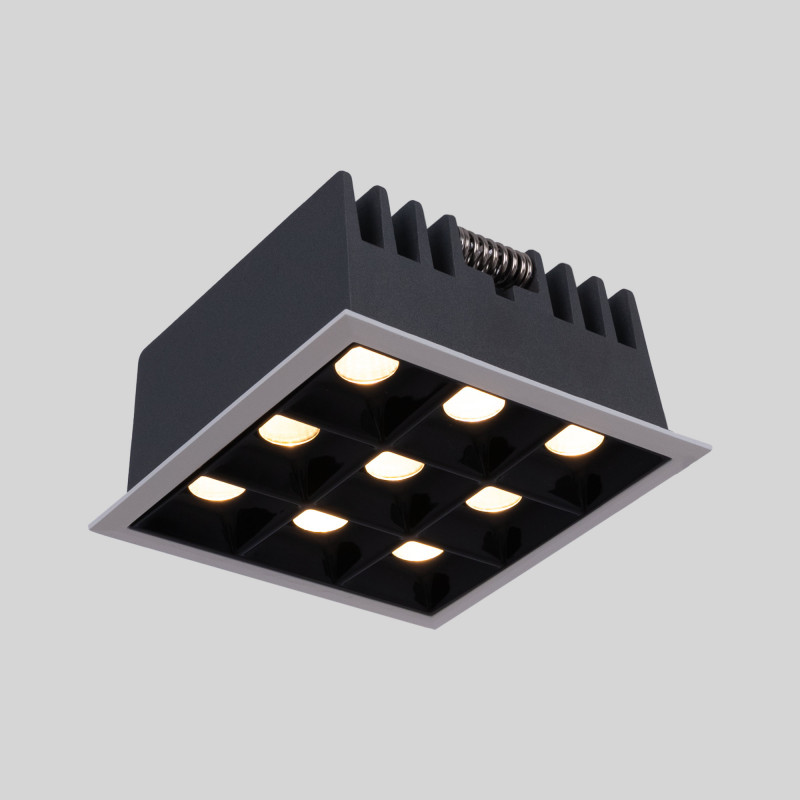

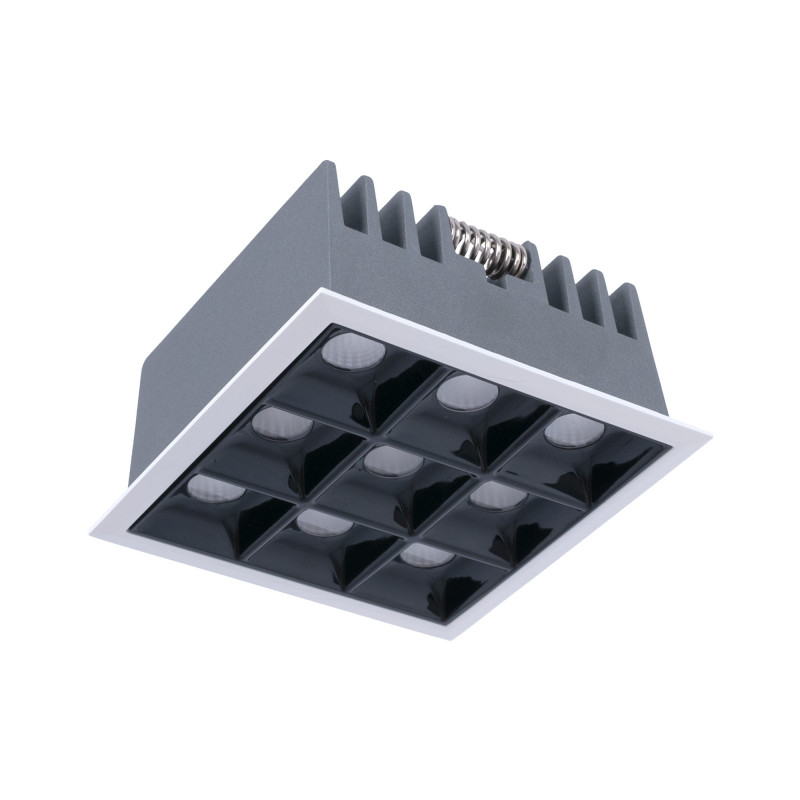

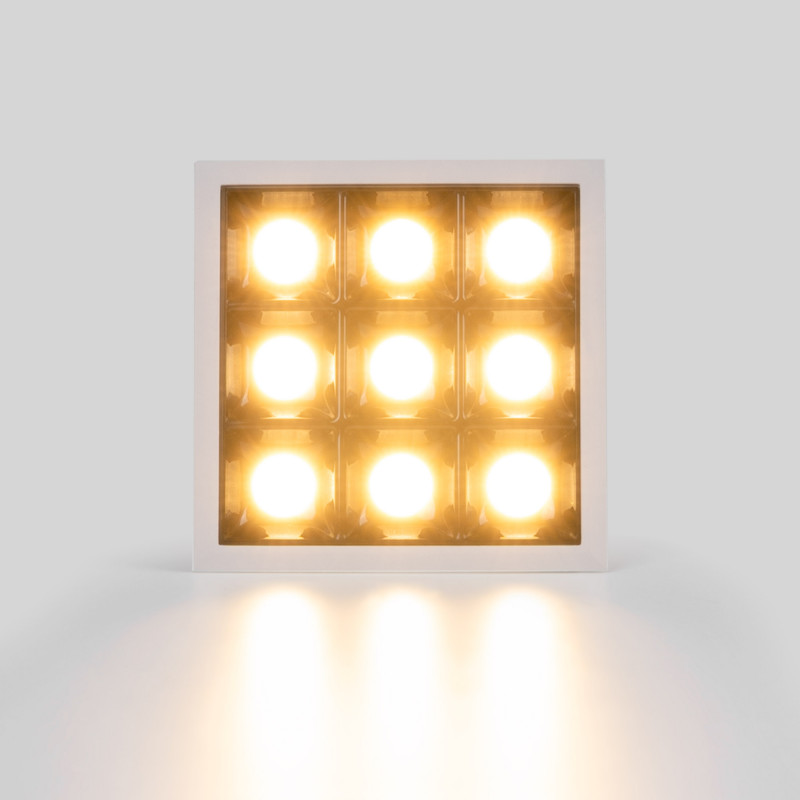

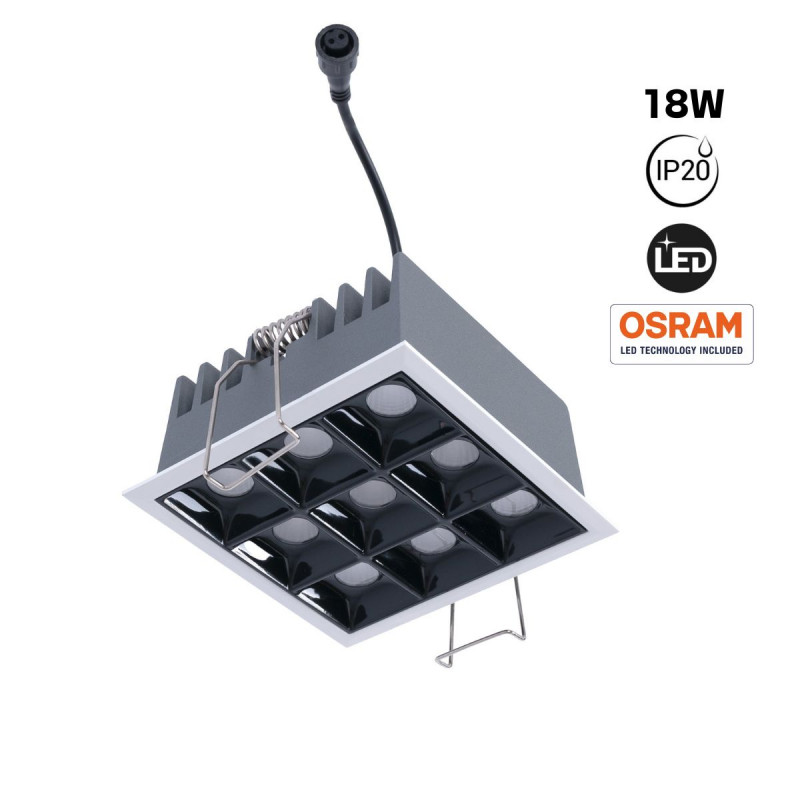

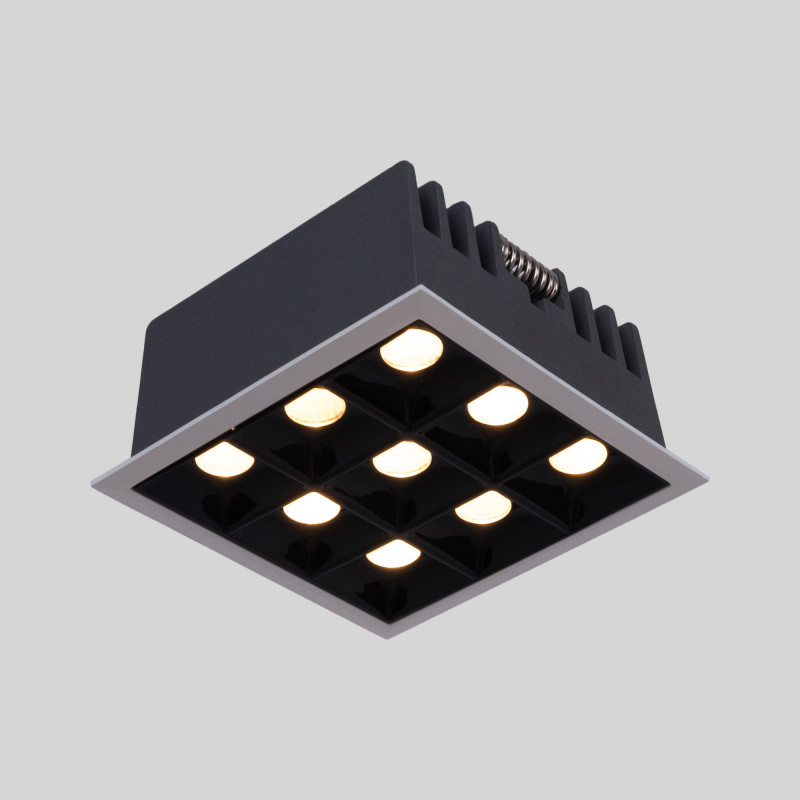

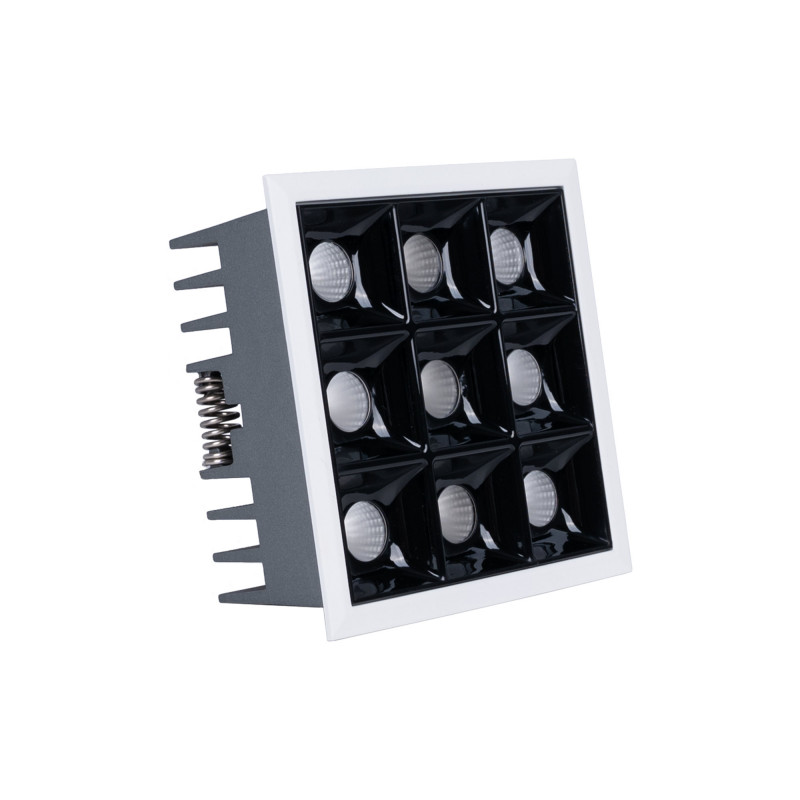

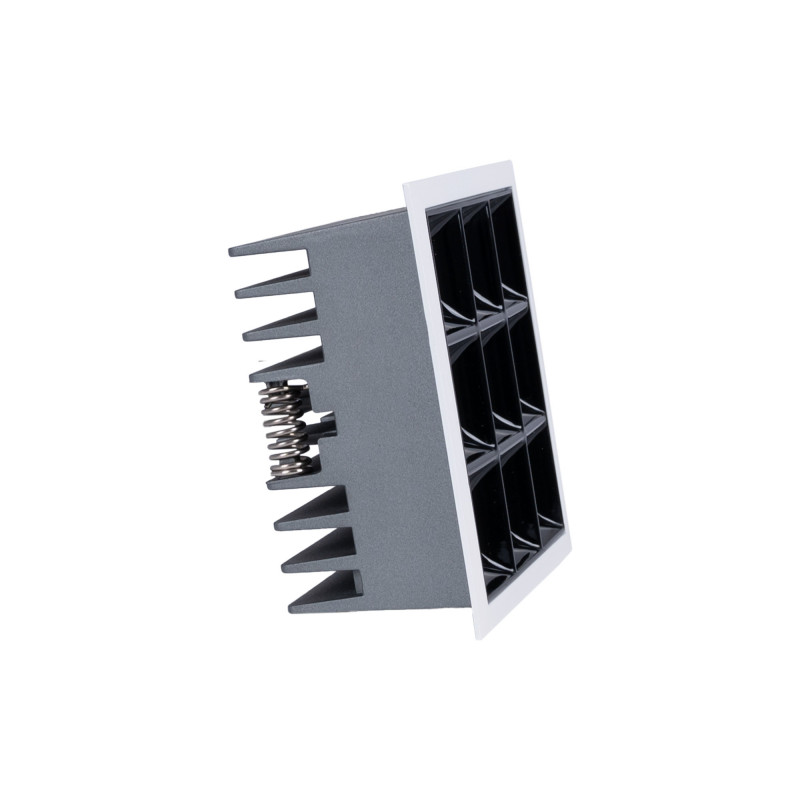

Recessed square LED downlight consisting of nine 18W power spotlights in total. Available in white colour.

It incorporates Osram LED chips and KeGu driver.

It stands out for its low glare index (UGR<18) and high colour rendering index (CRI>90), offering great visual comfort while allowing colours to be displayed with high fidelity, similar to natural light.

Available in warm white (2700K) and neutral white (4000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This square LED downlight is an innovative solution for projects that require high quality and efficient accent lighting.

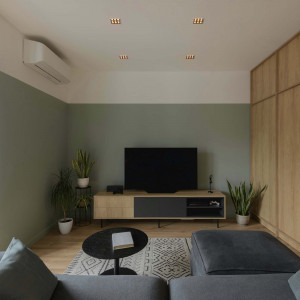

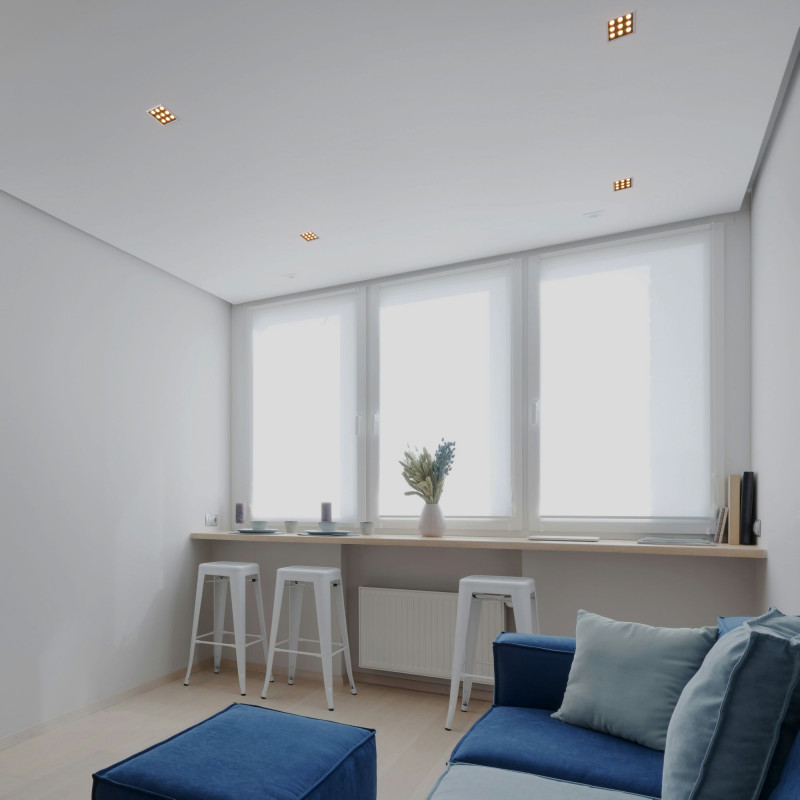

Its modern design adapts to various spaces and decorative styles, and can be used in both domestic and commercial environments: exhibition halls, clothing stores, furniture stores, dressing rooms, etc.

It features a low glare index (UGR<18), allowing it to provide high visual comfort to users. Additionally, with a CRI>90, it becomes an ideal option for projects requiring high colour rendering indices.

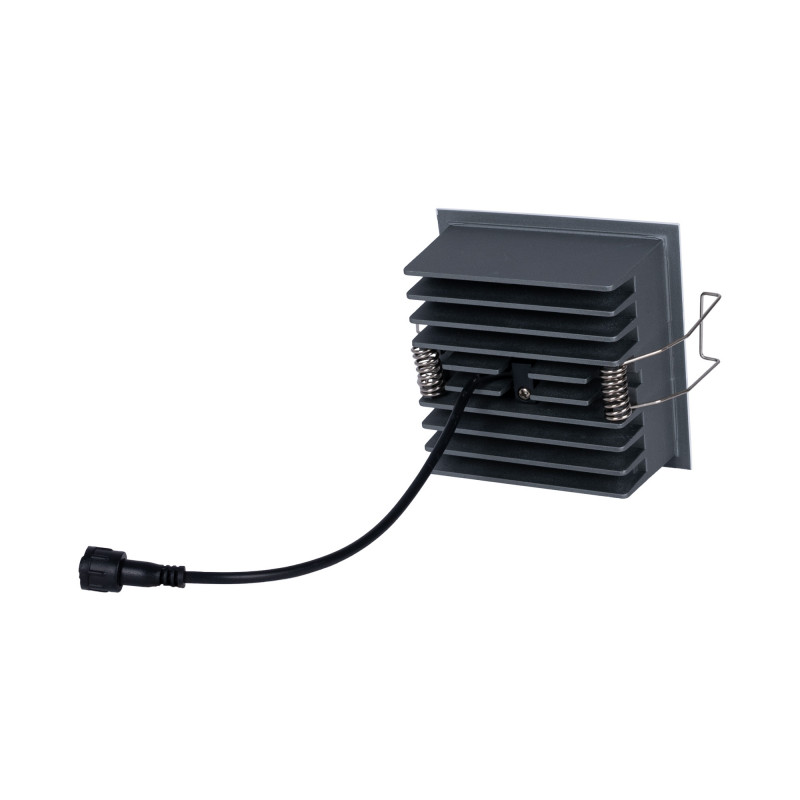

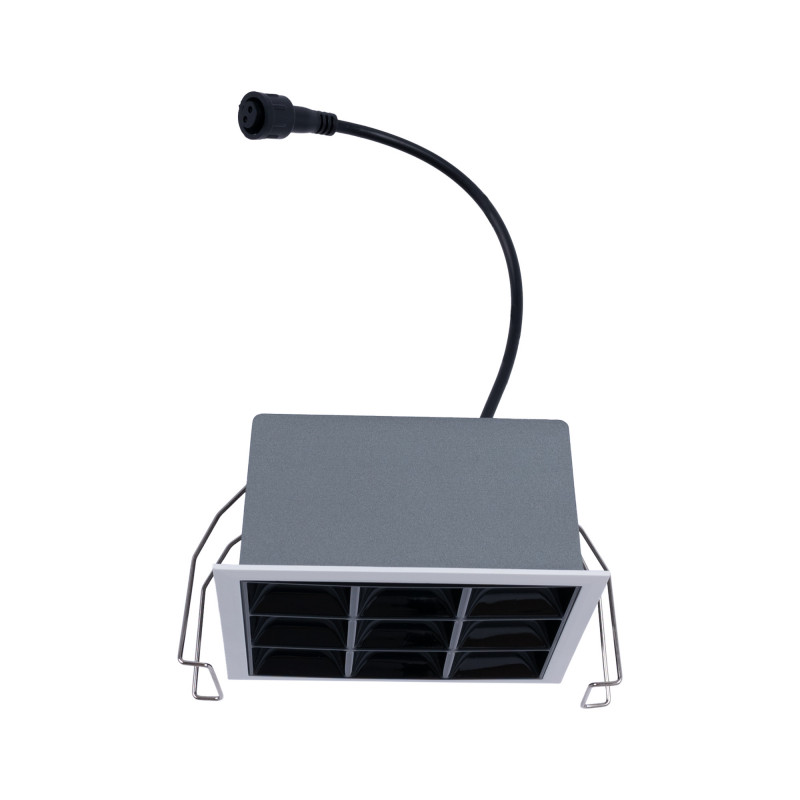

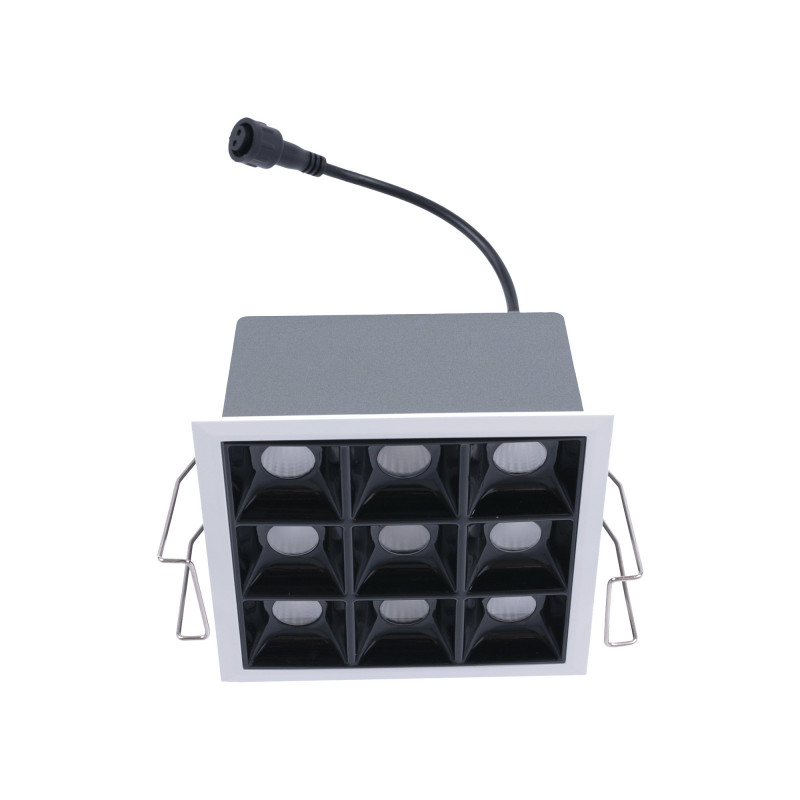

It's installed recessed into the ceiling through a simple process.

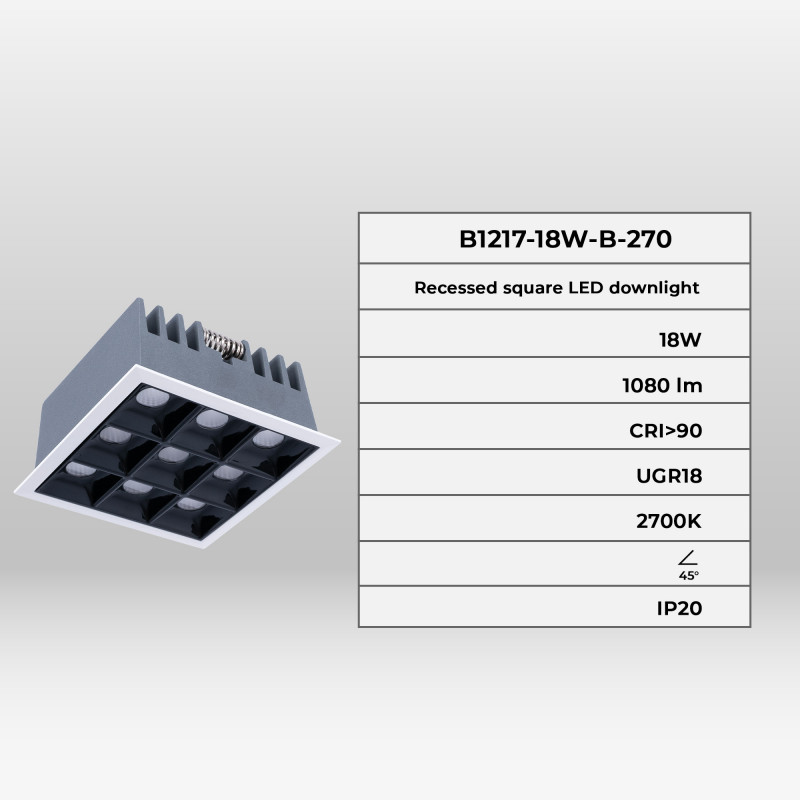

Product features:

  • Rated voltage: 220-240V AC
  • Power: 18W

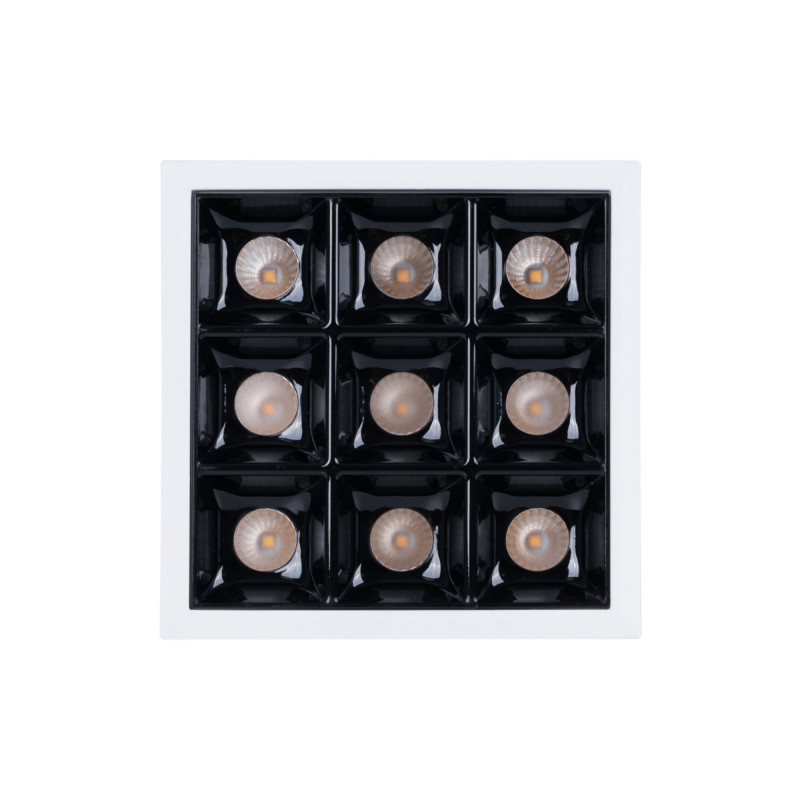

  • Osram LED chip

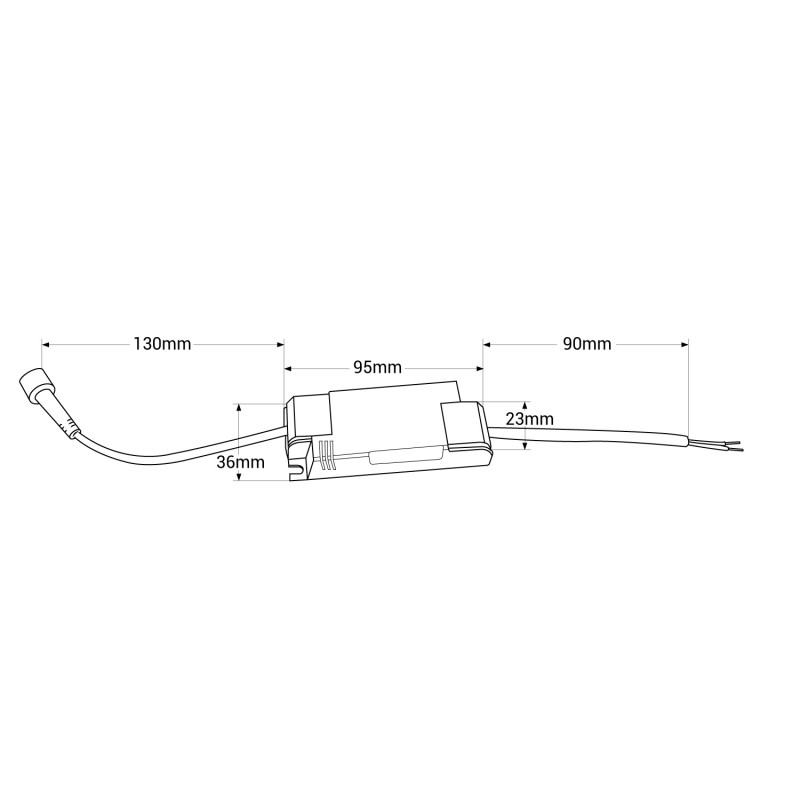

  • KeGu driver
  • Lumens: 1080lm (warm white) and 1280lm (neutral white)
  • CRI>90
  • UGR<18

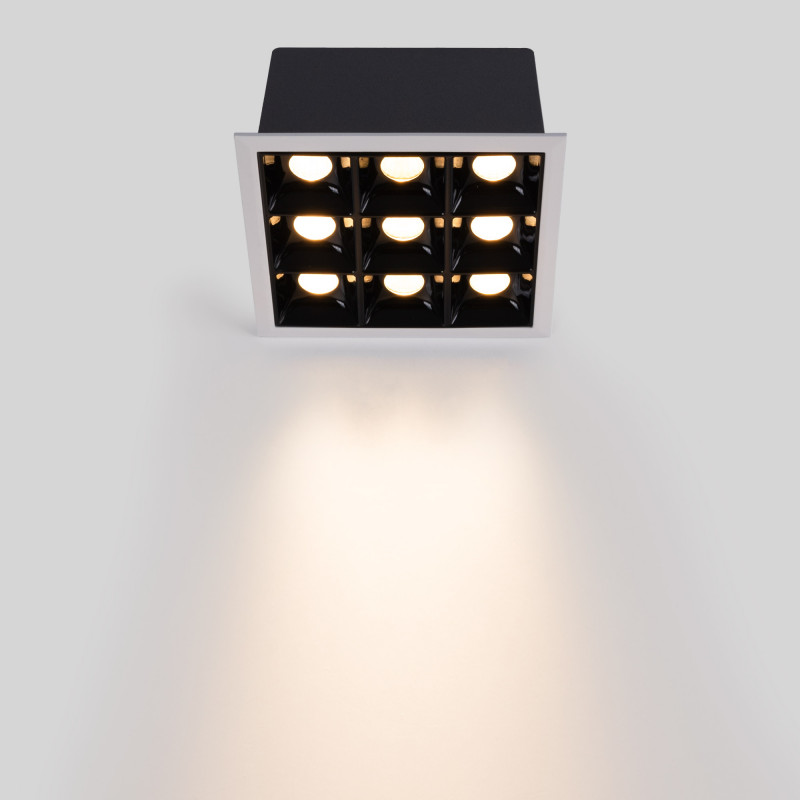

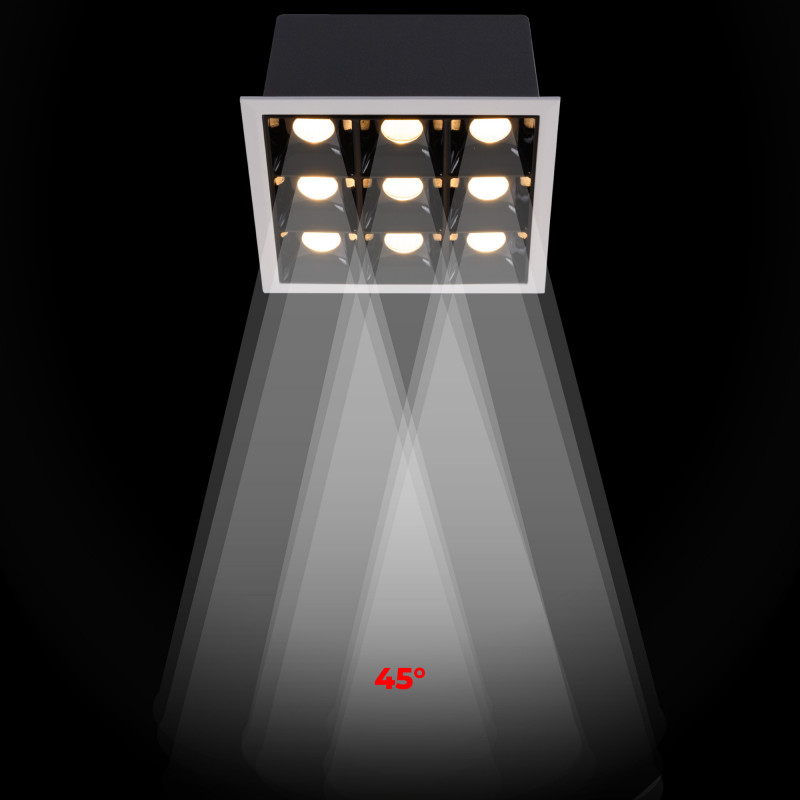

  • Beam angle: 45º
  • Recessed installation
  • Shade: warm white (2700K) and neutral white (4000K)
  • Colour: white
  • IP20: indoor use
  • Dimensions: 104.8 x 104.8 x 50 mm
  • Cutout dimensions: 97 x 97 mm



Nominal Voltage (V)
220 - 240 V/AC
Power (W)
18
Kelvin (K)
2700
4000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
104.8 x 104.8 x 50
Hue
Extra warm white
Neutral white
Sensor
No
LED Type
Chip OSRAM
Dimmable
No
Driver
External
KeGu
Orientable
No
Cutting dimensions (mm)
97 x 97
Material
Aluminium
Diffuser material
Polycarbonate
Energy efficiency class
G
Certificates
CE
ROHS
Warranty
5 years
