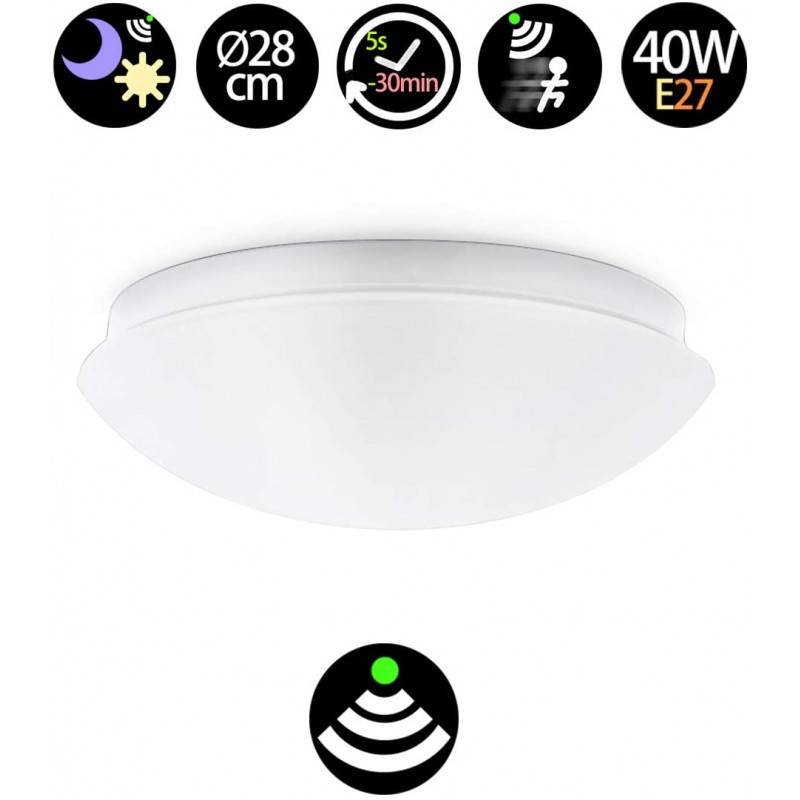

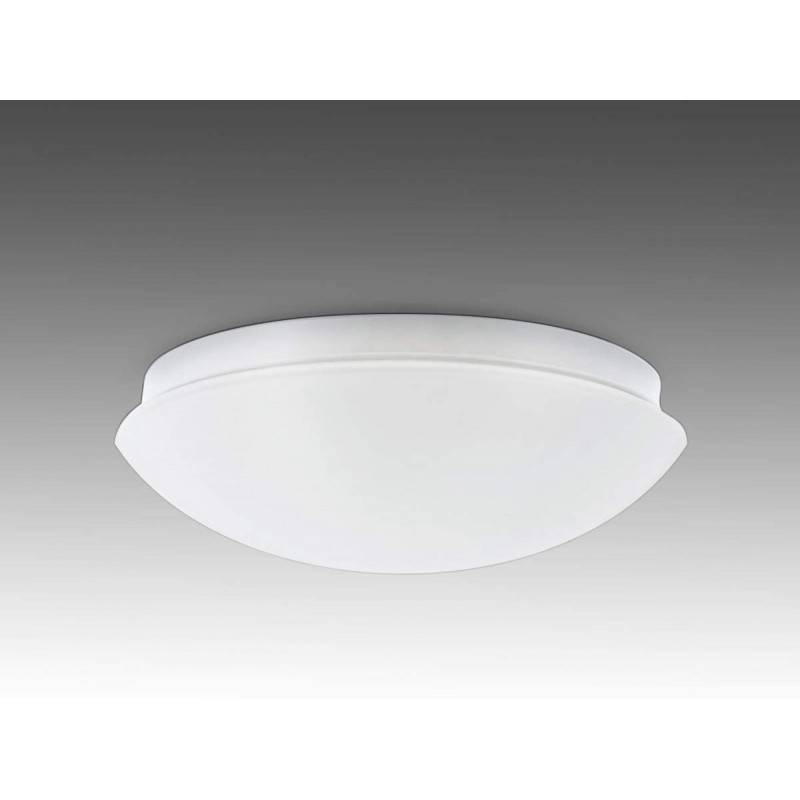

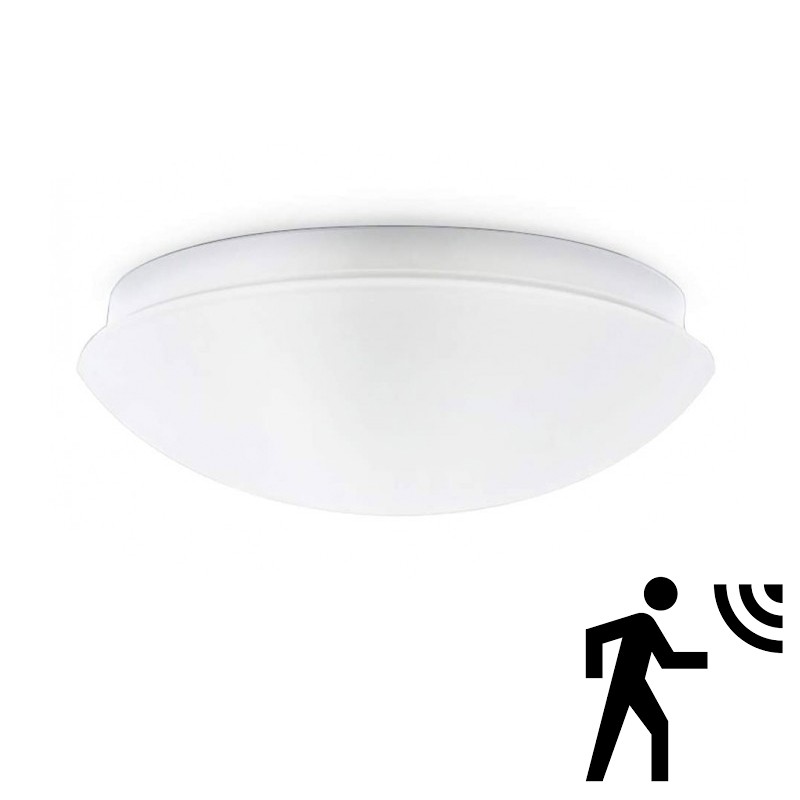

Surface mounted LED ceiling light with sensor for E27 bulb
SKU:B1728-RS
€29.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Surface mounted LED ceiling lamp with motion sensor
The LED ceiling light for E27 bulbs with motion sensor is the ideal system to save light in spaces where we can get lost and leave the light on or for all those who do not want to press the switch.

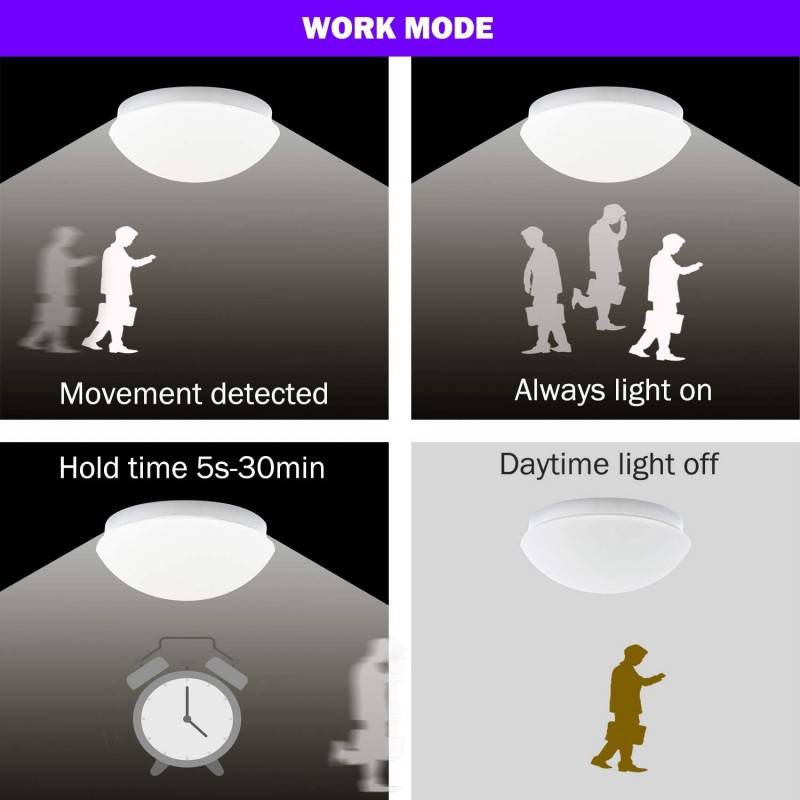

It has a radar system that turns on the luminaire automatically when it detects movement in its radius of action. When the waiting time set on the dimmer has elapsed and no movement is detected, the light switches off again.
Depending on what we need in each moment we can adjust many parameters of the operation of the ceiling light. We can adjust the waiting time for the light to turn off when it stops detecting movement, from 5 seconds to 30 minutes and we can also regulate the ambient light sensor to define if we want the lamp to illuminate below the defined threshold.
The E27 LED ceiling lamp with motion sensor has an IP44 protection that guarantees its operation in humid areas, places where there may be condensation due to water vapor such as bathrooms.
The luminosity offered by the ceiling light will depend on the E27 bulb (not included) that we install in it.

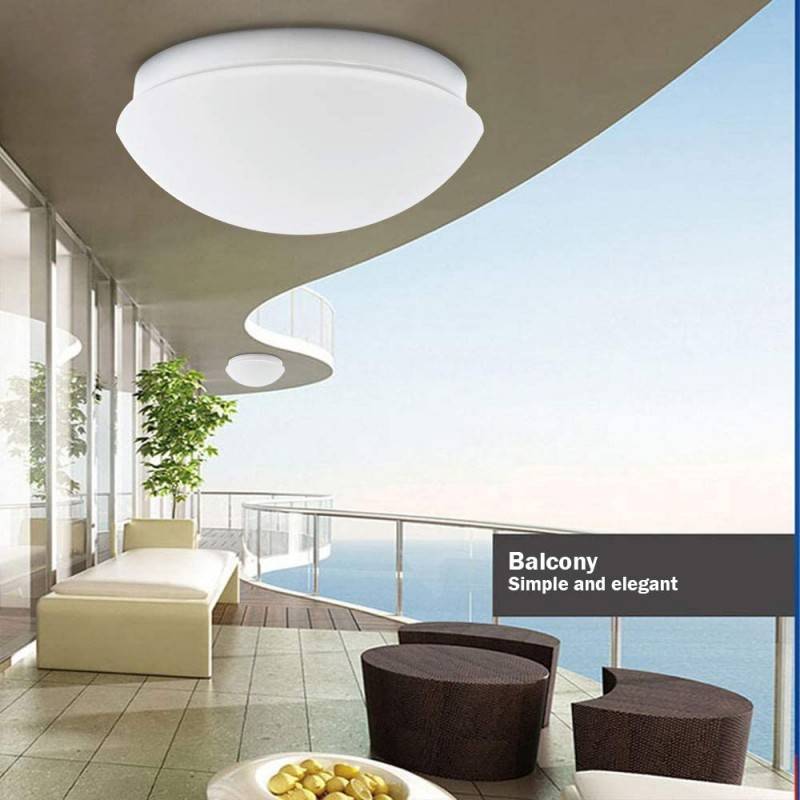

This ceiling light is especially practical in transit areas such as corridors, stairs or hallways and in bathrooms, as general LED lighting, both in the home and in stores, hotels, etc..

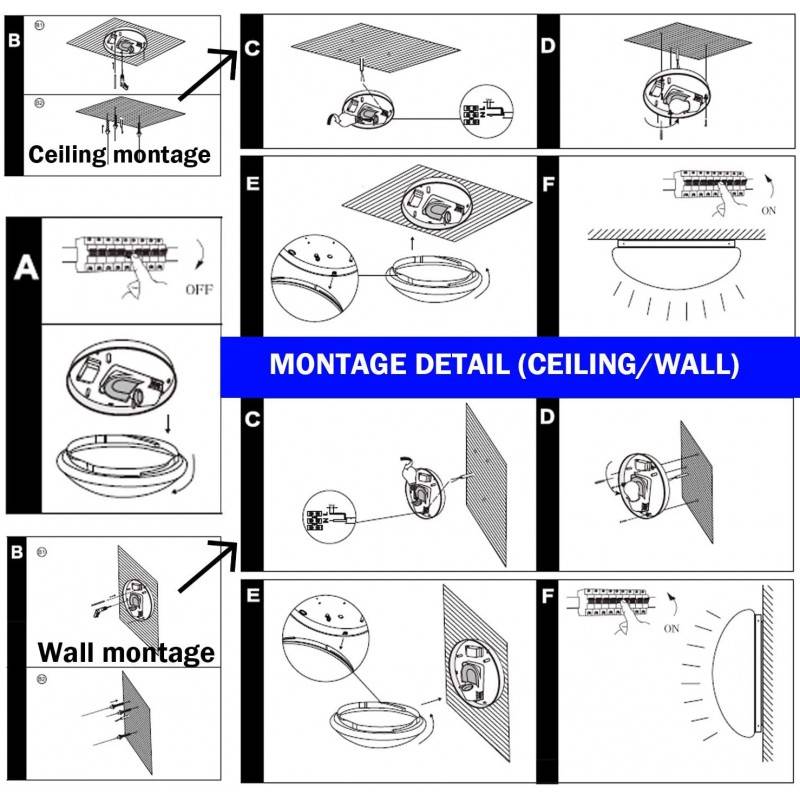

Its installation is very simple
1. Remove the current to avoid accidents.
2. Screw the bracket to the ceiling or wall.
3. With the included power strips, make the electrical connections (make sure that the power is not on to avoid accidents).
4. Screw the LED ceiling light into the bracket.
All mounting accessories are included in the kit. You will only need a drill to drill the ceiling and a screwdriver to fix the LED downlight and make the connections.
It has a motion detection of 0.5 to 3 meters per second and a detection zone of 12 meters distance by six meters height. The sensor is activated whenever it detects motion. It is characterized by its presence and brightness detector.
Characteristics of the sensor
- Nominal Load
- 400W (inductive), 800W (resistive)
- Transmitting power
- <0.5mw
- Detection area (DXH)
- 12m x 6m
- Frequency band
- ISM (5.8GHz ± 75MHz)
- Detection sensitivity
- 10%/20%/50%/75%100%
- Standby time
- 5s/30s/90s/3min/20min/30min
- Ambient light sensor
- 2lux/10lux/25lux/50lux/OFF
- Installation height
- 6m Max.
- Motion detection
- 0.5-3m/s
- Detection angle
- 150˚ Wall - 360˚ Ceiling
- Working temperature
- -20°C~+60°C
Sensor Configuration
Detection area:
The sensing area can be reduced by selecting the combination on the DIP switches to precisely match each application.
Standby time :
Period of time that the lamp remains at 100% illumination after the sensor no longer detects motion.
Ambient light sensor
The sensor can be configured to allow the lamp to illuminate below a defined ambient light threshold. When set to Disable mode, the daylight sensor will turn on the lamp when motion is detected, regardless of the ambient light level.
50lux, 30lux: twilight operation, 10lux, 2lux: low light operation.
 |
Wall mounting (unit:m) suggested installation height: 1-1.8m |
 |
Ceiling mount (unit:m) suggested installation height: 2.5-6m |
Questions
| P: Question: |
Is it possible to connect to this light another one that does not have a sensor, that is to say, does it have an auxiliary output? thanks |
|---|
| R: Answer: | The sensor does not have an auxiliary output, but the sensor output goes directly to the bulb with a power strip. |
|---|
| P: Question: | Good afternoon, I am interested in your ceiling but I have a question. Could you please tell me what would be the maximum length of the led bulb to use....???? |
|---|
| R: Answer: | It is designed for bulbs type A60, A65, such as those presented in accessories. |
|---|
| P: Question: |
the date you will receive it is known. the sensor can be overridden |
|---|
| R: Answer: | The motion detection sensor is always active, only the twilight detection can be deactivated, so that it is activated when motion is detected both day and night. For availability, you can contact comercial@barcelonaled.com |
|---|
| P: Question: | Hello, I would like you to explain to me how to program the time and the issue that only turns on at night. Since I bought some of them and the electrician I put it and I turn off every 10 seconds. He did not leave me manual and I opened it and I see some keys from 1 to 9 ... if you could explain how it goes. |
|---|

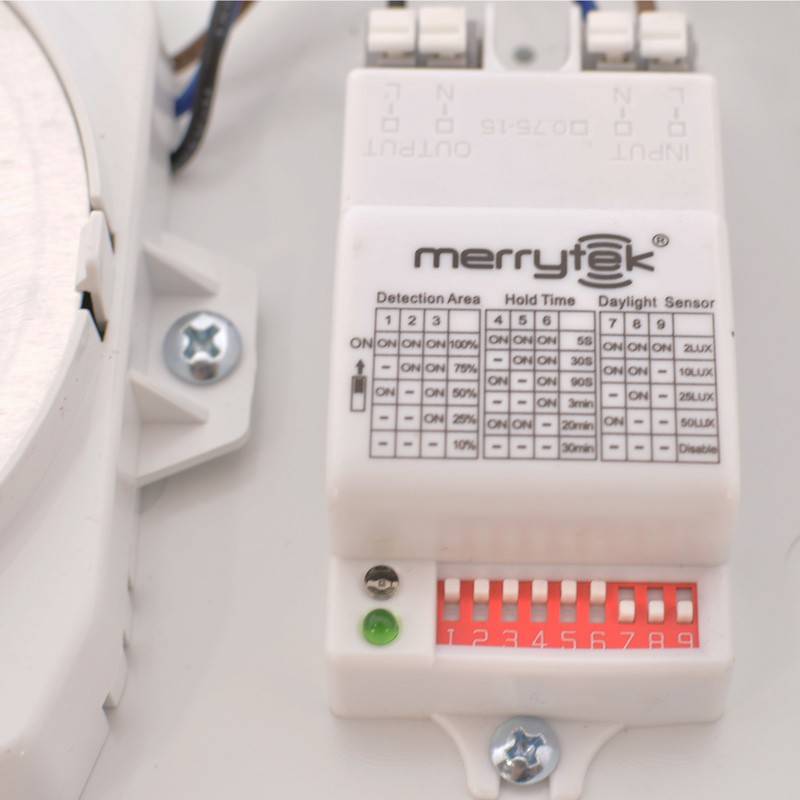

| R: Answer: | You can see the configurations here on the web: Micro-switches 1-2-3 : Detection range Micro-switches 4-5-6: Time that the light remains on after motion detection (Configurable between 5s and 30min) Micro-switches 7-8-9: Activation setting according to the amount of ambient light For night use you can set to 2 lux*Thesensor of this light does not allow the exclusive use of twilight activation (day/night). It is a motion sensor and will turn off after no motion is detected. |
|---|
| P: Question: | The sensor's detection area can be adjusted |
|---|
| R: Answer: | Detection sensitivity is adjustable between 10%, 20%, 50%, 75%, 100%. |
|---|
| P: Question: |
In addition to operating with the sensor, can the switch be used to leave it fixed? |
|---|
| R: Answer: | Actuates only by motion sensor (adjustable from 5s to 30min) |
|---|
| P: Question: | Hello, I would like to know in which north the detector is located, because I don't see it in the picture, thank you. |
|---|

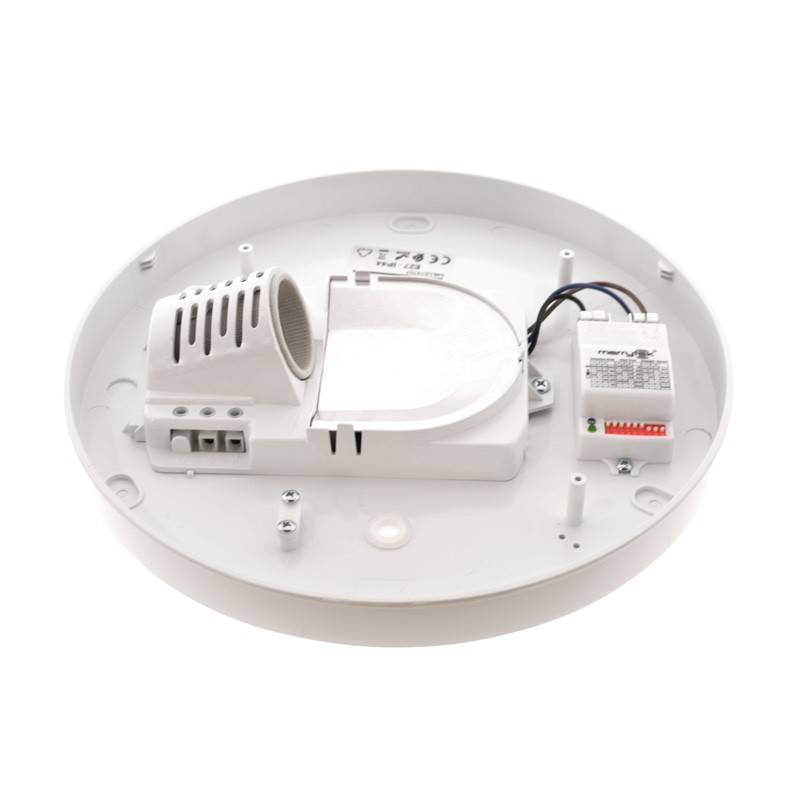

| R: Answer: | The sensor is inside, it is a microwave sensor, you can see it in the images of the web site. |
|---|
| P: Question: |
Hello, Can the sensor be configured so that during the day the light never turns on, and at night it ONLY turns on when there is movement, and it is off when there is no movement? Thank you! Albert |
|---|
| R: Answer: | Yes, it can be configured to turn on at a certain ambient light and select the time to turn on after the last detection. |
|---|
| P: Question: | What type of bulb do you accept, full size or small LED? |
|---|
| R: Answer: | The surface-mounted ceiling fixture has a "large" E27 threaded bulb, any normal A60 bulb will do. |
|---|
| P: Question: | I need to know if this bulb is connected to the heletrecity or not??? |
|---|
| R: Answer: | The ceiling light is a luminaire with a motion sensor that must be connected to the mains. It comes with a socket for E27 LED bulbs. |
|---|
