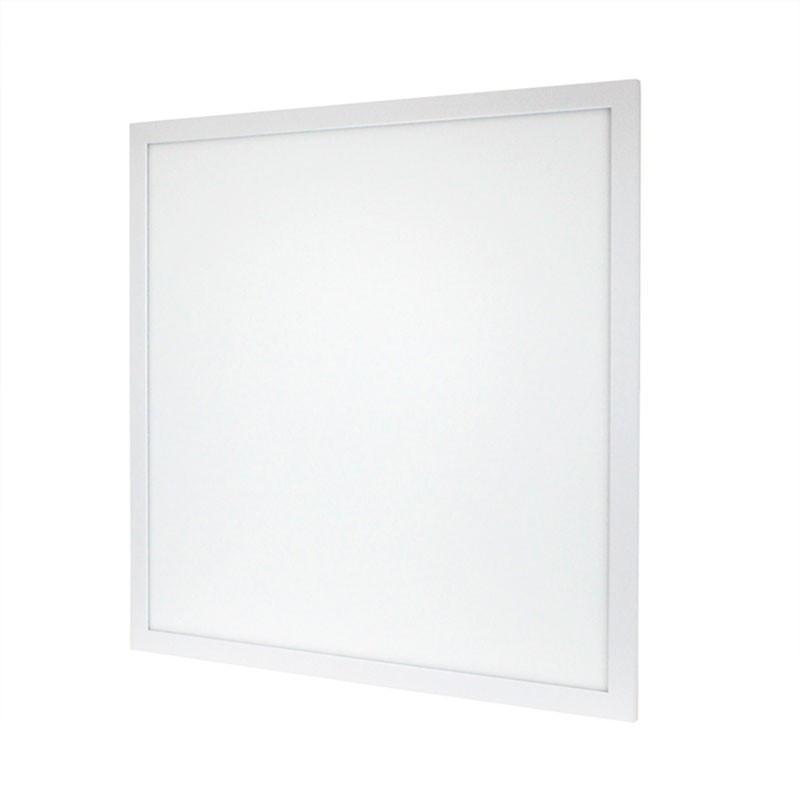

Dimmable CCT slim LED panel with remote control - 60x60cm - 40W
SKU:B5235-3CCT
€39.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The CCT LED panel has a versatile design, adaptable to any type of environment and offers high quality, glare-free illumination.

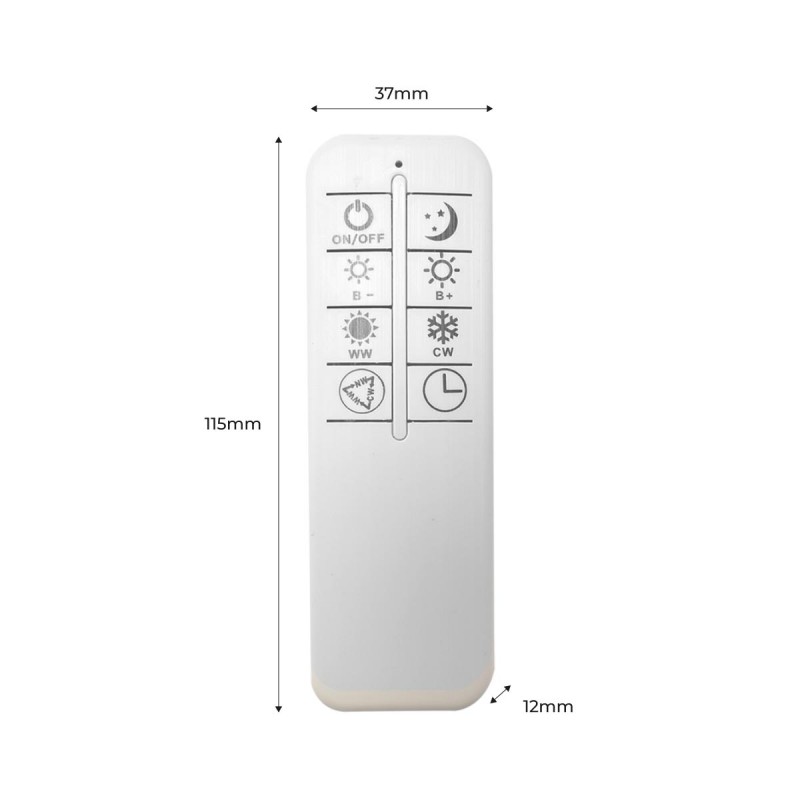

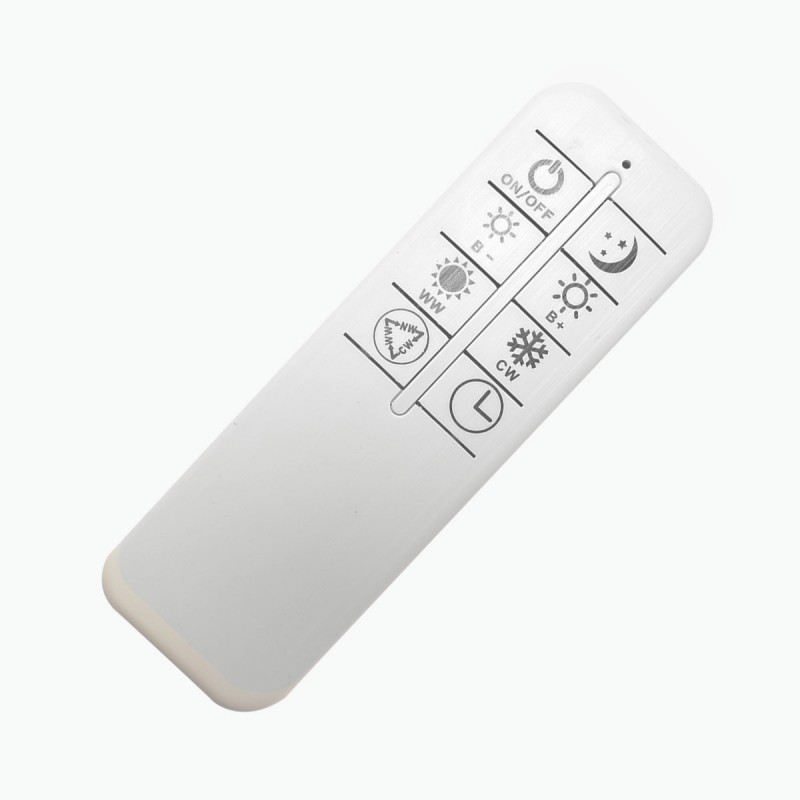

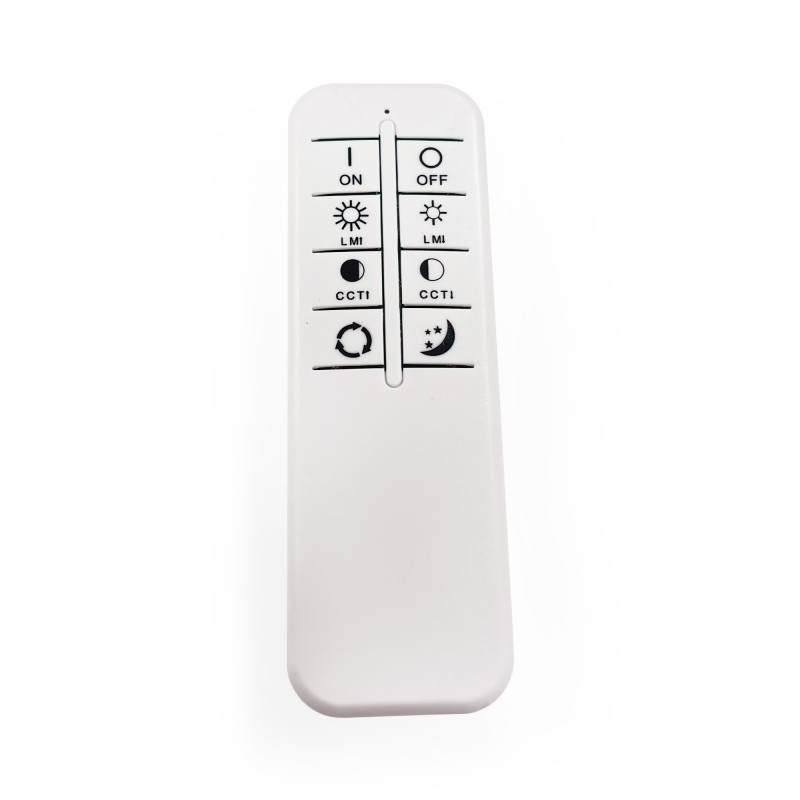

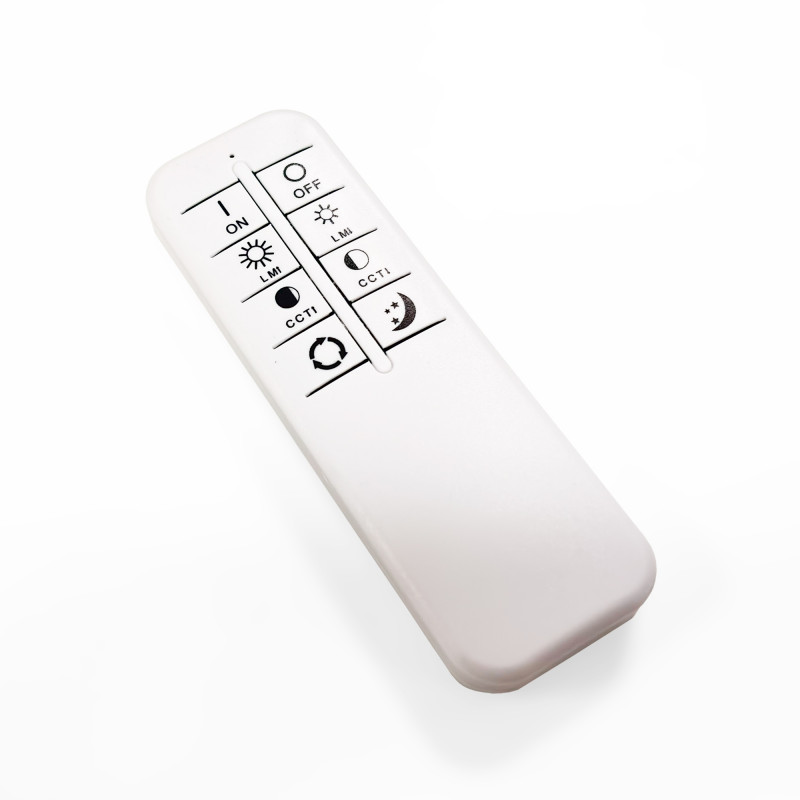

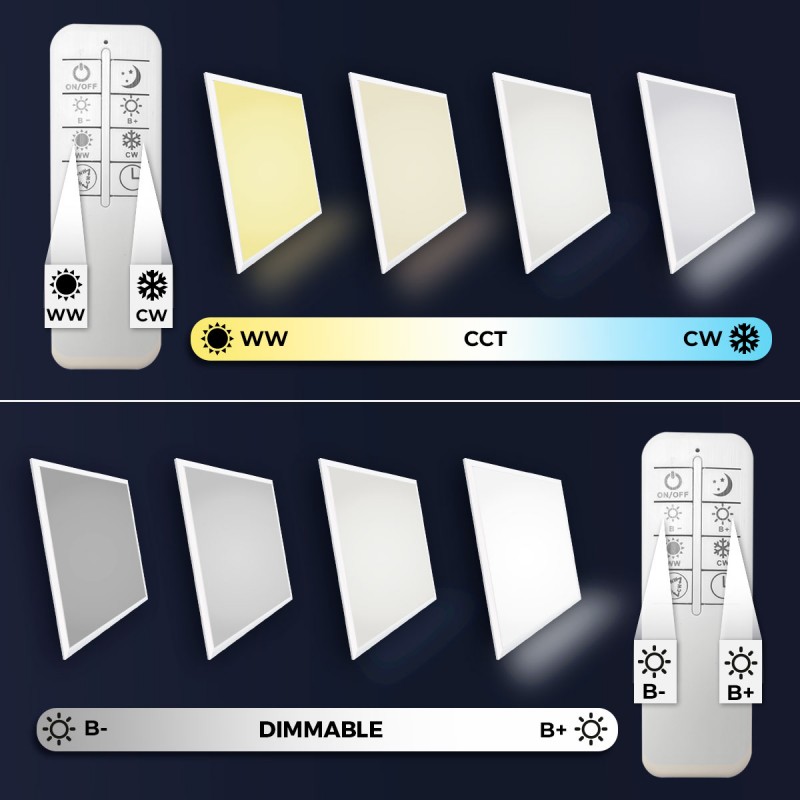

The lighting is controlled by a remote control and it is possible to select both light intensity and color temperature from warm white (3000K) to cool white (6500K), according to the needs of each space or circumstance. An unlimited number of panels can be controlled with the remote control.
To synchronize the remote control with one or more panels, the driver(s) must first be powered from the mains and then the ON/OFF button must be pressed constantly for a few seconds.
Its high color rendering index, CRI>80, allows colors to be reproduced with great fidelity, similar to natural light.

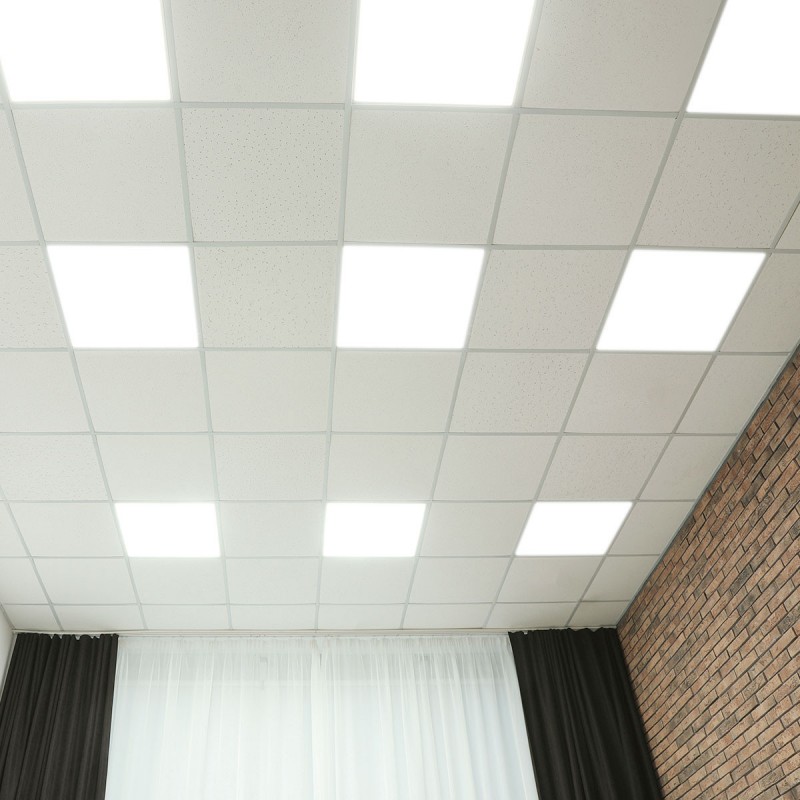

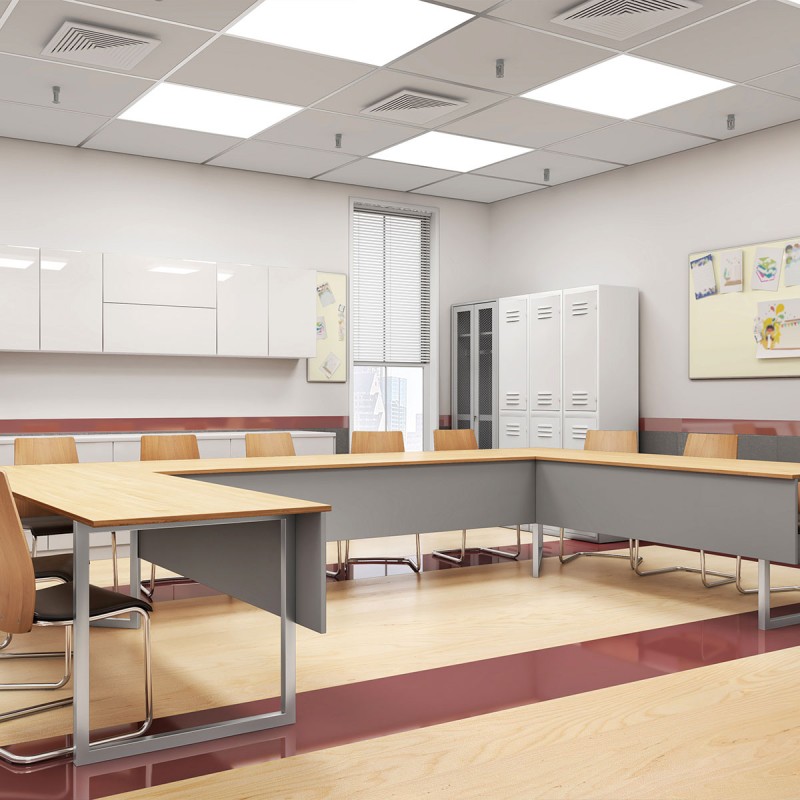

This panel is designed for recessed installation in false ceilings. When this is not possible, surface installation is possible by incorporating the necessary kit.

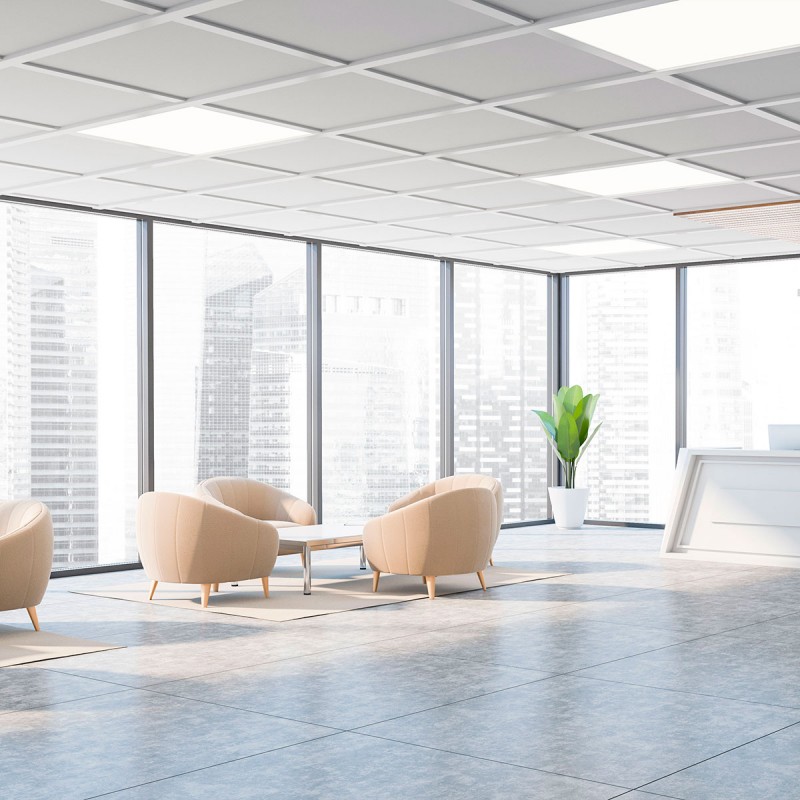

Its applications are varied and it can be installed in the home as well as in offices, offices, stores, hotels, health centers, etc.
|
Main features of the product:
|
Please note that certain technical characteristics such as power or CRI may vary according to the color/shade of the product. For further details, please consult the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Lumens (Lm)
4000
Kelvin (K)
3000
4000
6000
4000
6000
Lifetime (h)
25000
IP
IP20
Hue
CCT
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 4014
Dimmable
Yes

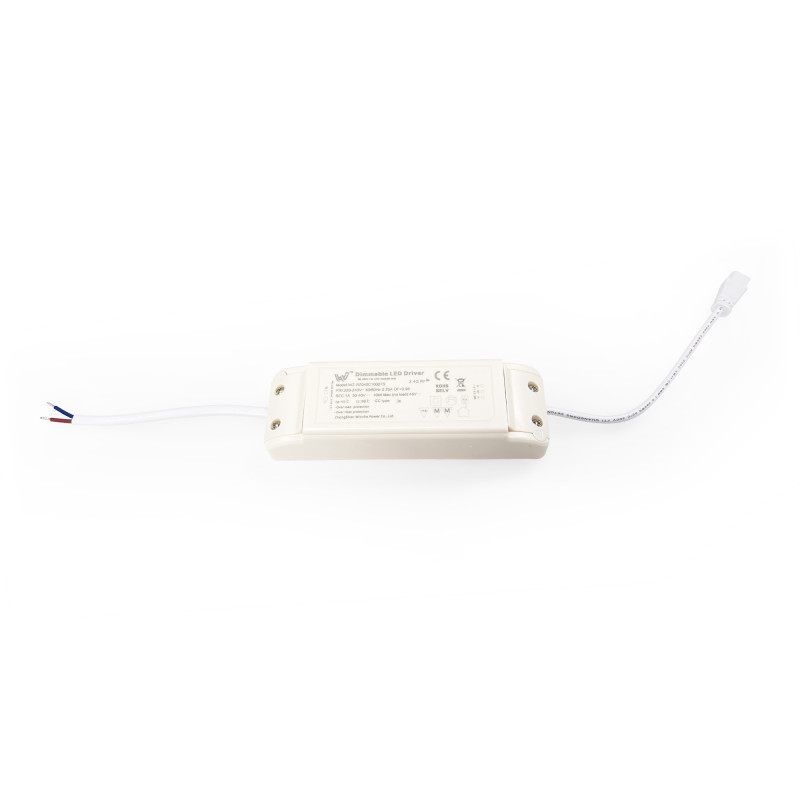

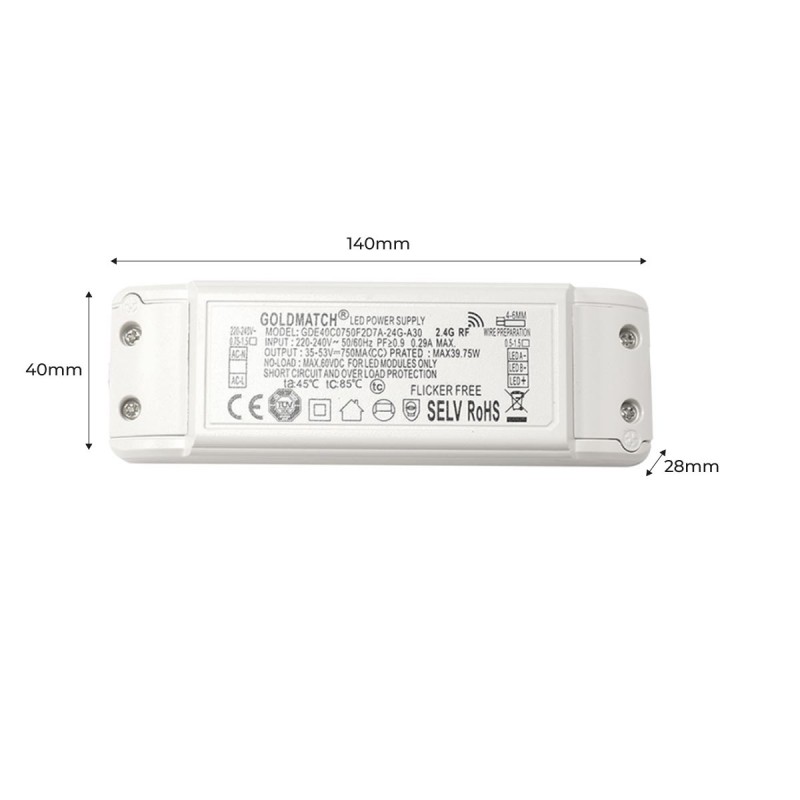

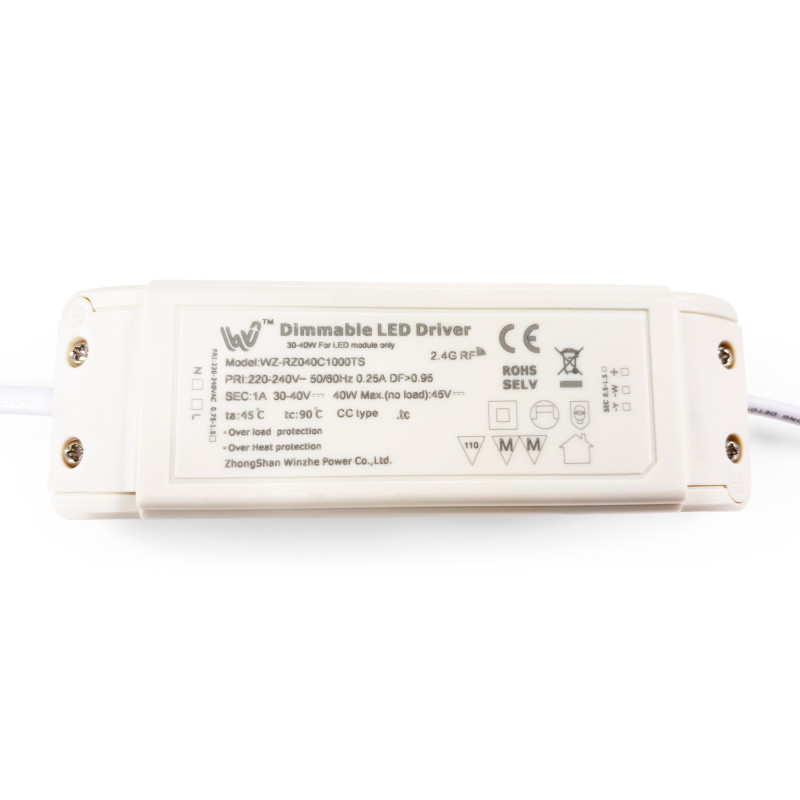

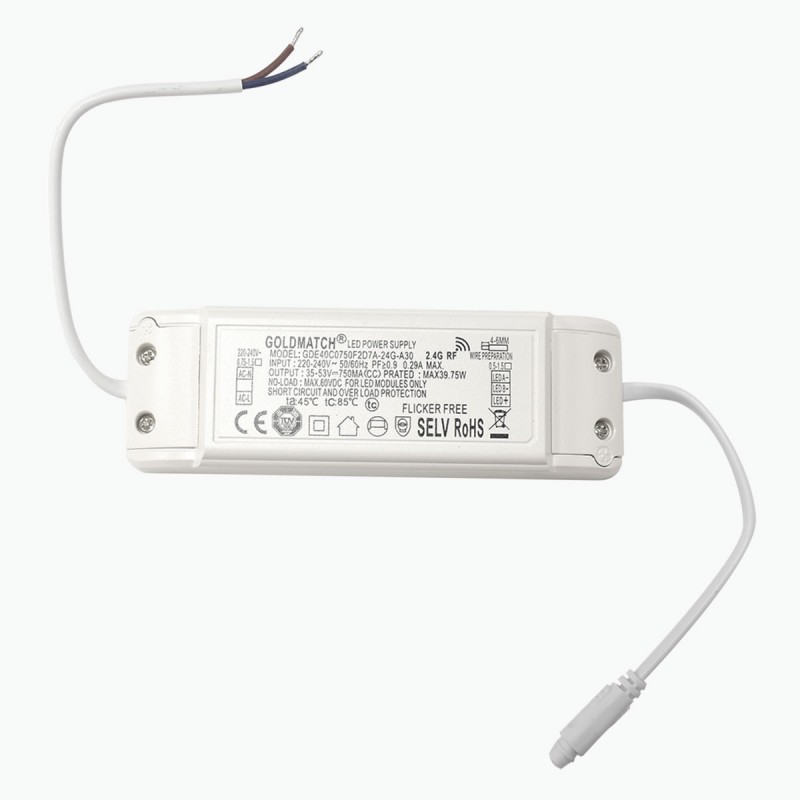

Driver
Goldmatch
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years

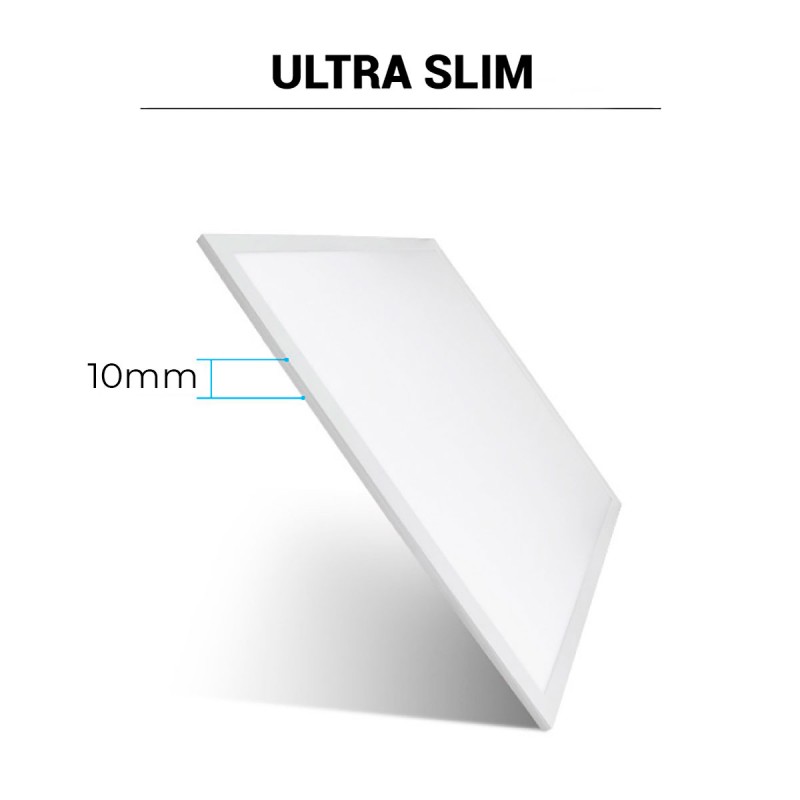

LED Panel dimensions
60x60
Questions
| P: Question: | Can 14 LED panels be controlled with a single controller? |
|---|
| R: Answer: | Hello, you can connect as many panels as you need. To synchronize all the panels, you have to follow the instructions of the product and repeat the procedure with each of the panels. I hope I have solved your doubts, thank you very much.
Barcelona LED: Alejandro| 11/09/2024 |
|---|
| P: Question: | Can it be switched on and off with the wall switch, or only with the remote control? Once the intensity/heat is set, does it maintain it when turning off and on again? Thank you. |
|---|
| R: Answer: | Yes you can turn on and off from the external wall switch. But you should be aware that the first 3sec the panel goes into sync mode and that rapid on/off switching changes the set color temperature.
Barcelona LED: Alejandro| 20/04/2023 |
|---|
| P: Question: | Hello, can I put it in a plasterboard ceiling? |
|---|
| R: Answer: | It is to be placed in a 60x60 armstrong ceiling (typical in office assembly). |
|---|
