LED Panel 60X60cm with recessed KIT 44W UGR19 Driver Philips

LED panel 60x60 with recessed kit, extra flat 44W, DRIVER PHILIPS, 230V-AC

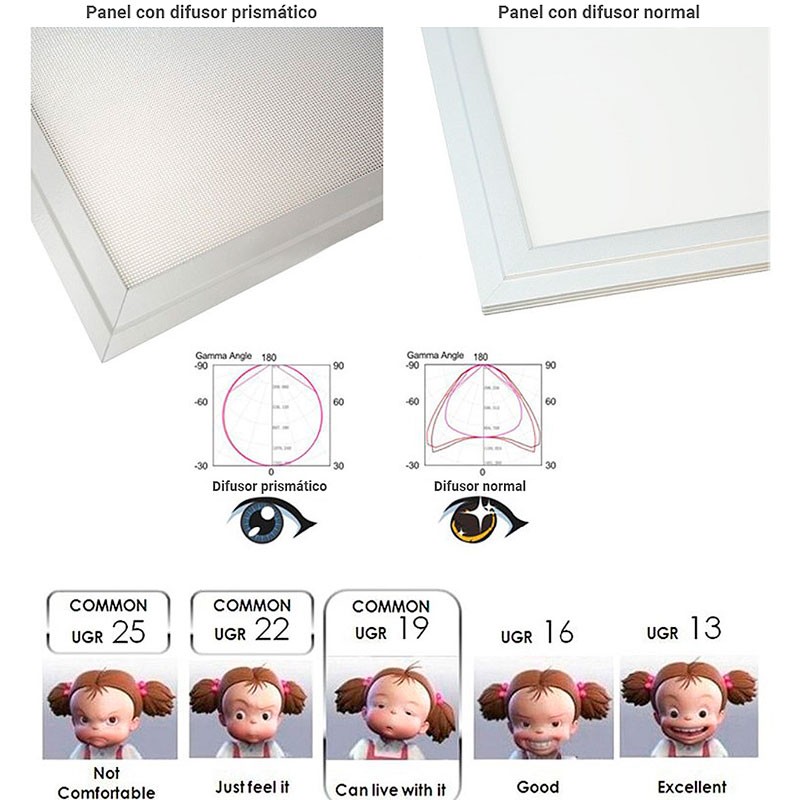

The 60x60cm panel is perfect for replacing fluorescent tubes. With a modern, slim and elegant design, it can be installed in any indoor room. With EMC filter and low glare (UGR19), the LED panel does not cause eye fatigue or flicker. Instant-on high brightness. 120-degree beam opening angle. Optimal color rendering, CRI>80.

LED panels with the best driver quality, DRIVER PHILIPS CERTADRIVE of 1050 MA, with power factor 0.96 and complying with the EMC standard of electromagnetic compatibility. You can choose between different color temperatures: the warm shade of 3000ºK has a luminous intensity of 2822lm, the neutral, 4000ºK, 3432lm and the cold, 6000ºK, has a high luminous intensity of 3822 lumens.

The dimension and shape and size is perfect to replace 4 fluorescent tubes of 60cm, improving lighting and providing great energy savings.

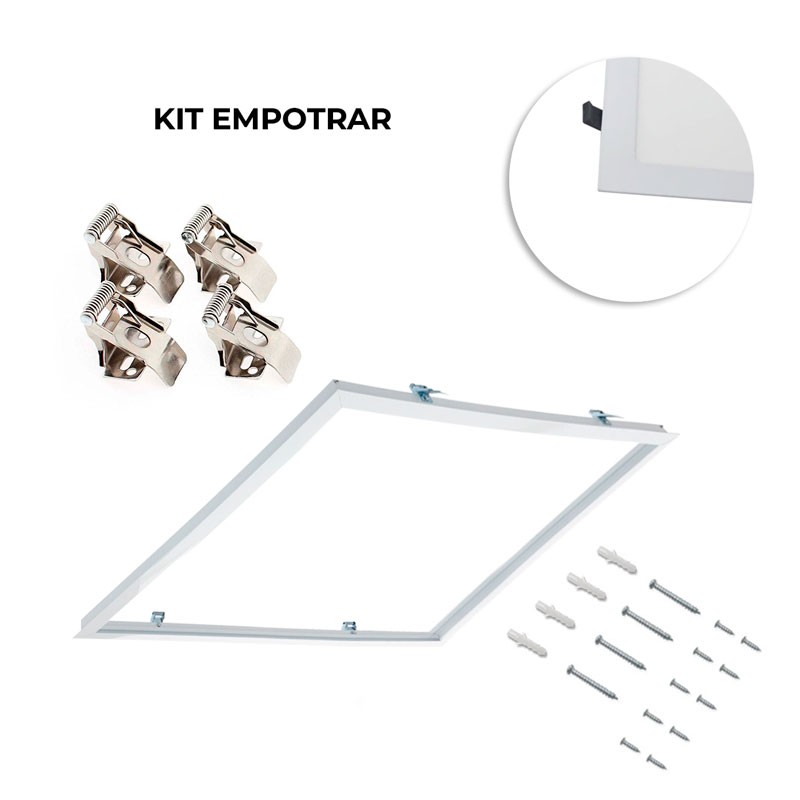

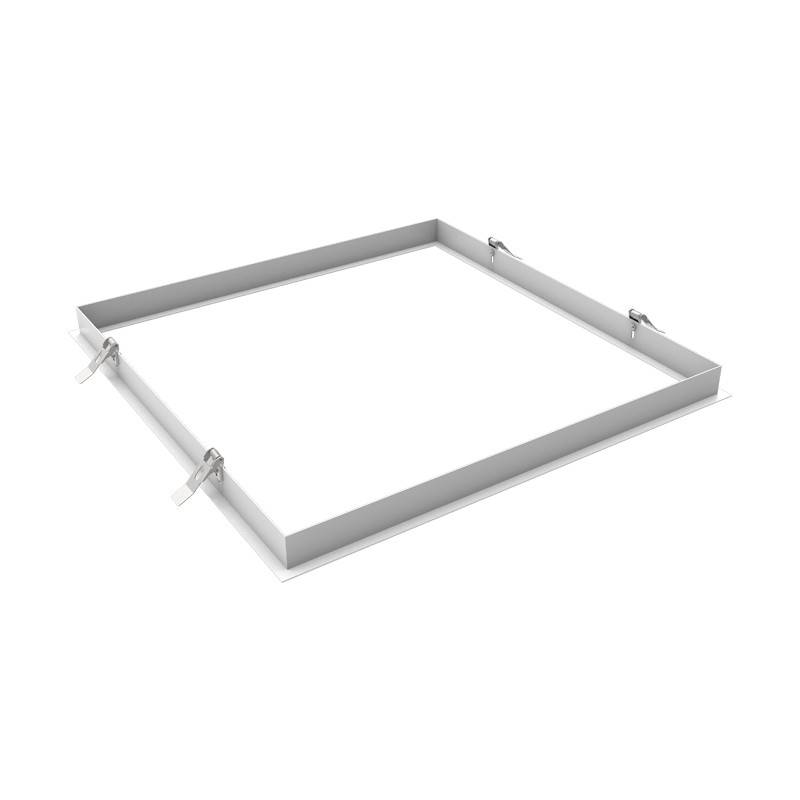

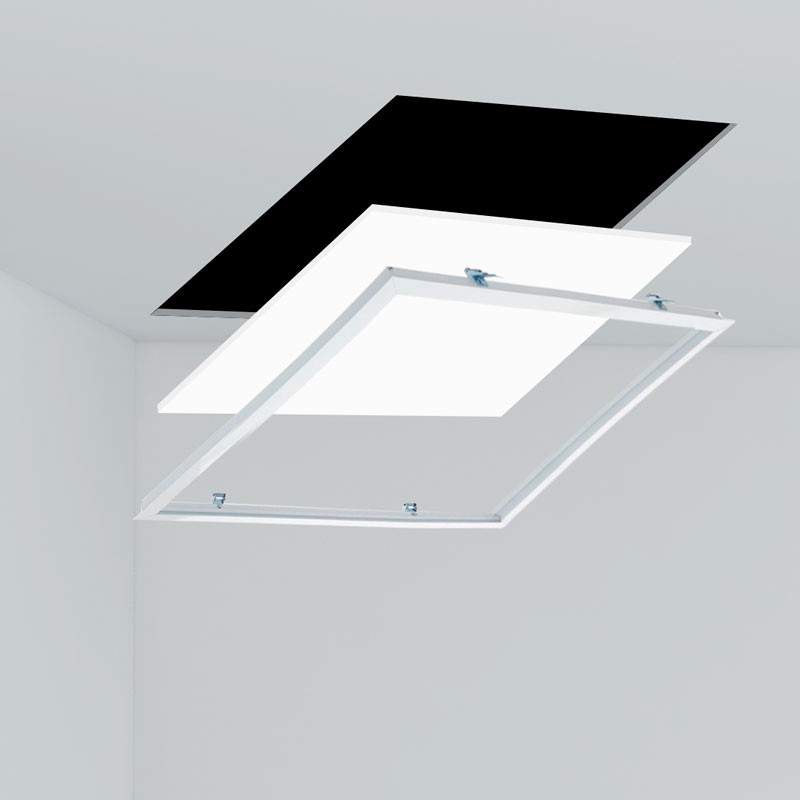

Mounting kit

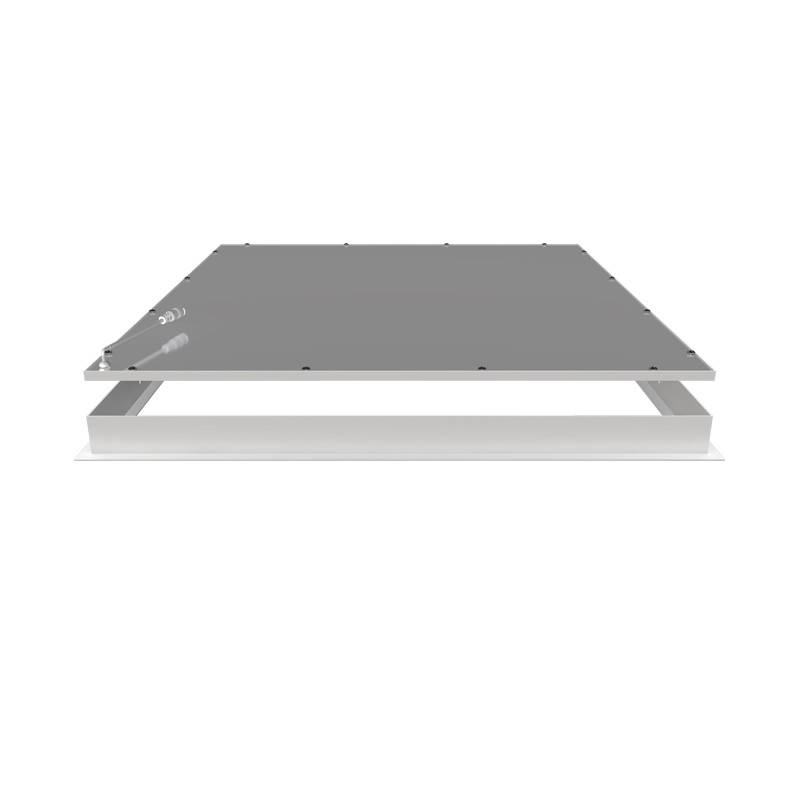

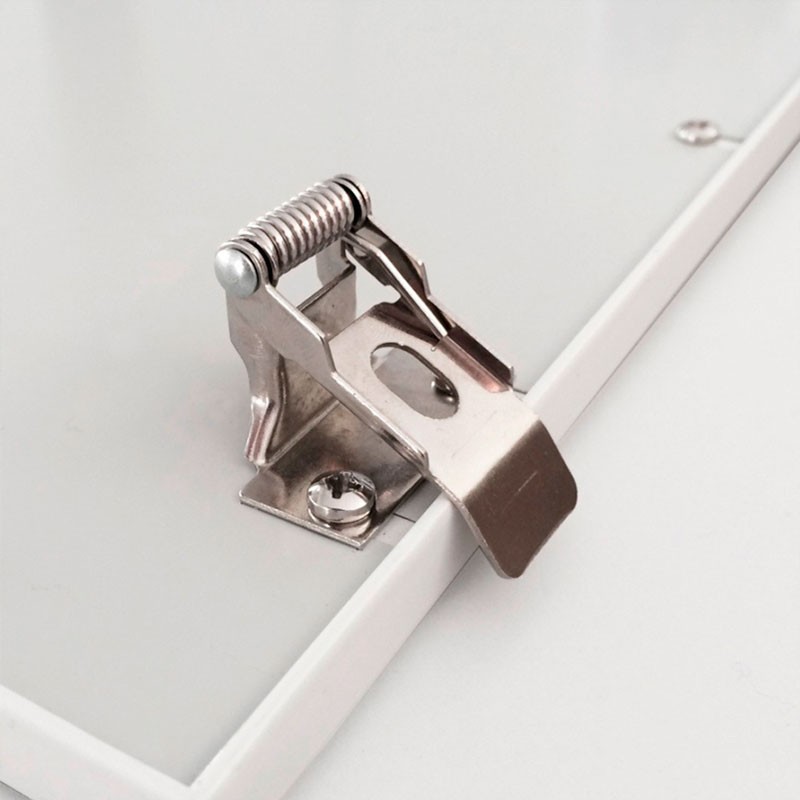

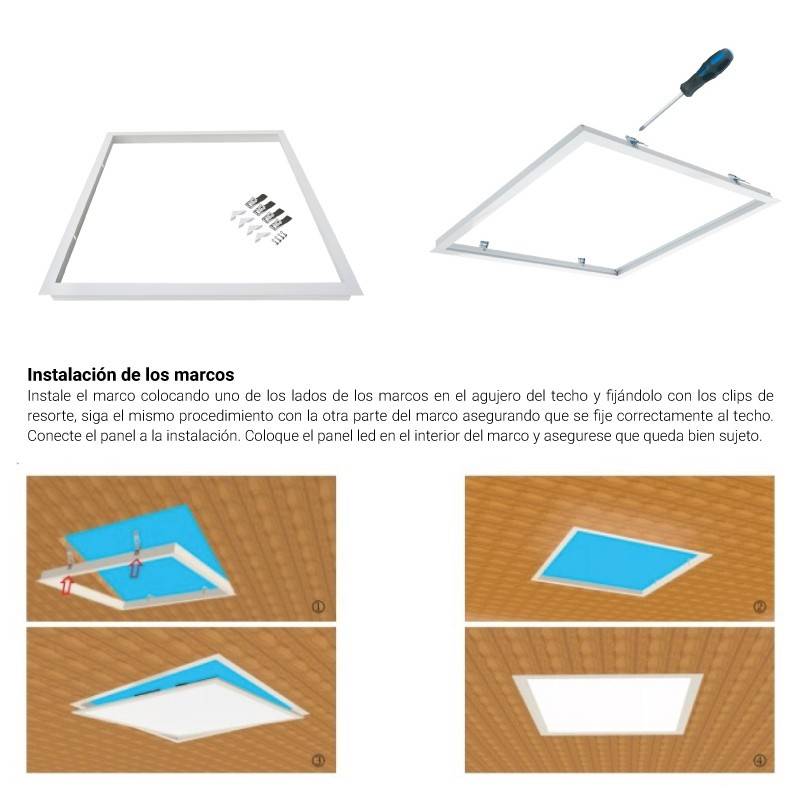

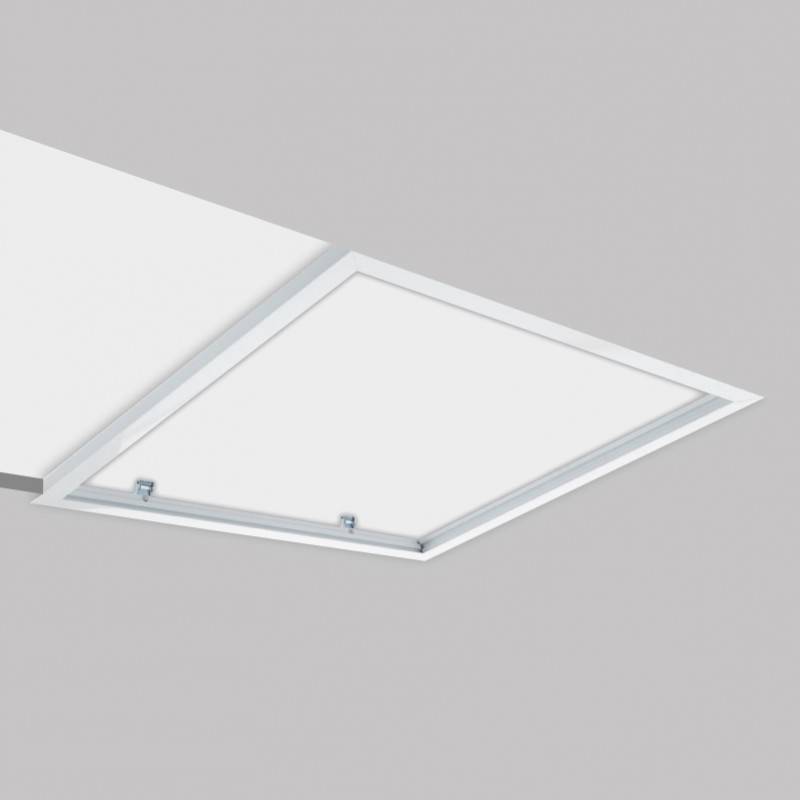

The mounting kit to embed the LED panel is composed of 4 fastening clips allowing a quick and easy installation. Invisible" effect frame, made of aluminum, with high quality finishes. Panel LED 600x600mm of 44W with Philips CertaDrive driver.

A good quality LED panel provides vivid illumination with true-to-life colors.

LED panels with optimal color rendering offer good LED illumination, true to colors, compared to LED Chips with poor quality, which usually have a low level of color rendering. The latter results in poor colors and provides a whitish or even greenish ambience, as the most affected tones are usually reds.

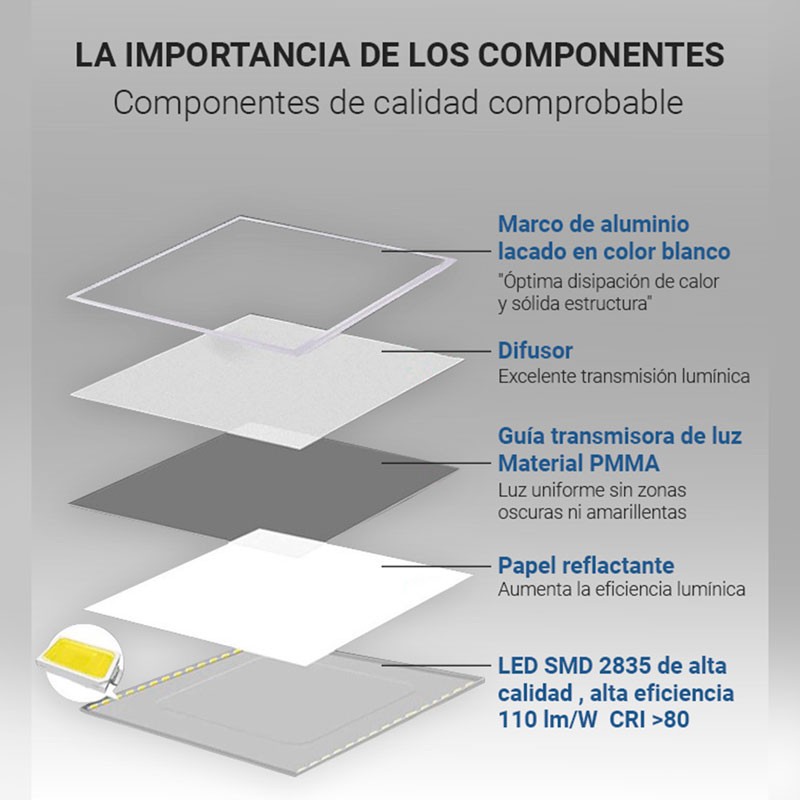

The components of the LED panel is another very important point to consider.

• ✔ Frame or "frame": the frame is the one that provides the structure to the panel, square aluminum frame that we see from the front. A weak frame causes failures in the PCB where the LEDs are located, without a good frame the panel is very weak and this causes failures in the PCB where the LEDs are mounted, that is why the thickness and security of the"frame" plays a fundamental role in the quality of the panel.
• Diffuser: The diffuser is made of polystyrene to provide optimum light transmission. Easy to clean and with high thermal stability. With the light guide or LGP it fulfills the function of transmitting light homogeneously over the entire surface of the panel.
• ✔ Light transmitting guide or LGP: this is one of the most critical points of led panels, the material and thickness of the silver guide is of vital importance for the proper functioning and duration of a panel, if the LGP is of poor quality (usually PS), these panels begin to turn yellow and darkened in the middle from 6 months of use, this should be avoided and for this should be used PMMA LGP which makes it much more stable and durable.

Example of LGP made in PS

Example of LGP made with PMMA

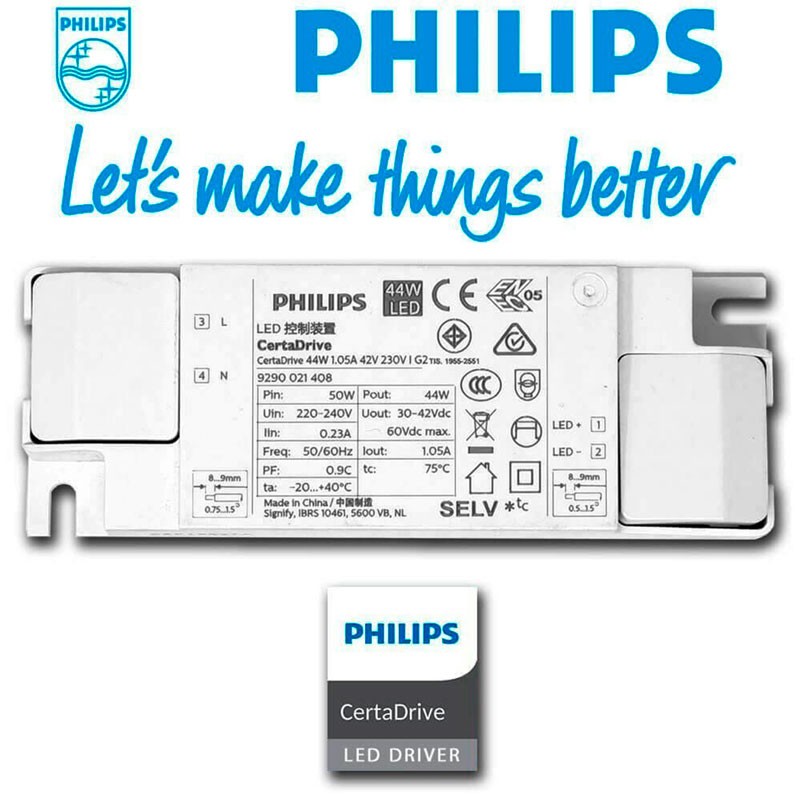

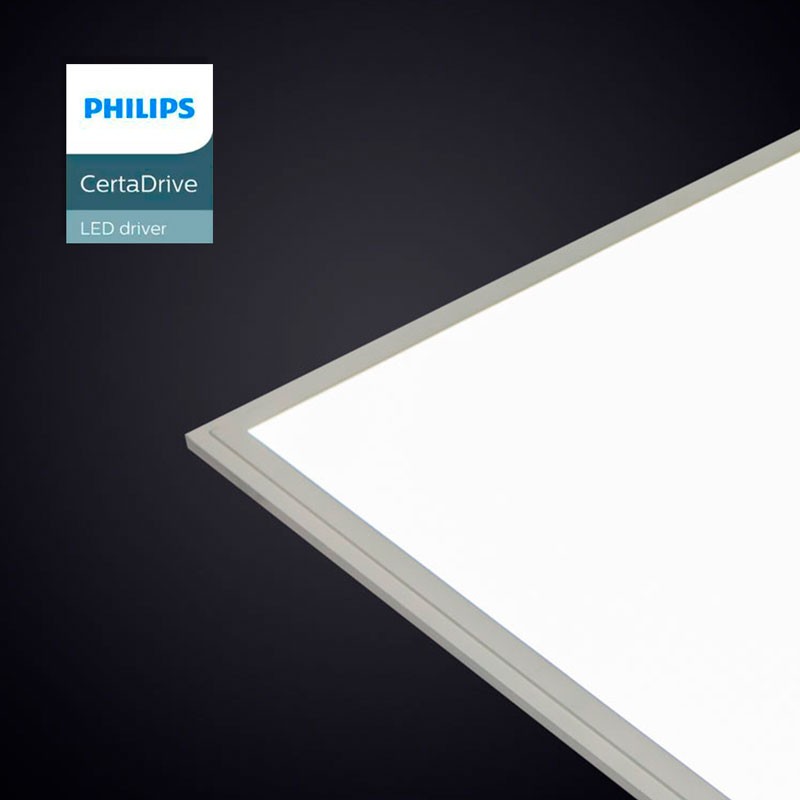

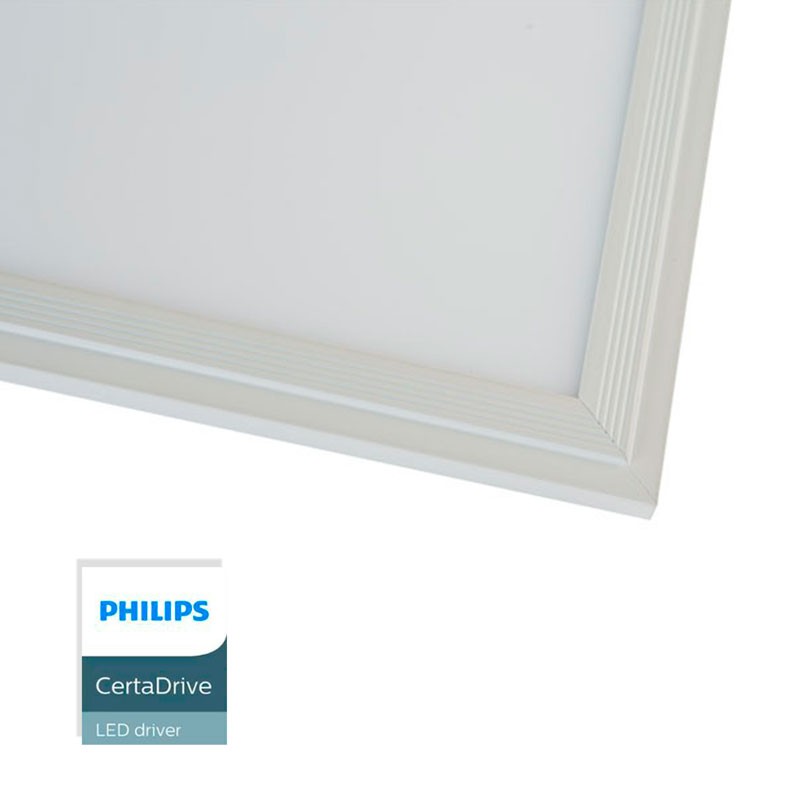

• ✔ Driver: Another very important point of LED panels is the driver. Our 60x60 LED panel is equipped with a PHILIPS CERTADRIVE 1050 MA DRIVER , with power factor 0.96 and complying with EMC standard for electromagnetic compatibility.

• The quality of the LEDs and PCB design: These components determine the quality of the panel, the choice of the chip determines the luminous efficiency, color rendering and stability. Before buying an LED panel, make sure that it is powered with a current of 950 to 1100 MA. At BarcelonaLed we work with 1050 MA to ensure the stability of the LED panel. The PCB design makes more or less chips, in the case that the chips are decreased will go to more voltage and decrease the efficiency of the luminaire.
• ✔ Back plate or Back: The thickness and die-cutting of the back plate determines the strength of the panel and that it does not suffer in transports or installations. A weak panel can influence premature failures that usually appear within a few months and is due to the LGP hitting the smd chips because of the weak structure.

Applications of 60X60 LED Panel Light.

• ✔ General lighting.
• ✔ Fluorescent replacement.

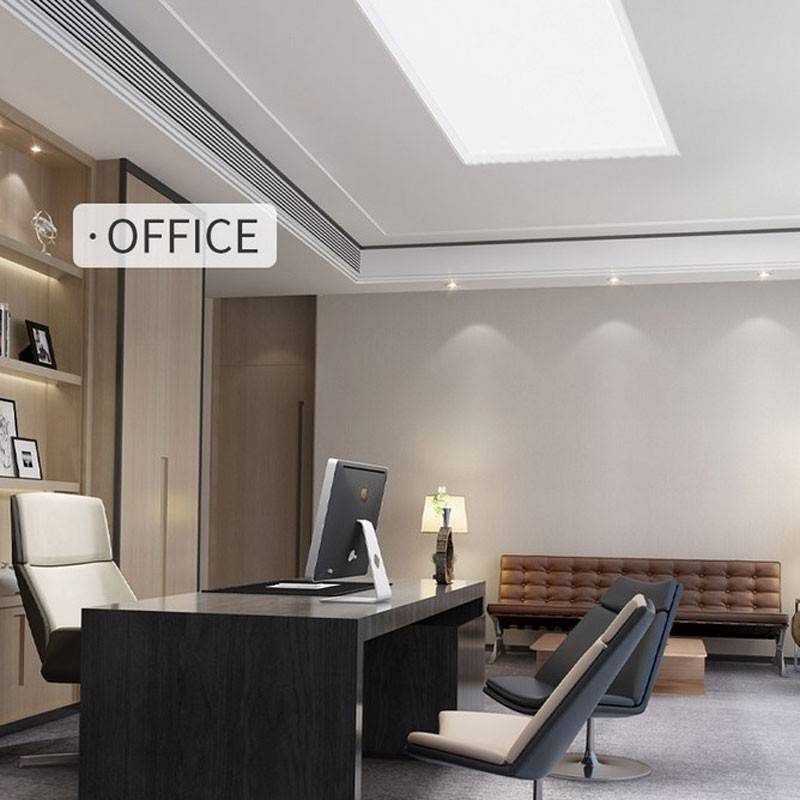

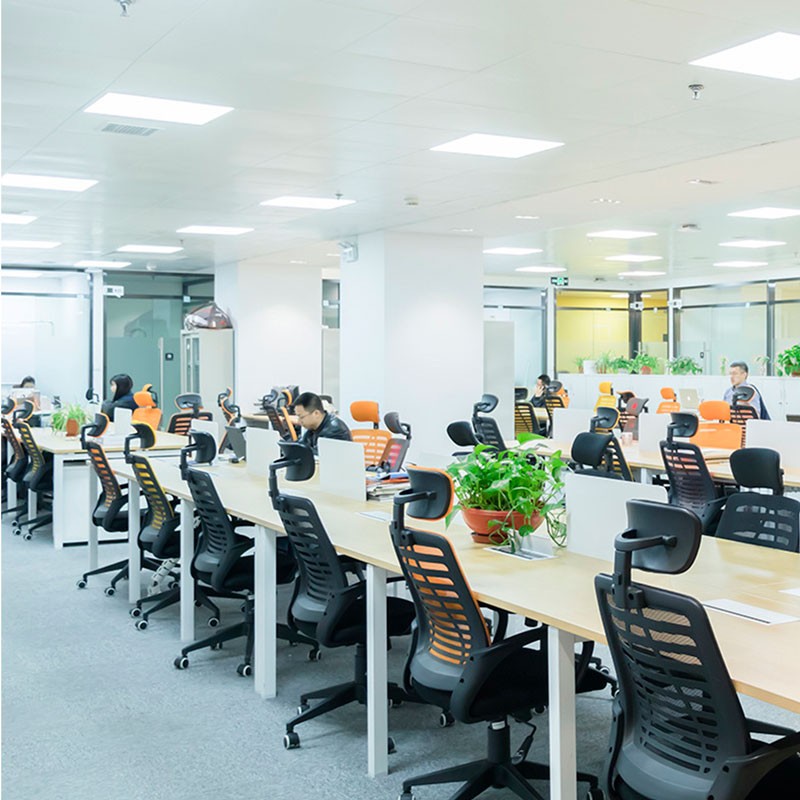

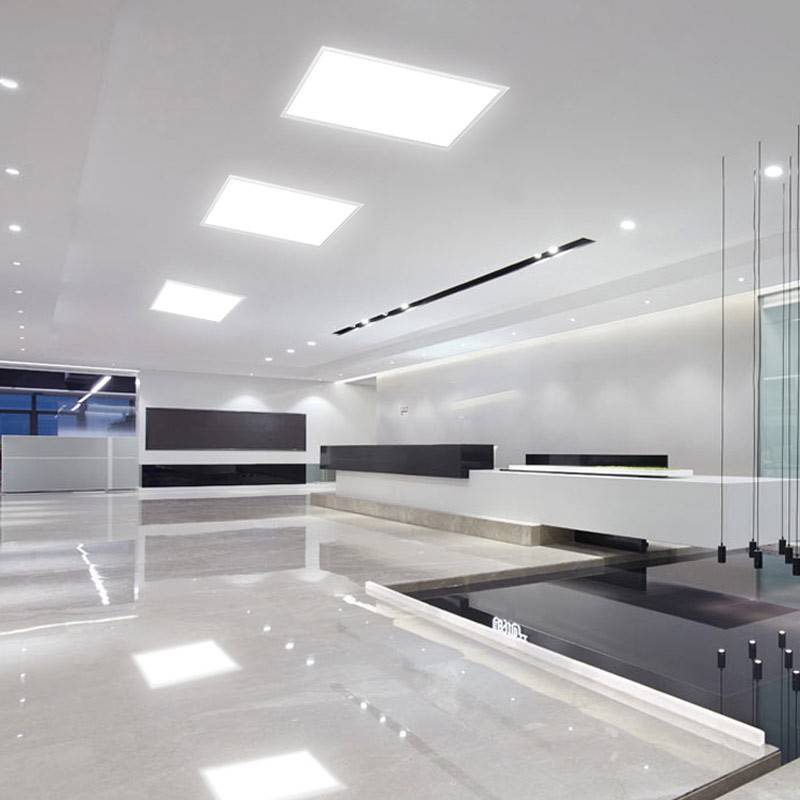

• ✔ Any indoor room in offices, stores, stores, stores, offices, waiting rooms, etc.

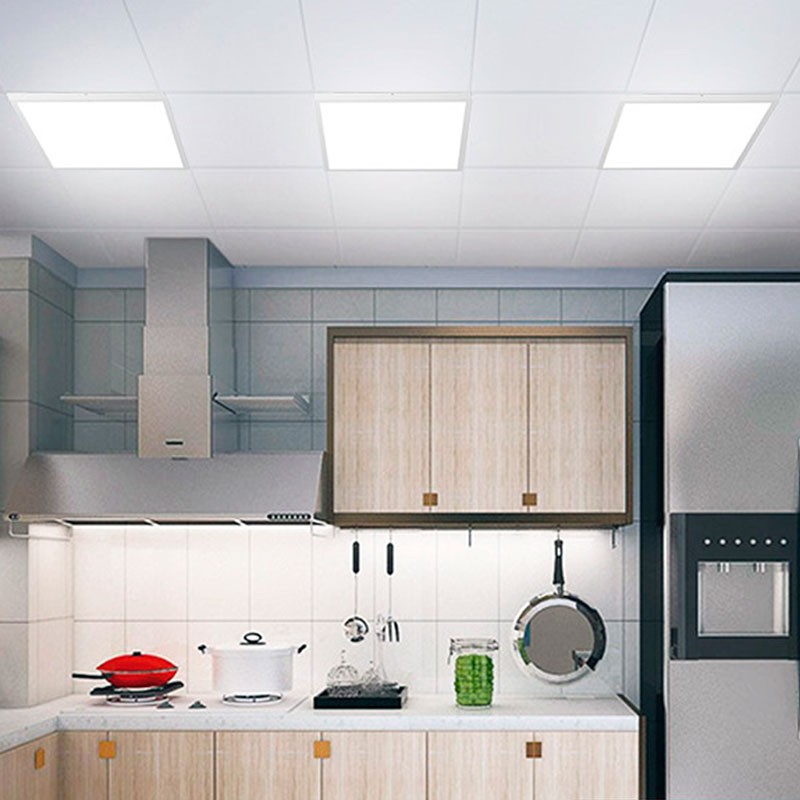

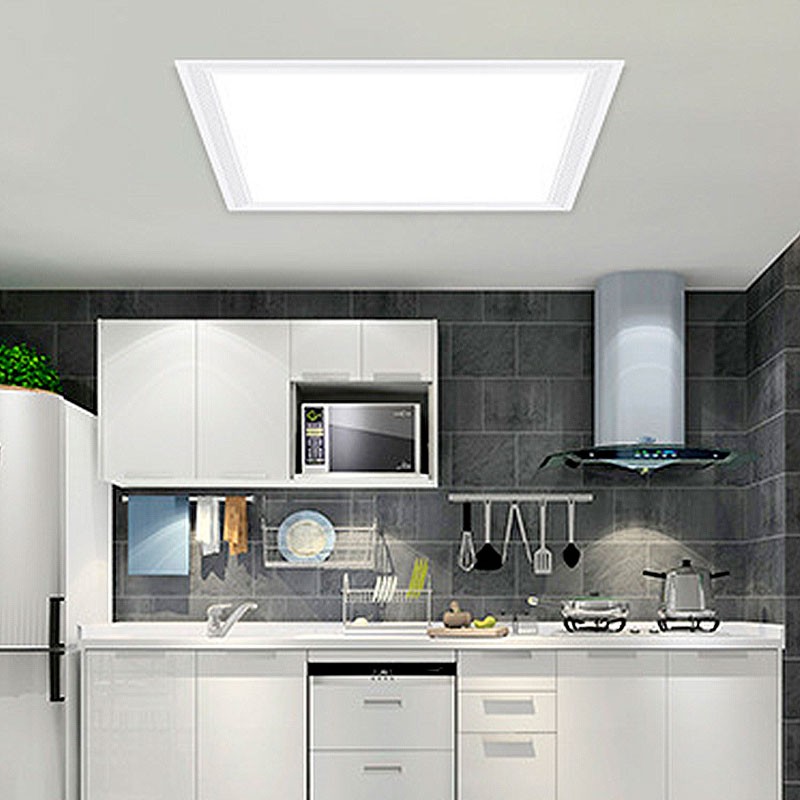

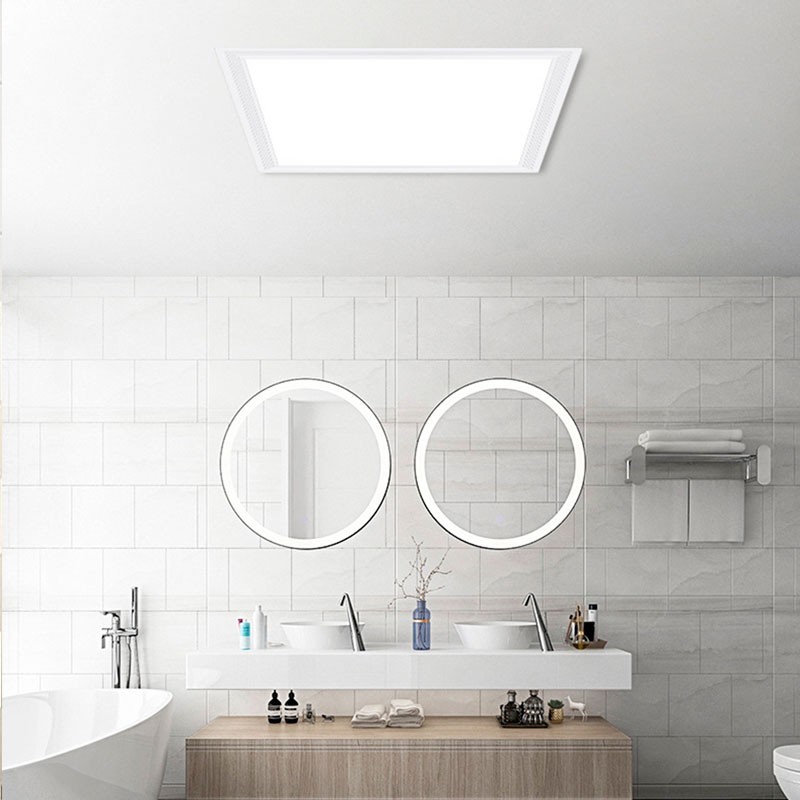

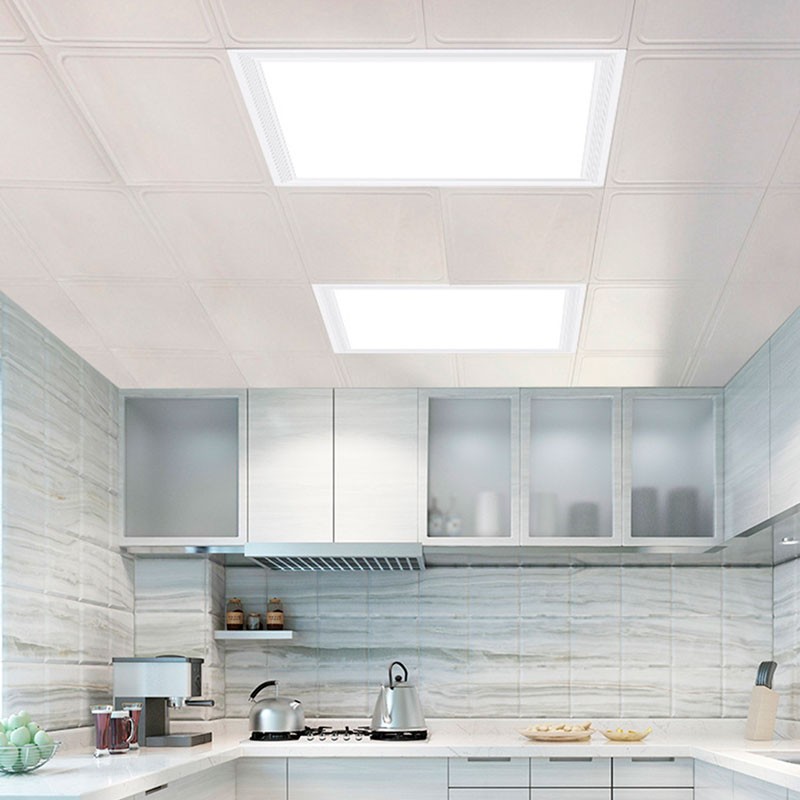

• ✔ Home interior lighting: mainly in kitchens and study rooms.
