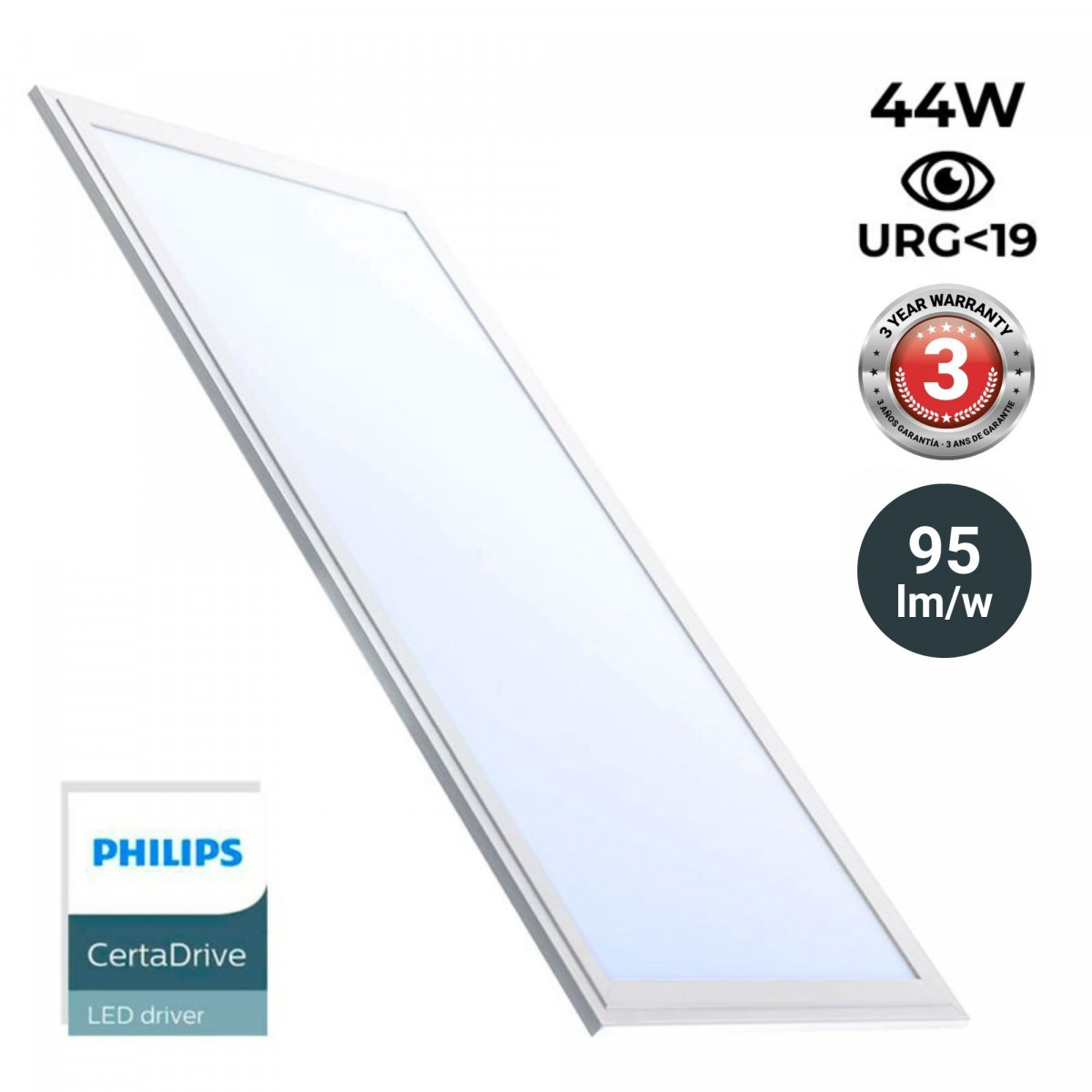

LED panel slim 120X30 cm - Driver Philips - 44W - UGR19
SKU:B5236-BF
€17.94
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

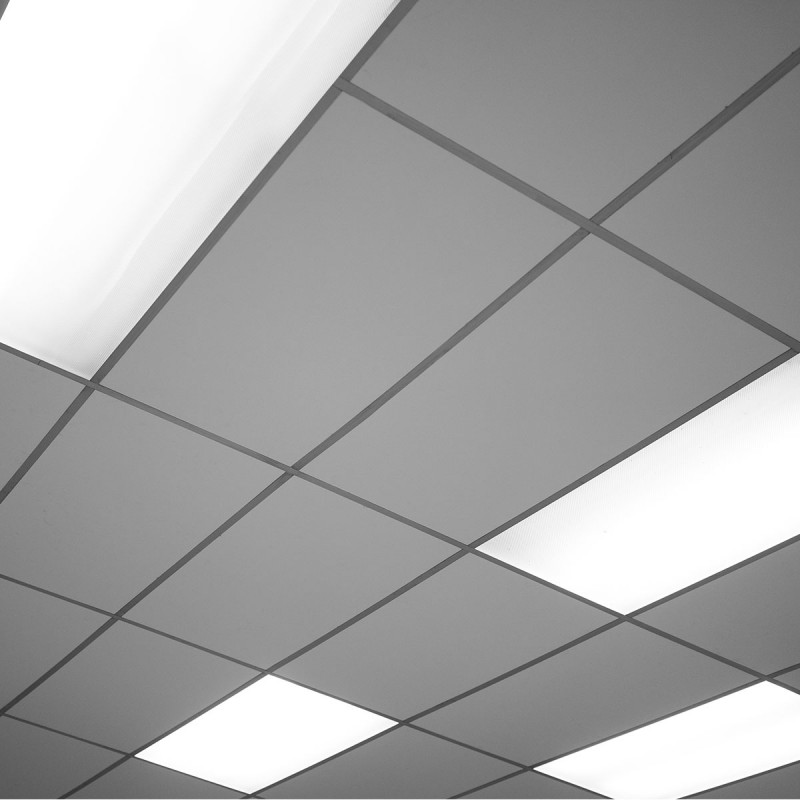

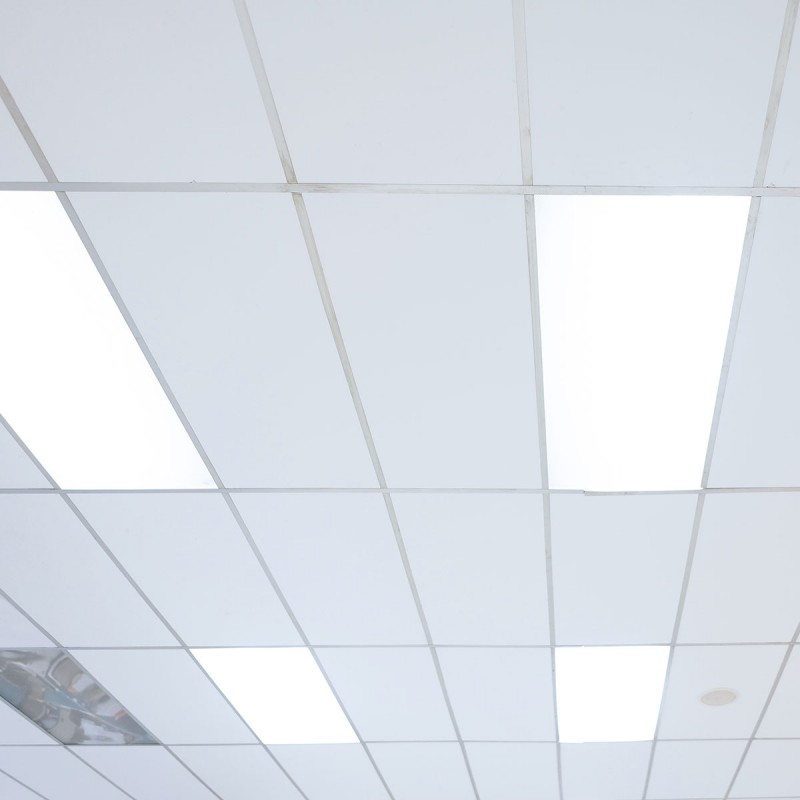

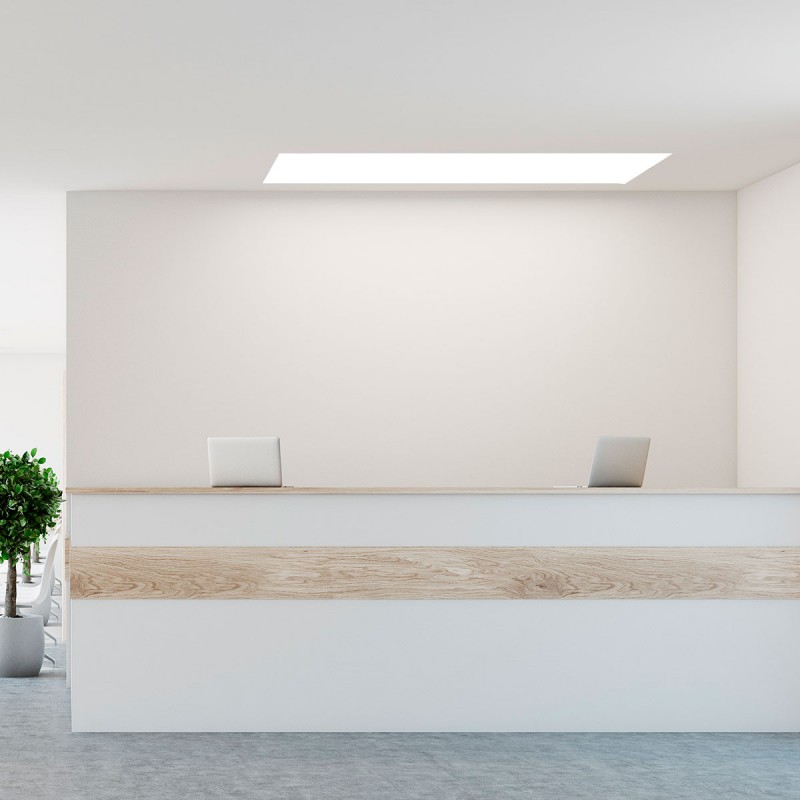

The 120x30cm slim LED panel is designed for recessed installation in suspended ceilings. Its ultra-slim, modern and elegant design is adaptable to any environment.

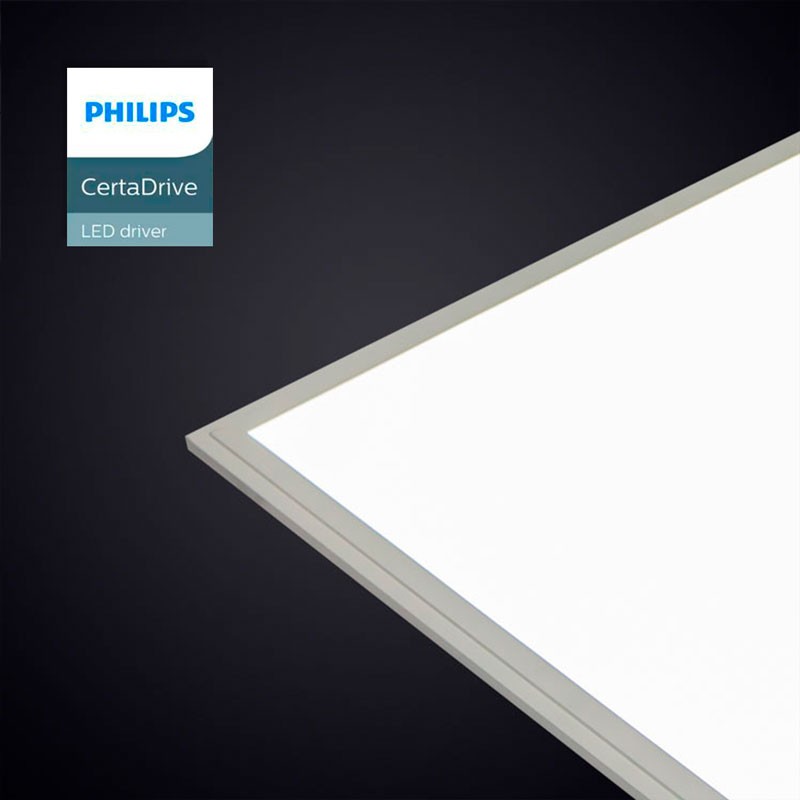

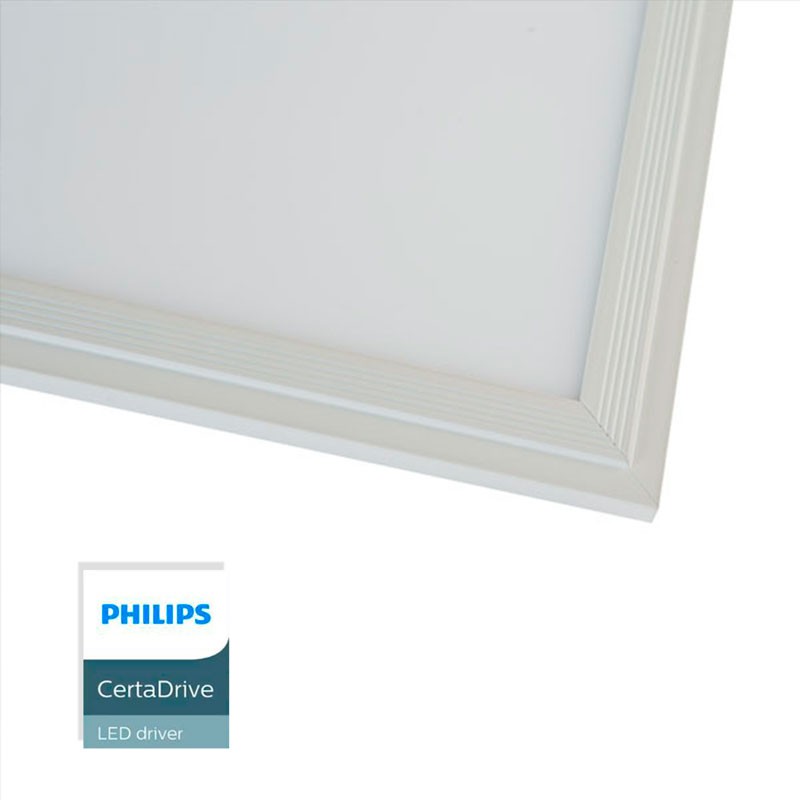

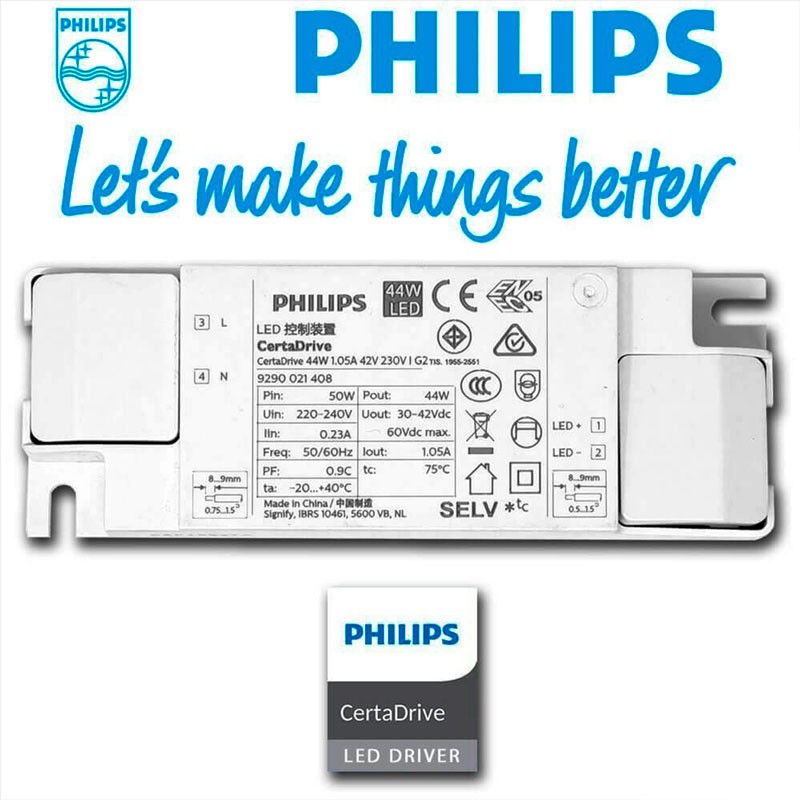

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.

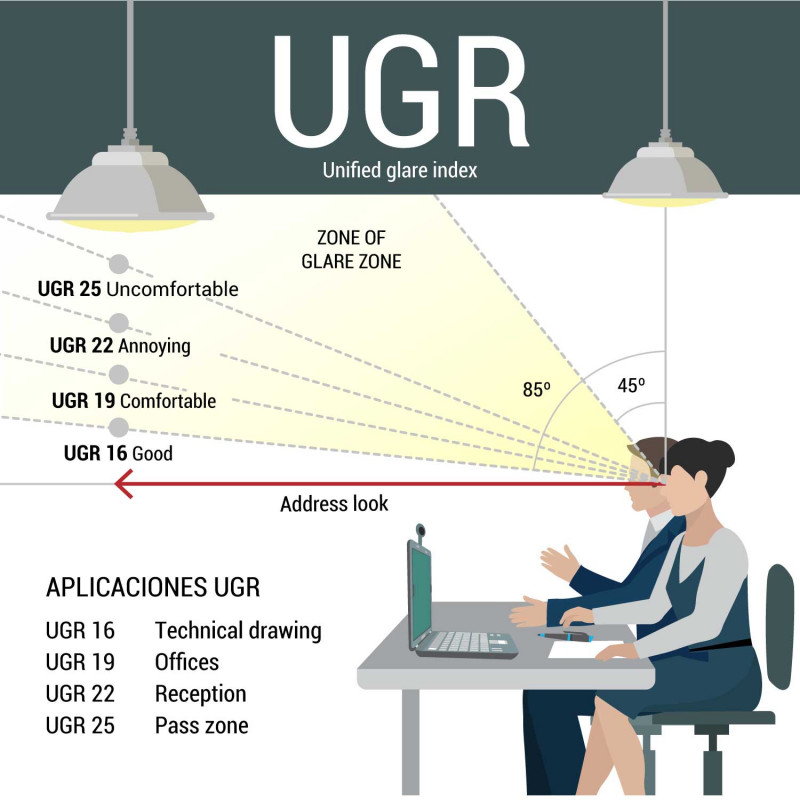

Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR<19), a condition especially important in work or study environments, where low UGR levels have demonstrated greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 120°. It has 44W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the test reports attached in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
44
Kelvin (K)
3000
4000
6000
4000
6000
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60

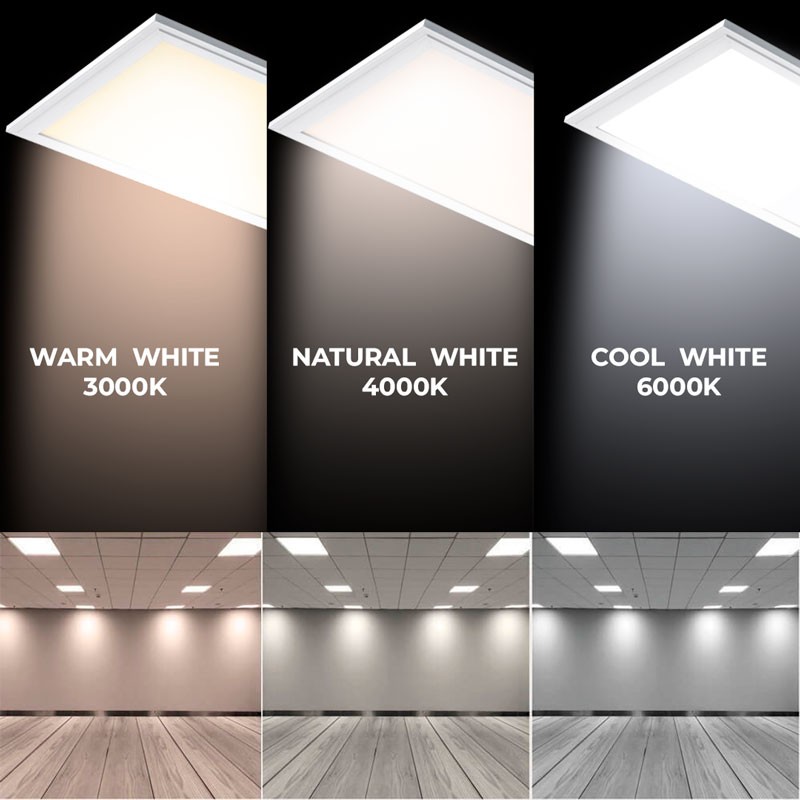

Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
95
CRI
80-85
UGR
UGR19
LED Type
SMD 2835
Driver
Philips
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
120x30
Length
Width
Height
Questions
| P: Question: | How luminaires with motion detectors behave over time, it is recommended for transit areas. |
|---|
| R: Answer: | Motion sensors simply connect the 220vac mains to the panel, it should work without inconvenience. |
|---|
| P: Question: | Fits inside a 120 x 30 frame thank you |
|---|
| R: Answer: | Yes, it can be surface mounted on a 120x30 frame, there is a specific kit ref. B4290-BF. |
|---|
| P: Question: | Is this led panel recessed or surface-mounted? Reference: B5236-BF |
|---|
| R: Answer: | Recessed with accessories or surface-mounted with accessories available to purchase separately. |
|---|
| P: Question: | How would be the installation to turn it on, or how to turn it on? |
|---|
| R: Answer: | It has two connection cables to connect to the electrical installation, like any lamp (it will need a switch to turn on/off). |
|---|
| P: Question: | Hello, are the fasteners/fasteners for hanging/suspended from the ceiling already included in the panel frame itself? |
|---|
| R: Answer: | They do not come in the panels, you will need metal brackets to hang the panels. |
|---|
| P: Question: | When do you expect to have stock of this product in cool white? |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |
I would need to be able to regulate some slim panels of 120 x 30 or 60 x 60 of warm light 3.000ºK. They would be installed in a theater scenography. I can see in the data sheet that by replacing the original driver with another element, the light intensity could be dimmed. I see that there are two options, "TRIAC" and "DALI". I would like to know what elements I need taking into account that the control will be done from a theater light table, that is, if I can control the luminaires from the dimmers of my equipment or if the device has its own dimmer and I have to connect only DMX signal. Thank you very much |
|---|
| R: Answer: | You need to change the drivers for dimmable ones. I don't think the DALI model is viable if you don't have the DALI BUS and other equipment installed. The TRAIC B4255 model will need an external TRIAC dimmer, we do not have DMX control for this type of dimming. |
|---|
| P: Question: | Hello, could this panel be surface mounted with a kit? |
|---|
| R: Answer: | Hello, You can place the led panel with the surface kit that appears in accessories. The corresponding kit for this panel is: Surface kit for LED panel slim 120x30cm, with reference B4249. |
|---|
| P: Question: | Can it be placed on a wall? |
|---|
| R: Answer: | For wall mounting we recommend installing the LED surface panel 120x30 reference B4239-2. The surface panel includes all mounting accessories and the driver is hidden inside the metal housing. |
|---|
