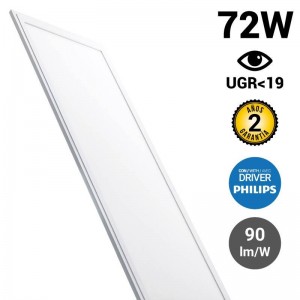

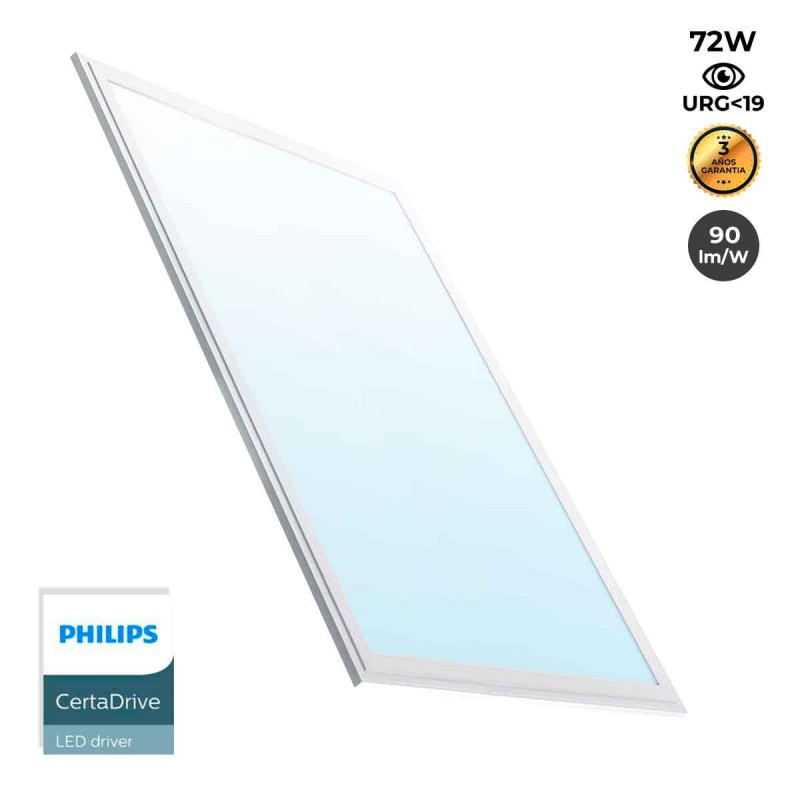

LED panel slim 120X60cm - PHILIPS Driver - 72W - UGR19
SKU:B5234-BC
€65.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

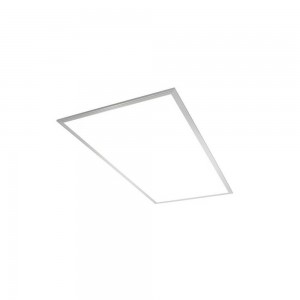

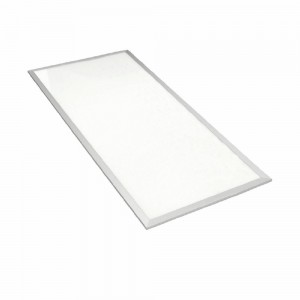

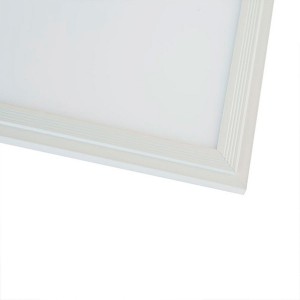

The 120x60cm slim LED panel is designed for recessed installation in suspended ceilings. Its ultra-slim, modern and elegant design is adaptable to any environment.

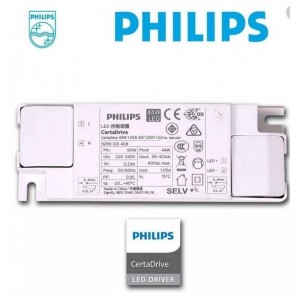

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.

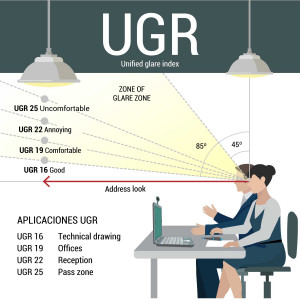

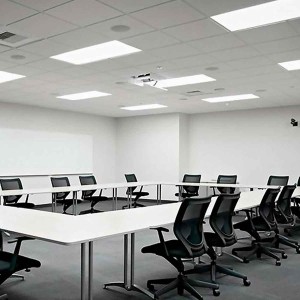

Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR≤19), a condition especially important in work or study environments, where low UGR levels have shown greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 160°. It has 72W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
72
Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
160
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
90
CRI
80-85
UGR
UGR19
LED Type
SMD 4014
Driver
Philips
Orientable
No
Use Outdoor
No
Temperature range
-18°C ~ +55°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Discount
Professional lighting
Professional lighting up to 80% off
Professional lighting up to 80% off

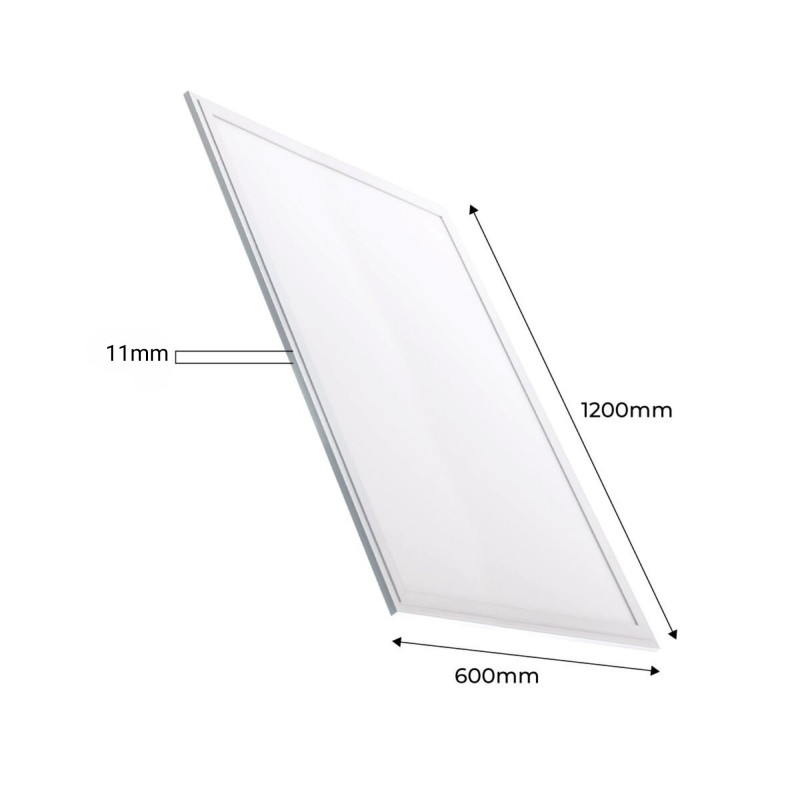

LED Panel dimensions
120x60
Questions
| P: Question: | Hello because it comes with 2 drivers? I have k join the drivers to each other and then strip to the light k me out of the ceiling? |
|---|
| R: Answer: | Hi, it comes with two drivers to have a better power distribution and heat dissipation and the LEDs have a much longer lifetime. You have to join the two neutral wires and the two phase wires separately (the neutrals on one side and the phases on the other side) and connect it to the power. thank you very much!
Barcelona LED: Sergi| 05/11/2024 |
|---|
| P: Question: | do you have an assembly kit and what is its reference |
|---|
| R: Answer: | The surface kit for the 120x60 panel is ref. B4271-120x60. |
|---|
| P: Question: |
To place in plaster ceiling, are the staples included? Thank you |
|---|
| R: Answer: | No, panel clips are additional |
|---|
| P: Question: |
Good morning, Does this led panel come with TRIAC dimmable driver or is it necessary to change the driver that comes with the panel to get a dimming? Thank you and best regards, Jaime |
|---|
| R: Answer: | The driver is not dimmable, it must be replaced by a TRIAC dimmable driver. This panel has two drivers. |
|---|
| P: Question: | Do I need the fastening clips to place it in a false ceiling panel? |
|---|
| R: Answer: | You can put the 60x60 panel staples, the kit is 4 staples, B4225-2. |
|---|
| P: Question: |
Hello, what UGR is it? It would be for an office installation and I need UGR 19. Do you also have it in 60x60. I want them with aluminum brand. Gracies |
|---|
| R: Answer: | Hello, The UGR is the "Unified Glare Ratio", a value that indicates the degree of glare produced by the luminaires. We have a 60x60cm slim LED Panel with UGR19, reference: B4235-UGR19. |
|---|
| P: Question: | Hello I need to know if I can replace two 36w fluorescent tubes by the plate and if the illumination will be equal or higher because I will place it in the kitchen to the ceiling is work can be placed, or is only for false ceiling need any more accessories or everything is ready to mount and operate.gracias. |
|---|
| R: Answer: | You need a surface kit in addition to the led panel with reference B4271-120x60. |
|---|
| P: Question: |
Hello, good morning I would like to know how many years of warranty do these lights have? |
|---|
| R: Answer: | All our products have a 2-year warranty |
|---|
