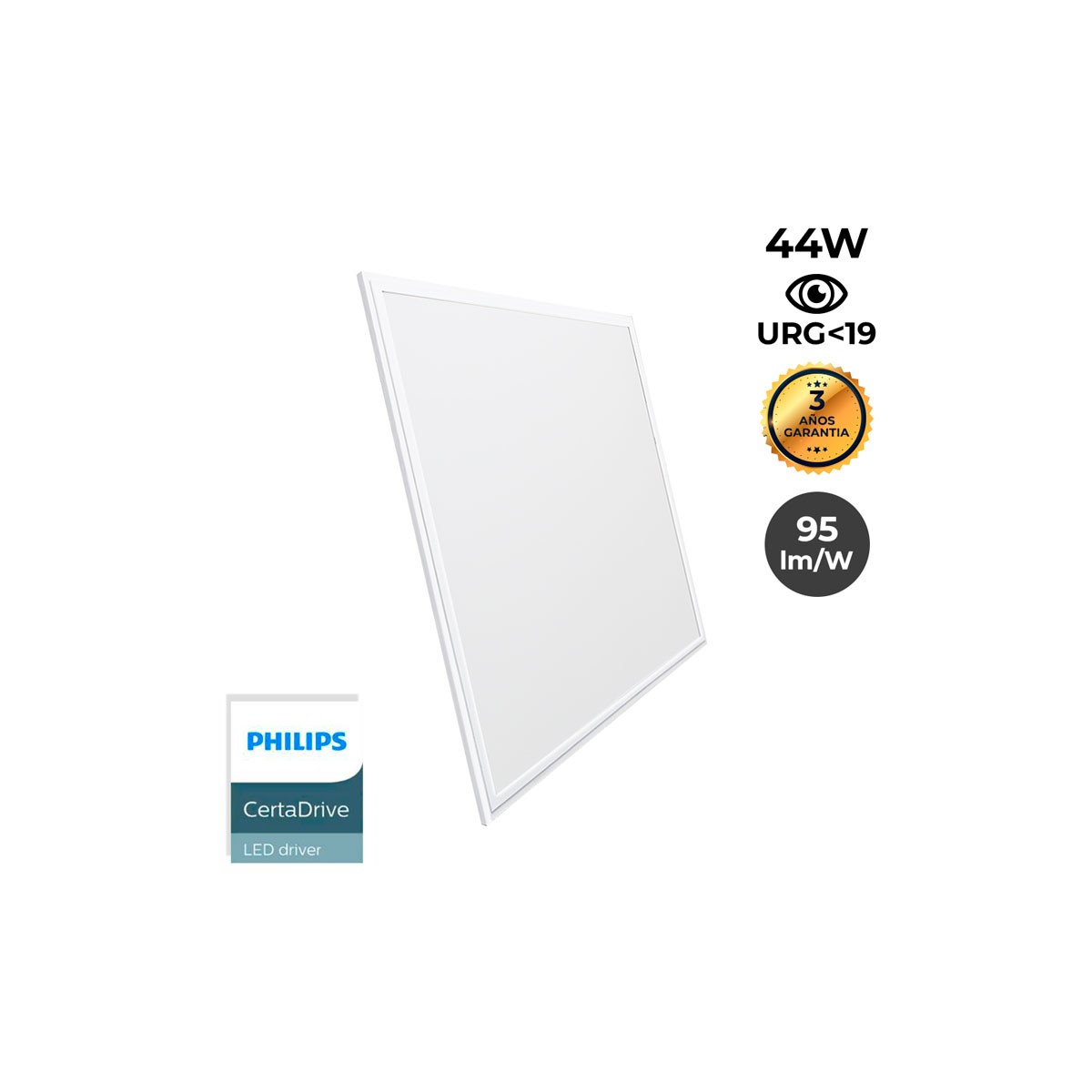

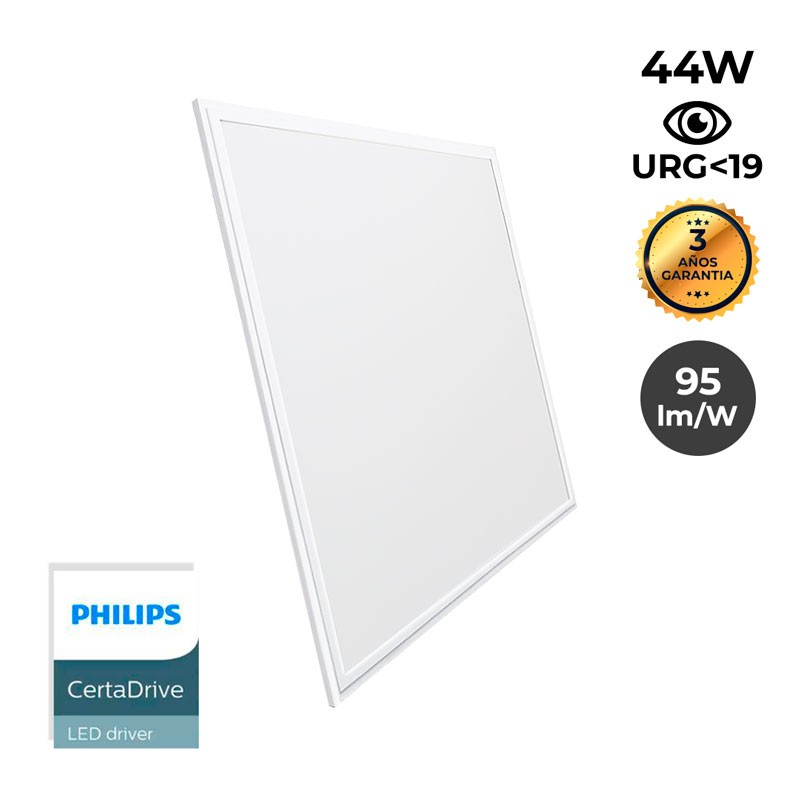

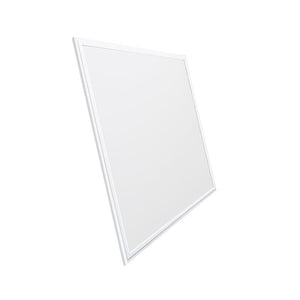

LED panel slim 60X60 cm - Driver Philips - 44W - UGR19
SKU:B5235-BF
€14.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

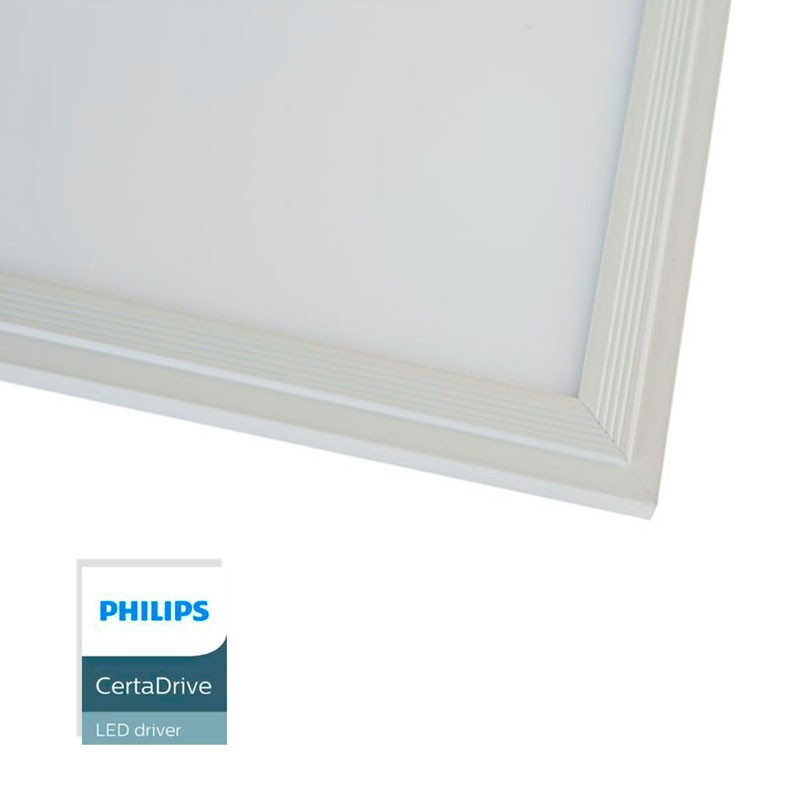

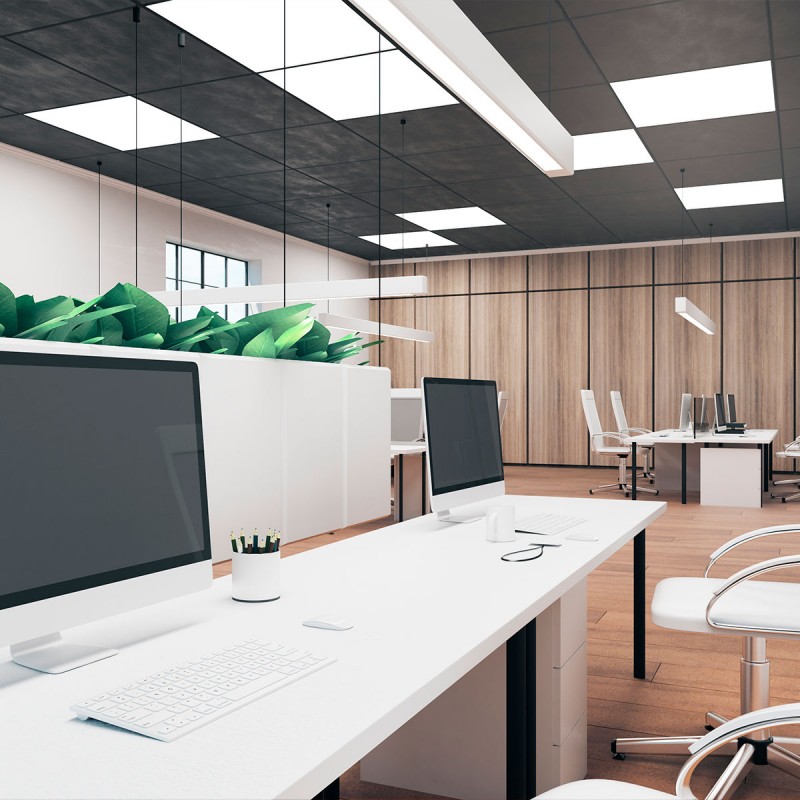

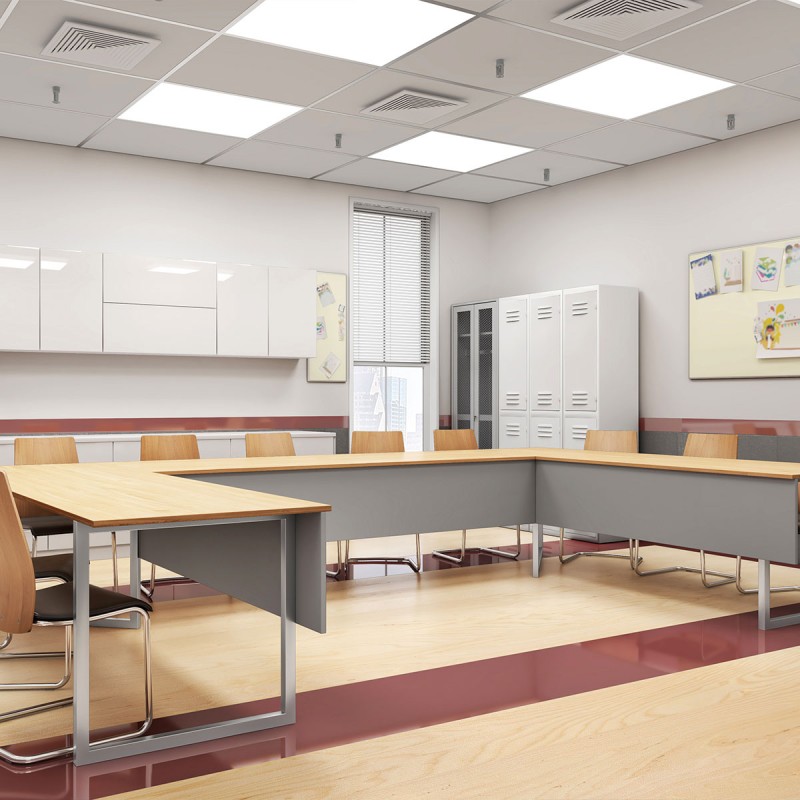

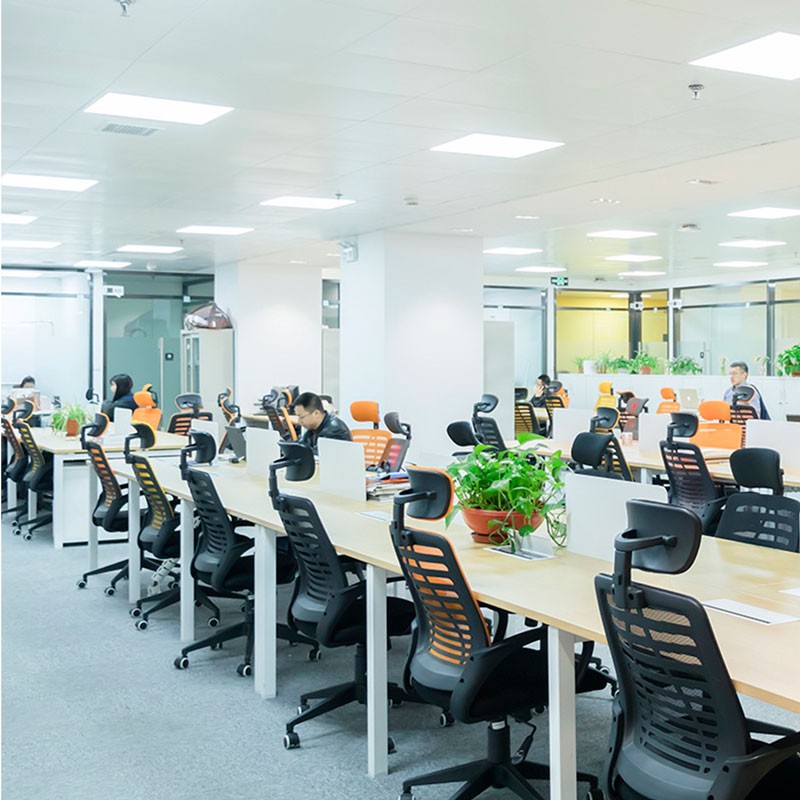

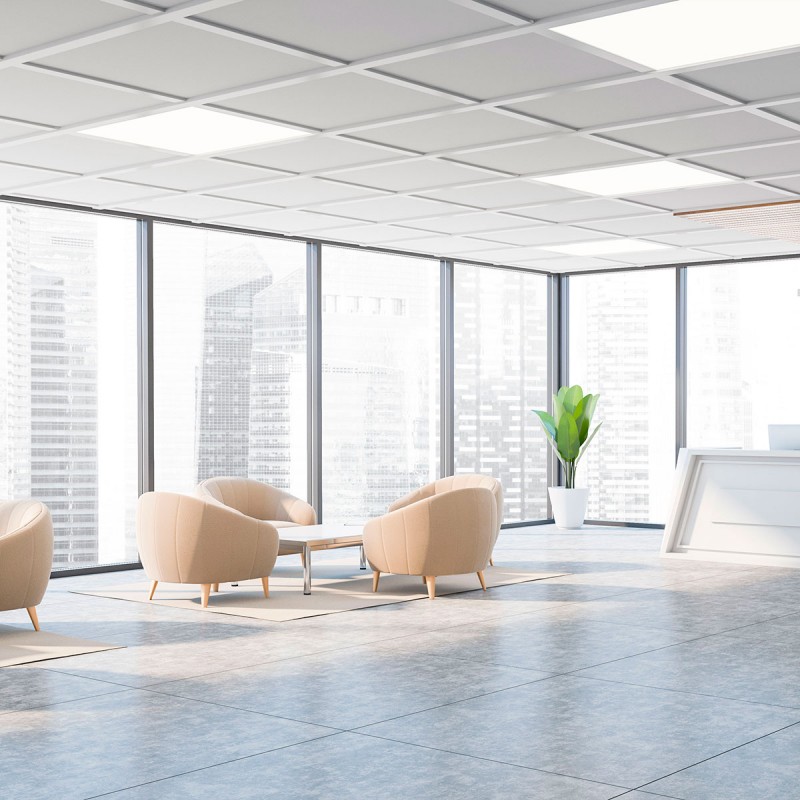

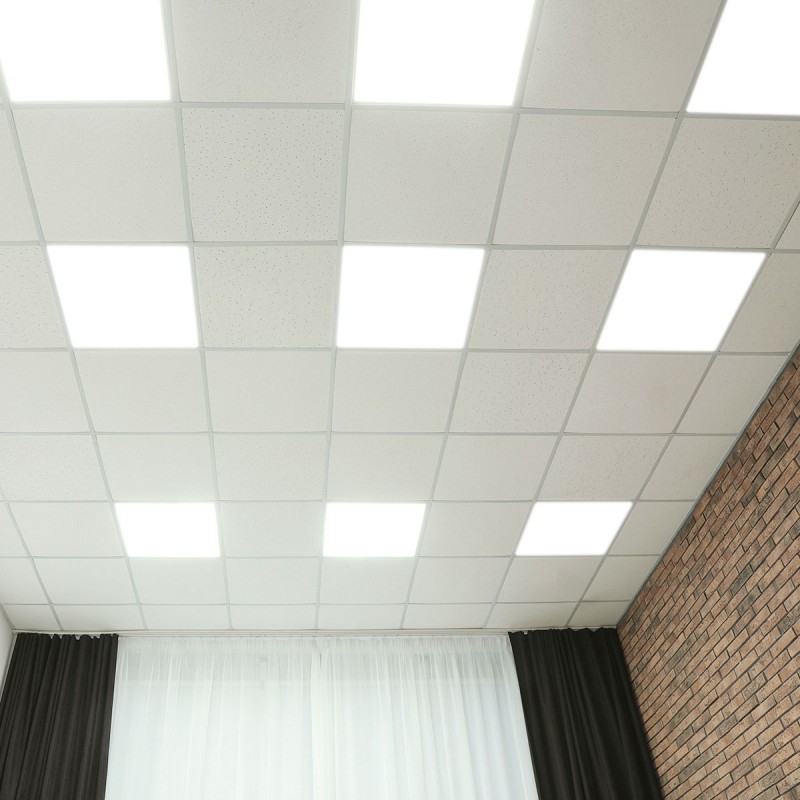

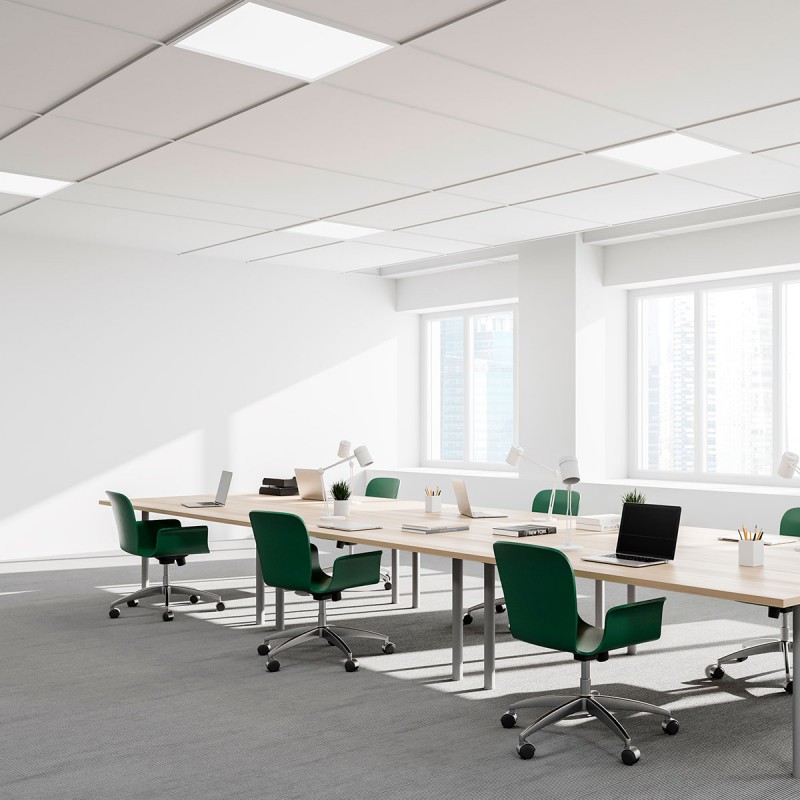

The 60x60cm slim LED panel is designed for recessed installation in suspended ceilings. Its ultra-slim, modern and elegant design is adaptable to any environment.

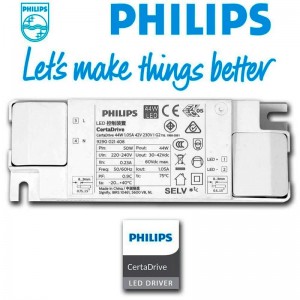

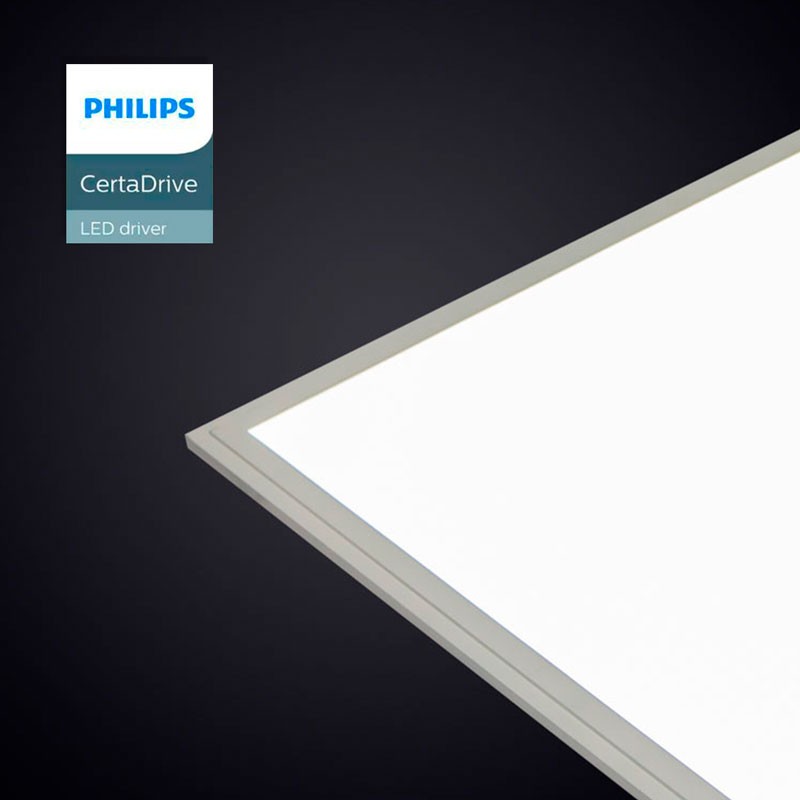

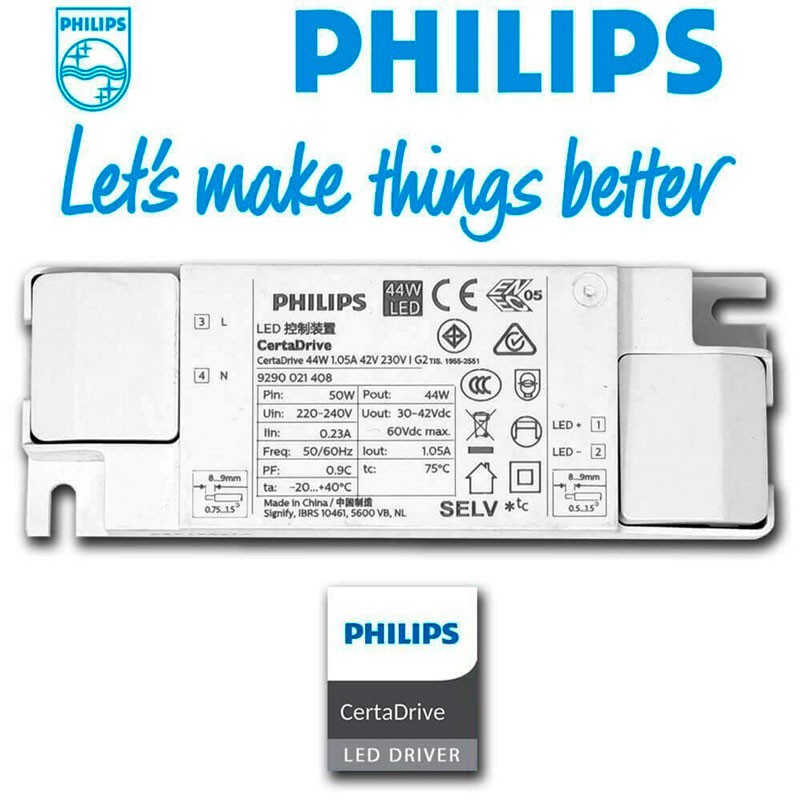

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.

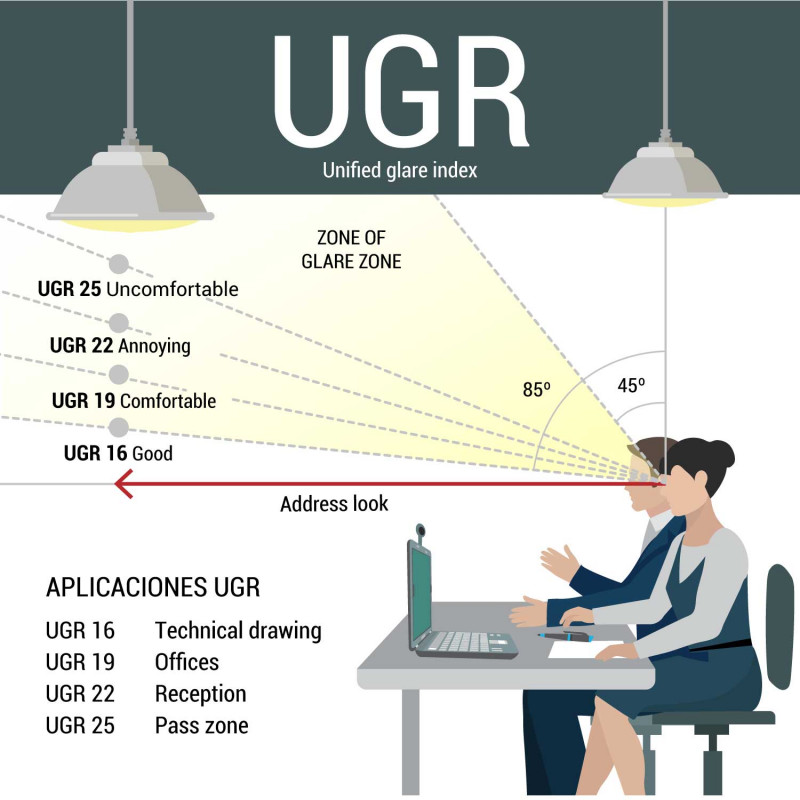

Ensures maximum visual comfort (UGR<19), a condition especially important in work or study environments, where low UGR levels have demonstrated greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 120°. It has 44W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the test reports attached in the "Downloads" section, or contact our sales advisors.

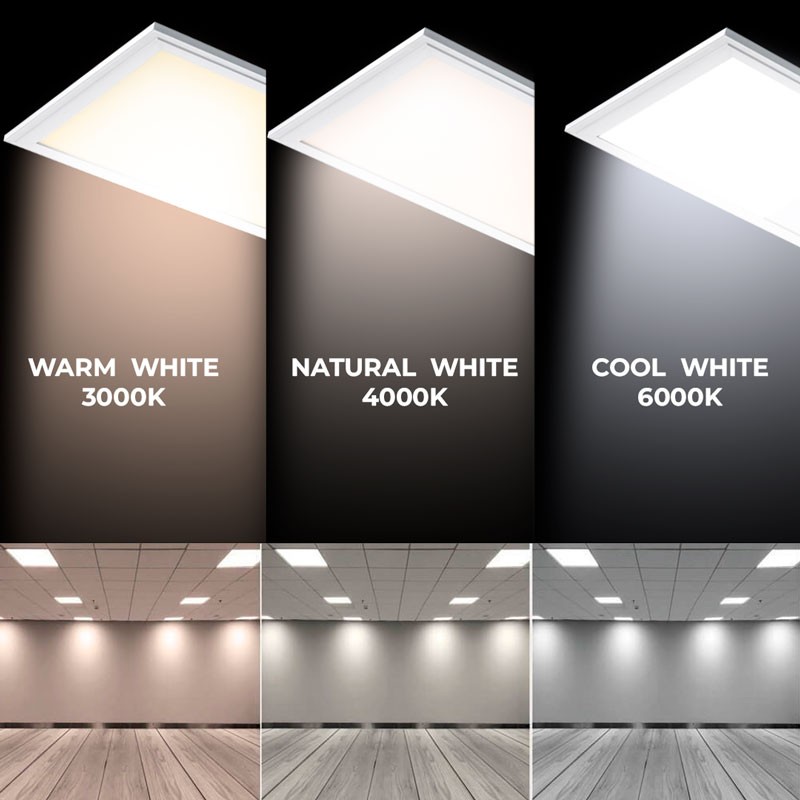

Kelvin (K)
3000
4000
6000
4000
6000
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
95
CRI
80-85
UGR
UGR19
LED Type
SMD 2835
Driver
Philips
Orientable
No
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years

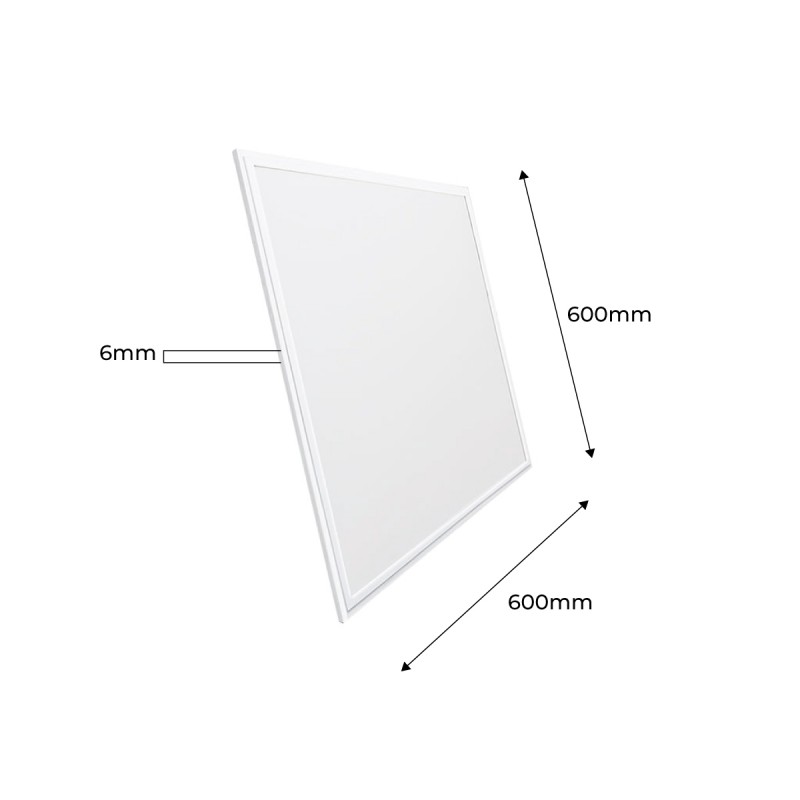

LED Panel dimensions
60x60
Questions
| P: Question: |
Hello Can the panels be installed vertically on a wall? Do I need a special support? If so, what is the minimum distance between the panels? Thank you |
|---|
| R: Answer: | Hello, you can use this accessory to install the panels vertically on a wall. The reference is B4271-60x60. The distance will be given by the width of the accessory frame. Barcelona LED: Santiago| 12/02/2023 |
|---|
| P: Question: |
Hola Amigos. What kind of led panel would be needed to illuminate a meditation room? The light should not disturb the speaker and at the same time, being dimmed, it should be enough to read in the room. Do you have panels of this type? it must be warm light max 2700k. Regards |
|---|
| R: Answer: | The B5235-RGBW panel may be suitable for you. |
|---|
| P: Question: |
Aren't there any larger square ceiling sizes? Type 100x100 ctms I only see 60x60 squares. |
|---|
| R: Answer: | In LED panels we have sizes 30x30, 60x60, 120x30 and 120x60. |
|---|
| P: Question: | Do I need an accessory for the panel and to install it on a 60x60 removable ceiling? |
|---|
| R: Answer: | No need for armstrong ceiling accessories |
|---|
| P: Question: | Includes high quality, high performance, flicker-free GreenSo driver |
|---|
| R: Answer: | No, the driver is a PHILIPS 44W CERTADRIVE driver, but the GreenSo driver is compatible, |
|---|
| P: Question: |
Good afternoon. The references of your catalog B5235-BN and B1271-5-BC, can they be made compatible with philips hue? Thank you very much and best regards. |
|---|
| R: Answer: | They are not Smart luminaires and there is no possibility of driver changes to make them compatible with Philips hue (usually bluetooth or zigbee). |
|---|
| P: Question: |
how much would it cost me 2 panels warm color (to remove ceiling plate and to put it) to be able to regulate it how much would it cost me 4 panels warm color (to remove ceiling tile and put it) to be able to regulate it? how much would it cost me 15 panels warm color (to remove ceiling plate and put it) to be able to regulate it? all I need, I request budget, are 3 different rooms plates, driver, and regulation thank you |
|---|
| R: Answer: | For quotations, orders or purchases, please contact comercial@barcelonaled.com. |
|---|
| P: Question: | Placed at a height of 3.25 cm. in a reading room, will it illuminate correctly? |
|---|
| R: Answer: | It depends on the number of panels and the dimensions of the room, normally they can be separated between 120cm from each other. |
|---|
| P: Question: | How to install staples for fixed ceiling installation |
|---|
| R: Answer: | The staples or panel should have a small bracket for fastening to the panel screws and to the spring clip. |
|---|
| P: Question: | How many staples to put to the 60×60 square 2 staples or 4 staples |
|---|
| R: Answer: | Hello José, we recommend putting 4 staples to this led panel, |
|---|
