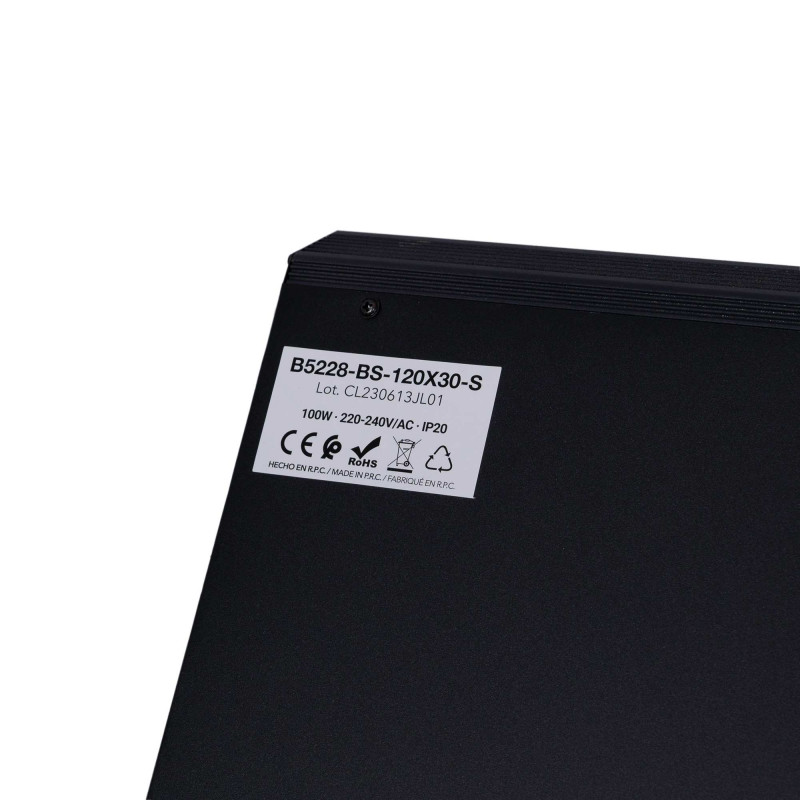

SKU:B5228-BS-120X30-S
Has superado el límite de unidades
In stock 53 units
Data sheet

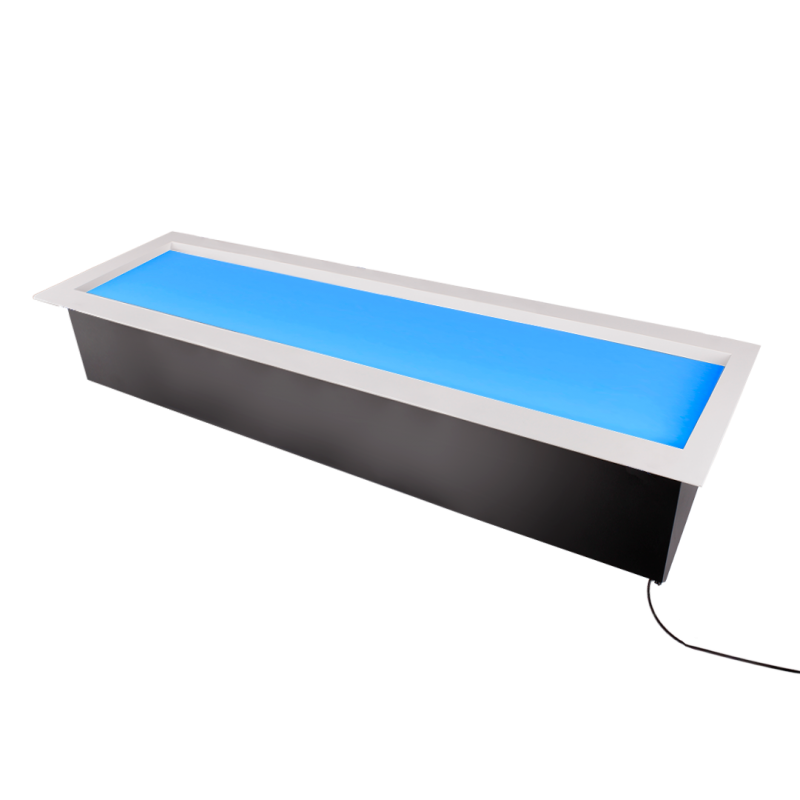

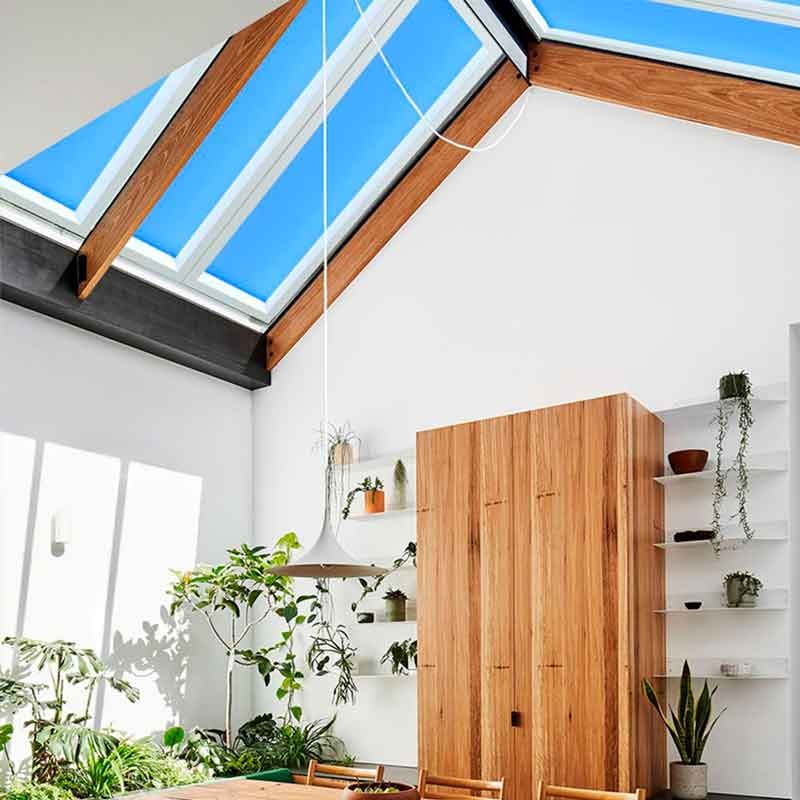

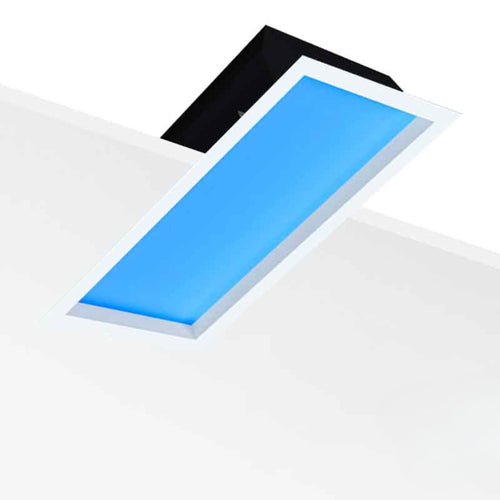

"SMART Blue Skylight" panel of 120x30cm, with advanced technology capable of accurately mimicking sunlight.

In addition, through the TUYA app, it can be programmed to simulate the tones of light that occur throughout a day, from sunrise to sunset, thus accompanying the circadian rhythm.

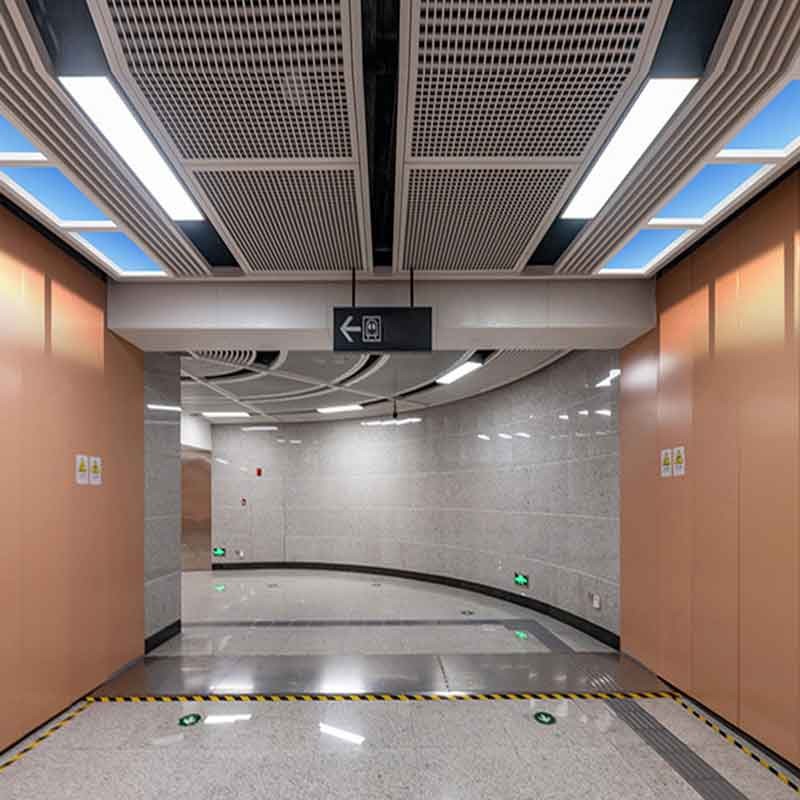

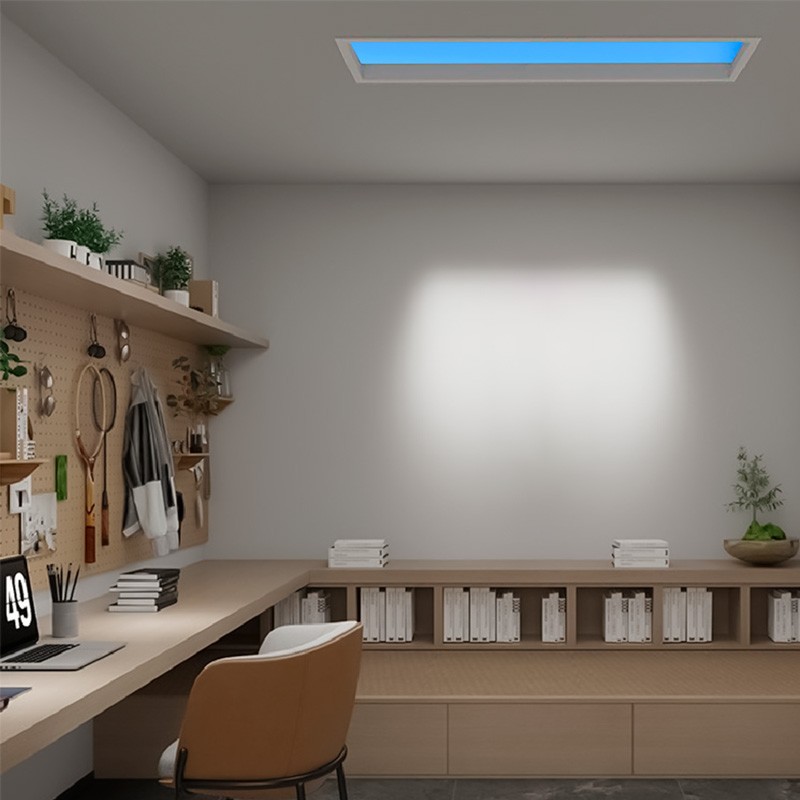

It is a product designed especially for offices, public facilities, underground spaces, and other environments where natural light is limited or unavailable.

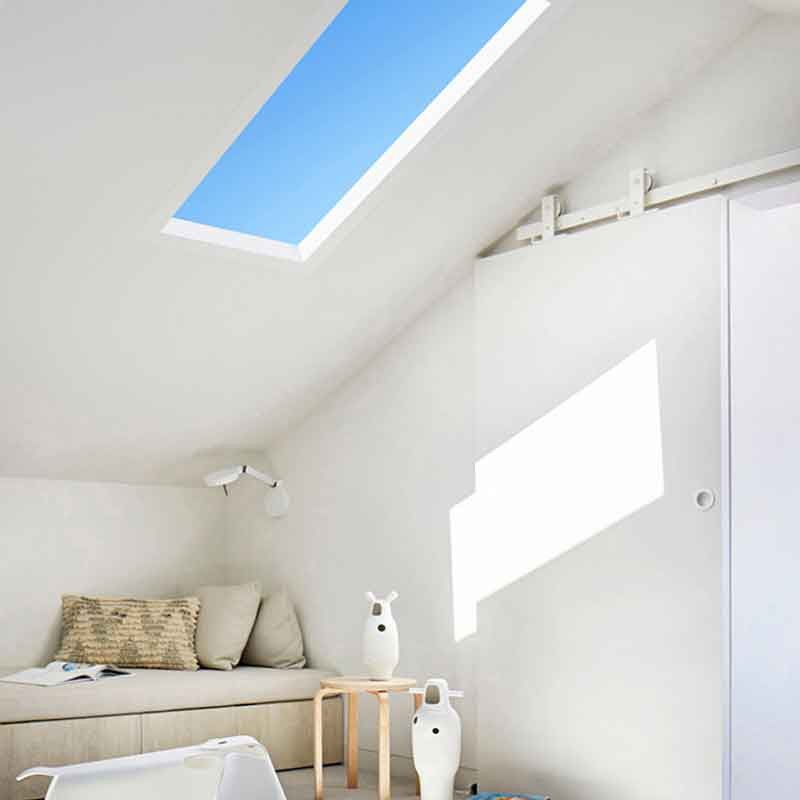

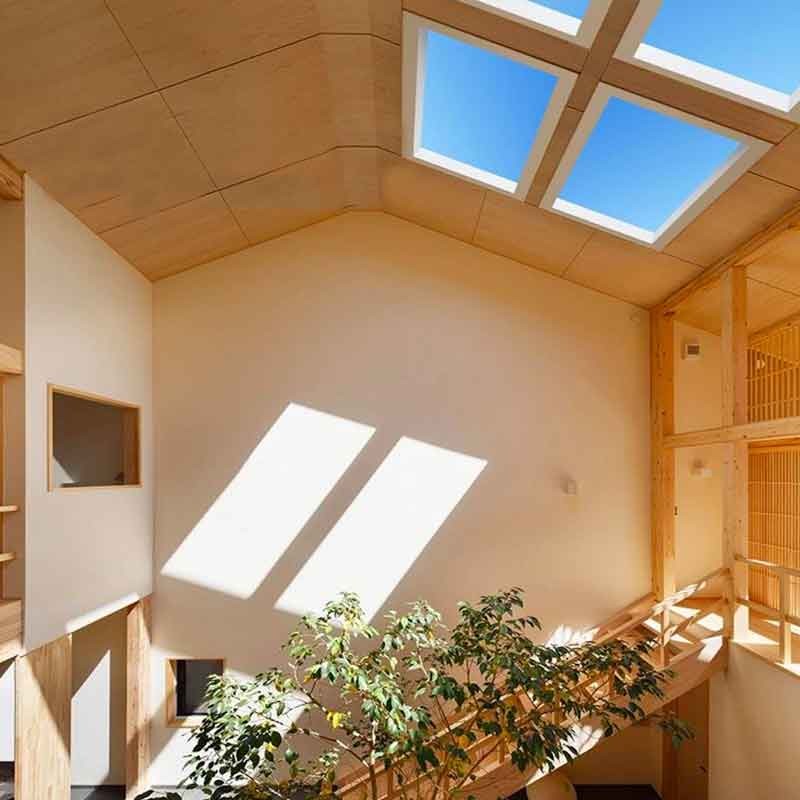

It allows recreating a bright blue sky, establishing a connection with the outdoors, and thereby enhancing the psychophysical comfort of users.

**5-year warranty**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

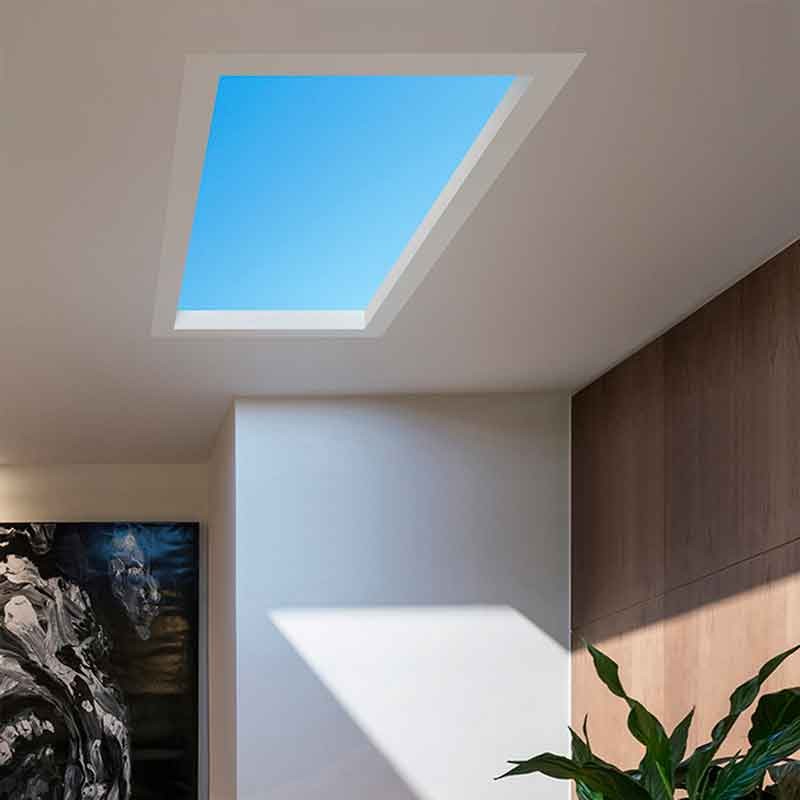

Our innovative "SMART Blue Skylight" panel is able to reproduce the experience of the sky and the sun through an incredible technological combination of high brightness LEDs, optical components and nanomaterials.

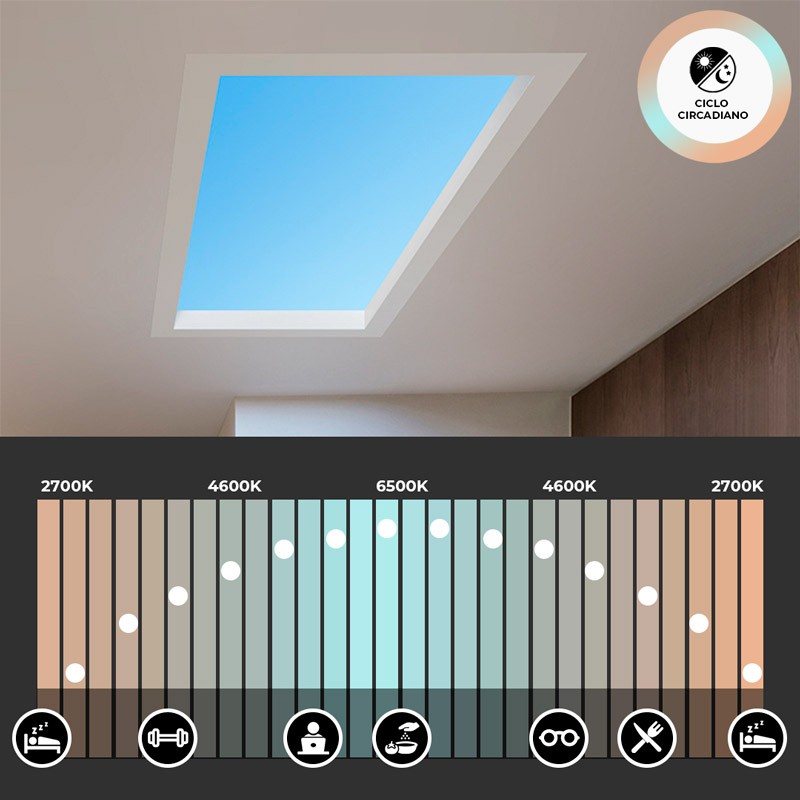

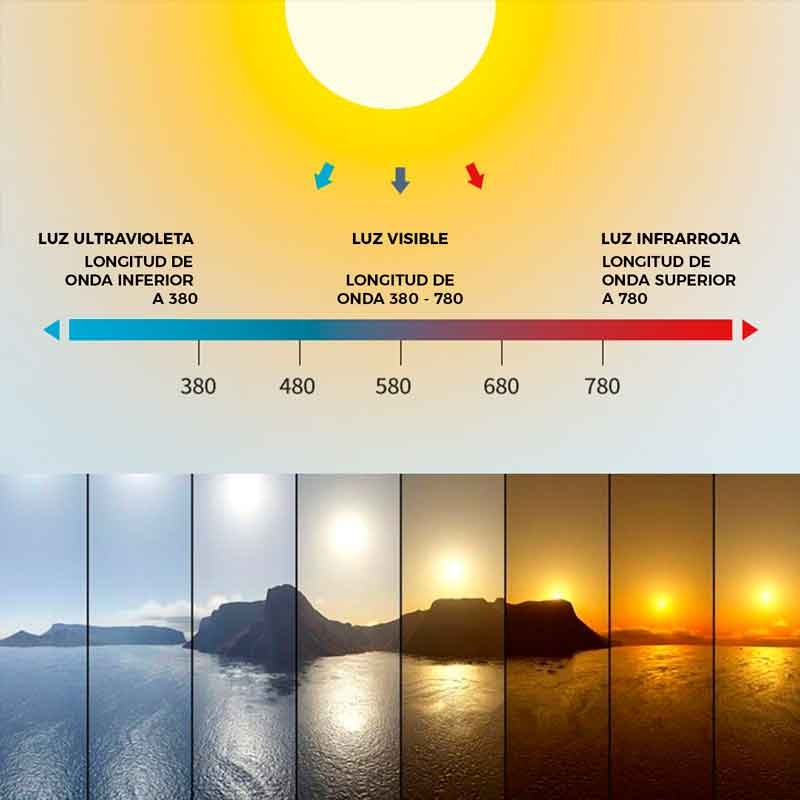

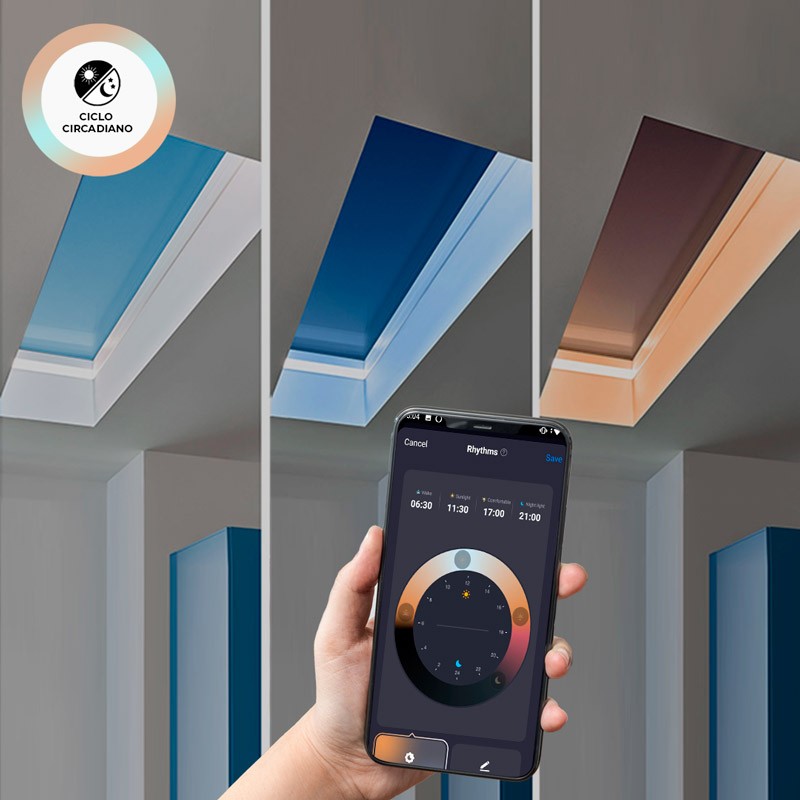

It has the possibility to be programmed through the TUYA application, in order to represent the different shades of sunlight throughout the day. Thus, it emits a warmer shade of light at dawn and dusk, while at midday, it emits a more stimulating light, with a predominance of blue.

By reflecting what happens in nature, this lighting accompanies the circadian rhythm, helping to regulate melatonin and cortisol levels, which translates into various benefits such as: a reduction in stress, a decrease in sleep disorders, an increase in concentration, and therefore, an improvement in the quality of life.

In this way, our "SMART Blue Skylight" panel represents a cutting-edge solution for those environments where natural light is limited or non-existent, contributing to create comfortable spaces that improve the well-being of users.

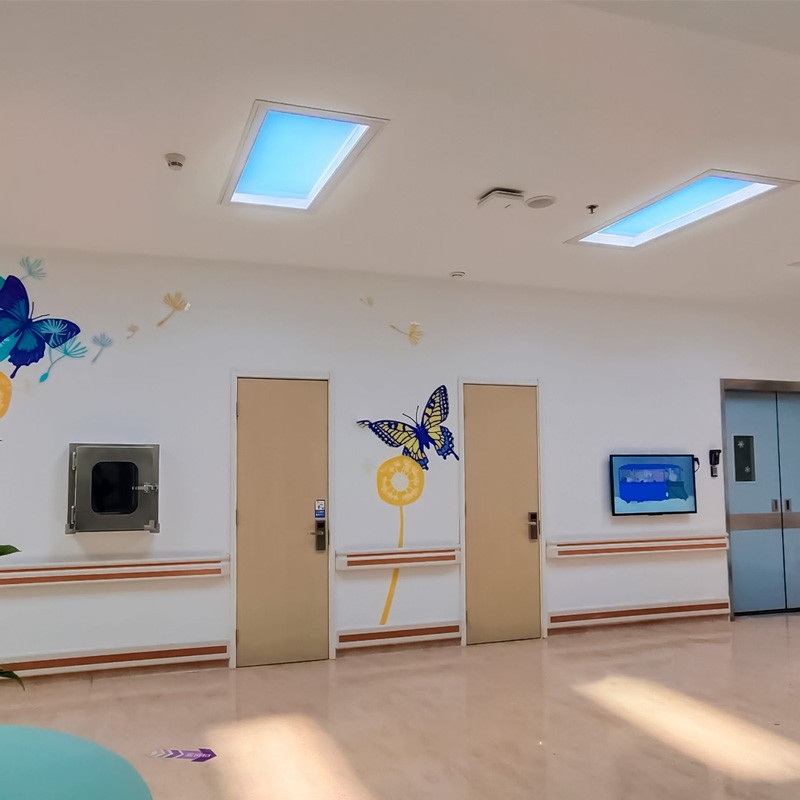

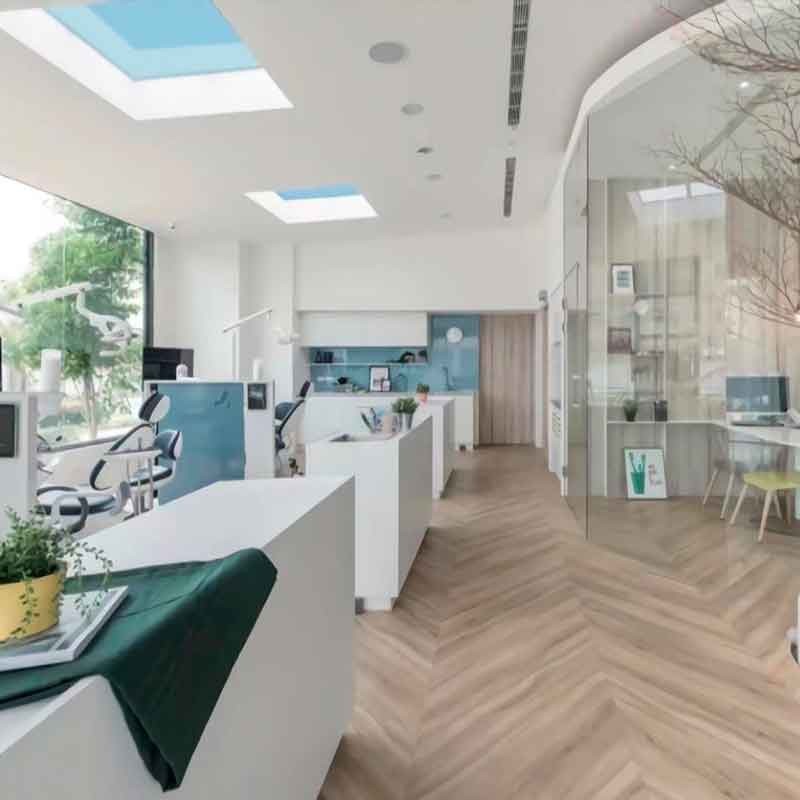

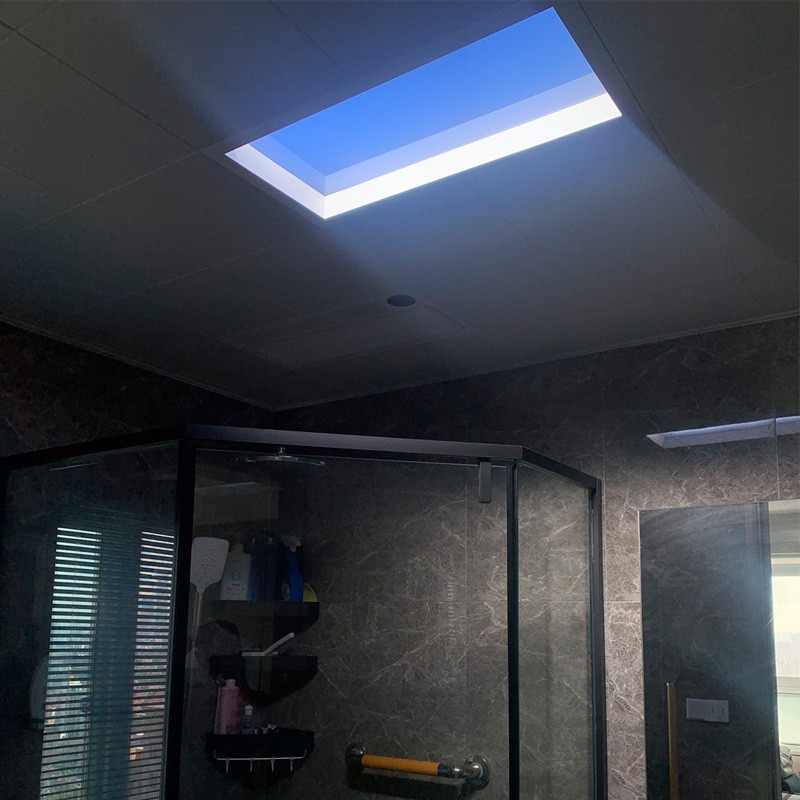

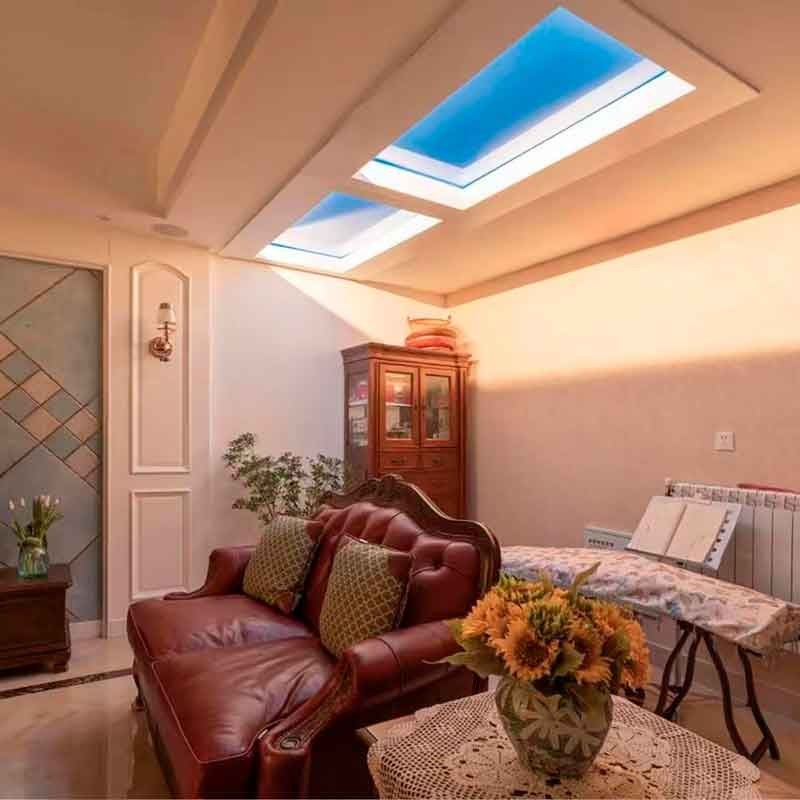

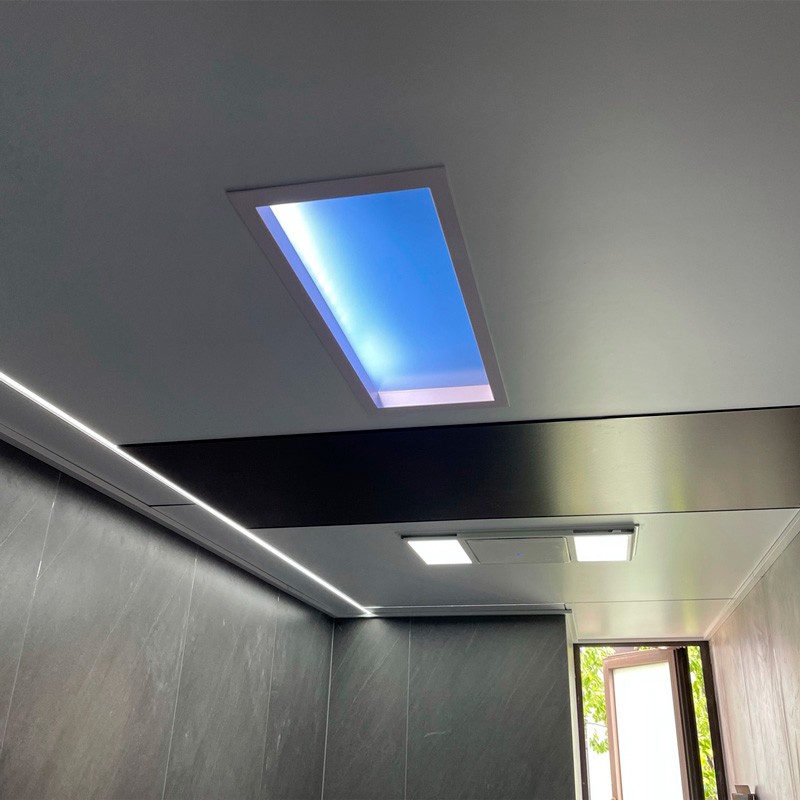

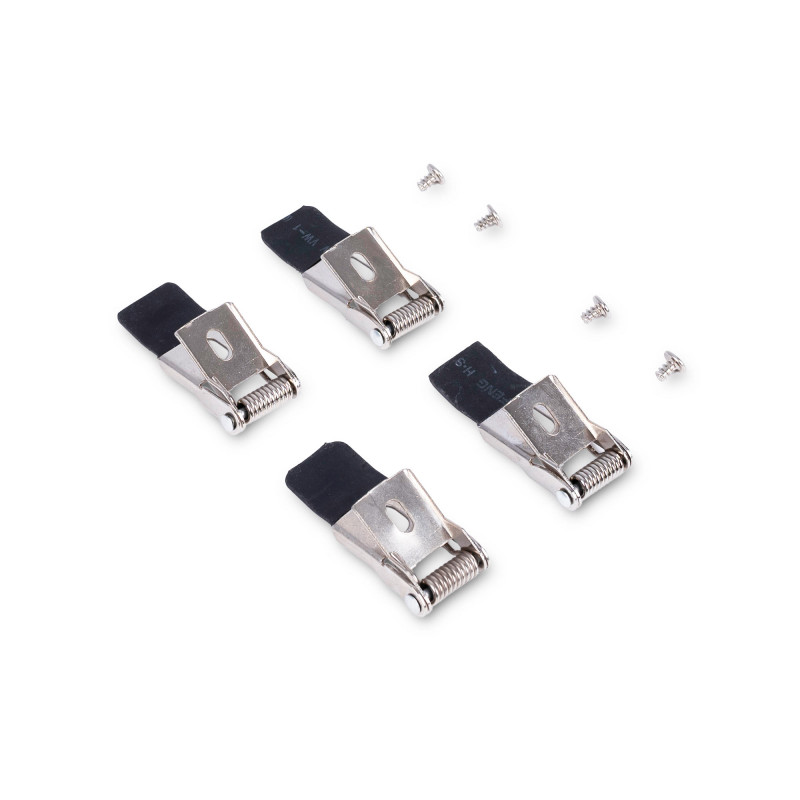

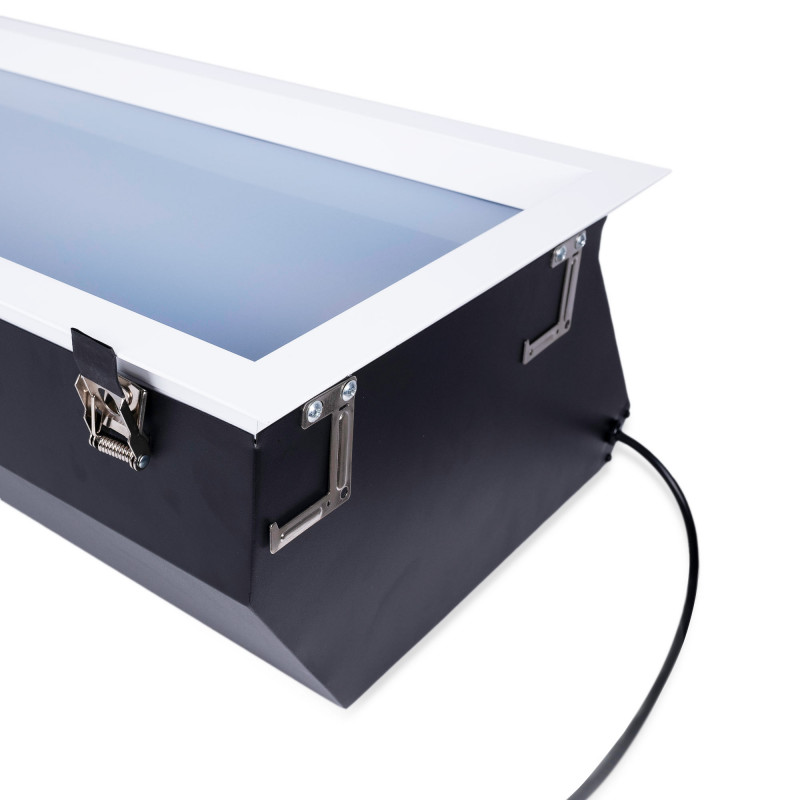

It can be recess-mounted with a simple installation, and its versatility extends to various settings: hospitals, offices, schools, sports facilities, or any commercial or domestic space lacking ample access to natural light.

Connection between the panel and the mobile app:

1. Connect the panel to the mains and switch it on.
2. The panel starts flashing (normal operation). Wait for it to flash automatically (15 to 20 seconds).
3. When the panel stops blinking, it is fully on.
4. Activate WiFi and Bluetooth on the mobile phone.
5. Open the "Tuya App" application, click on "Add device" and then on "Add" to add the WiFi name and password.
Once the connection has been made correctly, click on "Finish".

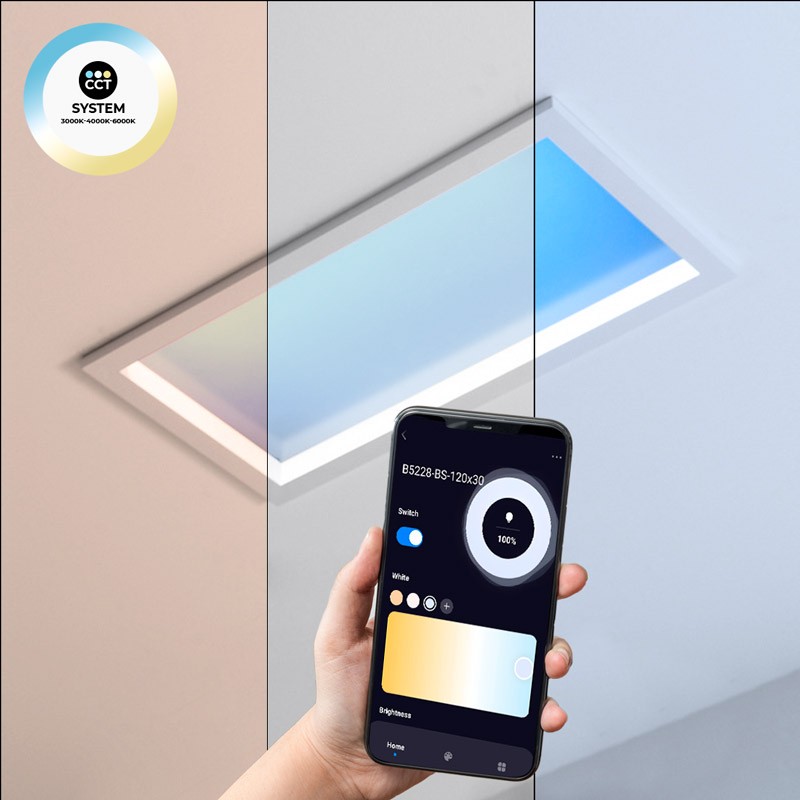

6. Access the configuration interface and freely adjust the color and brightness. It's also possible to turn on and off the panel from this app.

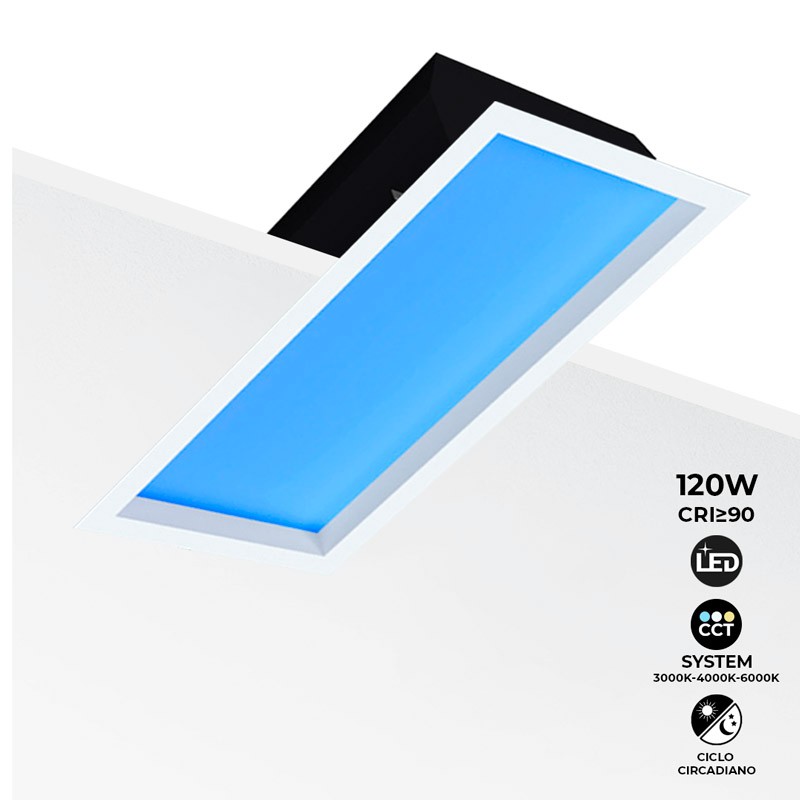

Product features:

  • Innovative technology that recreates the sky and sunlight.
  • Simulates the shades of sunlight throughout the day

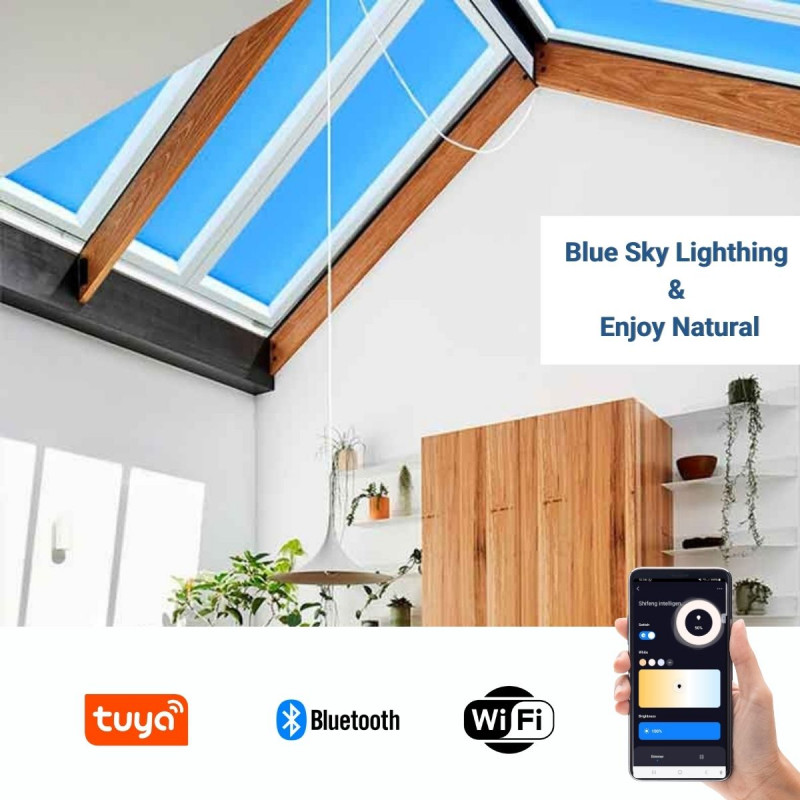

  • Controlled by TUYA application

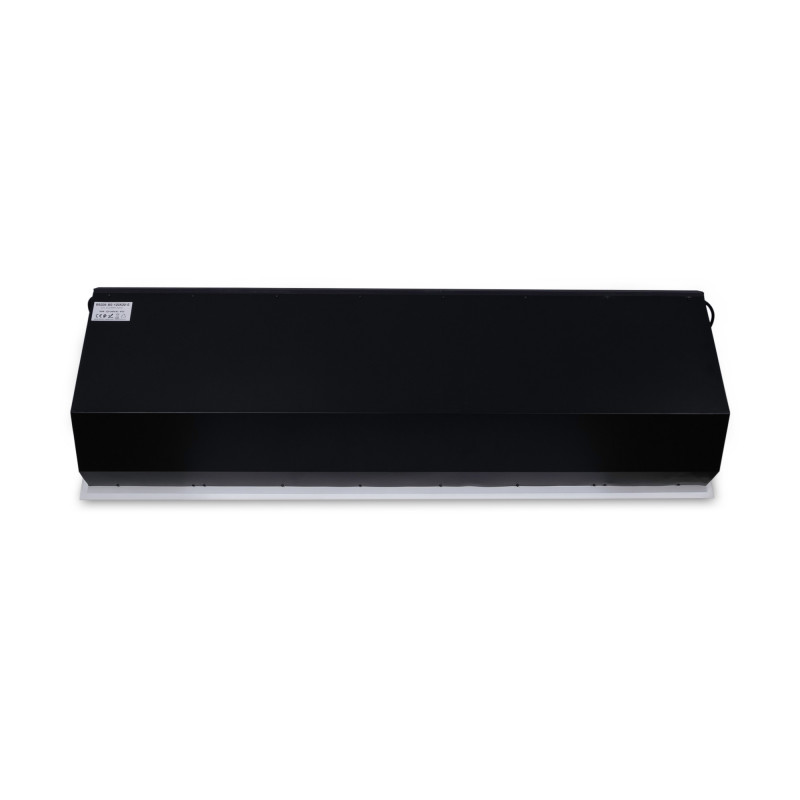

  • Dimensions:1196 x 298 x 192 mm

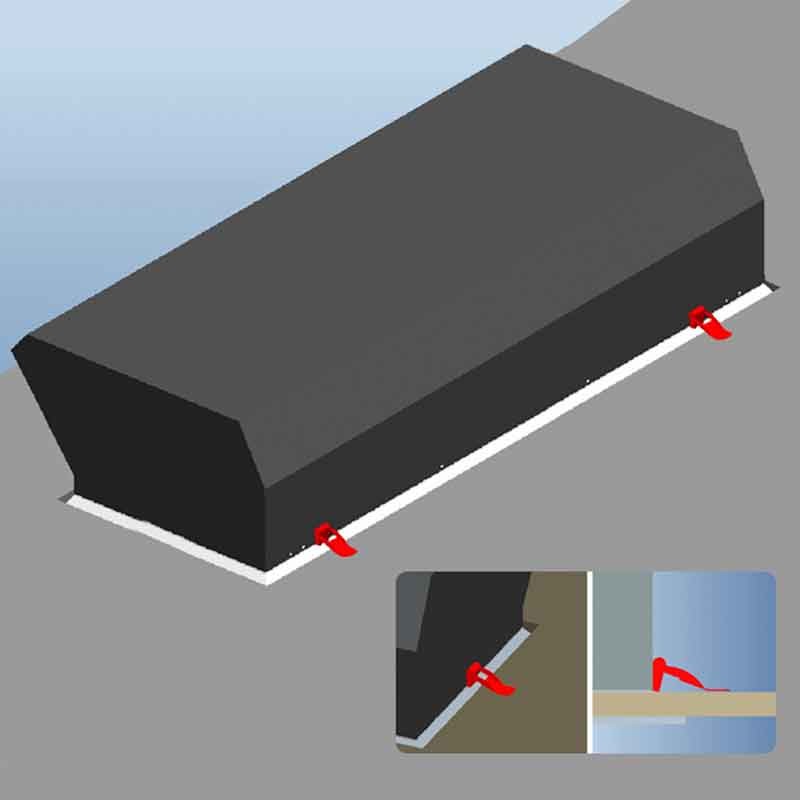

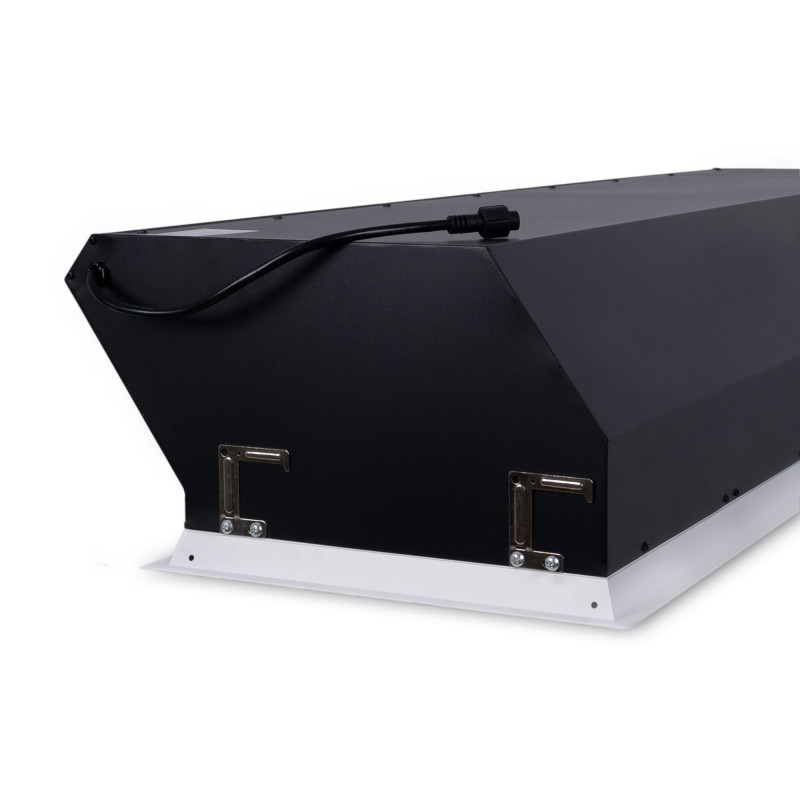

  • Recessed installation
  • Power: 100W
  • CRI > 90
  • CCT shade (2700K - 6500K)
  • Indoor use: IP20
  • Warranty: 5 years
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
100
Beam angle (º)
45º
IP
IP20
Dimensions (mm) Lxlxh
1196 x 298 x 192
Frequency (Hz)
50 - 60
Hue
CCT
Dimmable
No

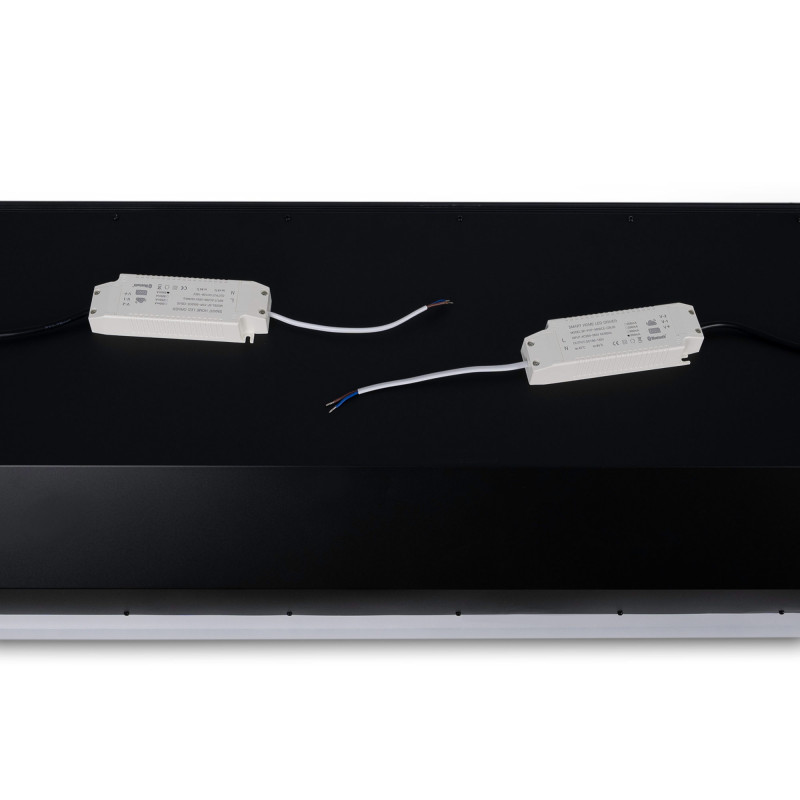

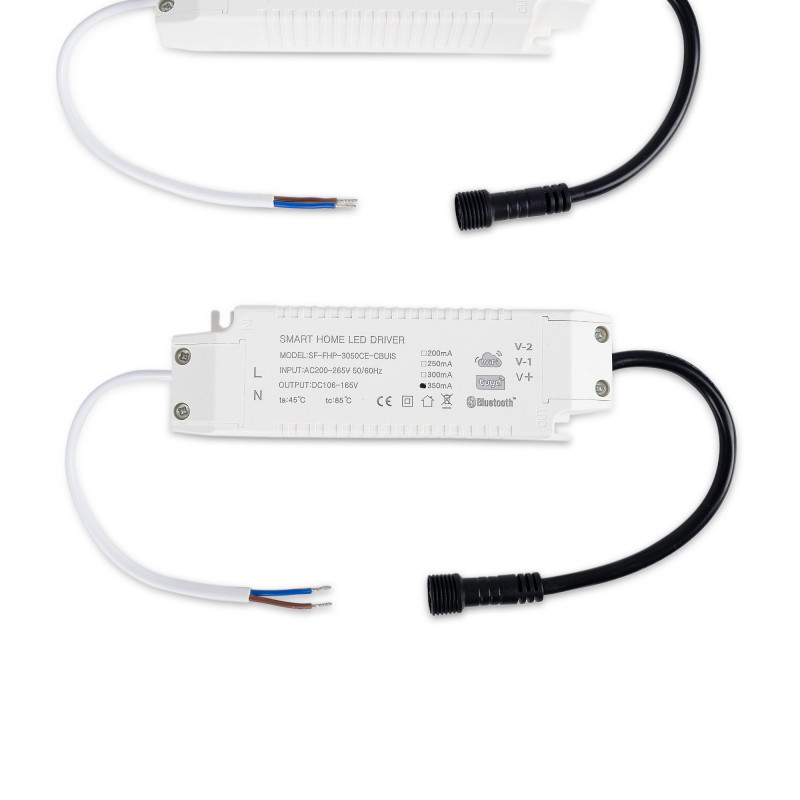

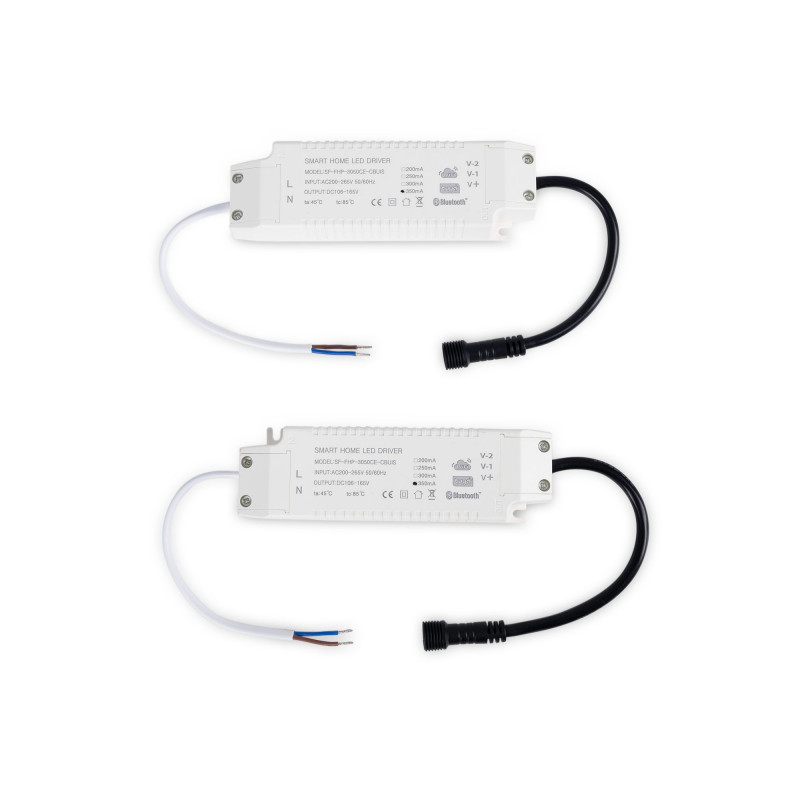

Driver
External
Cutting dimensions (mm)
1180 x 280
Use Outdoor
No
Frequency of use
Normal
Certificates
CE
ROHS
Warranty
5 years
LED Panel dimensions
120x30
Barcelona LED

Questions

P: Question: Hi, I have a couple of questions.
1- What is the weight of the panel? I understand that there is no problem installing it on a standard plasterboard ceiling, or I don't know if reinforcement would be necessary.
2- What optimal installation distance do you recommend to the wall considering that the ceiling has a height of approximately 2.67m? It will be focused towards a sofa and I am looking for a nice feeling but not full light when sitting.
Thank you!
R: Answer: Hello, this panel has a weight of about 7 kilograms approximately, therefore it could be placed in a plasterboard ceiling. This panel is adjustable, so it is very flexible at the time of installation. The light output in this panel is with a particular angle, so it can be directed so that it does not go directly to the sofa, but to the environment in general. Thank you very much!

Barcelona LED: Sergi| 09/10/2024

P: Question: Good morning. And what happens after the hours of useful life have elapsed? Do the LEDs go out? Is it possible to solve it?
R: Answer: Repairs will be valued
P: Question: Good morning, do you have a site where I can see in situ the panel and its effect? Thank you.
R: Answer: It can be seen in the showroom of the Cornella store, you can call the store directly.
P: Question: Hello! Is installation by a professional necessary? If yes, is it possible to hire the installation?
R: Answer: Installation by an installer is recommended if you do not have electrical knowledge. We do not have installers available.

Barcelona LED: Alejandro| 02/05/2023

P: Question: Hi, where is the LED in this product, in the frame or do I see a spot of sun in the blue sky? I have seen this product years ago, but for a very high price, that had a simulated sun in the "window" that created nice shadow effects on the wall. Do you have a video to see the effect of your product?
R: Answer: Hi! The LEDs are placed on the side of the frame directed upwards, you can see the "sun effect" if you look at the blue sky, because the lamp has an optic that produces this effect, and of course this panel creates like a "sun through the window" effect.
The video will be available soon.

Barcelona LED: Alejandro| 28/04/2023
