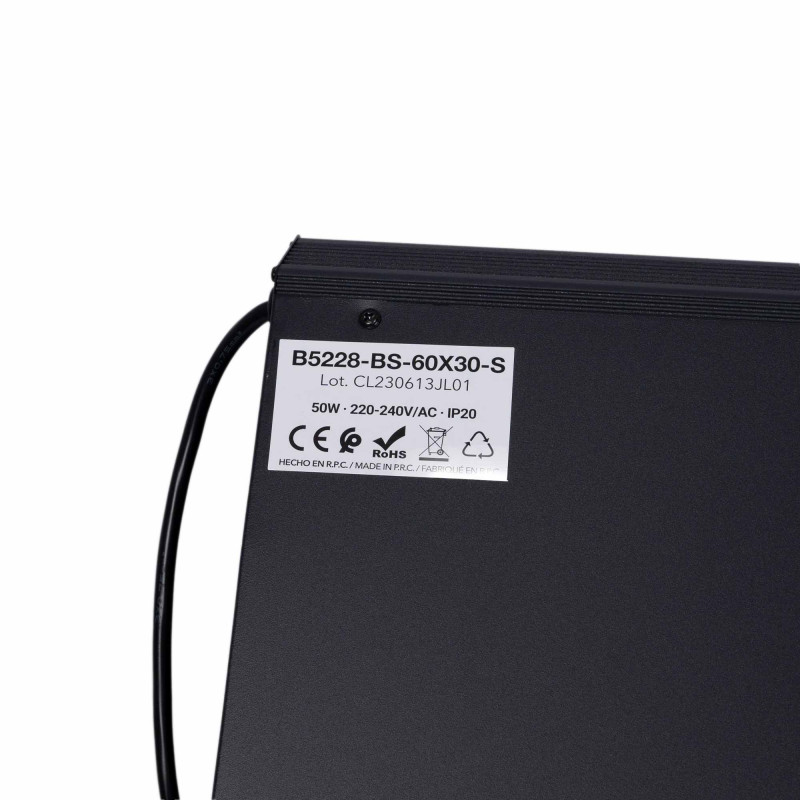

SKU:B5228-BS-60X30-S
Has superado el límite de unidades
In stock 47 units
Data sheet

"SMART Blue Skylight" panel of 60x30cm, with advanced technology capable of accurately mimicking sunlight.

In addition, through the TUYA app, it can be programmed to simulate the tones of light that occur throughout a day, from sunrise to sunset, thus accompanying the circadian rhythm.

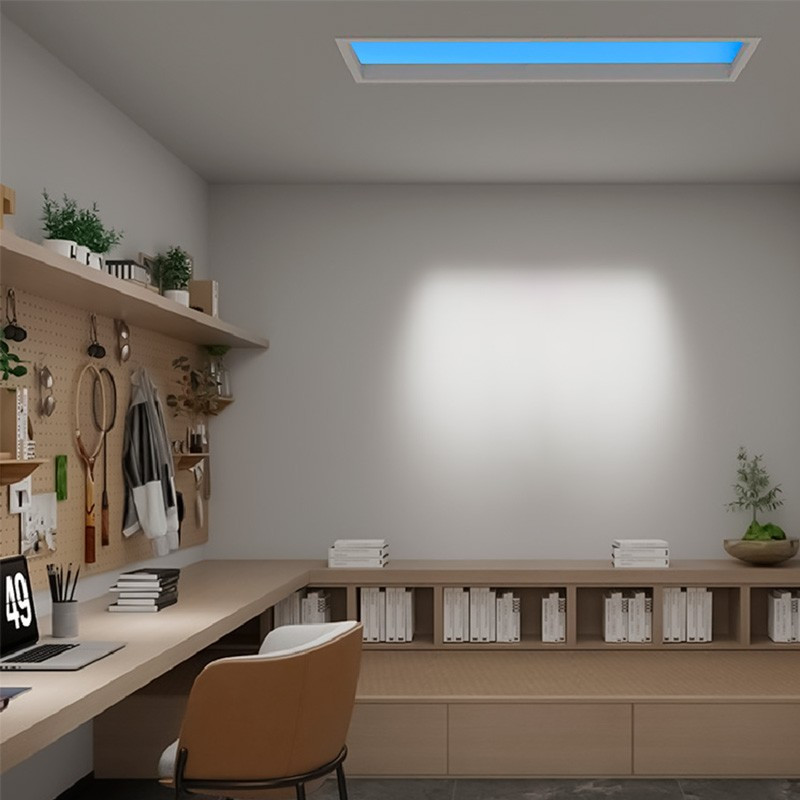

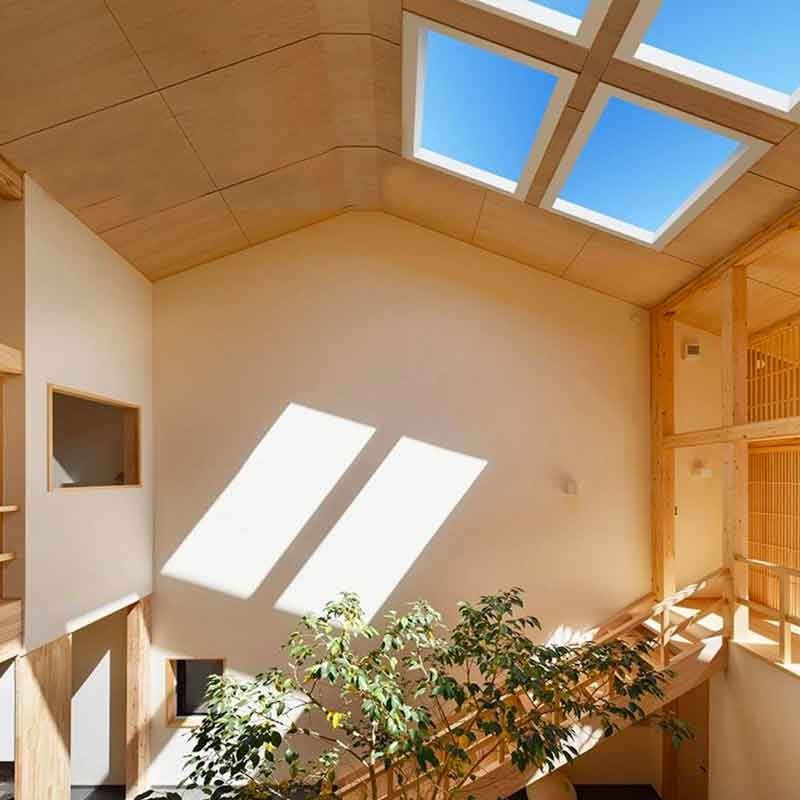

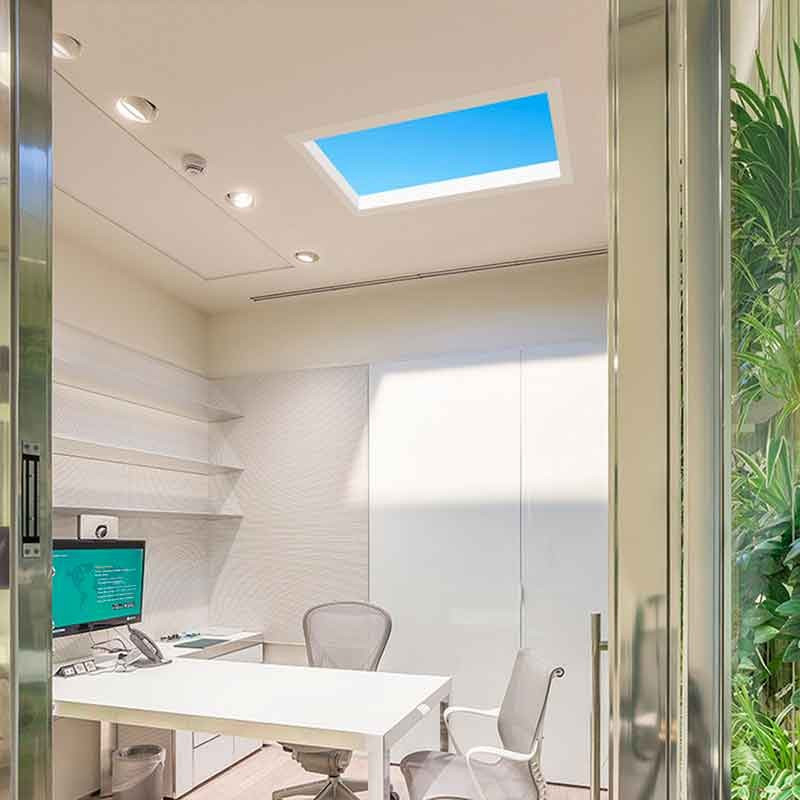

It is a product designed especially for offices, public facilities, underground spaces, and other environments where natural light is limited or unavailable.

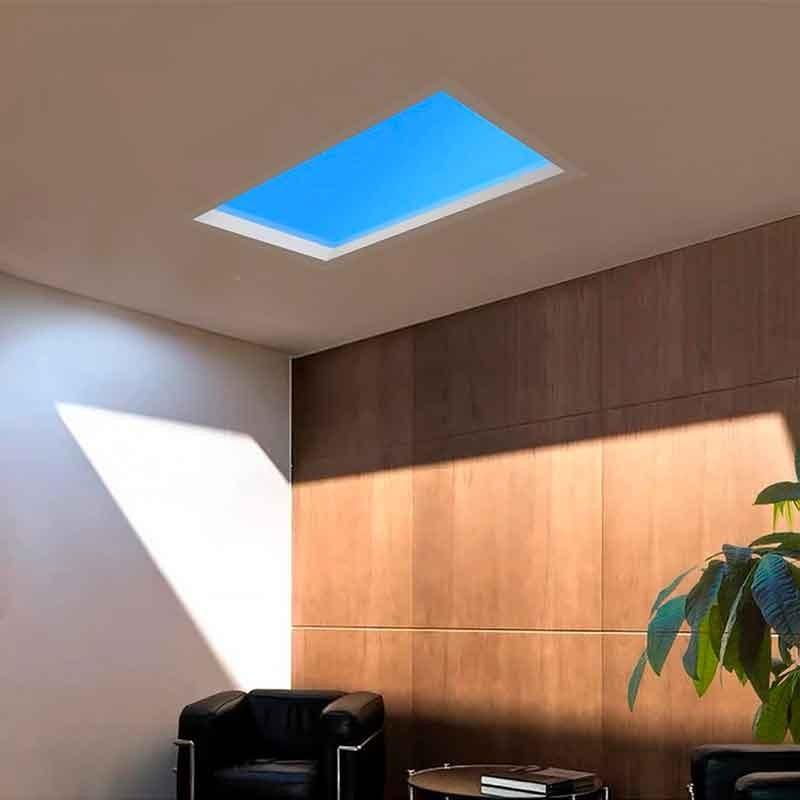

It allows recreating a bright blue sky, establishing a connection with the outdoors, and thereby enhancing the psychophysical comfort of users.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

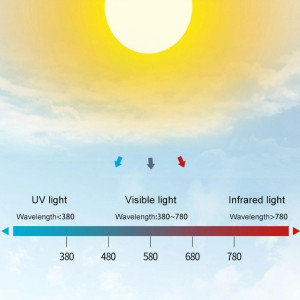

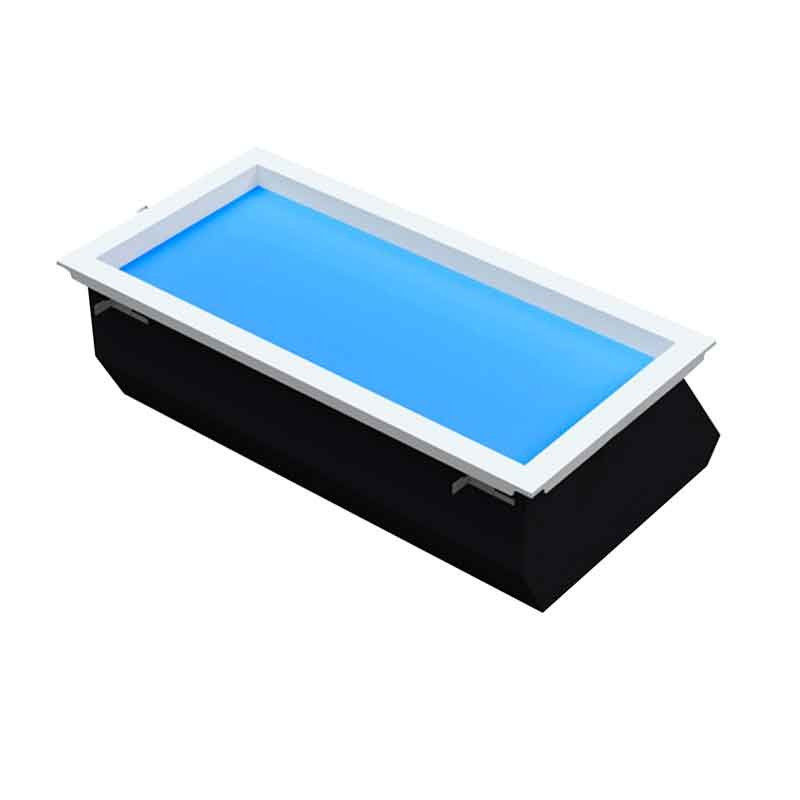

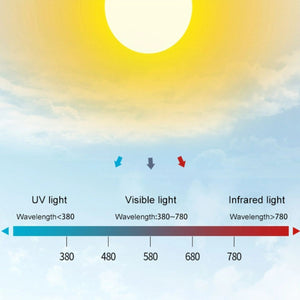

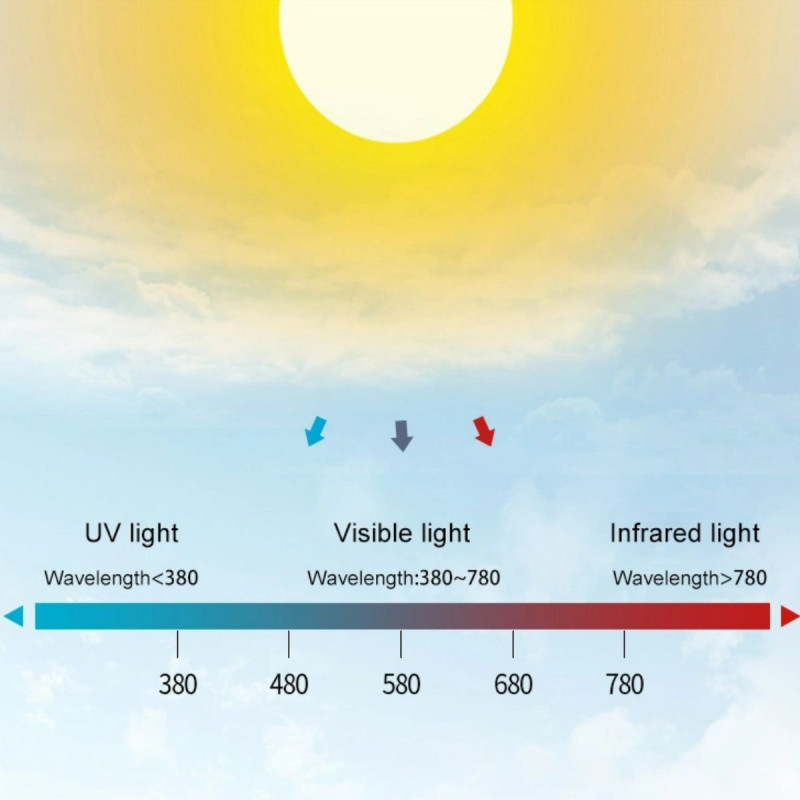

Our innovative "SMART Blue Skylight" panel is able to reproduce the experience of the sky and the sun through an incredible technological combination of high brightness LEDs, optical components and nanomaterials.

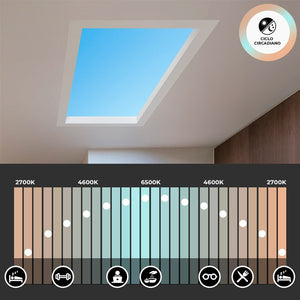

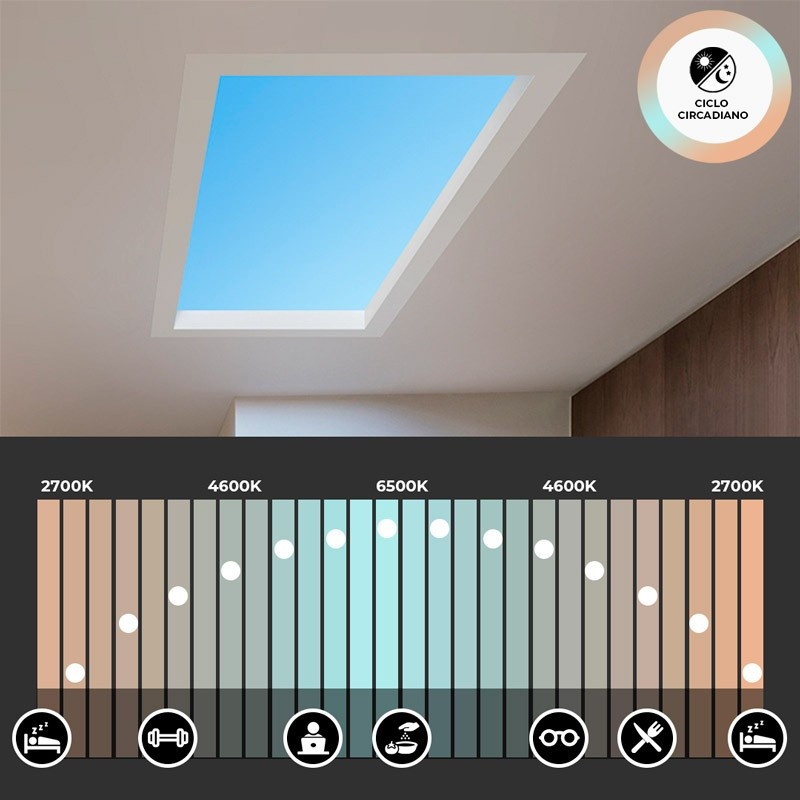

It has the possibility to be programmed through the TUYA application, in order to represent the different shades of sunlight throughout the day. Thus, it emits a warmer shade of light at dawn and dusk, while at midday, it emits a more stimulating light, with a predominance of blue.

By reflecting what happens in nature, this lighting accompanies the circadian rhythm, helping to regulate melatonin and cortisol levels, which translates into various benefits such as: a reduction in stress, a decrease in sleep disorders, an increase in concentration, and therefore, an improvement in the quality of life.

In this way, our "SMART Blue Skylight" panel represents a cutting-edge solution for those environments where natural light is limited or non-existent, contributing to create comfortable spaces that improve the well-being of users.

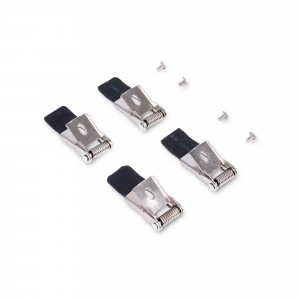

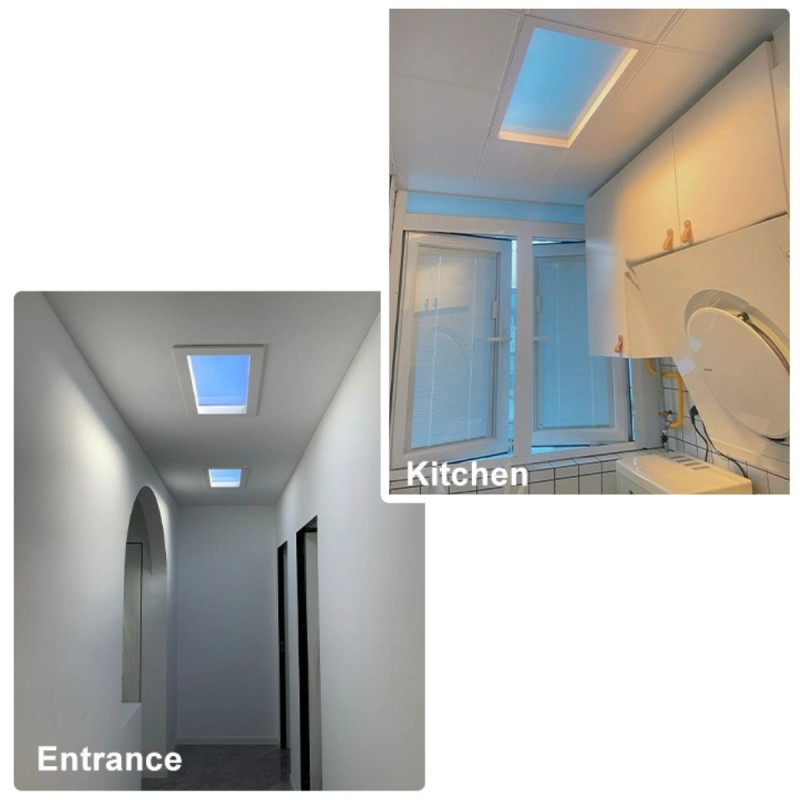

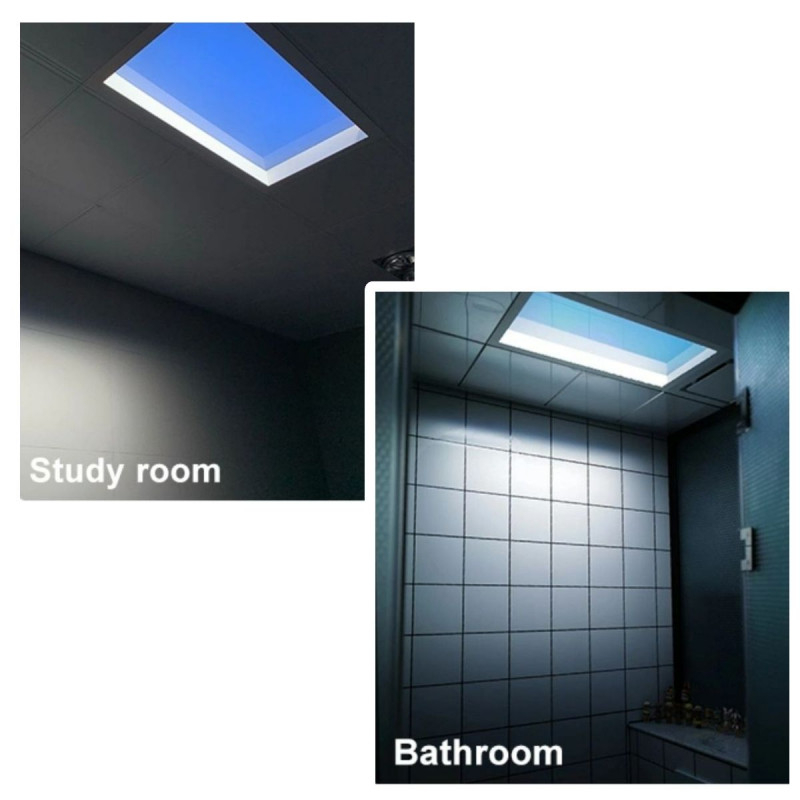

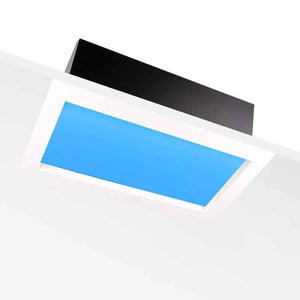

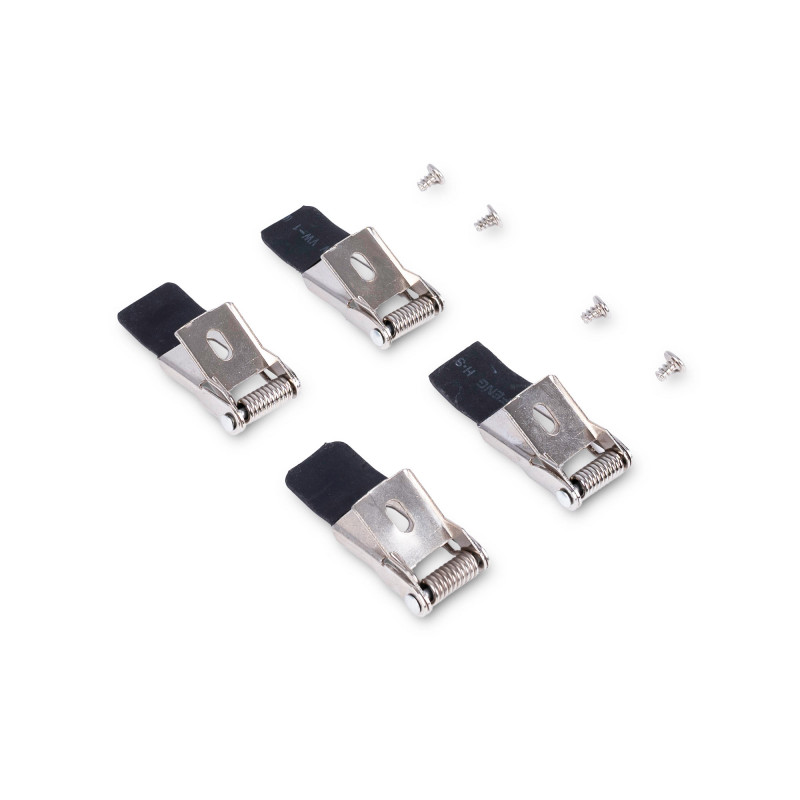

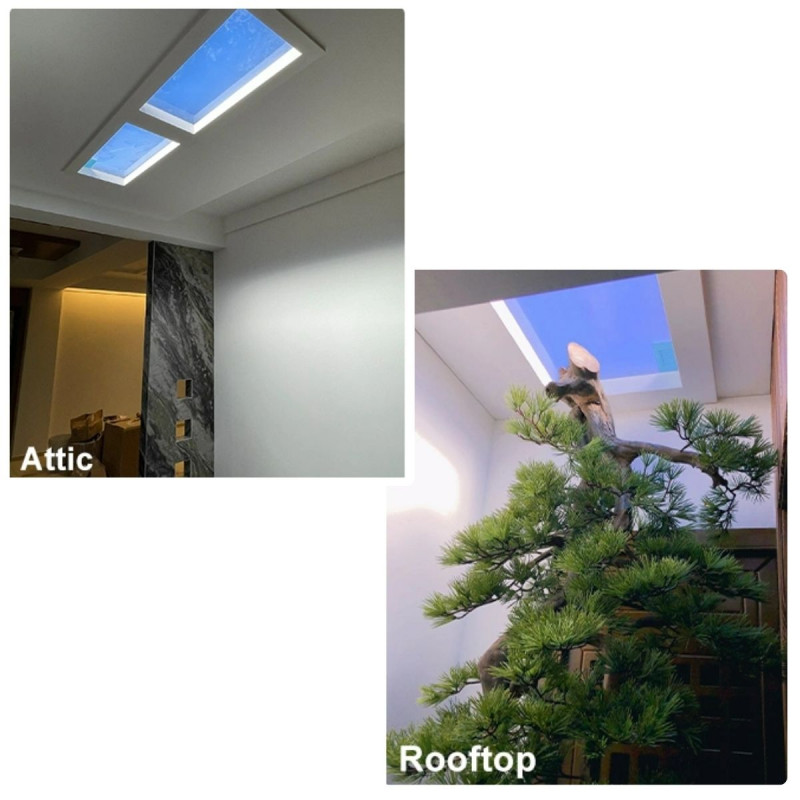

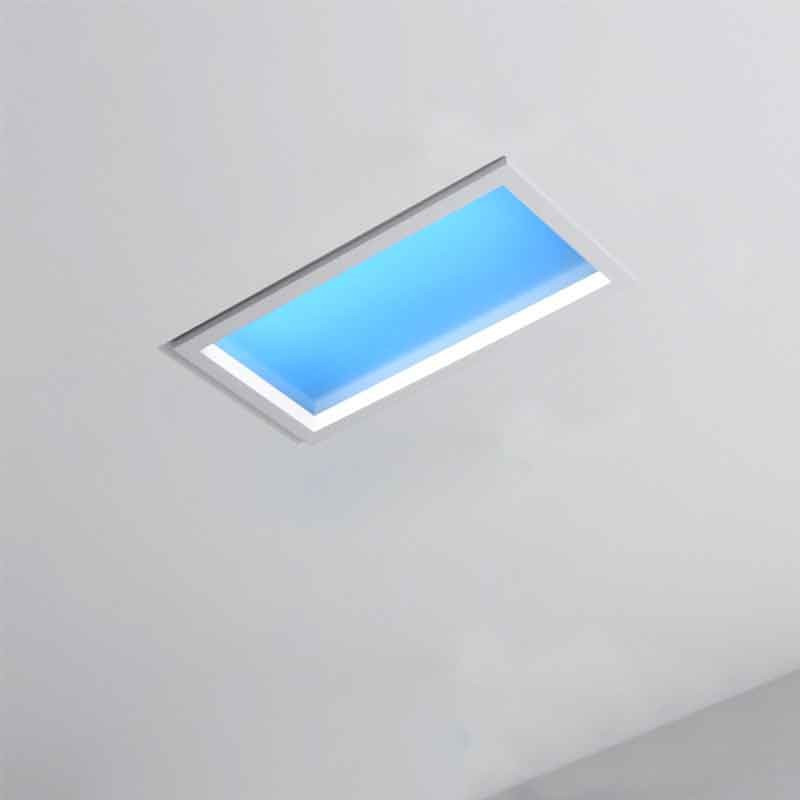

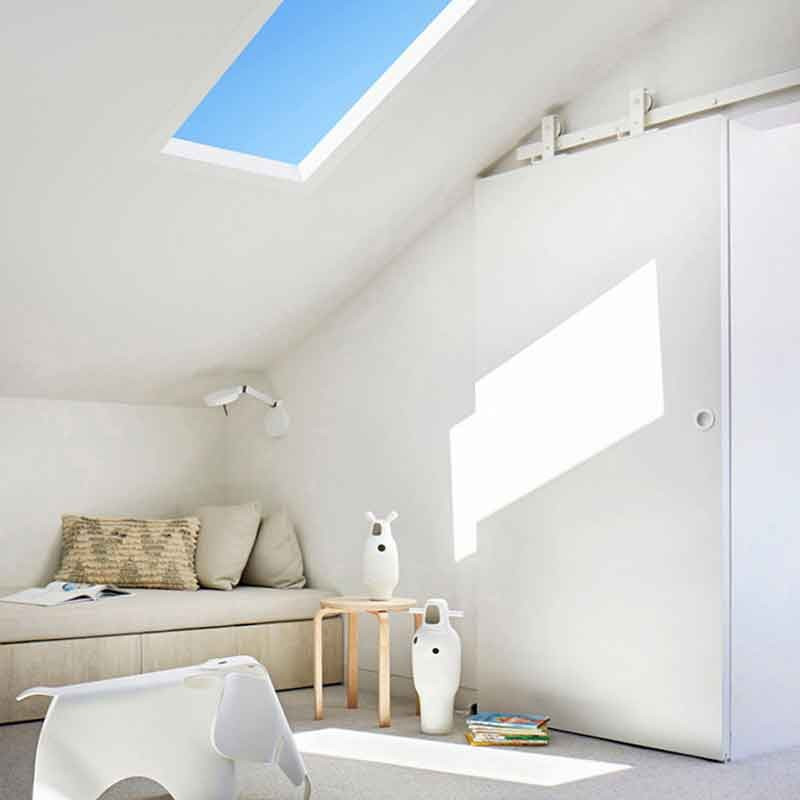

It can be recess-mounted with a simple installation, and its versatility extends to various settings: hospitals, offices, schools, sports facilities, or any commercial or domestic space lacking ample access to natural light.

Connection between the panel and the mobile app:

1. Connect the panel to the mains and switch it on.
2. The panel starts flashing (normal operation). Wait for it to flash automatically (15 to 20 seconds).
3. When the panel stops blinking, it is fully on.
4. Activate WiFi and Bluetooth on the mobile phone.

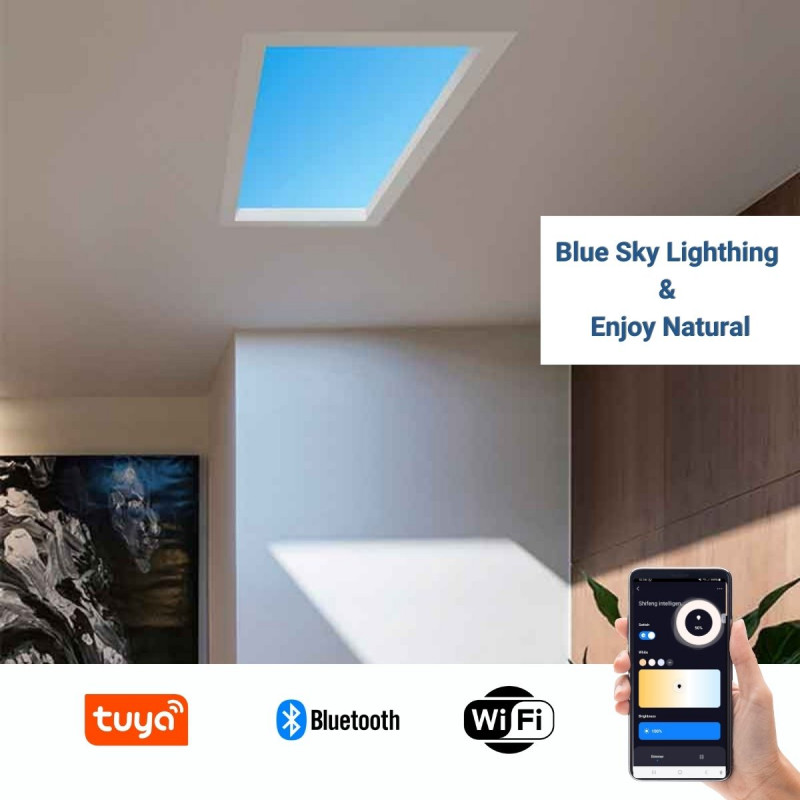

5. Open the "Tuya App" application, click on "Add device" and then on "Add" to add the WiFi name and password.
Once the connection has been made correctly, click on "Finish".
6. Access the configuration interface and freely adjust the color and brightness. It's also possible to turn on and off the panel from this app.

Product features:

  • Innovative technology that recreates the sky and sunlight
  • Simulates the shades of sunlight throughout the day
  • Controlled by TUYA application
  • Dimensions: 596 x 296 x 190 mm
  • Recessed installation
  • Power: 50W
  • CRI > 90
  • CCT shade (2700K - 6500K)
  • Indoor use: IP20
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
50
Beam angle (º)
45º
IP
IP20

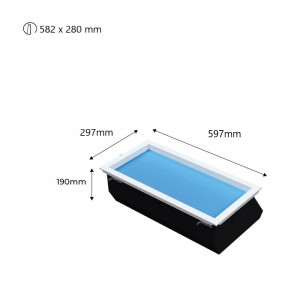

Dimensions (mm) Lxlxh
597 x 297 x 190
Frequency (Hz)
50 - 60
Hue
CCT
Dimmable
No

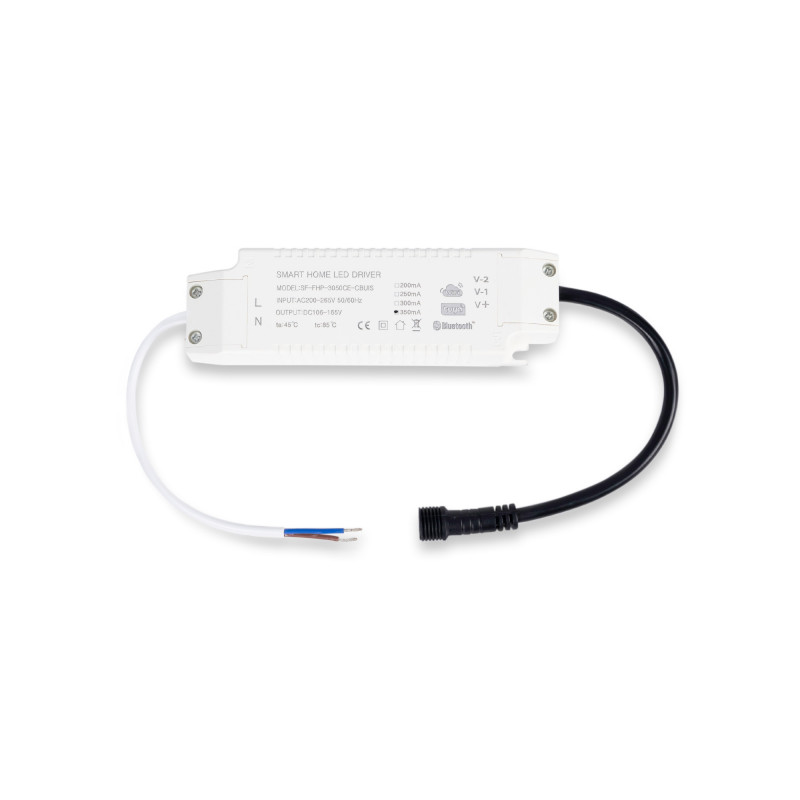

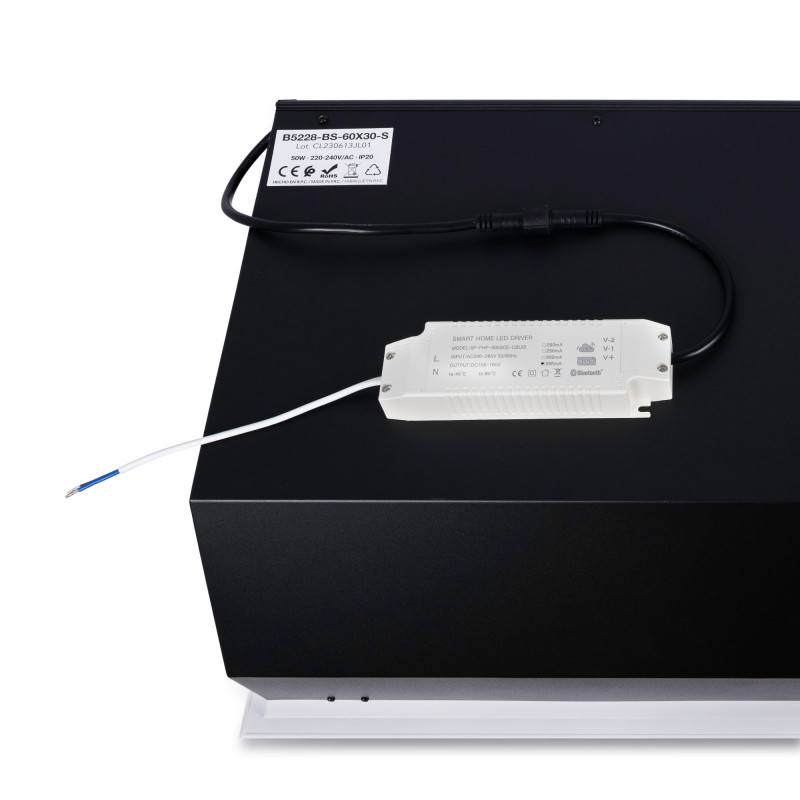

Driver
External
Cutting dimensions (mm)
582 x 280
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
60x30
Barcelona LED

Questions

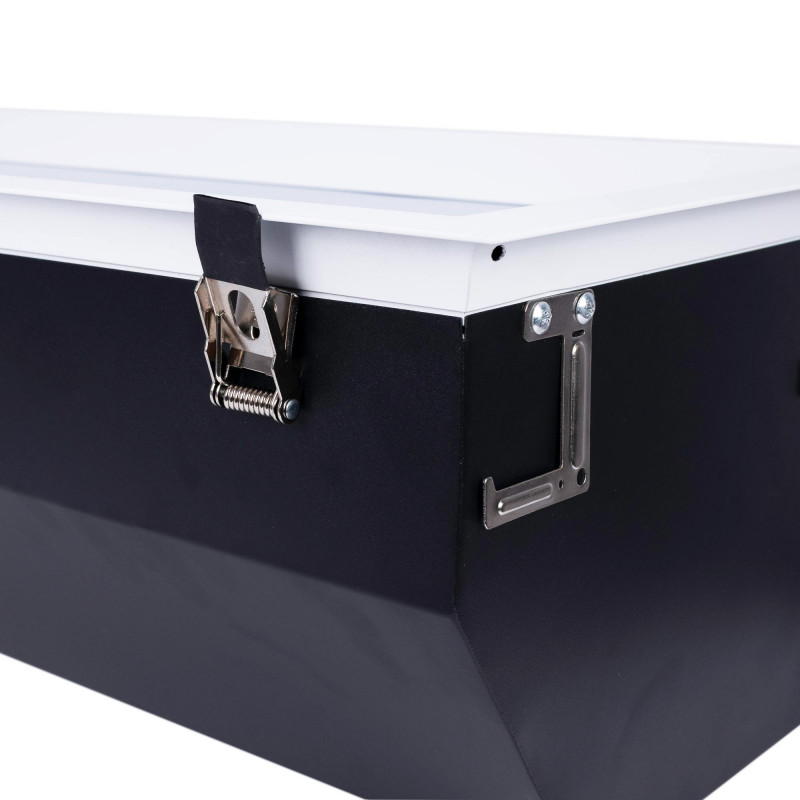

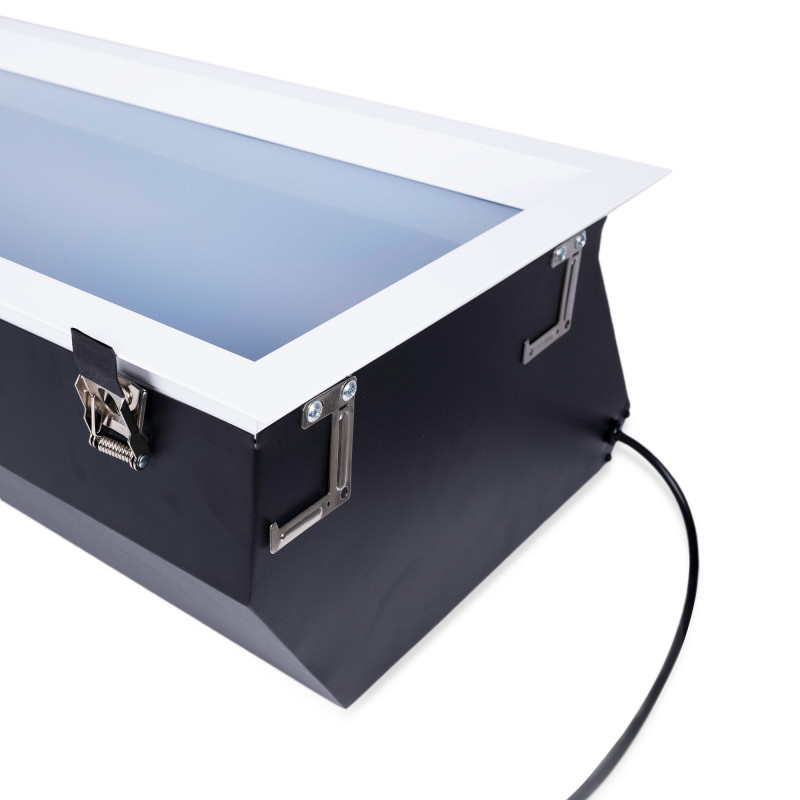

P: Question: The black part of the article is inside wall, I think. How is it deep if the white frame is outside the wall?
R: Answer: Hello,

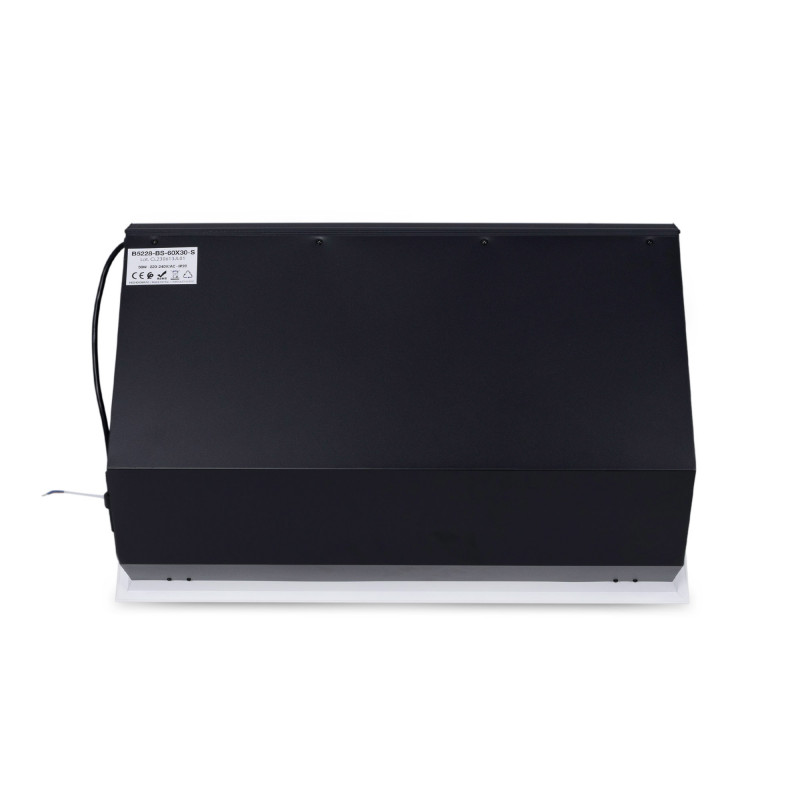

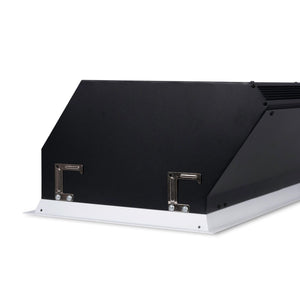

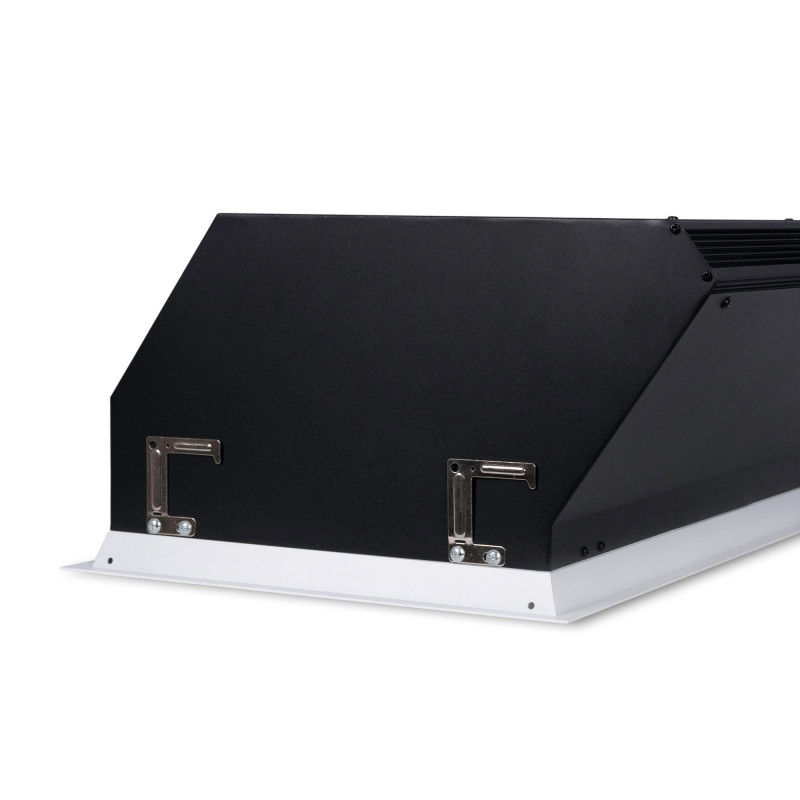

The black part is the built-in part.

The hole measures 19cm

Best regards
Barcelona LED Team

Barcelona LED: Angélique David| 01/03/2024

P: Question: BYE, does this model vary the light intensity or offer a single blue sky mode?
R: Answer: Good morning Silvia

The SMART Blue Skylight LED panel, through the TUYA app, can be programmed to simulate the shades of light that occur during the day, from dawn to dusk, thus accompanying the circadian rhythm.

Regards
