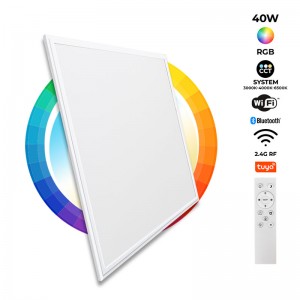

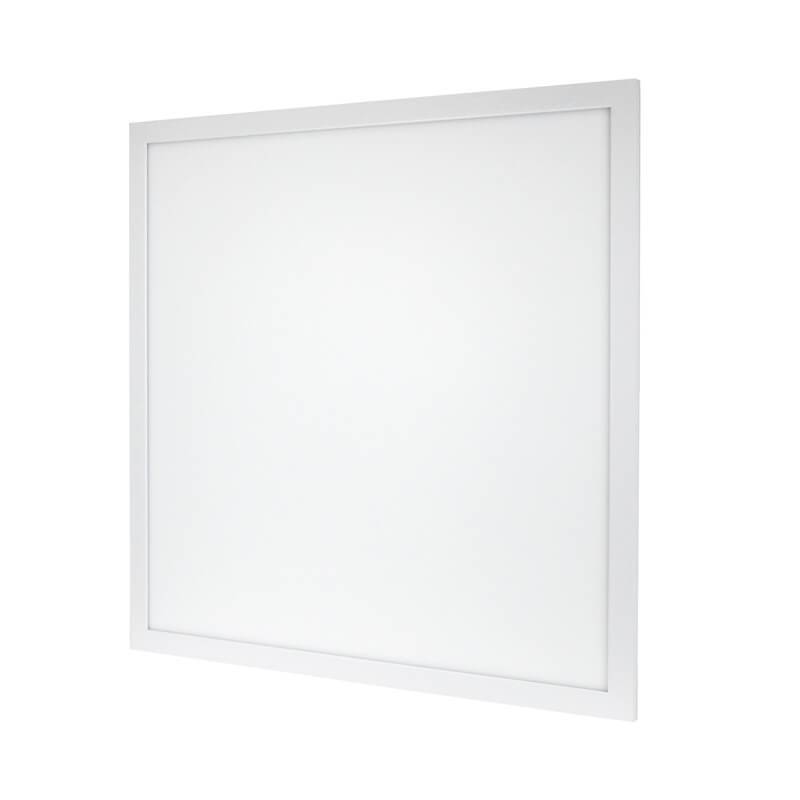

LED Panel WIFI SMART RGB / RGBW + CCT - 60x60 cm - 40W
SKU:B5235-RGBW
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

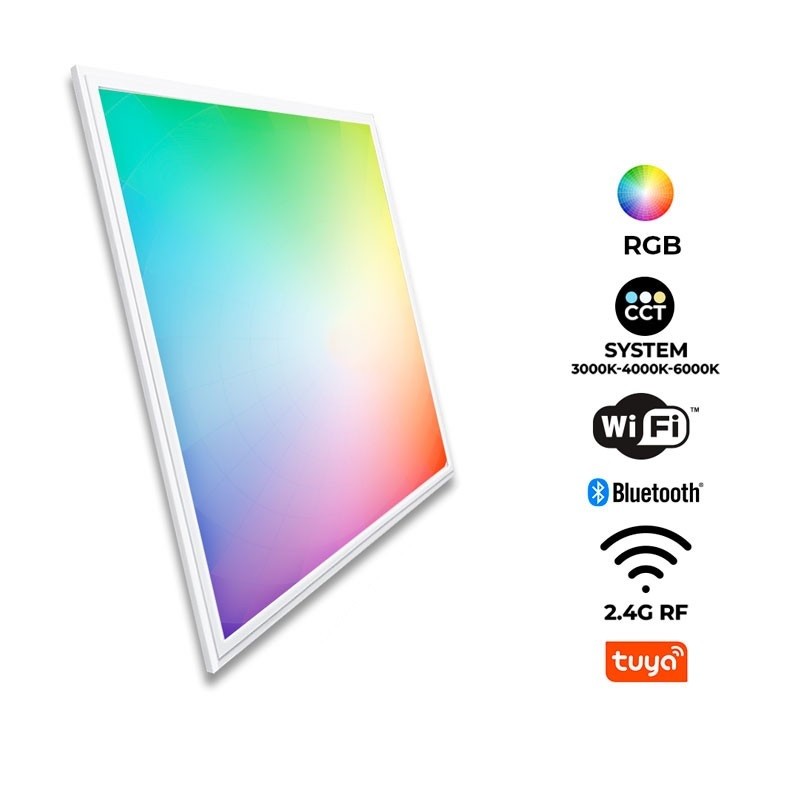

The SMART RGB / RGBW + CCT WIFI LED panel has a versatile design, adaptable to any type of environment.

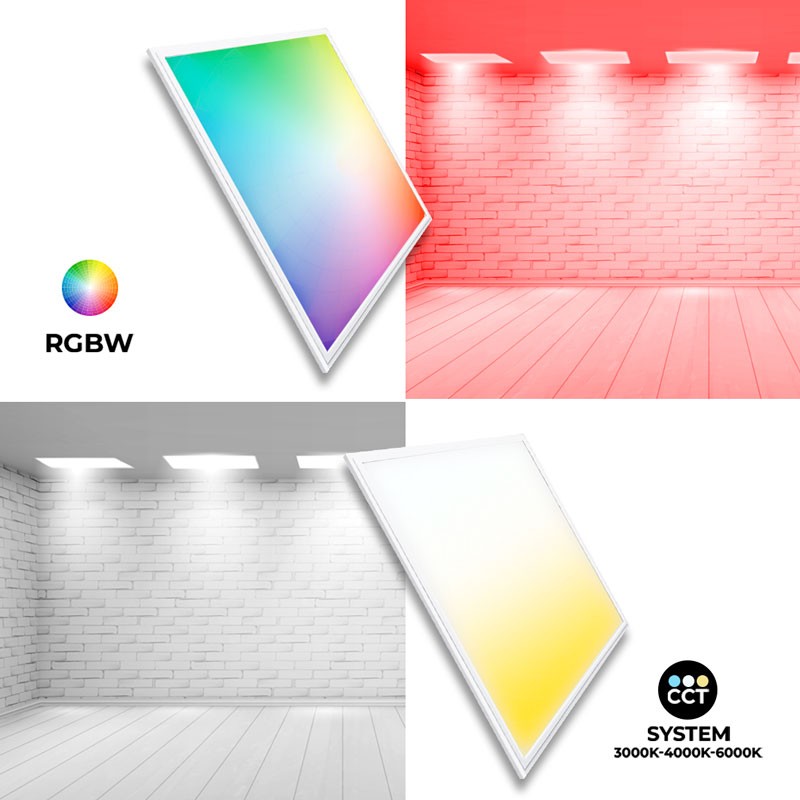

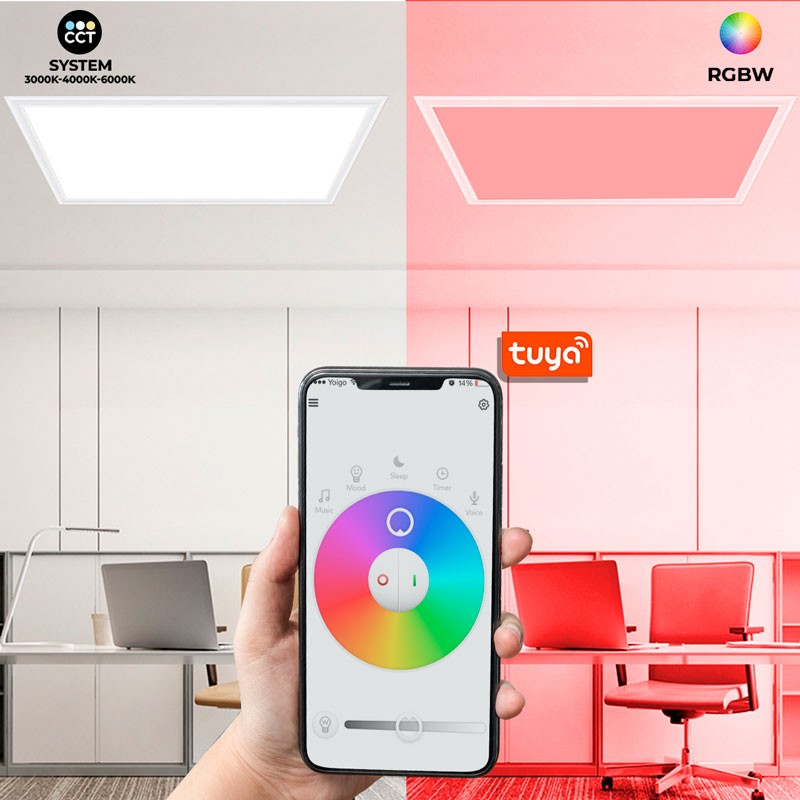

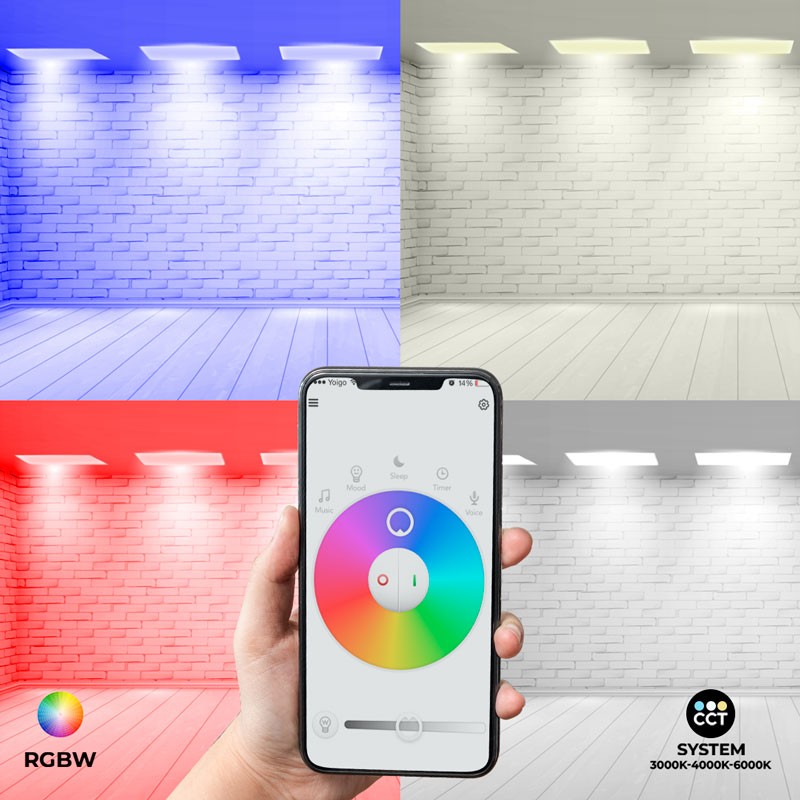

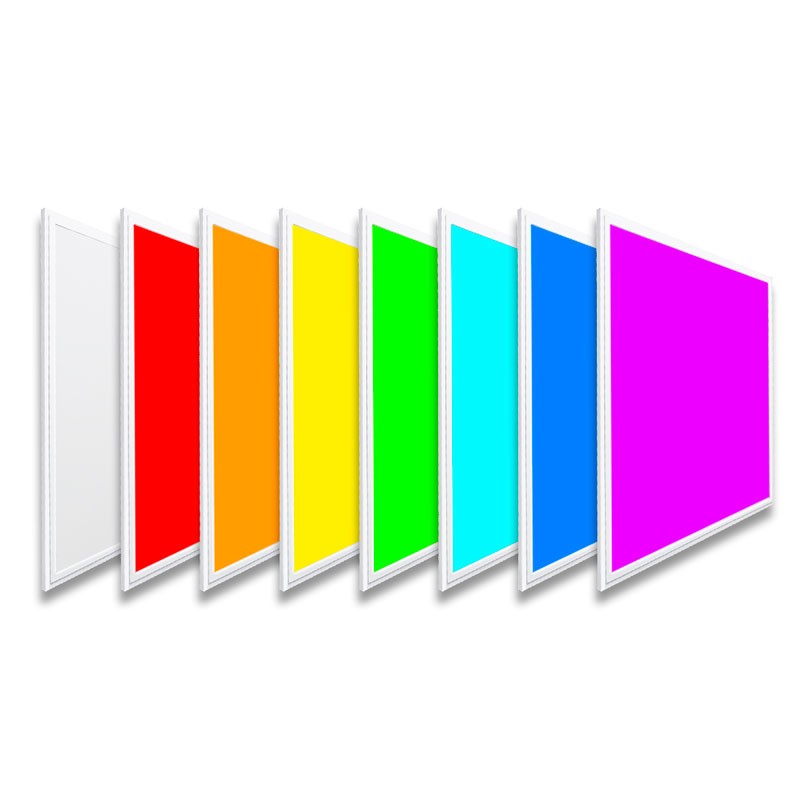

The lighting is controlled by remote control or by the TUYA application and it is possible to choose the desired configuration among the multiple variants offered by the RGBW system and the possibility of adjusting the light intensity.
In addition, if you opt for white light, by incorporating the CCT system, the color temperature can be selected among its three variants, according to the needs of each space: warm light (3000K), neutral light (4000K) or cold light (6500K).

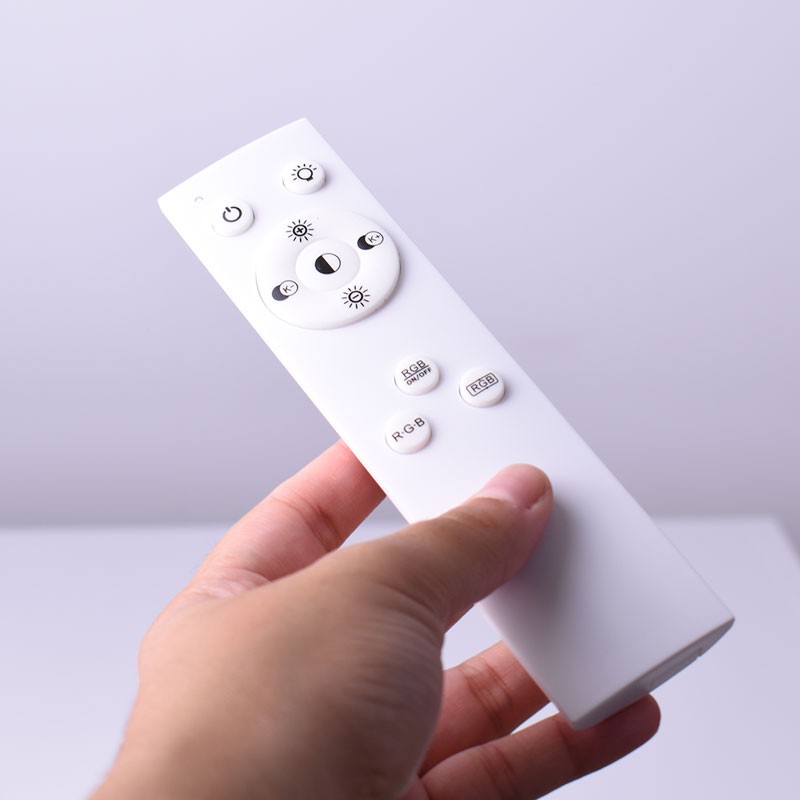

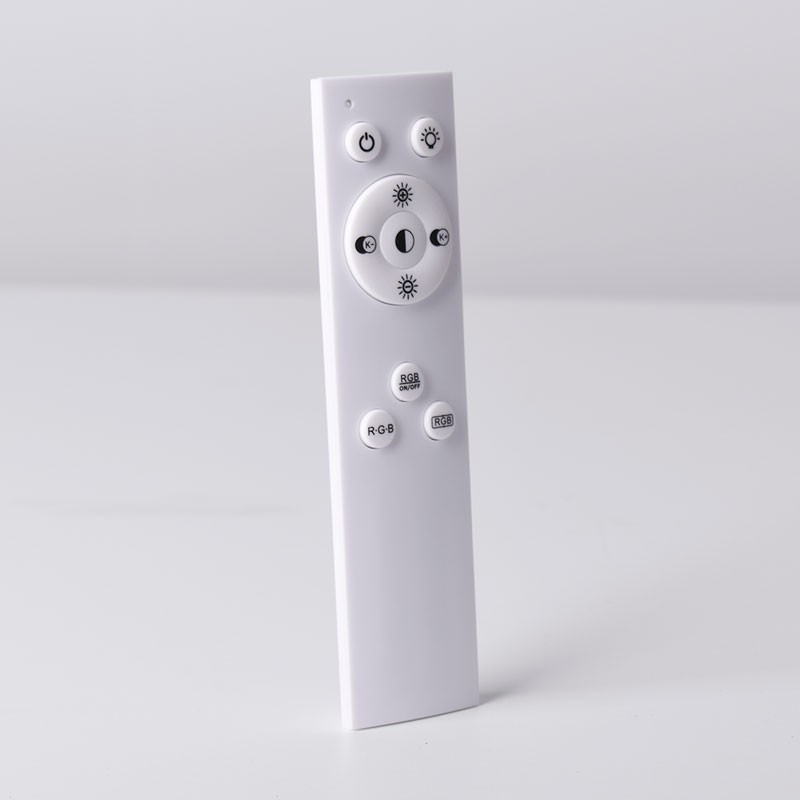

With its remote control, an unlimited number of panels can be controlled.
This panel is designed for recessed installation in false ceilings. When this is not possible, a surface installation can be chosen by incorporating the necessary kit.
|
Main product features:
|
For more precise technical parameters such as lumens, CRI, etc., please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220-240 V
Power (W)
40
Lumens (Lm)
3500
Lifetime (h)
25000
IP
IP20

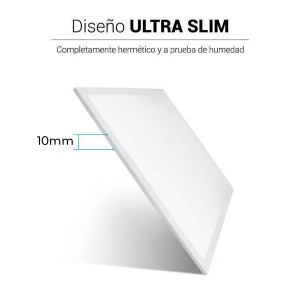

Dimensions (mm) Lxlxh
600 x 600 x 10
Hue
CCT
RGB-W
RGB-W
CRI
80-85
Dimmable
Yes

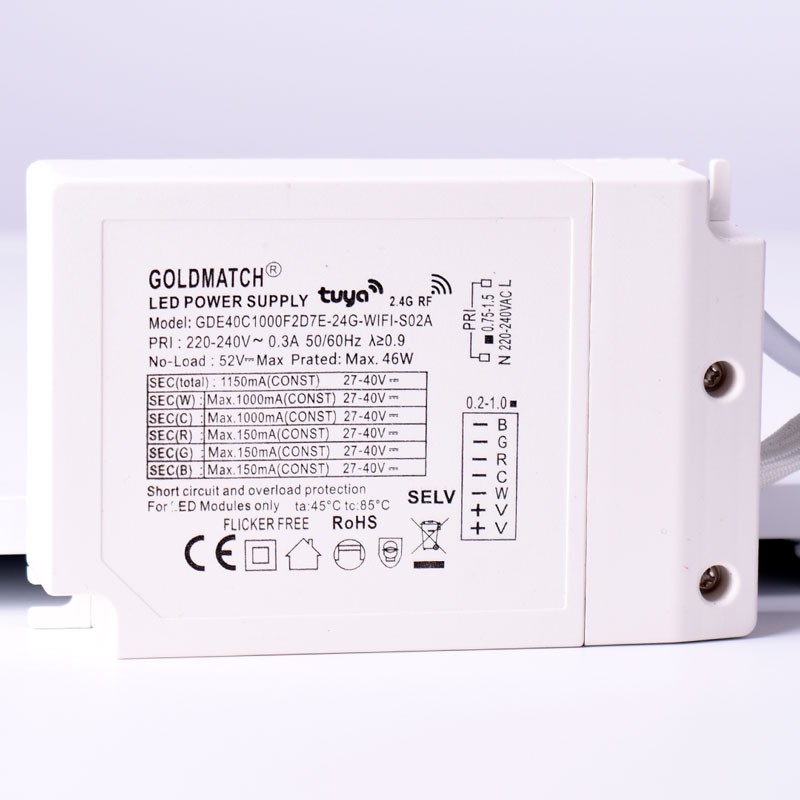

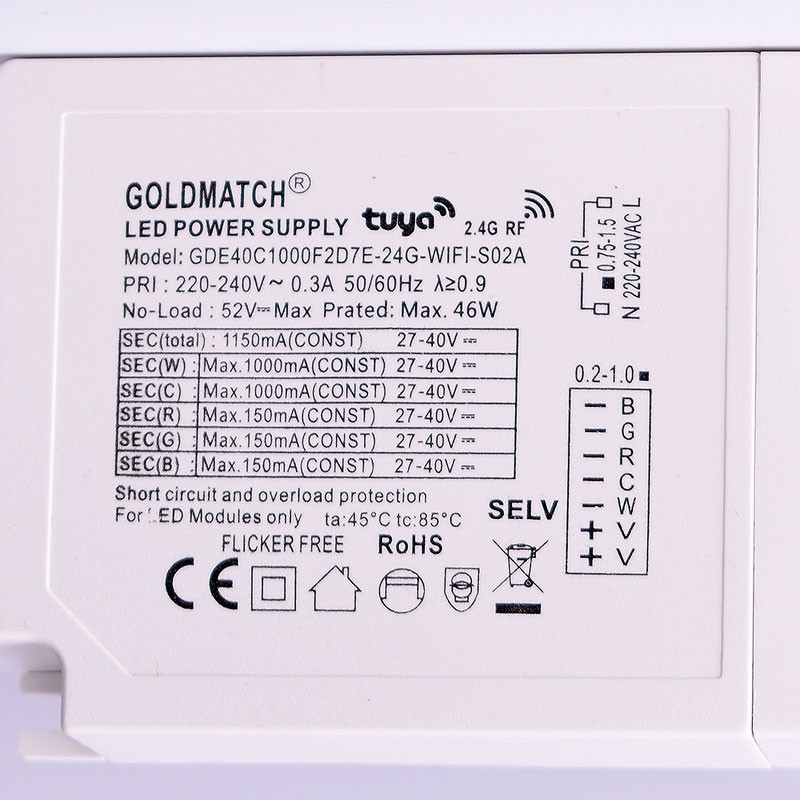

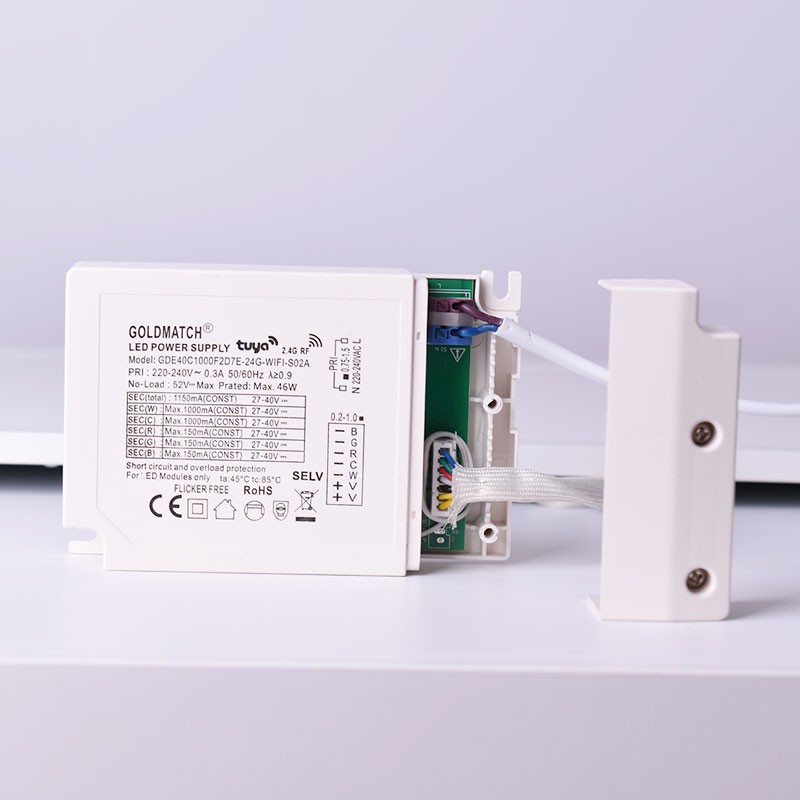

Driver
External
Material
Aluminium
Polycarbonate
Polycarbonate
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Discount
Professional lighting
Professional lighting up to 80% off
Professional lighting up to 80% off
LED Panel dimensions
60x60
Questions
| P: Question: | Good afternoon, I need to know if these screens can be used as single color screens and override the color change? Thank you |
|---|
| R: Answer: | Hello, that is correct. You can set a fixed color. Thank you very much!
Barcelona LED: Alejandro| 26/08/2024 |
|---|
| P: Question: | Hi, for the correct synchronization with the TUYA app, can it connect to a 5Ghz network, or is it only compatible with 2.4Ghz networks? After several failed attempts I still can't manage to sync the device with the app on my android. |
|---|
| R: Answer: | No lighting control can be synchronized at 5Ghz, synchronization can only be at the router with 2.4Ghz. |
|---|
| P: Question: | How many lumens does it have? |
|---|
| R: Answer: | Depends on the color for white light at about 3500lm |
|---|
| P: Question: | I would like to know if this panel is designed to be surface mounted or if I would have to buy the frame. I do not have a drop ceiling or a double ceiling. |
|---|
| R: Answer: | The panel is for flush mounting. For surface mounting, a surface kit must be used. |
|---|
| P: Question: | Hello good, it brings everything needed for installation recessed? |
|---|

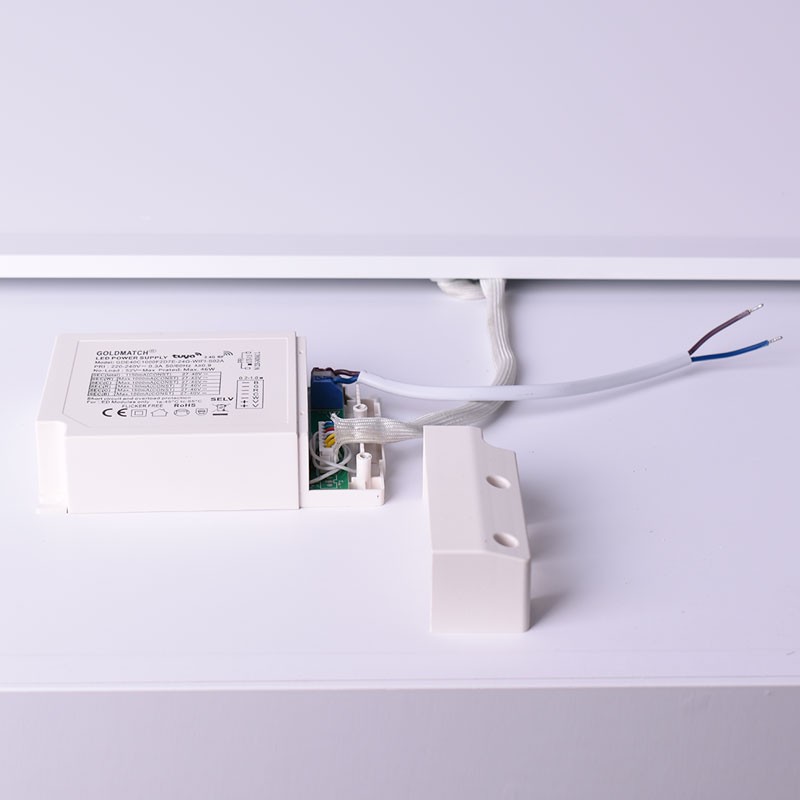

| R: Answer: | Yes, it includes RGBW panel, control driver and remote control. |
|---|
| P: Question: |
Hello We have purchased e panels ,the first has been connected following the instructions but the second and third there is no way to synchronize them ? Is there any step that is not in the instructions ? We connect the panel we wait 10 seconds then press the corresponding button for 3 seconds e times but nothing happens ? Can you help us ? Rafael |
|---|
| R: Answer: | The panel is turned on and within the first 3 seconds, the power button of the selected zone is pressed 3 times. |
|---|
| P: Question: |
Good morning I need to buy a remote control to control the panels. I have 4 RGBW 60x60cm 40W 24V LED panels and I need a remote control. Which remote control is compatible and how many do I have to buy? Thank you Victor Moreira |
|---|
| R: Answer: | Controller for GU10 RGBW Dichroic Reference: B1400-2-WIFI https://www.barcelonaled.com/pt/controle-smart-home-google-alexa/controlador-wifi-mi-light-24ghz.html
Barcelona LED: Javier| 21/03/2021 |
|---|
| P: Question: |
Good afternoon, it can be controlled by dmx. Would you have 400 units approx., could you give me a price for those 400? |
|---|
| R: Answer: | The panel goes with a Mi-light controller linked to a Mi-light controller by radio frequency. To control by DMX you must replace the controller with a DMX decoder to 4ch (RGBW) for example ref. B1561-4 with their respective 24vdc power supplies. For availability and costs you can contact a sales representative by phone or at comercial@barcelonaled.com . |
|---|
| P: Question: |
The 5 wires of red, green, blue, blue, white and +24 v I have to connect them to the controller? I can't find the connection diagram. And could you tell me what intensity supports the power supply that is included? Best regards and thanks. |
|---|
| R: Answer: | If the connection of the RGBW led panel must be connected to the RGBW controller included and this to the power supply. The power supply has an output of 24v and 2A. Each power supply and controller is for one RGBW LED panel. |
|---|
