Recessed Backlight LED panel - 36W - 60x60cm - 3800lm - Philips driver - UGR22 - IP40

SKU:B5235-BACKLIGHT-BF
Colour temperature
Has superado el límite de unidades
In stock 6526 units
Data sheet

The Backlight LED panel with Philips driver features backlight or backlit technology, which combines innovative optical and mechanical design features to achieve high-efficiency, uniform lighting with minimal glare (UGR 22).

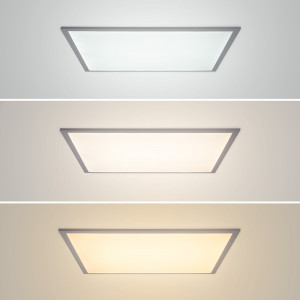

Available in neutral white (4000K), warm white (3000K) and cool white (6000K), it has an output of 36W and a luminous flux of 3800 lumens.

Its high color rendering index, CRI>80, allows it to reproduce colors very similar to natural light.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

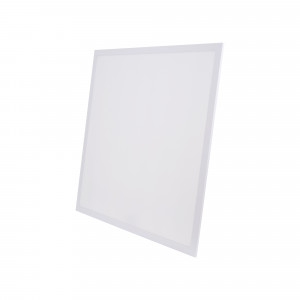

The 60x60cm LED backlight panel is designed for recessed installation in false ceilings or directly in plasterboard using a recessing frame (not included). Its modern and elegant design is adaptable to any environment.

It's also possible to install them suspended by adding a compatible suspension kit (not included - see related products).

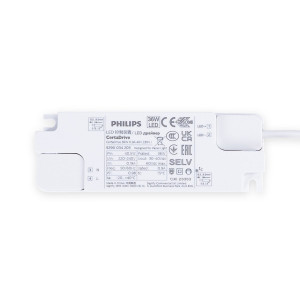

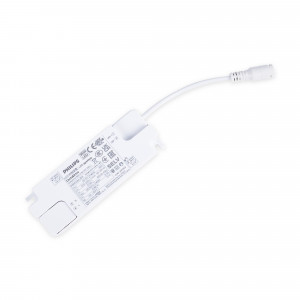

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous lighting, without flickering.

Thanks to its backlight technology, it offers a uniform light distribution with a high efficacy (135lm/W), superior to traditional LED panels.

This panel is manufactured with high quality components that guarantee a long service life, without acquiring a yellowish hue over time. It's a high quality, efficient and reliable option for home, office or business.

Due to its IP40 protection rating, it's suitable for installation in environments exposed to dust or particles.

It's not compatible with surface mount kits.

Product features:

  • Backlight technology
  • Philips Driver
  • Rated voltage: 220-240V AC
  • Power rating: 36W
  • Lumens: 3800 lm
  • UGR 22
  • Recessed installation
  • Dimensions: 595 x 595 x 32 mm
  • Shade: neutral white (4000K) - warm white (3000K) - cool white (6000K)
  • CRI>80
  • IP40

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
36
Lumens (Lm)
3800
Kelvin (K)
3000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP40
Dimensions (mm) Lxlxh
595 x 595 x 32
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
CRI
80-85
UGR
UGR22
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Driver
Philips
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
D
Certificates
CE
ROHS
Warranty
5 years
LED Panel dimensions
60x60
