Pack of 12 slim LED panels 120X60cm - PHILIPS Driver - 72W - UGR19

SKU:K5234-BC-12
Colour temperature
Has superado el límite de unidades
In stock 11 units
Data sheet

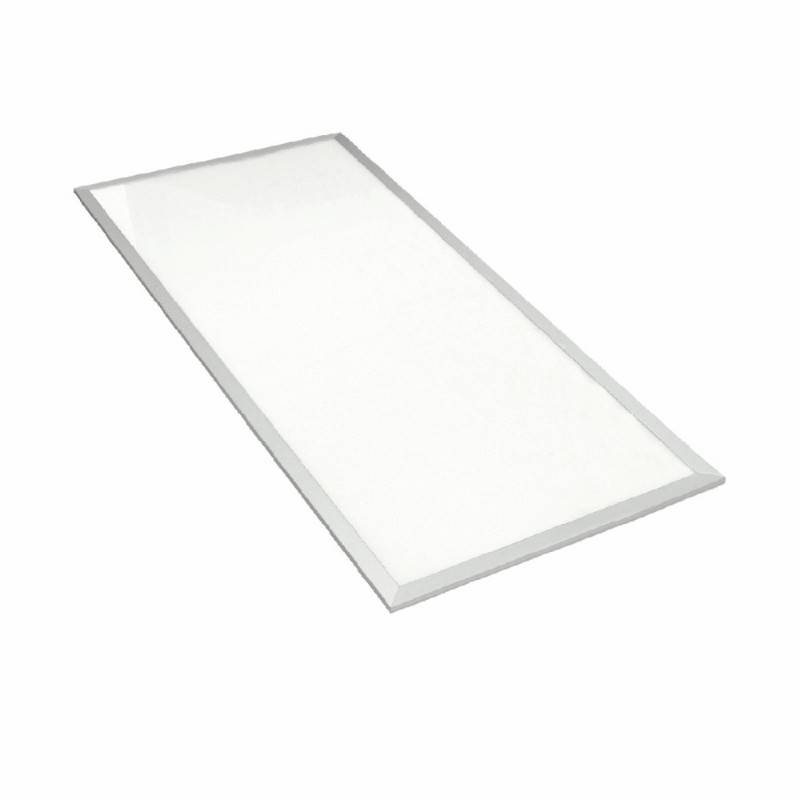

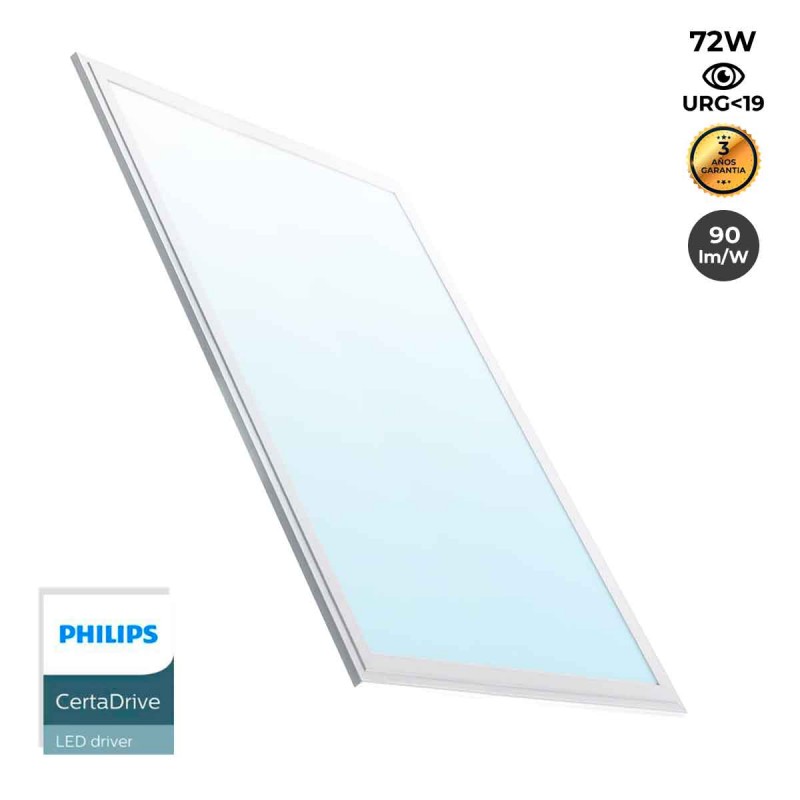

PACK x 12 recessed LED panels 120x60cm - PHILIPS driver.

The panels feature an elegant, ultra-slim design and cutting-edge technology that allow them to provide powerful, uniform lighting in 3 shades: warm white (3000K), neutral white (4000K) and cool white (6000K). They are high efficiency luminaires with a power of 72W and a luminous flux of 5900 lumens.

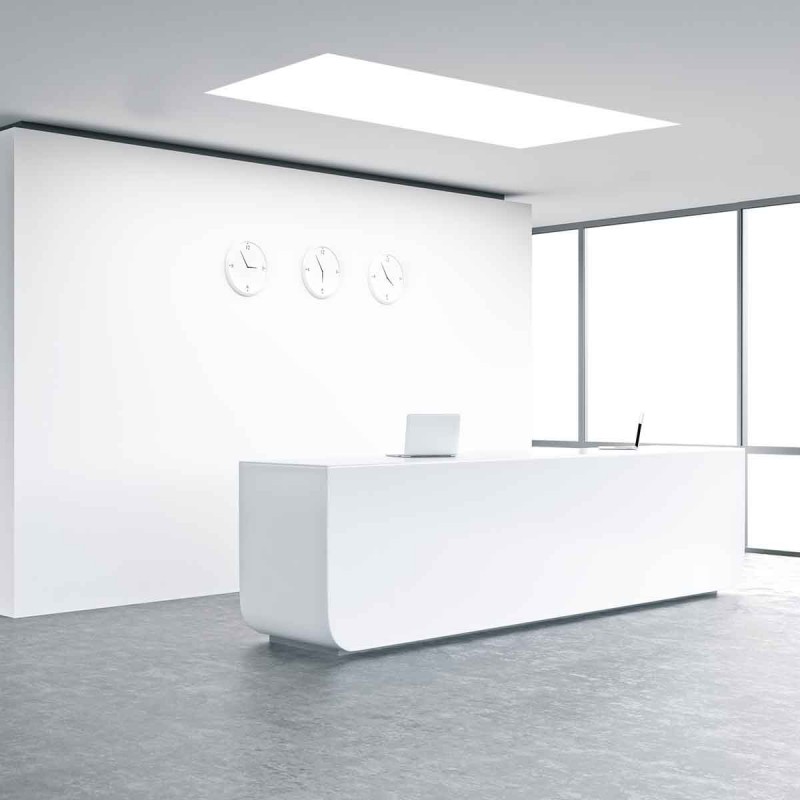

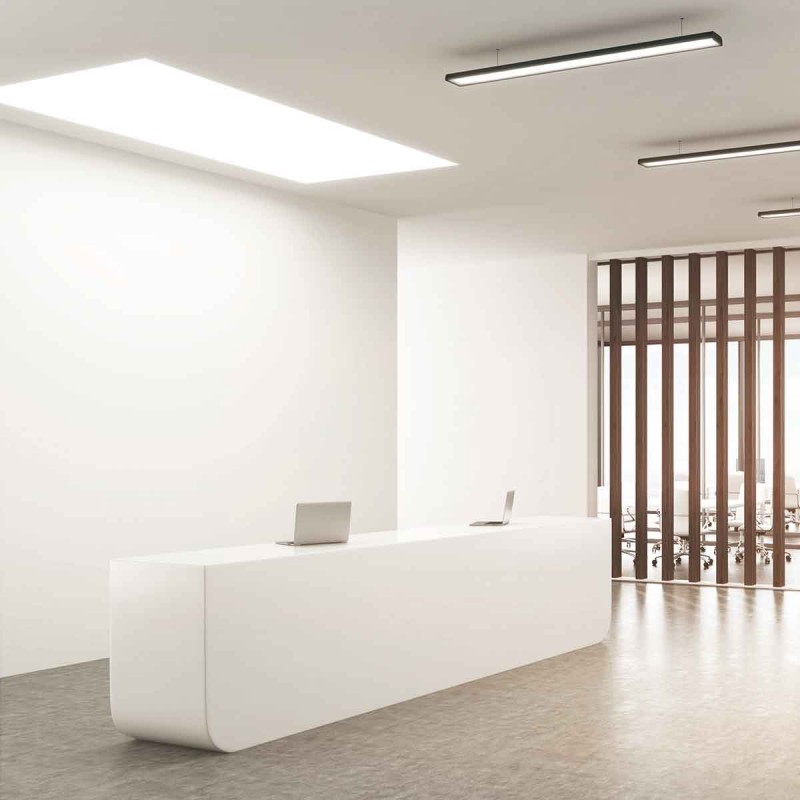

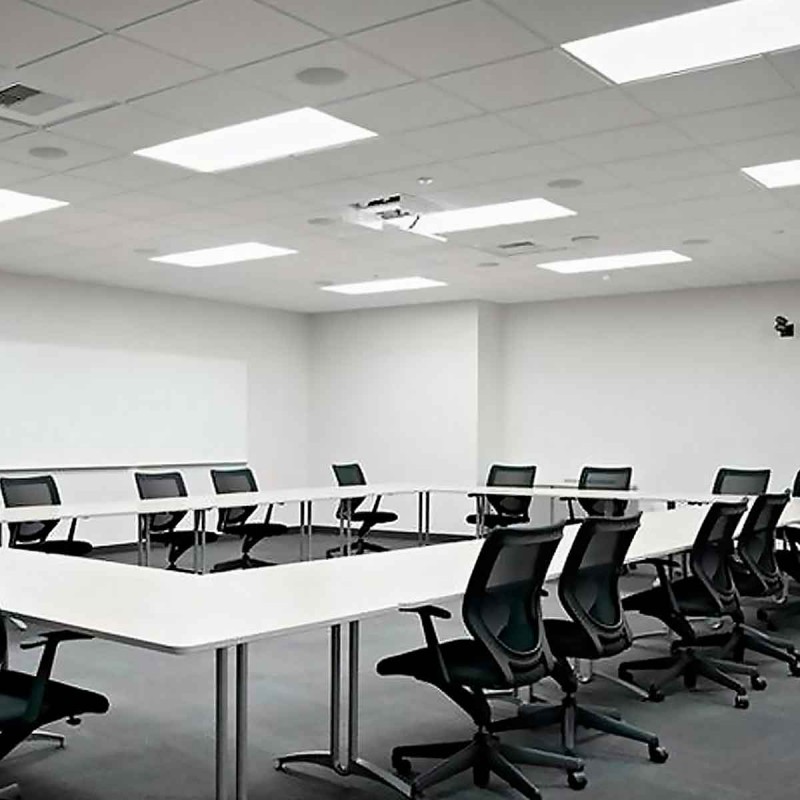

They incorporate a micro-prismatic diffuser that ensures glare-free illumination (UGR≤19), ideal for offices, conference rooms, schools or hospitals.

Thanks to their high color rendering index (CRI>80) they reproduce colors very similar to natural light.

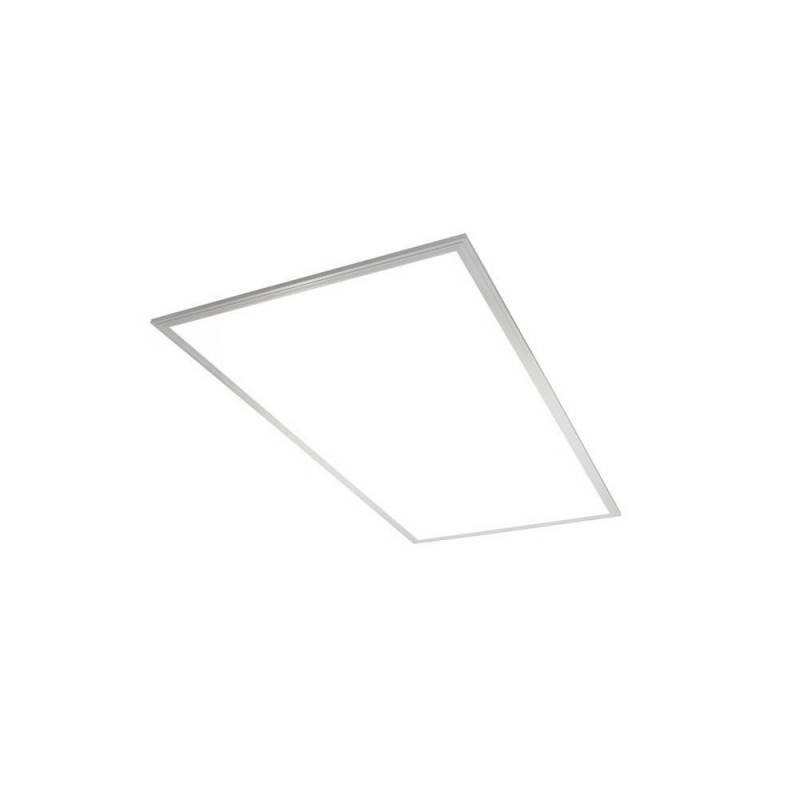

The panels can be mounted in false ceilings or recessed directly into plasterboard using a recessing frame (not included).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Pack of 12 LED panels slim 120X60cm

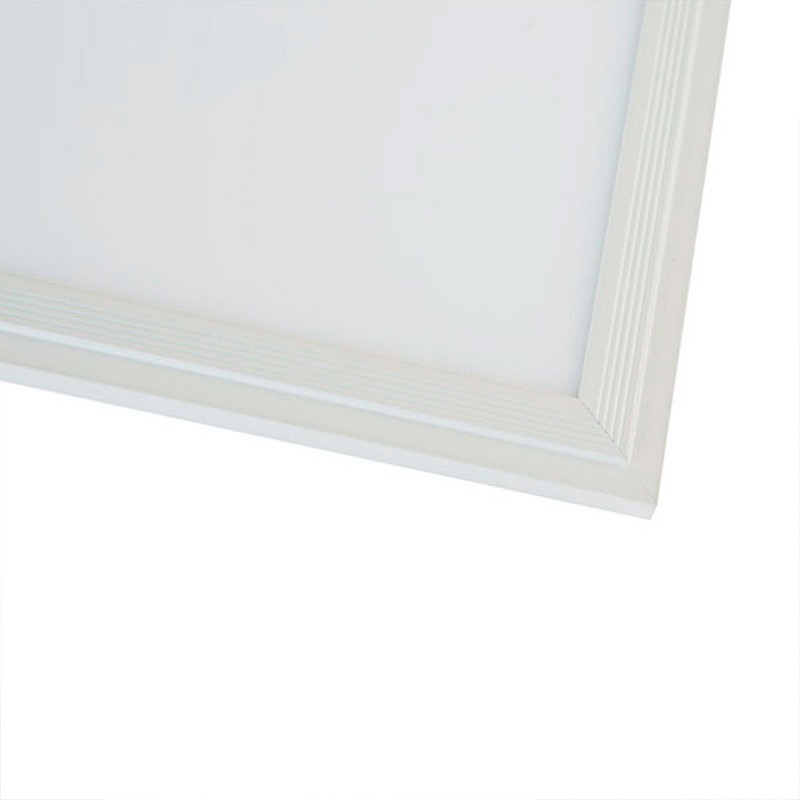

The 120x60cm slim panels are designed for recessed installation in false ceilings. Its ultra-slim, modern and elegant design is adaptable to any environment.

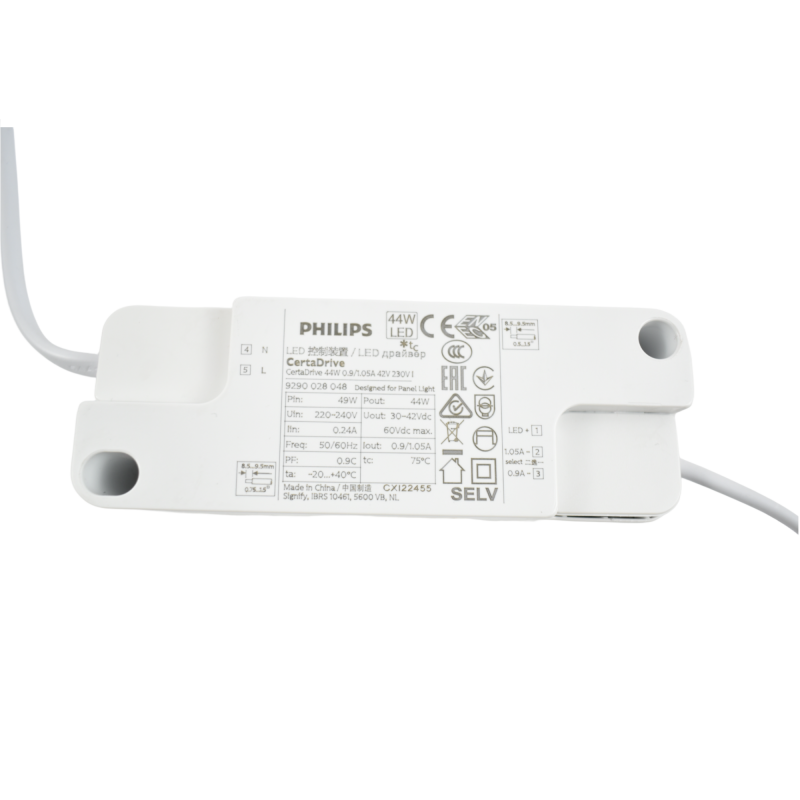

They incorporate a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.

Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR≤19), a condition especially important in work or study environments, where low UGR levels have shown greater power of concentration, work performance and general well-being in people.

These are high brightness products that emit a uniform light at an angle of 160°. Each panel has 72W of power and a high color rendering index (CRI>80), allowing to visualize colors with high fidelity, similar to natural light.

Its high efficiency also allows significant energy savings compared to traditional luminaires.

Main characteristics of the product:

  • Extra flat design
  • Philips Driver
  • Nominal voltage: 220-240 V/AC
  • Power: 72W
  • Lumens: 5900 lm
  • Recessed installation
  • Dimensions: 1195 x 595 x 7mm
  • Shade warm white (3000K), neutral white (4000K) and cool white (6000K)
  • UGR≤19
  • CRI>80
  • Indoor use: IP20

Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
72
Lumens (Lm)
5900
Kelvin (K)
3000
4000
6000
Beam angle (º)
160
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
1195 x 595 x 7
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Sensor
No
CRI
80-85
UGR
UGR19
LED Type
SMD 4014
Driver
Philips
Orientable
No
Use Outdoor
No
Temperature range
-18°C ~ +55°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
120x60
Barcelona LED
