SKU:K5235-DALI-BF
Colour temperature
Has superado el límite de unidades
In stock 223 units
Data sheet

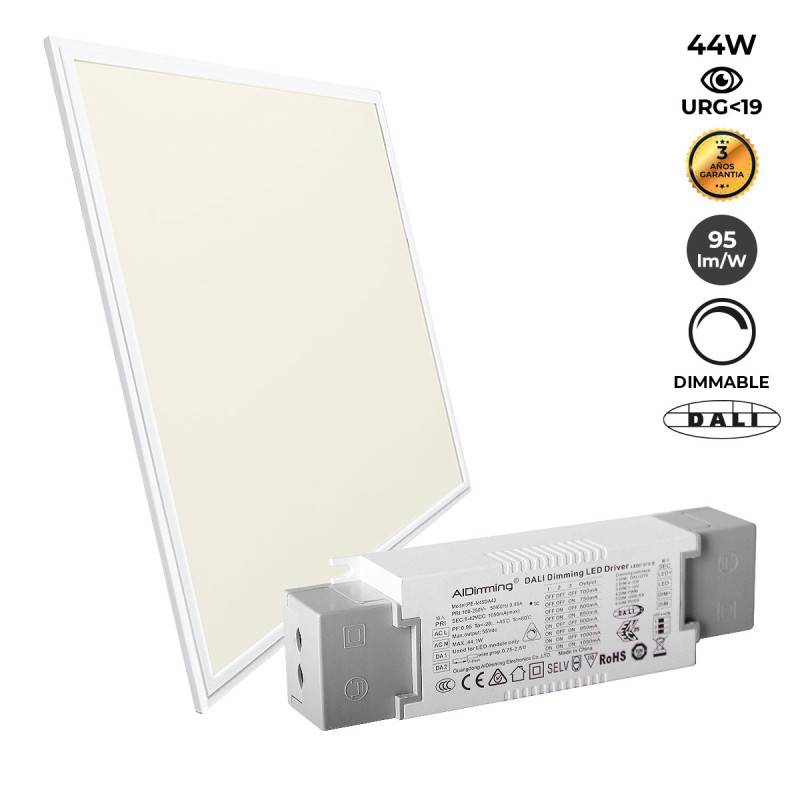

Ultra-thin recessed LED panel with cutting-edge technology that enables it to provide powerful and even illumination.

It's a high efficiency luminaire with a power of 44W and a luminous flux of 3800 lumens.

It incorporates a DALI dimming driver, providing the possibility to adjust the light intensity.

Thanks to its low glare index, UGR19, this panel provides great visual comfort.

It's available in three color temperatures: warm white (3000K), neutral white (4000K) and cool white (6000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

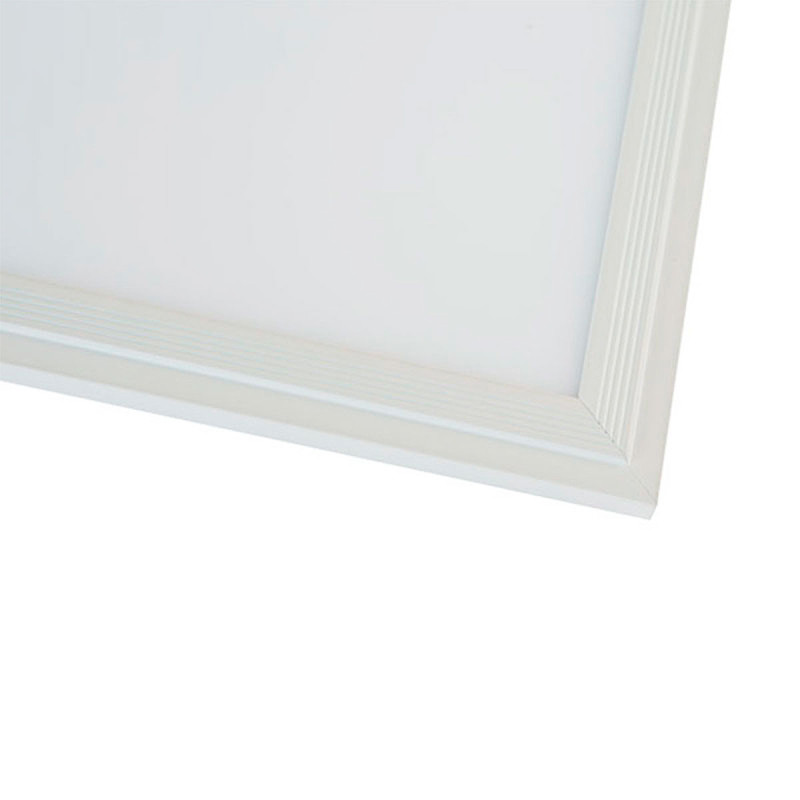

The 60 x 60 cm LED panel is designed for recessed installation in false ceilings. It has an ultra-slim, modern and elegant design, adaptable to any environment.

It's a high-brightness product that emits uniform light at a 120° angle. Its high efficiency also allows significant energy savings compared to traditional energy-saving luminaires.

It incorporates a polystyrene diffuser and a light guide plate (LGP) made of PMMA, a material resistant to heat and UV radiation, highly efficient and durable, which does not turn yellow over time.

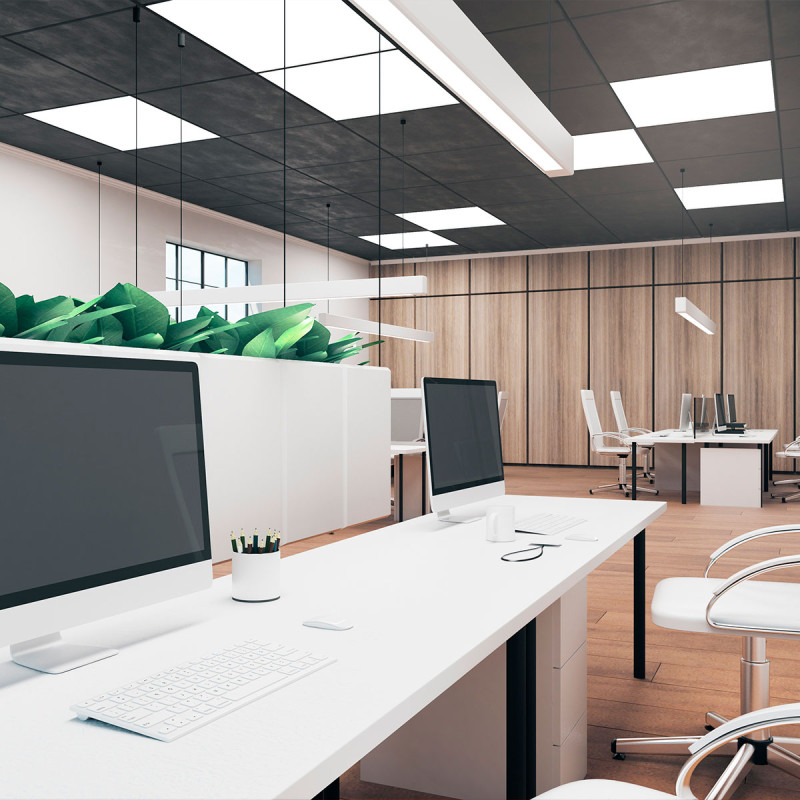

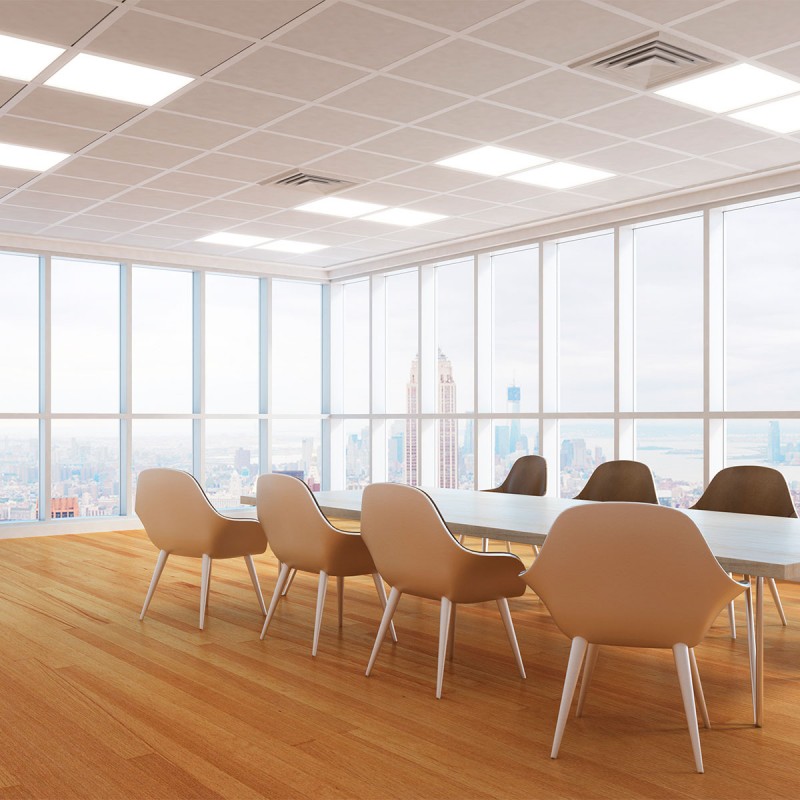

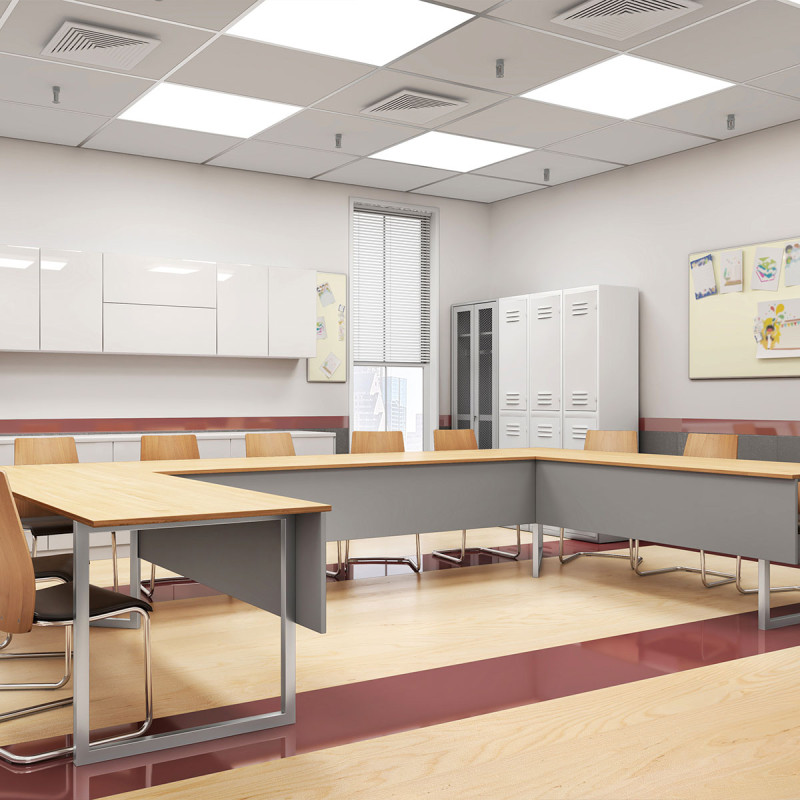

Thanks to its low glare index, UGR19, this panel provides great visual comfort, and is therefore suitable for illuminating offices, educational centers or any space where long periods of time are spent exposed to artificial light. The low UGR levels increase people's sense of well-being, helping to improve concentration and productivity.

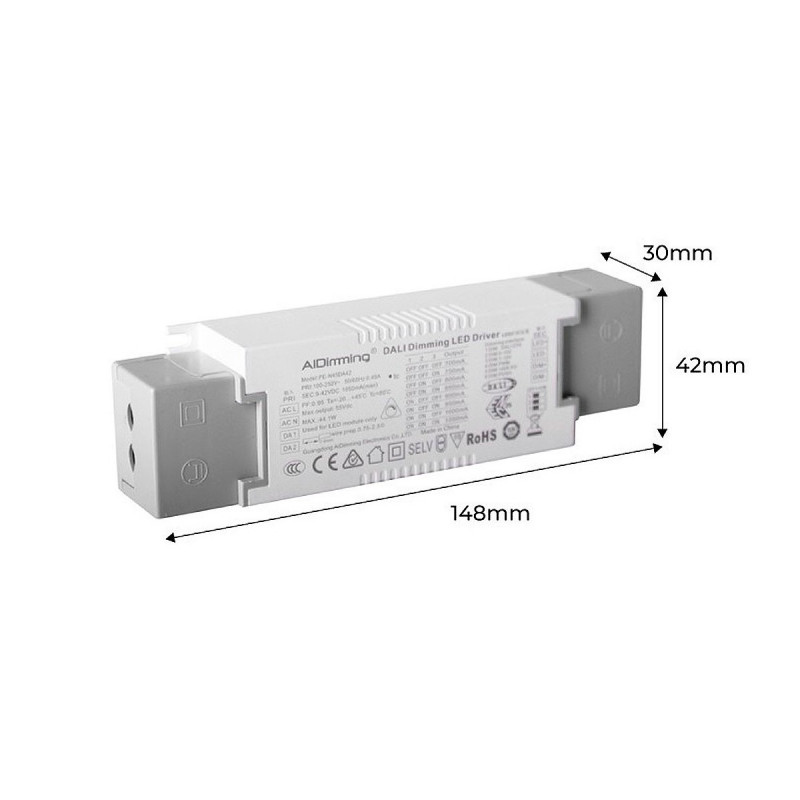

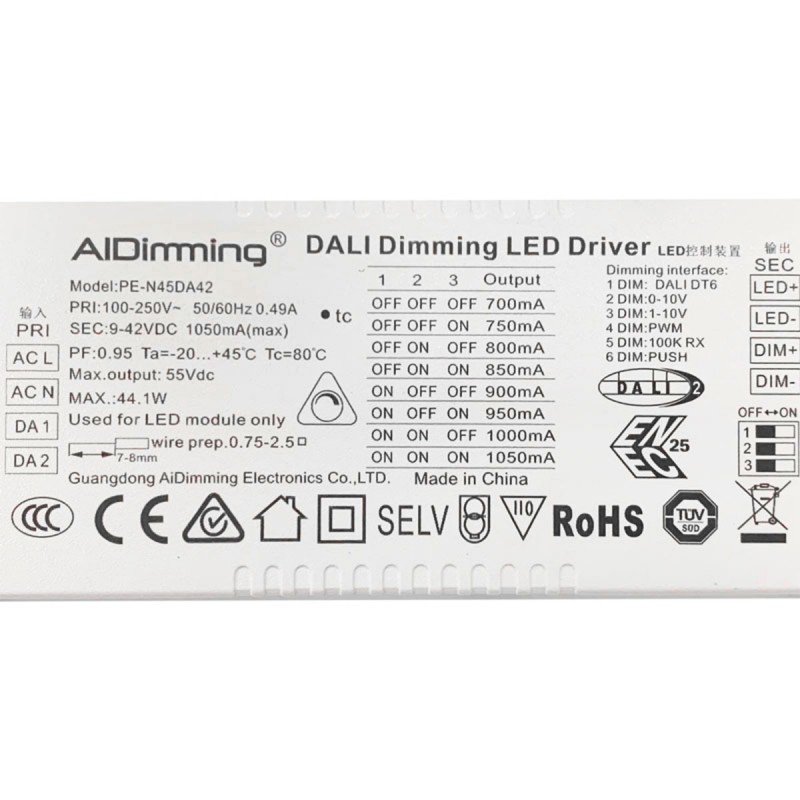

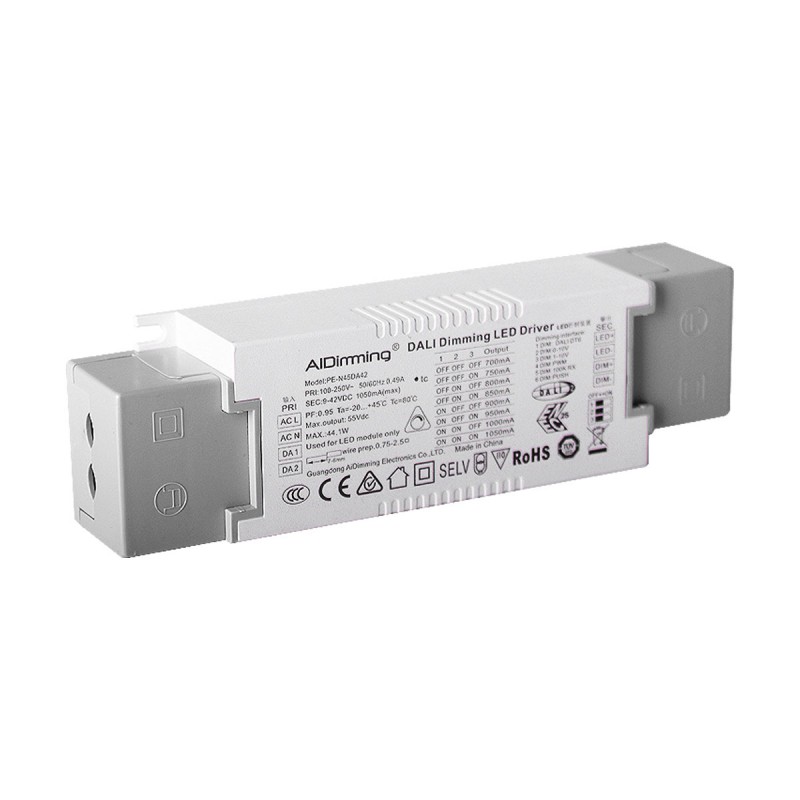

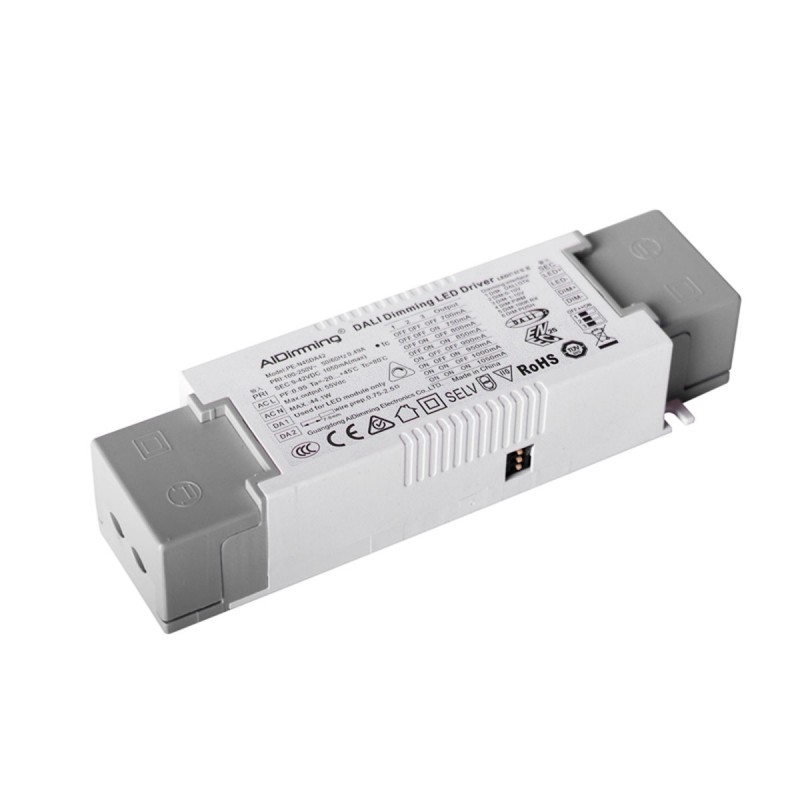

It incorporates a driver that allows for adjusting the light intensity of the panel through DALI regulation, according to the needs.

To see the technical characteristics of the driver click here.

Product features:

  • Dimmable intensity (DALI)
  • Dimensions: 600 x 600 x 6 mm
  • Voltage: 220-240V AC
  • Power: 44W
  • Lumens: 3800 lm (cool white)
  • Recessed installation
  • Allows surface installation by adding surface kit
  • Available in 3 shades: warm white (3000K), neutral white (4000K) and cool white (6000K)
  • CRI I>80
  • Indoor use: IP20
  • Connector cable included

Please note that some technical characteristics, such as power or lumens, may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
44
Lumens (Lm)
3800
Kelvin (K)
3000
4000
6000
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
600 X 600 X 6
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes
Driver
External
Orientable
No
Cutting dimensions (mm)
600 x 600
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
3 years
LED Panel dimensions
60x60
