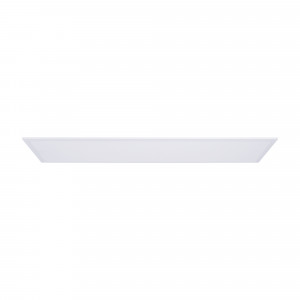

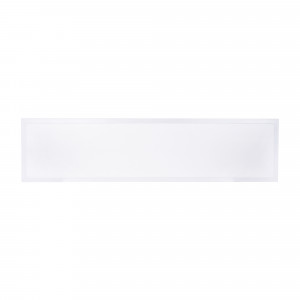

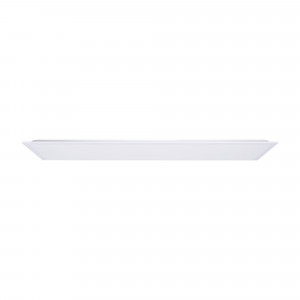

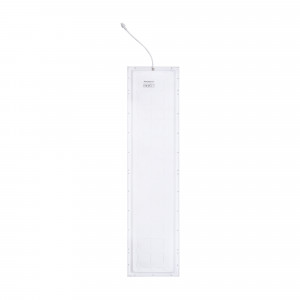

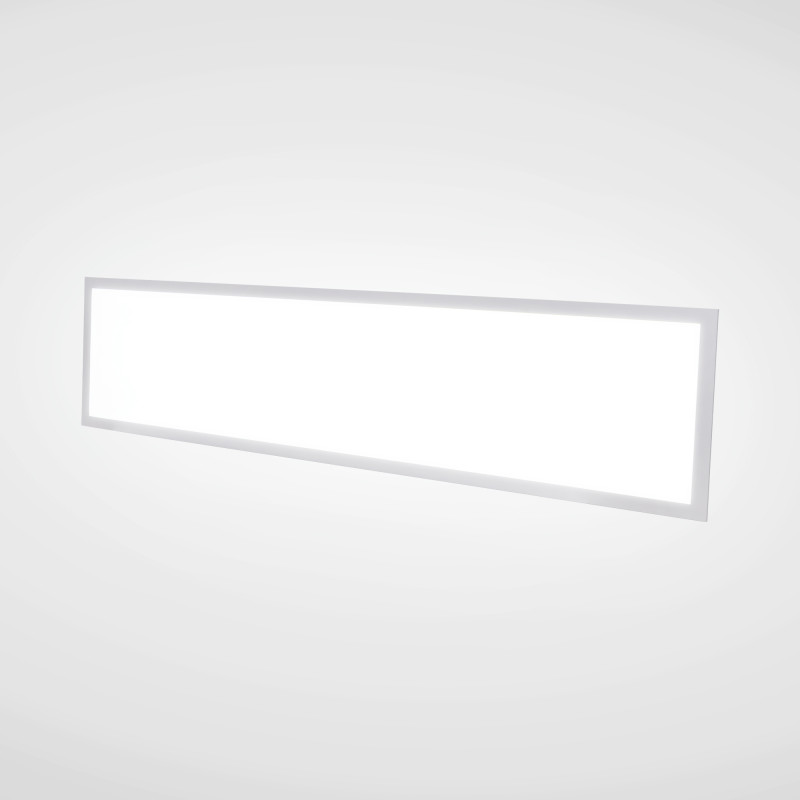

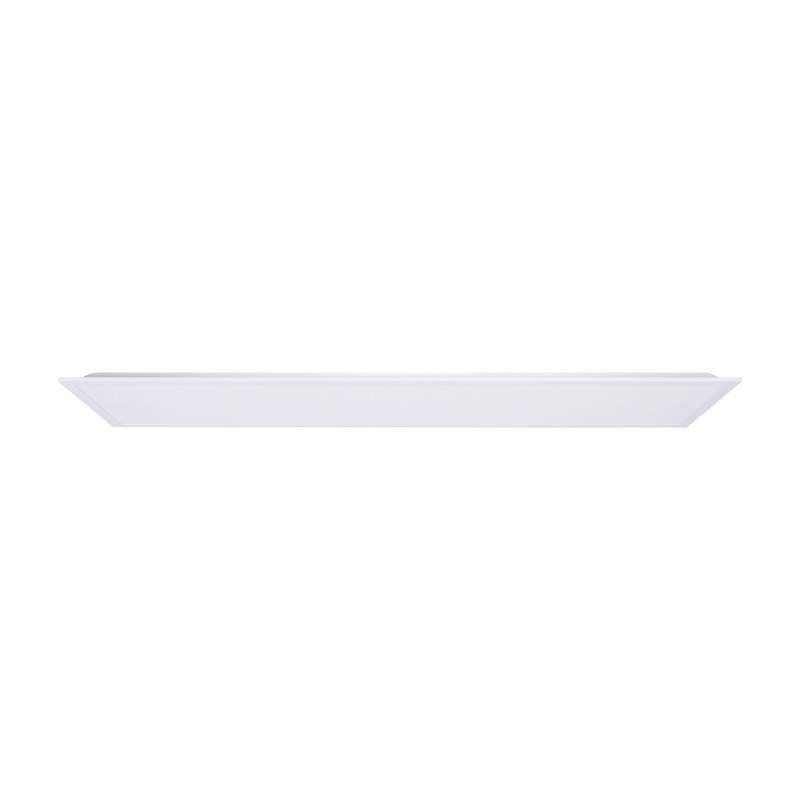

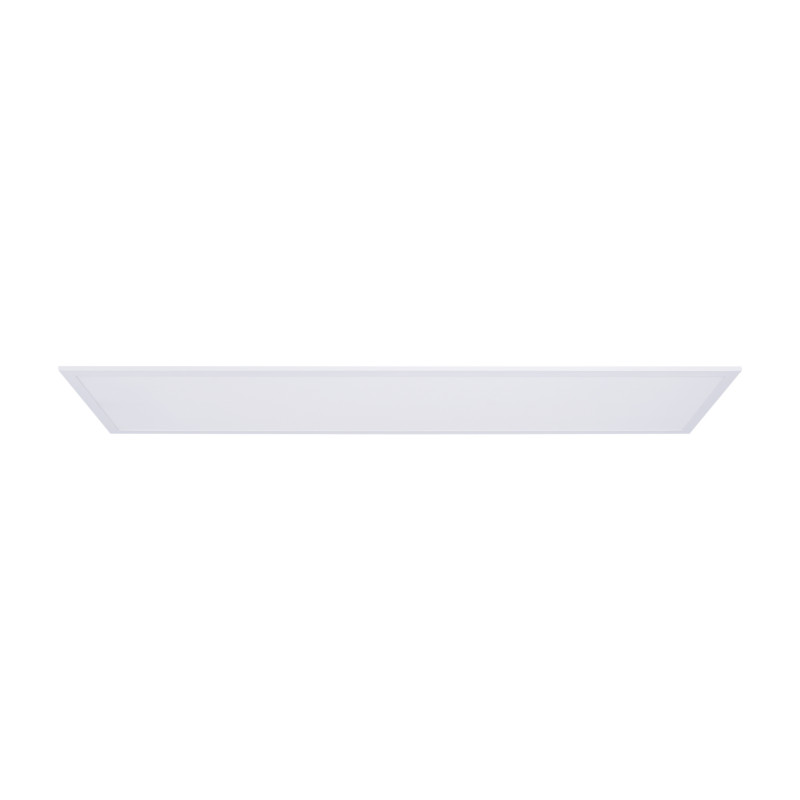

Recessed CCT Backlight LED Panel - 120x30cm - 30W - 125lm/W - IP65
Recessed CCT Backlight LED Panel - 120x30cm - 30W - 125lm/W - IP65

Recessed CCT Backlight LED Panel - 120x30cm - 30W - 125lm/W - IP65

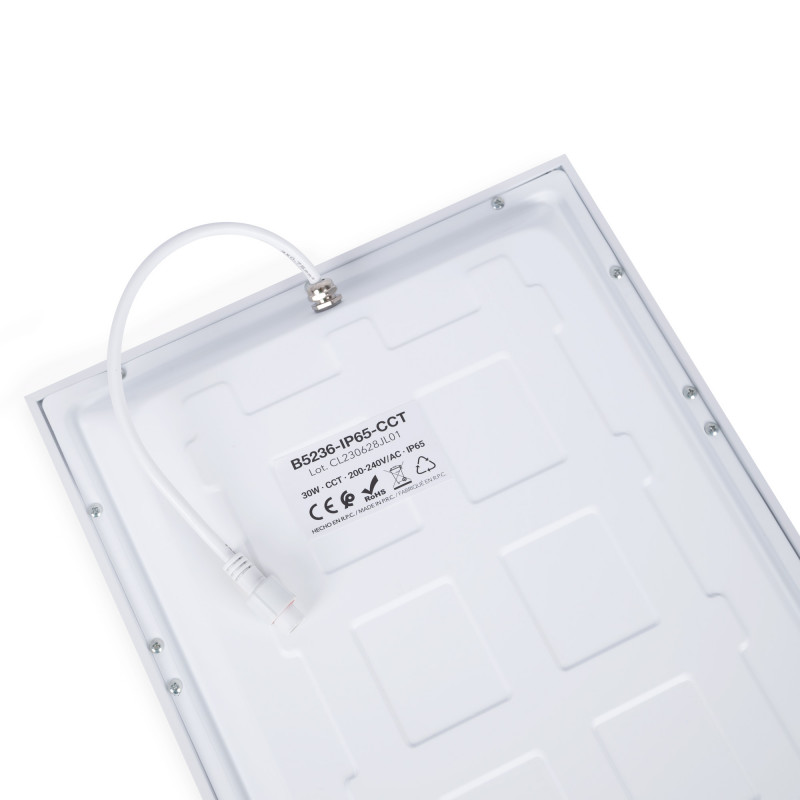

SKU:B5236-IP65-CCT
Has superado el límite de unidades
In stock 16 units
Data sheet

The Backlight LED panel features backlight or backlit technology, which combines innovative optical and mechanical design features to achieve high-efficiency, uniform lighting with minimal glare.

It has a power of 30W, a high efficacy of 125lm/W and a high color rendering index, CRI>80.

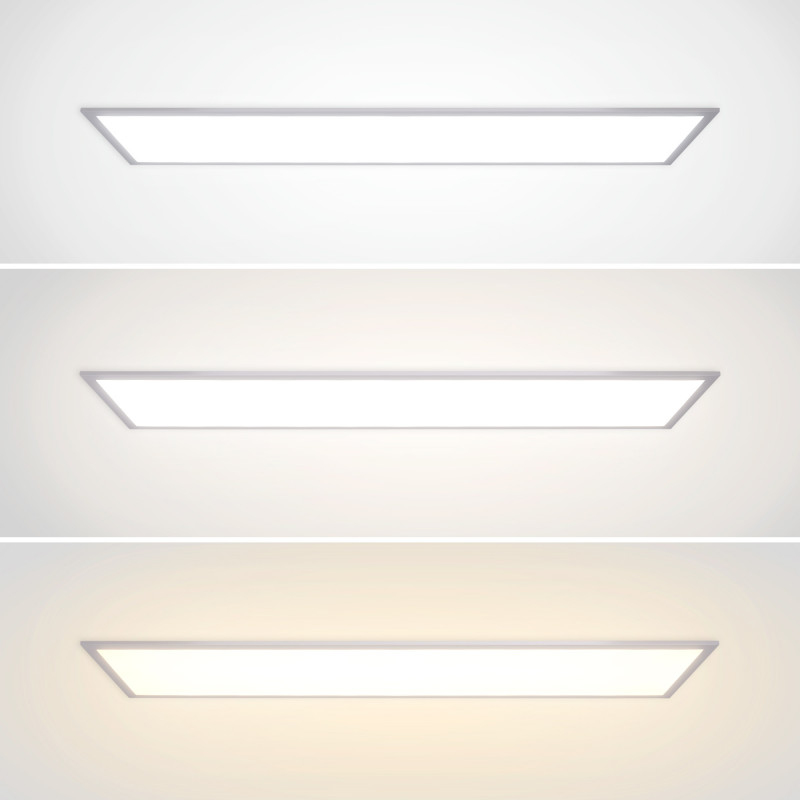

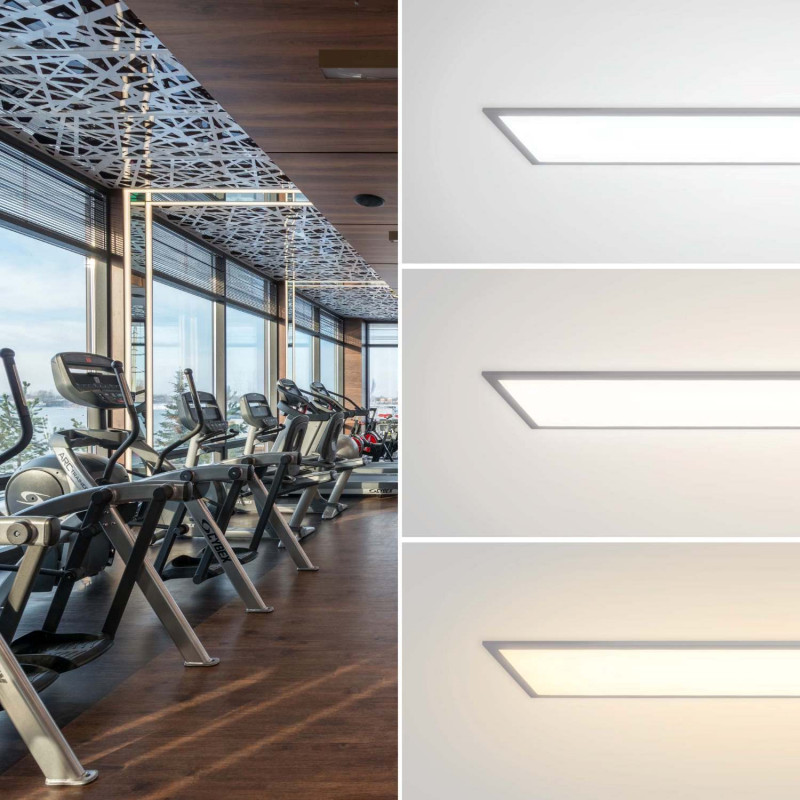

It incorporates a CCT selector, which allows adjusting the color temperature between warm white (3000K), neutral white (4000K) and cool white (6000K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

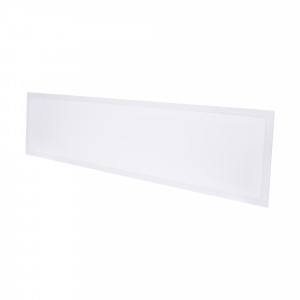

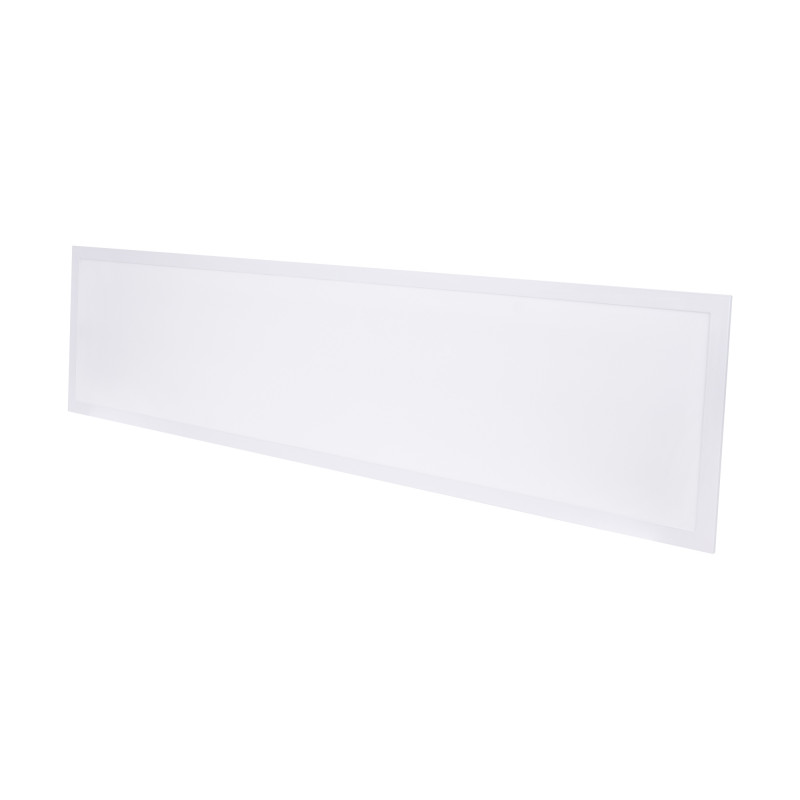

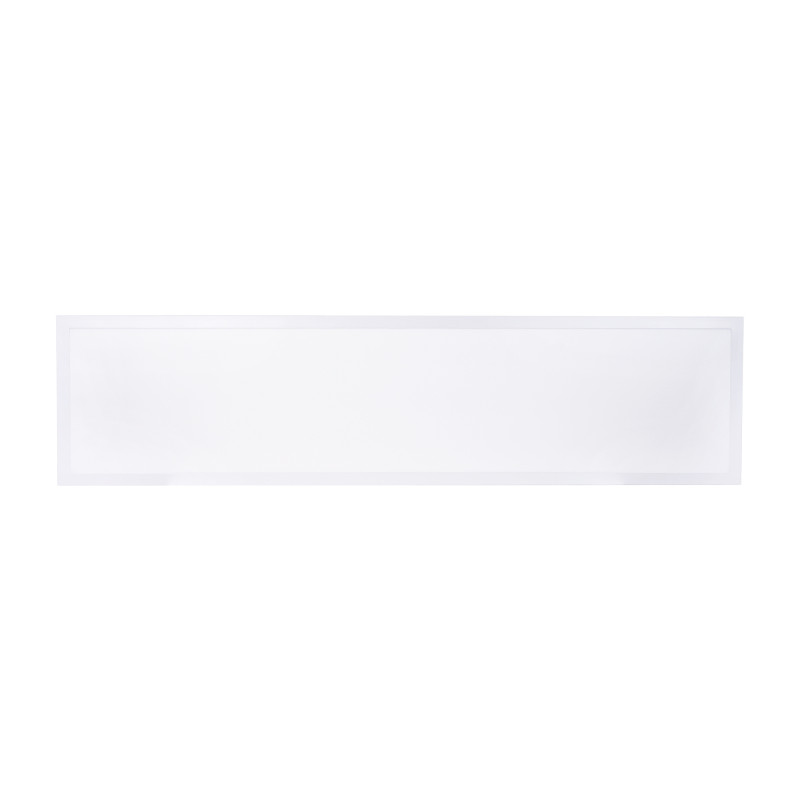

The 120x30cm LED backlight panel is designed for recessed installation in false ceilings or directly in plasterboard using a recessing frame (not included). Its modern and elegant design is adaptable to any environment.

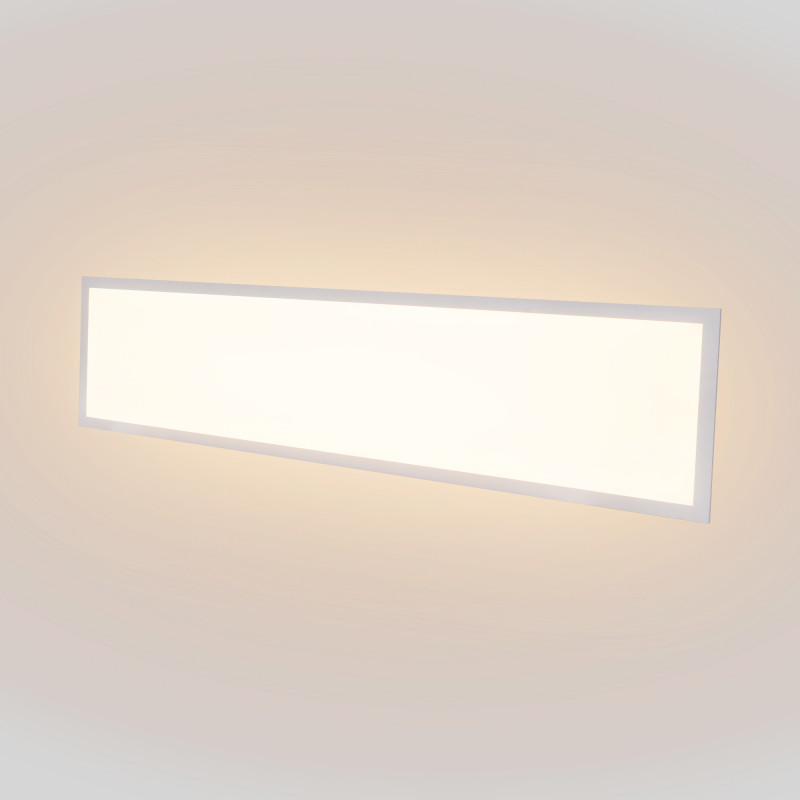

Thanks to its backlight or backlit technology, it offers uniform light distribution with high efficacy (125lm/W), superior to traditional LED panels.

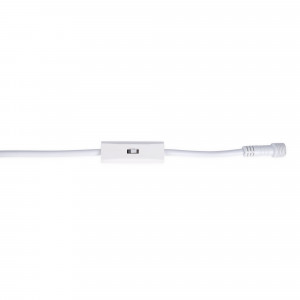

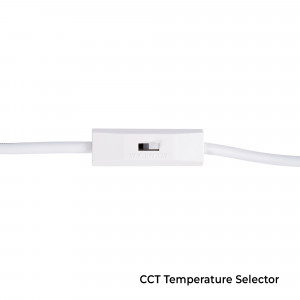

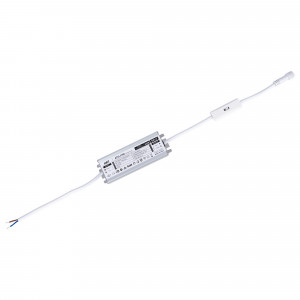

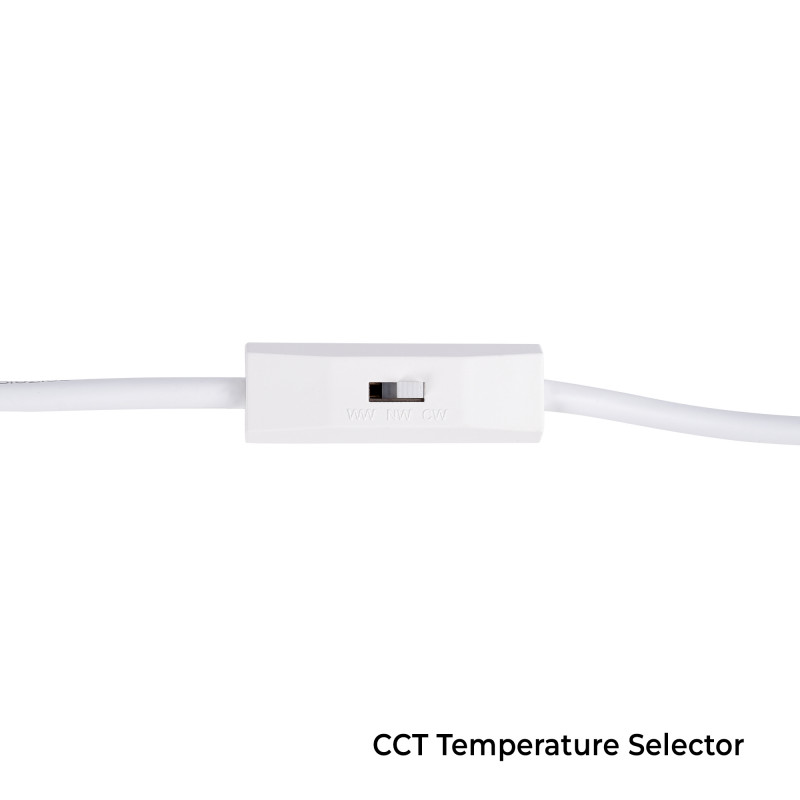

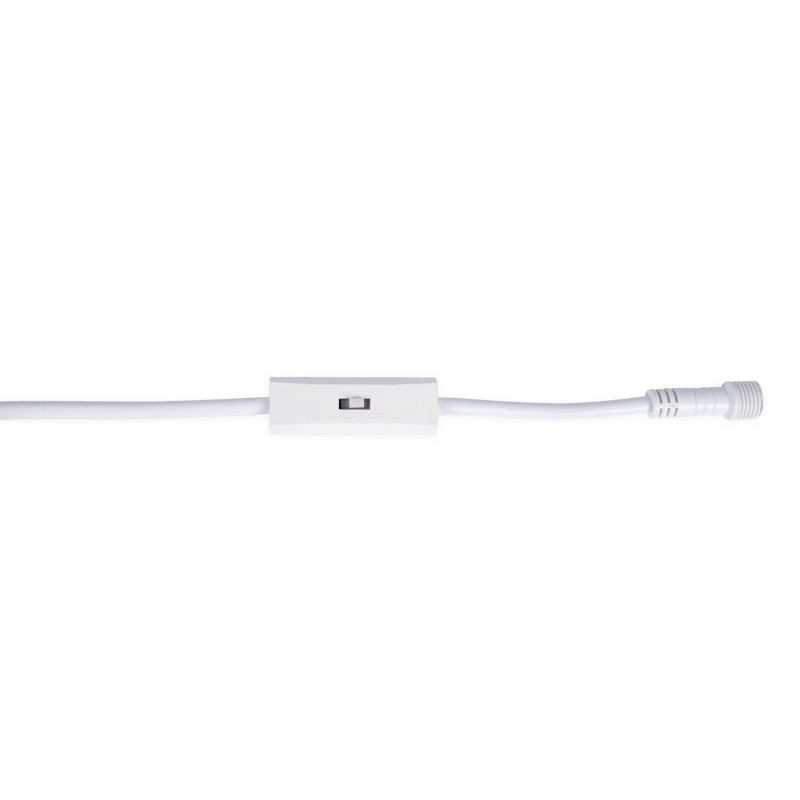

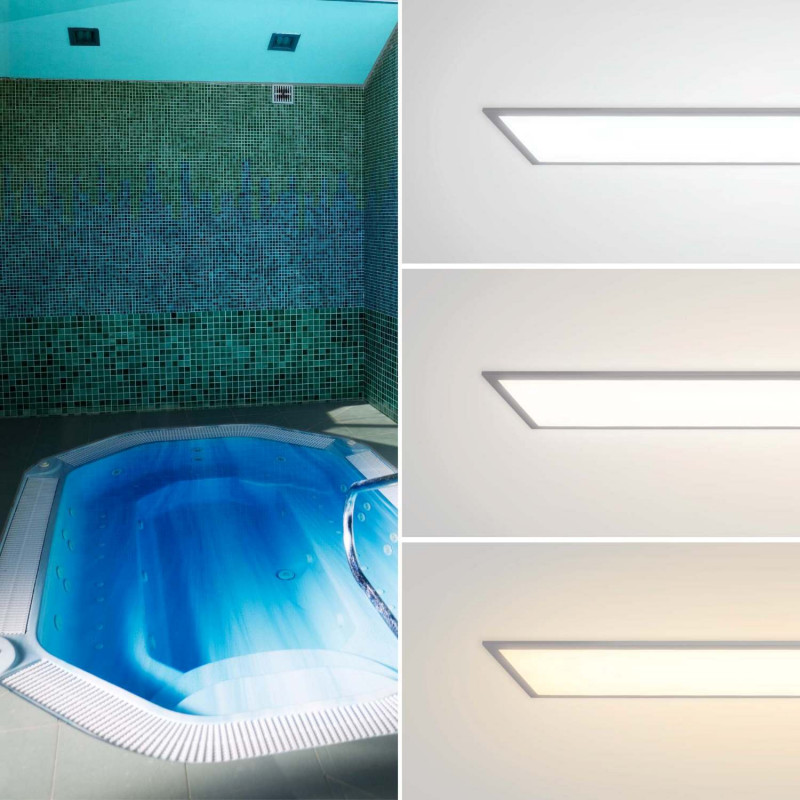

Its CCT system allows adjusting the color temperature in three tones: warm light (3000K), neutral light (4000k) and cold light (6000K). The color temperature is easily selected through a small selector located on the power cable.

It's manufactured with high quality components that guarantee a long service life, without acquiring a yellowish hue over time. It's a high-quality, efficient and reliable option for the home, office or business.

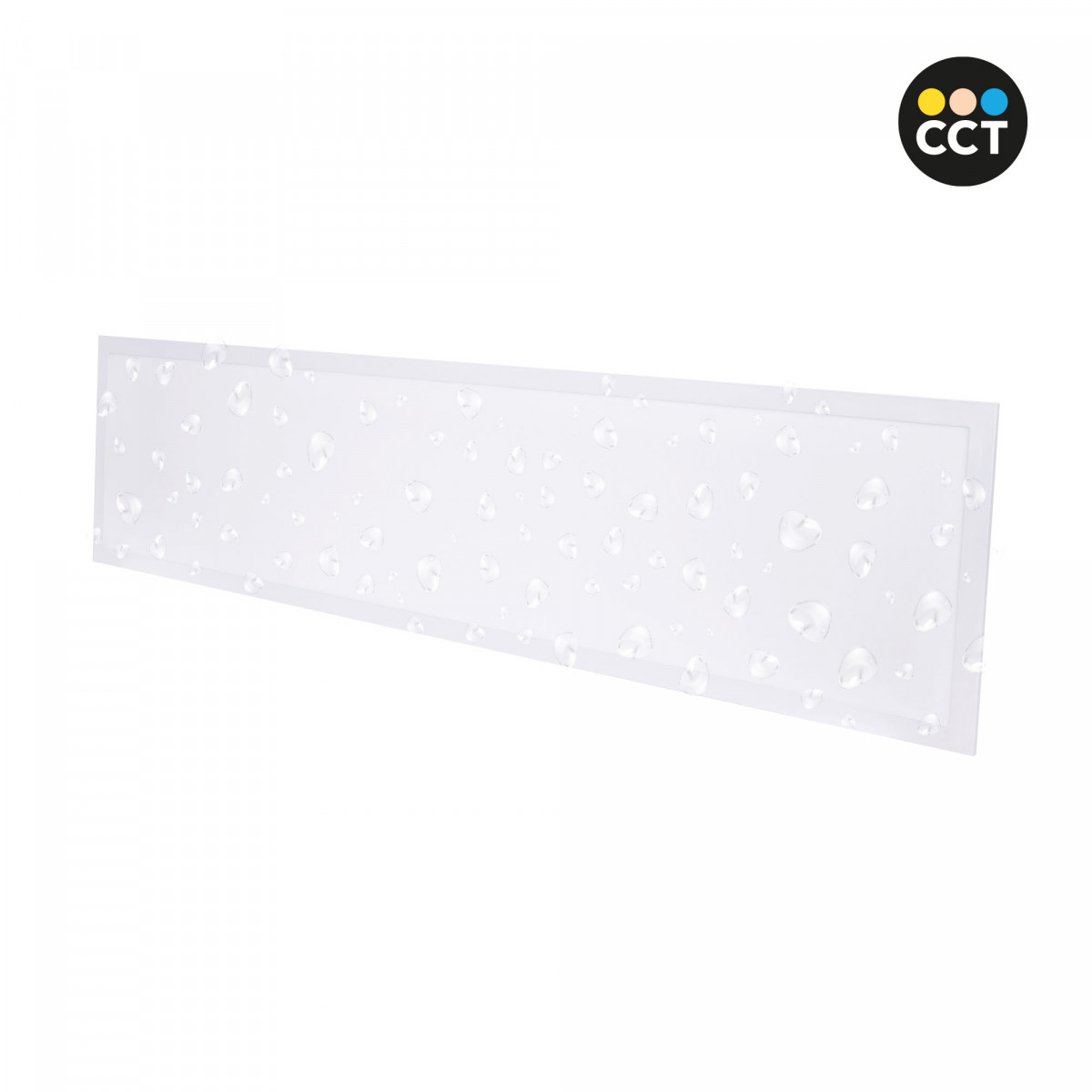

Due to its IP65 protection rating, this panel is suitable for outdoor use.

It's not compatible with surface or suspension kits.

Product features:

  • Backlight technology
  • Rated voltage: 220-240V AC
  • Power rating: 30W
  • UGR<19
  • Recessed installation

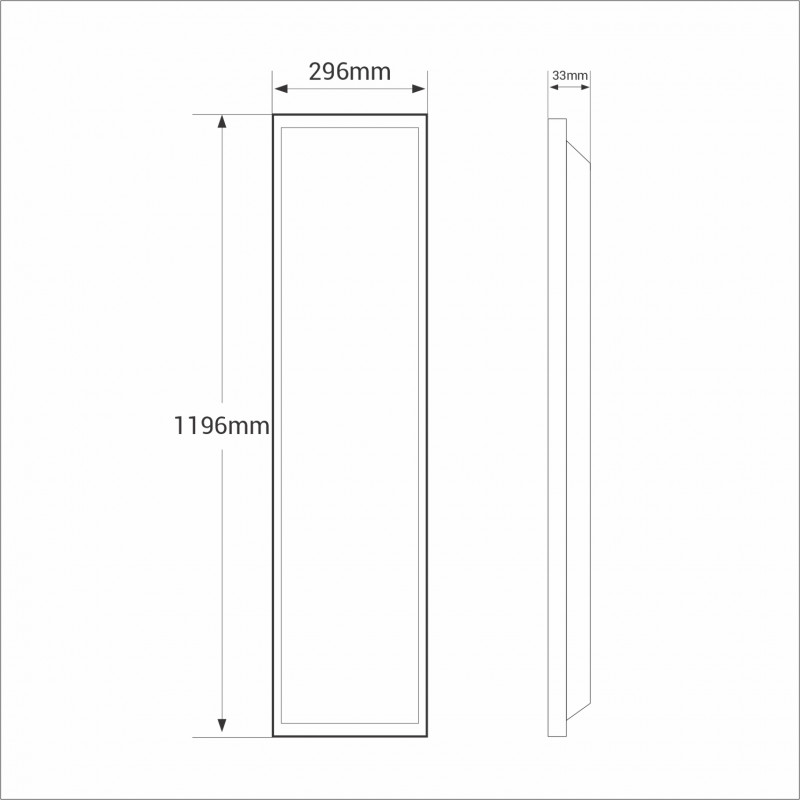

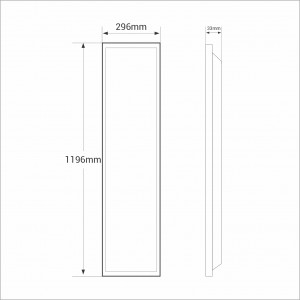

  • Dimensions: 1196 x 296 x 33mm
  • CCT System: warm white (3000K), neutral white (4000K) and cool white (6000K)
  • CRI>80
  • Outdoor use: IP65

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
30
Lumens (Lm)
3750
Kelvin (K)
3000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP65
Dimensions (mm) Lxlxh
1196 x 296 x 33
Frequency (Hz)
50 - 60
Hue
CCT
Sensor
No
Efficiency (Lm/w)
125
CRI
80-85

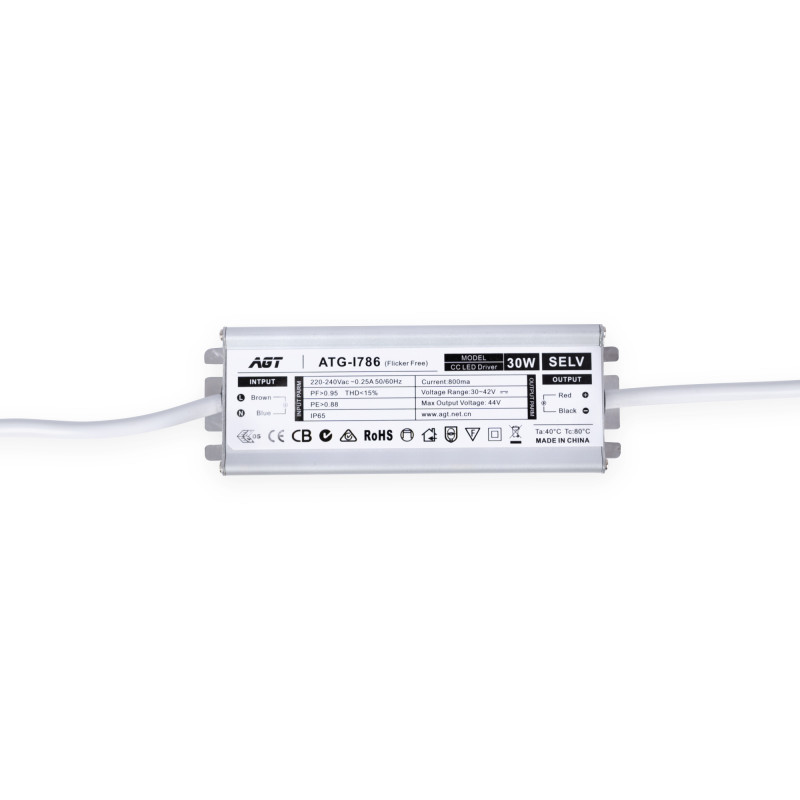

Driver

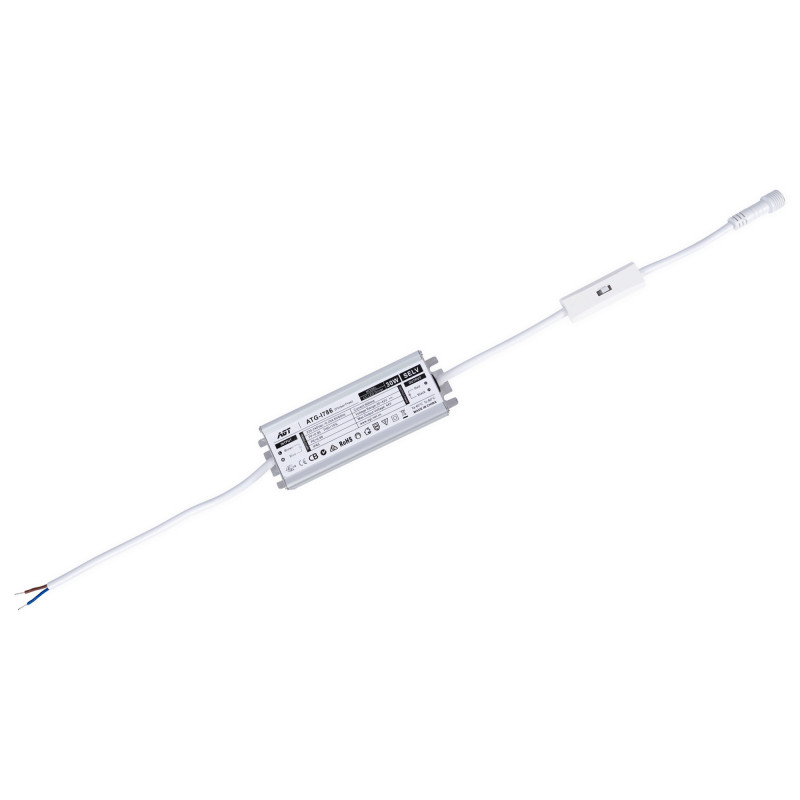

External
Orientable
No
Energy efficiency class
E
Certificates
CE
ROHS
Warranty
5 years
LED Panel dimensions
120x30
