42W UGR19 60x60 Extra-flat LED Panel with Anti-Glare 60x60

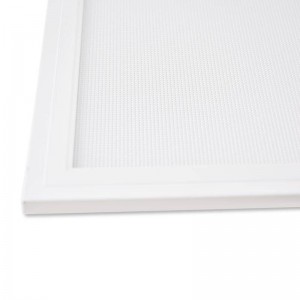

LED slim panel 60x60cm - OSRAM Driver - 40W - UGR18 - CRI 90

SKU:B5235-UGR18-BN
Colour temperature
Has superado el límite de unidades
In stock 686 units
Data sheet

The OSRAM recessed LED panel with driver features a sleek, ultra-slim design and state-of-the-art technology that enables it to provide powerful, uniform, neutral white (4000K) illumination. It is a high efficiency luminaire with a power of 40W and a luminous flux of 4000 lumens.

It incorporates a micro-prismatic diffuser that ensures glare-free illumination (UGR=18), ideal for offices, conference rooms, schools or hospitals.

Thanks to its high color rendering index (CRI>90), it reproduces colors very similar to natural light.

It is easy and quick to install and can be dimmed by TRIAC or DALI.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The 60x60cm slim LED panel is designed for recessed installation in suspended ceilings. Its ultra-slim, modern and elegant design is adaptable to any environment.

It incorporates a high quality OSRAM driver that ensures an immediate ignition and a homogeneous illumination, without flickering.

Its prismatic diffuser prevents glare, guaranteeing maximum visual comfort (UGR=18), a condition that is especially important in work or study environments, where low UGR levels have been shown to improve concentration, work performance and general well-being.

It is a high brightness product that emits a uniform light at an angle of 160°. It has 40W of power and a high color rendering index (CRI>90), allowing to visualize colors with great fidelity, similar to natural light.

Its high efficiency also allows significant energy savings compared to traditional luminaires.

Main characteristics of the product:

  • Extra flat design
  • Nominal voltage: 220-240 V/AC
  • Power: 40W
  • Lumens: 4000 lm
  • Recessed installation
  • Dimensions: 595 x 595 x 9,5 mm
  • Neutral white shade (4000K)
  • UGR=18
  • CRI>90
  • Indoor use: IP20

Power (W)
40
Lumens (Lm)
4000
Kelvin (K)
4000
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
595x595x9,5
Frequency (Hz)
50 - 60
Hue
Neutral white
Sensor
No
Efficiency (Lm/w)
106
CRI
90-95
UGR
UGR18
LED Type
SMD 2835
Dimmable
Yes, by replacing the driver
Driver
External
Osram
Orientable
No
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
60x60
Barcelona LED

Questions

P: Question: I need a DALI dimmable driver for this panel: B5235, does it exist? what is the code?
Thank you!
R: Answer: You can use the driver ref. B4260.
P: Question: Supplied with mounting clips?
R: Answer: Panels are prepared for Armstrong ceilings. Hanging kits, surface, or staples for other types of ceilings or mounting are available separately as accessories. Available on the web.
