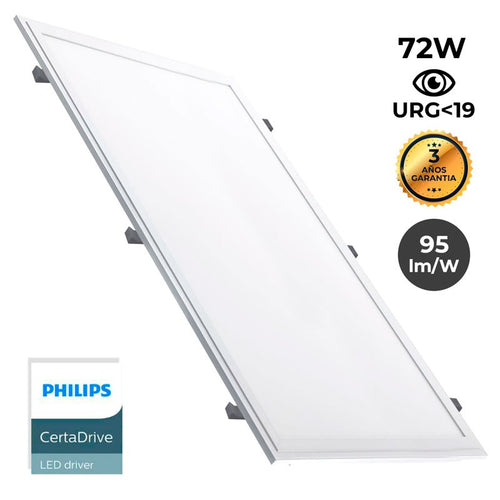

Recessed LED Panel 1200X600mm Slim 72W PHILIPS DRIVER UGR19 with mounting KIT

SKU:B4296-BC
Colour temperature
Has superado el límite de unidades
In stock 268 units
Data sheet

Slim recessed LED panel 120x60cm and 72W power of the PHILIPS brand, ultra thin with avant-garde aesthetics, suitable for all types of professional / home projects. It integrates perfectly into any surface. Placement options: Recessed in Armstrong ceiling (removable ceiling tiles 120x60cm), or by means of anchoring staples directly embedded in plasterboard false ceilings, or suspended by means of the ceiling hanging kit. Includes a 2 CERTA DRIVE PHILIPS. Accessories are sold separately.

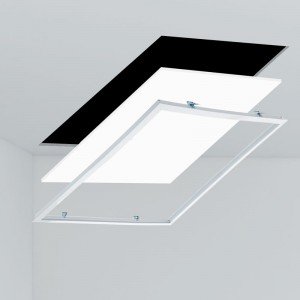

Includes recessed kit, frame, staples, screws (1200x600mm), with all accessories for quick and easy installation.

- x2 Driver: CertaDrive PHILIPS

- 230V

- 4000LM

- 120º

- 1200x600mm

- IP20

- UGR19

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

LED recessed panel 120x60cm SLIM 72W 6100LM UGR 19 with KIT

The 120x60cm LED panel is ultra-thin and avant-garde design. Ideal for professional or domestic projects. It adapts to any surface. The LED panel contains a surface kit that can be installed easily, for places where it is difficult to install the panel. If you later want to use the LED panel in a false ceiling you can disassemble the kit and use the same recessed LED panel. They are high power LEDs and high brightness, with the advantage of energy savings close to 80%.

Includes kit for mounting, frame, screws and staples (1200x600mm), with all the accessories for a quick and easy assembly.

These LED panels have several ways to be installed. All models are suitable for armstrong ceilings. You can also use our hanging kit for ceiling or the special clips to install them in false ceilings (sold separately). The LED panel includes 2 external "CertaDrive of PHILIPS" driver with high performance and power factor 0.95 with EMC filter against interference with other radio or WiFi devices.

The 120x60 cm LED panels are the best option to change the 120 cm fluorescent tube screens, surpassing them in design and efficiency. This LED panel has a luminous intensity of 6100 lumens, with an efficiency of 85 lm/w and a high color rendering index CRI >80. With low glare index UGR 19.

  • No UV and IR radiation, 0% mercury or hazardous materials, environmentally friendly.
  • Low power consumption, energy saving up to 80%.
  • Light is projected very evenly, no glare, no eye strain.
  • Instant start-up, no flickering or noise.
  • Multiple installation possibilities.
  • Does not generate heat.

Nominal Voltage (V)
230V
Power (W)
72
Lumens (Lm)
6100
Kelvin (K)
3000
4000
6000
Beam angle (º)
160º
Dimensions (mm) Lxlxh
1200x600mm
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Sensor
No
Efficiency (Lm/w)
85
CRI
80-85
LED Type
SMD 2835
Driver
External
Orientable
No
Diffuser material
Polycarbonate
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
3 years
LED Panel dimensions
120x60
