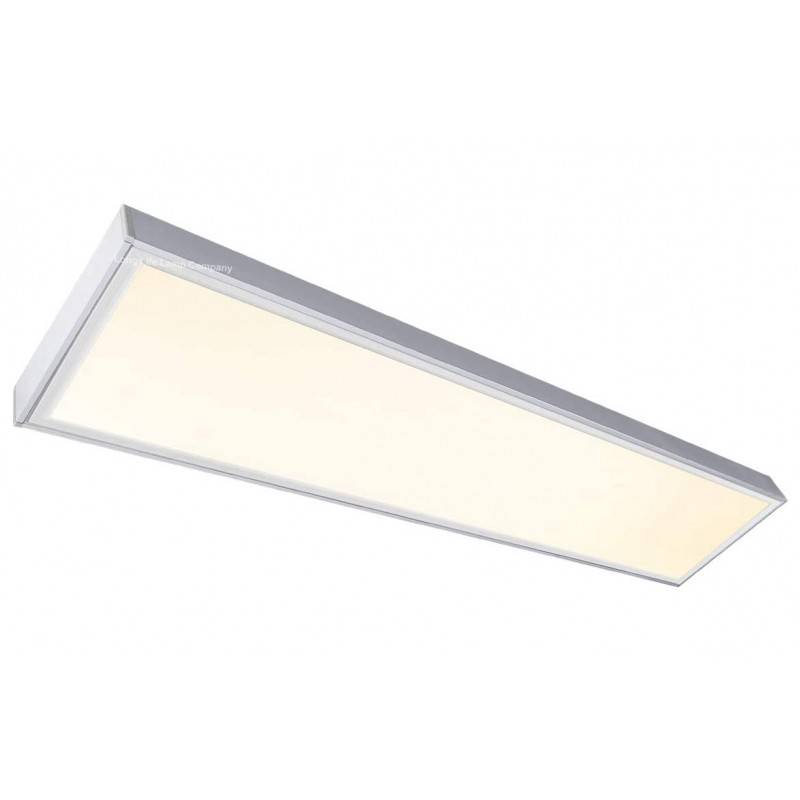

Slim surface LED panel 120X30 cm - Driver Philips - 44W - UGR19 - With mounting KIT
SKU:B4290-BC
€36.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

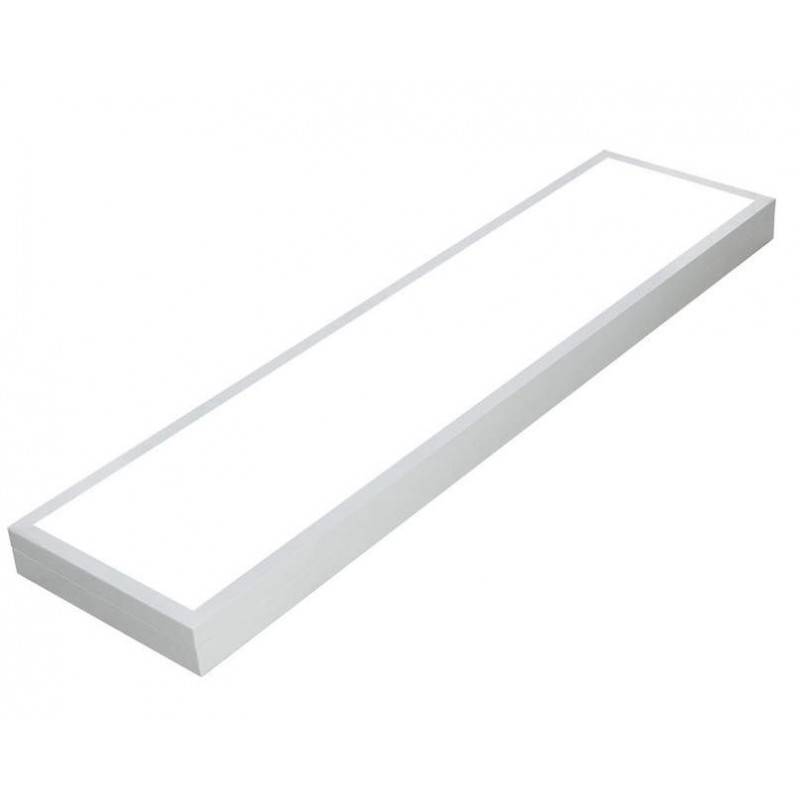

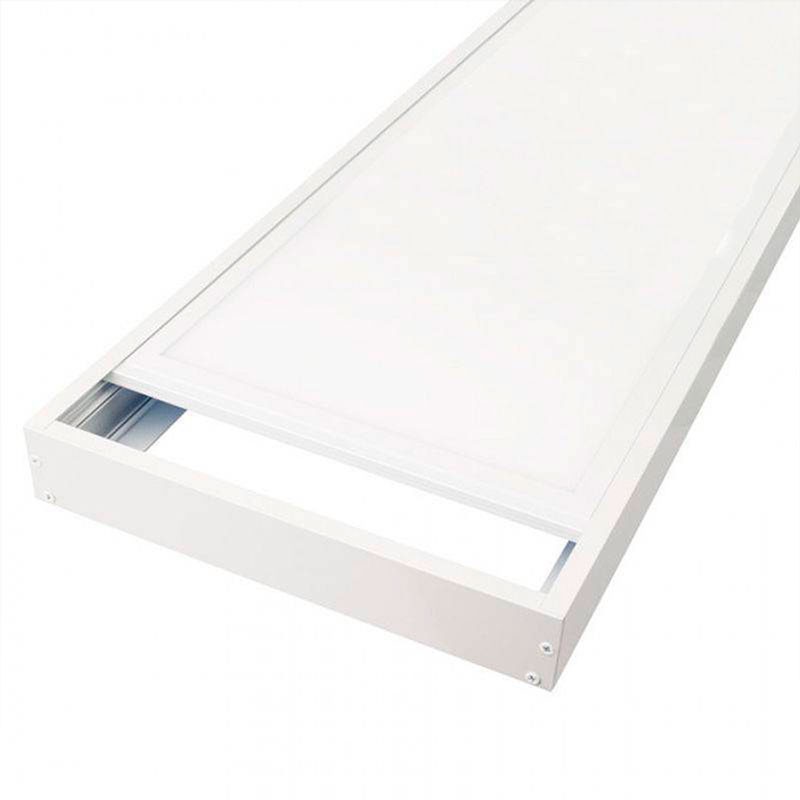

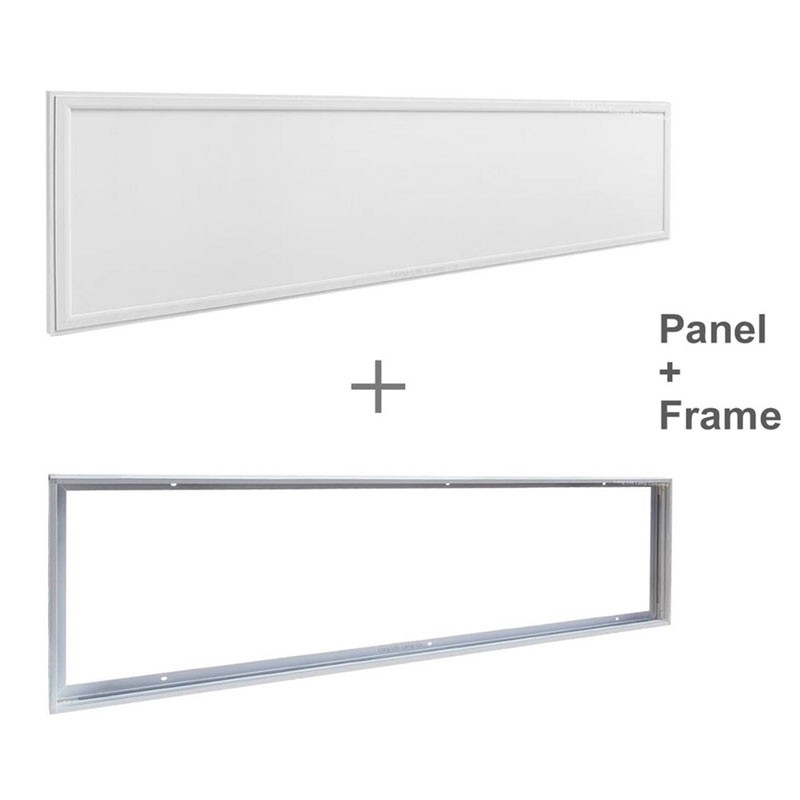

120x30cm slim LED panel kit (Reference B5236) + surface mounting frame (mounting accessories included).
The panel has an ultra-slim, modern and elegant design, adaptable to any environment.

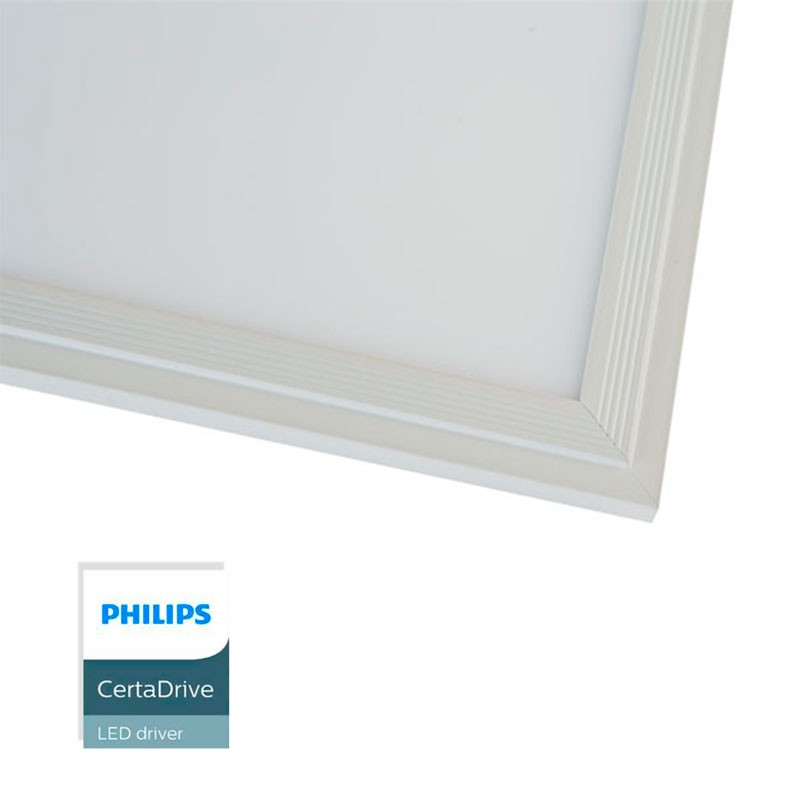

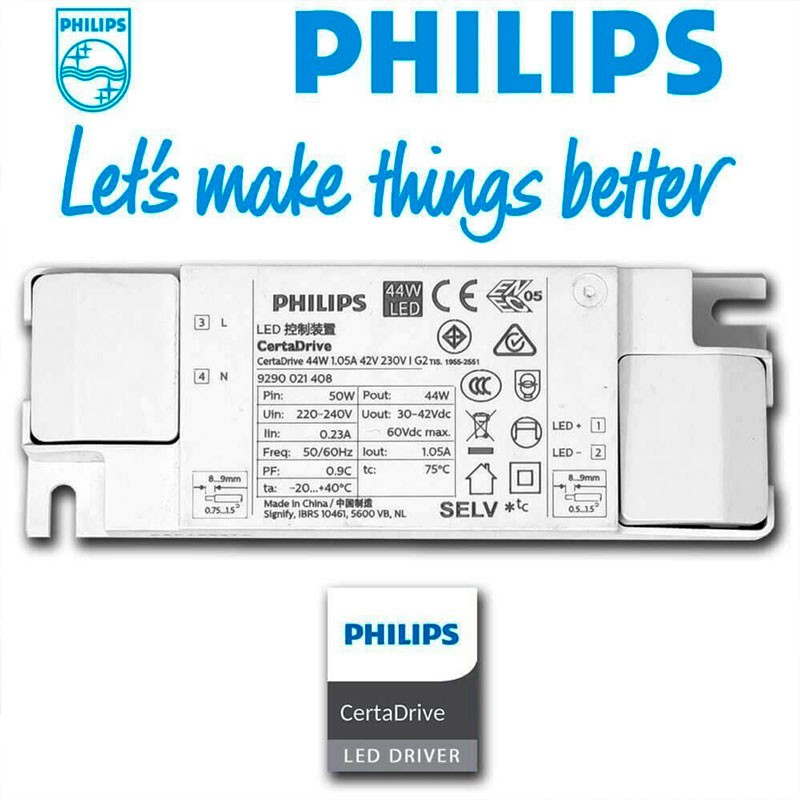

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.
Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR<19), a condition especially important in work or study environments, where low UGR levels have shown greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 120°. It has 44W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the test reports attached in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
44
Lumens (Lm)
2900

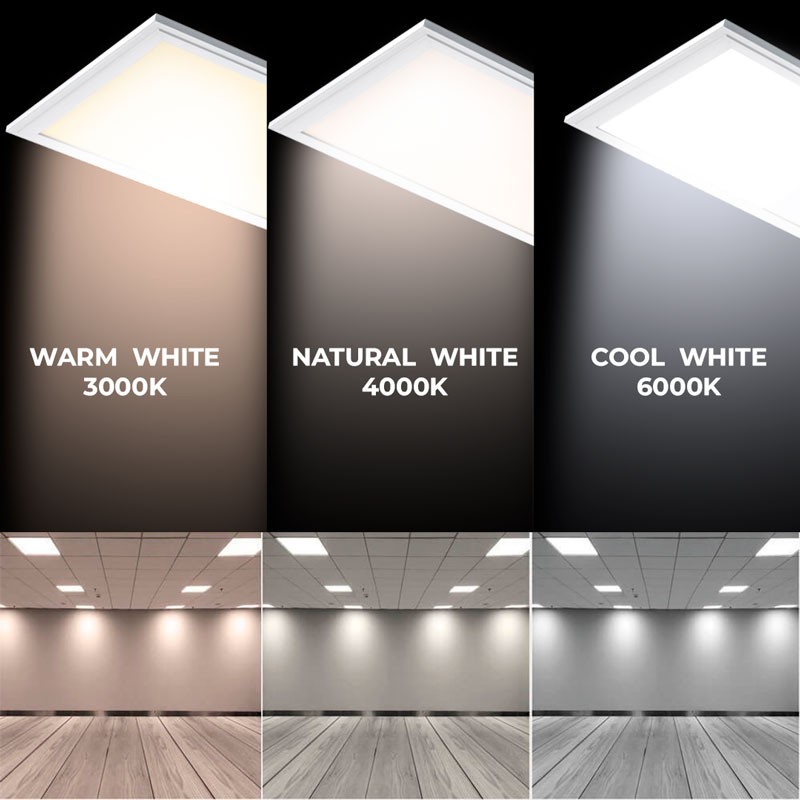

Kelvin (K)
3000
4000
6000
4000
6000
Lifetime (h)
25000
IP
IP20
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
CRI
80-85
UGR
UGR19
LED Type
SMD 2835
Dimmable
Yes, by replacing the driver
Driver
Philips
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years

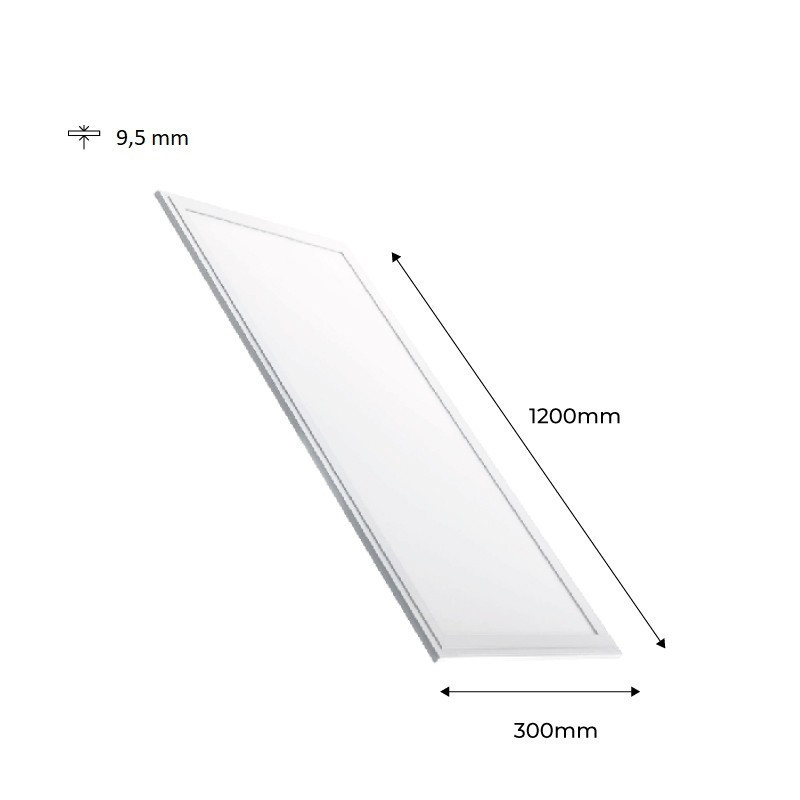

LED Panel dimensions
120x30
Length
Width
Height
Questions
| P: Question: |
HELLO, I have a kitchen of 5.50 x 2.25 and 2.48 high. The light point on the ceiling is 3 m from the access door and 1.15 from the wall front where the sink / ceramic hob is located. This panel (Panel LED slim surface 120X30 cm - Driver Philips - 44W - UGR19 - With mounting KIT Reference: B4290-BF) I would serve or what I recommend. Thanks |
|---|
| R: Answer: | Hello, yes, it would work for you. Greetings Barcelona LED: Alex| 02/08/2024 |
|---|
| P: Question: | The LED can be mounted in a wooden ceiling. |
|---|
| R: Answer: | Hello, Yes, it can be done without problems. |
|---|
| P: Question: | How thick is the panel? Is it adjustable? Does it work with remote control? Thank you! |
|---|

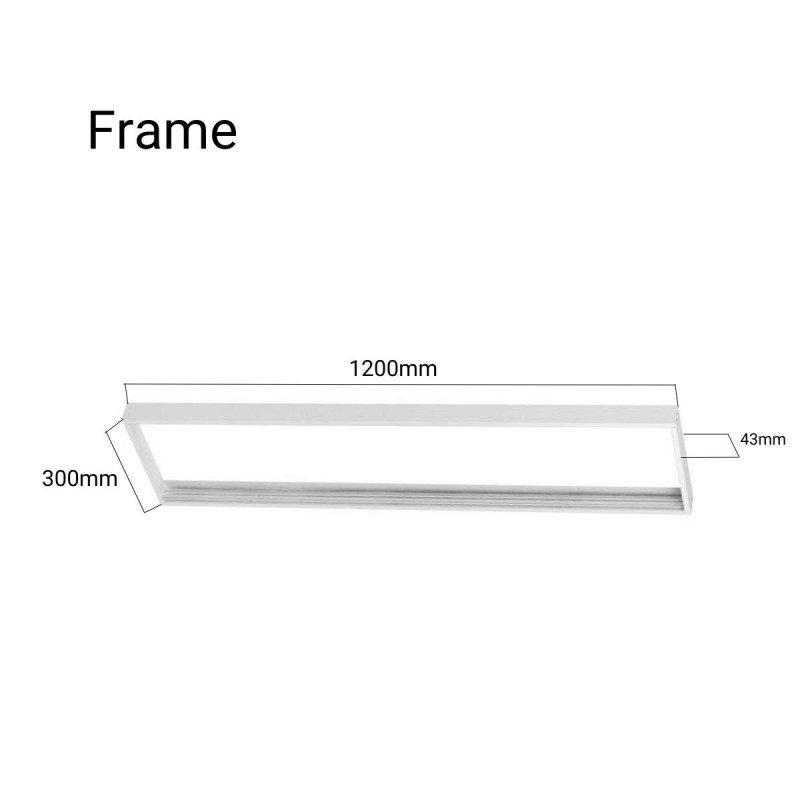

| R: Answer: | The dimensions of the recessed kit are 1210x310x50mm, it is not dimmable (you have to change the electronic "driver" to make it dimmable), it does not have a control knob. |
|---|
| P: Question: |
Good morning, After all, how many lumens does this LED panel give? |
|---|
| R: Answer: | Hello! It has 2900 lumens
Barcelona LED: Alejandro| 14/04/2023 |
|---|
| P: Question: | Hello, the surface kit that is included already brings everything needed to be installed on the ceiling of a kitchen superficially? I mean if it also brings the plugs and screws that will be needed for the surface installation on the ceiling. Thank you very much. |
|---|
| R: Answer: | If included |
|---|
| P: Question: | Would it be suitable for an elongated kitchen of about 5x2m? Thanks |
|---|
| R: Answer: | Depending on the height, it may be sufficient, although the light will be more uniform with two points of light for 5 mts long. |
|---|
| P: Question: | Can it be installed in solid ceilings without the driver being visible? or only in false ceilings because it has to be hidden? |
|---|
| R: Answer: | It is surface mounted and the driver is behind the panel. |
|---|
| P: Question: | I bought a unit on 12/10/2021 and the driver is broken, I would like to know its code if it is sold loose, or should I buy a new unit. |
|---|
| R: Answer: | You can use a 1050mA driver of 30-42V, if under warranty you can contact a sales representative. |
|---|
| P: Question: | Do you have an aluminum or brushed aluminum frame? |
|---|
| R: Answer: | Surface kit available in white color |
|---|
| P: Question: |
Is the side that remains to be fitted the smallest or the largest? |
|---|
| R: Answer: | and the smaller part |
|---|
