Slim surface LED panel 120X60cm - PHILIPS Driver - 72W - UGR19 - With mounting KIT
SKU:B4291-BC
€69.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

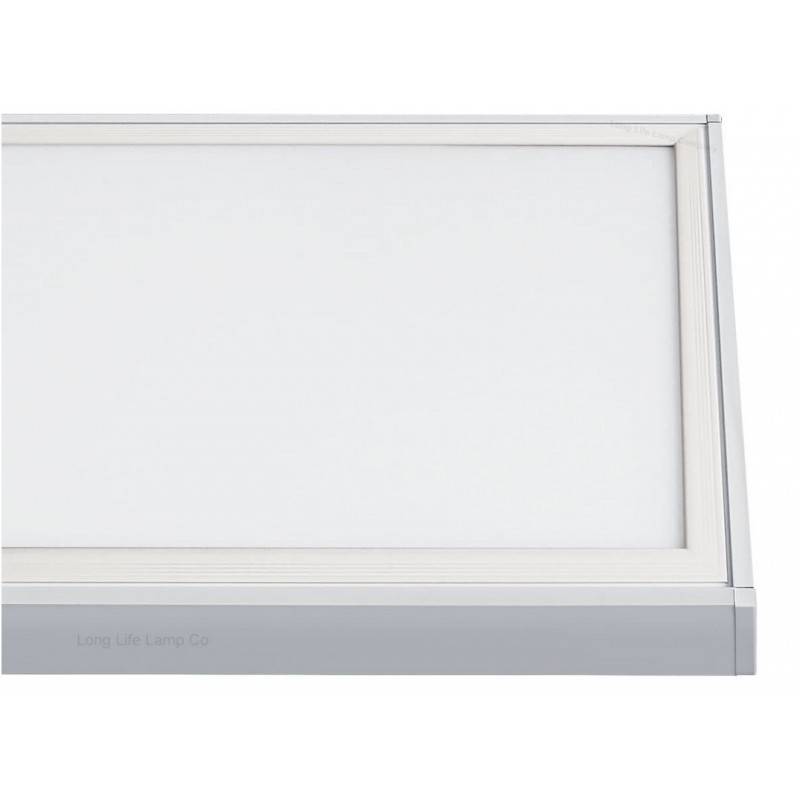

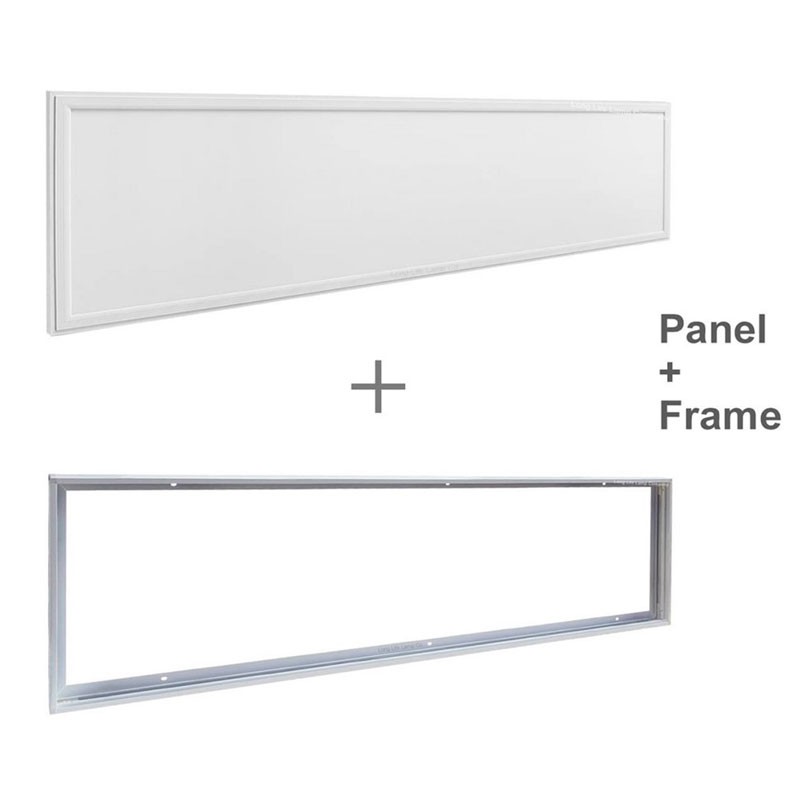

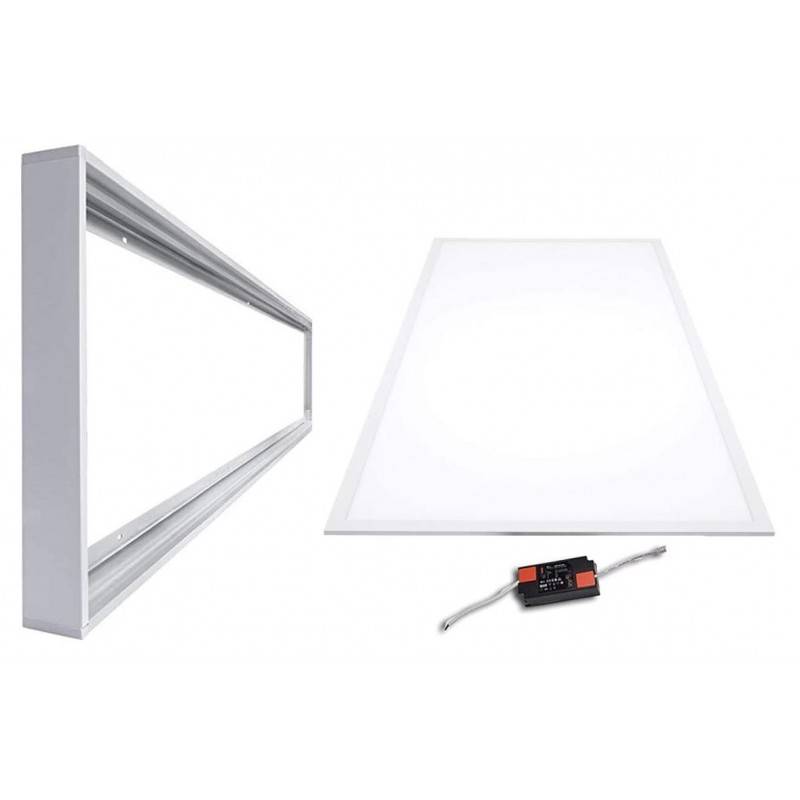

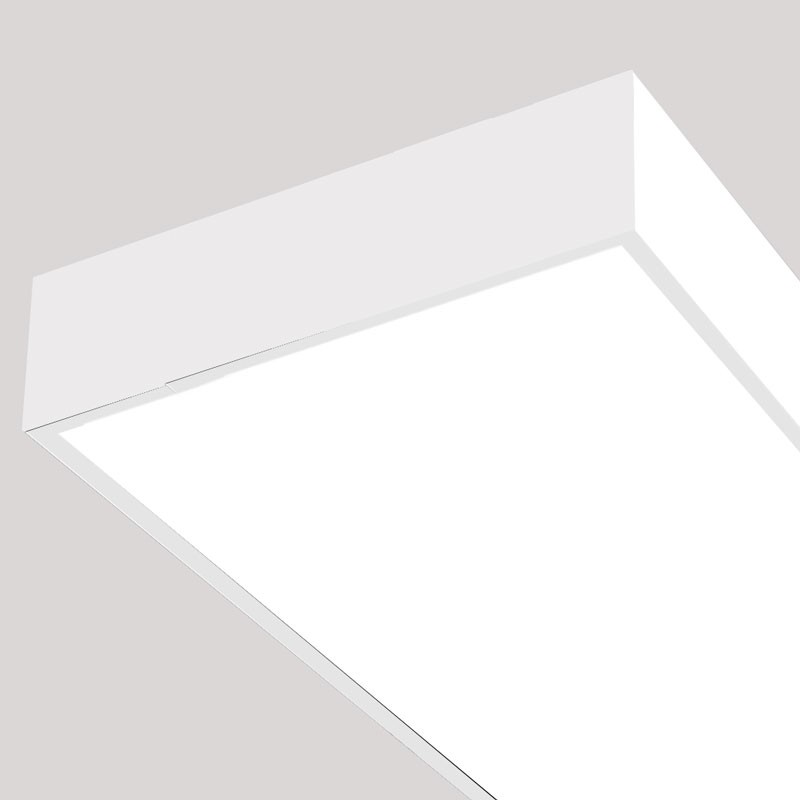

Slim LED surface panel kit 120X60cm (Reference B5234) + surface installation frame (accessories needed for mounting included).

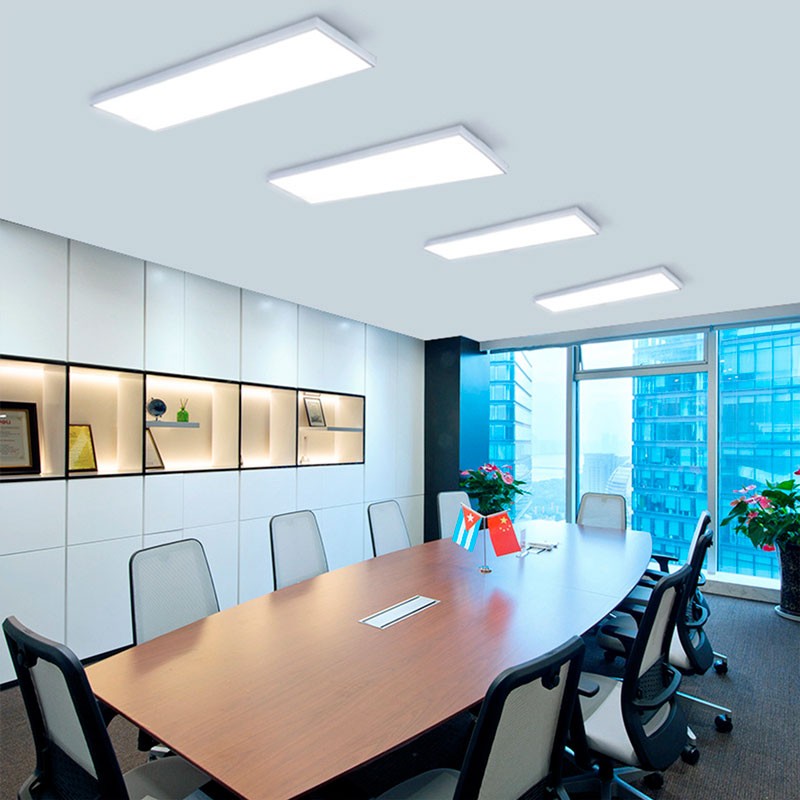

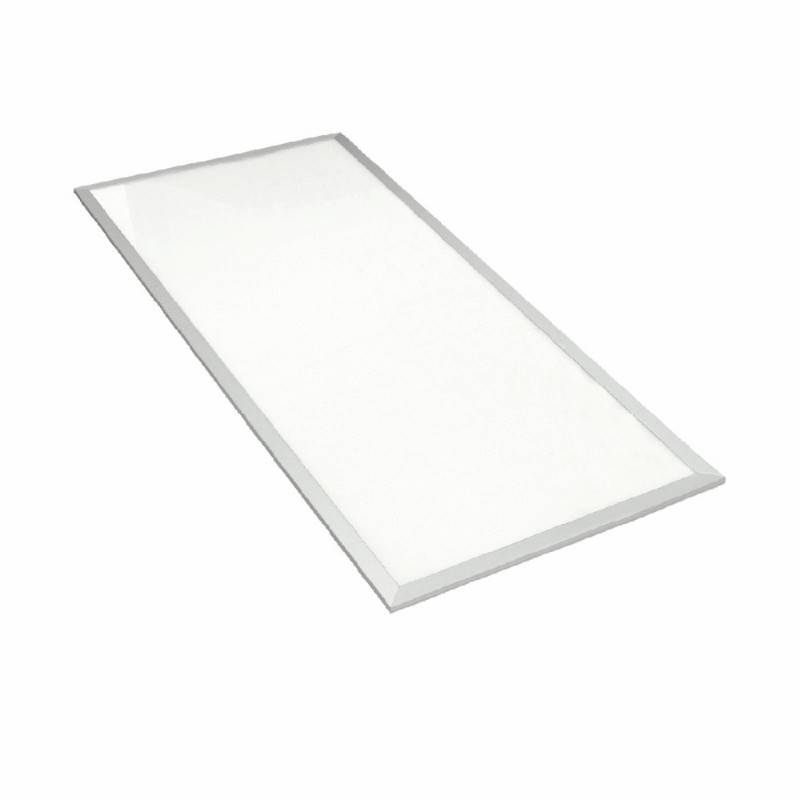

The panel has an ultra-slim, modern and elegant design, adaptable to any environment.

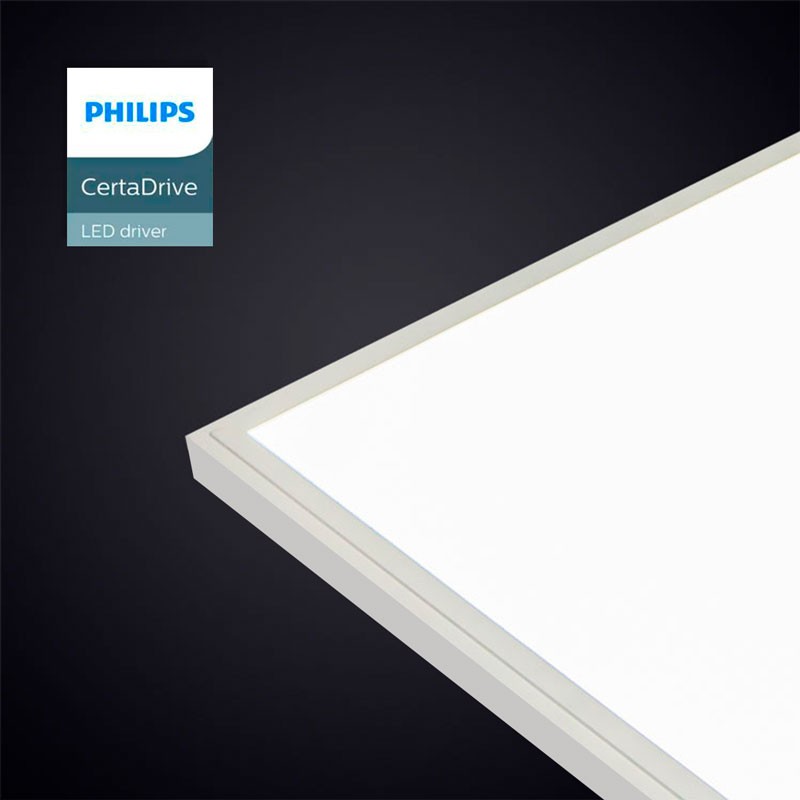

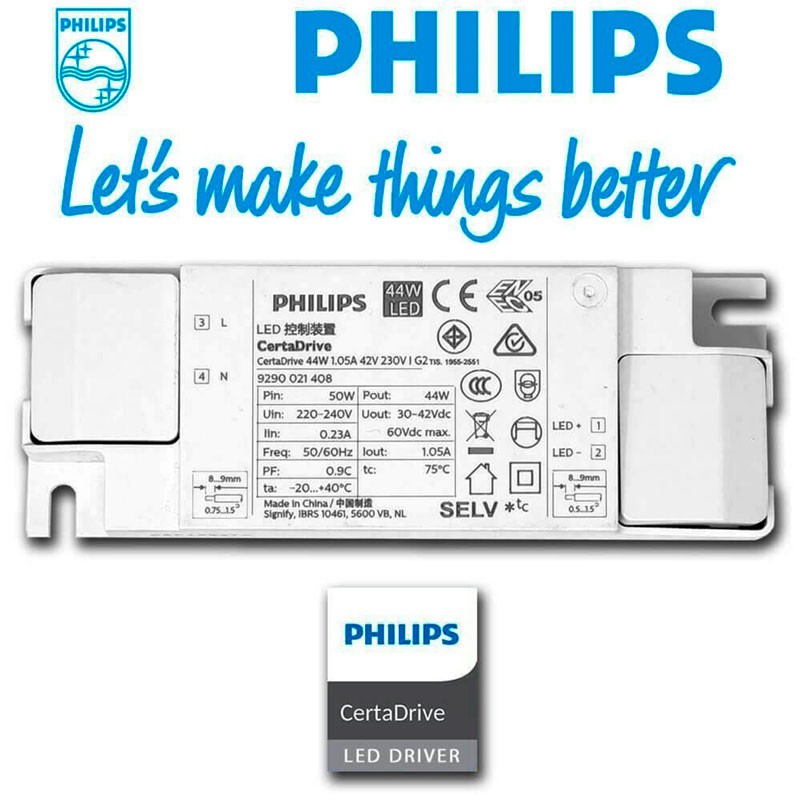

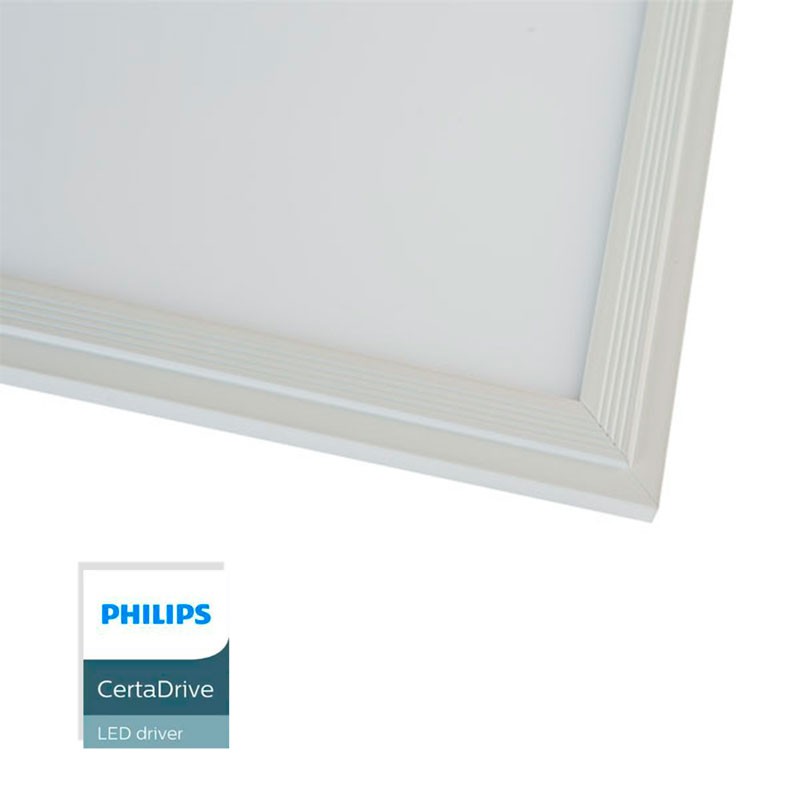

It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.
Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR≤19), a condition especially important in work or study environments, where low UGR levels have shown greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 160°. It has 72W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires.
|
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
72
Lumens (Lm)
5900

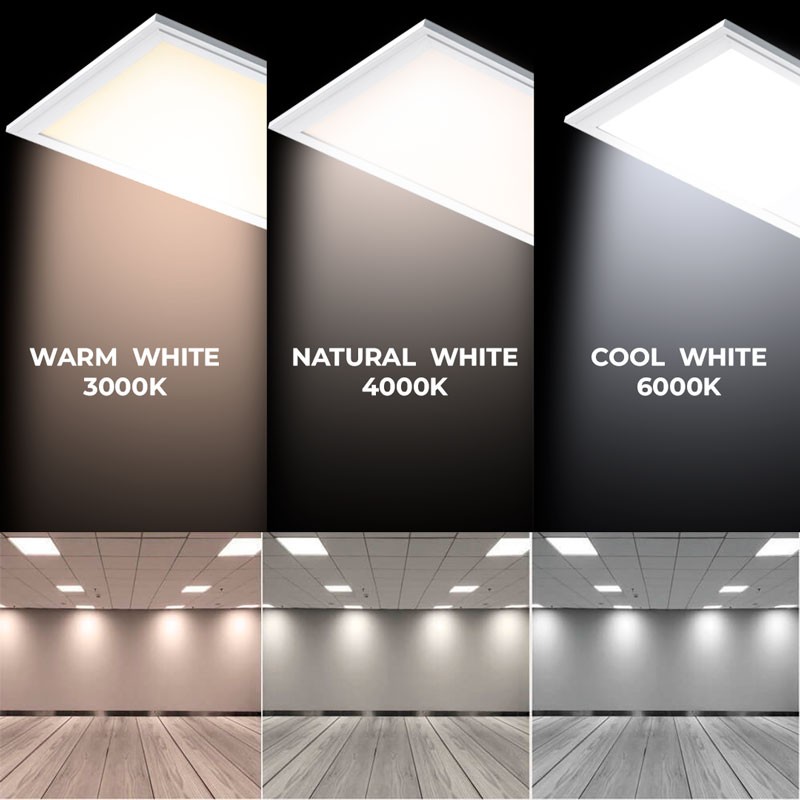

Kelvin (K)
3000
4000
6000
4000
6000
Beam angle (º)
160
Lifetime (h)
25000
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
CRI
80-85
UGR
UGR19
LED Type
SMD 4014
Driver
Philips
Orientable
No
Diffuser material
Polycarbonate
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
120x60
Questions
| P: Question: | The color of the surface kit sometimes looks white and sometimes looks silver. What color is it? |
|---|
| R: Answer: | The kit is white |
|---|
| P: Question: | for how many square meters for a small kitchen? |
|---|
| R: Answer: | Good morning If it is a small kitchen, perhaps it would be better a panel like this Ref: B1030-B-24W-BN
Barcelona LED: Alejandro| 04/05/2023 |
|---|
| P: Question: |
Hello Can you tell me how high/strong the panel is including the frame and transformer? Thanks in advance. |
|---|

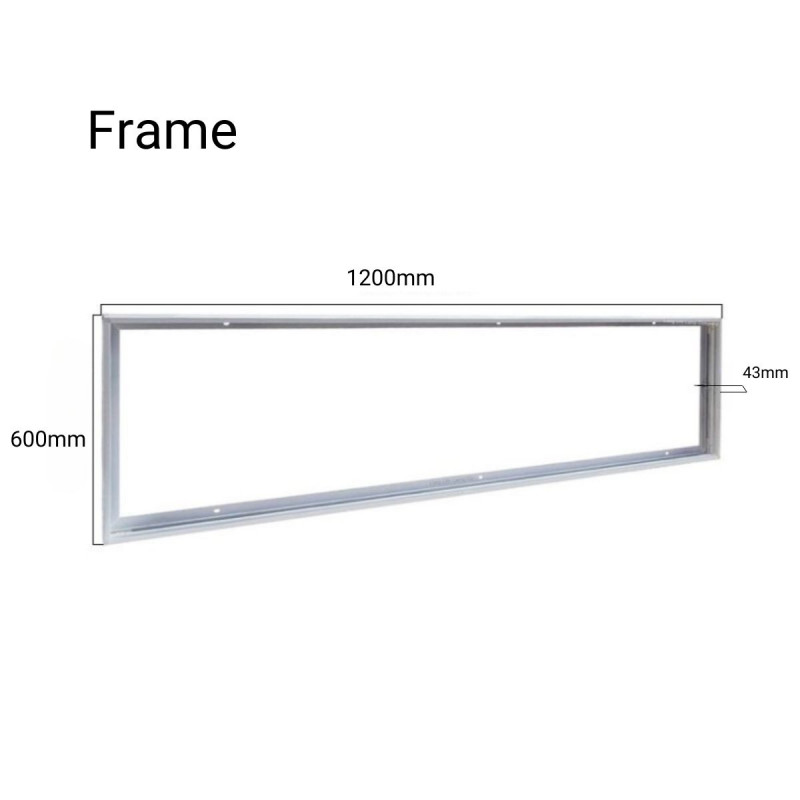

| R: Answer: | Hello The height of the set is 5 cm. The driver is included in the set. Barcelona LED: Santiago| 22/03/2023 |
|---|
| P: Question: | When will this product be available? |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: | Could they be put on the wall to simulate a window? Thank you. |
|---|
| R: Answer: | They can be placed on the wall, but the panel is supported on the surface kit by its own weight, when placed vertically it will have to be fastened so that it does not move towards the wall. |
|---|
| P: Question: |
Good morning, do you have any tutorial to mount this LED panel on the surface mount kit ? Thank you very much and best regards. |
|---|
| R: Answer: | We do not have a tutorial, simply attach the corners with two screws and place the kit on the ceiling with wall plugs. |
|---|
| P: Question: |
I would like to know the IP protection rating of this product and if it would be possible to find a compatible driver to make it dimmable. thanks Regards |
|---|
| R: Answer: | The surface LED panels are for indoor rooms and their degree of protection is IP20. The panels have two independent drivers for operation, in order to convert them to dimmable by TRIAC system, it is necessary to change the two drivers for dimmable ref. |
|---|
