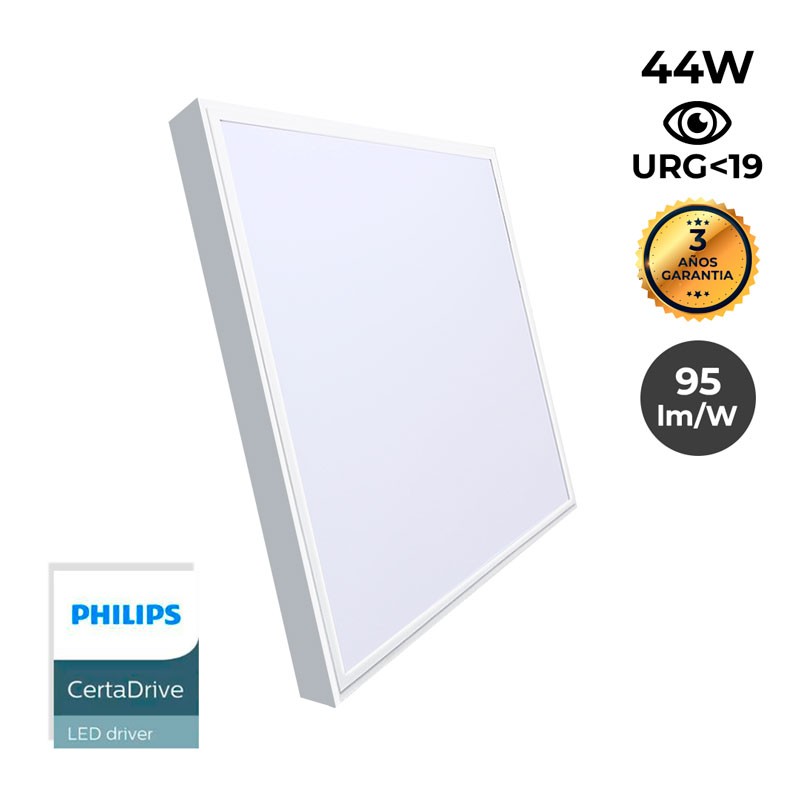

60X60 cm slim surface LED panel - PHILIPS Driver - 44W - UGR19 - with mounting KIT
SKU:B4292-UGR19-BF
€34.49
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

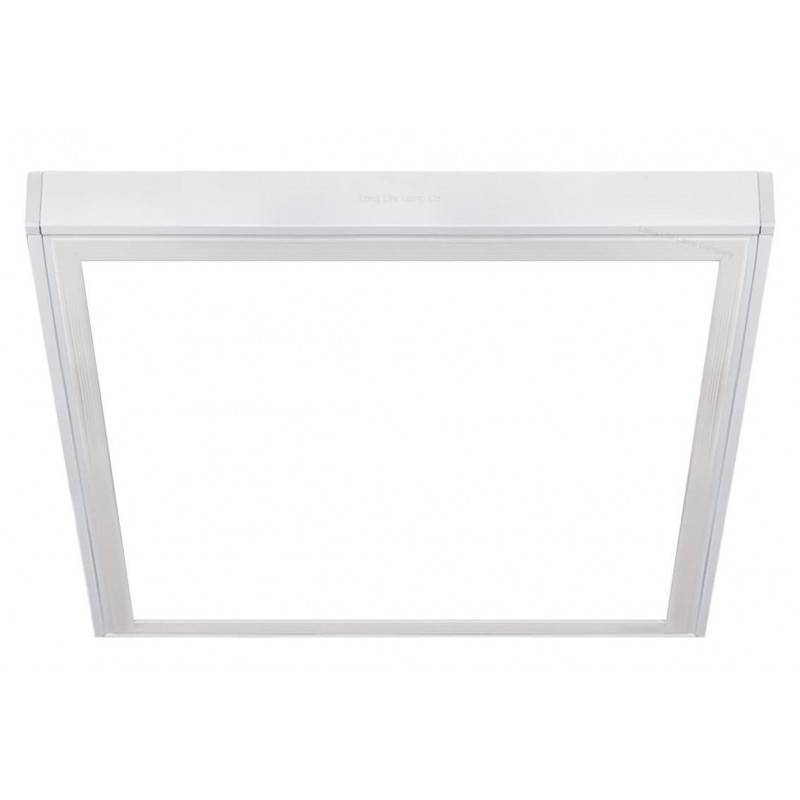

60x60cm slim LED panel kit (Reference B5235) + surface mounting frame (mounting accessories included).
The panel has an ultra-slim, modern and elegant design, adaptable to any environment.
It incorporates a high quality PHILIPS driver that ensures an immediate ignition and a homogeneous illumination, without flickering.
Its prismatic diffuser prevents glare, ensuring maximum visual comfort (UGR<19), a condition especially important in work or study environments, where low UGR levels have shown greater power of concentration, work performance and general well-being in people.
It is a high brightness product that emits a uniform light at an angle of 120°. It has 44W of power and a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Its high efficiency also allows significant energy savings compared to traditional luminaires. This product is ideal to replace 4 fluorescent tubes of 60 cm.
Main characteristics of the product:
|
Please note that certain technical characteristics such as lumens or CRI may vary according to the color/shade of the product. For further details, please refer to the test reports attached in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
44
Lumens (Lm)
3800
Kelvin (K)
2800
4000
6000
4000
6000
Lifetime (h)
25000
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Warm white
Neutral white
Warm white
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes, by replacing the driver
Driver
External
Orientable
No
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
LED Panel dimensions
60x60
Questions
| P: Question: | Is the frame already pre-assembled or does it have to be mounted? How is it mounted on the ceiling? Is the transformer included so that it can be immediately connected to the mains? |
|---|
| R: Answer: | It is necessary to mount the frame, but the installation is very simple. The panel is then connected directly to the mains.
Barcelona LED: Alex| 27/09/2023 |
|---|
| P: Question: | it is for a kitchen of approx 30 m, will it illuminate well? and how much does the shipping cost. thanks |
|---|
| R: Answer: | Possibly for 30m2 (5x6) you will need more than one, minimum 2. At the bottom of the web you can see the shipping policy. |
|---|
| P: Question: |
Good afternoon, I am looking at: LED panel surface slim 60X60 cm - PHILIPS Driver - 44W - UGR19 - with mounting KIT (Ref. B4292-UGR19-BF). It says there are 3 light modes: warm white, neutral white and cool white but it doesn't talk about remote control. How do I change the color? Also I was sent a 5% discount code on first purchase and it tells me that the price is not enough to apply it, in the instructions for sending the code did not say anything? Thank you |
|---|
| R: Answer: | This panel is not CCT only has one color temperature to choose from (BF, BN, BC), the reference code changes when selecting the desired color temperature. For orders and discounts, you can contact comercial@barcelonaled.com |
|---|
| P: Question: | Hello, I would like to know which transformer I have to buy because it does not come with it. |
|---|
| R: Answer: | The panel should have a driver (transformer) inside the box, otherwise contact comercial@barcelonaled.com for the shipment of one. |
|---|
| P: Question: |
in the data sheet it says that the thickness is 9.5 mm but I understand that it is only the panel. with the surface kit, how thick is it? thank you |
|---|
| R: Answer: | Current panel + surface kit models are about 45mm thick. The panel is about 9-10mm |
|---|
| P: Question: |
Is it suitable for a kitchen of 8 square meters? How is it fixed to the ceiling? Finally, are the screws visible on the frame? |
|---|
| R: Answer: | It is enough for 8mt square, the kit must be screwed to the ceiling with dowels. It has small screws in the corners |
|---|
| P: Question: |
Very good, is the edge of the panel and the surface kit in white color? |
|---|
| R: Answer: | If both are white |
|---|
| P: Question: |
Good, to put in the kitchen better neutral color or cool color? Thanks |
|---|
| R: Answer: | Both can be placed in the kitchen. in other neutral or warm places. |
|---|
