WIFI SMART RGB / RGBW + CCT - 60x60 cm - 40W - With mounting kit
SKU:B4292-RGBW
€95.00
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

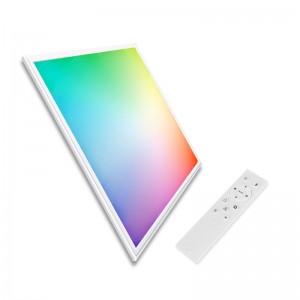

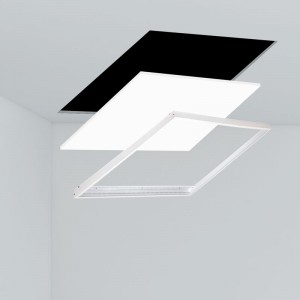

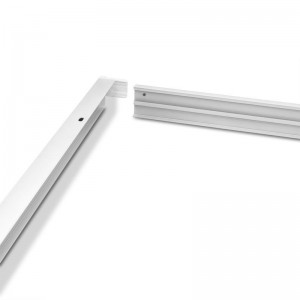

SMART RGB / RGBW + CCT WIFI LED panel kit (Reference B5235-RGBW) + surface mounting frame (mounting accessories included).
The panel features an ultra-slim, modern and elegant design, adaptable to any environment.
The lighting is controlled by remote control or by the TUYA app and it is possible to choose the desired configuration among the multiple variants offered by the RGBW system and the possibility to adjust the light intensity.
In addition, if you opt for white light, by incorporating the CCT system, the color temperature can be selected among its three variants, according to the needs of each space: warm light (3000K), neutral light (4000K) or cold light (6500K).
With its remote control, an unlimited number of panels can be controlled.
|
Main product features:
|
For more precise technical parameters such as lumens, CRI, etc. please refer to the attached test reports in the "Downloads" section, or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
40
Lumens (Lm)
3500
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
595 x 595 x 9.5
Hue
CCT
RGB-W
RGB-W
CRI
80-85
LED Type
SMD 4014
Dimmable
Yes
Driver
External
Material
Aluminium
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | the output voltage of the driver is 24vdc? |
|---|
| R: Answer: | Hello, the output current of the driver is between 27-40 Vdc. Thank you!
Barcelona LED: Alejandro| 05/09/2024 |
|---|
| P: Question: | I just read that you can turn on and off via alexa, and I was wondering if it saved the configuration and tone, ie, if with the App or the remote I select a color and tone, to turn it on and off, it would always do it in that tone and color selected? Thank you very much! |
|---|
| R: Answer: | Yes, when setting color on the panel it can be turned on and off by voice with Alexa keeping the selected color.
Barcelona LED: Alejandro| 26/04/2023 |
|---|
| P: Question: | Is it compatible with Alexa? |
|---|
| R: Answer: | The panel works by remote control and mobile APP TUYA Smart , with Alexa and Google Home can be turned on and off (currently does not allow regulation and color change). |
|---|
| P: Question: | In a normal ceiling mounting using the surface kit, is there enough space to mount the driver between the panel and the ceiling ? |
|---|
| R: Answer: | There are spaces to put the driver behind the panel |
|---|
| P: Question: |
Hello, how is it installed on a normal ceiling, do I have to nail the frame or does it have another system? Thanks |
|---|
| R: Answer: | The panel surface kit must be fastened to the ceiling with dowels and screws. |
|---|
| P: Question: |
THE COLOR SCHEME THAT HAS THE CONTROLLER IN THE HINGED COVER THAT REFERS TO, THE LEFT SIDE (LDE +, G, B, R, C, W) ARE THE CONNECTORS UNDER THE LID AND THE RIGHT SIDE ARE THE WIRES COMING OUT OF THE PANEL, IF YOU CAN I WOULD LIKE TO CLARIFY IT BEFORE CONNECTING GREETINGS MANUEL. |
|---|
| R: Answer: | If, as you indicate, the color codes on the left are those represented on the driver/controller and those on the right are those corresponding to the wires on the panel, then the following color codes should be used |
|---|
