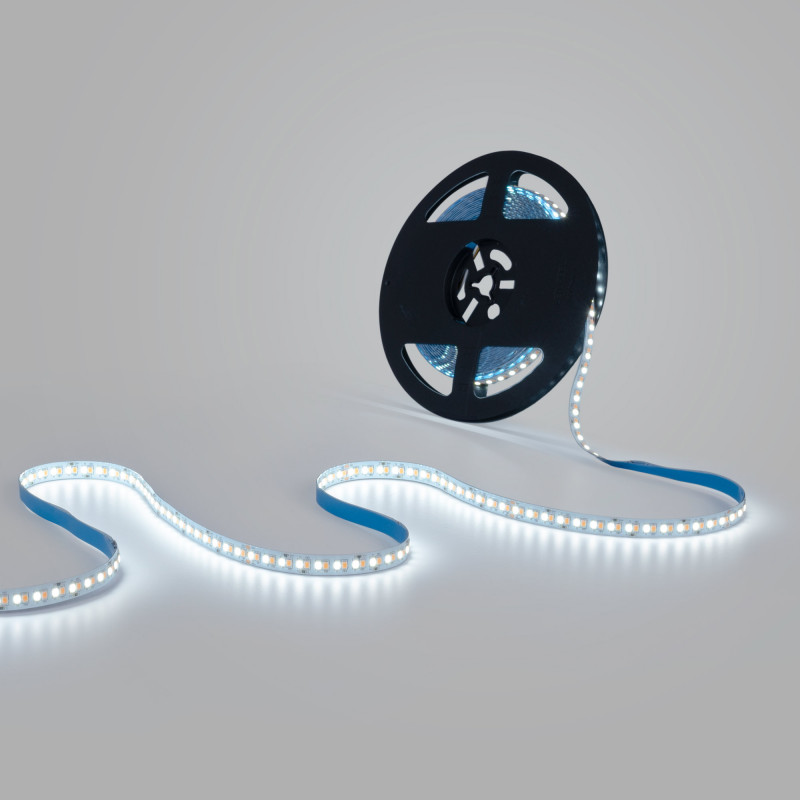

48V DC LED Strip - CW 2

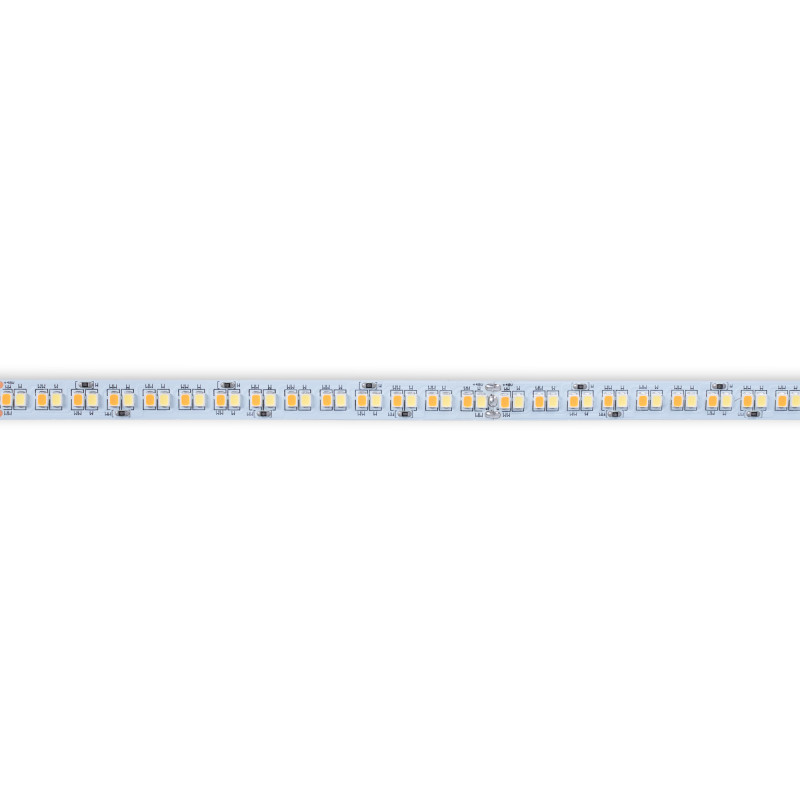

48V DC LED Strip - white background
48V DC LED Strip - zoom CW

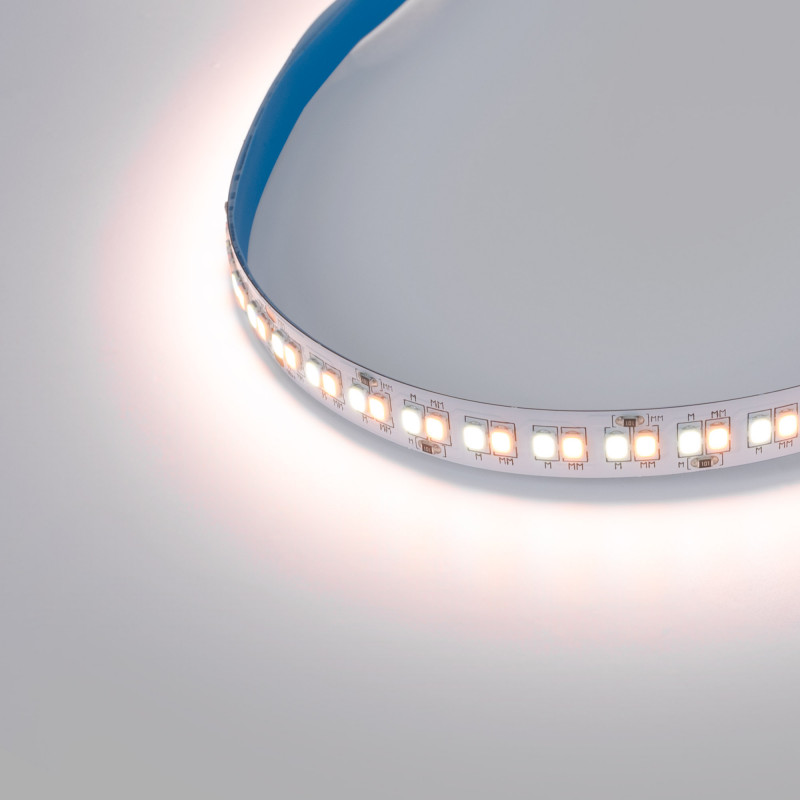

48V DC LED Strip - zoom 2 CW

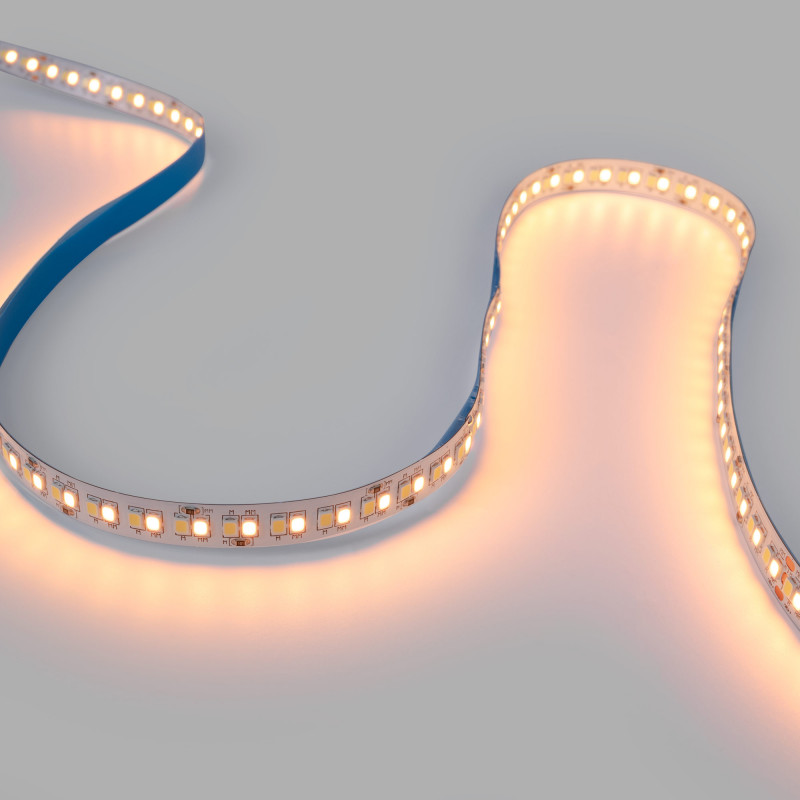

48V DC LED Strip - zoom WW

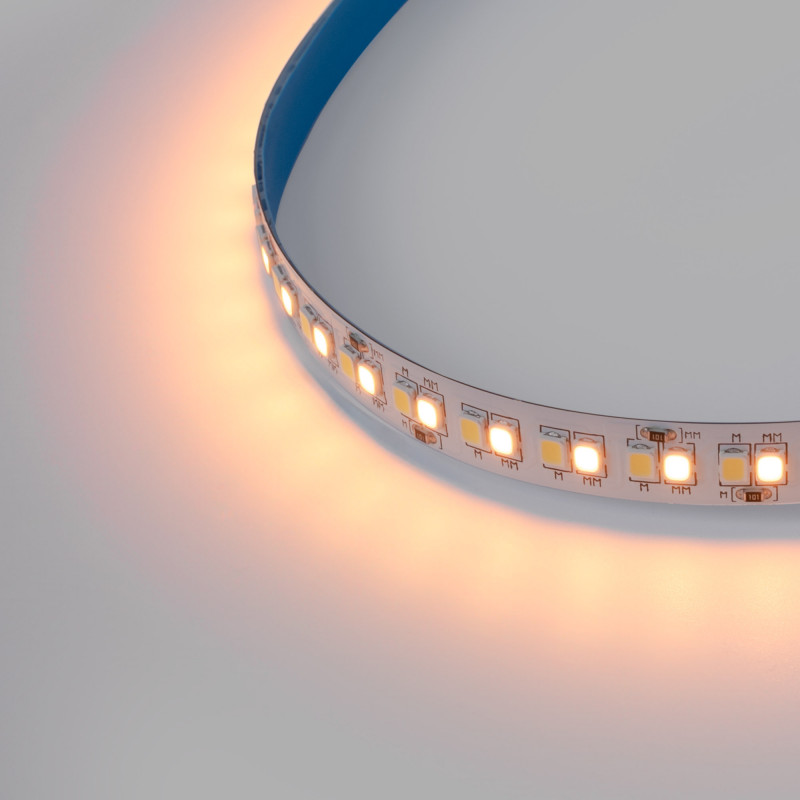

48V DC LED Strip - zoom 2 WW

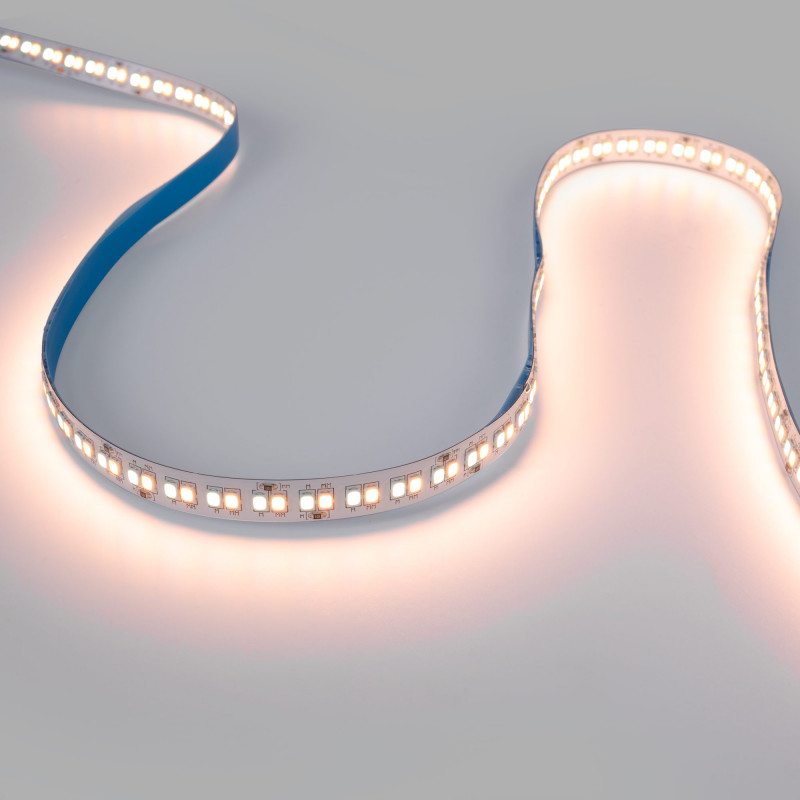

48V DC LED Strip - zoom 3 WW

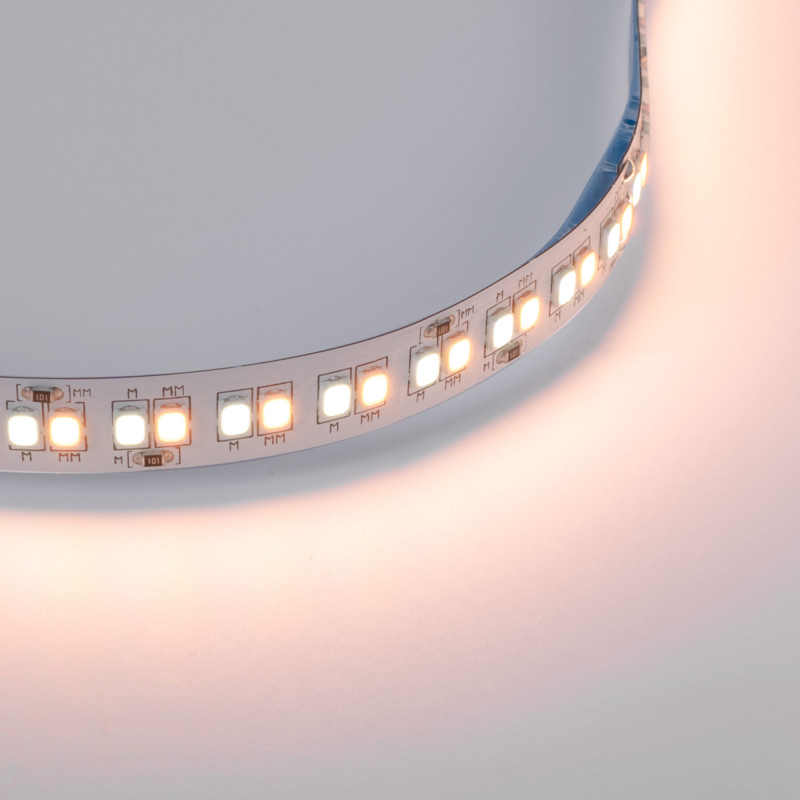

48V DC LED Strip - zoom 4 WW
48V DC LED Strip - zoom CW
48V DC LED Strip - zoom 2 CW
48V DC LED Strip - zoom 3 CW
48V DC LED Strip - zoom 4 CW

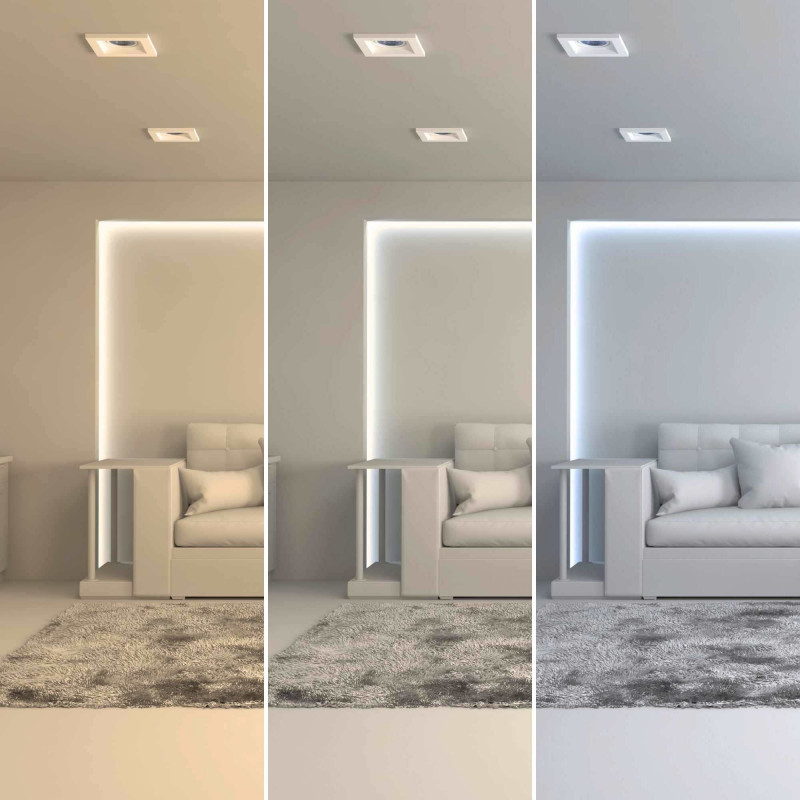

48V DC LED Strip - CCT aplication 2

48V DC LED Strip - CCT - 12W/m - 10mm - IP20 - 10 meters - 224ch/m

SKU:BLS2835-48V12W-IP20-10M-CCT
Has superado el límite de unidades
In stock 169 units
Data sheet

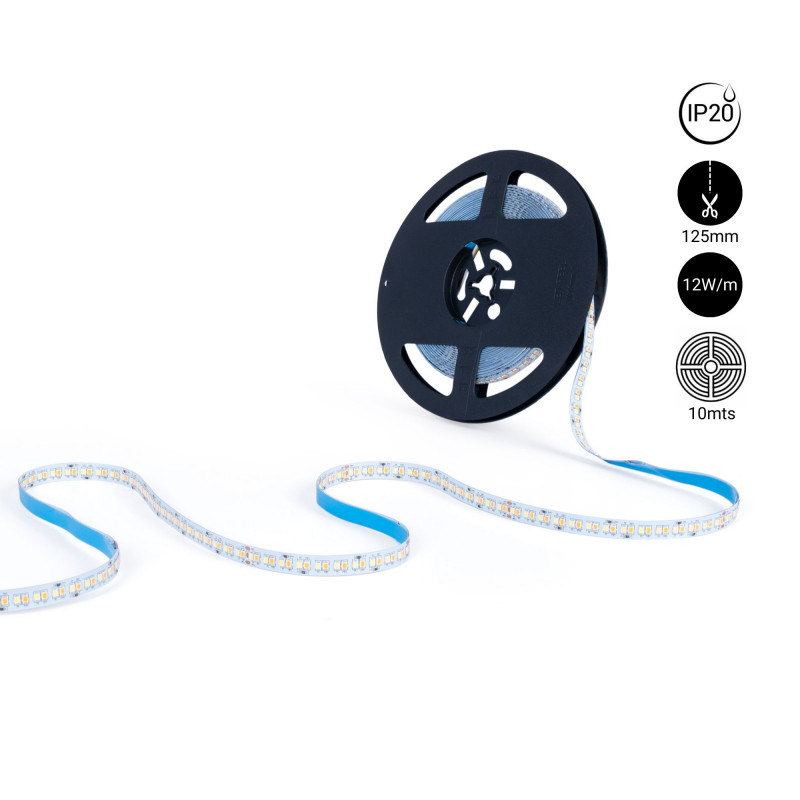

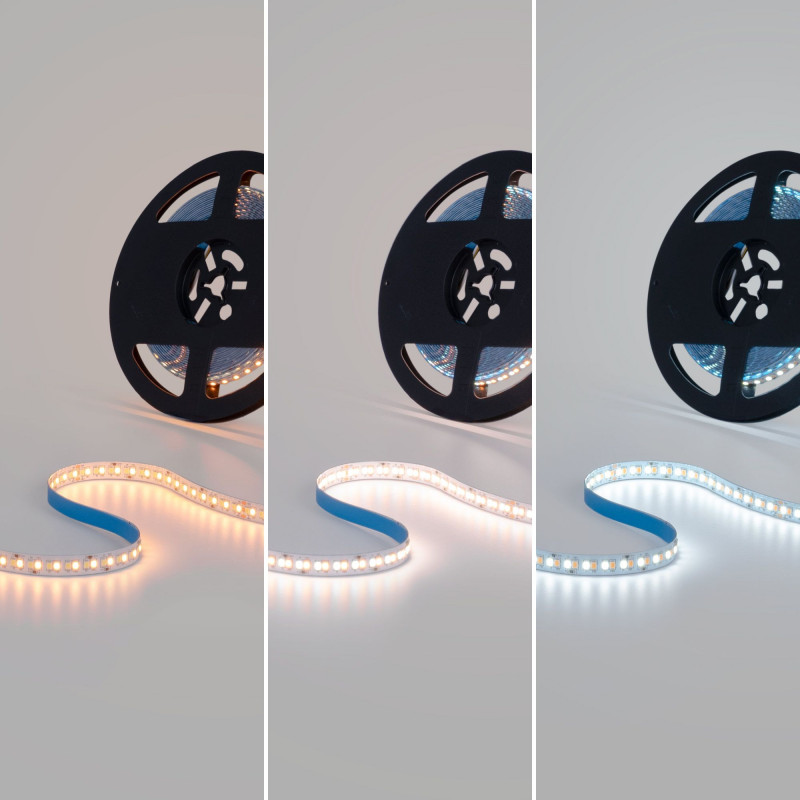

The 48V CCT LED Strip has a power of 12W/m and comes in a 10-meter roll.

With a density of 224 chips/m, it offers high-quality lighting with an efficiency of 100 lm/W.

Due to its minimal voltage drop, it is a perfect choice for long distance installations without the need for additional components.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

48V DC LED Strip - CCT - 10 meters

  • Efficient voltage: Operating at 48V, the LED strip minimizes voltage drop, allowing for long installations without the need for amplifiers or additional power supplies.

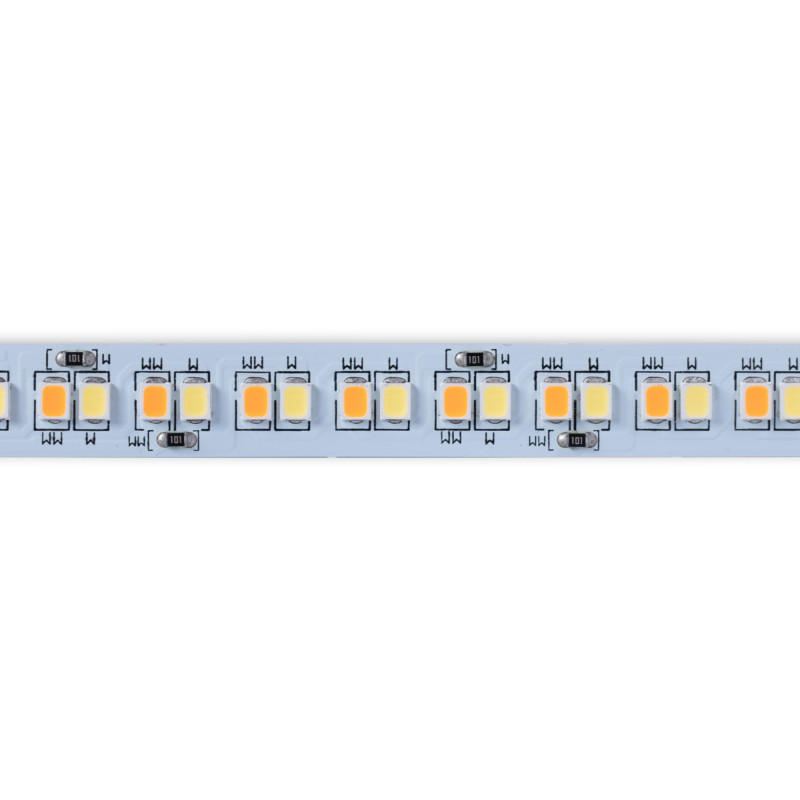

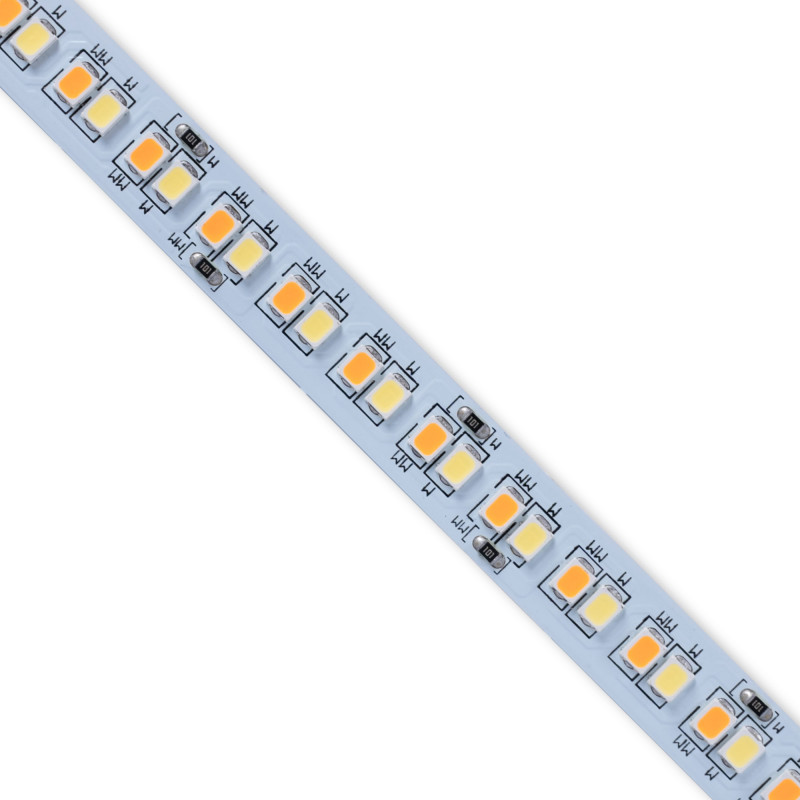

  • High brightness: It includes SMD2835 LED chips with a high density of 224 chips/m, ensuring bright and homogeneous lighting. With a power of 12W/m and an efficiency of 100lm/W, this LED strip is not only powerful but also energy efficient.

  • Tone versatility: Being a CCT strip with a range of 1800-6500K, it allows adjusting the light temperature from very warm to very cool tones, adapting perfectly to any type of decoration or environmental need.

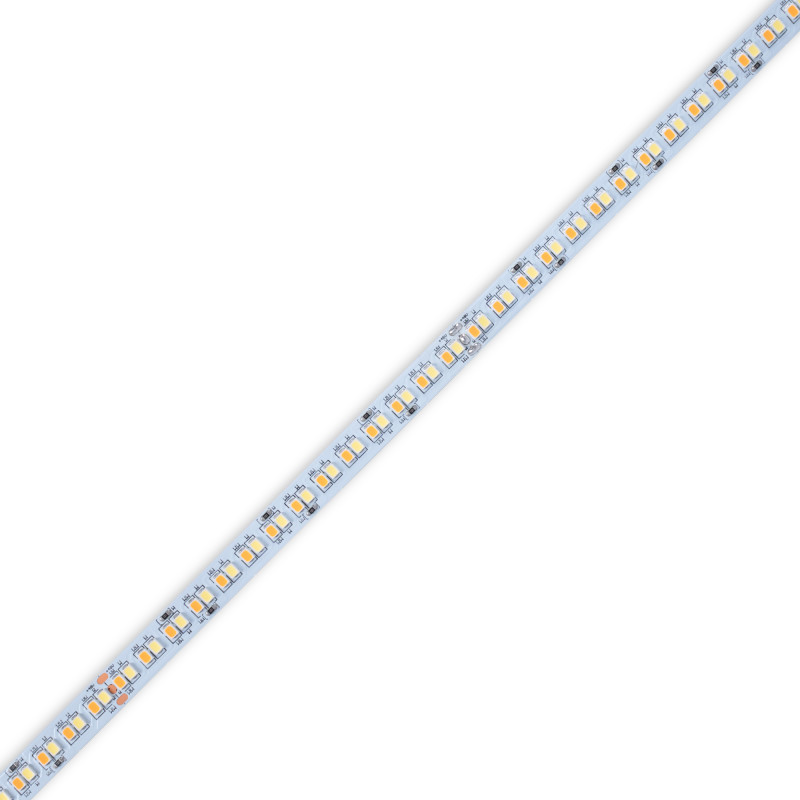

  • Practical design: Its 10mm wide PCB allows cuts every 165mm, facilitating installation and adaptation to any space. In addition, it incorporates a 3M self-adhesive on the back to adhere it to the desired surface.

  • Durability and safety: Manufactured with resistant and durable materials, it has an IP20 degree of protection, suitable for indoor use.

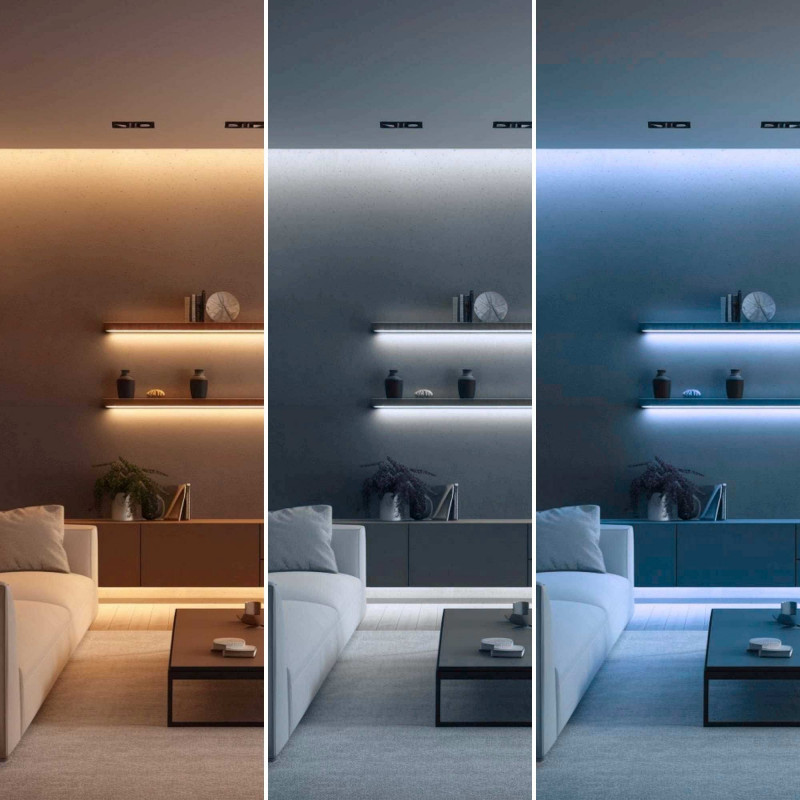

This LED strip is ideal for residential and commercial projects where long installations are required, providing adaptable lighting thanks to its CCT capability.

We have a large family of compatible drivers, controllers and power supplies (See related products).

Nominal Voltage (V)
48V
Power/m (W/m)
12
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
10 x 10000
Hue
CCT
Efficiency (Lm/w)
100
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
224
Track width (mm)
10
Cutting distance (mm)
125
Use Outdoor
No
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
