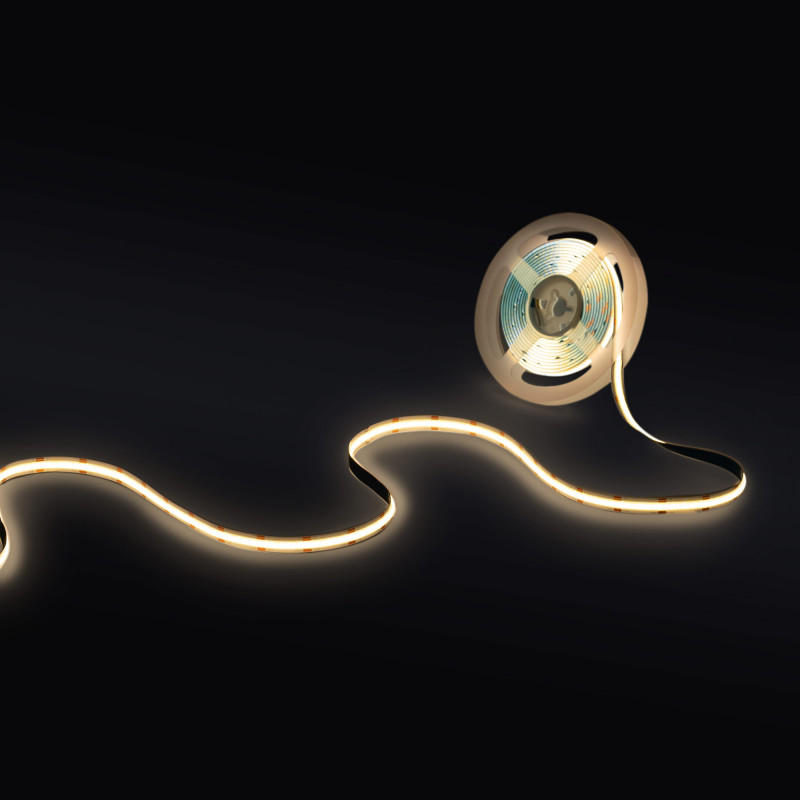

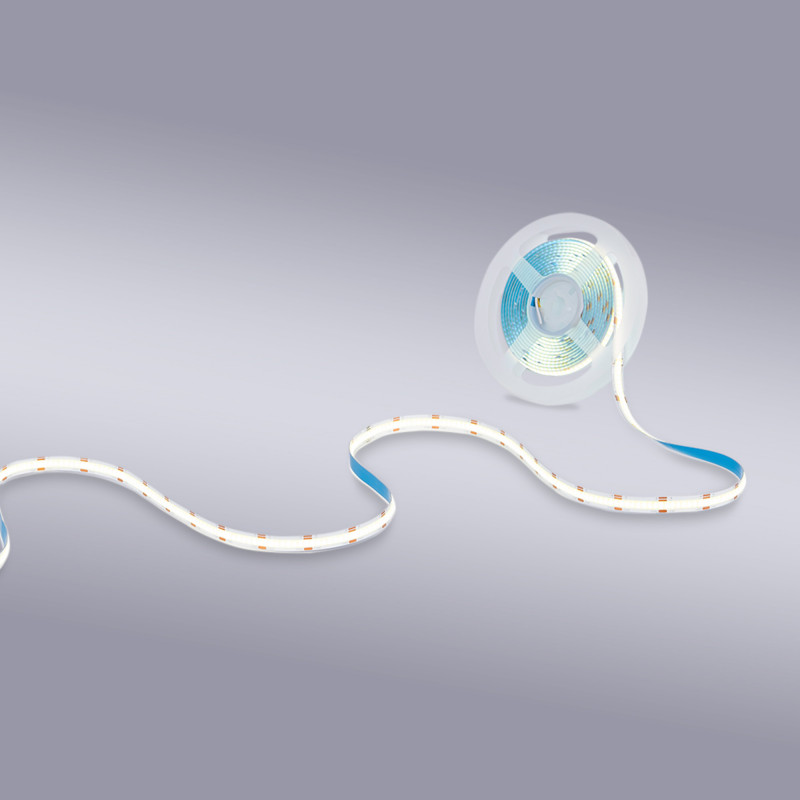

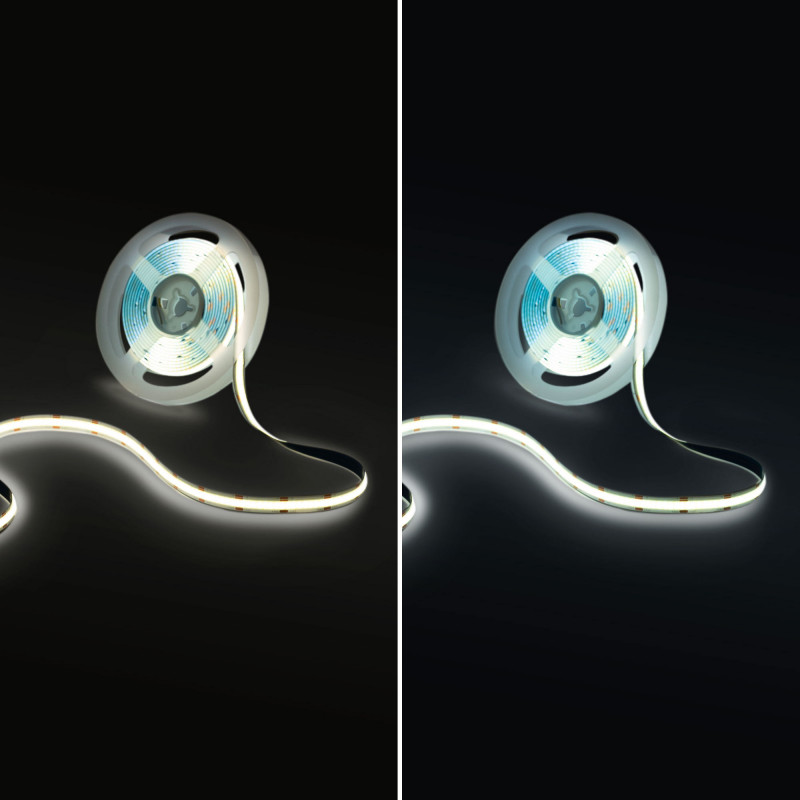

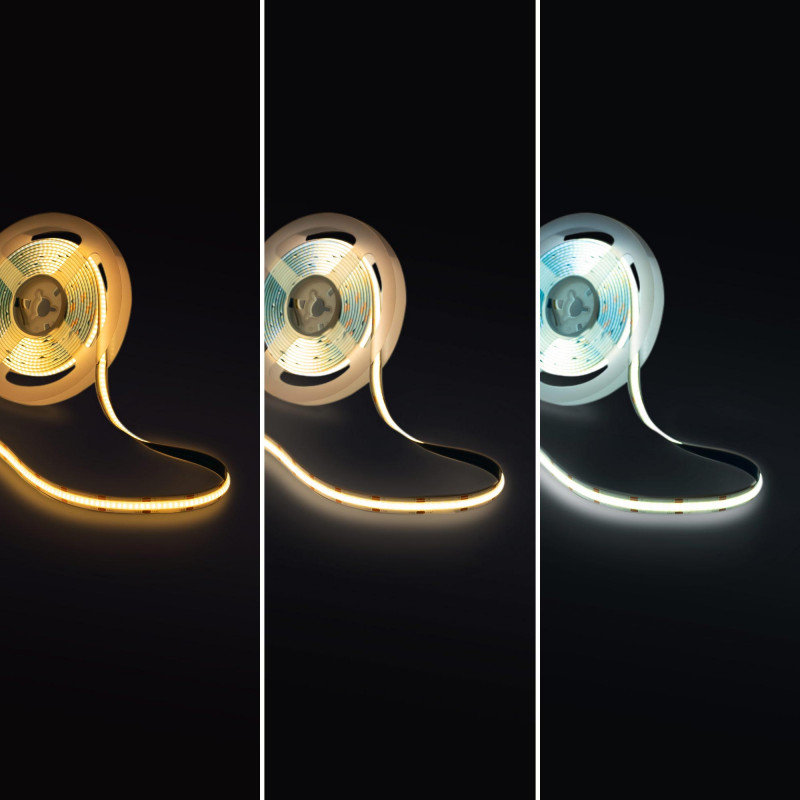

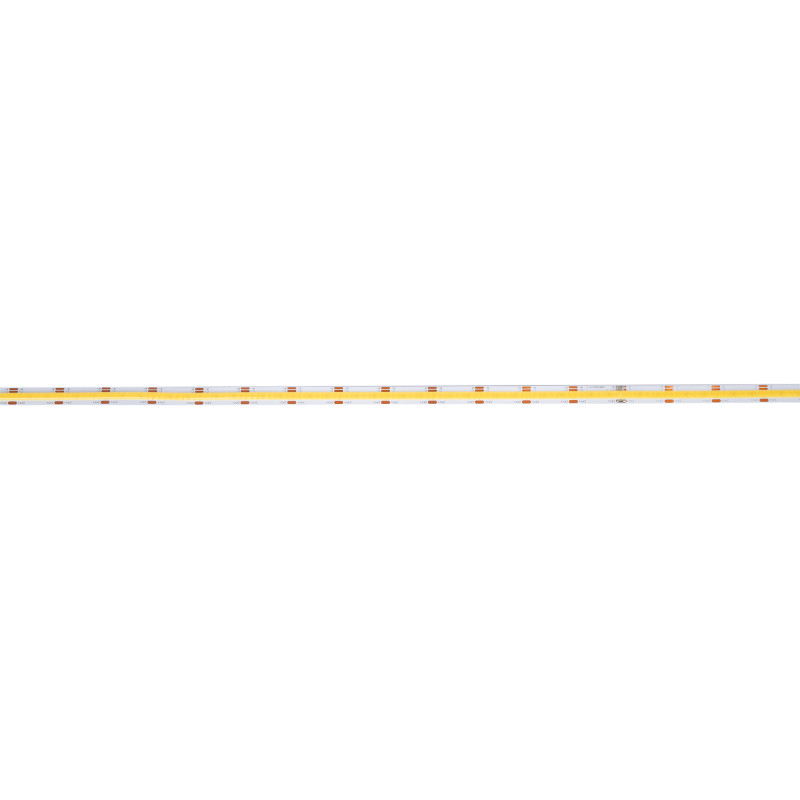

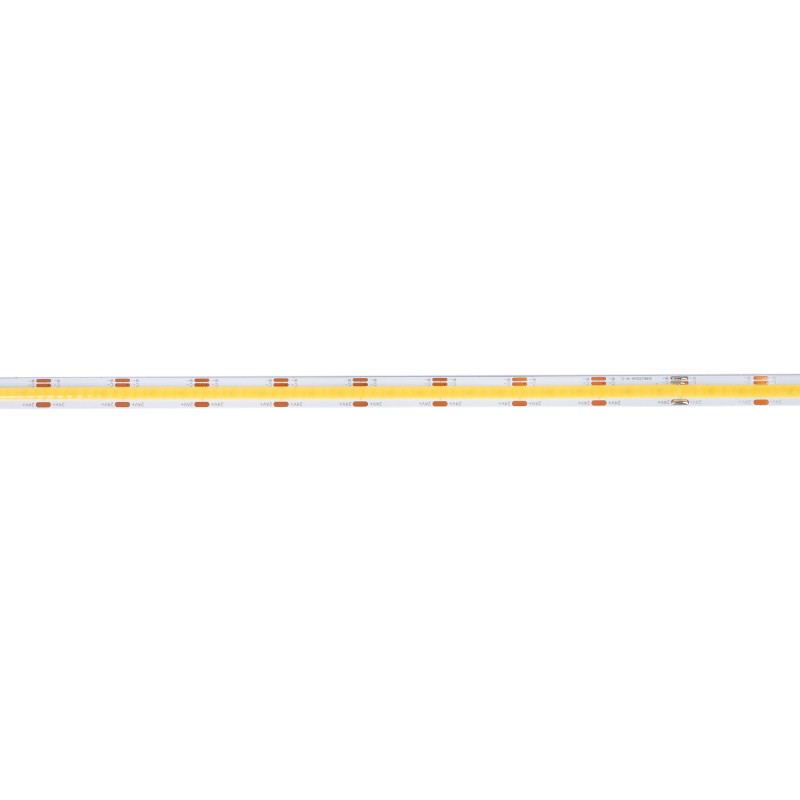

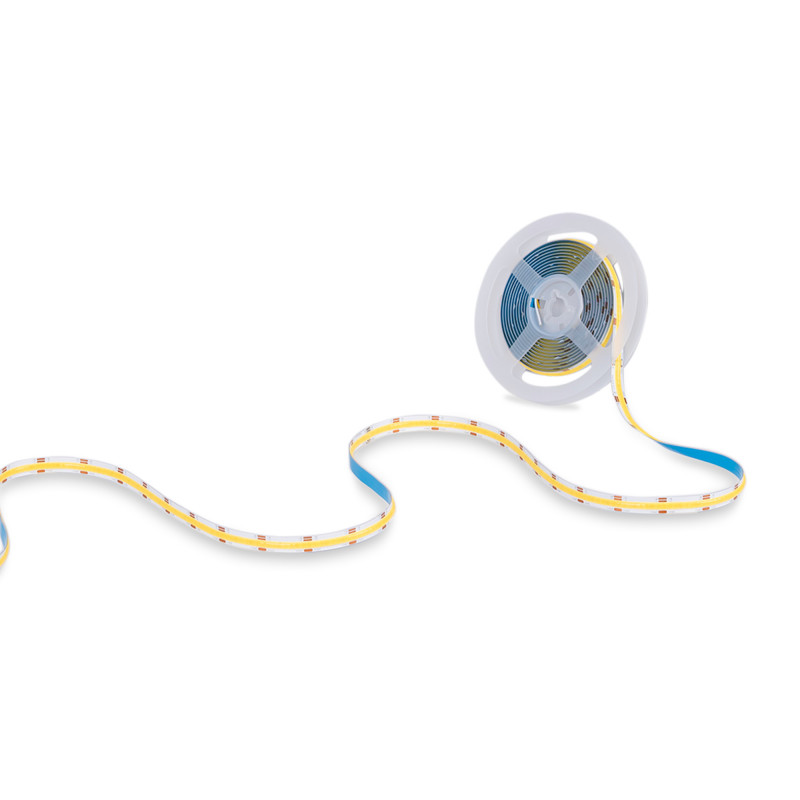

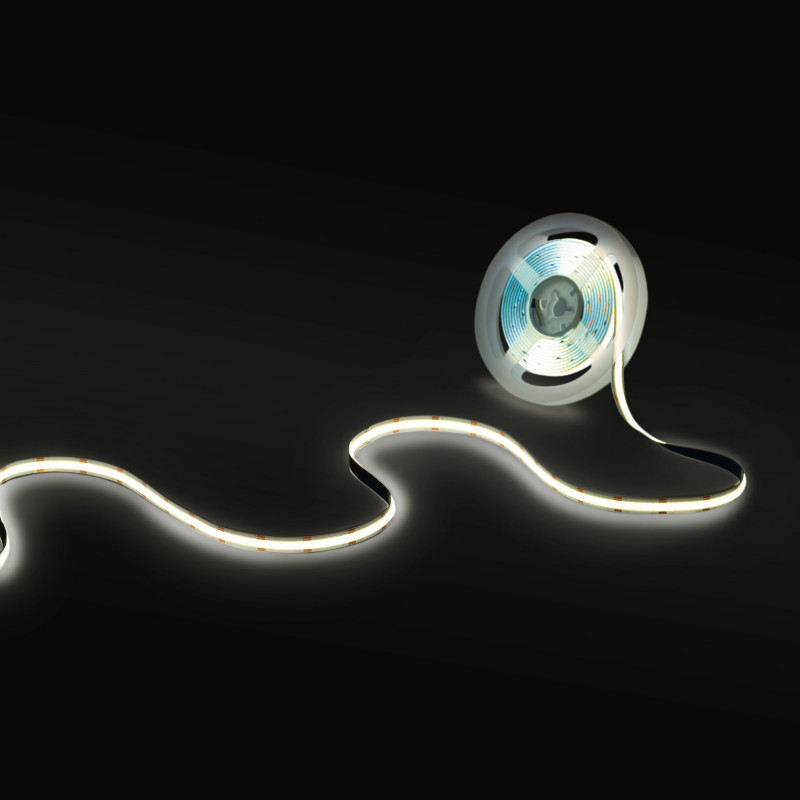

24V DC COB LED Strip - CCT - 14W/m - 10mm - IP20 - 5 meters roll - Cut every 26mm
SKU:BLSCOB-24V14W-IP20-CCT
€28.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
This LED strip incorporates COB technology, allowing it to emit a continuous light without visible points. Especially recommended when homogeneous illumination is desired, it's designed to work with reflective surfaces or to use transparent diffusers.
With a luminous intensity of 14W per meter, this strip provides exceptional brightness, superior to conventional LED strips.
The LED strip comes in a roll of 5 meters and allows cuts every 26mm, according to the indicated marks. It incorporates 3M self-adhesive backing to adhere to the desired surface.
Its slim 10mm design allows for easy installation in any corner of the home, office or store.
|
Product features:
|
Please note that some technical characteristics such as power or efficacy may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.
Nominal Voltage (V)
24V-DC
Power/m (W/m)
14
Kelvin (K)
2700
4000
6500
4000
6500
Beam angle (º)
120
IP
IP20
Frequency (Hz)
50 - 60
Hue
CCT
Efficiency (Lm/w)
100
CRI
90-95
LED Type
COB
Dimmable
Yes
No. of chips/metre
608
Track width (mm)
10
Use Outdoor
No
Adhesive
3M
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Good morning. I need a continuous run of 15 meters and I wanted to know if three strips can always be joined with a source according to my calculations of 210W. As an aside, I have at least 4 changes of direction at 90 degrees and with what joints could be made. Thank you. |
|---|
| R: Answer: | Hello, to connect the strips we have L connectors to connect the strips together with 90 degree changes. We also have straight connectors. Straight connector reference: SEN10BB-3 . L-connector part number: FPC10-L2A . Based on the source, we do not have 210W, therefore we would recommend one of 250W to work effortlessly and have more efficiency and lifetime. We would recommend this source: DY-250W-24-A. Thank you very much!
Barcelona LED: Sergi| 12/10/2024 |
|---|
