1.2W labeling modules

1.2W DC 12V 160º IP65 cold white sign modules 1.2W DC 12V 160º IP65 cold white

SKU:BM1432BF
Has superado el límite de unidades
In stock 3097 units
Data sheet

12V direct sign LED chip without transformer.
Chips: 3xSMD2835 LEDs
Power: 1.2W
IP 65
Open angle 160º.
Cold white 6000ºK

Price per unit

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

ADHESIVE LED MODULES FOR ILLUMINATED SIGNS 1.2W OPEN ANGLE 160º.

The LED modules for signage are the perfect solution when illuminating backlit surfaces with opal cover, or in those curved or irregular surfaces where the LED strip is not the right solution.

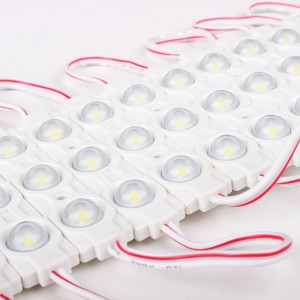

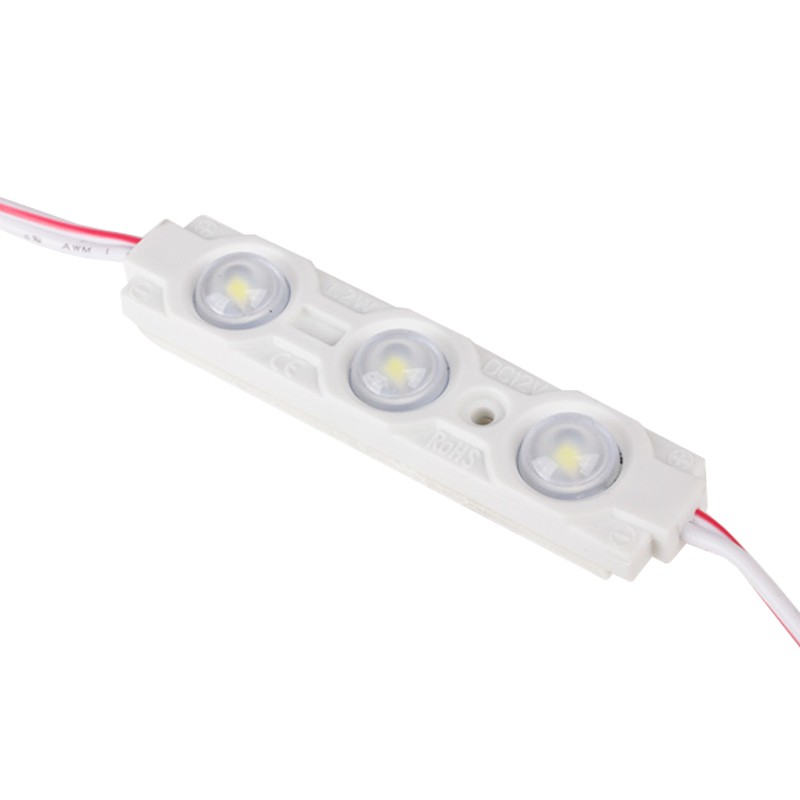

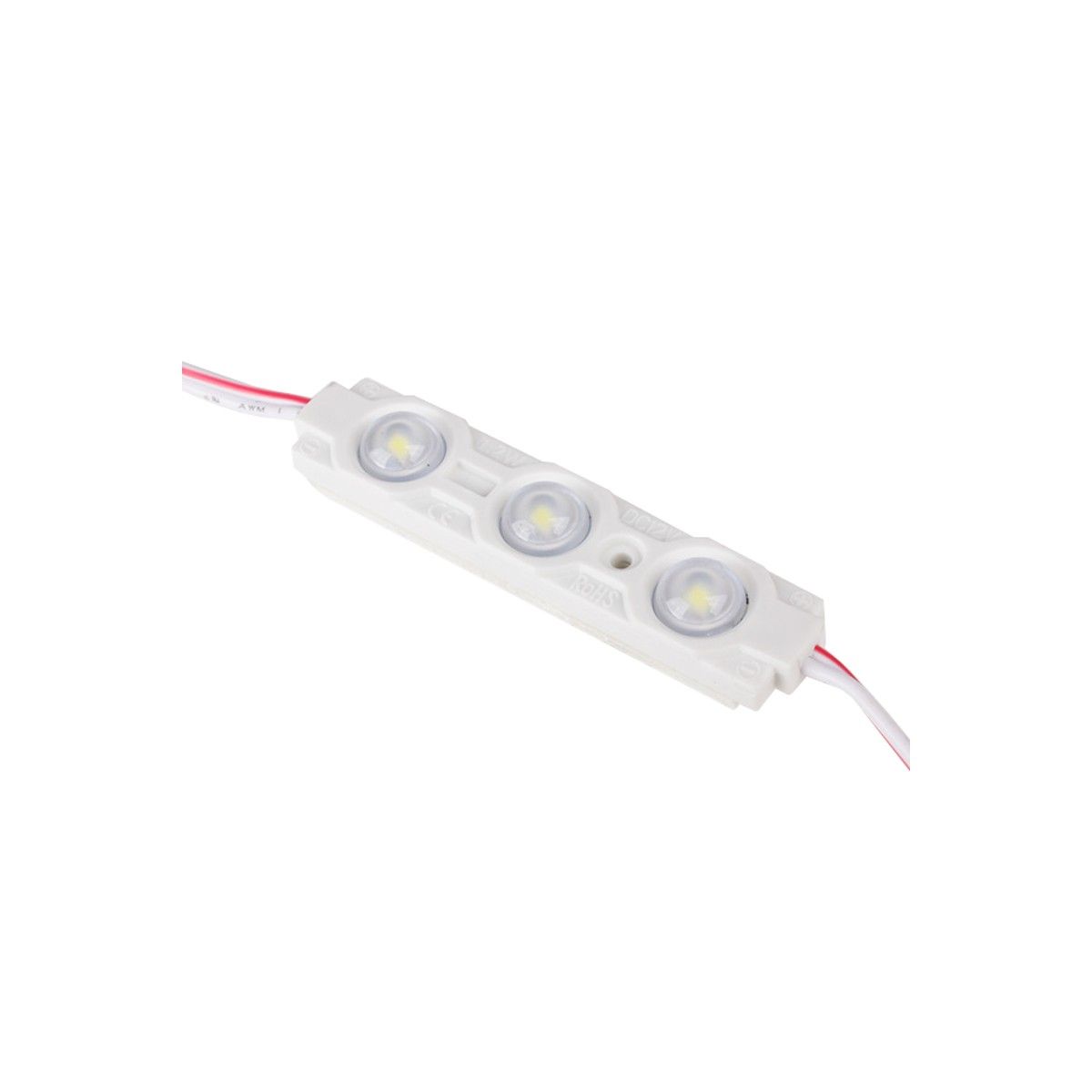

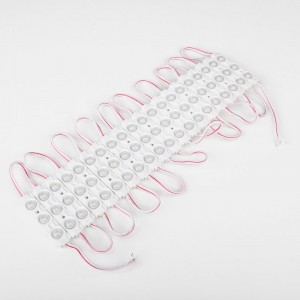

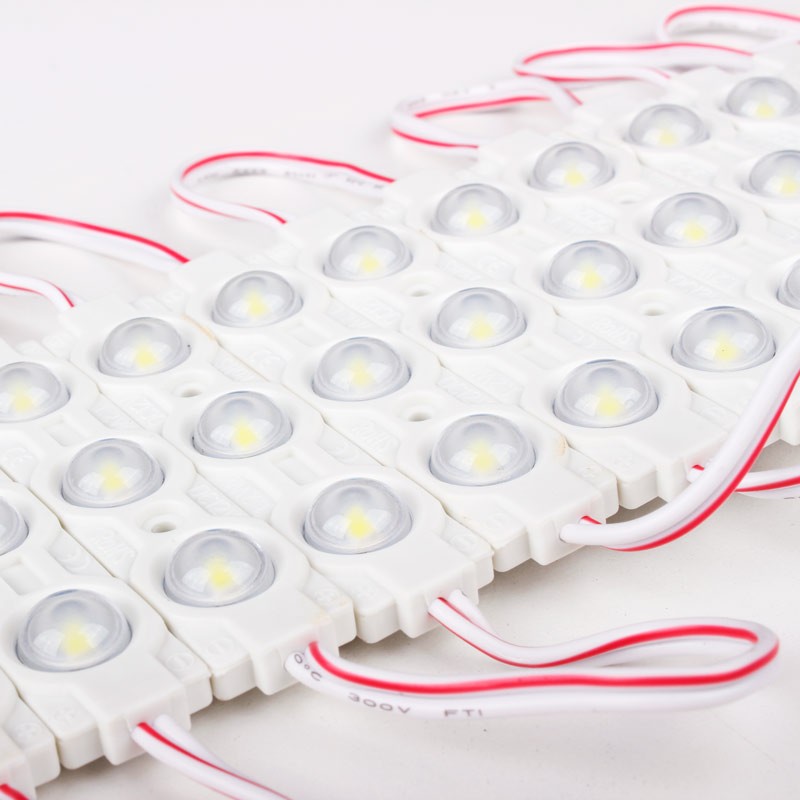

Each module consists of 3 SM2835 LED chips encapsulated in a watertight plastic chip, connected to each other by an electrical cable that is 70mm from one module to the other.

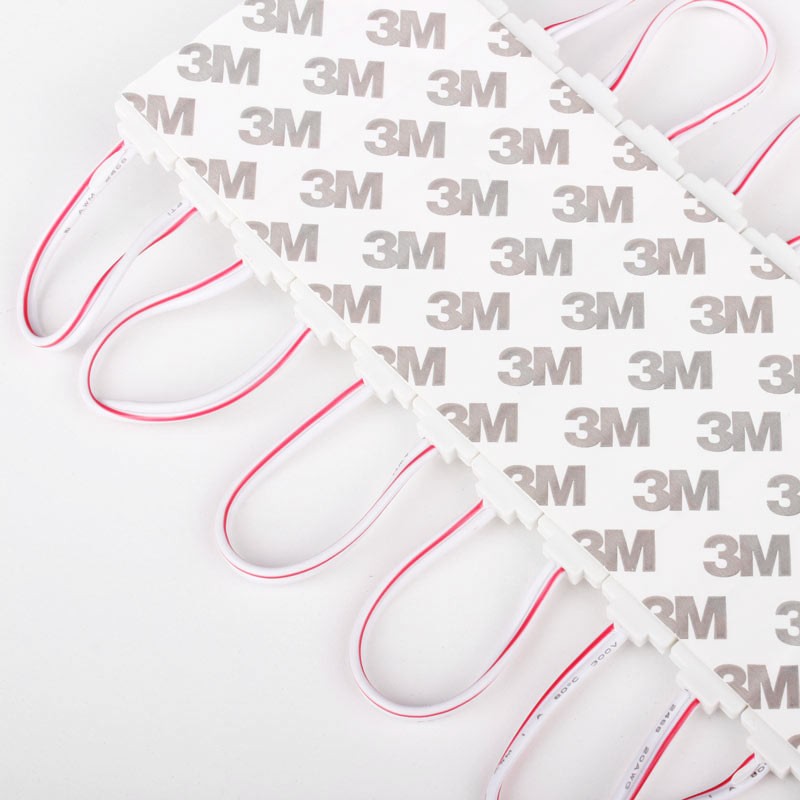

The chips are all glued in line on the back with 3M self-adhesive, very easy to separate with the cut of a scissors or cuttex. Afterwards, the plastic covering the 3M is separated and glued in the chosen place in line or creating shapes.

Despite its small size, 3 SM2835 chips per chip, it has a power of 1.2W, each module. The illumination is equivalent to an installation of fluorescent tubes in backlit panels, signs or labels.

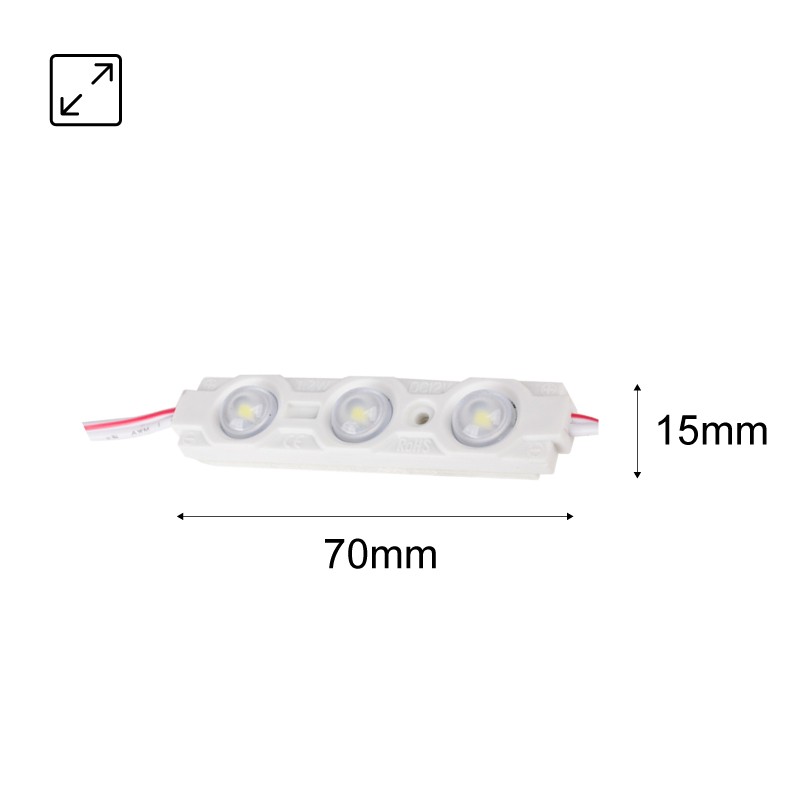

  • Dimensions of the modules: 70x15mm
  • Thickness of the tablets: 6mm
  • Length of cable between the pads: 70mm
  • Available in cool white color 6000ºK.
  • Not dimmable.

Applications of the LED modules:

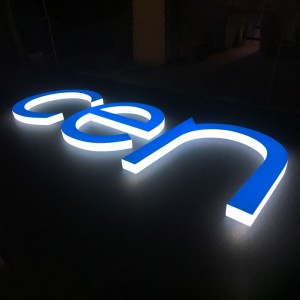

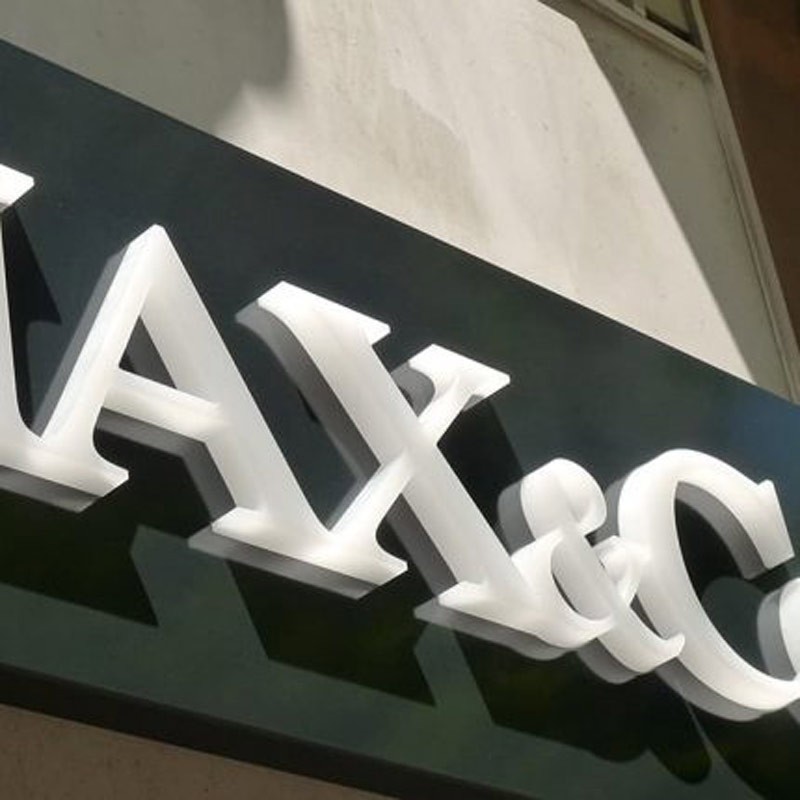

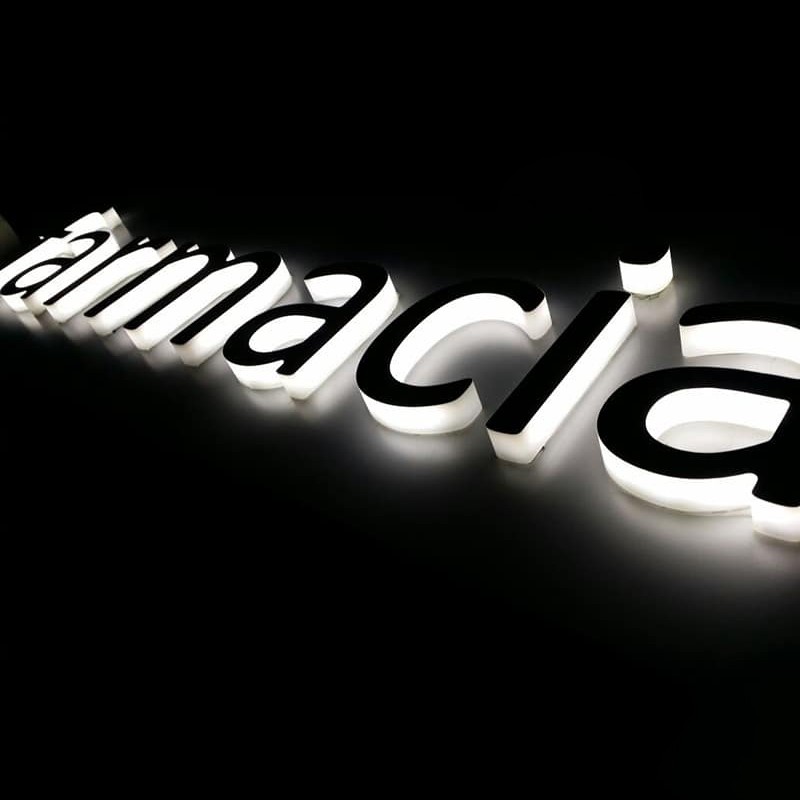

  • Its most common application is signage, such as illuminated signs, giant letters illuminated from the inside, logos, advertising light boxes....
  • Illumination of objects inside such as modding in computers or inside furniture or boxes.
  • Illumination of fish tanks and aquariums.
  • Decoration of exteriors
  • Backlighting in general.
Beam angle (º)
160
IP
IP65
Material
Plastic
Diffuser material
Plastic
Temperature range
-20°C ~ +40°C
Adhesive
3M
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
