LED Module 2xSMD2835 1.2W 12V IP65 170º.
SKU:BM1421BC
€0.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

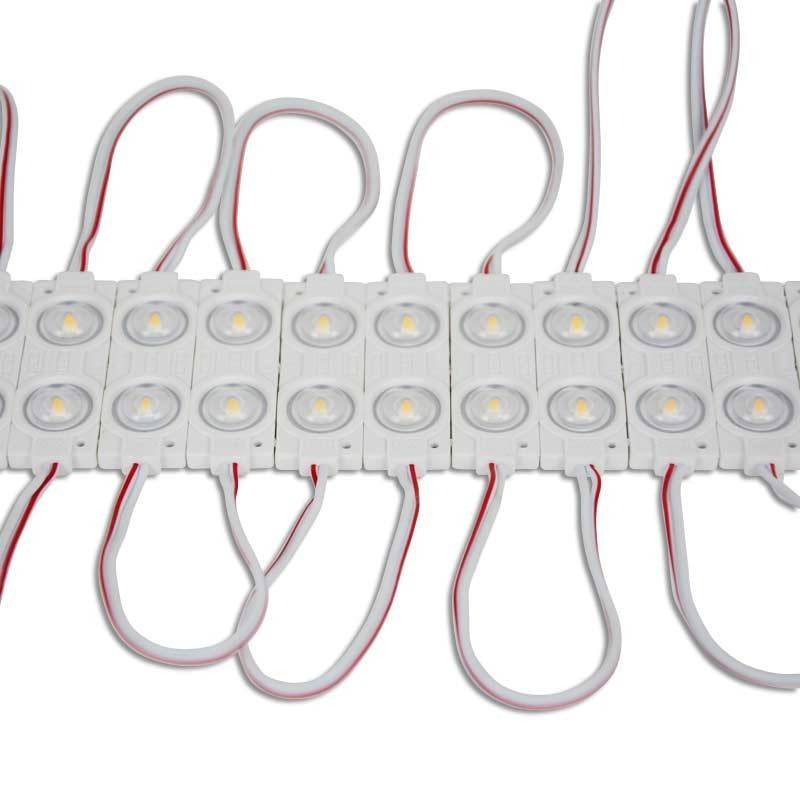

Self-adhesive and very easy to use LED pellets
These small LED tablets are the perfect solution to many problems that may arise when lighting an object or place. It is a type of LED diode encapsulated in a kind of plastic tablet connected to each other by an electrical cable that is 135mm from one module to the other.
LED module with the back side with 3M self-adhesive, very easy to separate with the cut of a scissors or cuttex. Afterwards you separate the plastic that covers the 3M and stick in the chosen place in line or creating forms.
They offer much more light than they appear.
Despite their small size, they have 2 SMD2835 chips per chip, with a power of 1.2W. This is reflected in an acceptable illumination, more than enough to replace fluorescent backlit, signs or labels. For its correct operation it is necessary to connect it to a 12V power supply with a power higher than 24W.
- Total lumens: 105 lm per tablet.
- Available in warm white 3000ºK and cold white 6500ºK.
- Dimmable
Applications of the LED modules:
- Its most used application is in signage, such as illuminated signs, giant letters to illuminate them inside, logos, luminous advertising boxes...
- Illumination of objects in its interior as modding in computers or in interiors of furniture or boxes.
- Very used in tuning of automobiles.
- Illumination of fish tanks and aquariums.
- Decorating exteriors like fountains and swimming pools.
- Backlighting in general.
Nominal Voltage (V)
12V-DC
Power (W)
1.2
Lumens (Lm)
105
Kelvin (K)
3000
6500
6500
Beam angle (º)
170
IP
IP65
Dimensions (mm) Lxlxh
58x18x9
Hue
Cool white
Warm white
Warm white
CRI
80-85
LED Type
SMD 2835
Dimmable
Yes
Diffuser material
Plastic
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Intensive
Certificates
CE
ROHS
ROHS
Questions
| P: Question: |
In a sign that is exposed to the sun, it is easy for it to exceed 40ºC. I understand that the 40ºC marked on the technical data sheet is for work. Do you have any economical protection system if these 40ºC are exceeded? |
|---|
| R: Answer: | We have no incidence of mounting on signage due to temperature. |
|---|
| P: Question: |
Is the transformer included? Can you give me a quotation for 1 sign of 18m linear and another of 5 meters linear with transformers included? Thank you and best regards. |
|---|
| R: Answer: | The 12v power supply is not included, it depends on the number of modules. For quotations and orders, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |
Hello; How many leds can be used with a single power supply, could for example 50 be used with a 100w transformer? On the other hand, if I order those 50, would they come together or each one separately? Thanks |
|---|
| R: Answer: | Normally they go in packs of 20 modules together. They are 1.2W, a source of 12v and 100W is sufficient, although it should be borne in mind that linear distances of more than 5mts can have voltage drops. |
|---|
| P: Question: | for an outdoor sign of 8m x 60cm and 24cm background with very dark gray vinyl almost black with translucent letters of course and is currently with fluorescent tubes could be illuminated with modules "Reference: BM1421BF" and if you can how many would need and power supply, thanks |
|---|
| R: Answer: | It depends on the amount of light desired but normally each light point is separated by about 15-20cm. |
|---|
| P: Question: | For an exterior sign of white sheets labeled with a lilac vinyl die-cut to highlight the white letters, about 8 meters long and about 50 cm wide, which LED product would you recommend and how many for that size? Thanks |
|---|
| R: Answer: | Depending on the depth where the modules are placed and the thickness of the vinyl, it would be convenient to do a small test on site to choose the distances according to the desired light. |
|---|
| P: Question: |
Hi, I need LED strips for outdoor in 12V to put backlighting in some letters. what options do you recommend? It is to repair a sign that had a 2 led strips and wiring space of 10mm wide. |
|---|
| R: Answer: | These modules are for sign backlighting and are 12Vdc. There are also 12Vdc waterproof 12mm strips for other uses as ref. B1543-5630BF. |
|---|
| P: Question: | I would like to know if there are illumination colors, if they can be glued on a boat under water. |
|---|
| R: Answer: | No, these LED sign modules, although IP65, are not for prolonged immersion. There are other lighting products for boats, for example ref. B2190. |
|---|
